SPECIFICATIONS

Application: Electric Toy

Brand Name: NONE

Choice: yes

Condition: New

Dissipation Power: MOSFET

Feature: 10A DC power supply MOSFET reverse connection protection board power protection module for high current ultra-low voltage drop

High-concerned chemical: none

Operating Temperature: -20-70℃

Origin: Mainland China

Package: TQFP

Product Name: 10A DC MOSFET Power Reverse Connection Protection Board 5V-26V/12V-60V Ultra-low Voltage Current Power supply Protection Module

Quantity: 1

Supply Voltage: DC 5-60V

Type: Module,Anti Reverse Connection Power Protection Board,Prevent Reverse Polarity 10A

is_customized: Yes

Features

1. Supports currents up to 10A with stable operation and minimal heat generation

2. Effectively prevents circuit damage caused by wiring errors

3. Ultra-low forward voltage drop design for enhanced efficiency

4. Utilises premium components for rapid response times

5. Modular compact structure for straightforward installation

Product Description

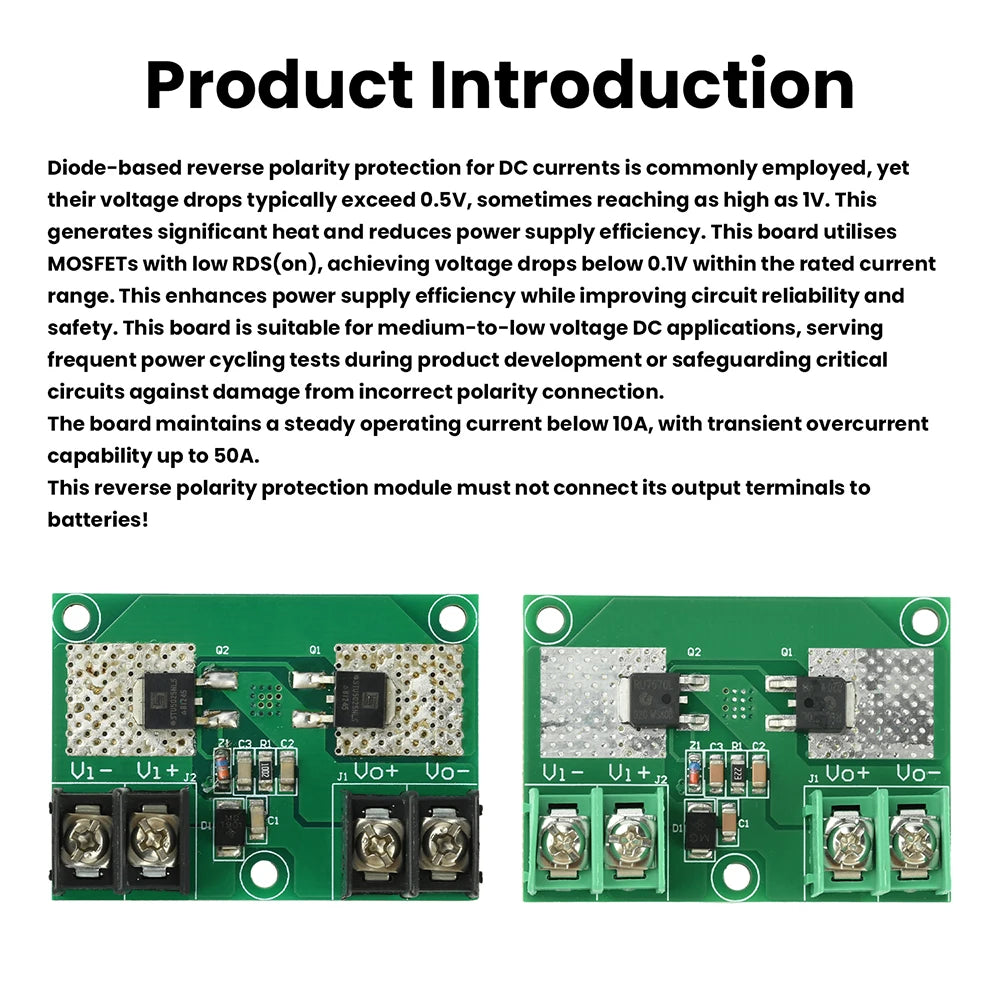

Conventional DC reverse polarity protection typically employs diodes, which exhibit voltage drops exceeding 0.5V—sometimes reaching 1V—resulting in significant heat generation and reduced power supply efficiency. This board utilises low RDS(on) MOSFETs, achieving voltage drops below 0.1V within the rated current range. This enhances power supply efficiency while improving circuit reliability and safety. This board is suitable for medium-to-low voltage DC applications, ideal for frequent power cycling during product development or safeguarding critical circuits against damage from incorrect polarity connection.

The board maintains a steady operating current below 10A, with a transient overcurrent capacity of up to 50A.

CRITICAL: The output terminals of this reverse polarity protection module must NOT be connected to a battery!

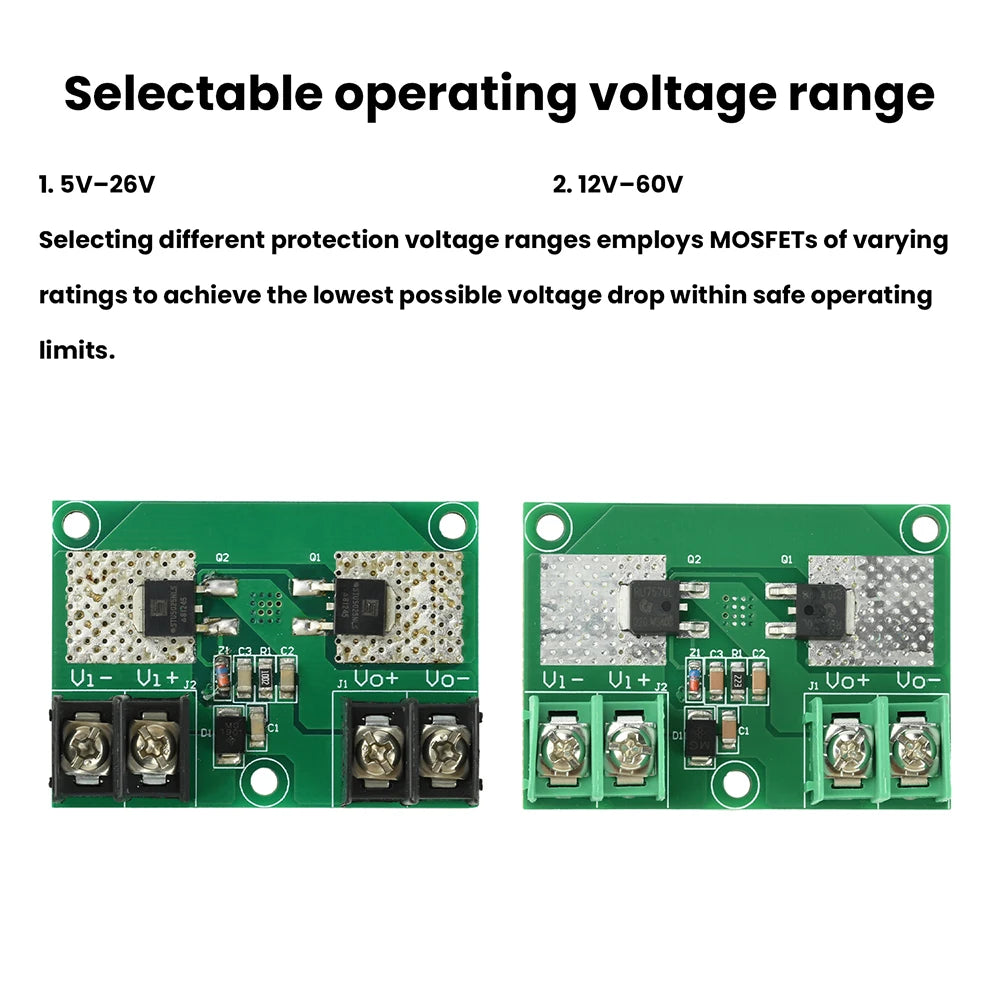

Selectable operating voltage ranges:

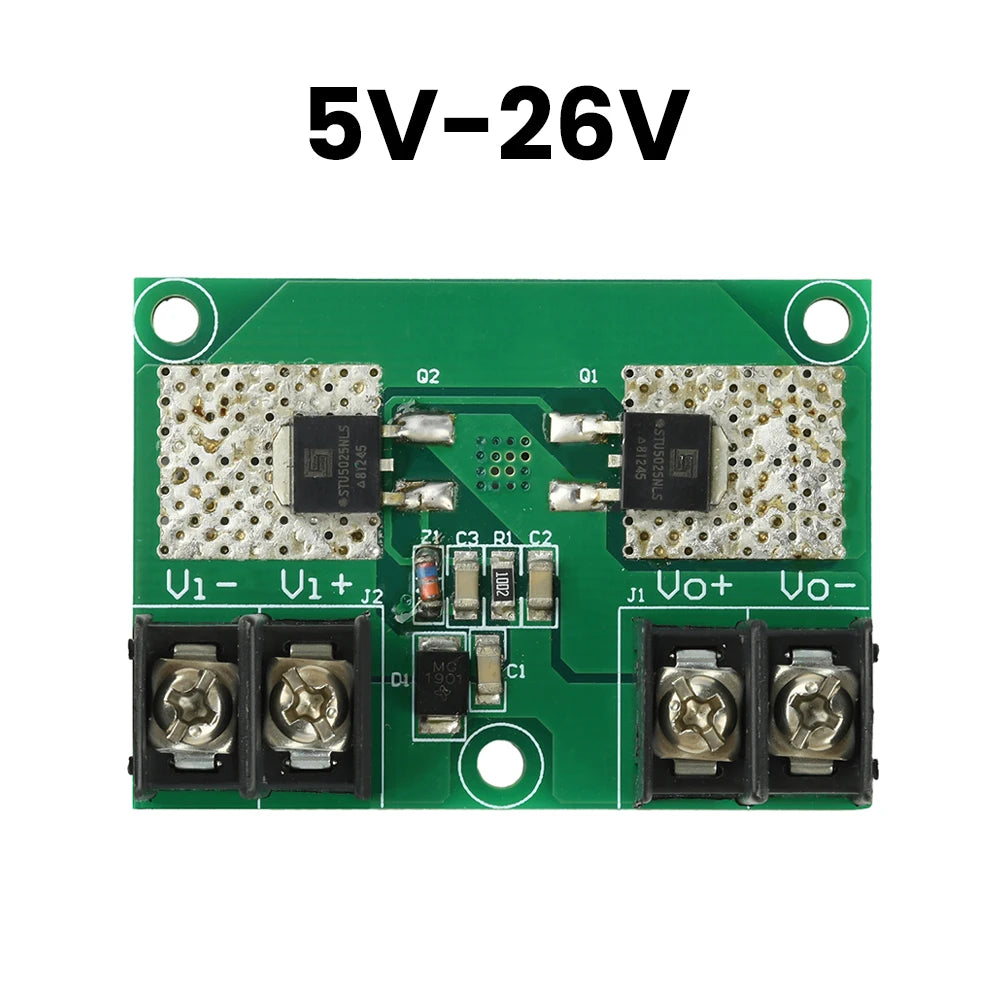

1. 5V–26V

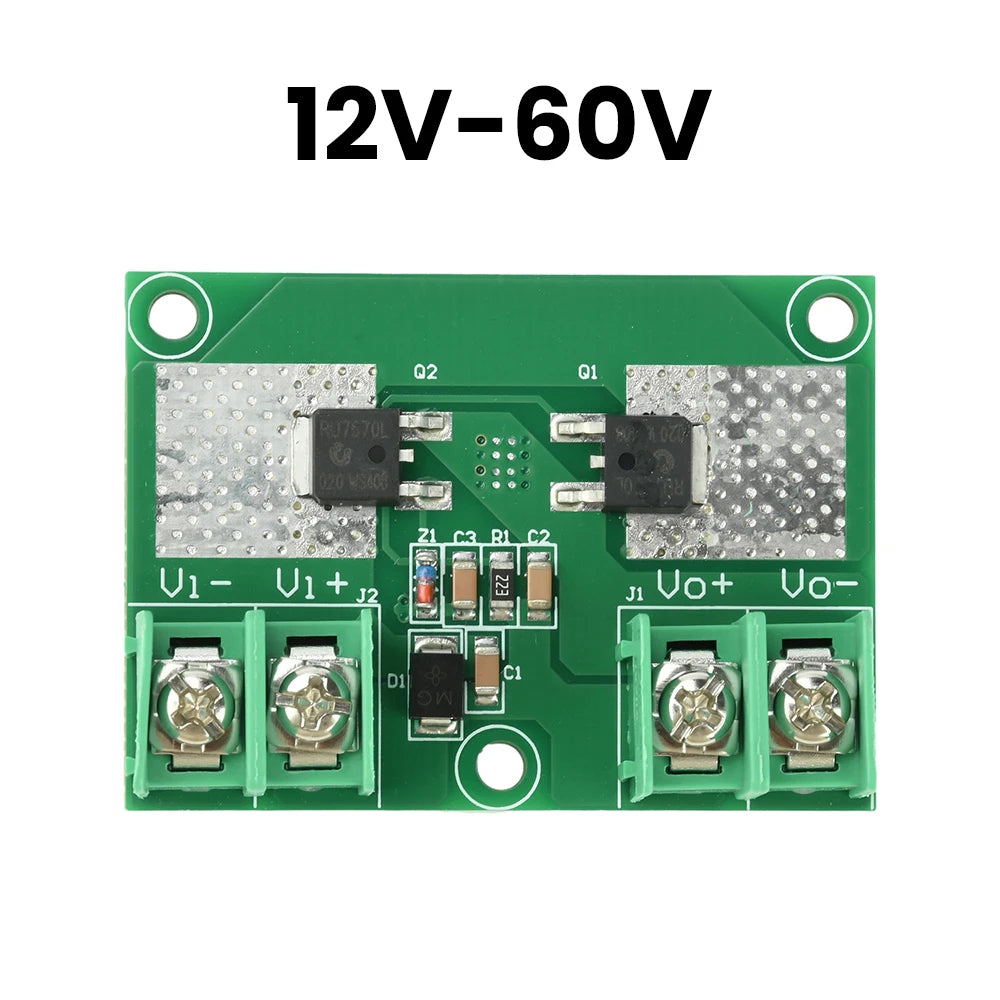

2. 12V–60V

Selecting different protection voltage ranges employs corresponding MOSFETs to achieve minimal voltage drop within safe operating limits.

Package List:

Reverse polarity protection board × 1
