10K: 10K audio signal transformer, interstage transformer can pass 35 mA signal current PT-45, frequency response 20-22KHZ

10K: 10K audio signal transformer, interstage transformer can pass 35 mA signal current PT-45, frequency response 20-22KHZ

$582.57

$582.57 $0.00

Description

SPECIFICATIONS

Brand Name: NONE

Certification: NONE

Coil Number: Autotransformer

Coil Structure: Toroidal

High-concerned chemical: none

Origin: Mainland China

Phase: SINGLE

Use: AUDIO

is_customized: Yes

Wide-band sound 10K than 10K single-ended to single-ended multi-purpose signal transformer, 10K than 1K signal 1 to 1, no voltage gain, 1 to 1 signal transformer coupling coefficient is high, frequency response is wide.

Wide-band sound 10K than 10K-class transformer, full of analogy, the primary and secondary can pass 35 mA AC signal current, easy to deal with various source signal current. For the preamplifier, whether it is a amp or a transistor machine.

Interstage transformer function: used between the pre-stage output and the post-stage power amplifier for voltage conversion, impedance matching and interface conversion, which plays a role of connecting the upper and lower. At the same time, the change of the timbre has obvious retouching effect, eliminating the digital taste and enriching the scent.

This transformer has good isolation for passive pre-stage use, and has a very good touch-up effect on the change of tone color, eliminating digital taste and enriching the sense of charm.

Frequency response 20HZ to 22KHZ attenuation 1.8DB, another upgrade tool to upgrade the system.

This transformer can also be used as a passive pre-stage, single-ended to single-ended single-ended to balanced balance to balance balance to single-ended use

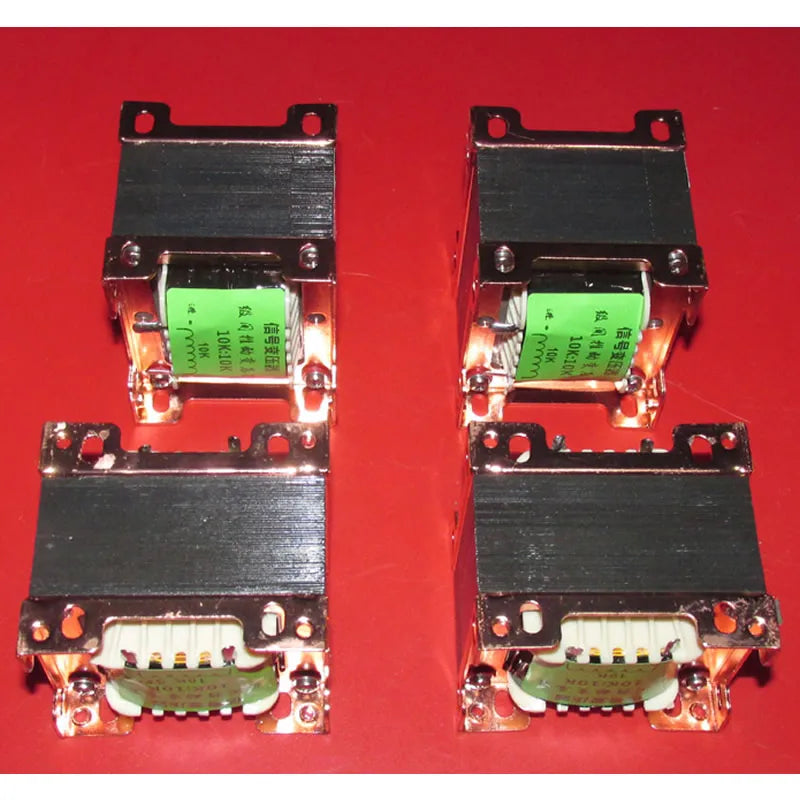

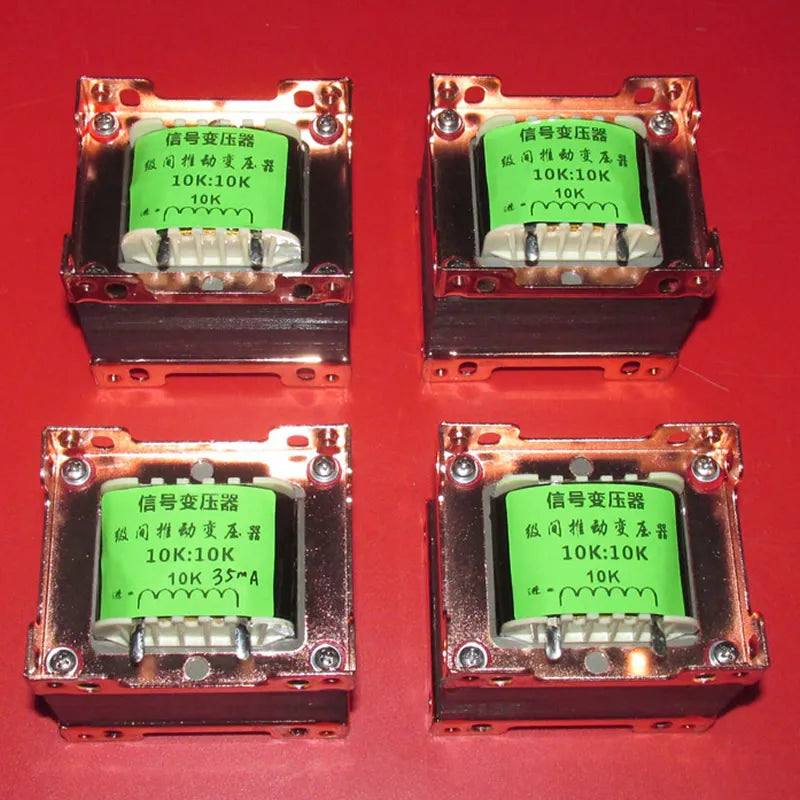

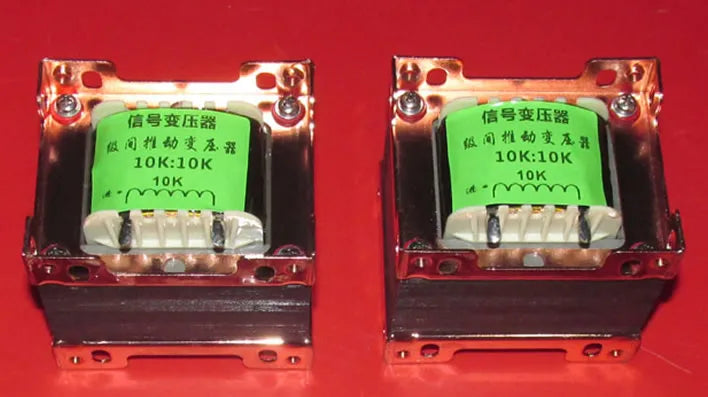

High quality oxygen-free copper enameled wire wound, nylon skeleton, imported annealing Z11 EI 66X30mm four-hole iron core winding, iron core insert, British Red Bull type iron clip fixed. Multi-layer multi-stage winding is used to expand the frequency response.

Primary three line input, secondary three line output.

Actual measurement: primary and secondary inductance is about 240H to 260H

Primary copper resistance is about 1,260 ohms

Secondary copper resistance is about 1340 ohms

Primary and secondary can pass 35mA AC audio current.

Bandwidth: 20HZ to 22KHZ attenuation of 1.8DB, can be tested by the fans after buying back.

Weighing about 1.83Kg / only.

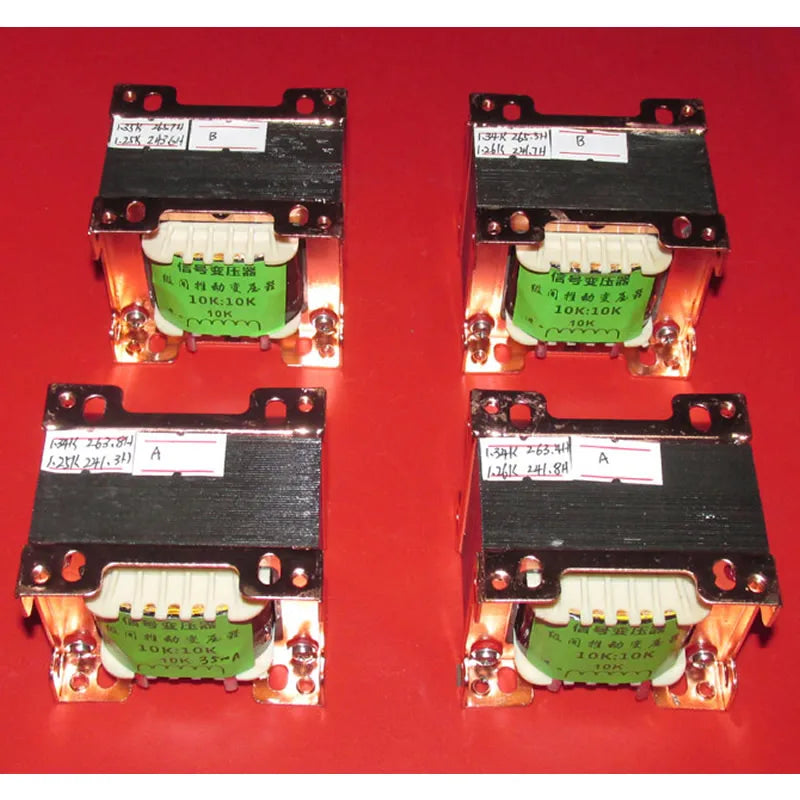

Transformer inductance, copper resistance pairing, you can use the value of the product, the sound quality is better than the early US West Electric WE111 signal transformer, the United States West Electric WE111 transformer friends can compare parameters and listening effects.

Affirmation: Due to different test conditions and equipment, the measured inductance and resistance values will be different, and the advertisement will be different.

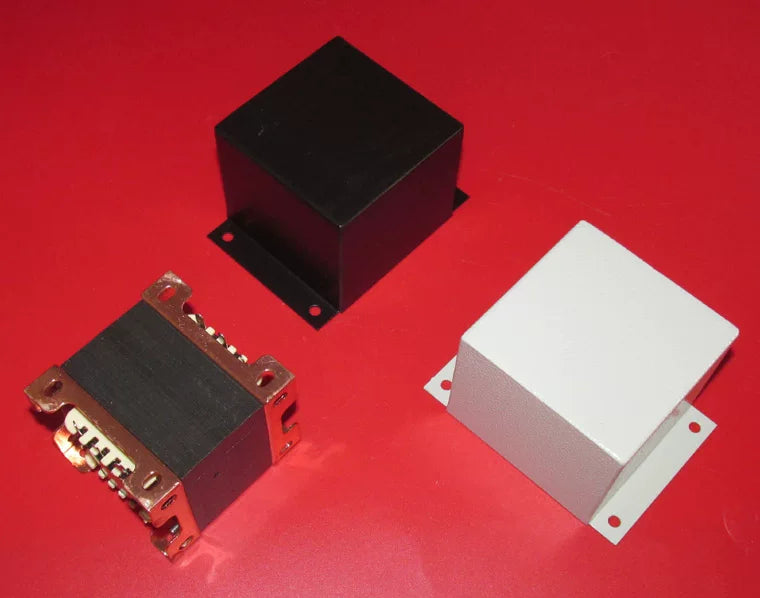

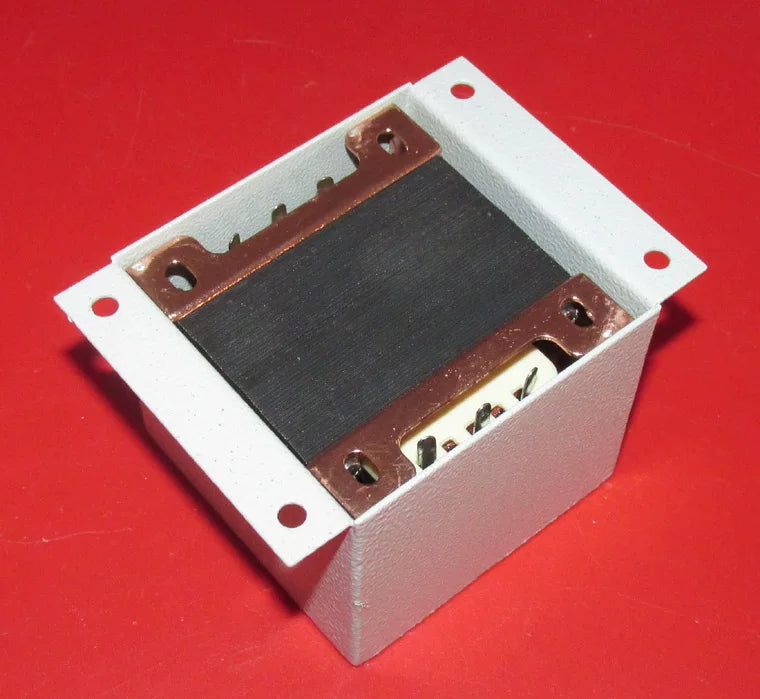

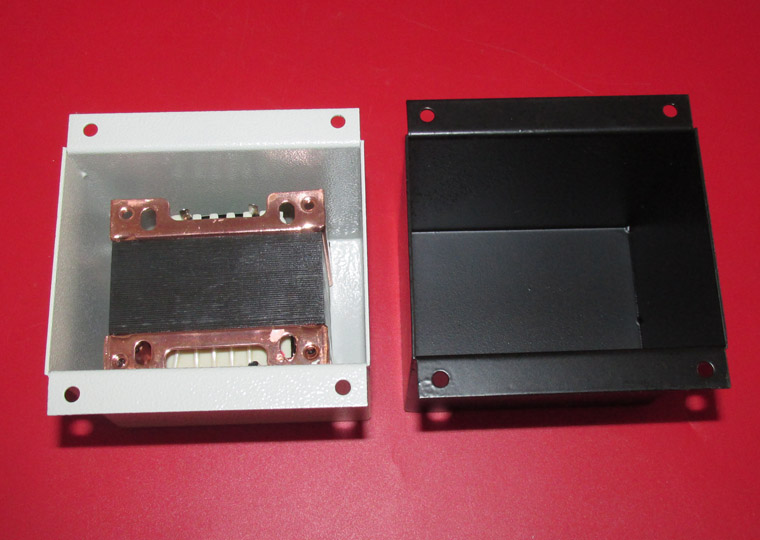

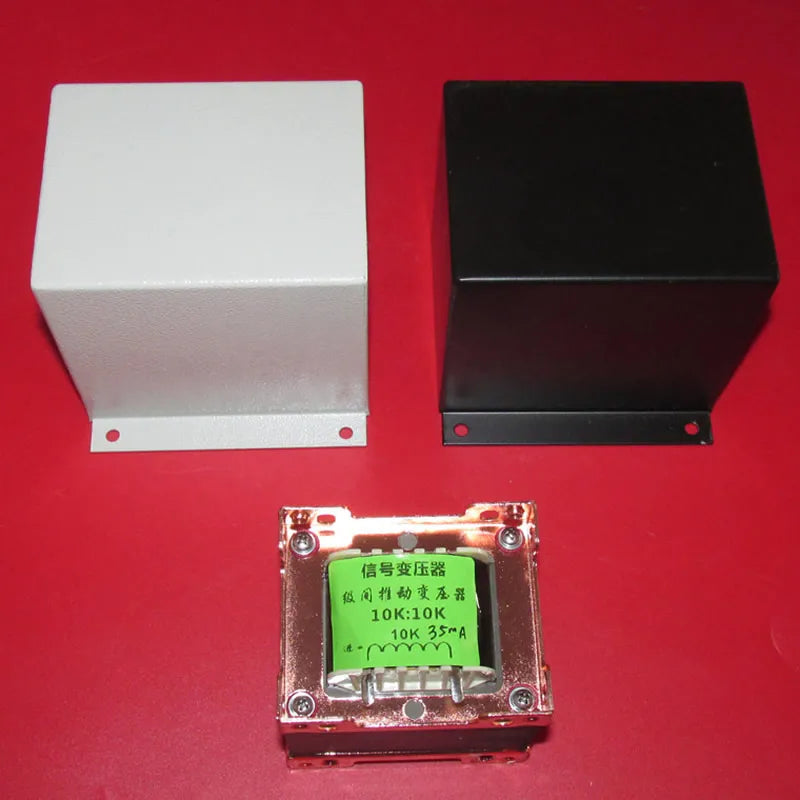

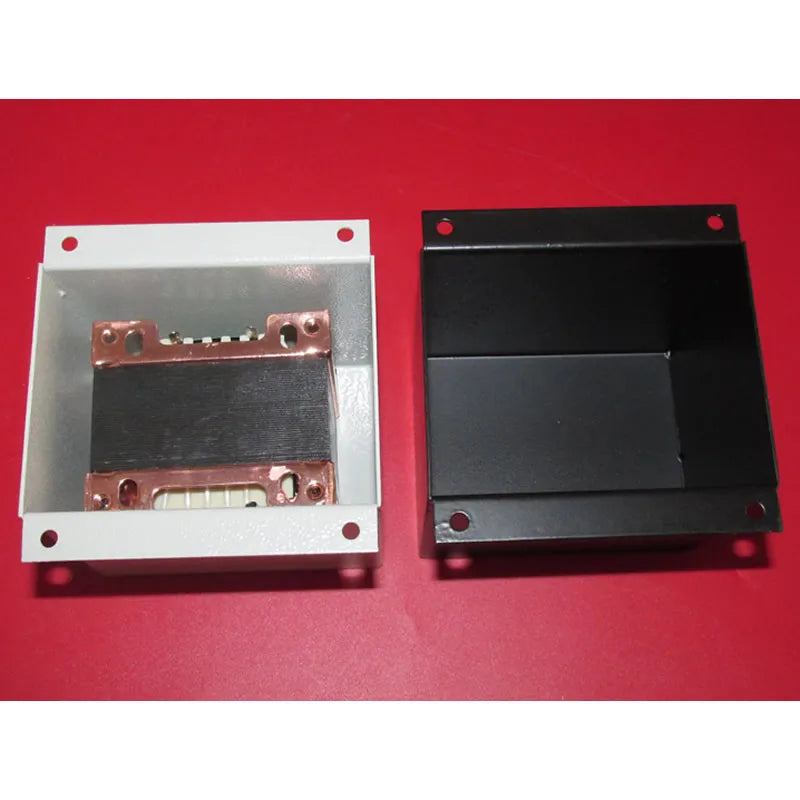

The matching imitation Xidian transformer folds the cow cover iron cover, imitation of the American West Electric Gray, the cow cover is made of 1mm cold-rolled iron plate stamping, the cow cover gray matt paint, fine-grain paint, for different transformers. The tube tube transformer is used, and the folding cow cover has an antique machine charm!

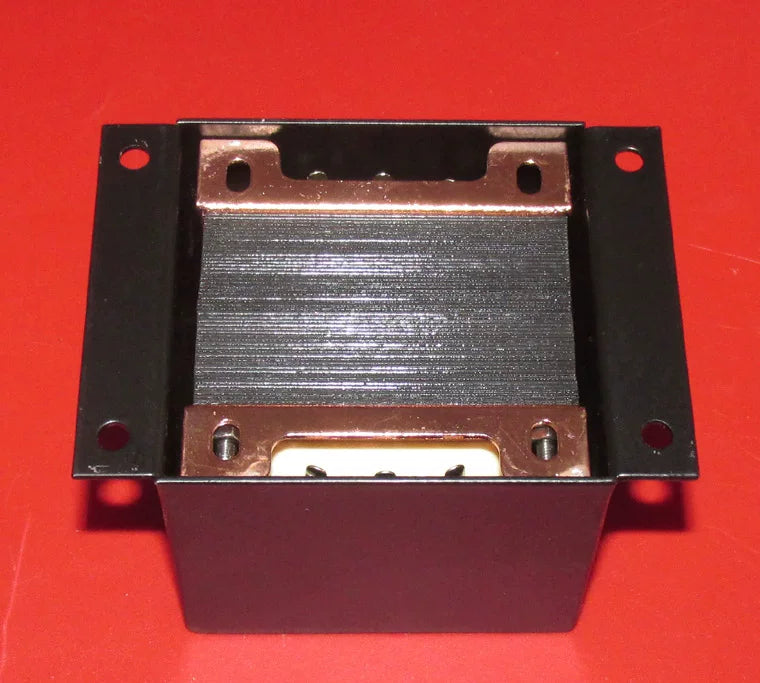

Gray cover, length 66mm wide 66mm high 82mm, bottom edge 86mm × 66mm, four mounting holes are 48mm + 48mm + 77mm + 77mm, wide folds.

The gray cover is 85mm wide, 66mm high and 66mm high, and the bottom edge is 86mm×84mm. The four mounting holes are 65mm+65mm+77mm+77mm, and the width is folded.

The main feature of this transformer is that the burr pulse (the digital signal modulated on the music signal) in the digital audio is sucked up to produce a "clean" music signal, and the transformer plays a "flavoring" effect on the sound, making the sound pure. Thick, coherent, supple and warm, close to the analog sound of vinyl records, becoming human and emotional. The treble is elegant, the overtones are rich, and the analytical power is outstanding.
