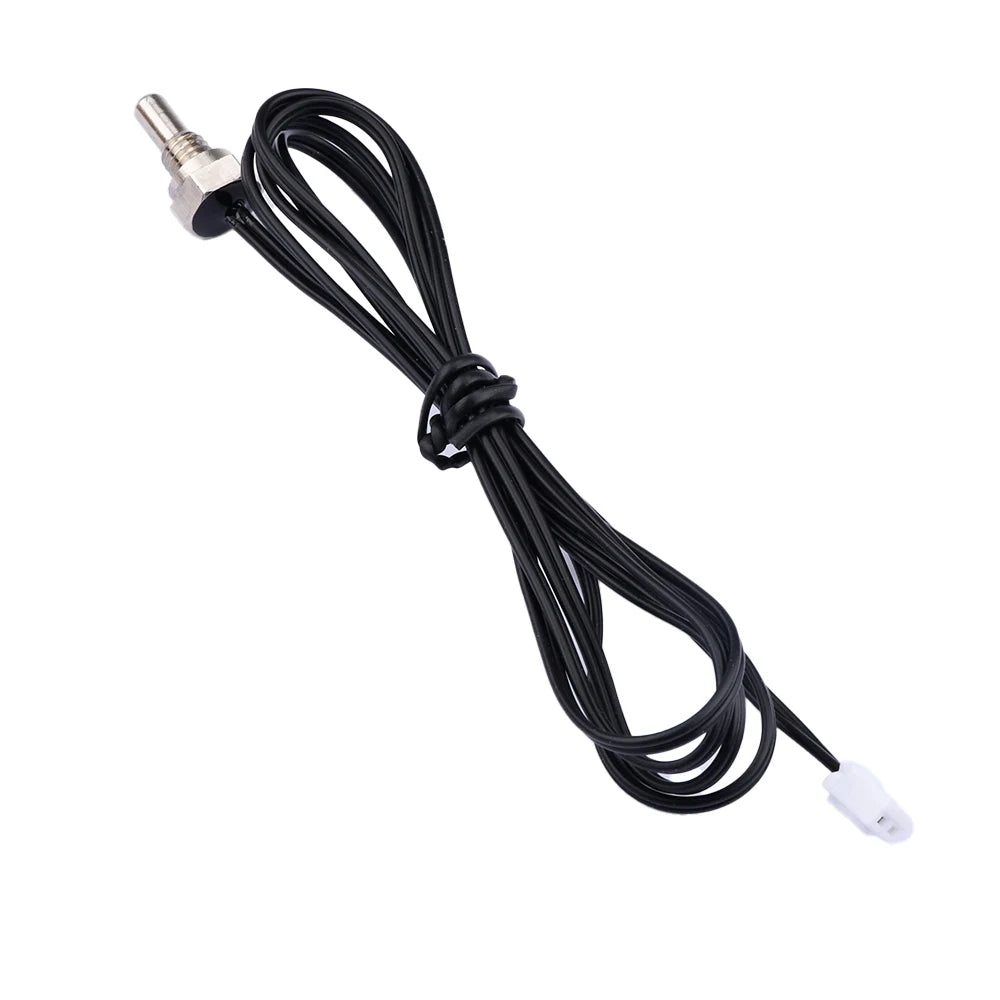

10K B3435 NTC Temperature Sensor Highly Accurate Thermistor Temperature Measuring Probe for Boiler Cold Storage Monitoring

10K B3435 NTC Temperature Sensor Highly Accurate Thermistor Temperature Measuring Probe for Boiler Cold Storage Monitoring

$10.17

$10.17 $0.00

Color cable length 1M M8 cable length 1M cable length 2M M8 cable length 3M M8 cable length 2M

Description

SPECIFICATIONS

Brand Name: Gaqqee

Choice: yes

High-concerned chemical: none

Material: Mixture

Origin: Mainland China

Output: Digital Sensor

Theory: Resistance Sensor

Type: Temperature Sensor

Use: Temperature Sensor

is_customized: Yes

semi_Choice: yes

Features:
1.High precision rubber head waterproof and antifreeze temperature sensor
2.Compact product
3.Easy to use
4.Wide range of uses
5.Long service life

Parameters:
Product name: Cold storage temperature sensing line
Optional length: 1 meter (other lengths can be customized)
Parameter: R25 ℃=10K

Package include:
Self sealing bag packaging
Cold storage temperature sensing line * 1

Product selling points:
1. Sensor temperature sensitivity responds quickly
2. Stable waterproof performance
3. Water heater, boiler and other measurements of the temperature environment to use
4. Compact product
5. Simple to use, easy to install, fast response time

Product Parameters:
Probe model: 25 degrees = 10K B = 3435

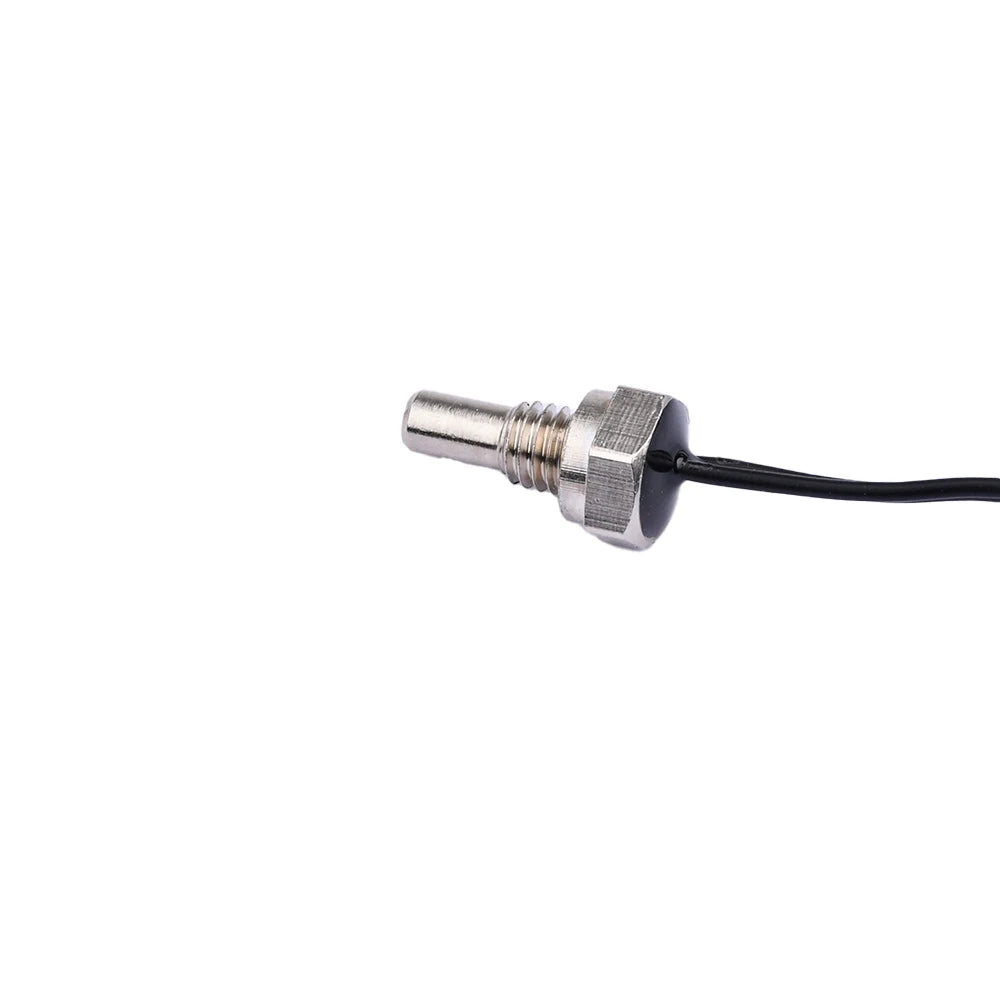

Material: brass nickel-plated anti-embroidery, M8 threads
Terminal: XH2.54 2PIN

Product specification:
Nut diameter 12.5MM (4mm thick)

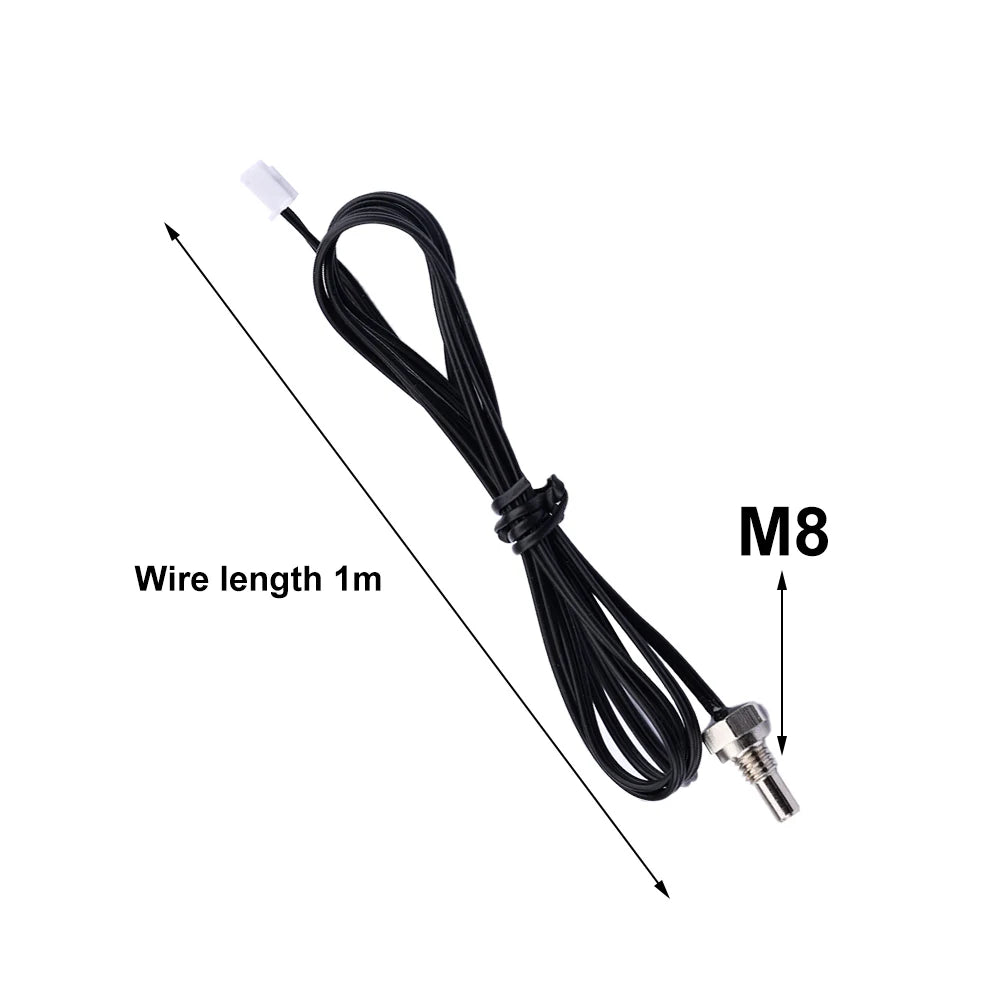

Thread diameter 8MM (lenght 7MM)
Temperature sensing diameter 4mm (11MM long)
Temperature: 120 degrees
Cable length: 1m/2M/3M (optional)

Product list:
NTC thermistor temperature sensor probe * 1
