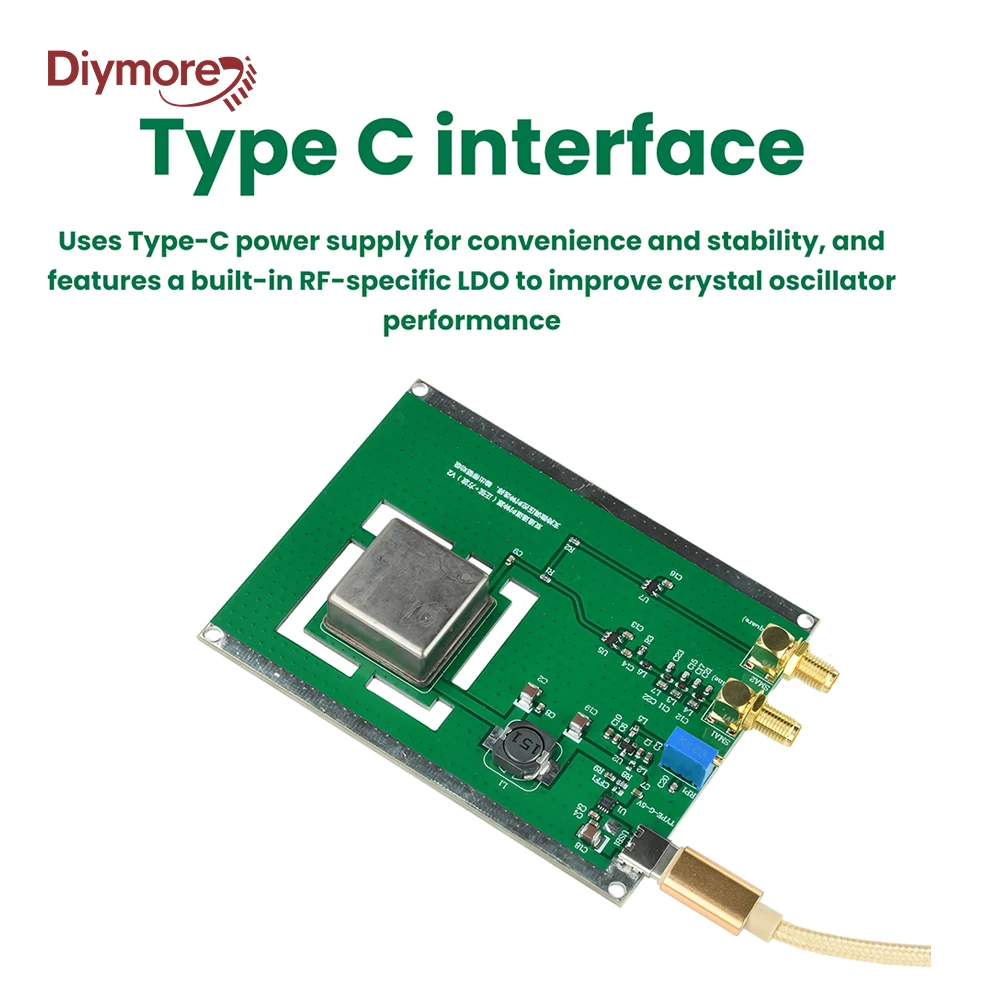

1. Adopting Type-C power supply is convenient and stable, with built-in RF dedicated LDO to enhance crystal oscillator performance.

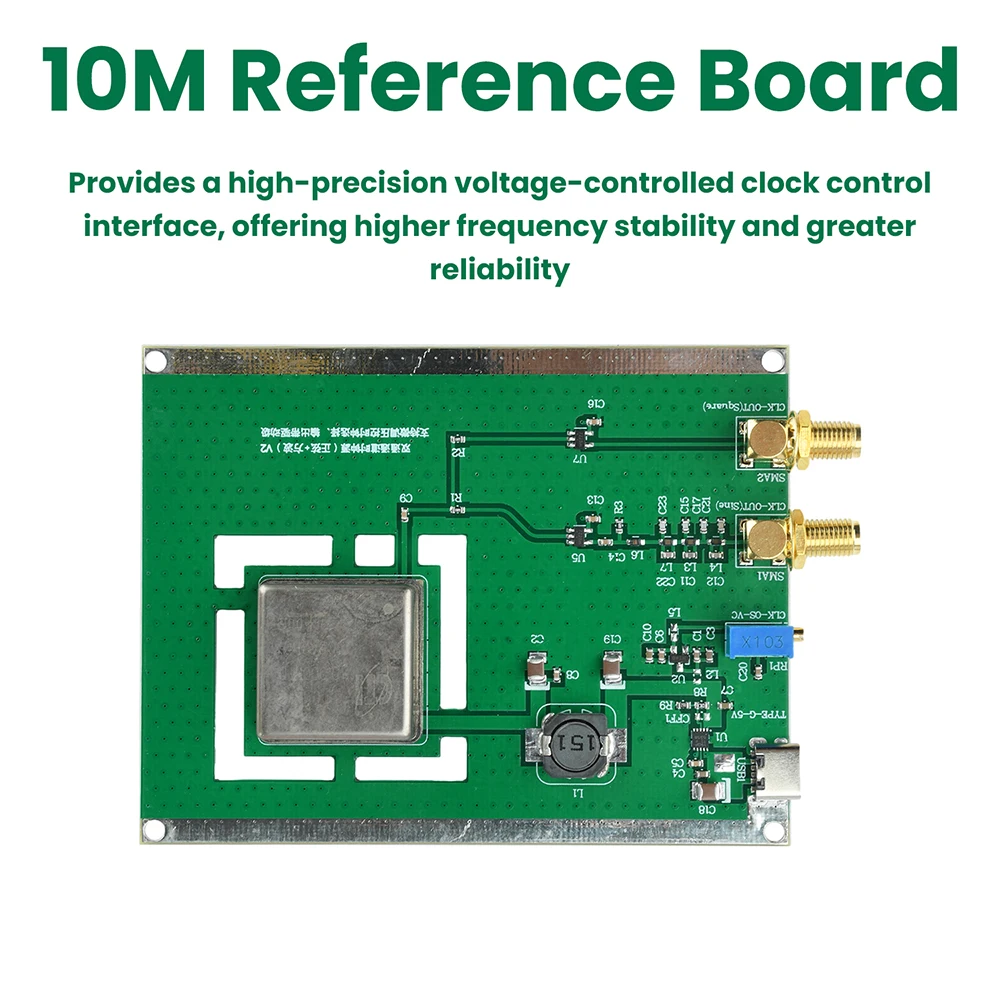

2. Provide high-precision voltage controlled clock control port for higher frequency stability and reliability.

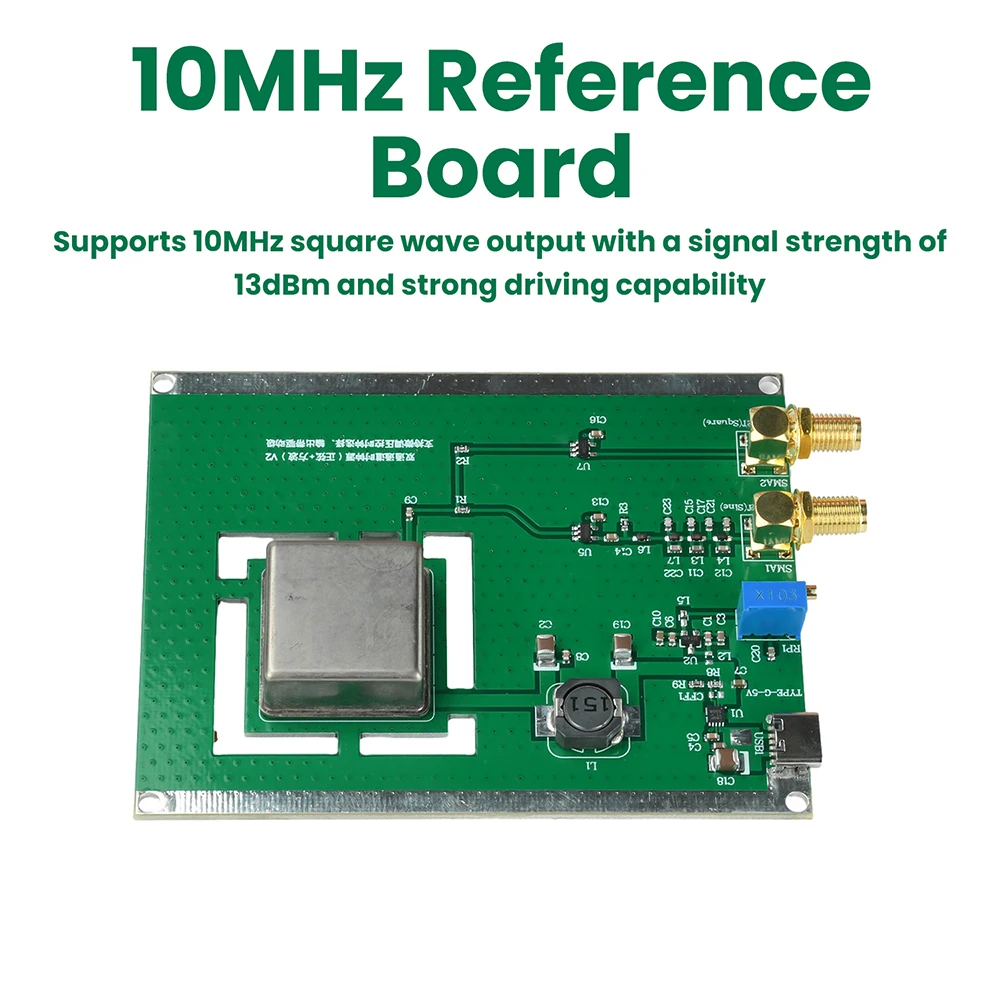

3. Supports 10MHz square wave output, with a signal strength of 13dBm and strong driving capability.

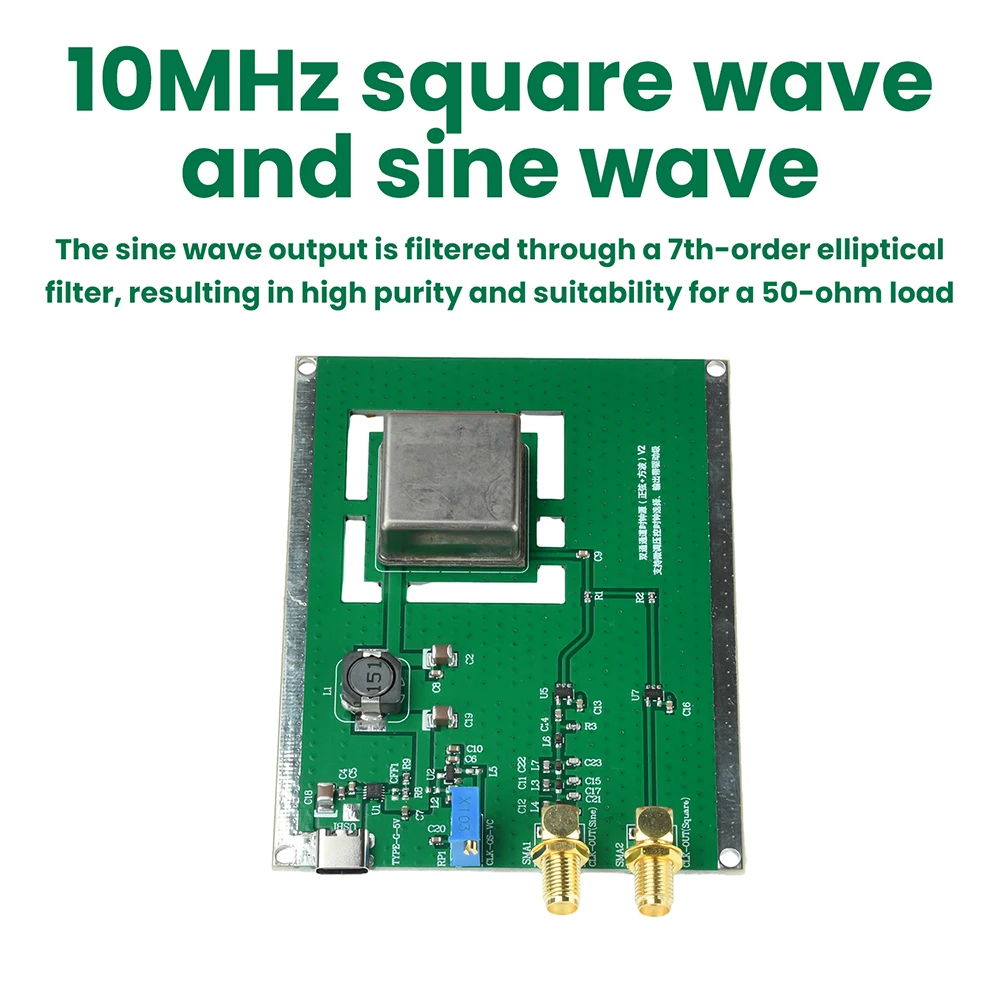

4. The sine wave output is filtered by a 7th order elliptical filter, with high purity and suitable for 50 ohm loads.

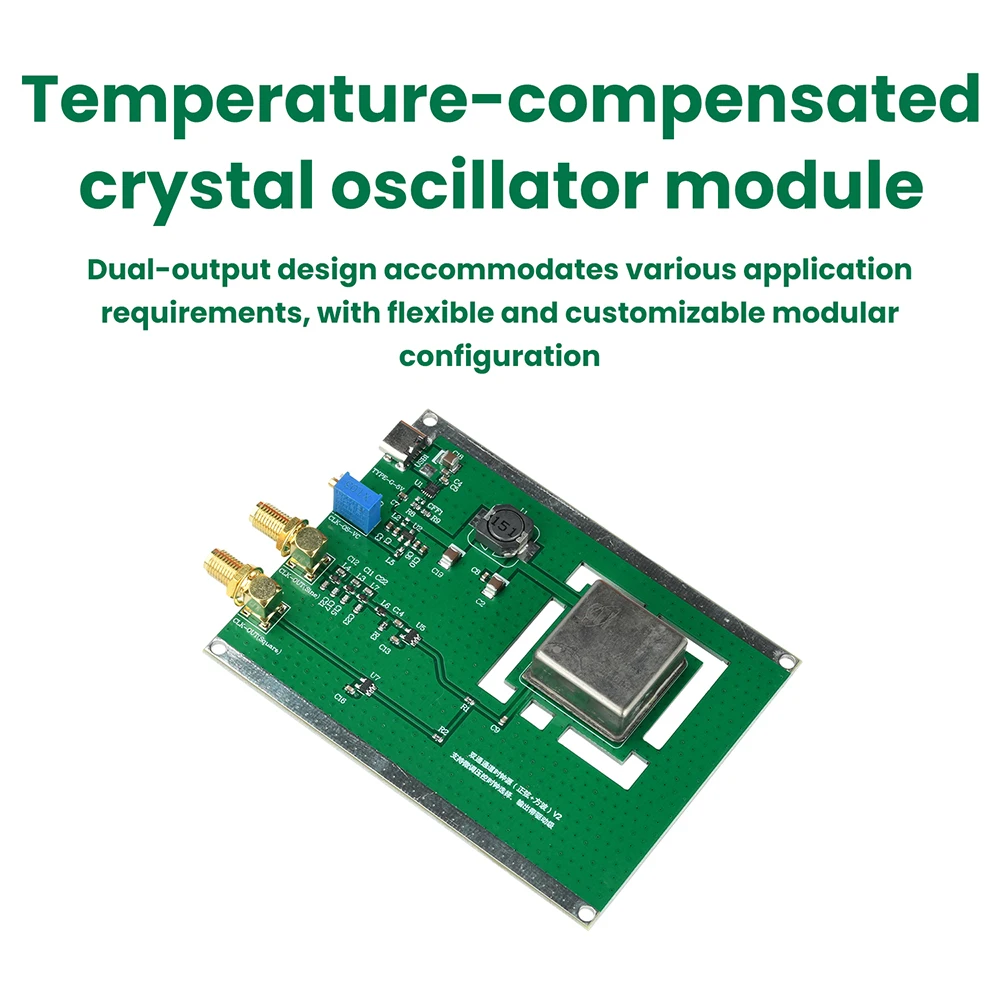

5. The dual output design caters to various application requirements, and modular configuration is flexible and optional.

Parameters:

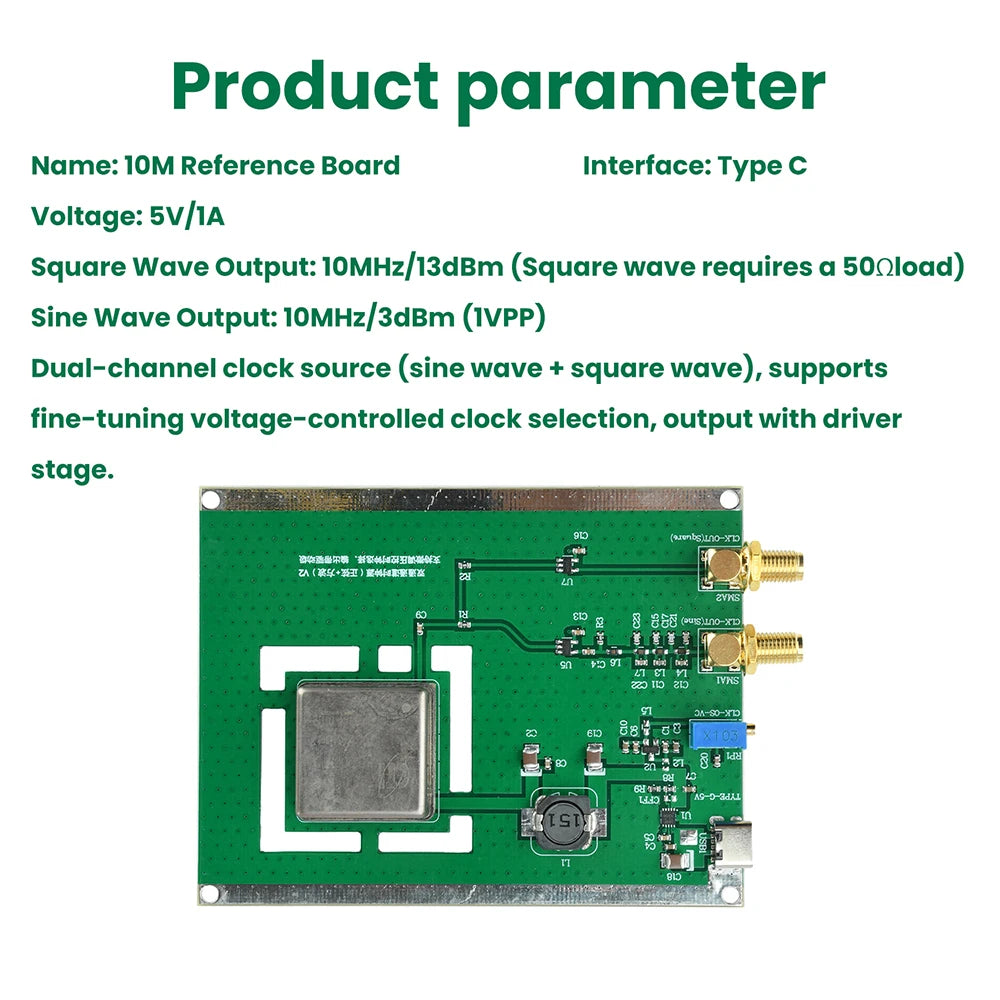

Name: 10M reference board
Interface: Type C
Voltage: 5V/1A
Square wave output: 10MHz/13DBM (square wave requires a 50 ohm load)

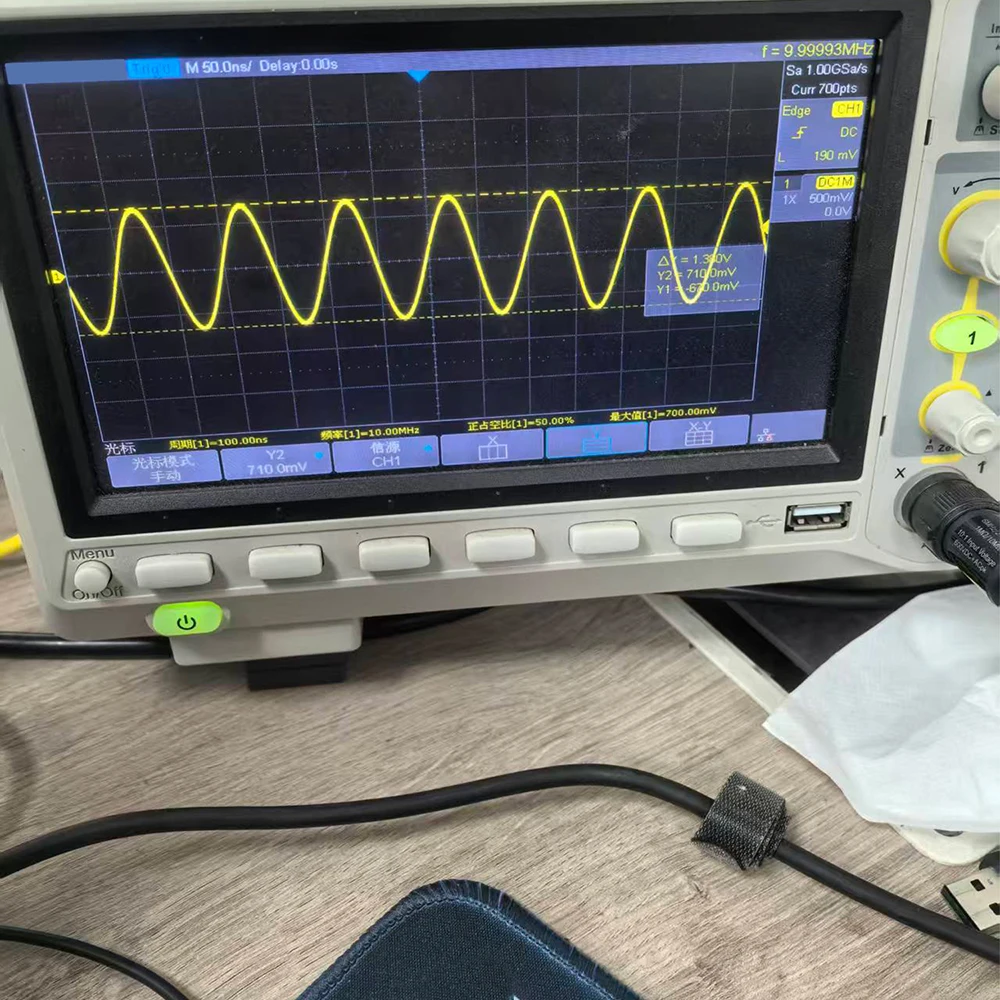

Sine wave output: 10MHz/3DBM (1VPP)
Dual channel clock source (sine+square wave), supporting fine tuned voltage controlled clock selection, with output with driver stage.
Function Introduction:

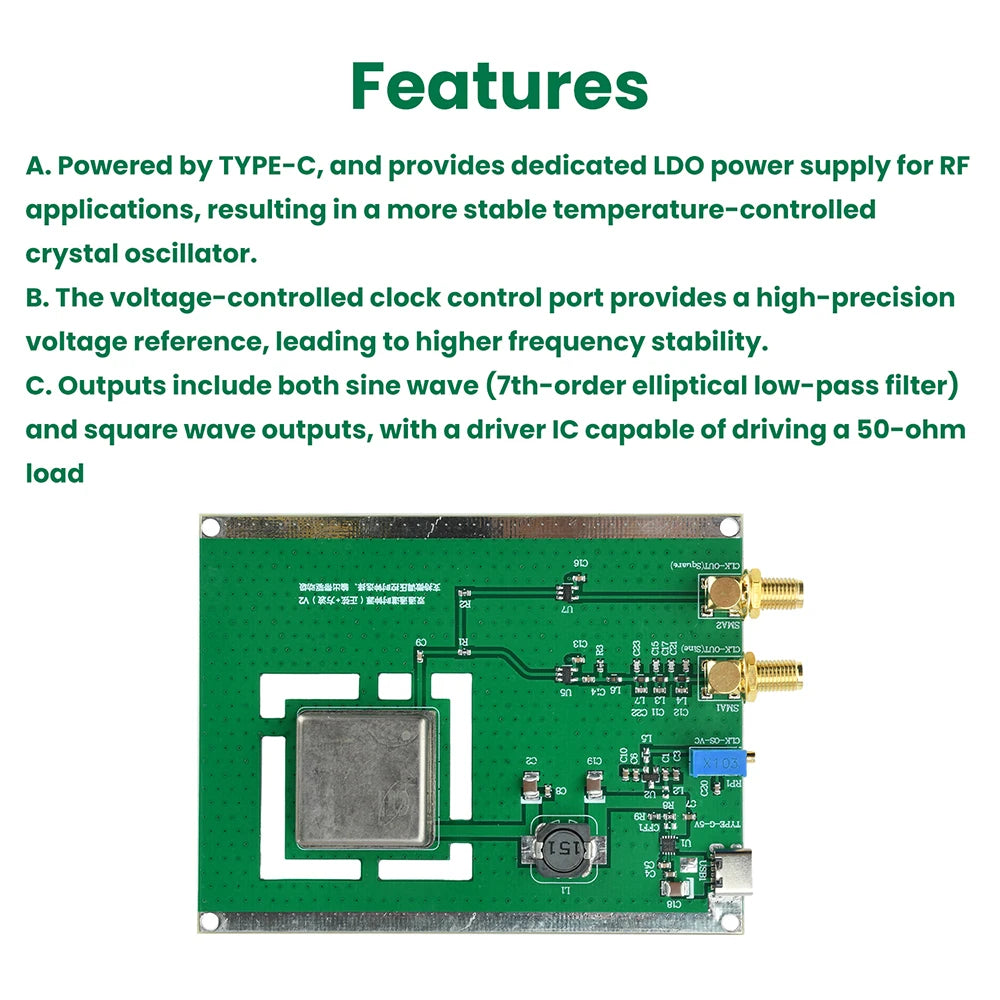

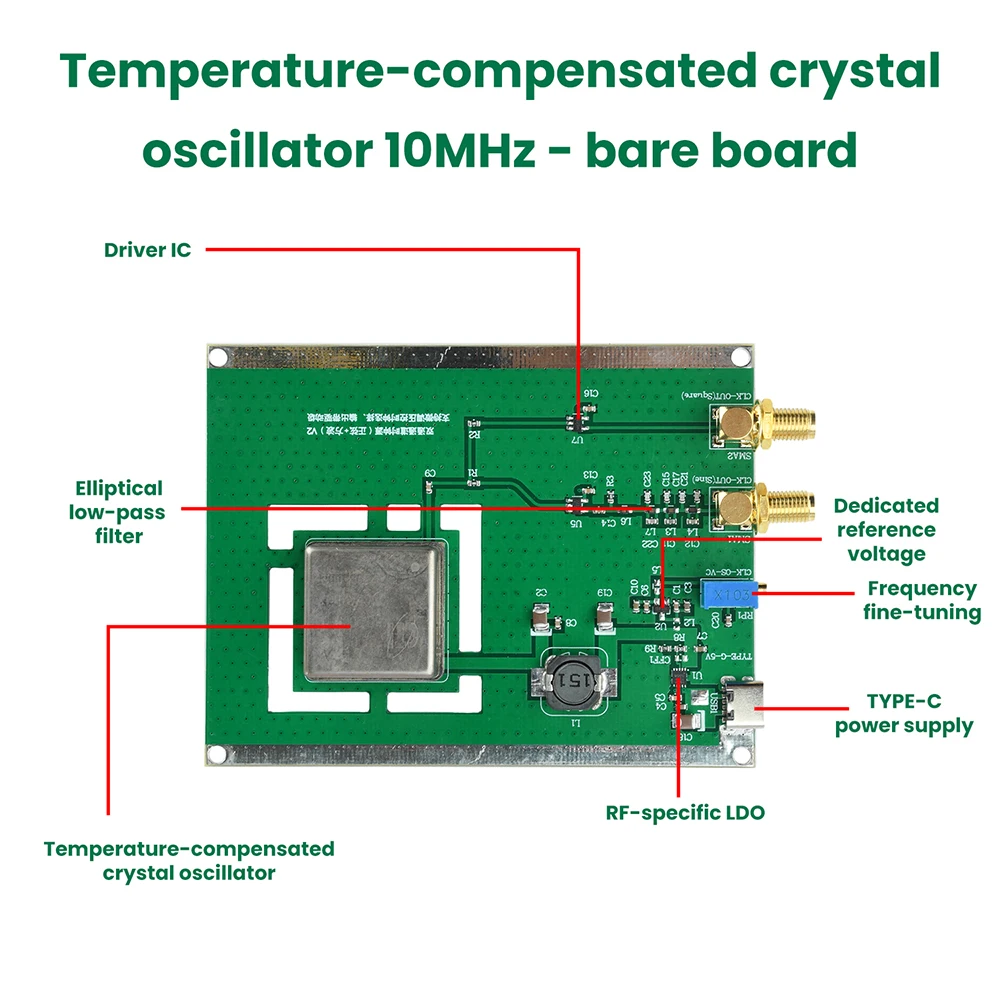

A、 Powered by TYPE-C and providing RF specific LDO power supply, the constant temperature crystal oscillator is more stable
B、 The voltage controlled clock control port provides high-precision voltage reference and higher frequency stability
C、 Output with sine wave (7th order elliptical low-pass filter) and square wave output, providing a driver IC that can drive a 50 ohm load

Package Include:

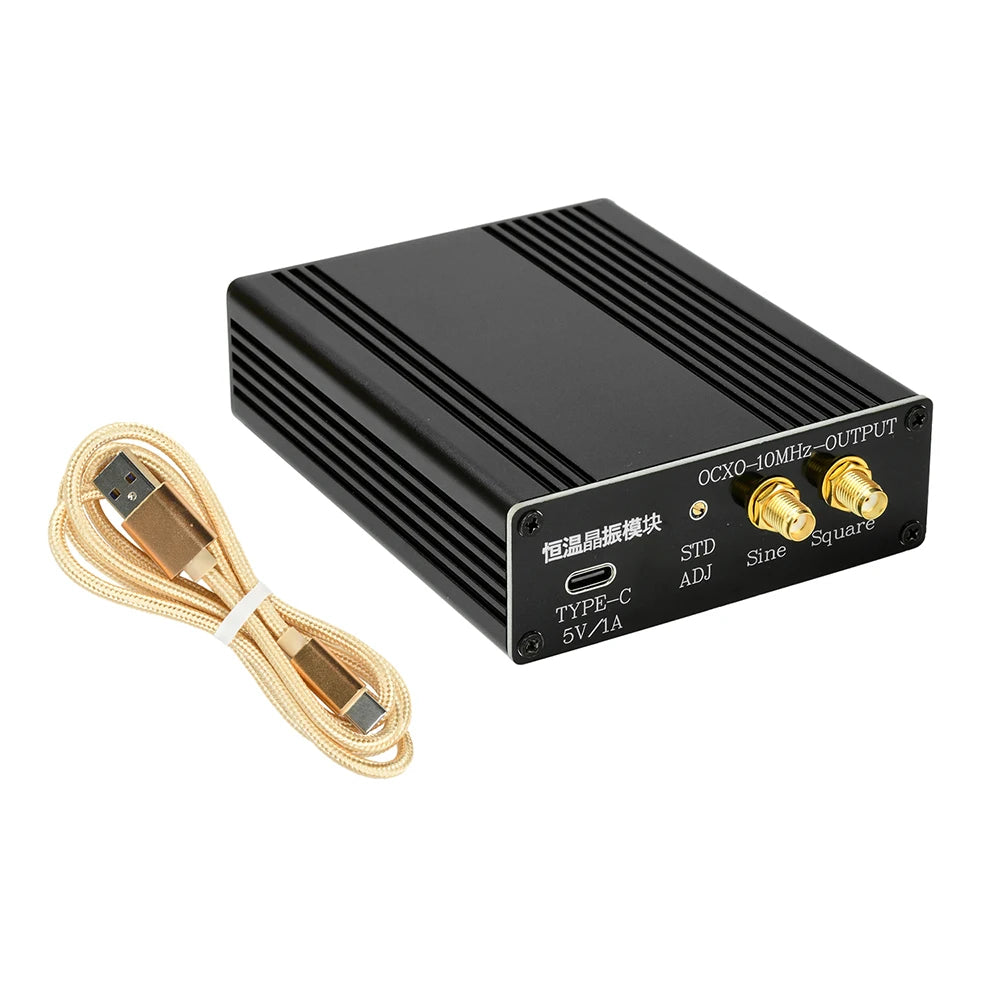

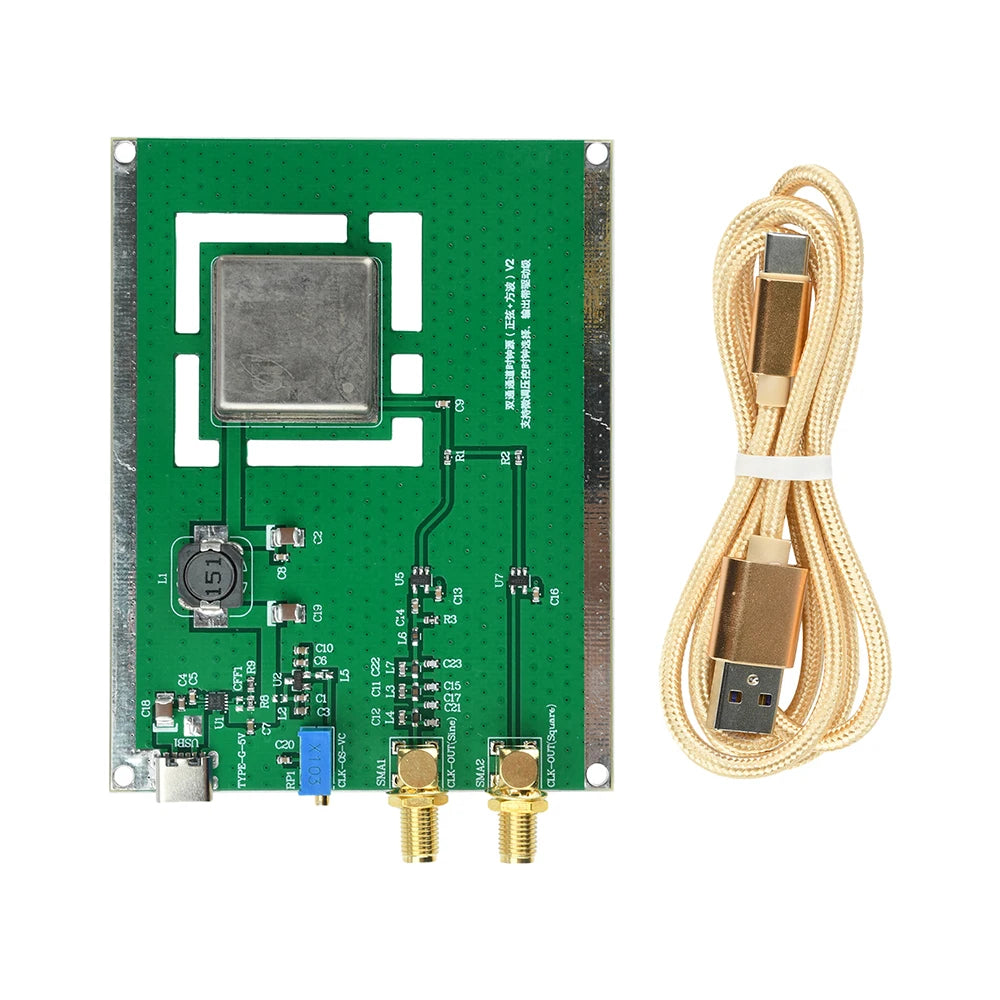

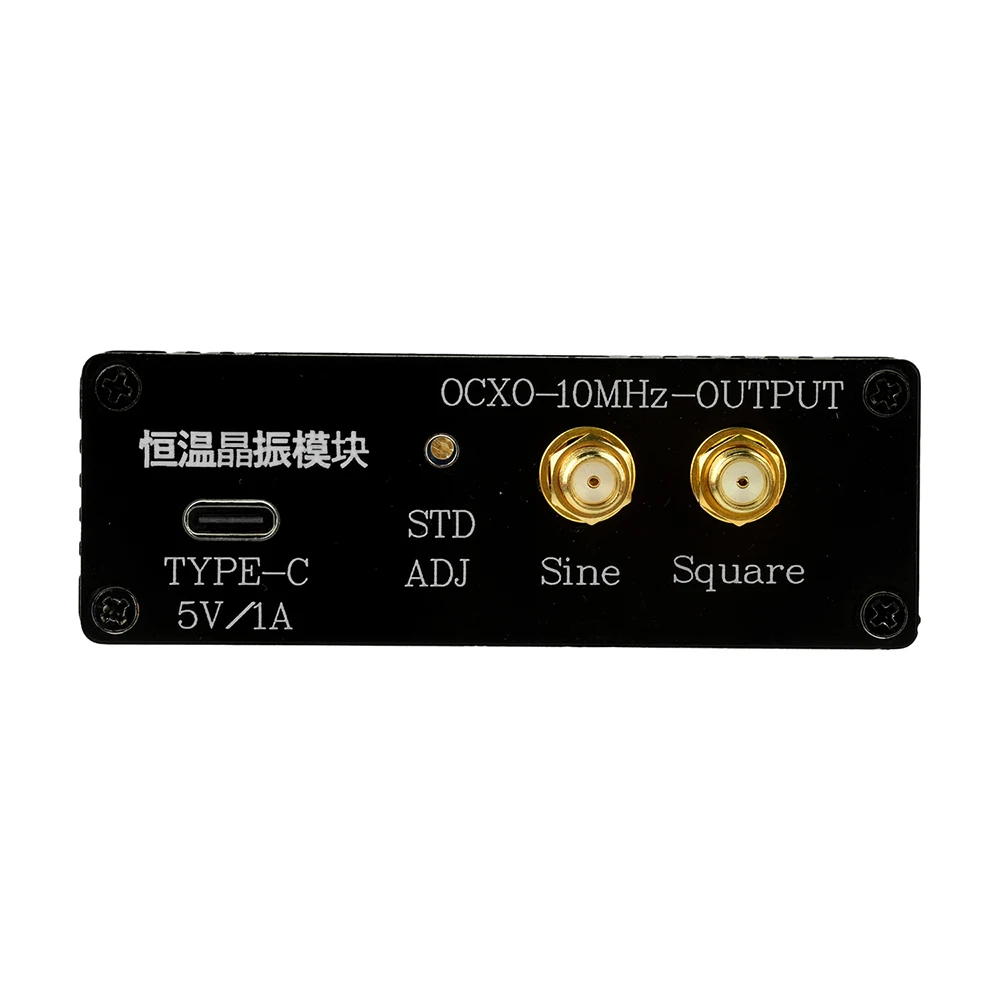

1X constant temperature crystal oscillator module (optional without casing/with casing)

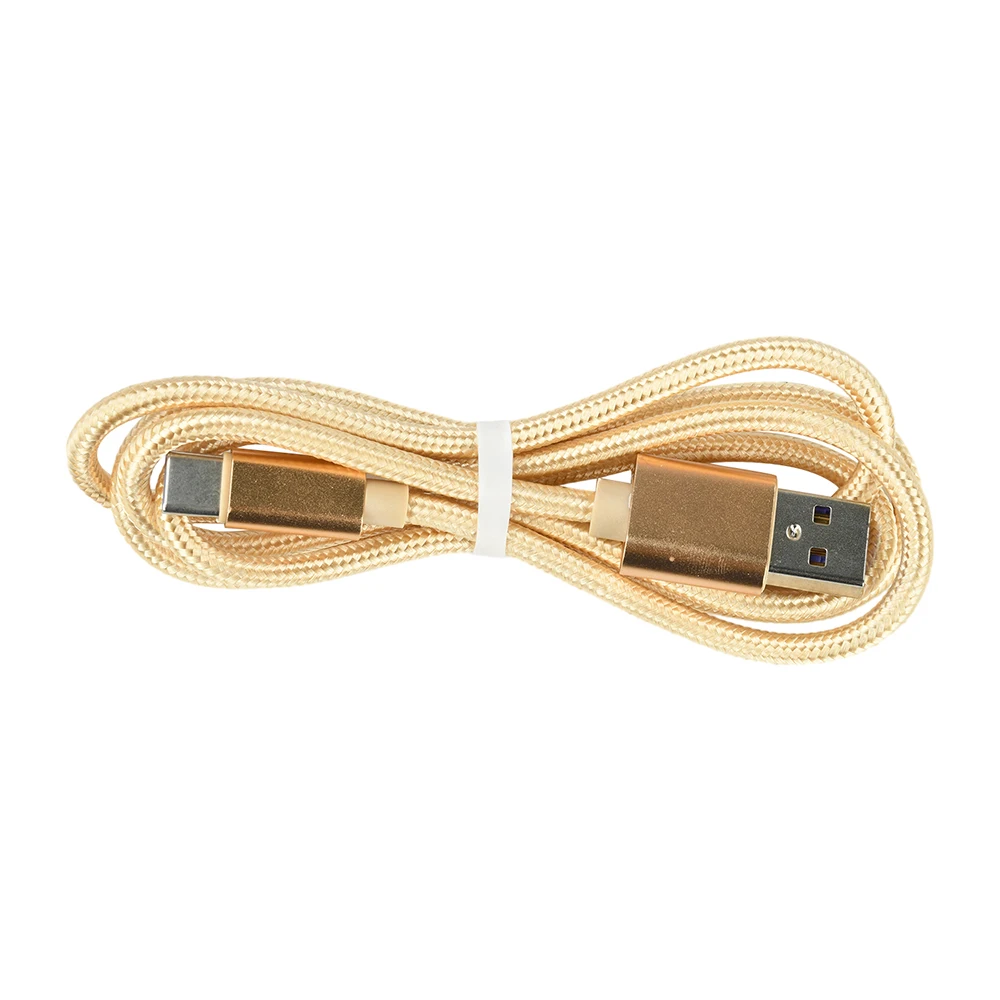

1X1 meter power cord Type C interface
