Pins
Description

SPECIFICATIONS

Brand Name: YTTSQC

Certification: CE,RoHS

Choice: yes

Customize: Yes,pls contact for other pins

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

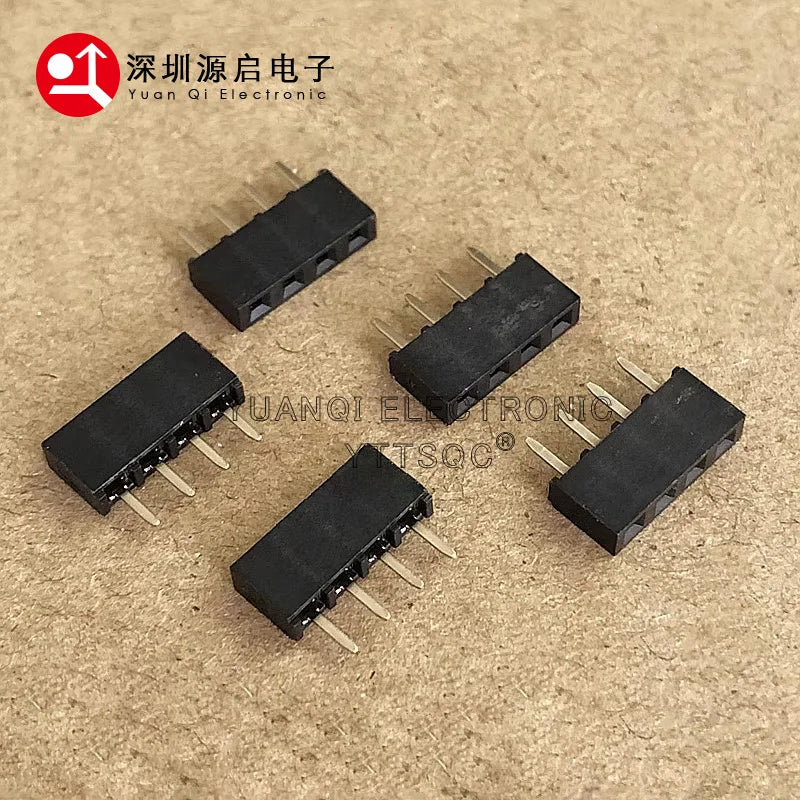

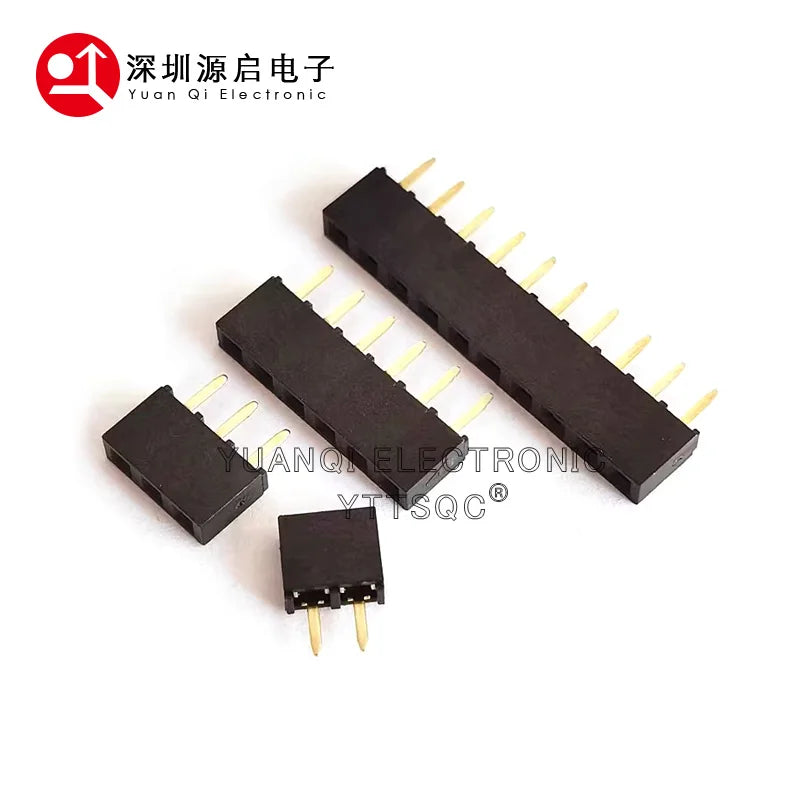

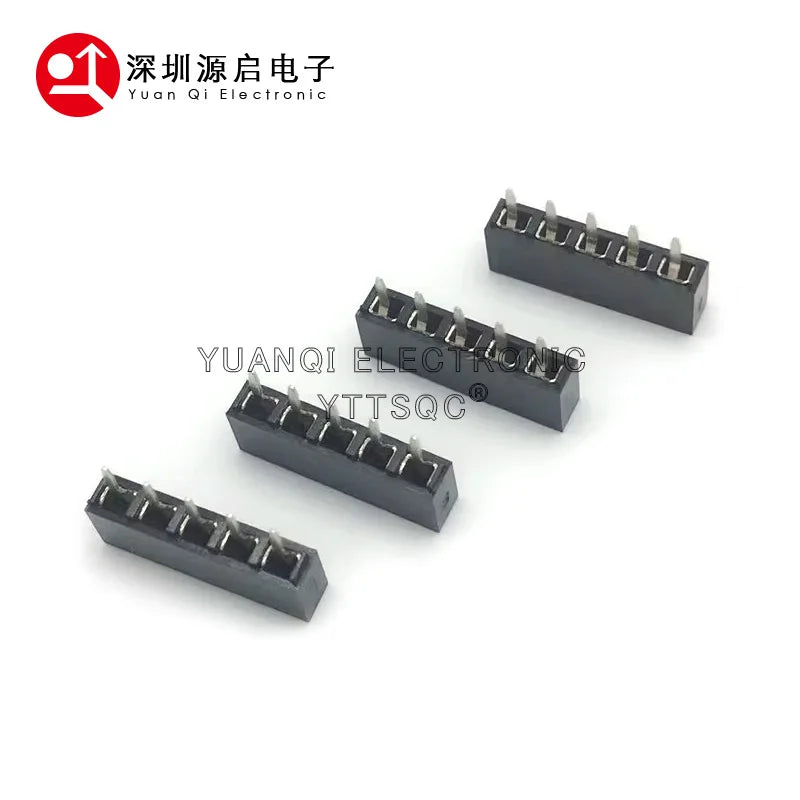

Model: Short Version Female Header

Model Number: Short Version Female Header

Origin: Mainland China

Pitch: 2.54mm

Plastic Height: 5.0mm

Poles: 1X4P/5P/6P/10P/15P/40P

Product: Female PCB Header

Voltage: none

semi_Choice: yes

10pairs Male+Female 2.54mm PH5 Single Row Straight 1X2P/5P/6P/10P/15P/40P Short Version Rohs Goldplate PCB Pin Header Connector

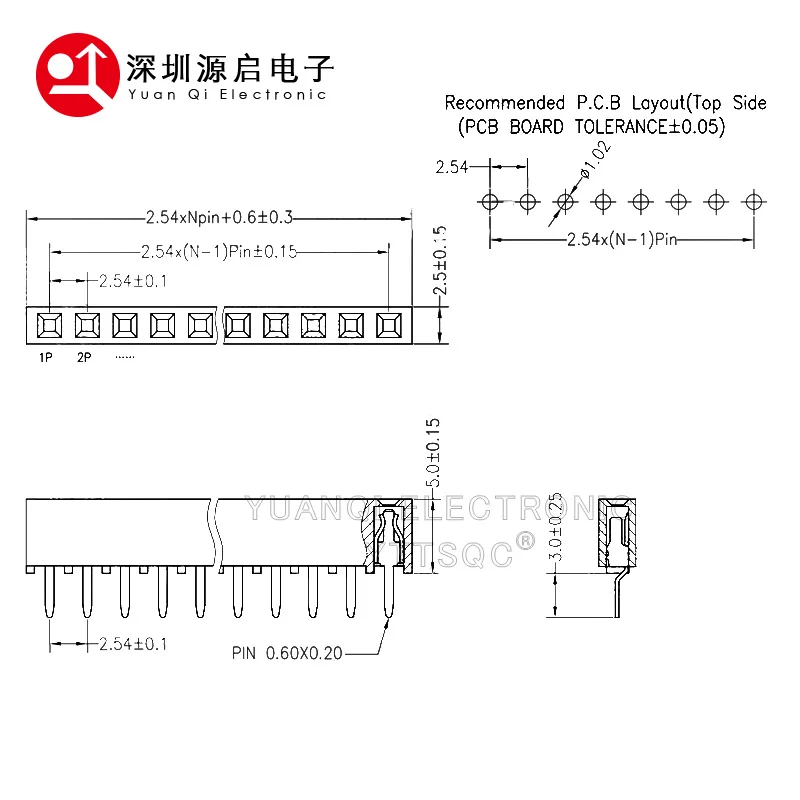

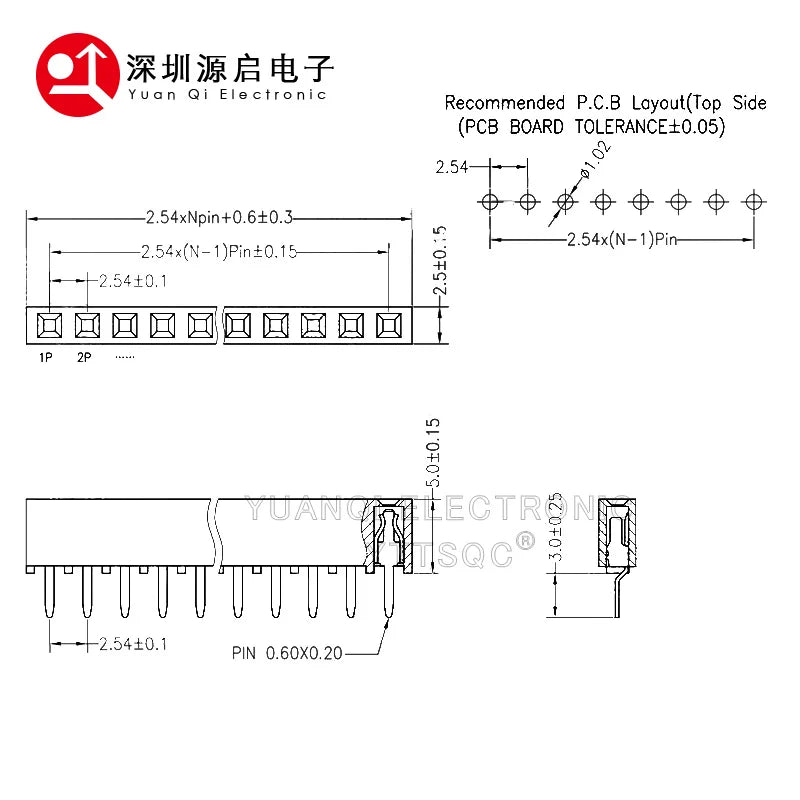

Pin-Pin Distance/Pitch: 2.54mm


Row Qty: Single Row Female+Male Straight 1X2P/5P/6P/10P/15P/40P Short Version

Pin Length: 3.0mm

Plastic Heiht: 5.0mm

Current Rating: 3Amps

Insulator Resistance: 5000Megohms min

Dielectric Withstanding: AC 500V

Operating Temperature: -40-105 Celsuis Degree

Contact Material: Phosphor bronze

Finish: Gold Flash


Tolerance: +/-0.2mm

Wholesale link female header: https://www.aliexpress.com/item/1005006194764240.html

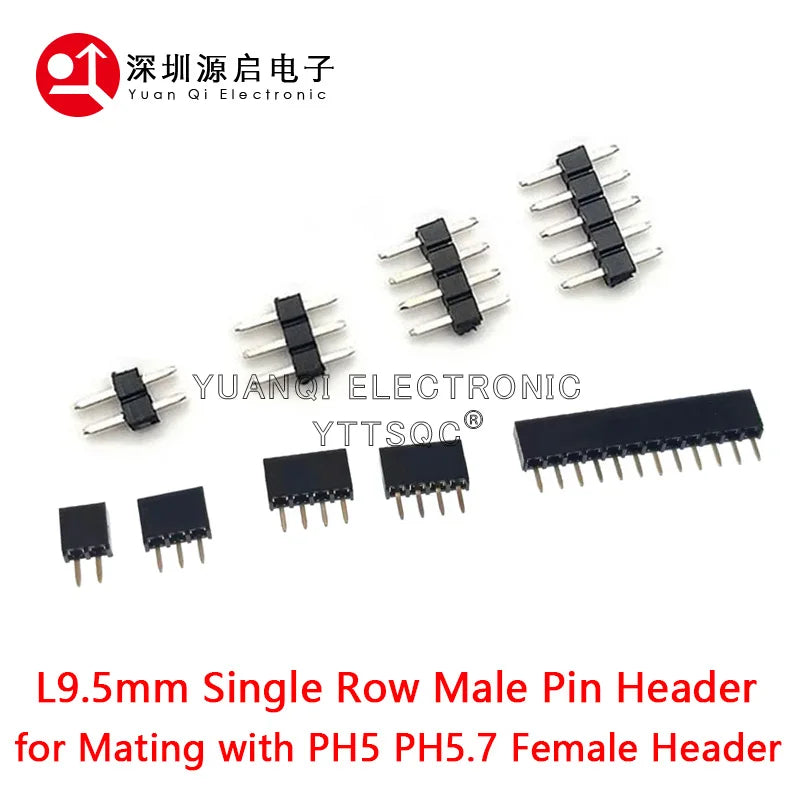

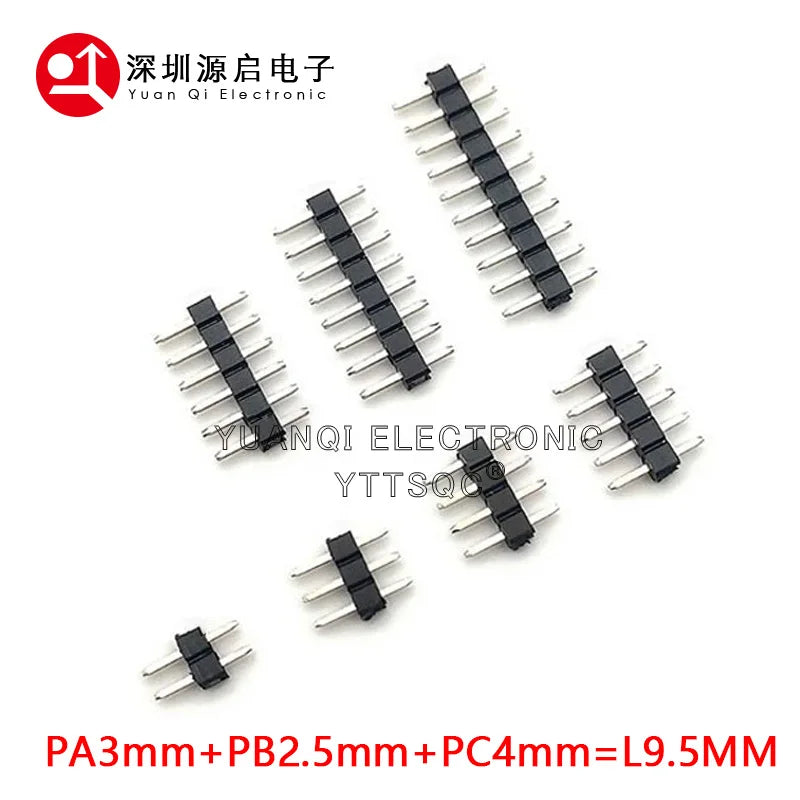

For Male Side 1XnP L9.5 Pin Header, it is Straight Cuttable PA4 PC3 Plastic Height 2.5mm, total 9.5mm
