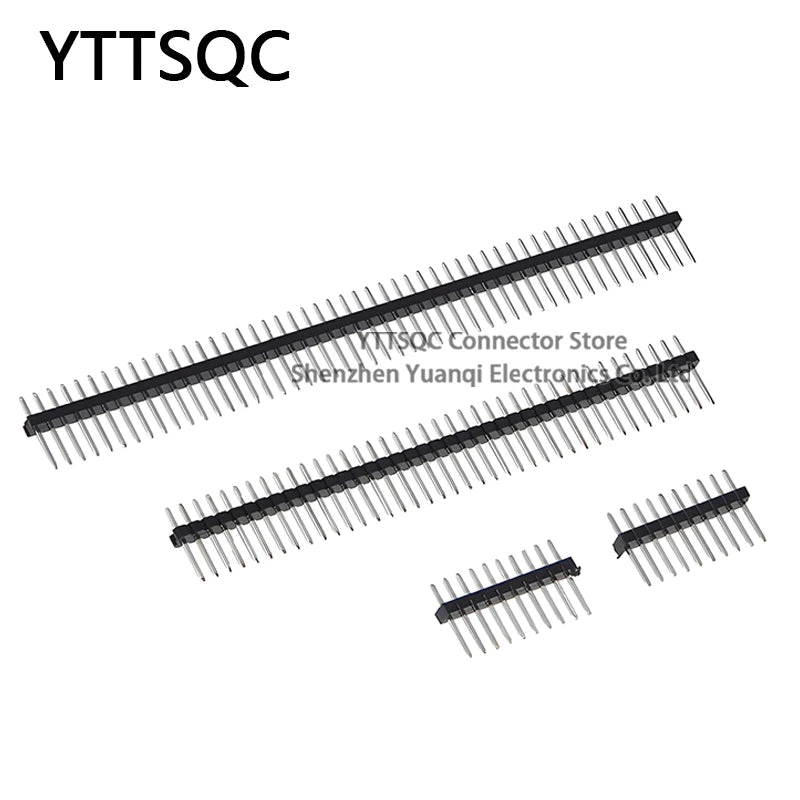

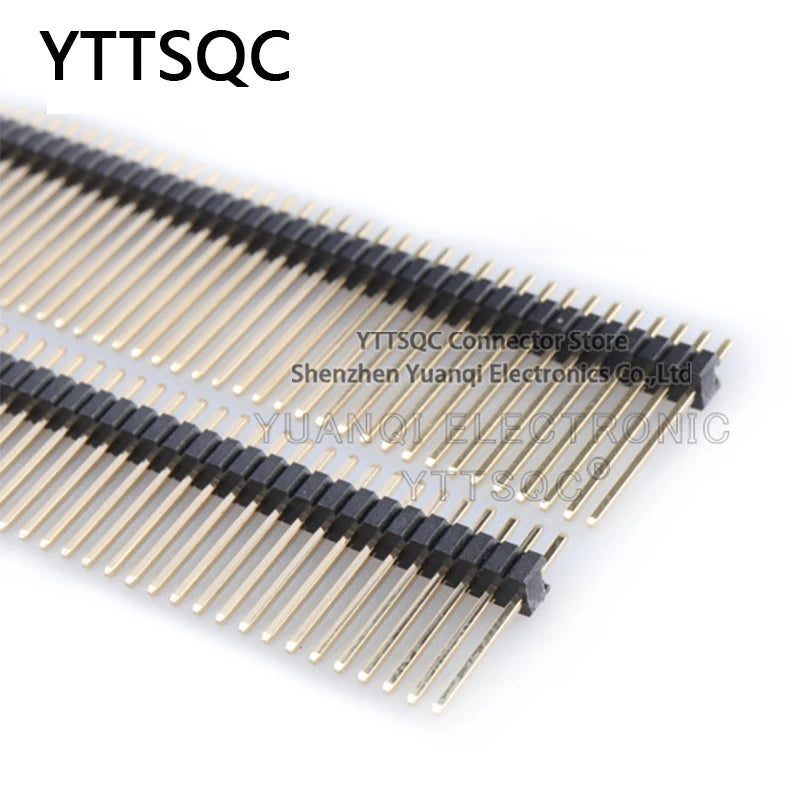

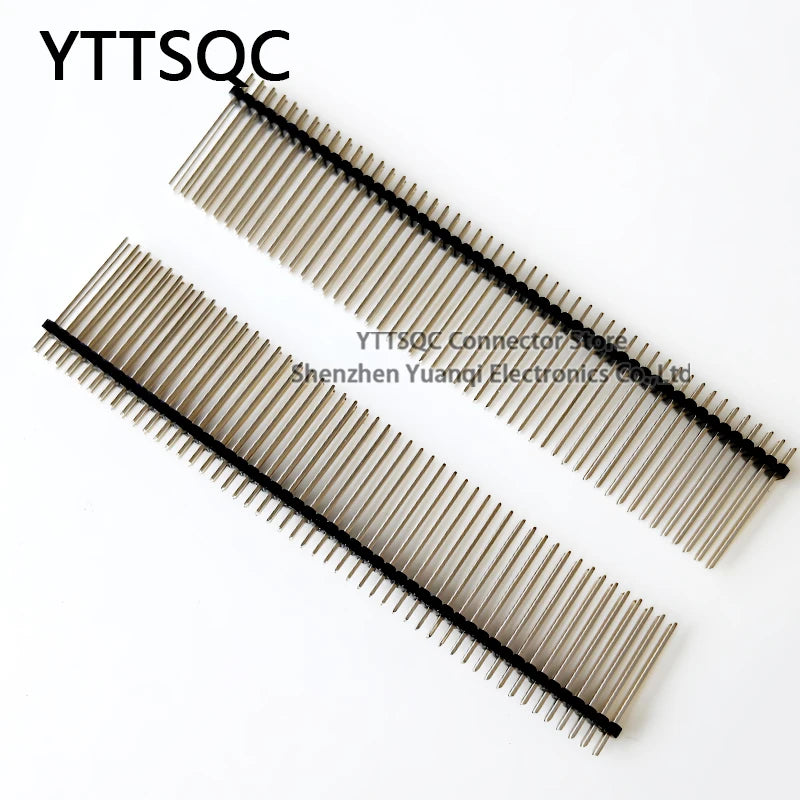

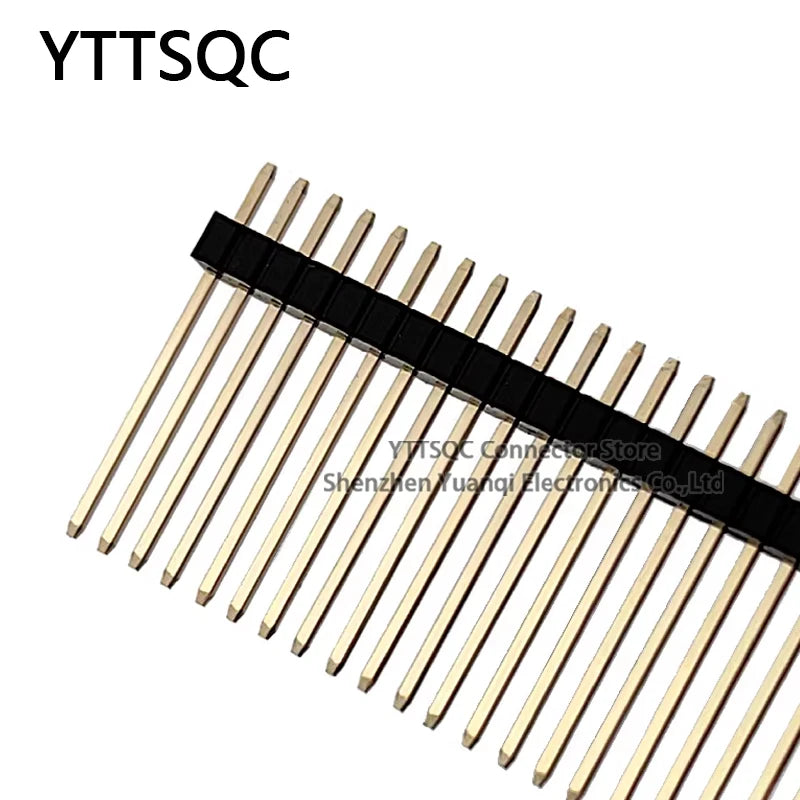

10pcs 1.27mm Long Pin L11/12/14mm 0.05" Straight Single/ Dual Row Gold PCB Male Pin Header Strip Jumper 1x40p 1x50p 2x50p
$20.72
Sale price
$20.72
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: YTTSQC
Choice: yes
Feature: Long Pin Version
High-concerned chemical: none
Origin: Mainland China

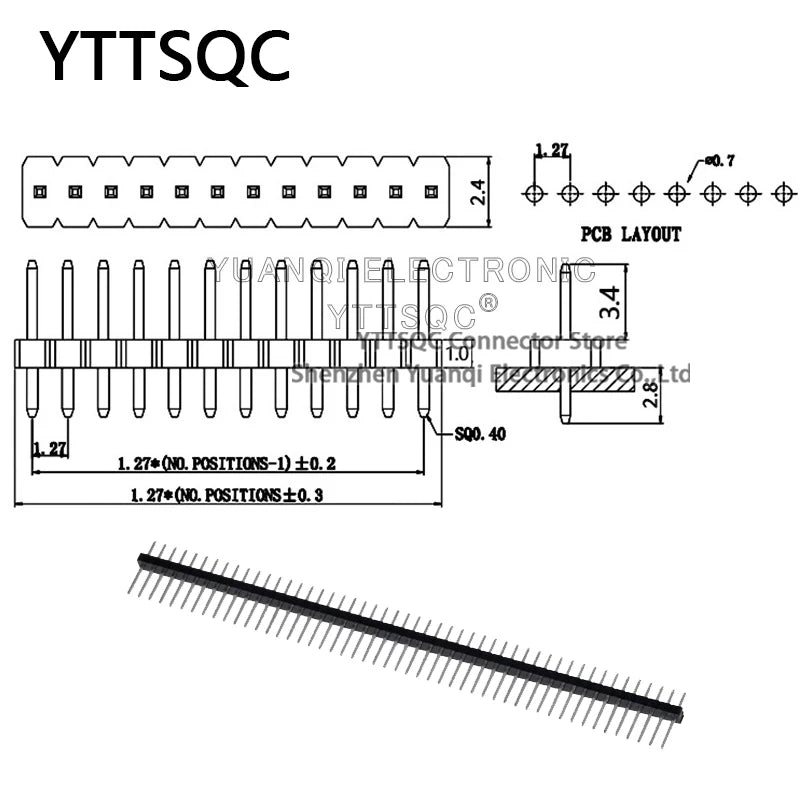

Pitch: 1.27mm/0.05inch
Row 1: Single Row 1X40P 1X50P
Row 2: Double Row 2X50P
semi_Choice: yes
Product sellpoints
-
High Insulation Resistance:Boasts 5000Megohms min insulation resistance for stable and safe connections.
-
High-Quality Material:Constructed with Phosphor bronze, ensuring durability and reliable electrical conductivity.
-
Long Pin|Pcb Jumper|Versatile Pin Configuration:Features Single/Dual Row options with 1x40p, 1x50p, and 2x50p configurations, offering flexibility for various PCB layouts.
-
Wide Temperature Range:Operates between -40℃ to 105℃, suitable for various environmental conditions.
-
Gold Flash Finish:Gold Flash finish provides superior corrosion resistance and a professional look.
Pin-Pin Distance/Pitch: 1.27mm
Row Qty: 1X40P 1X50P Means Single Row, 40 or 50Positions, cuttable to any pin you need

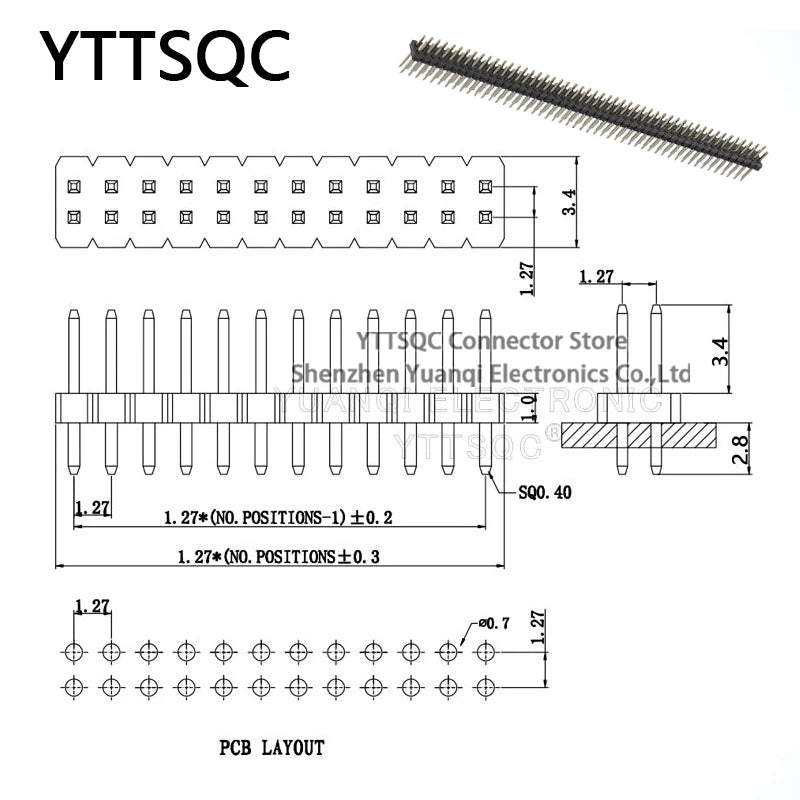

2x50P Means double row, 50Positions
180o Straight
Row Qty: 1X40P 1X50P Means Single Row, 40 or 50Positions, cuttable to any pin you need
2x50P Means double row, 50Positions
180o Straight
Current Rating: 1Amps
Insulator Resistance: 5000Megohms min
Dielectric Withstanding: AC 500V
Operating Temperature: -40-105 Celsuis Degree
Contact Material: Phosphor bronze
Finish: Gold Flash
Tolerance: +/-0.2mm
