SPECIFICATIONS

Brand Name: Your Cee

High-concerned chemical: none

Material: Mixture

Origin: Mainland China

Output: Digital Sensor

Theory: Inductance Sensor

Type: Humidity Sensor

Use: Temperature Sensor

is_customized: Yes

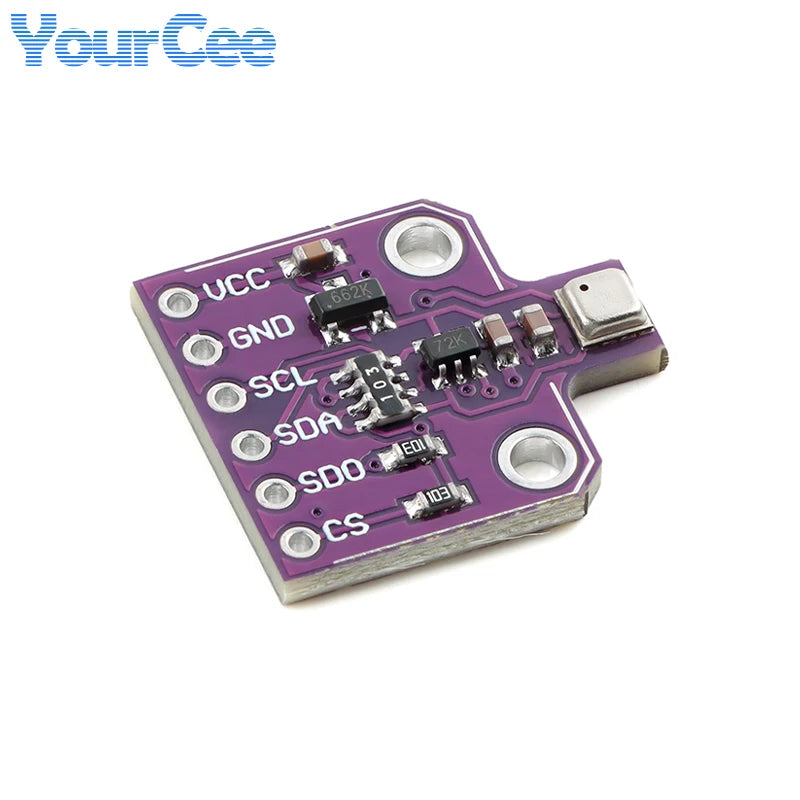

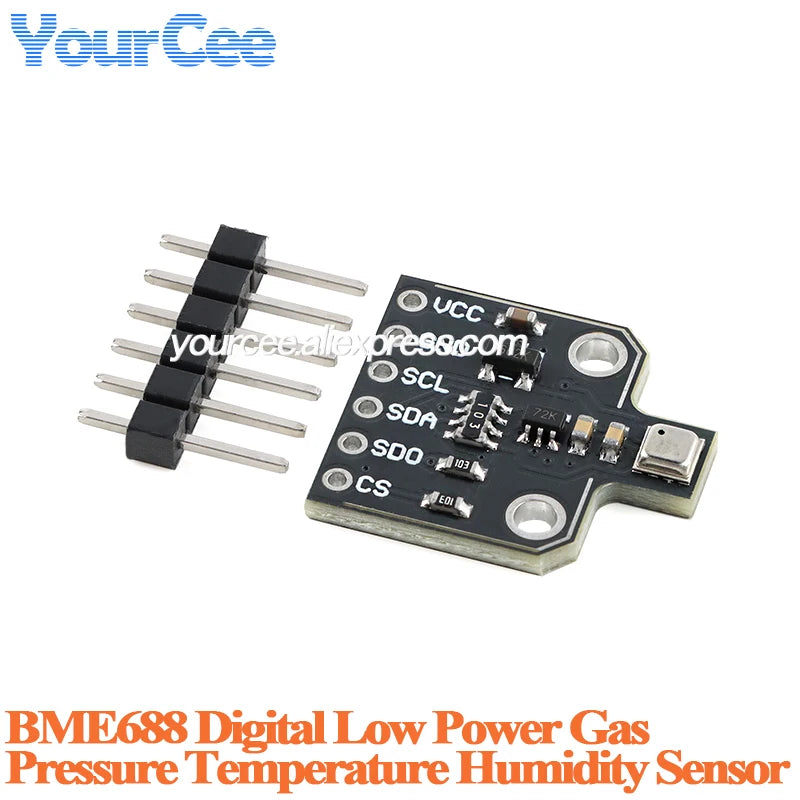

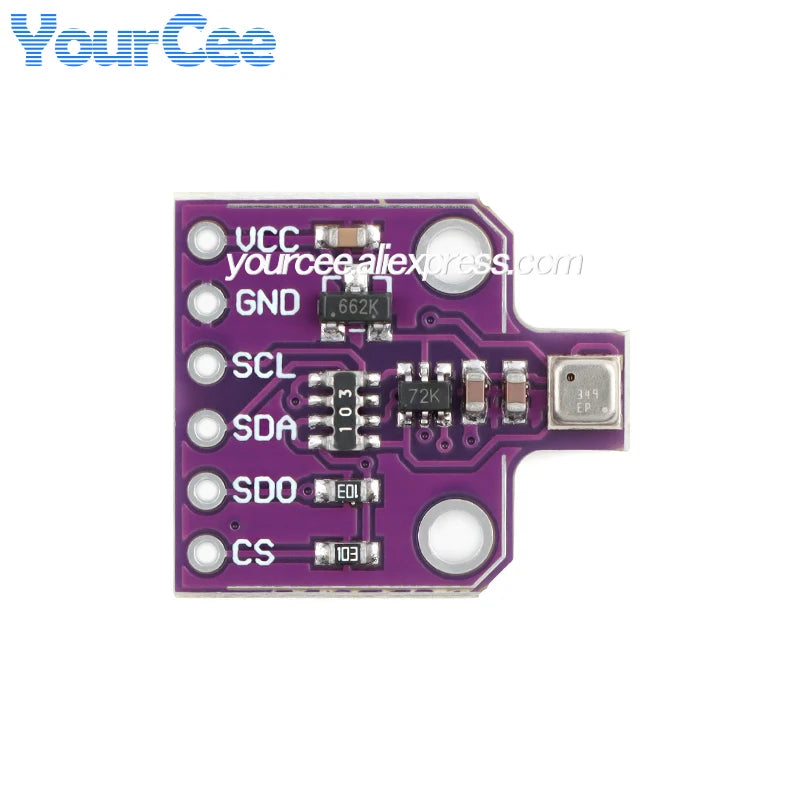

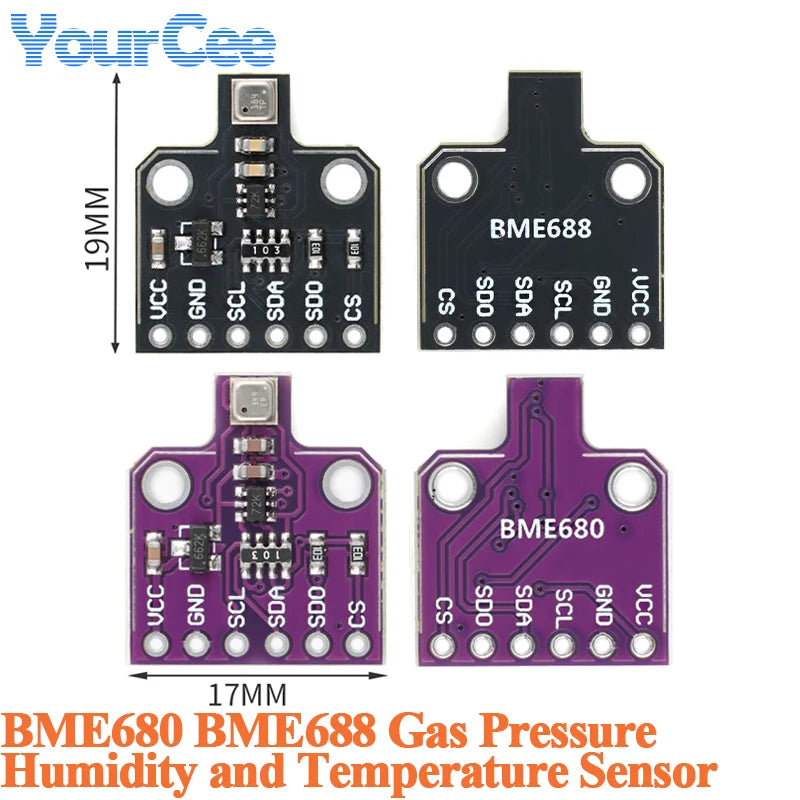

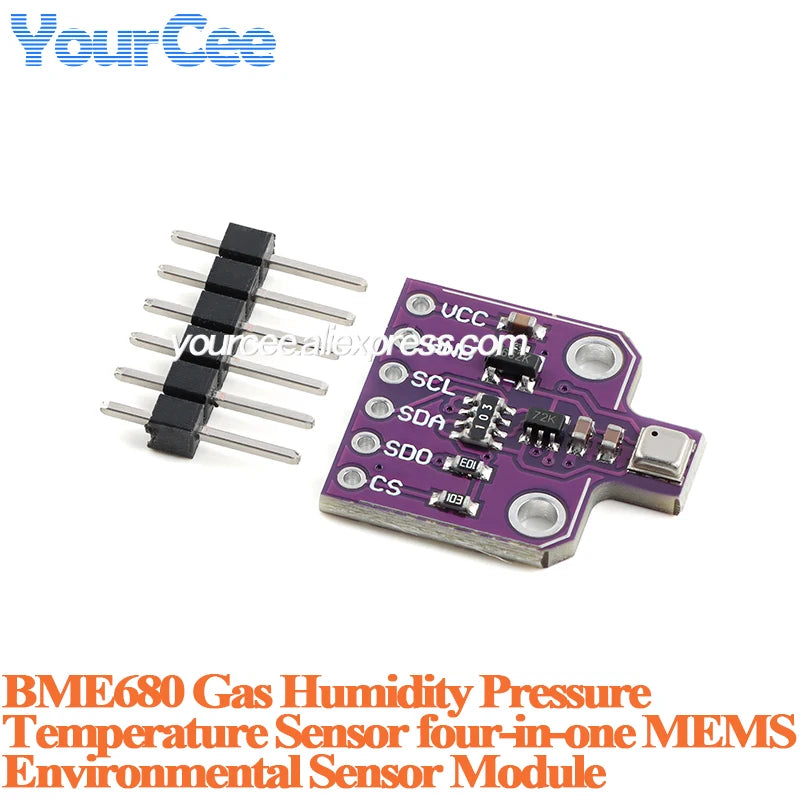

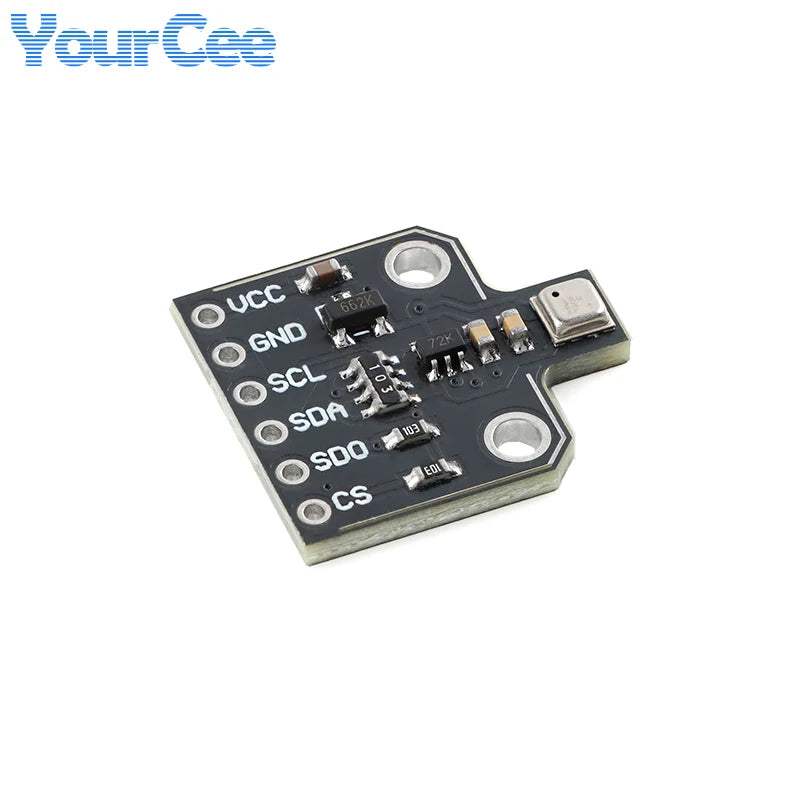

BME680 environmental sensor is the 1 four-in-one MEMS environmental sensor, which can measure VOC (volatile organic compounds), temperature, humidity and air pressure, and is very suitable for detecting air quality. Due to the use of MEMS technology, the sensor is small in size and low in power consumption, so it is also suitable for low-power applications, such as wearable.

BEM680 environmental sensor adopts 12C interface, onboard power supply voltage stabilizing chip and level signal conversion chip have good compatibility, can be directly compatible with 3.3V and 5V systems, and SPI connection 0 is reserved for easy expansion. This product is highly integrated and can detect four environmental parameters at the same time. It is an ideal choice for weather stations, smart homes, Internet of Things, wearable and other scenes.

Features
Operating voltage range: 1.71-3.6V
0.15uA in sleep mode

Scope of work:
Temperature: -40C-+ 85C
Humidity: 0% to 100%
Air pressure: 300-1100hPa

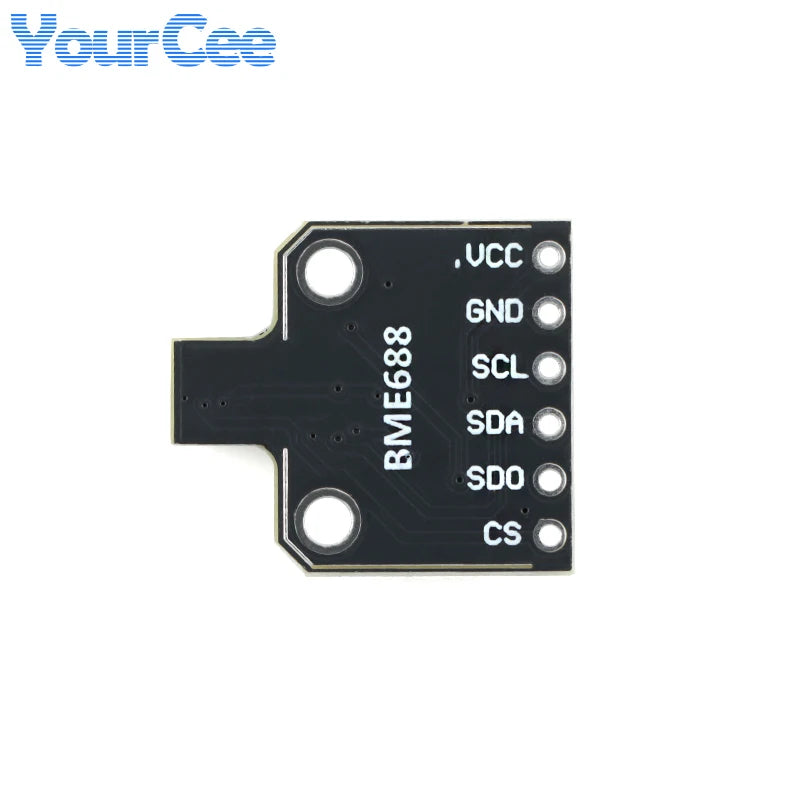

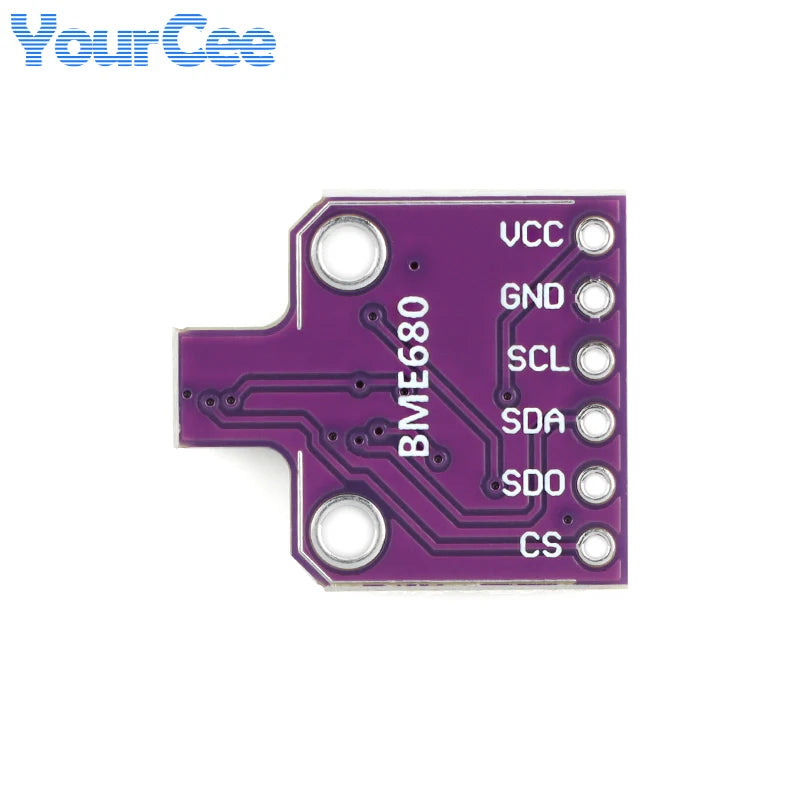

Pin Description
VCC: Power supply positive
GND: Ground
SCL: 12C/SPI Clock Pin
SDA: I2C/SPI Data Pin
SDo: SPI Data Pin
CS:SPI Slave Device enable

Operating voltage range: 3.3-5V
0.15uA in sleep mode
Scope of work:
Temperature:-40°C-+85°C
Humidity: 0% to 100%
Air pressure: 300-1100hPa

Pin Description
VCC: Power supply positive
GND: Ground
SCL: I2C/SPI Clock Pin
SDA: I2C/SPI Data Pins
SDO:SPl data pin.
CS:SPI Slave Device enable

Application
Mobile phones, tablets, smartwatches or connected sensors
Mobile/care equipment such as a toothbrush or oral detector
Smart home devices, such as smart speakers, connected sensors or lamps
Room environmental sensors and weather stations
Household appliances
