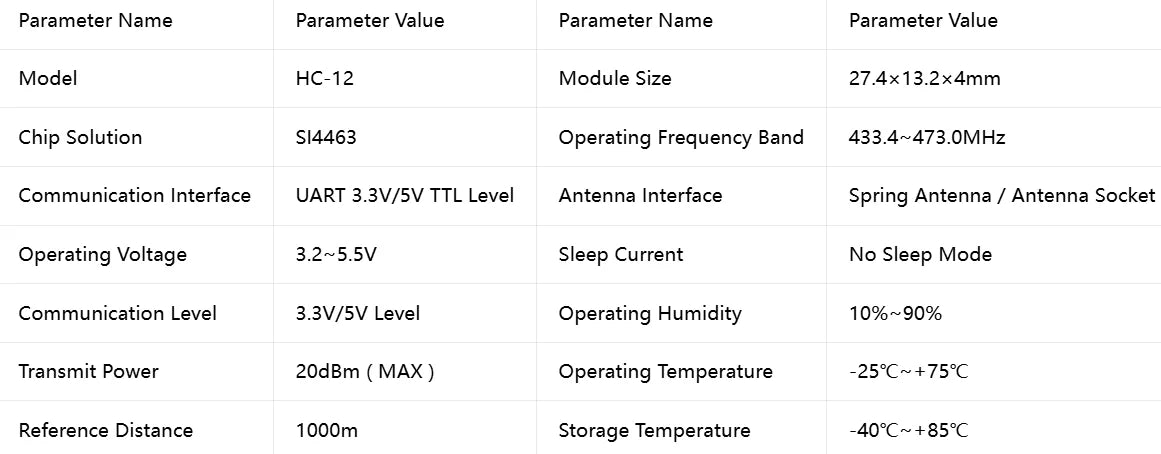

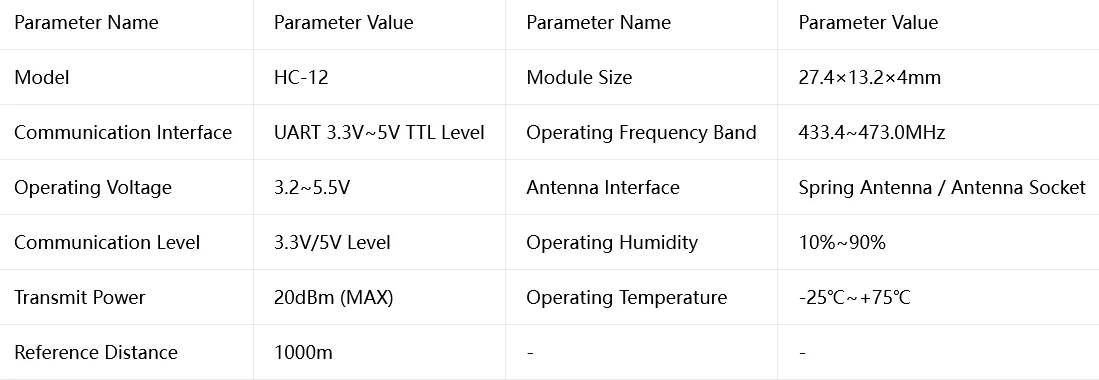

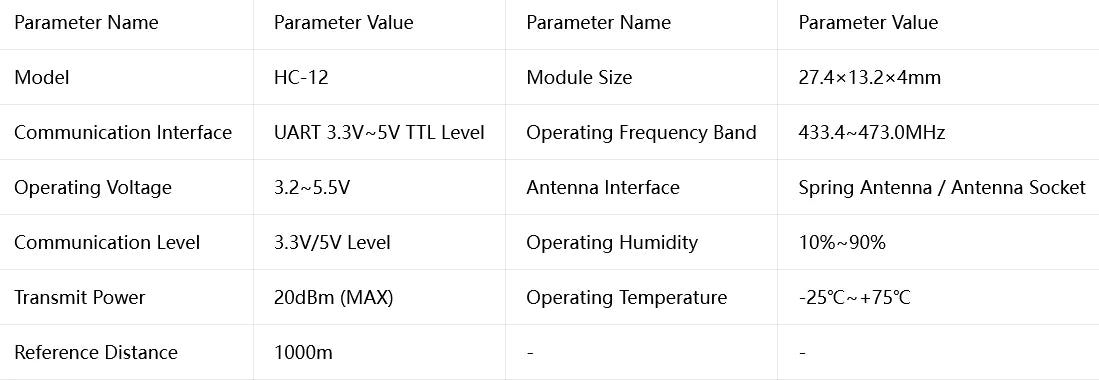

SPECIFICATIONS

Application: Computer

Brand Name: Your Cee

Condition: New

Dissipation Power: low

High-concerned chemical: none

Operating Temperature: normal

Origin: Mainland China

Package: TQFP

Quantity: 1

Supply Voltage: 3.2-5.5V

Type: Module

is_customized: Yes



Supply voltage 3.2V ~ 5.5V. (If you want to work in the module exceeds launch state for a long time, it is recommended when the supply voltage 4.5V series with a 1N4007 diode, to avoid heating module built LDO)



Default communication distance (open test): about 600m (adjustable to achieve the maximum communication distance of 1000m, the air baud rate 5000bps).



The default idle current: 16MA (modules in different operating current of the different operating modes).

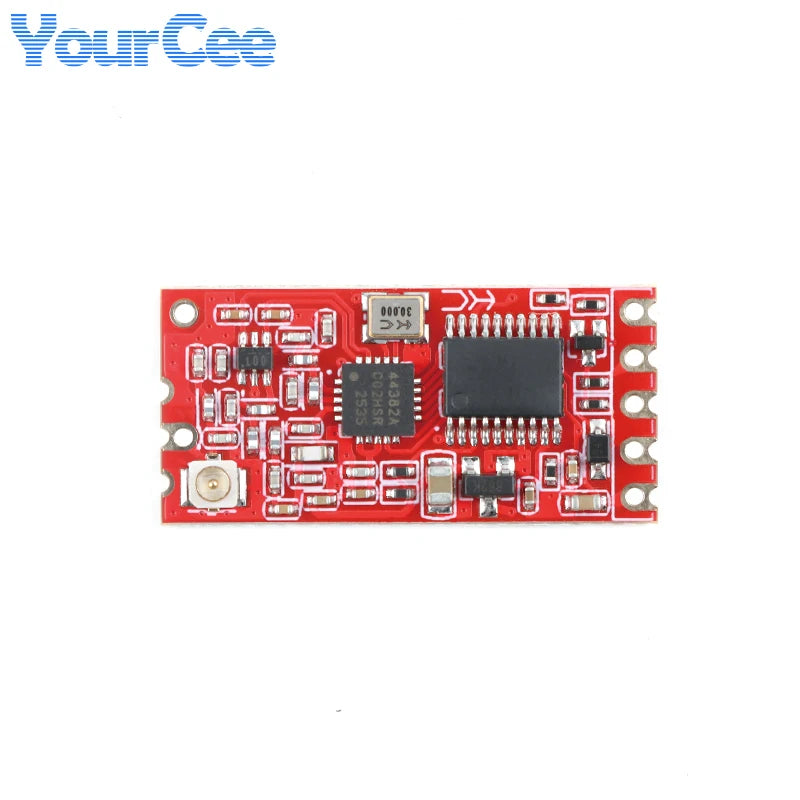

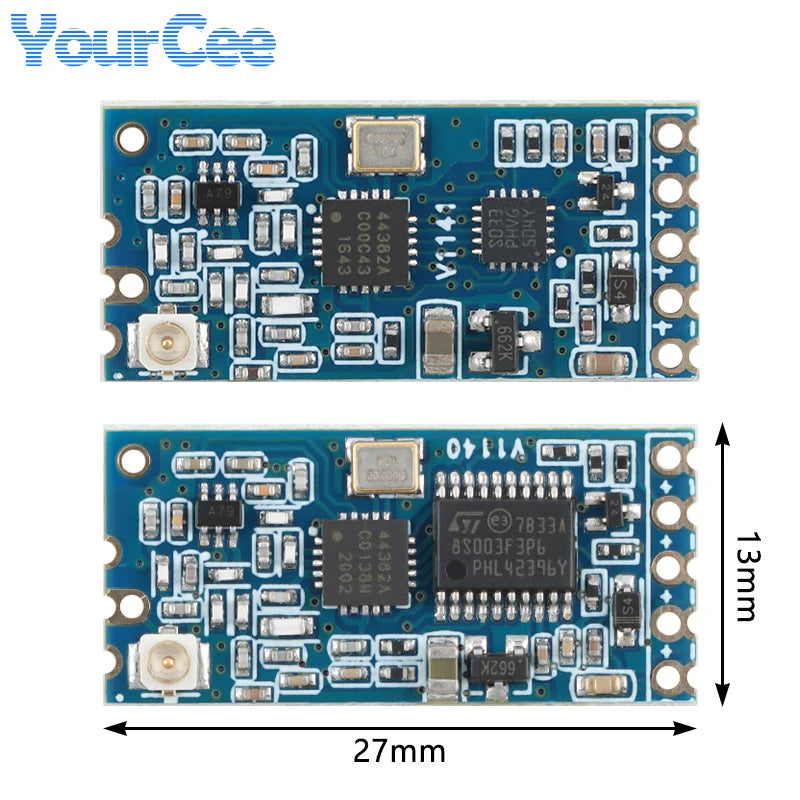

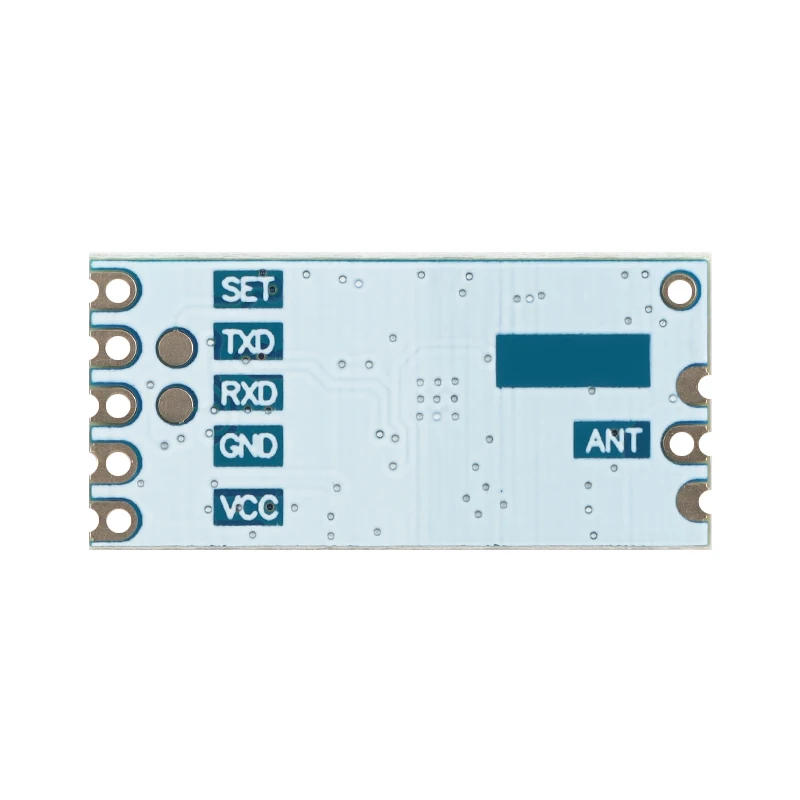

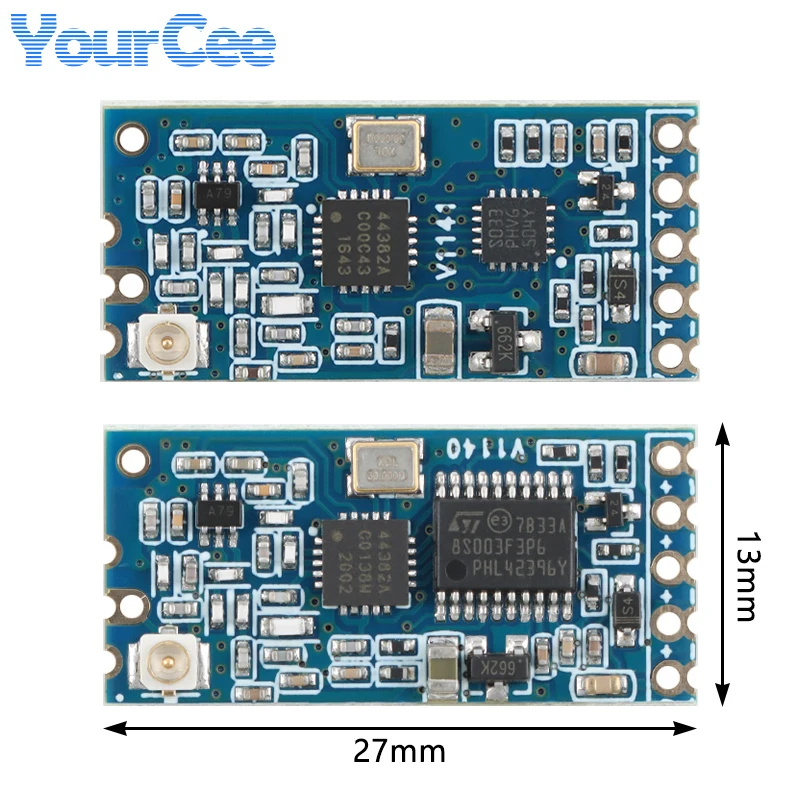

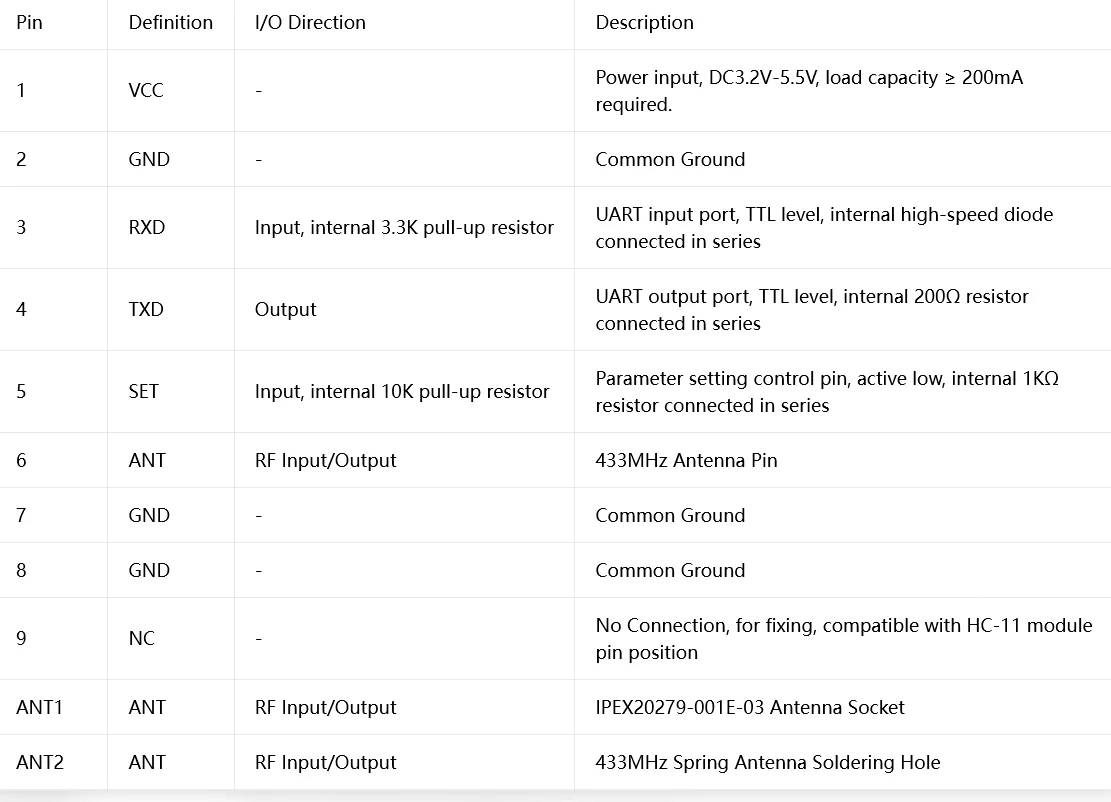

Module Size: 27mm × 13mm



Operating frequency range (433.4-473.0MHz, up to 100 communication channels) Maximum 100mW transmit power (can be set)



The module supports software upgrades. (We provide customers with software upgrades)



The default factory settings: operating mode FU3, baud rate 9600bps, communication channel CH001 (433.4M).



Module Features
Long-distance wireless transmission (1,000 meters in open terrain; 500bps baud rate in FU4 mode)
Operating frequency range (433.4–473.0 MHz, up to 100 communication channels)
MAX 100mW (20 dBm) transmit power (with 8 adjustable power levels)
Four working modes, suitable for different application scenarios
Built-in MCU communicates with external devices via the serial port.
No limit on the number of bytes sent per transmission (FU1/FU3 mode)
The module supports 1-to-1, 1-to-many, and many-to-many connection passthrough.

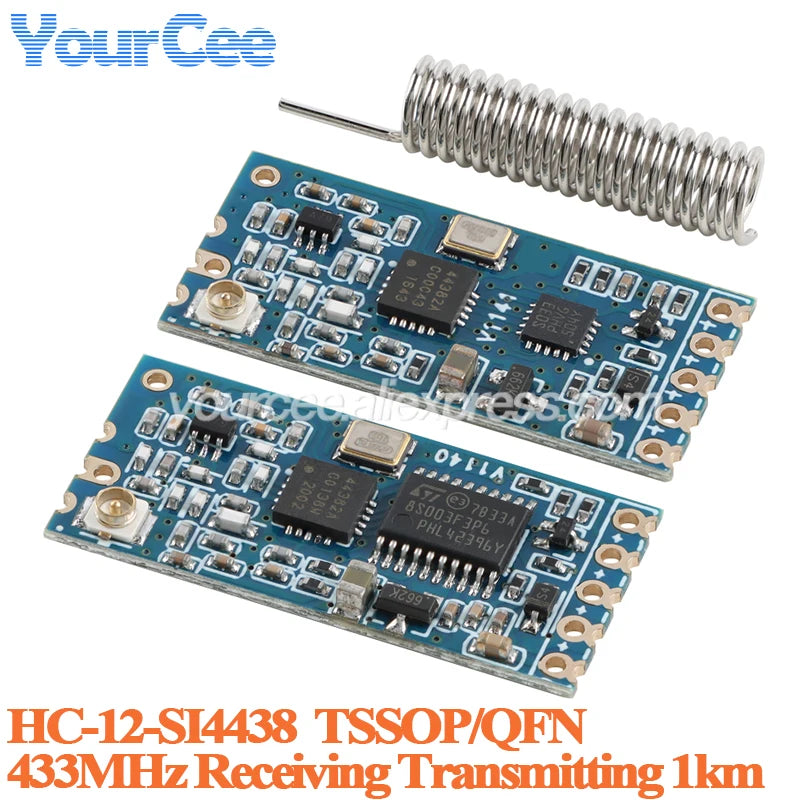

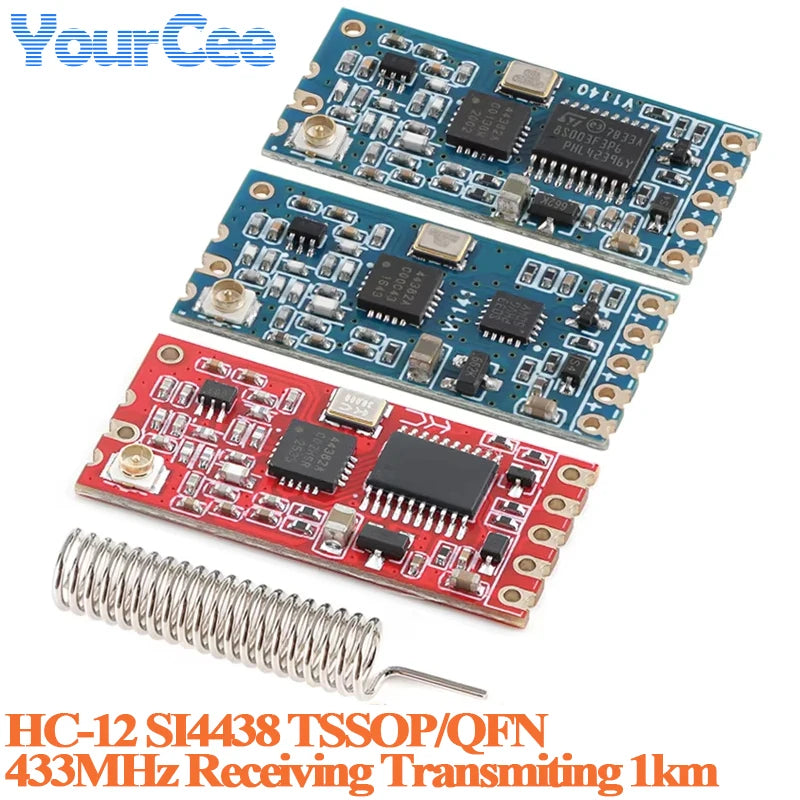

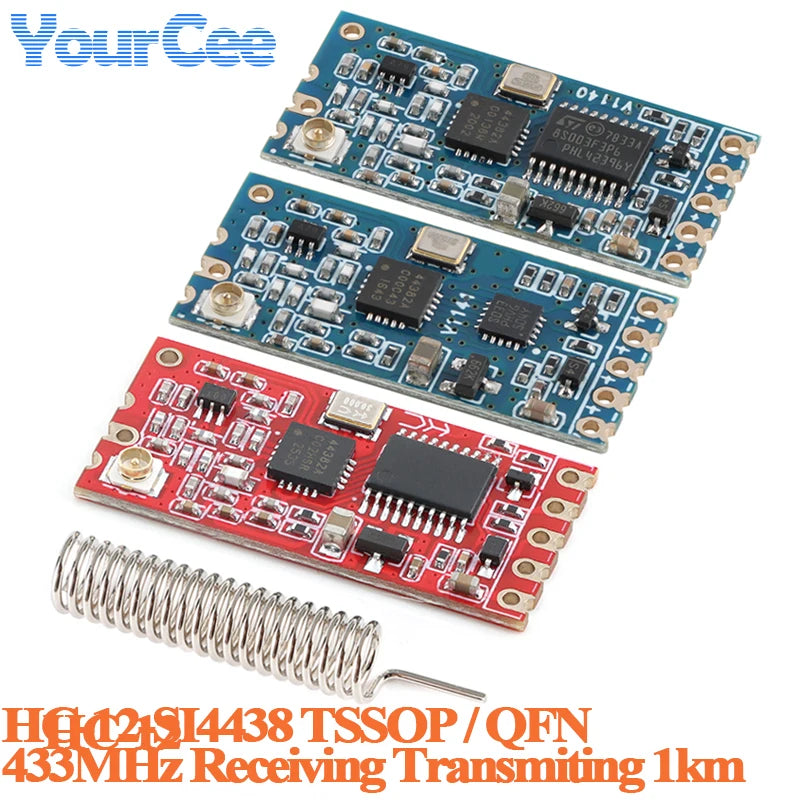

1.2 Module Overview
The HC-12 wireless serial communication module is a next-generation, multi-channel embedded wireless data-transmission module. The wireless operating frequency band is 433.4 to 473.0 MHz, with multiple channels configurable in 400kHz steps, for a total of 100. The MAX module has a transmit power of 100mW (20 dBm), a receive sensitivity of −116 dBm at an air-interface baud rate of 5,000 bps, and a communication range of 1,000 meters in open terrain.

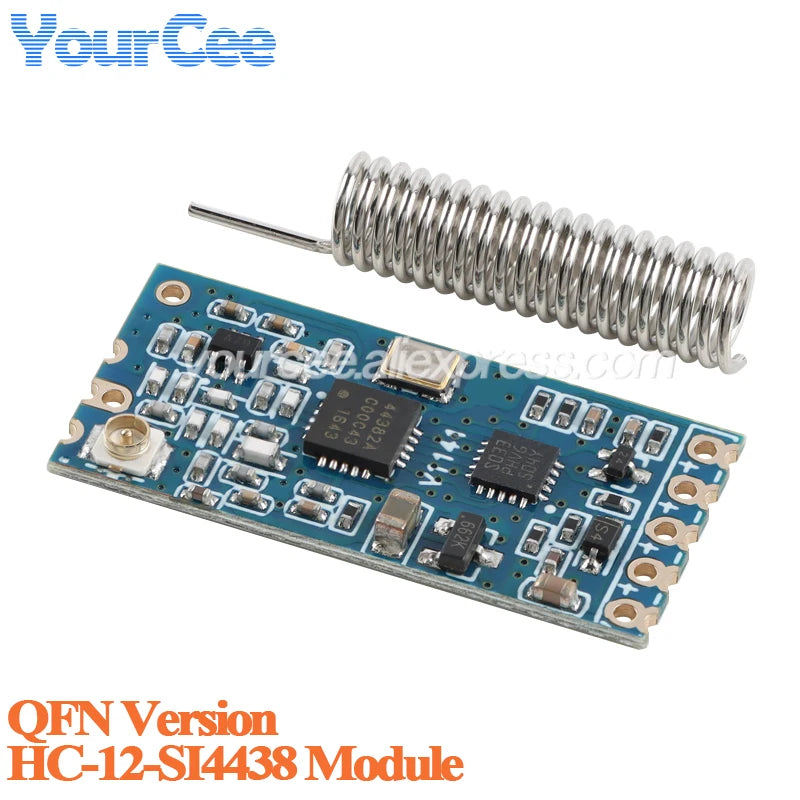

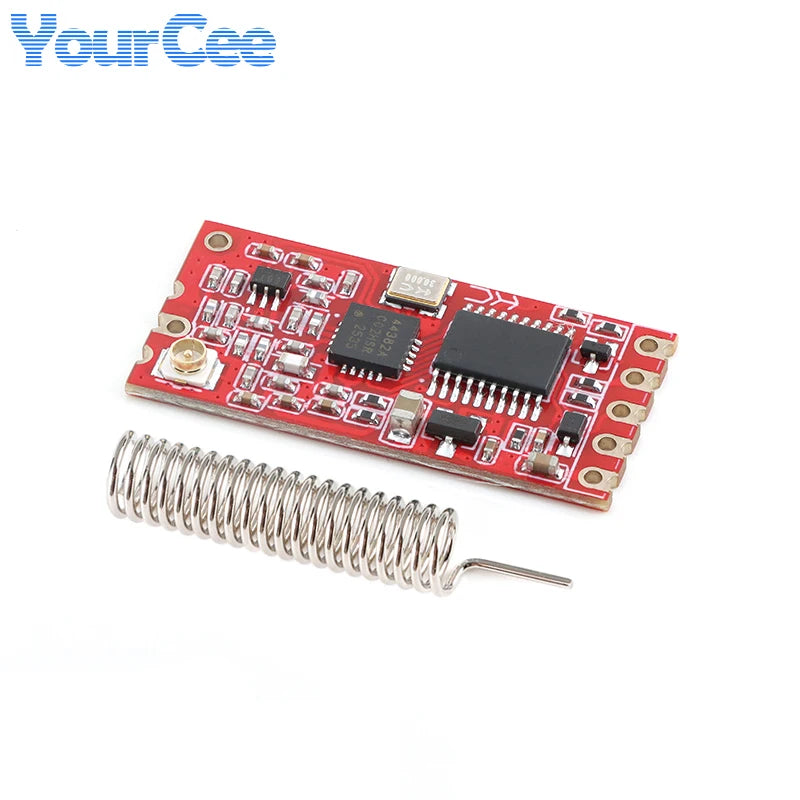

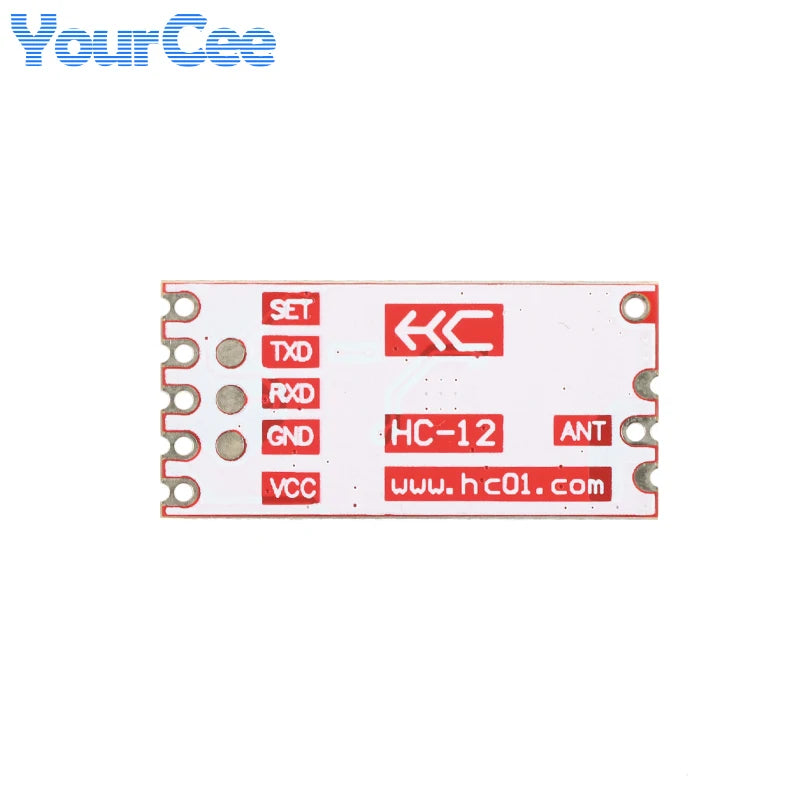

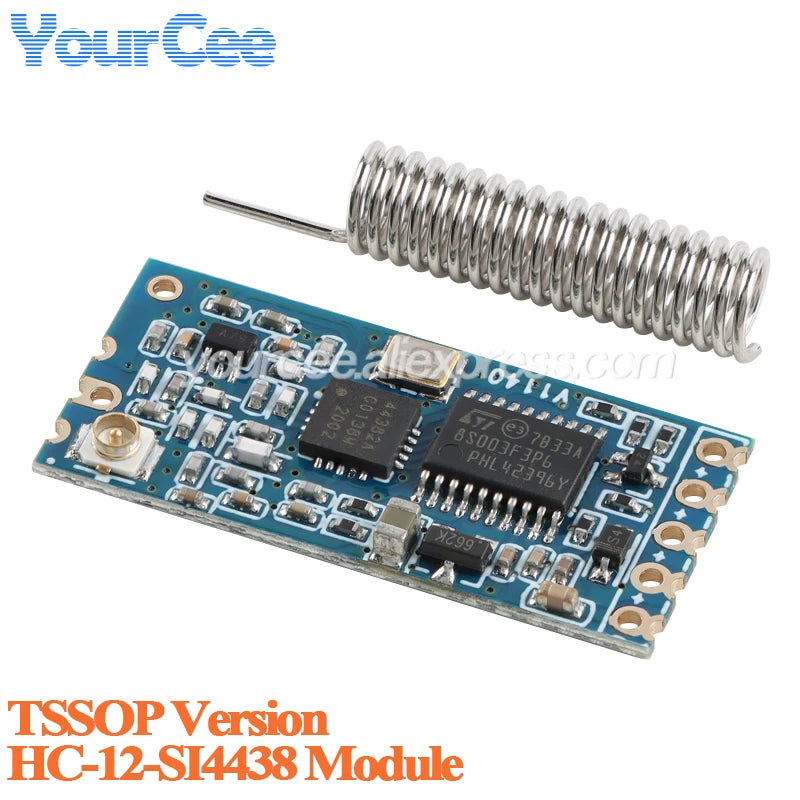

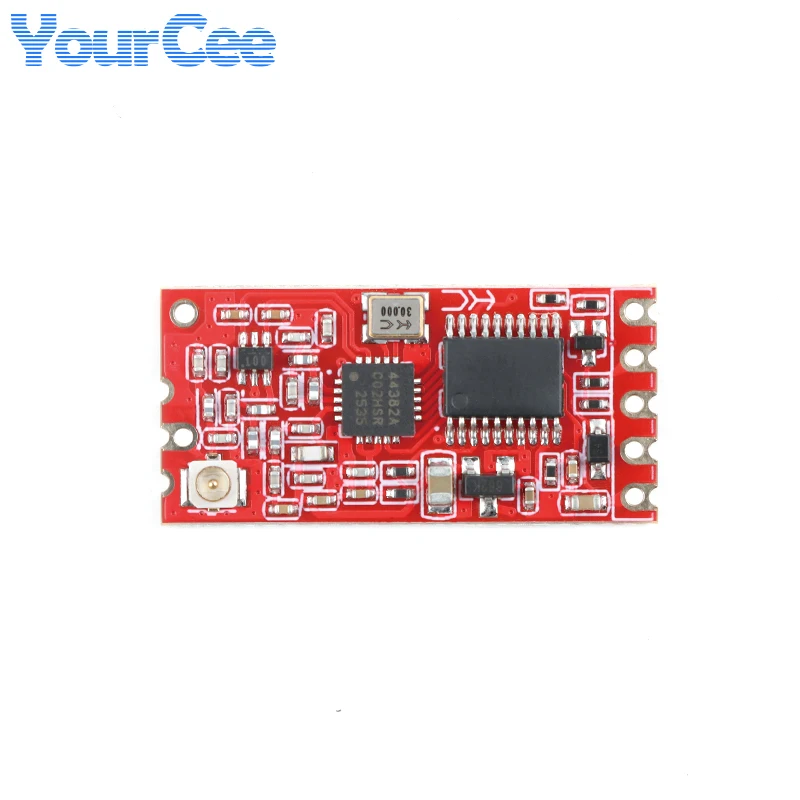

The module adopts stamp hole packaging method and can be patch welded. The size of the module is 27.4mm x 13.2mm x 4mm (including antenna cap and excluding spring antenna), which is very convenient for customers to embed into the application system. The module features a PCB‑mounted antenna connector, ANT1, which allows users to connect an external 433 MHz‑band antenna via coaxial cable. Additionally, the module includes an antenna solder pad, ANT2, for conveniently attaching a spring antenna. Users can select one of the antennas based on their application requirements.

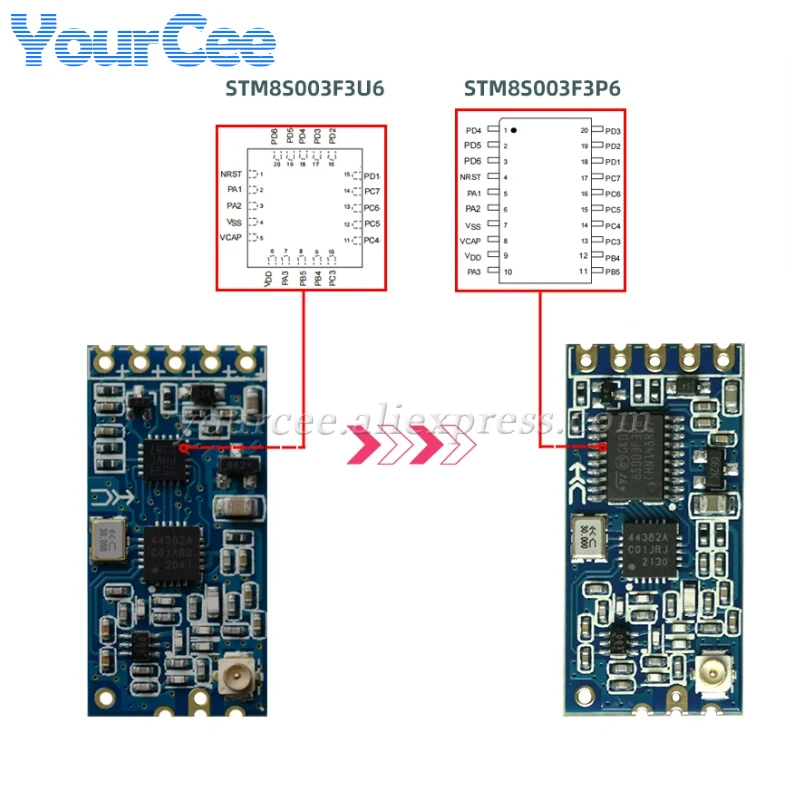

The module integrates an MCU, so users do not need to program it separately. In various transparent‑transmission modes, simply send and receive serial‑port data for convenient operation. The module supports multiple serial‑to‑Ethernet transparent‑transmission modes, which users can select via AT commands according to their application requirements. In the idle state, the average operating currents of the four modes FU1, FU2, FU3, and FU4 are 3.6 mA, 80 μA, 16 mA, and 16 mA, respectively, with a maximum operating current of 100mA (in full-power transmission mode).
