SPECIFICATIONS

Application: Computer

Brand Name: Jessinie

Condition: New

Dissipation Power: Low

High-concerned chemical: none

Operating Temperature: Normal

Origin: Mainland China

Package: TQFP

Supply Voltage: -

Type: Module

is_customized: Yes

FE1.1s is the 1 highly integrated, high-quality and high-performance USB2.0 four-port hub solution. Its small size and low power consumption make it the best choice for embedded applications as well as standalone hubs. The device high quality benefits from DesignFor-Testing technology, which is equipped with a comprehensive scan chain and built-in self-test mode, which can test all high-speed, full-speed and low-speed analog front-end (AFE) components during the packaging and test phase.

Product Features
Supply voltage: 5V
High speed, stable, low heat, low power consumption

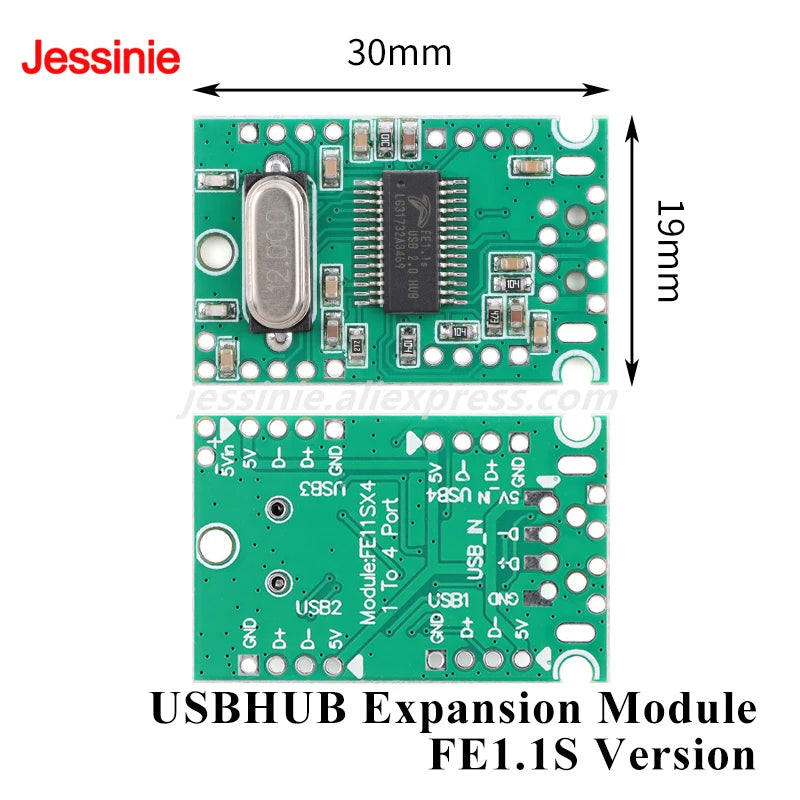

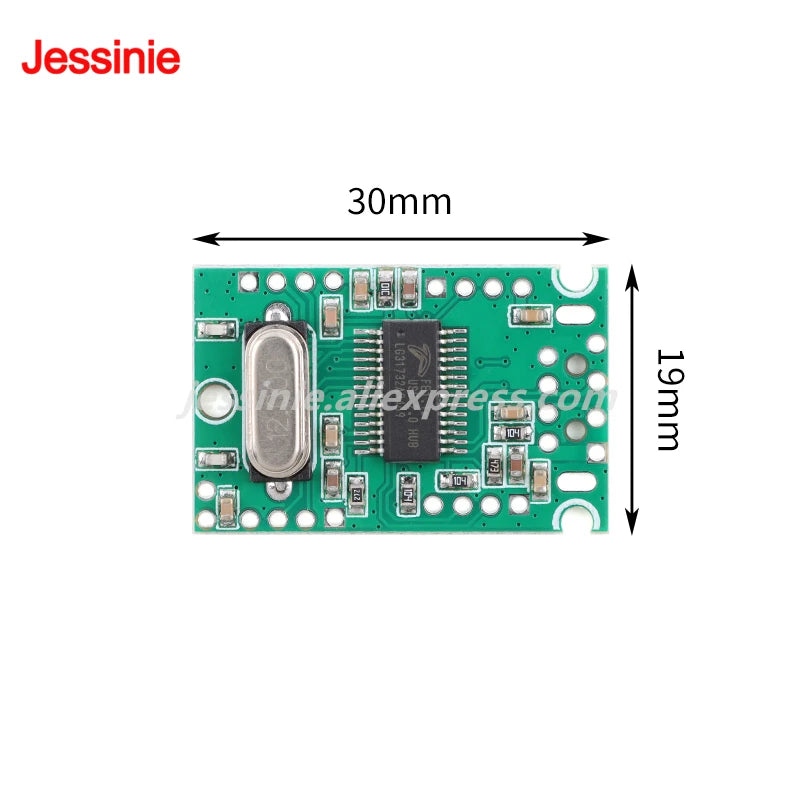

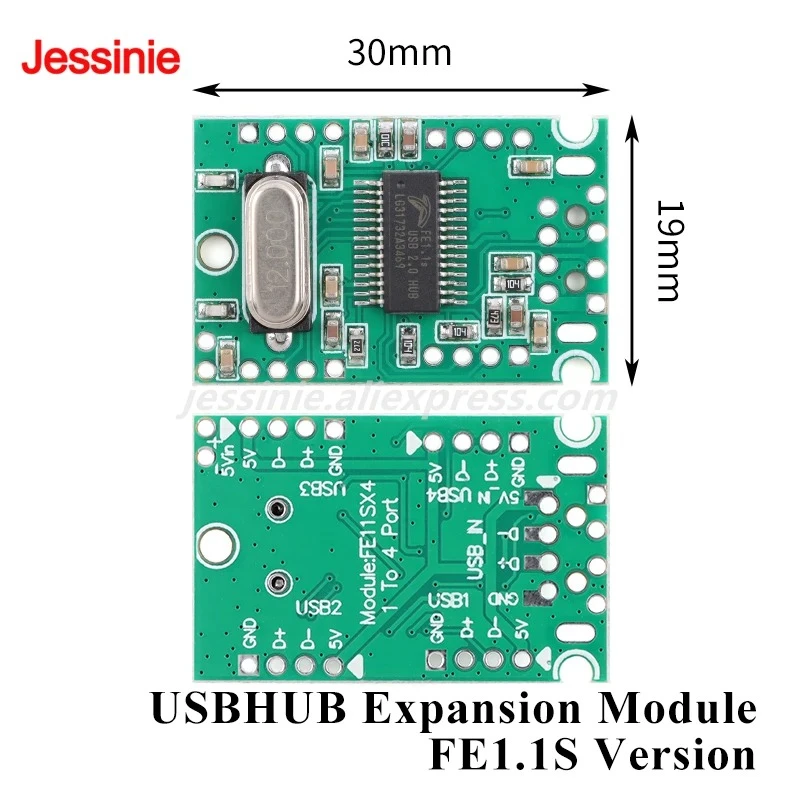

Size: 29.5mm * 1 8.9mm * 4.8mm (length * width * height)
Note: When the 5V power supply current from the USB input O is not enough after connecting high-current peripherals, the external reserved power input port can be enabled.

Application
Computer motherboard (2.54mm interface is reserved for this module input)
Computer one machine USB port expansion.
Notebook, tablet computer USB port expansion
Raspberry Pi, ARM, MIPS chip development board USB interface expansion
Expansion of USB Interface for Advertising Machine and Network TV
Expansion of the USB port of the network camera, etc.

USB interface use

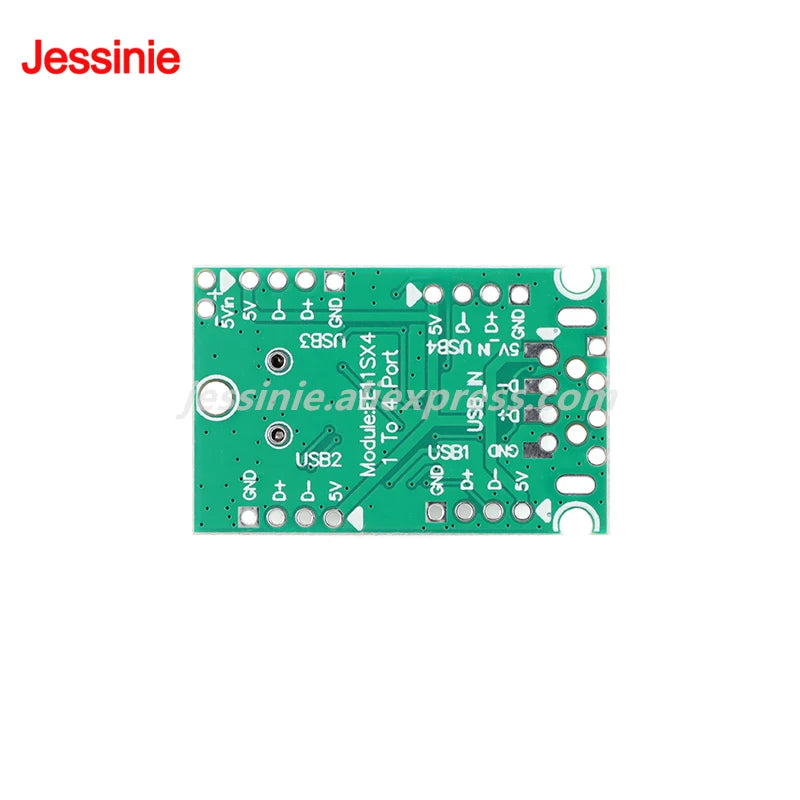

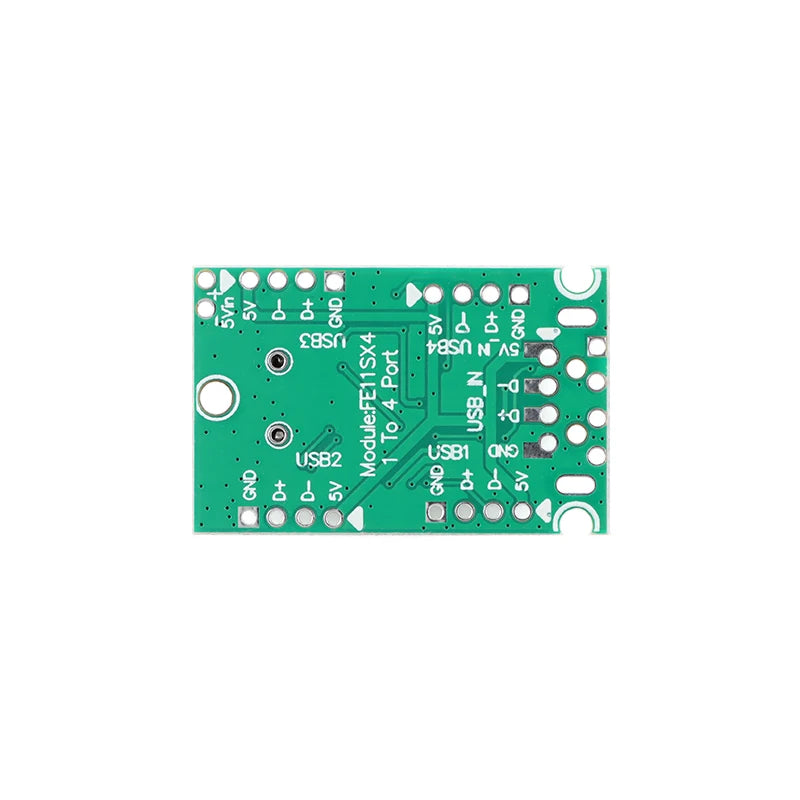

Application examples, usually USB peripherals such as USB mouse and USB keyboard are easy to break after a long time, resulting in the normal use of the peripherals. In fact, the external peripherals are not damaged. The external peripherals can be directly welded to the following modules with wires to connect the computers. The external peripherals with faulty wires can be used again, which is convenient for users to DIY. The USB extender module has no connection seat, and each pin pad is reserved. The input hole is reserved for standard 2.54mm and 2.0mm single-row pins on the main brain motherboard. The four USB ports are all 2.0mm single-row pins, and 3 is a 2mm diameter positioning hole.
