SPECIFICATIONS

Brand Name: WLMLBWCJ

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Module

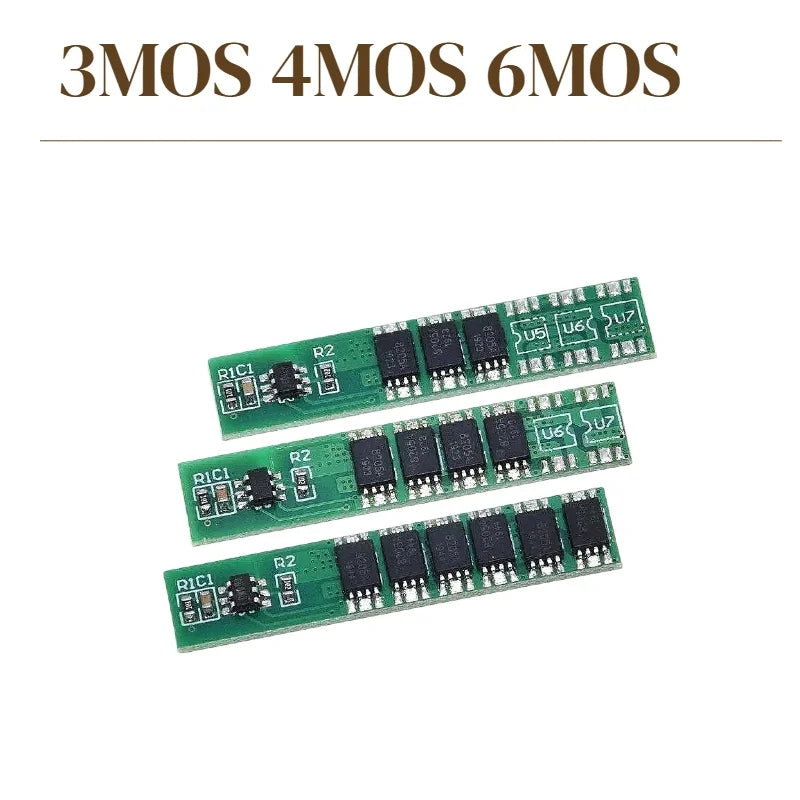

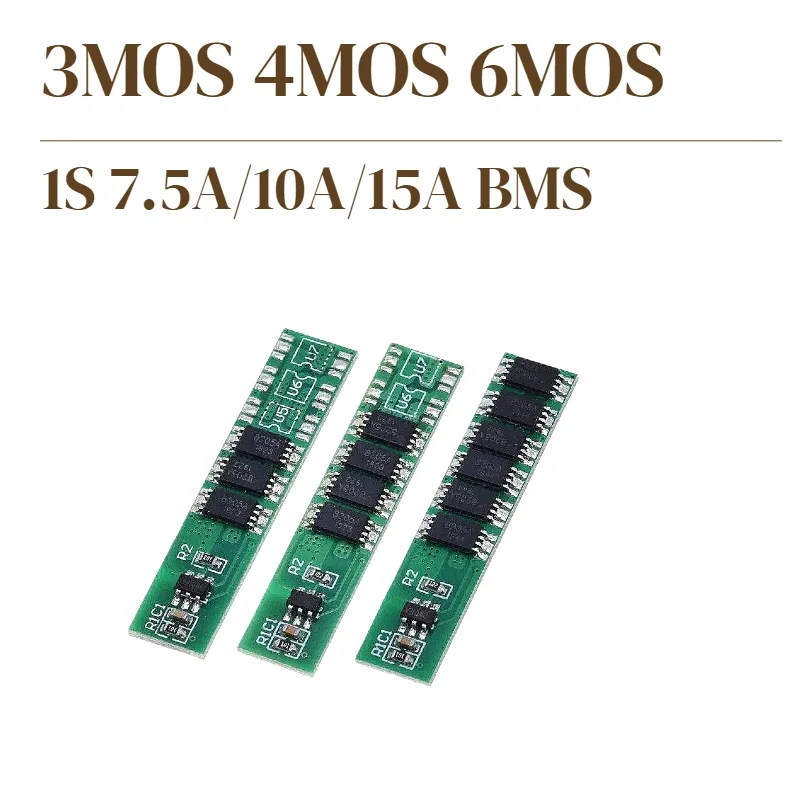

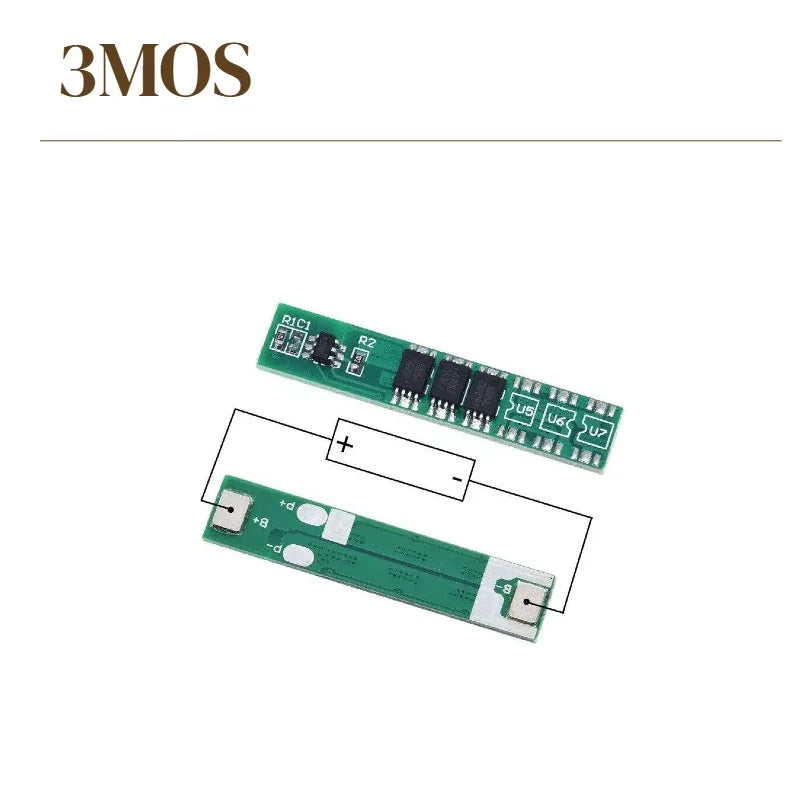

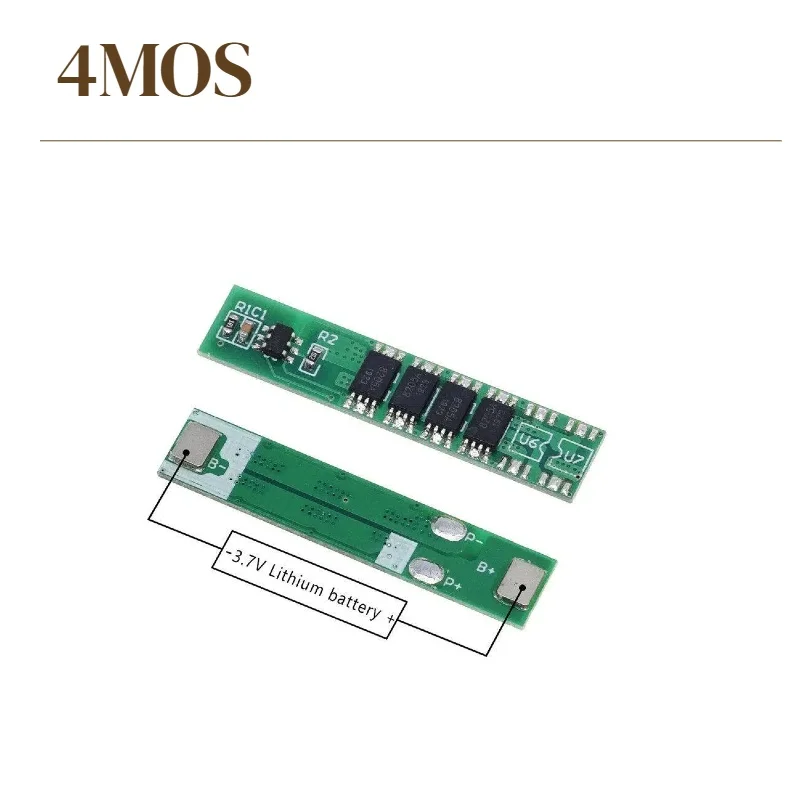

3/4 M0S Technical Specifications:

Overcharge detection voltage: 4.25 ± 0.05 V

Overcharge release voltage: 4.23 ± 0.05 V

Over-discharge detection voltage: 2.45 ± 0.1 V

Maximum continuous current: 7.5 A

Overcurrent detection current: 10 A

Charging voltage: 4.2 V

Product dimensions: 35 × 7.6 × 2 MM

IC components: DW01 + 8205A × 3 / DW01 + 8205A × 4

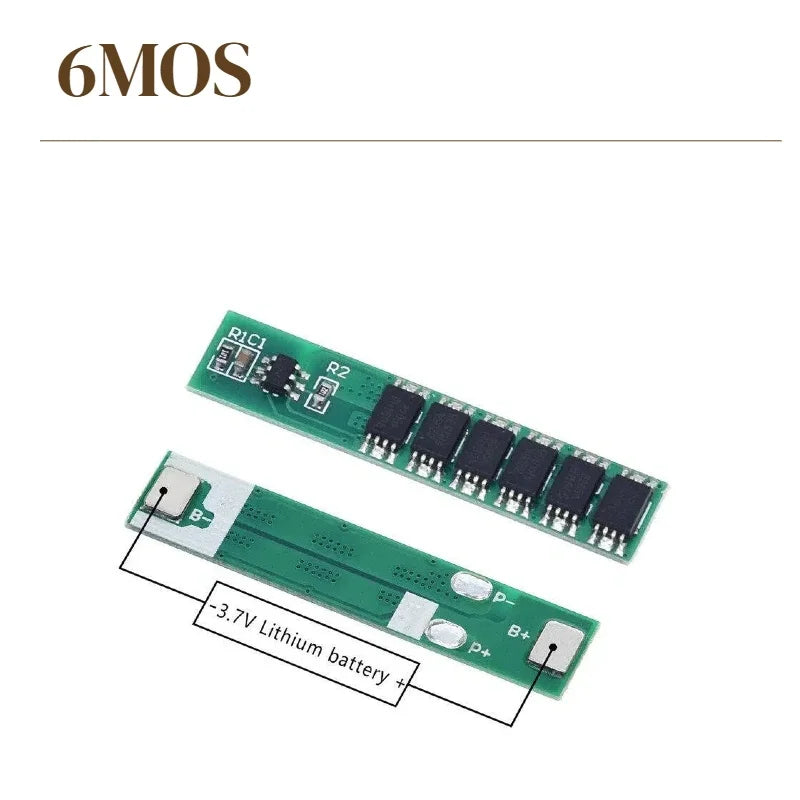

6 M0S Technical Specifications:

Overcharge detection voltage: 4.25 ± 0.05 V

Overcharge release voltage: 4.23 ± 0.05 V

Over-discharge detection voltage: 2.45 ± 0.1 V

Maximum continuous current: 12 A

Overcurrent detection current: 15 A

Charging voltage: 4.2 V

Product dimensions: 35 × 7.4 × 2.2 MM

M0S: 8205A × 6

Wiring Instructions:

B+ connects to the positive terminal of the battery.

B- connects to the negative terminal of the battery.

P+ is the positive terminal for the battery pack output/input.

P- is the negative terminal for the battery pack output/input.
