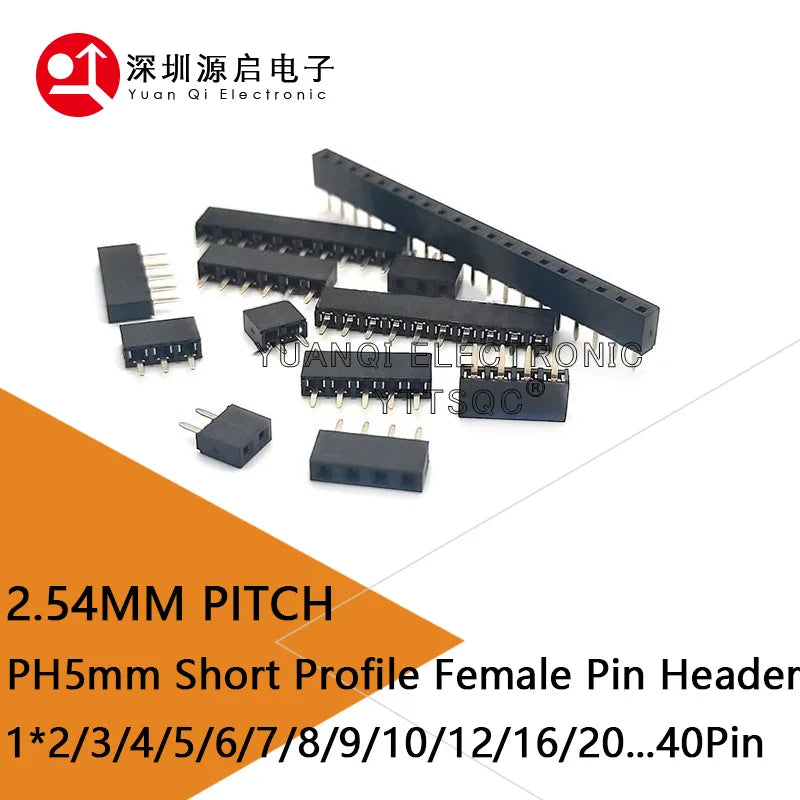

10pcs 2.54mm PH5 Short Profile Single Row Straight 1X2P/5P/6P/10P/15P/40P Rohs Goldplated PCB Female Pin Header Socket Connector
PH5 Female Header / 20P
$24.96
Sale price
$24.96
Regular price
$0.00
Skip to product information
10pcs 2.54mm PH5 Short Profile Single Row Straight 1X2P/5P/6P/10P/15P/40P Rohs Goldplated PCB Female Pin Header Socket Connector
$24.96
Sale price
$24.96
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: YTTSQC
Certification: CE,RoHS
Choice: yes
Customize: Yes,pls contact for other pins
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
Each pack: 10
High-concerned chemical: none
Measurement unit: piece/pieces
Model: Short Version Female Header
Model Number: 2.54mm PH5 Short Profile Single Row Female Pins Socket
Origin: Mainland China
Pitch: 2.54mm
Plastic Height: 5.0mm
Poles: 1X4P/5P/6P/10P/15P/40P
Product: Female PCB Header
Voltage: none
semi_Choice: yes
10pcs 2.54mm PH5 Short Profile Single Row Straight 1X2P/5P/6P/10P/15P/40P Rohs Goldplated PCB Female Pin Header Socket Connector
Pin-Pin Distance/Pitch: 2.54mm
Row Qty: Single Row
Pin Length: 3.0mm
Plastic Heiht: 5.0mm
Current Rating: 3Amps
Insulator Resistance: 5000Megohms min
Dielectric Withstanding: AC 500V
Operating Temperature: -40-105 Celsuis Degree
Contact Material: Phosphor bronze
Finish: Gold Flash
Tolerance: +/-0.2mm

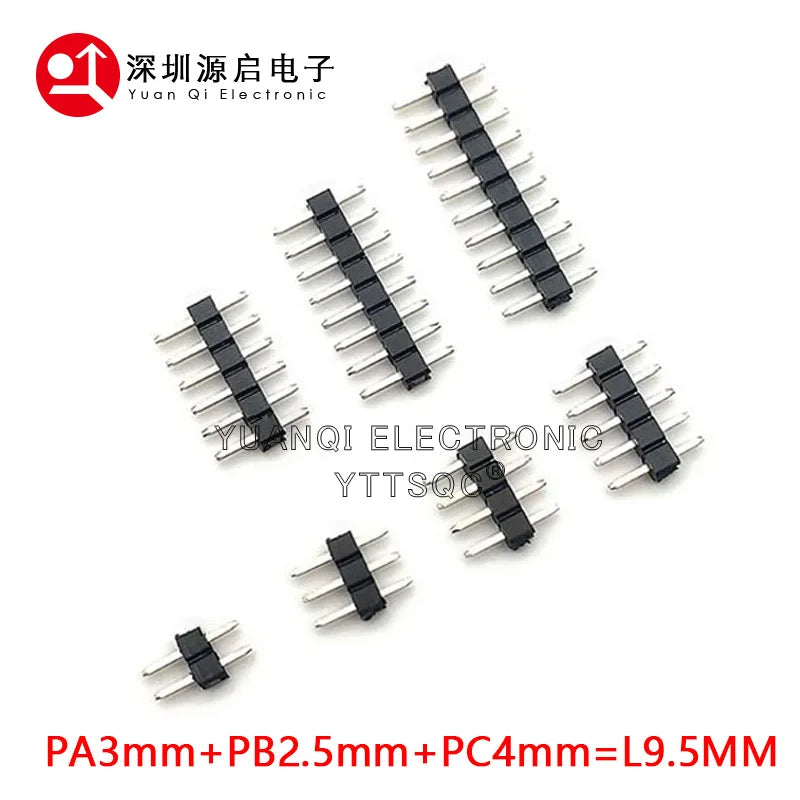

For Option Mate L9.5 Pin Header, it is Straight Cuttable PA4 PC3 Plastic Height 2.5mm, total 9.5mm(see drawing below)
If you need lower profile,Plastic height 3.5mm, please check: https://www.aliexpress.com/item/1005006248653180.html
If you need double row PH5.0 female headers, please check below picture:https://www.aliexpress.com/item/1005006247222472.html

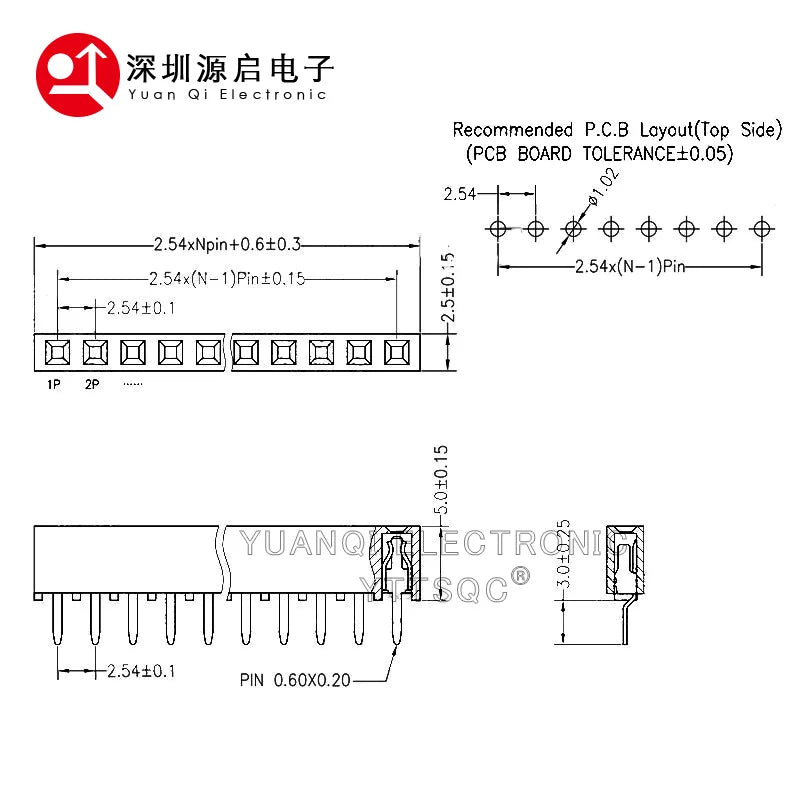

Drawing, H=5.0mm
