10pcs 2.54mm PH5mm Single Row SMD Short Version SMT 1X3/4/5/6P 8P 10P 12P 20P Stackable PCB Female Pin Header Socket Connector
Male 1X40P PinHeader / Single Row Type 1
$36.92
Sale price
$36.92
Regular price
$0.00
Skip to product information
10pcs 2.54mm PH5mm Single Row SMD Short Version SMT 1X3/4/5/6P 8P 10P 12P 20P Stackable PCB Female Pin Header Socket Connector
$36.92
Sale price
$36.92
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: YTTSQC
Choice: yes
Condition: New
High-concerned chemical: none
Origin: Mainland China
Pitch: 2.54mm

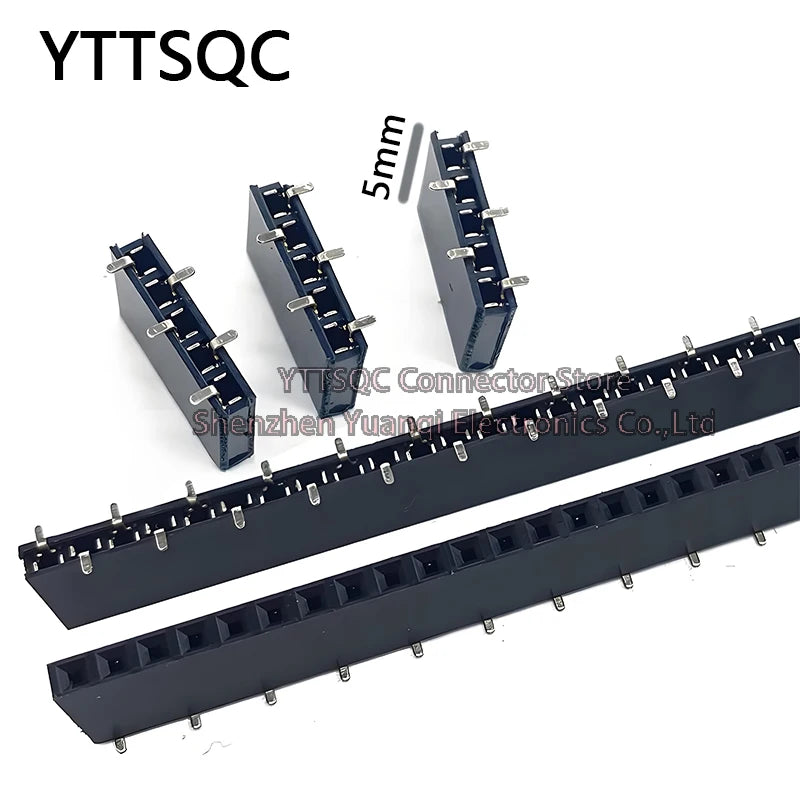

Plastic Height: 5mm
Type: Terminal Block
semi_Choice: yes
10pcs 2.54mm SMD Short Version PH5mm Single Row SMT 1X3/4/5/6P 8P 10P 12P 20P Stackable PCB Female Pin Header Socket Connector
Product sellpoints
Durable Materials:Constructed with UL94V-0 rated polyester and gold-plated contacts for long-lasting performance.
Versatile Mating Options:Comes with 10pcs SMD pin header and 10pcs 1X40P male pin header for comprehensive use.
High Current Rating:Withstands up to 3Amp, ideal for high-power applications.

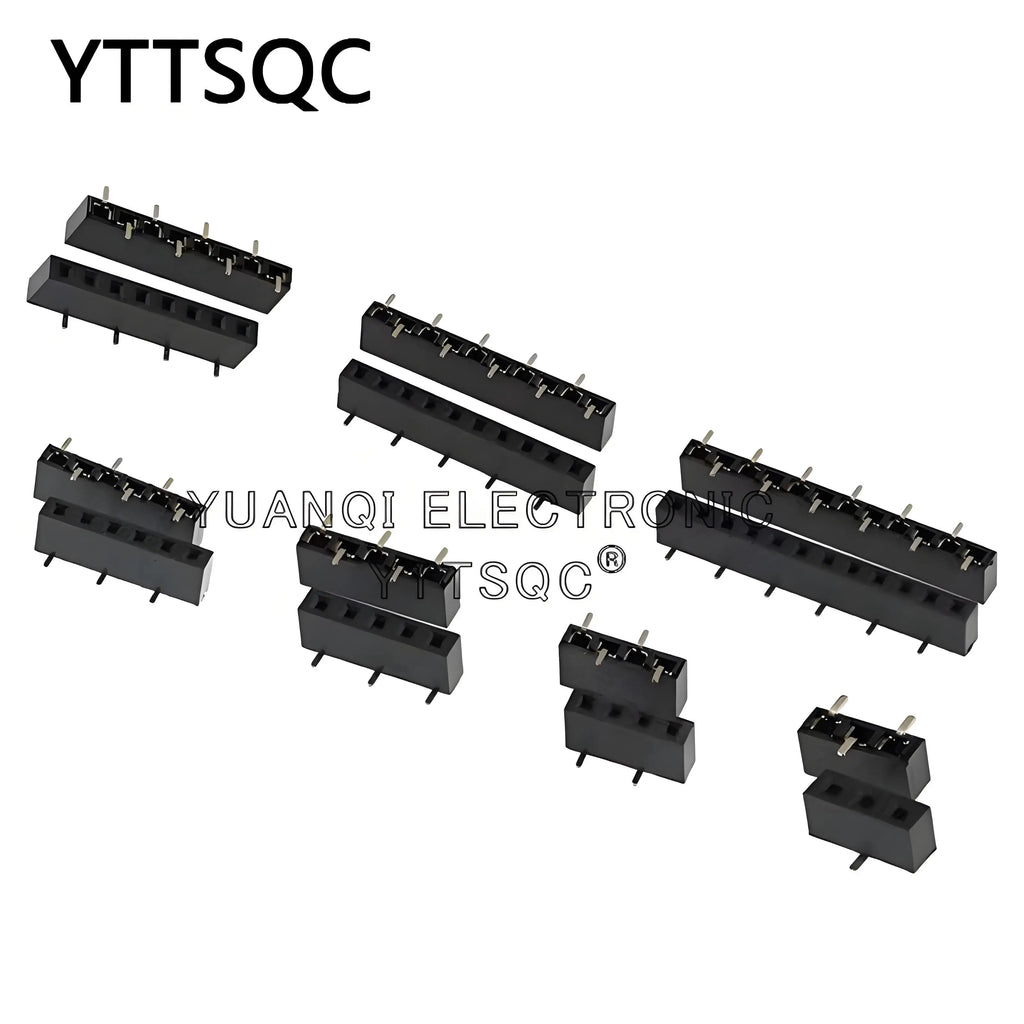

Broad Compatibility:Available in 1x3/4/5/6P 8P 10P 12P 20P, compatible with various PCB designs.
Precise Specifications:Pitch 2.54mm, Plastic Height 5mm, ensuring accurate fit for SMT and SMD components.
Specifications:
Current Rating: 3Amp
Operation Temperture: -40 to 105 celsuis degree
Contact Resistance: 20mOHM Max
Insulation Resistance: 1000M ohm Min
Withstanding Voltage: AC1000V
Insulation Material: Polyester UL94V-0
Standard Nylon-6T
Contact Material: Phosphor Brone
Contact Plating: 0.8U Gold plated
For Option Mate 1X40P PinHeader, it is the SMD Male pin header, please find drawing below:
Package Content
10pcs 2.54mm SMD PCB Female Header 1x3/4/5P 6P 7P 8P 10P 12P 20P
or 10pcs 1X40P SMD male pin header for mating with the PH5 female header, you can cut into any pins you need.
Pictures:

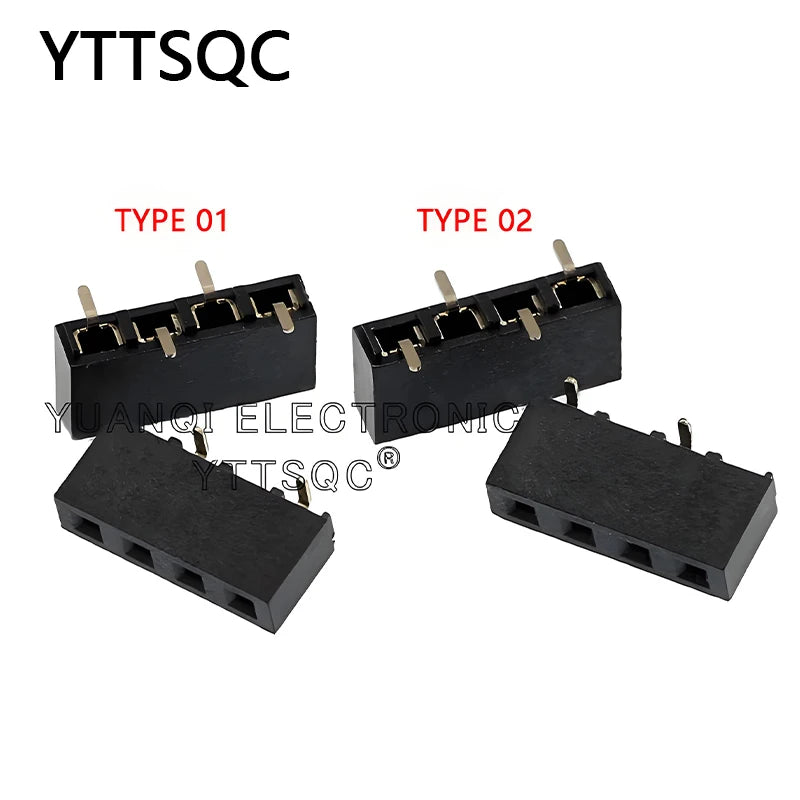

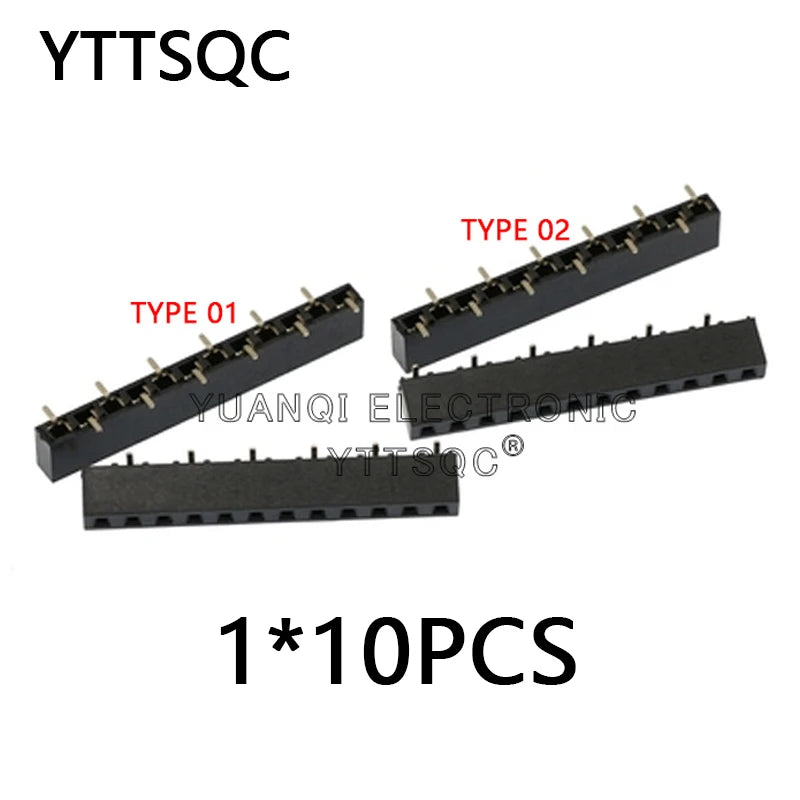

There are 2 different pins optional, TYPE 1, TYPE2, please check below different pin out and choose the type you need.
