10pcs 2.54mm SMD Socket Stackable 1x2/3/4/5P 6P 7P 8P 9P 10P 20P~40p PH8.5 Single Row SMT Female Header Connector

10pcs 2.54mm SMD Socket Stackable 1x2/3/4/5P 6P 7P 8P 9P 10P 20P~40p PH8.5 Single Row SMT Female Header Connector

Single Row Type 2 / 1X30P
$25.56
$25.56 $0.00
Skip to product information
10pcs 2.54mm SMD Socket Stackable 1x2/3/4/5P 6P 7P 8P 9P 10P 20P~40p PH8.5 Single Row SMT Female Header Connector
  • 10pcs 2.54mm SMD Socket Stackable 1x2/3/4/5P 6P 7P 8P 9P 10P 20P~40p PH8.5 Single Row SMT Female Header Connector
  • 10pcs 2.54mm SMD Socket Stackable 1x2/3/4/5P 6P 7P 8P 9P 10P 20P~40p PH8.5 Single Row SMT Female Header Connector
  • 10pcs 2.54mm SMD Socket Stackable 1x2/3/4/5P 6P 7P 8P 9P 10P 20P~40p PH8.5 Single Row SMT Female Header Connector
  • 10pcs 2.54mm SMD Socket Stackable 1x2/3/4/5P 6P 7P 8P 9P 10P 20P~40p PH8.5 Single Row SMT Female Header Connector
  • 10pcs 2.54mm SMD Socket Stackable 1x2/3/4/5P 6P 7P 8P 9P 10P 20P~40p PH8.5 Single Row SMT Female Header Connector
  • 10pcs 2.54mm SMD Socket Stackable 1x2/3/4/5P 6P 7P 8P 9P 10P 20P~40p PH8.5 Single Row SMT Female Header Connector
  • 10pcs 2.54mm SMD Socket Stackable 1x2/3/4/5P 6P 7P 8P 9P 10P 20P~40p PH8.5 Single Row SMT Female Header Connector
  • 10pcs 2.54mm SMD Socket Stackable 1x2/3/4/5P 6P 7P 8P 9P 10P 20P~40p PH8.5 Single Row SMT Female Header Connector
  • 10pcs 2.54mm SMD Socket Stackable 1x2/3/4/5P 6P 7P 8P 9P 10P 20P~40p PH8.5 Single Row SMT Female Header Connector
  • 10pcs 2.54mm SMD Socket Stackable 1x2/3/4/5P 6P 7P 8P 9P 10P 20P~40p PH8.5 Single Row SMT Female Header Connector
  • 10pcs 2.54mm SMD Socket Stackable 1x2/3/4/5P 6P 7P 8P 9P 10P 20P~40p PH8.5 Single Row SMT Female Header Connector
  • 10pcs 2.54mm SMD Socket Stackable 1x2/3/4/5P 6P 7P 8P 9P 10P 20P~40p PH8.5 Single Row SMT Female Header Connector
  • 10pcs 2.54mm SMD Socket Stackable 1x2/3/4/5P 6P 7P 8P 9P 10P 20P~40p PH8.5 Single Row SMT Female Header Connector
10pcs 2.54mm SMD Socket Stackable 1x2/3/4/5P 6P 7P 8P 9P 10P 20P~40p PH8.5 Single Row SMT Female Header Connector
10pcs 2.54mm SMD Socket Stackable 1x2/3/4/5P 6P 7P 8P 9P 10P 20P~40p PH8.5 Single Row SMT Female Header Connector
$25.56
$25.56 $0.00
Color
Pins
Description

SPECIFICATIONS

Brand Name: E-SIMPO

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: None

Model Number: SMT female header

Origin: Mainland China

Package: SMD SMT Surface Mount Type

Pins: 1x2P 3P 4P 5P 6P 7P 8P 9P 10P 20P~40p

Pitch: 2.54mm

Voltage: 5 V 12 V 20 V 30 V

semi_Choice: yes

10pcs 2.54mm SMD PCB Female Header Stackable 1x2/3/4/5P 6P 7P 8P 9P 10P 20P~40p PH8.5 Single Row SMT Pin Header Female Connector

Specifications:

Current Rating: 3Amp
Operation Temperture: -40 to 105 celsuis degree
Contact Resistance: 20mOHM Max
Insulation Resistance: 1000M ohm Min
Withstanding Voltage: AC1000V
Insulation Material: Polyester UL94V-0
Standard Nylon-6T
Contact Material: Phosphor Brone
Contact Plating: 0.8U Gold plated

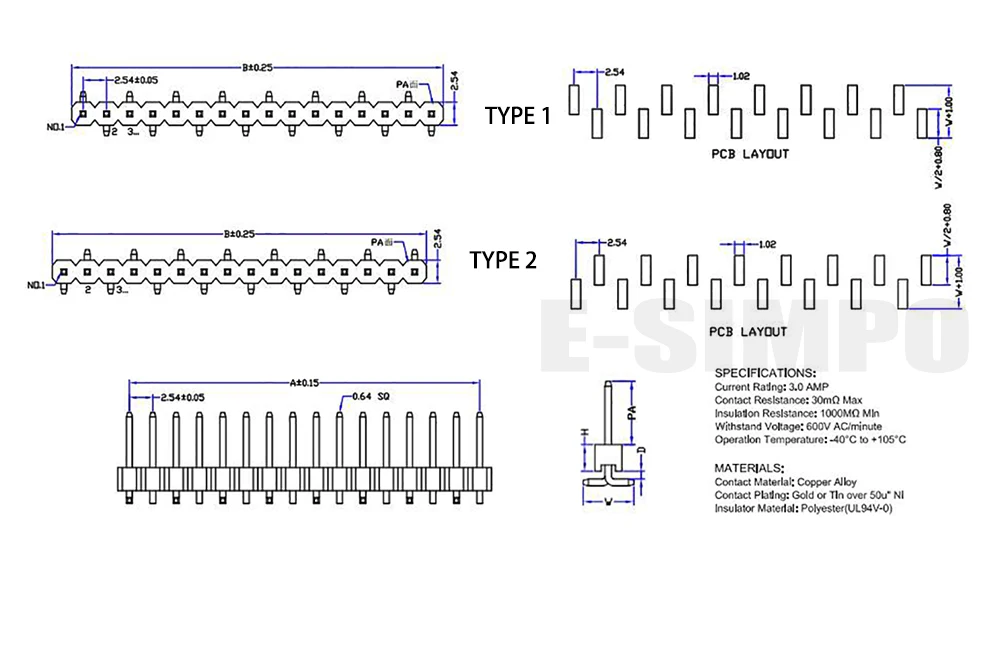

For Option Mate 1X40P Pin Header, it is mating smd pin header, with PA=6mm, see drawing below

Package Content

10pcs 2.54mm SMD PCB Female Header 1x2/3/4/5P 6P 7P 8P 9P 10P 20P~40p PH8.5
Please choose the pin you need.

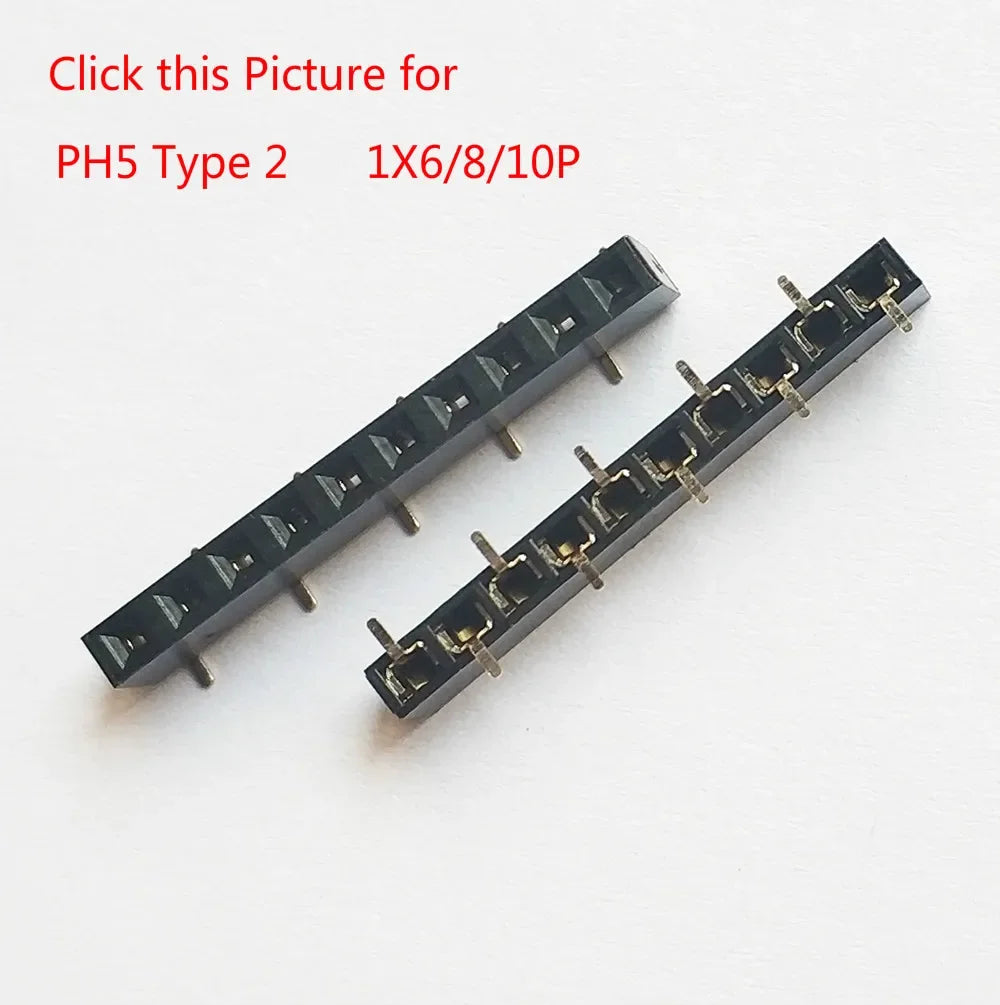

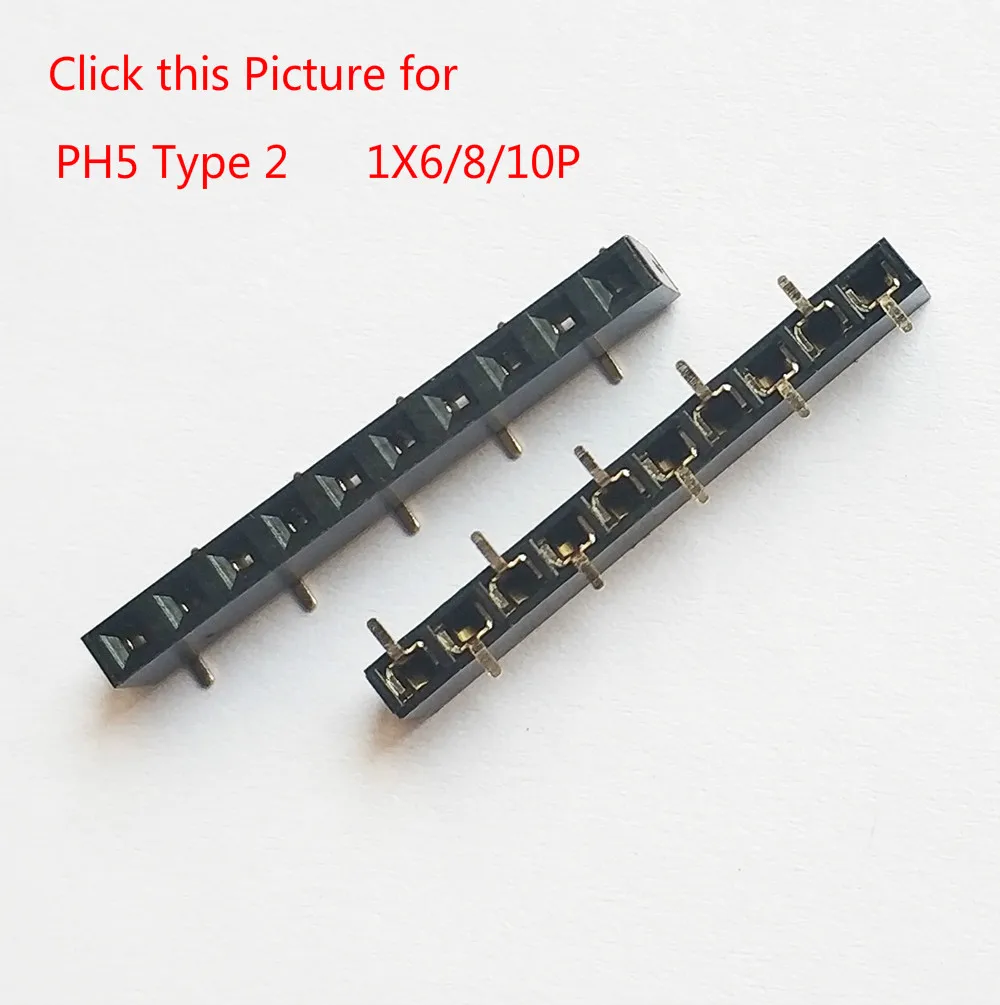

If you need shorter plastic, please check Plastic Height 5.0mm below picture or link:

http://www.aliexpress.com/item/1005001934621243.html

Pictures:

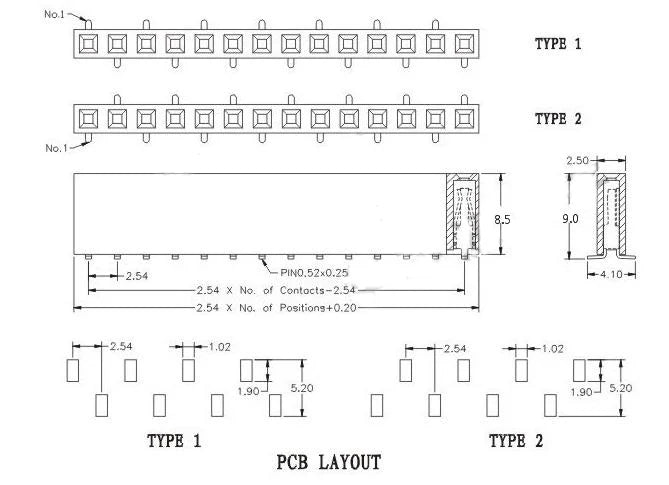

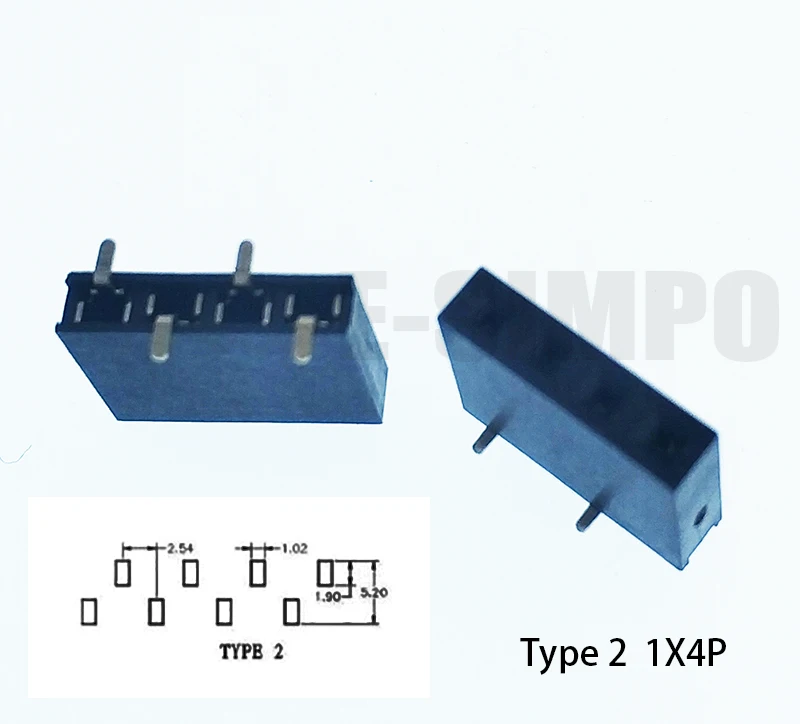

There are 2 different pins optional, TYPE 1, TYPE2, please check below different pin out and choose the type you need.
