Pins
Description

SPECIFICATIONS

Brand Name: E-SIMPO

Certification: RoHS

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: None

M: 2.54mm Dual Female Header

Model Number: 2.54 Female Header

Origin: Mainland China

Packaeg: Straight DIP

Pin Length: 3.1mm

Pins: 2X2P 2X3P 2X4P 2X5P 2X6P 2X10P 2X9P 2X12P 2X15P 2X20P 2X25P 2X30P 2X40

Pitch: 2.54mm/0.1"

Plastic Height: 8.5mm

Row: double Row

Voltage: 5 V 12 V 20 V 30 V

semi_Choice: yes

电压: 1V 2V 4V 5V 12V 12V 等 或自定义

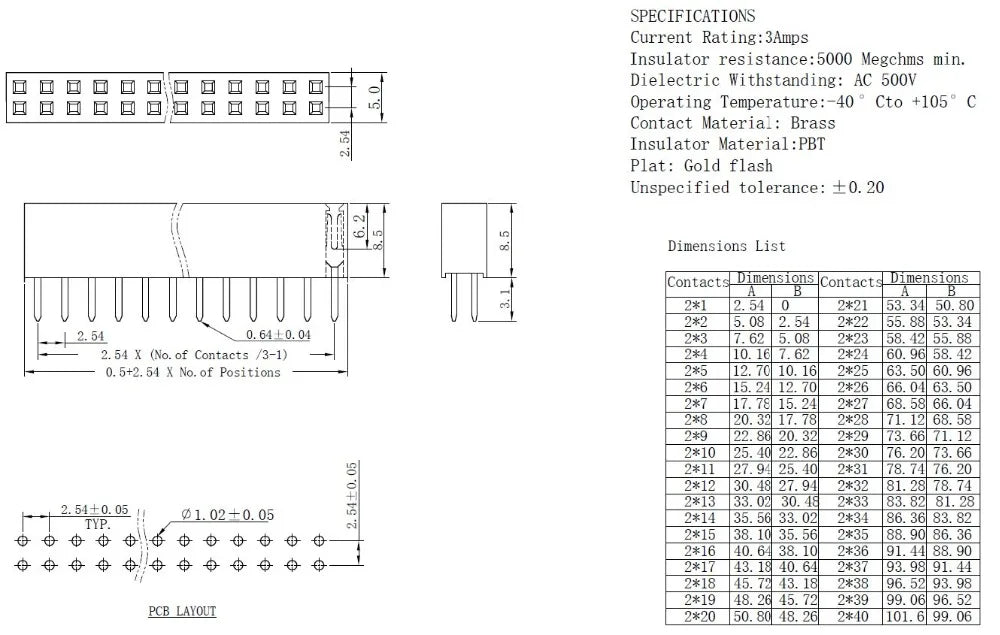

10Pcs 2.54mm Straight Dual 2X2/3/4/5/6/7/8/9/10/11/12/13/14/15/16/18/20/24/25/30/40P PH8.5mm Double row Gold Rohs PCB Female Header Socket

Pin-Pin Distance/Pitch: 2.54mm

Row Qty: Double Row, 2X2P-2X40Positions

Current Rating: 3Amps

Insulator Resistance: 5000Megohms min

Dielectric Withstanding: AC 1000V

Operating Temperature: -40-105 Celsuis Degree

Contact Material: Phosphor bronze

Finish: Gold Flash Rohs

Tolerance: +/-0.2mm
