SPECIFICATIONS

Application: MOBILE PHONE

Brand Name: NONE

Condition: New

Dissipation Power: Standard

High-concerned chemical: none

Operating Temperature: Standard

Origin: Mainland China

Package: SMD

Quantity: 10

Supply Voltage: 5V

Type: Drive IC

is_customized: Yes

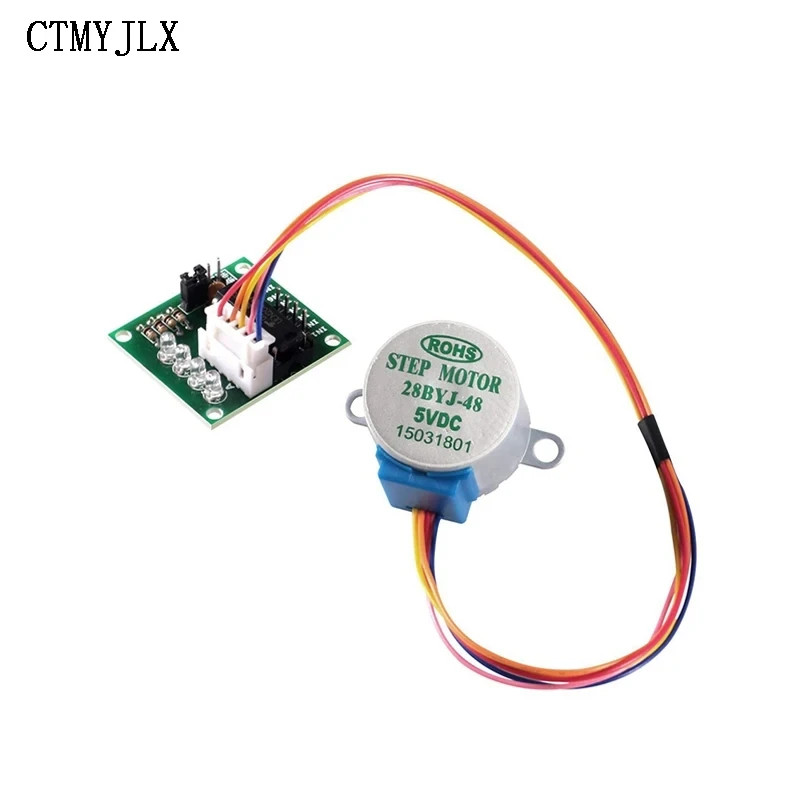

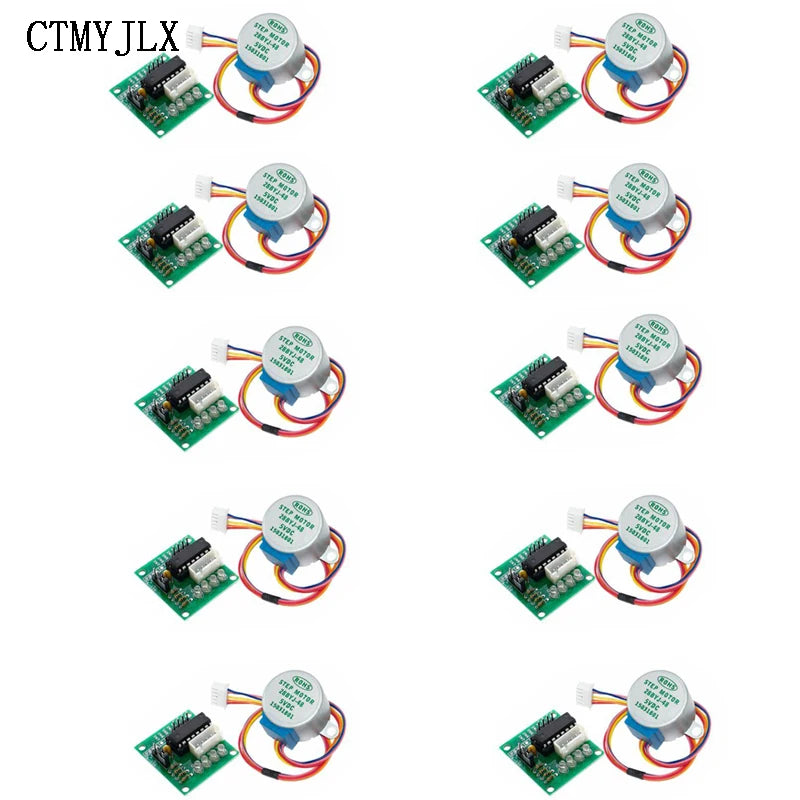

10pcs 28BYJ-48 5V 12V 4-Phase DC Gear Stepper Step Motor + Driver Board ULN2003 Wth Drive Module For Arduino DIY Electronic Kit

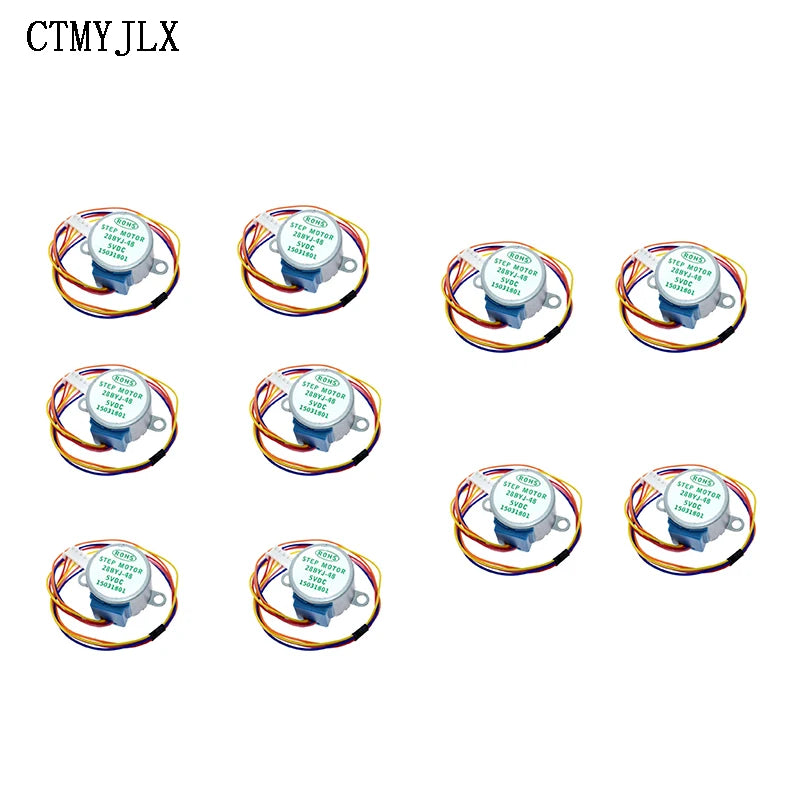

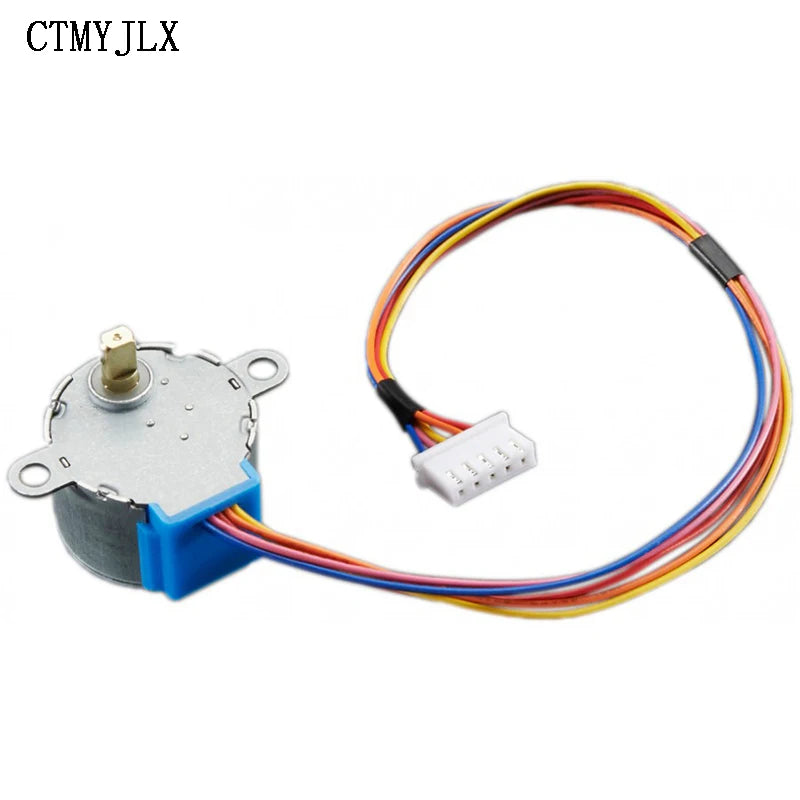

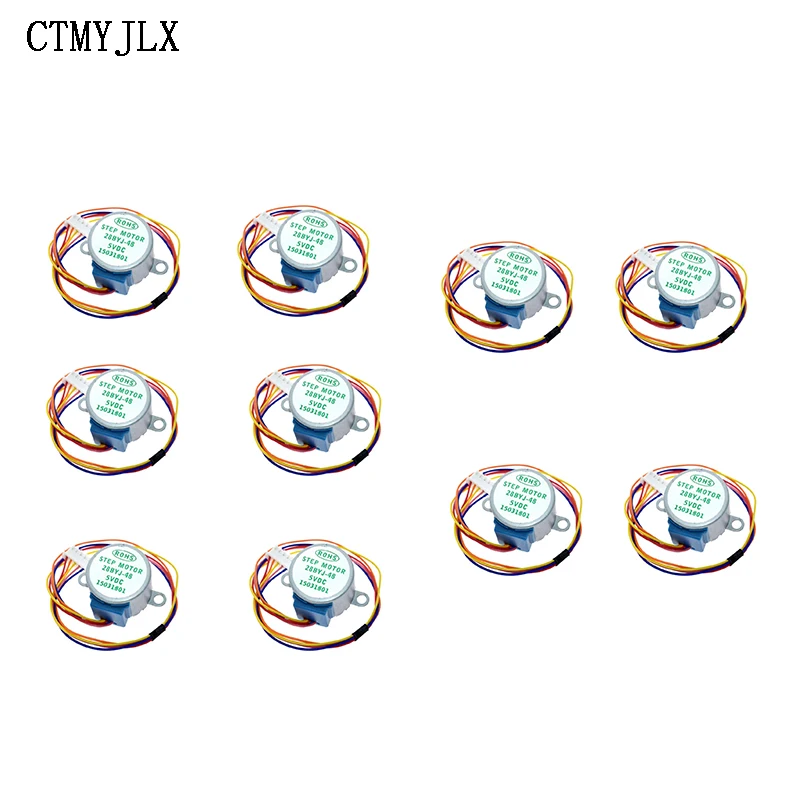

28BYJ-48 Stepper Motor  Description:
Gear Stepper Motor DC 5V 4 Phase Step Motor Reduction Step Motor
Brand new and high quality.
Diameter: 27mm.

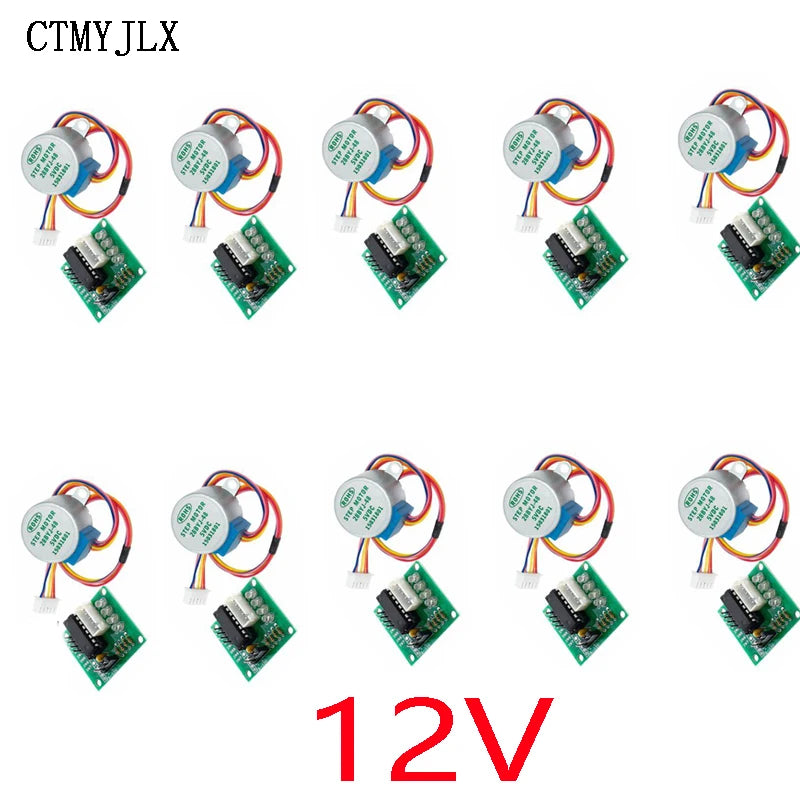

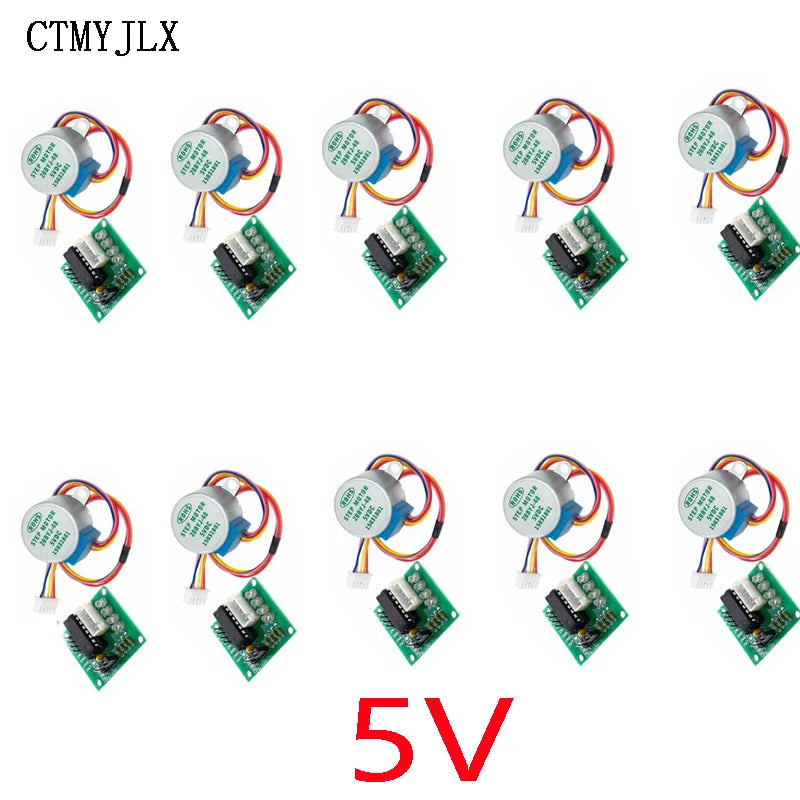

Voltage: 5V/12V (for options)
Step angle: 5.625 x 1/64.
Reduction ratio: 1/64.
Color: Silver
5 lines cable 4 phase stepper motor can be driven by ULN2003 chip.
It also can be connected as 2 phase to use.

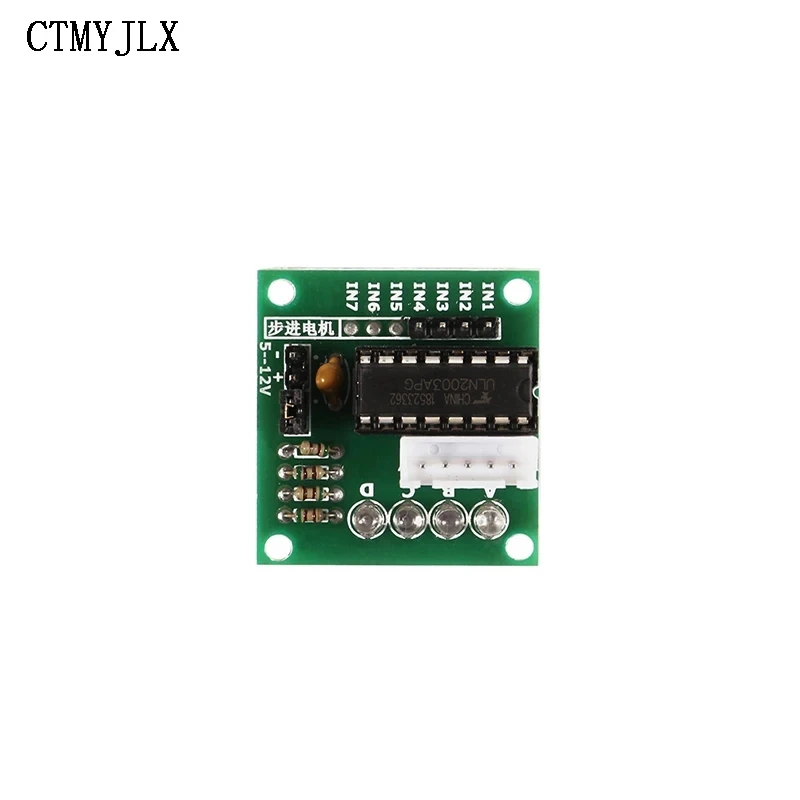

ULN2003 Module:
The ULN2003 high power chip drives the stepper motor
A, B, C, D LEDs indicate the state of the four-phase stepper motor when it is operating
Equipped with stepper motor standard interface, can be directly inserted when used.


Wiring Method:
 The left of the IN1 ~ IN7 corresponding to the single-chip 7 IO line;
The right side of the white socket pin definition from top to bottom are VCC, A, B, C, D (then stepper motor common line, A phase, B phase, C phase, D phase);


The bottom of the 2-pin pin GND ground, V + then +5 V
Directly into the microcontroller development board or system board can be used, need to draw from the development board 4 IO port, 5V and ground.
The development board / system board and the motor drive board are connected by 6 DuPont lines
Drive Module Board Size:2.8cm x 2.8cm x 2cm


Note:
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
