10pcs Barrier Terminal Block 45R 45RM 9.5mm Pitch IEC:750V32A,UL: 300V20A 22-12AWG,Vertical/ RA,wT W/O mounting tab optional.

10pcs Barrier Terminal Block 45R 45RM 9.5mm Pitch IEC:750V32A,UL: 300V20A 22-12AWG,Vertical/ RA,wT W/O mounting tab optional.

Right Angle 10P / with Mount Hole
$167.22
$167.22 $0.00
Skip to product information
10pcs Barrier Terminal Block 45R 45RM 9.5mm Pitch IEC:750V32A,UL: 300V20A 22-12AWG,Vertical/ RA,wT W/O mounting tab optional.
  • 10pcs Barrier Terminal Block 45R 45RM 9.5mm Pitch IEC:750V32A,UL: 300V20A 22-12AWG,Vertical/ RA,wT W/O mounting tab optional.
  • 10pcs Barrier Terminal Block 45R 45RM 9.5mm Pitch IEC:750V32A,UL: 300V20A 22-12AWG,Vertical/ RA,wT W/O mounting tab optional.
  • 10pcs Barrier Terminal Block 45R 45RM 9.5mm Pitch IEC:750V32A,UL: 300V20A 22-12AWG,Vertical/ RA,wT W/O mounting tab optional.
  • 10pcs Barrier Terminal Block 45R 45RM 9.5mm Pitch IEC:750V32A,UL: 300V20A 22-12AWG,Vertical/ RA,wT W/O mounting tab optional.
  • 10pcs Barrier Terminal Block 45R 45RM 9.5mm Pitch IEC:750V32A,UL: 300V20A 22-12AWG,Vertical/ RA,wT W/O mounting tab optional.
  • 10pcs Barrier Terminal Block 45R 45RM 9.5mm Pitch IEC:750V32A,UL: 300V20A 22-12AWG,Vertical/ RA,wT W/O mounting tab optional.
  • 10pcs Barrier Terminal Block 45R 45RM 9.5mm Pitch IEC:750V32A,UL: 300V20A 22-12AWG,Vertical/ RA,wT W/O mounting tab optional.
  • 10pcs Barrier Terminal Block 45R 45RM 9.5mm Pitch IEC:750V32A,UL: 300V20A 22-12AWG,Vertical/ RA,wT W/O mounting tab optional.
  • 10pcs Barrier Terminal Block 45R 45RM 9.5mm Pitch IEC:750V32A,UL: 300V20A 22-12AWG,Vertical/ RA,wT W/O mounting tab optional.
  • 10pcs Barrier Terminal Block 45R 45RM 9.5mm Pitch IEC:750V32A,UL: 300V20A 22-12AWG,Vertical/ RA,wT W/O mounting tab optional.
  • 10pcs Barrier Terminal Block 45R 45RM 9.5mm Pitch IEC:750V32A,UL: 300V20A 22-12AWG,Vertical/ RA,wT W/O mounting tab optional.
  • 10pcs Barrier Terminal Block 45R 45RM 9.5mm Pitch IEC:750V32A,UL: 300V20A 22-12AWG,Vertical/ RA,wT W/O mounting tab optional.
  • 10pcs Barrier Terminal Block 45R 45RM 9.5mm Pitch IEC:750V32A,UL: 300V20A 22-12AWG,Vertical/ RA,wT W/O mounting tab optional.
  • 10pcs Barrier Terminal Block 45R 45RM 9.5mm Pitch IEC:750V32A,UL: 300V20A 22-12AWG,Vertical/ RA,wT W/O mounting tab optional.
  • 10pcs Barrier Terminal Block 45R 45RM 9.5mm Pitch IEC:750V32A,UL: 300V20A 22-12AWG,Vertical/ RA,wT W/O mounting tab optional.
10pcs Barrier Terminal Block 45R 45RM 9.5mm Pitch IEC:750V32A,UL: 300V20A 22-12AWG,Vertical/ RA,wT W/O mounting tab optional.
10pcs Barrier Terminal Block 45R 45RM 9.5mm Pitch IEC:750V32A,UL: 300V20A 22-12AWG,Vertical/ RA,wT W/O mounting tab optional.
$167.22
$167.22 $0.00
Color
Number of Position
Description

SPECIFICATIONS

Brand Name: E-SIMPO

Conductor Size: Other

Does it include a Battery?: No

Does it include wireless functionality?: No

High-concerned chemical: None

Model Number: 45R 45RM-9.5

Number of Contacts: 1 - 10

Origin: Mainland China

Place of Origin: China (Mainland)

Type: Pcb

is_customized: Yes

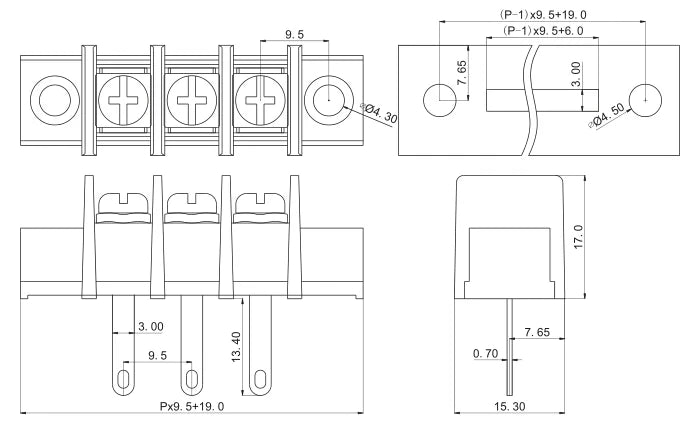

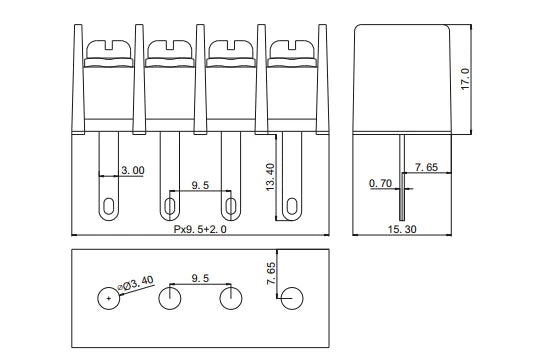

Barrier Terminal Block 45R 45RM 9.5mm Pitch IEC:750V32A,UL: 300V20A 22-12AWG,Vertical or RA,with or W/O mounting tab optional.

Straight Vertical Mode;:
https://www.aliexpress.com/store/product/Barrier-Terminal-Block-45H-45HM-9-5mm-Pitch-IEC-750V32A-UL-300V20A-22-12AWG-Vertical-or/805710_32898634342.html?spm=2114.12010615.8148356.1.69f12391Dlar0Y
Pitch: 9.5mm
Poles: 2P-24P available;
Rated Voltage/Current: IEC:750V32A,UL: 300V20A
Wire Range:  22-12AWG/ 4.0mm2

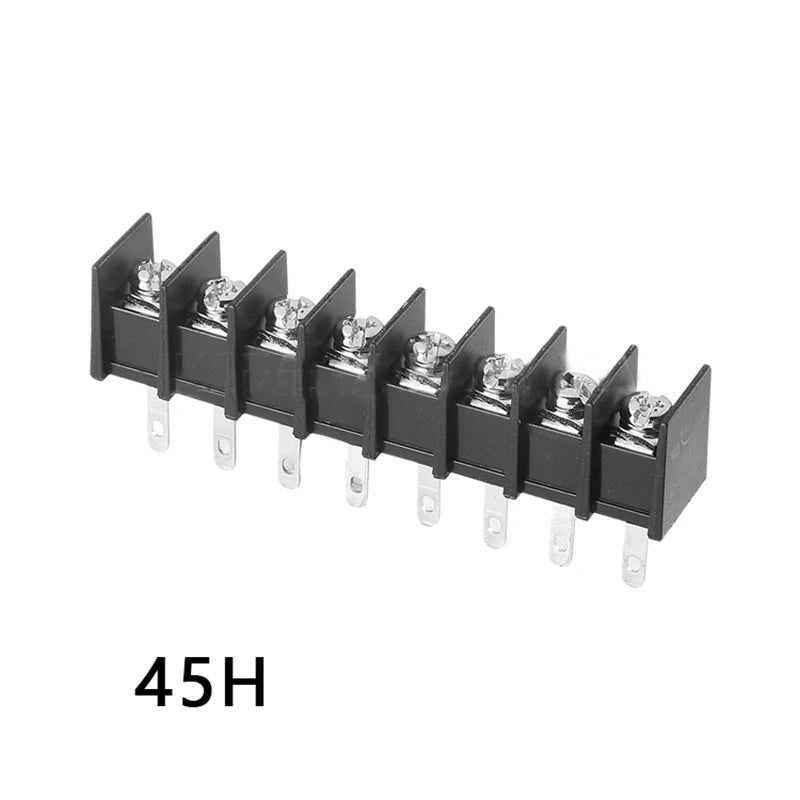

45H: Vertical , without Mounting Tab:

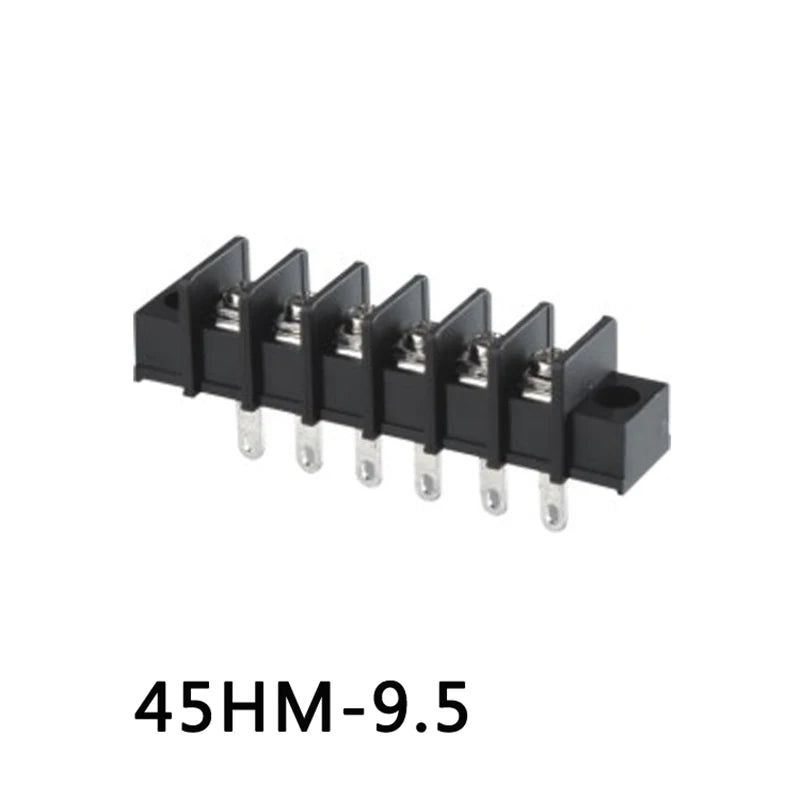

45HM: Vertical with Mounting Tab:

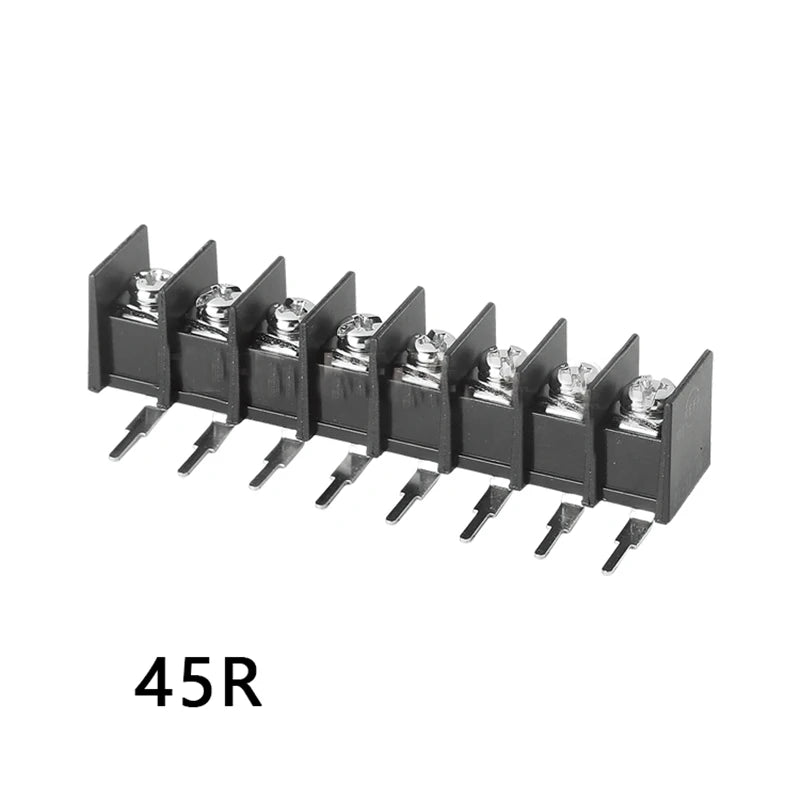

45R: Right Angle without mounting tab:

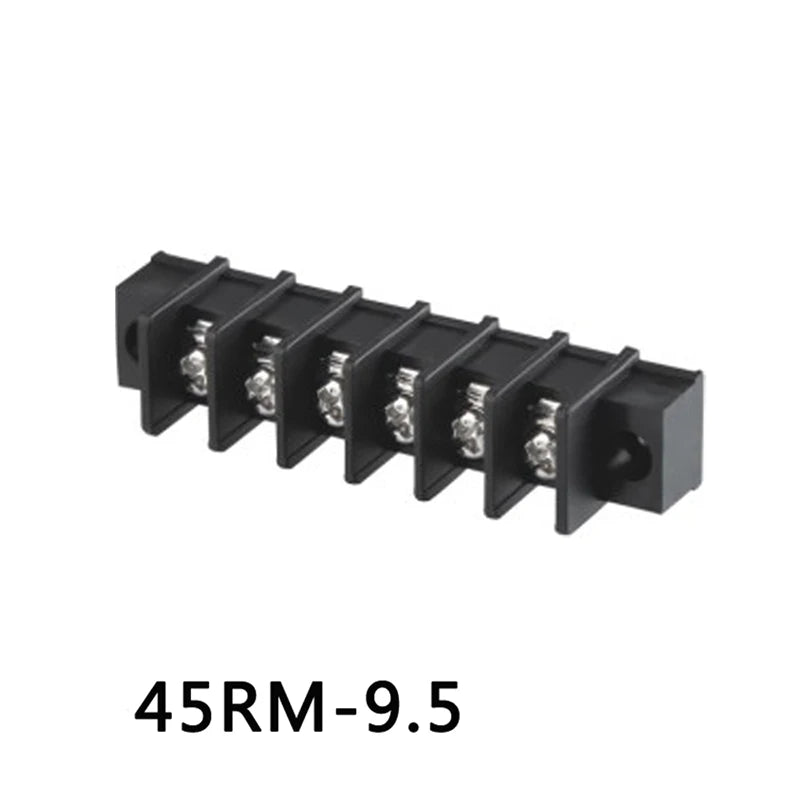

45RM: Right Angle with mounting tab
