SPECIFICATIONS

Brand Name: NONE

Choice: yes

Condition: New

Dissipation Power: 1

High-concerned chemical: none

Operating Temperature: 1

Origin: Mainland China

Supply Voltage: 1

Type: Voltage Regulator

is_customized: Yes

semi_Choice: yes

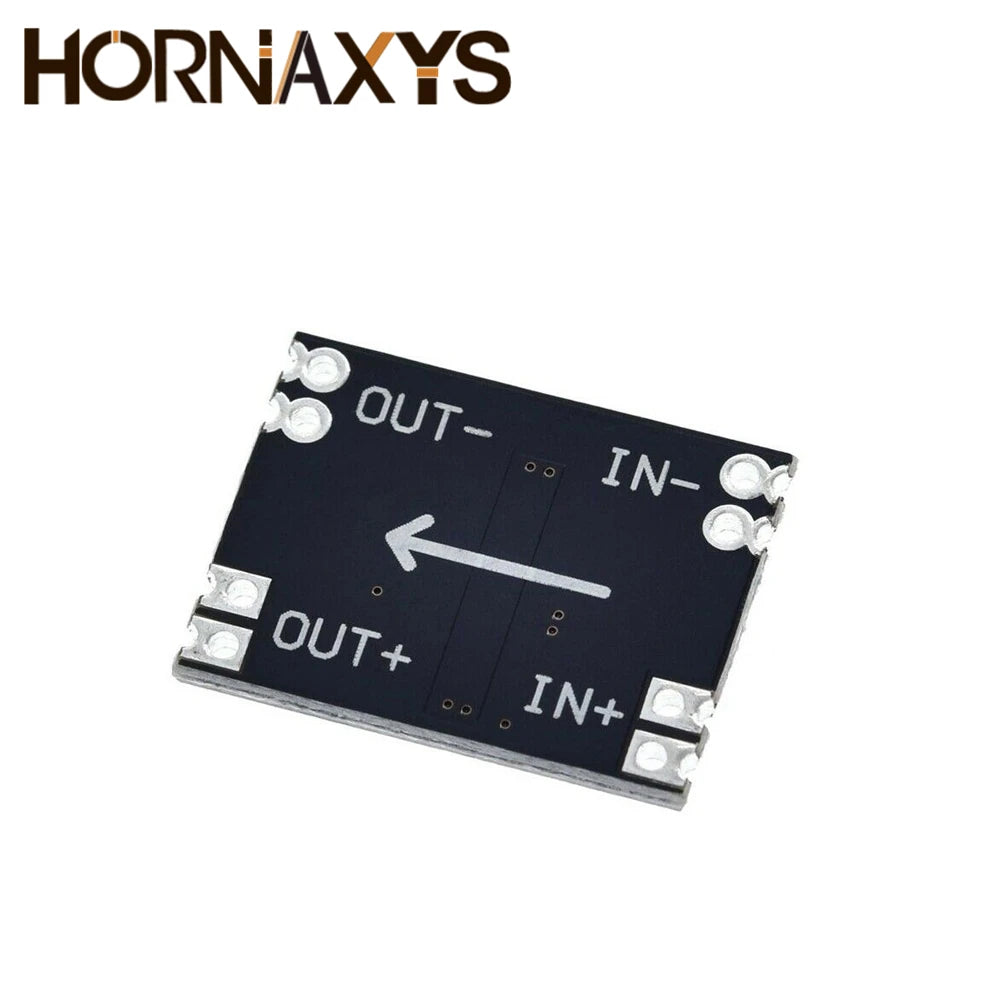

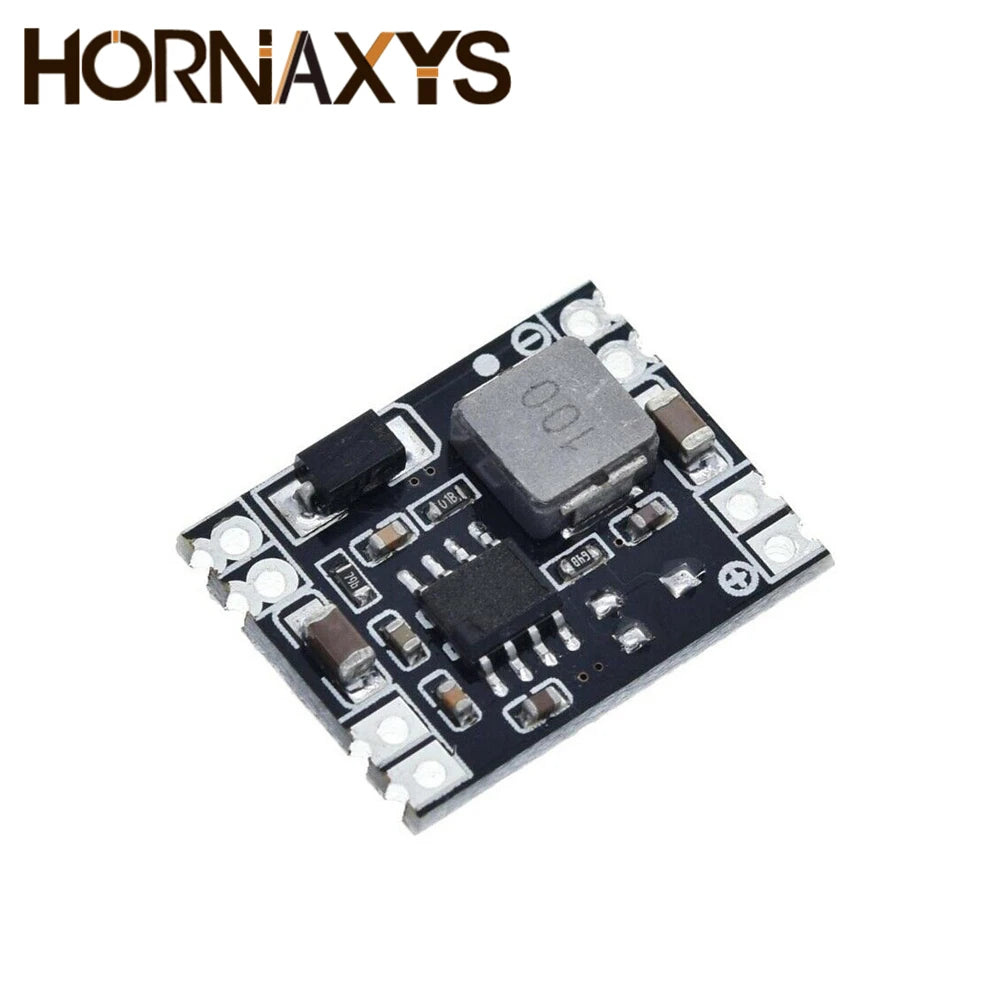

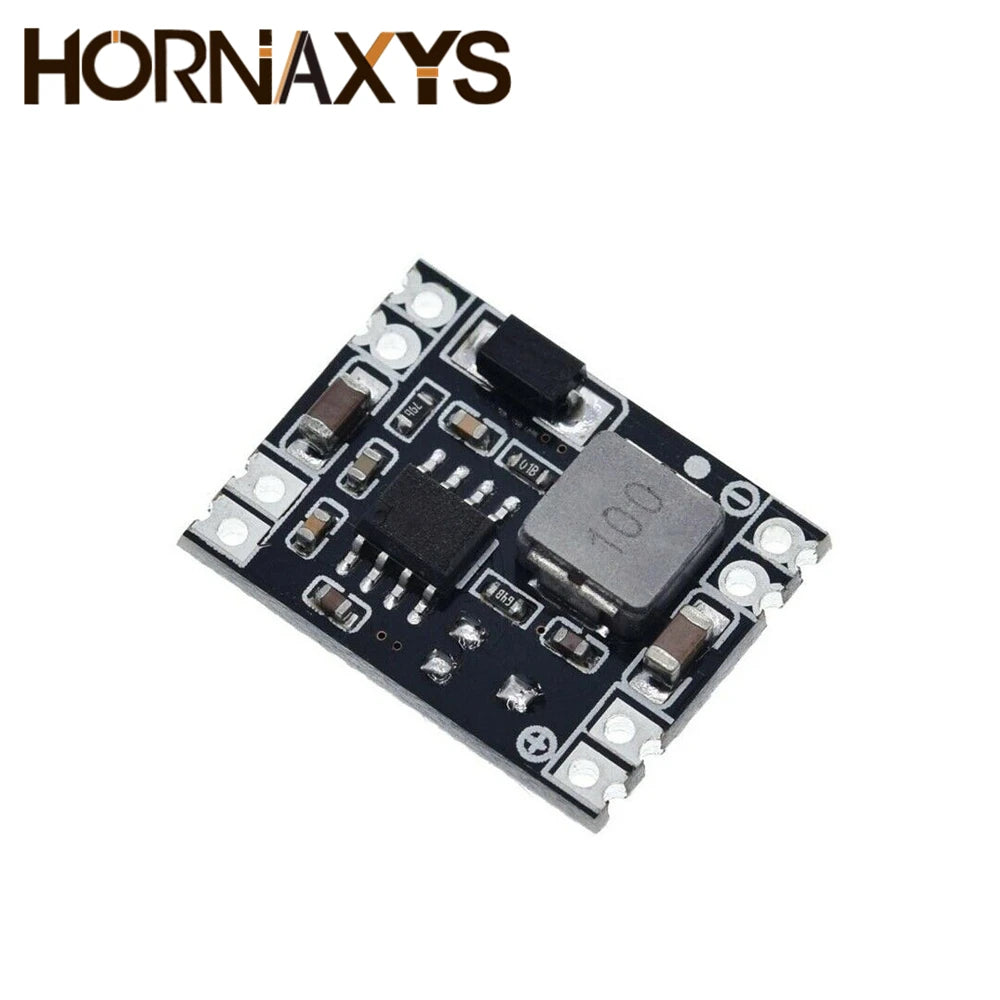

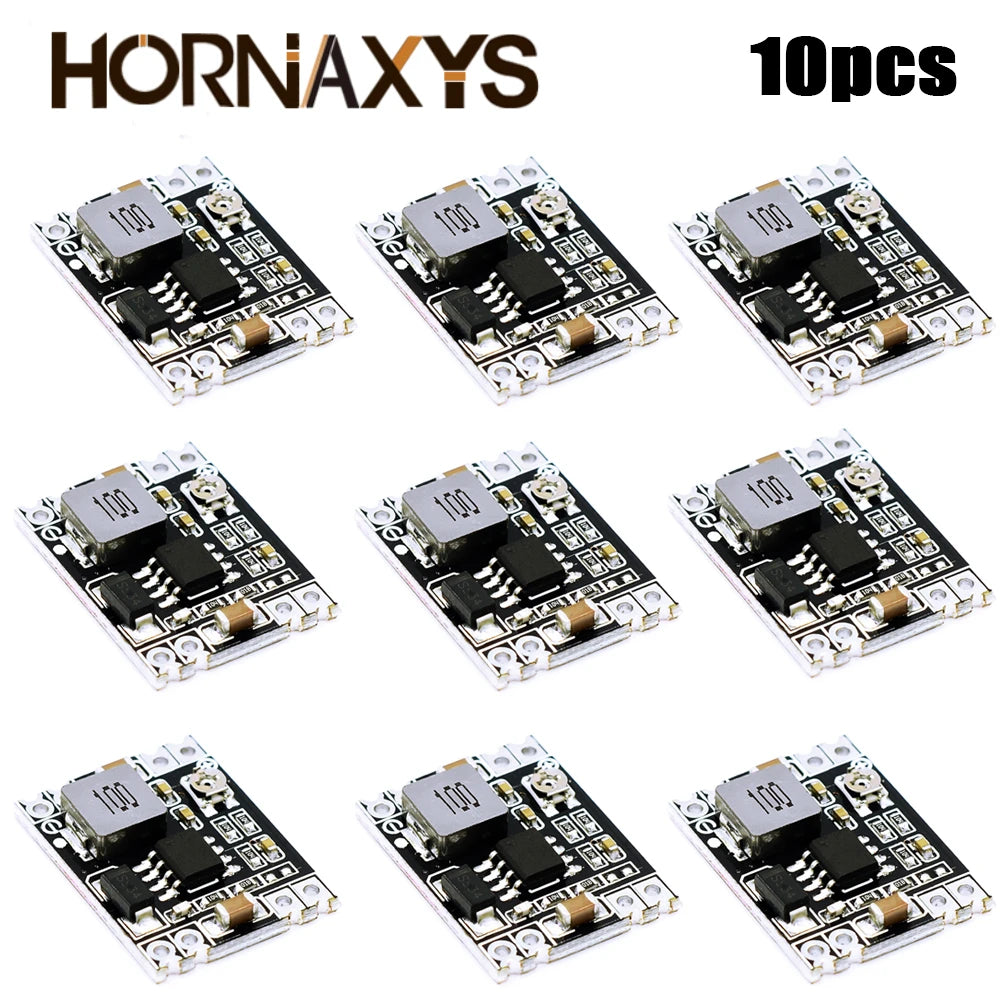

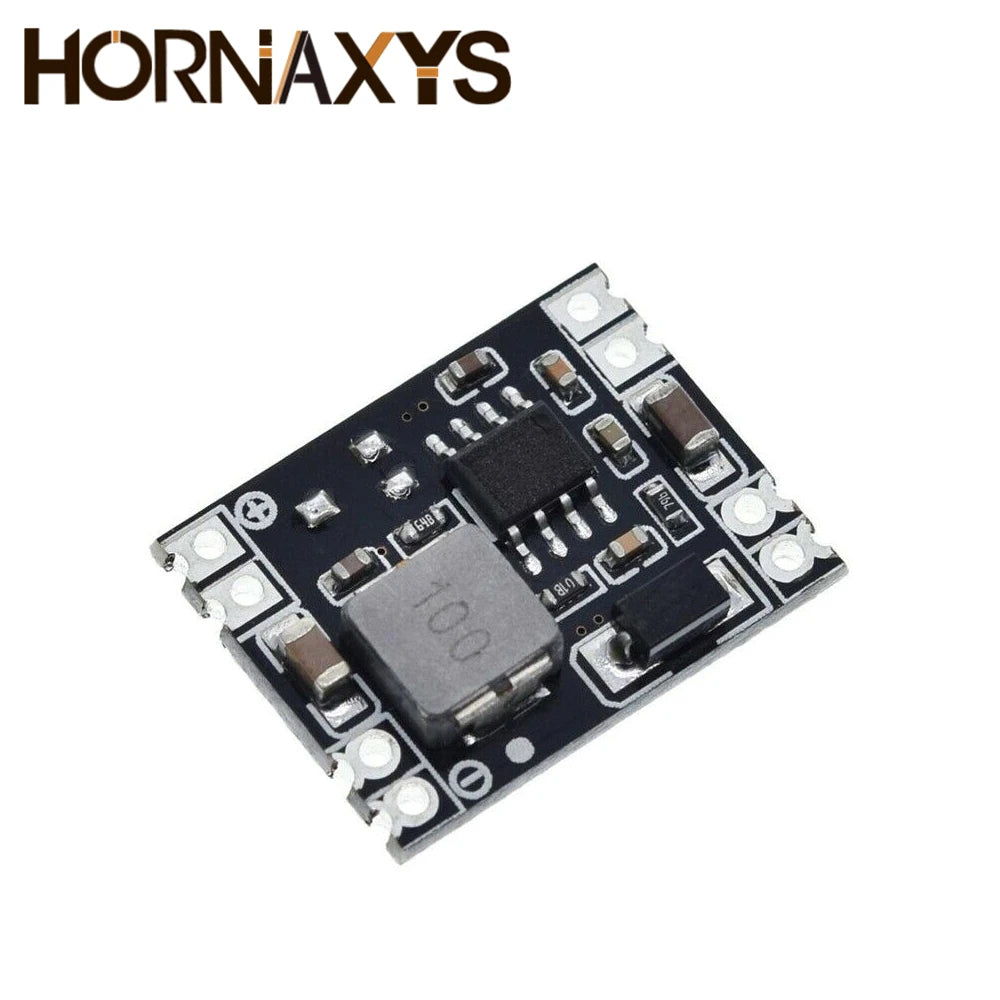

10pcs DC-DC 3A Buck Step-down Power Supply Module MP1584EN 5V-12V 24V to 5V 3.3V 9V 12V Fixed Output for Arduino Replace LM2596

Item Description

Product Name: DC-DC 3A Buck power module (12V fixed output)

Input voltage: 14-26V
Output voltage: 12V
Output Current: 3A (maximum), long working hours control in less than 0.8A
Conversion efficiency: 96% (maximum) voltage difference (Vin-Vout> = 2V), the higher the efficiency
Output ripple: <30mV
Working temperature: -40-85 ° C
Size: 22.3MM * 17MM * 4.2MM

Product Name: DC-DC 3A Buck power module (5V fixed output)

Input voltage: 7-26V
Output voltage: 5V
Output Current: 3A (maximum), long working hours control in less than 1.6A
Conversion efficiency: 96% (maximum) voltage difference (Vin-Vout> = 2V), the higher the efficiency
Output ripple: <30mV
Working temperature: -40-85 ° C
Size: 22.3MM * 17MM * 4.2MM

Product Name: DC-DC 3A Buck power module (9V fixed output)

Input voltage: 11-26V
Output voltage: 9V
Output Current: 3A (maximum), long working hours control in less than 1.1A
Conversion efficiency: 96% (maximum) voltage difference (Vin-Vout> = 2V), the higher the efficiency
Output ripple: <30mV
Working temperature: -40-85 ° C
Size: 22.3MM * 17MM * 4.2MM

Product Name: DC-DC 3A Buck power module (3.3V fixed output)

Input voltage: 5.3V-26V
Output voltage: 3.3V
Output Current: 3A (maximum), long working hours control in less than 1.8A
Conversion efficiency: 96% (maximum) voltage difference (Vin-Vout> = 2V), the higher the efficiency
Output ripple: <30mV
Working temperature: -40-85 ° C
Size: 22.3MM * 17MM * 4.2MM
