SPECIFICATIONS

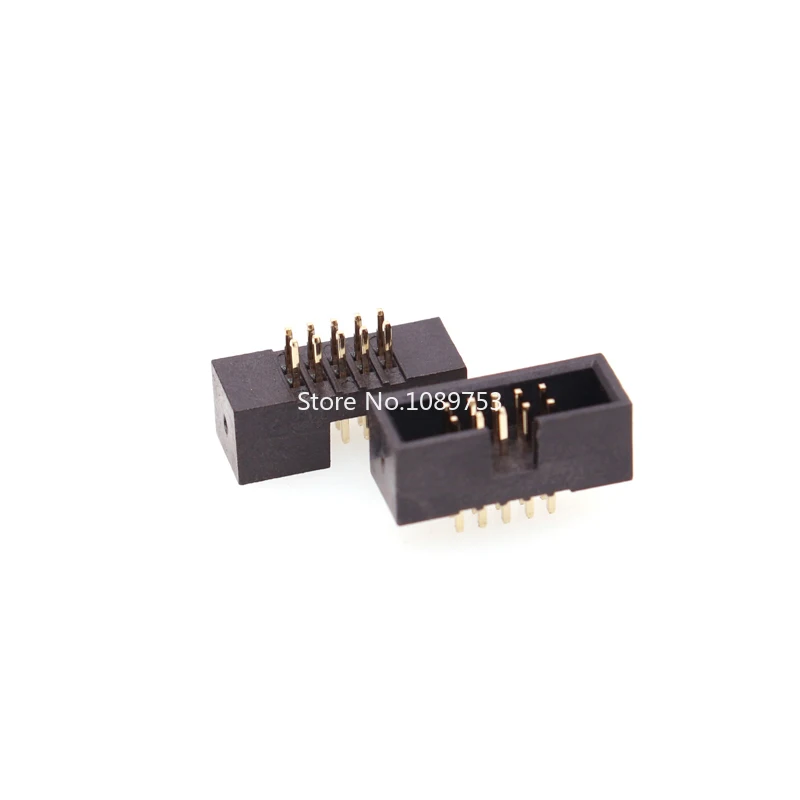

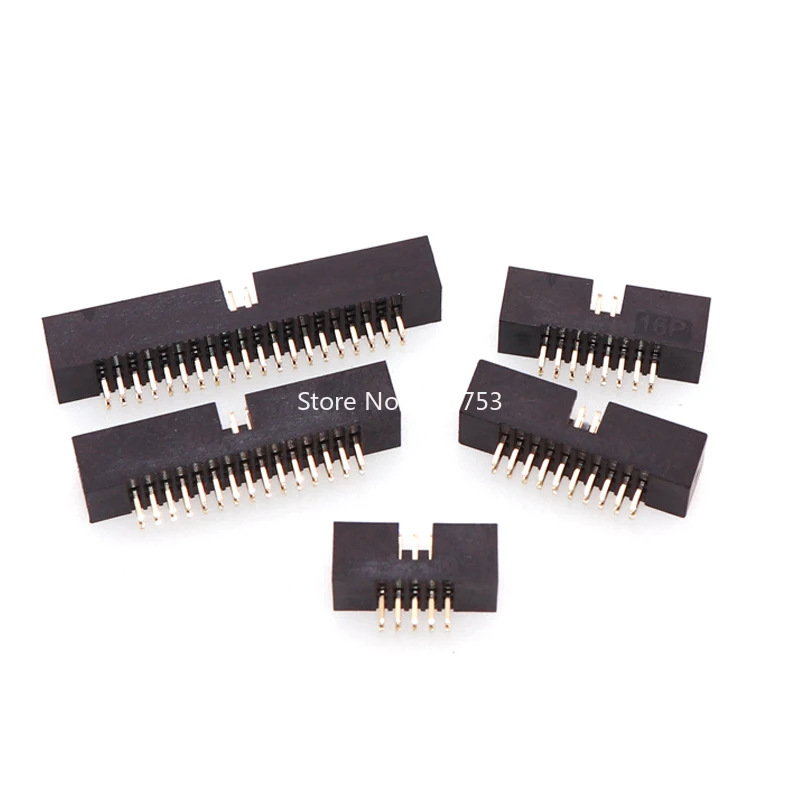

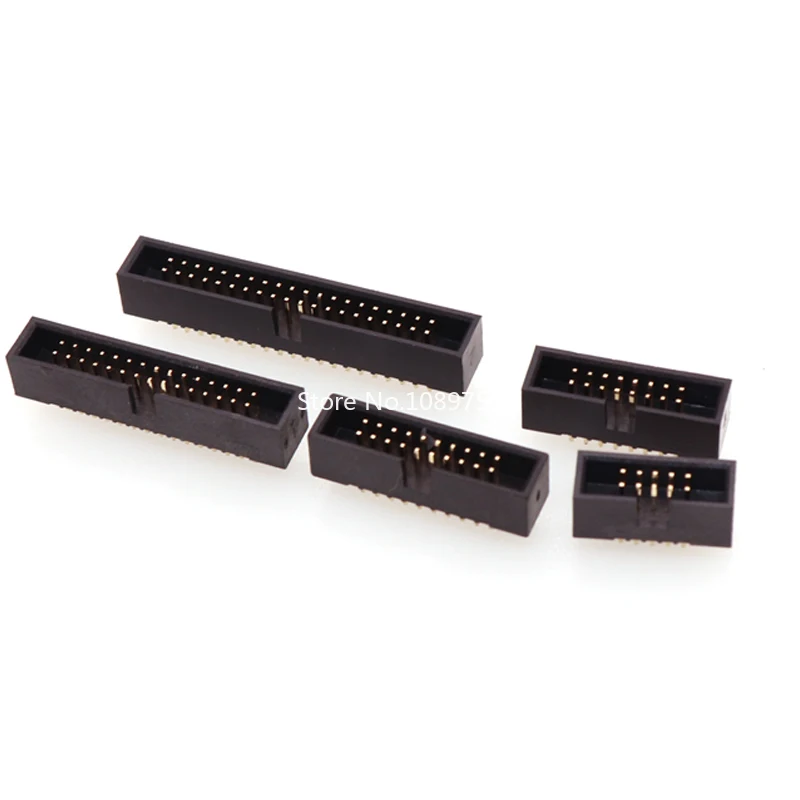

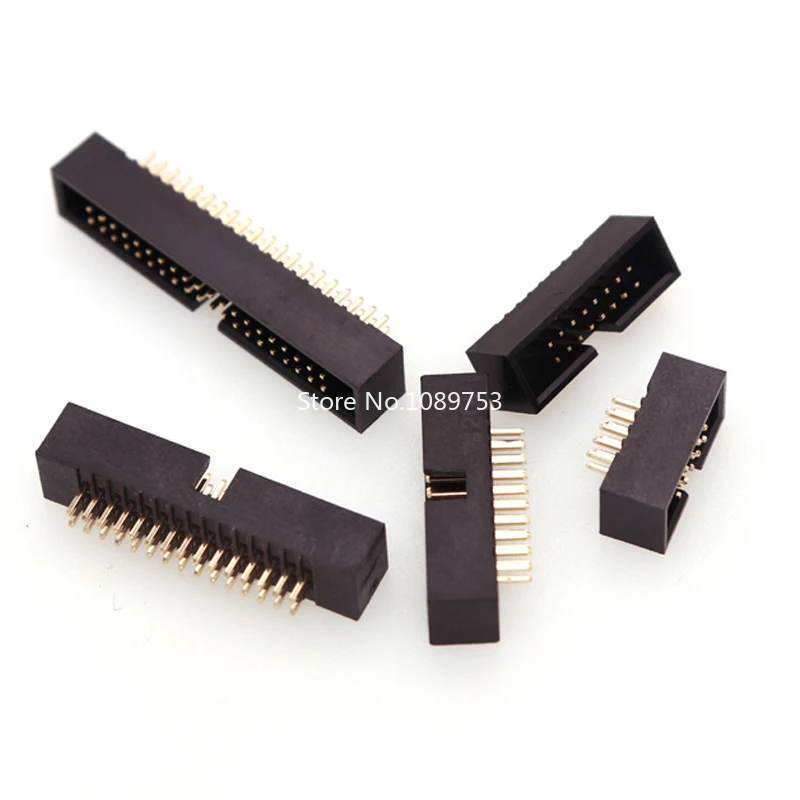

10Pcs DC3 1.27mm Pitch IDC Box Header Connector Straight pins FC cable socket 8P 10P 12P 14P 16P 20P 26P 30P 34P 40P 50P 60P

Feature

1. Male;

2. 1.27mm Pitch;

3. Straight pins;

4. Color: Black;

5. From 2x5P to 2x20P;

Mechanical

1. Operating Temperature:   -55°c ~ 105°c;

2. Max Processing Temp: 220°c for 10s;

3. Housing: PBT(UL94V-0) . Black;

4. Pins: S.Q 0.64MM Brass;

Electrical

1. Rated Current: 1A Max;

2. Contact Resistance:  ≤30mΩ;

3. Insulation Resistance:  ≥500MΩ;

4. Withstand Voltage: AC600V RMS/ 1Min;
