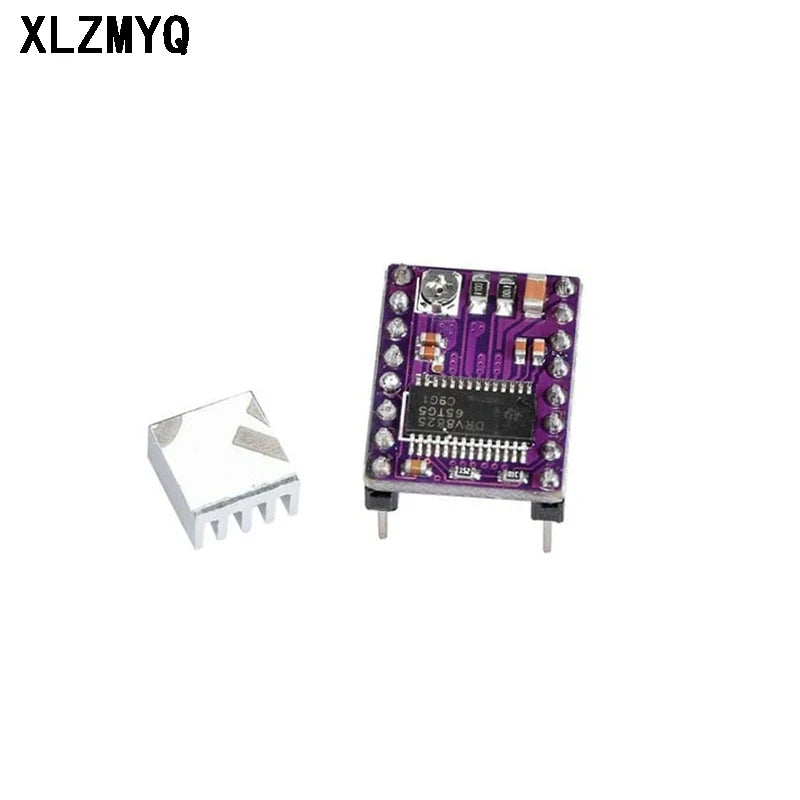

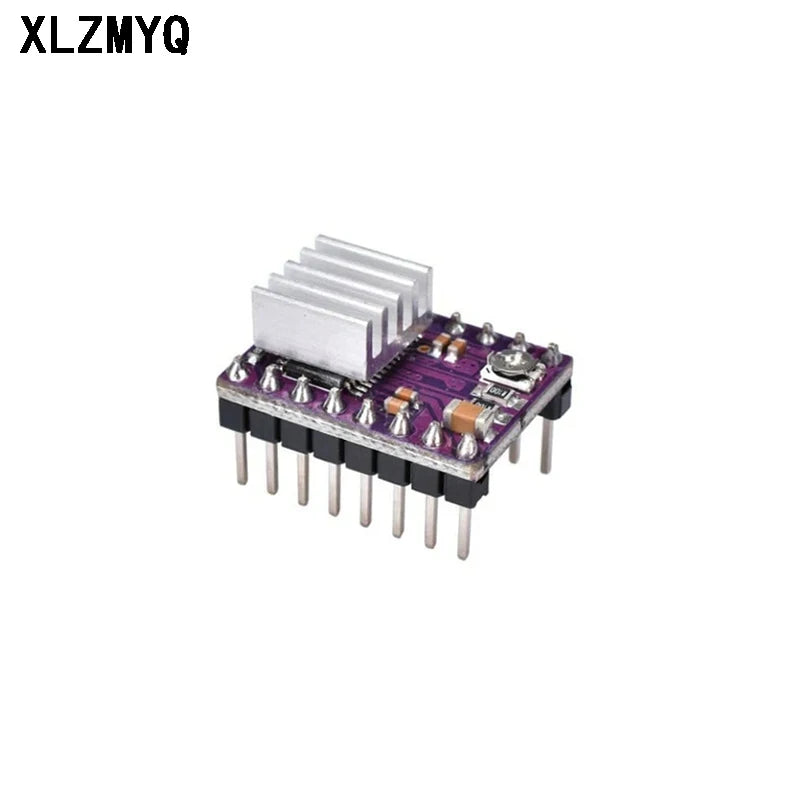

10pcs DRV8825 Stepper Motor Driver Heatsink Reprap Replace A4988 Driver To Ramps 1.4 1.5 1.6 Control Board For 3D Printer Parts
Default Title
$75.38
Sale price
$75.38
Regular price
$0.00
Skip to product information
10pcs DRV8825 Stepper Motor Driver Heatsink Reprap Replace A4988 Driver To Ramps 1.4 1.5 1.6 Control Board For 3D Printer Parts
$75.38
Sale price
$75.38
Regular price
$0.00
Description
SPECIFICATIONS
Application: Computer
Brand Name: NONE
Condition: New
Dissipation Power: Standard
High-concerned chemical: none
Operating Temperature: Standard
Origin: Mainland China
Package: DIP

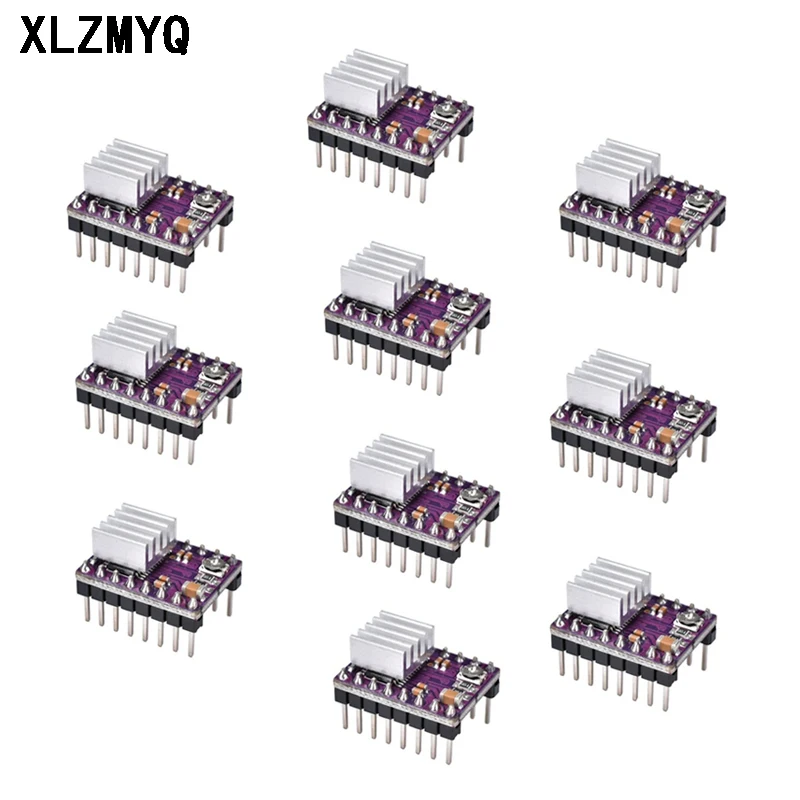

Quantity: 10
Supply Voltage: Standard
Type: Module
is_customized: Yes
10pcs DRV8825 Stepper Motor Driver Heatsink Reprap Replace A4988 Driver To Ramps 1.4 1.5 1.6 Control Board For 3D Printer Parts
Introduction:

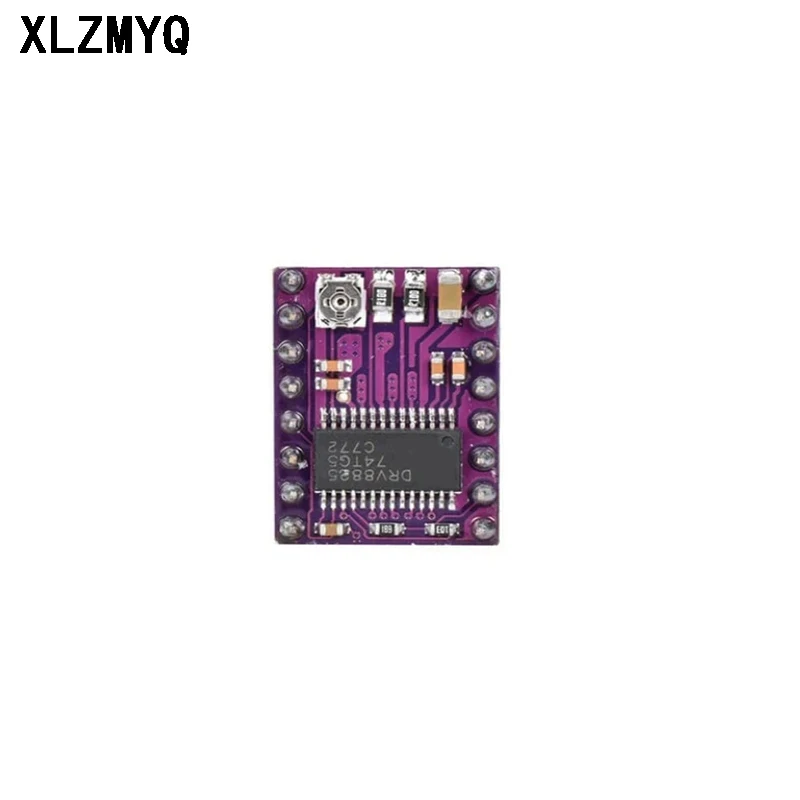

- The DRV8825 stepper motor driver carrier is a breakout board for TI's DRV8825 microstepping bipolar stepper motor driver.
- The module has a pinout and interface that are nearly identical to those of our A4988 stepper motor driver carriers, so it can be used as a higher-performance drop-in replacement for those boards in many applications.
- The DRV8825 features adjustable current limiting, overcurrent and overtemperature protection, and six microstep resolutions (down to 1/32-step). It operates from 8.2 – 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling).
Features:
(1) Simple step and direction control interface
(2) Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
(3) Can interface directly with 3.3 V and 5 V systems
(4) Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout
(5) Short-to-ground and shorted-load protection
(6) 4-layer, 2 oz copper PCB for improved heat dissipation

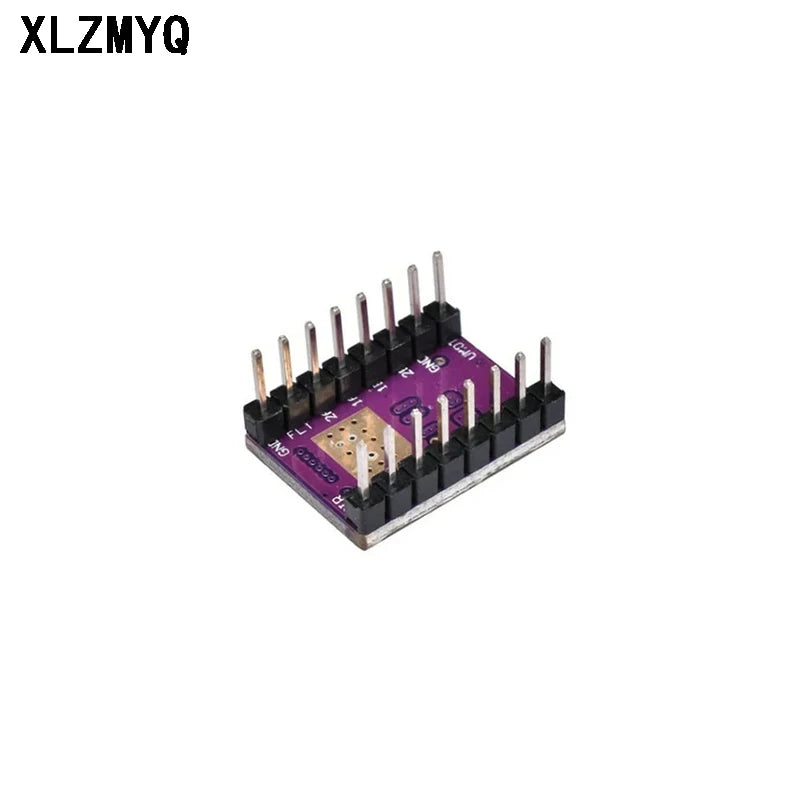

(7) Exposed solderable ground pad below the driver IC on the bottom of the PCB
(8) Module size, pinout, and interface match those of our A4988 stepper motor driver carriers in most respects (see the bottom of this page for more information)
(9) Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor's rated voltage to achieve higher step rates
(10) Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay)
(11) 45 V maximum supply voltage
(12) Built-in regulator (no external logic voltage supply needed
- The DRV8825 stepper motor driver carrier is a breakout board for TI's DRV8825 microstepping bipolar stepper motor driver.
- The module has a pinout and interface that are nearly identical to those of our A4988 stepper motor driver carriers, so it can be used as a higher-performance drop-in replacement for those boards in many applications.
- The DRV8825 features adjustable current limiting, overcurrent and overtemperature protection, and six microstep resolutions (down to 1/32-step). It operates from 8.2 – 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling).
Features:
(1) Simple step and direction control interface
(2) Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
(3) Can interface directly with 3.3 V and 5 V systems
(4) Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout
(5) Short-to-ground and shorted-load protection
(6) 4-layer, 2 oz copper PCB for improved heat dissipation
(7) Exposed solderable ground pad below the driver IC on the bottom of the PCB
(8) Module size, pinout, and interface match those of our A4988 stepper motor driver carriers in most respects (see the bottom of this page for more information)
(9) Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor's rated voltage to achieve higher step rates
(10) Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay)
(11) 45 V maximum supply voltage
(12) Built-in regulator (no external logic voltage supply needed
