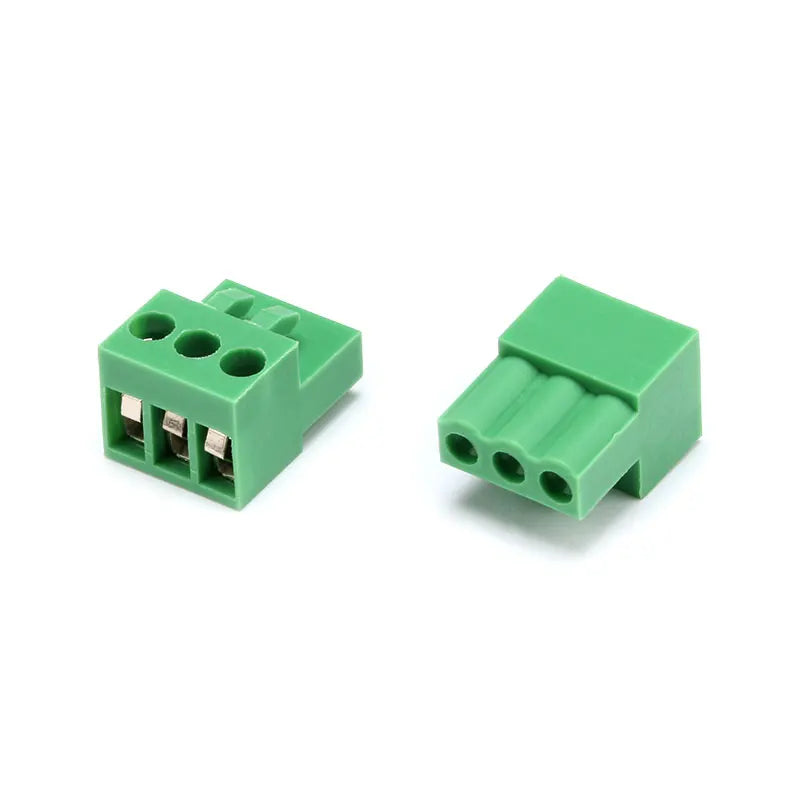

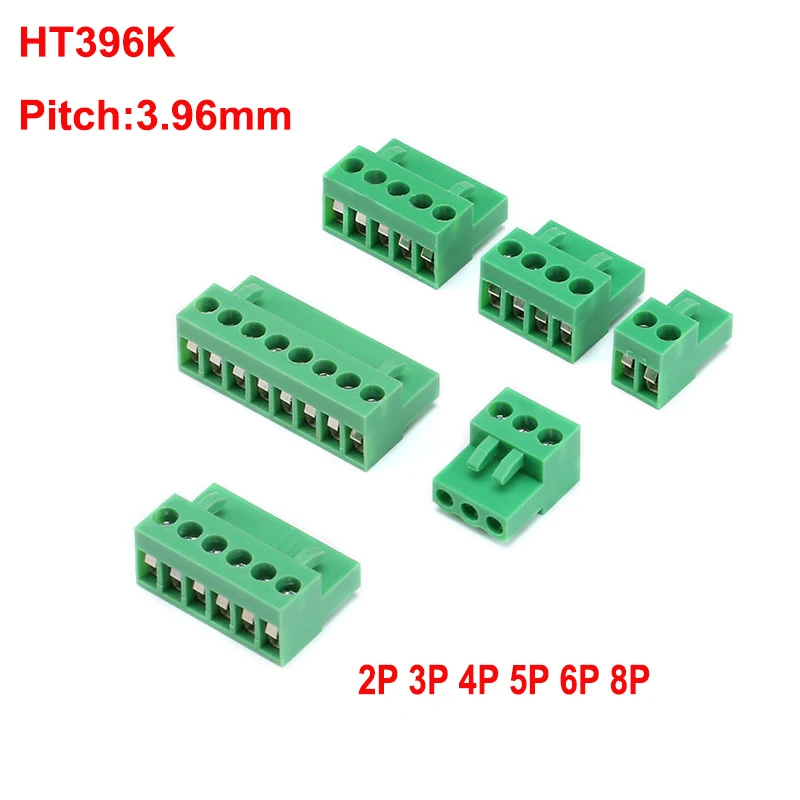

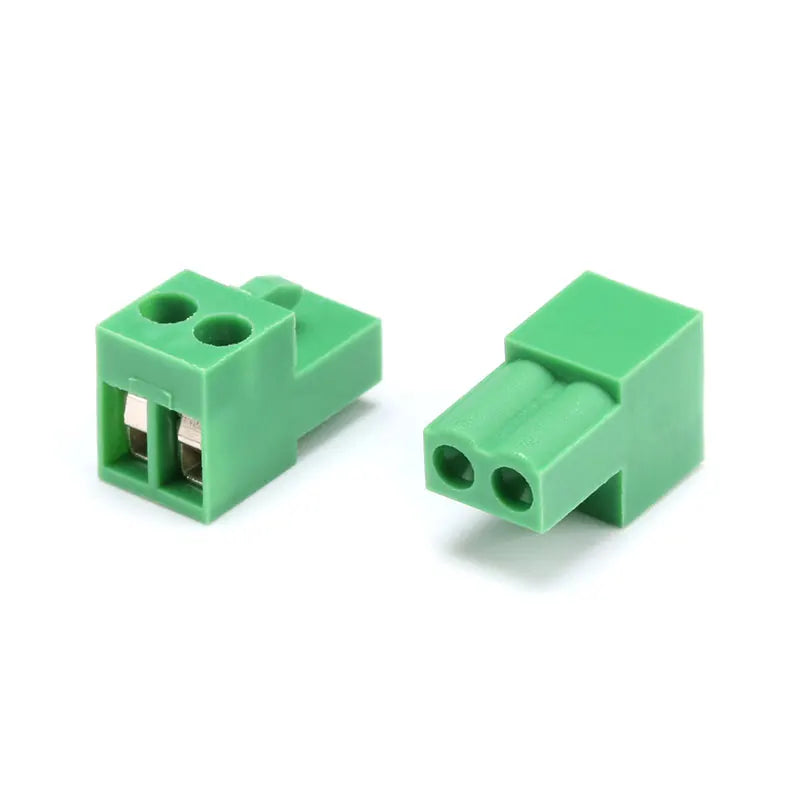

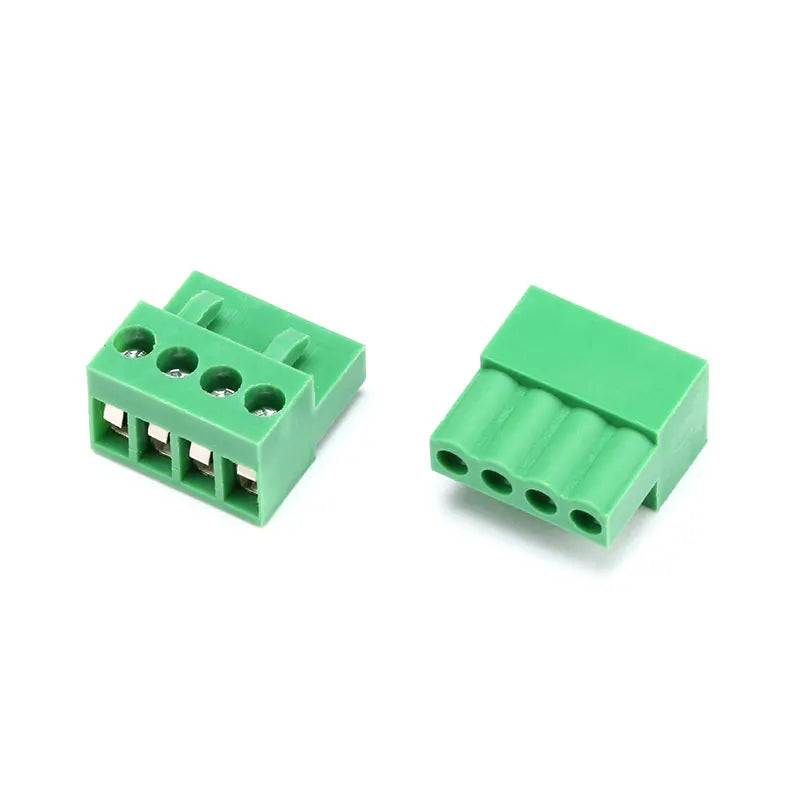

10PCS HT396K 3.96mm Pitch 2P 3P 4P 5P 6P 8P Pluggable Connector Terminal Block HT396 3.96 Plug Connector

10PCS HT396K 3.96mm Pitch 2P 3P 4P 5P 6P 8P Pluggable Connector Terminal Block HT396 3.96 Plug Connector

6p
$9.12
$9.12 $0.00
Skip to product information
10PCS HT396K 3.96mm Pitch 2P 3P 4P 5P 6P 8P Pluggable Connector Terminal Block HT396 3.96 Plug Connector
  • 10PCS HT396K 3.96mm Pitch 2P 3P 4P 5P 6P 8P Pluggable Connector Terminal Block HT396 3.96 Plug Connector
  • 10PCS HT396K 3.96mm Pitch 2P 3P 4P 5P 6P 8P Pluggable Connector Terminal Block HT396 3.96 Plug Connector
  • 10PCS HT396K 3.96mm Pitch 2P 3P 4P 5P 6P 8P Pluggable Connector Terminal Block HT396 3.96 Plug Connector
  • 10PCS HT396K 3.96mm Pitch 2P 3P 4P 5P 6P 8P Pluggable Connector Terminal Block HT396 3.96 Plug Connector
  • 10PCS HT396K 3.96mm Pitch 2P 3P 4P 5P 6P 8P Pluggable Connector Terminal Block HT396 3.96 Plug Connector
  • 10PCS HT396K 3.96mm Pitch 2P 3P 4P 5P 6P 8P Pluggable Connector Terminal Block HT396 3.96 Plug Connector
  • 10PCS HT396K 3.96mm Pitch 2P 3P 4P 5P 6P 8P Pluggable Connector Terminal Block HT396 3.96 Plug Connector
  • 10PCS HT396K 3.96mm Pitch 2P 3P 4P 5P 6P 8P Pluggable Connector Terminal Block HT396 3.96 Plug Connector
  • 10PCS HT396K 3.96mm Pitch 2P 3P 4P 5P 6P 8P Pluggable Connector Terminal Block HT396 3.96 Plug Connector
  • 10PCS HT396K 3.96mm Pitch 2P 3P 4P 5P 6P 8P Pluggable Connector Terminal Block HT396 3.96 Plug Connector
10PCS HT396K 3.96mm Pitch 2P 3P 4P 5P 6P 8P Pluggable Connector Terminal Block HT396 3.96 Plug Connector
10PCS HT396K 3.96mm Pitch 2P 3P 4P 5P 6P 8P Pluggable Connector Terminal Block HT396 3.96 Plug Connector
$9.12
$9.12 $0.00
Pins
Description

SPECIFICATIONS

Brand Name: NONE

Certification: CE

Does it include a Battery?: No

Model Number: HT396K

Origin: Mainland China

Terminal Block Series Model List
KF103       KF2EDGK-5.08 plug                    KF3.96     HT3.96 plug
KF126       KF2EDGV-5.08 straight needle  KF7.62     HT3.96 straight needle
KF127       KF2EDGR-5.08 Looper                KF300      HT3.96 Looper
KF128       KF2EDGK-3.81 plug                    KF301      HT5.08 plug
KF129       KF2EDGV-3.81 straight needle  KF350      HT5.08 straight needle
KF1000     KF2EDGR-3.81 Looper               KF8500     HT5.08 Looper
HB9500    HB9500 with cover
If you need these products
Please contact us

10PCS HT396V 3.96mm Pitch Pluggable Connector Terminal Block Straight Needle 2P 3P 4P 5P 6P 8P HT396 Socket Connector

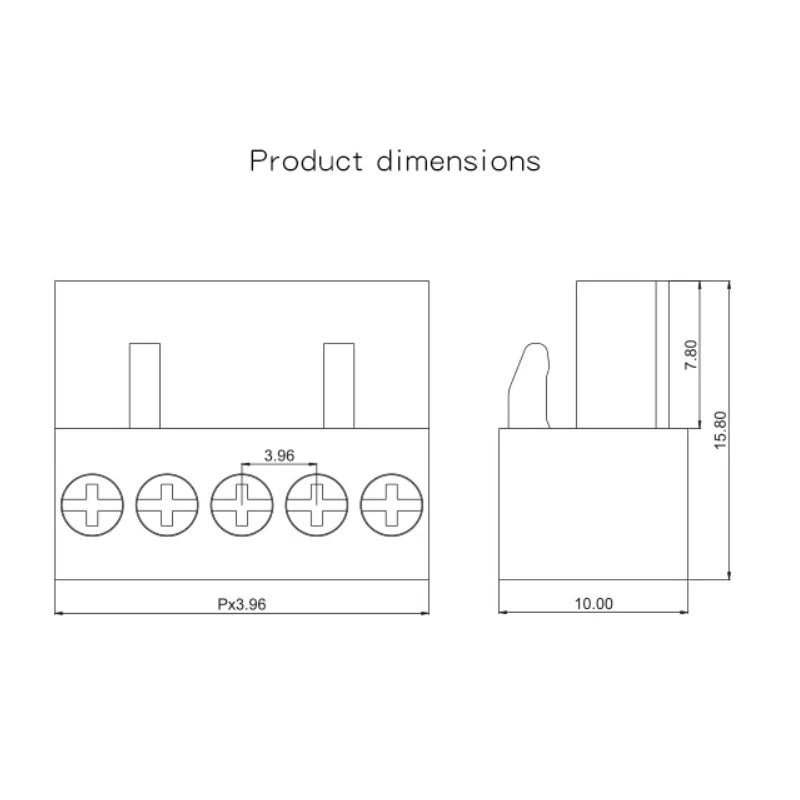

parameter
Product name: HT396K-3.96
Pitch: 3.96mm(.156")
Number of poles: 2P-12P
electrical properties
Rated voltage: 300V/250V
Rated current: 10A
Rated impulse voltage: AC2000V/1Min
Wire Diameter: 26-14AWG
Mechanical behavior
Ambient temperature: -40°C ~+ 125°C
Instantaneous temperature: +250°C for 5 seconds
Maximum locking torque: 0.2Nm(1. 7lb-in)
Stripping length: 7-8MM
Material and Plating
Plastic parts: PA66.UL94V-0
Screw: M2, steel, galvanized
Contact material: brass, tin plated
Reed: phosphor bronze, nickel plated
