SPECIFICATIONS

Application: MOS Driver Module

Brand Name: NONE

Choice: yes

Condition: New,New

Dissipation Power: -,..

High-concerned chemical: none

Model Number: IRF520

Operating Temperature: -,..

Origin: Mainland China

Package: Module

Supply Voltage: 0-24V,0-24V

Type: Drive IC,MOS Driver Module

is_customized: Yes

semi_Choice: yes

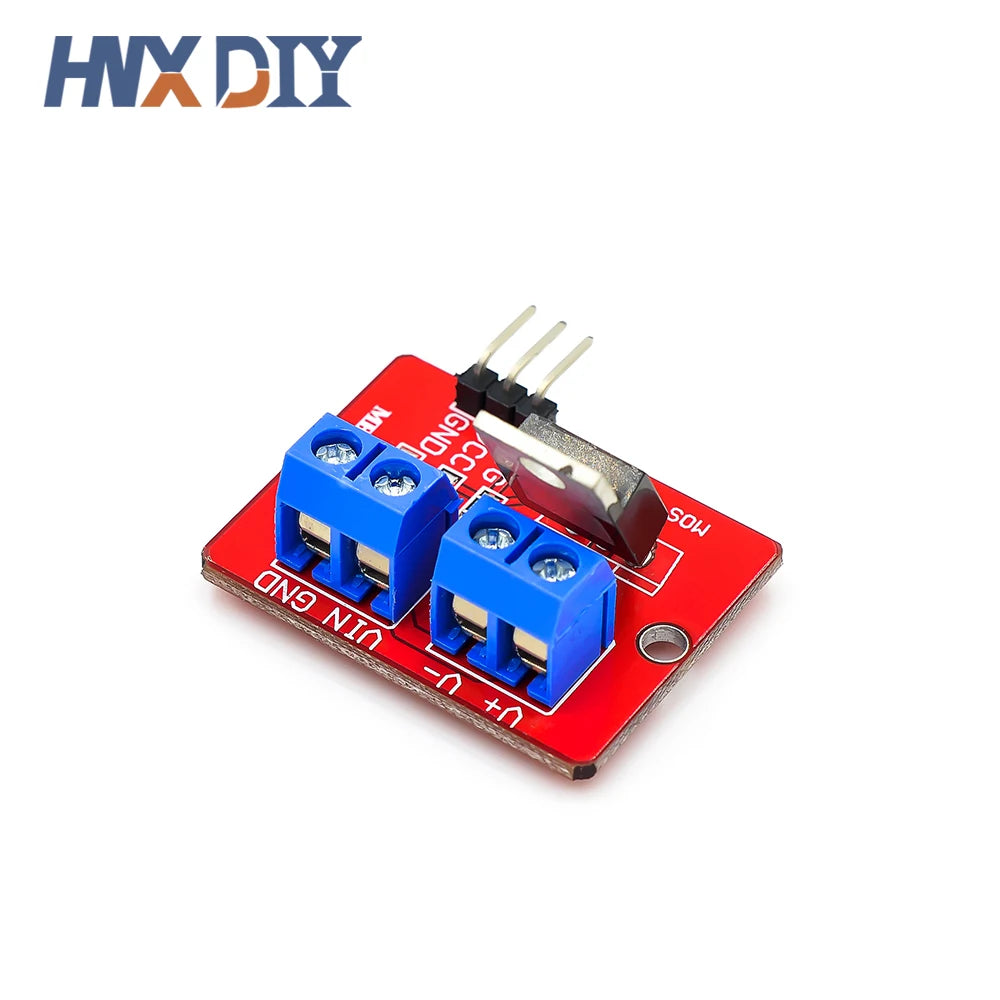

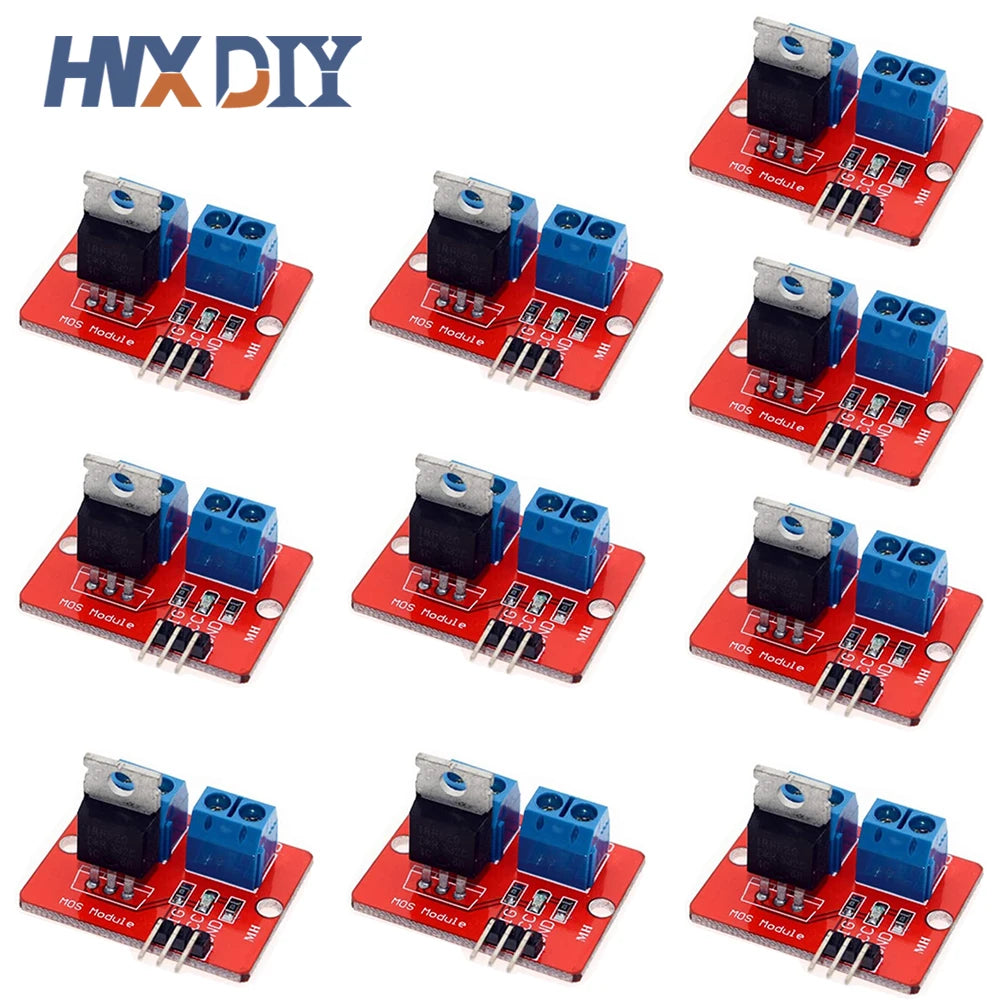

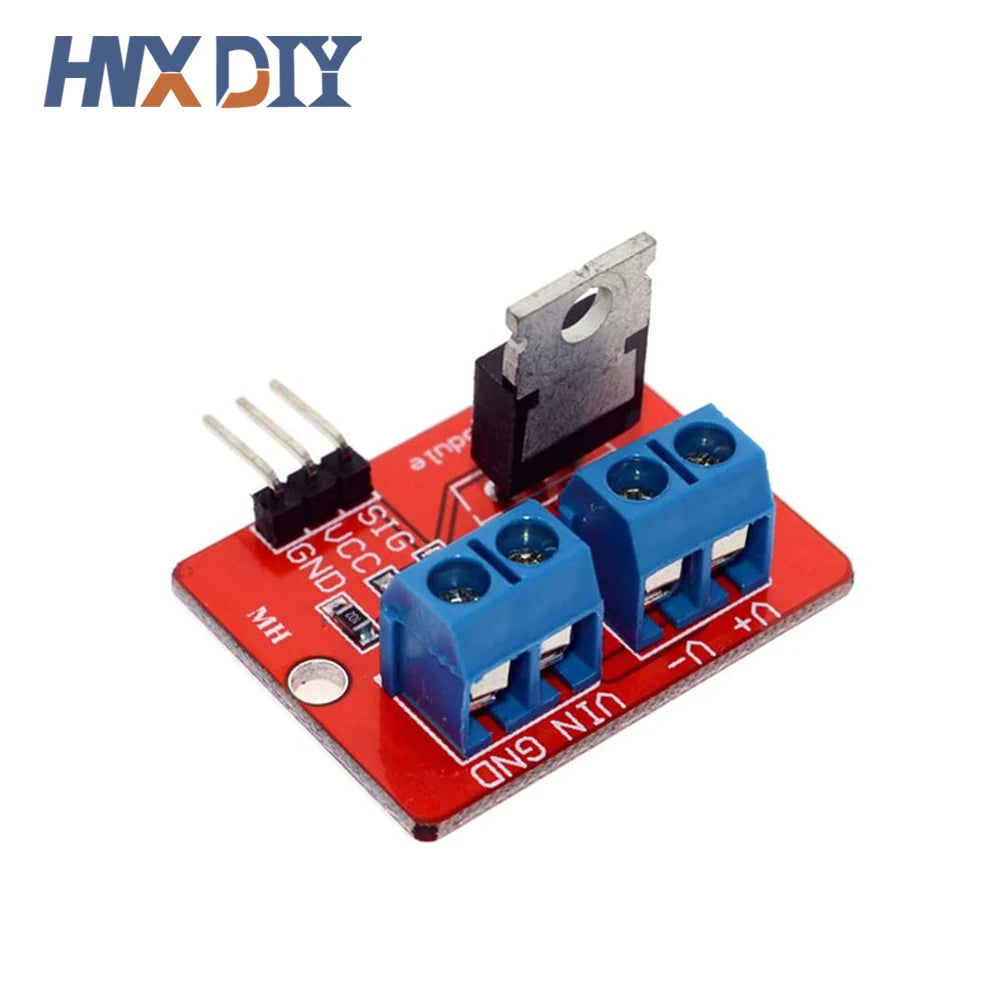

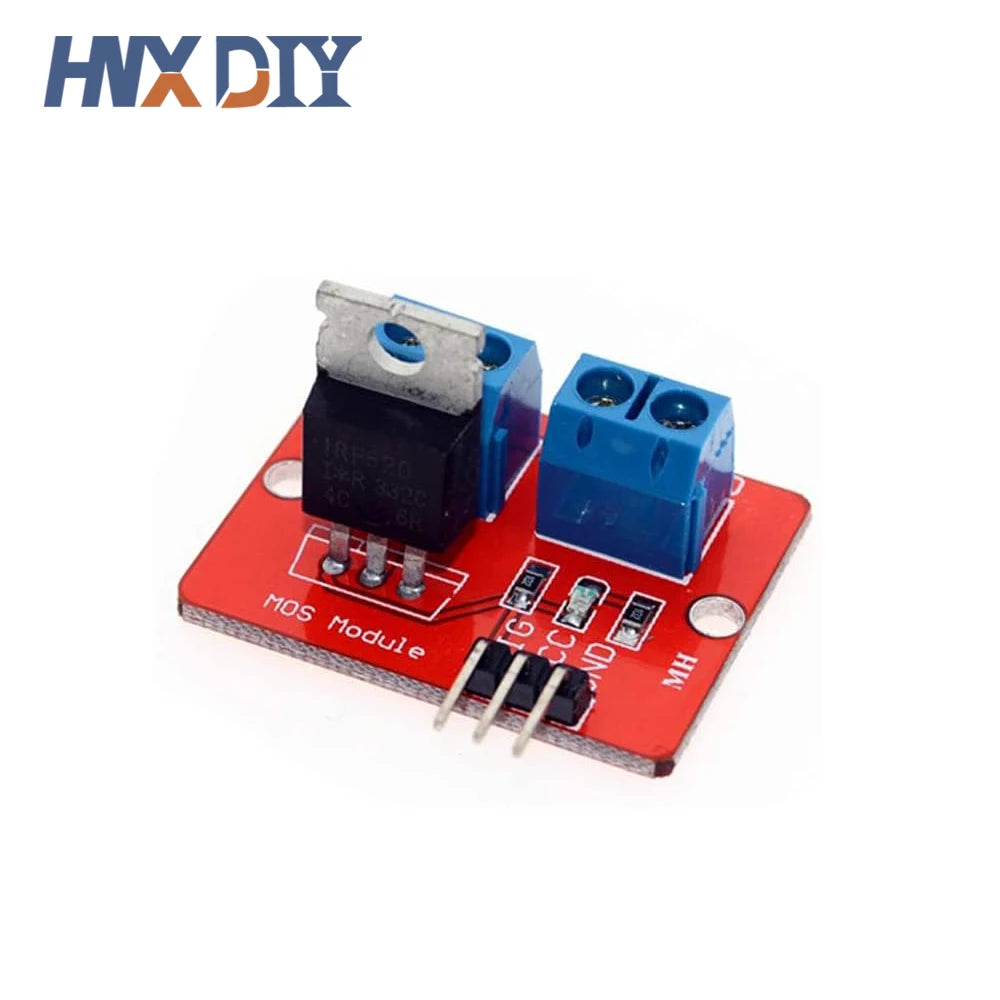

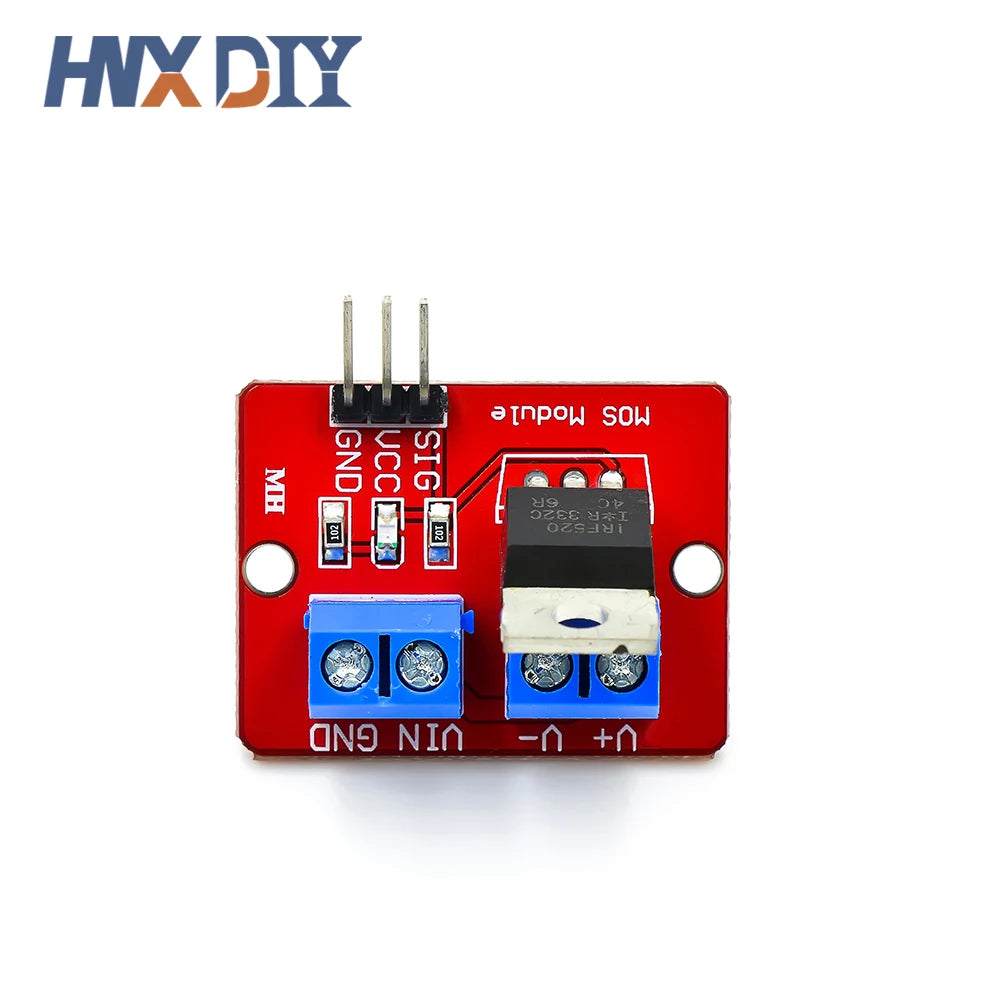

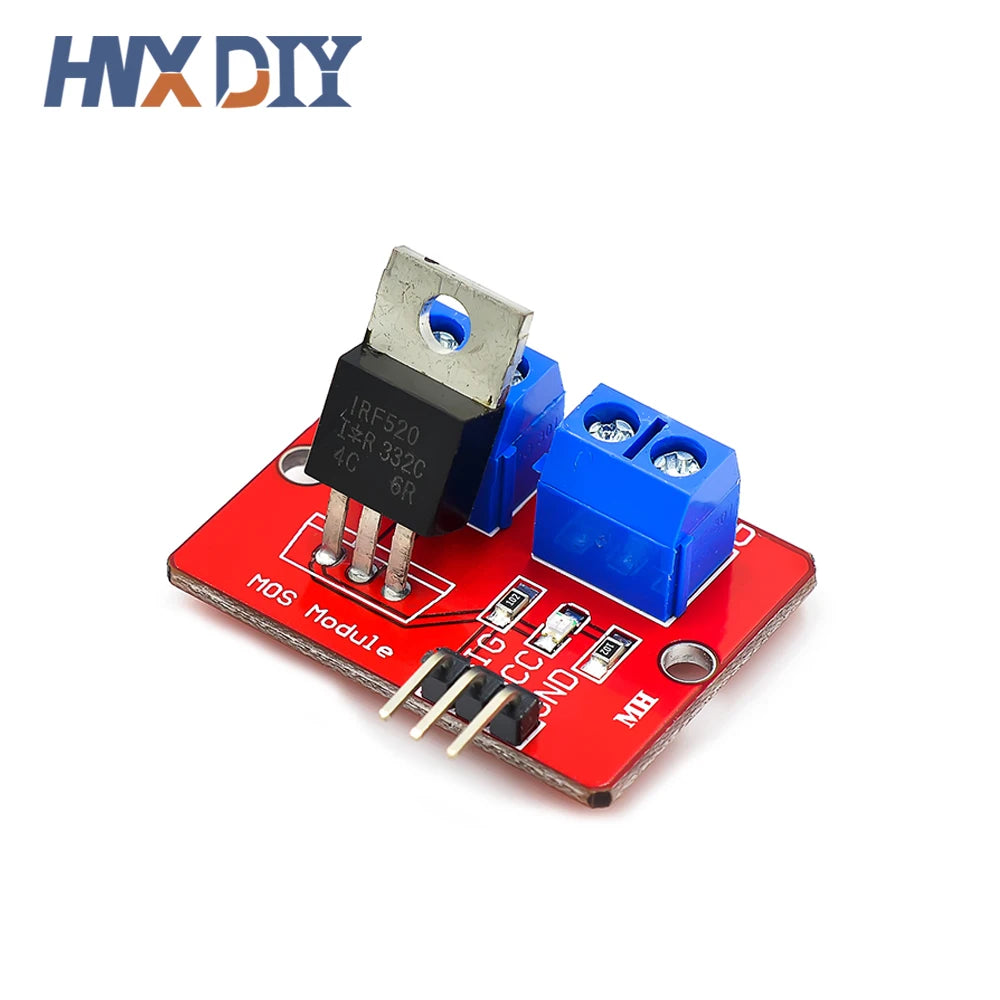

10pcs IRF520 MOS Driver Module PWM Dimmer 0-24V Top Mosfet Button IRF 520 For Arduino MCU ARM Raspberry pi

Product parameters:
Size: 33.4 * 25.6MM
Voltage: 3.3V, 5V
Port: the digital quantity level
The output load voltage: 0 to 24V
The output load current: < 5A (more than 1A need to add heat sink)
Platform: the Arduino, MCU, ARM, raspberry pie

The product features:
Using original IRF520 power MOS tube, can adjust PWM output
Can let the Arduino drive up to 24 v load, such as LED lights belt, dc motor, micro pump, solenoid valve
By PWM adjustable can realize stepless dimming LED, motor stepless speed regulation

The product instructions:
PWM signal for high level effectively
When the PWM for high level (3.3 V to 3.3 V) :
As the power supply voltage, between V + and V - working indicator, work load
When the PWM is low level (0 V to 0.5 V) :
V + and V - between 0, work lights out, don't work load
