SPECIFICATIONS

Brand Name: HUAIHUASC

Breaking Capacity: Low

Certification: CE

Does it include a Battery?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: 0467.500

Origin: Mainland China

Safety Standards: IEC

Use: Low Voltage

is_customized: None

Specifications

Brand: Littelfuse
Series:467
Max Voltage Rating: 32 V
Ampere Rating: 0.5 A
Marking Code: F
Body: Advanced High Temperature Substrate
Interrupt Rating: 50A@32VDC
Nominal Cold Resistance: 0.187 Ohms
Opening: Very Fast-Acting (FF)

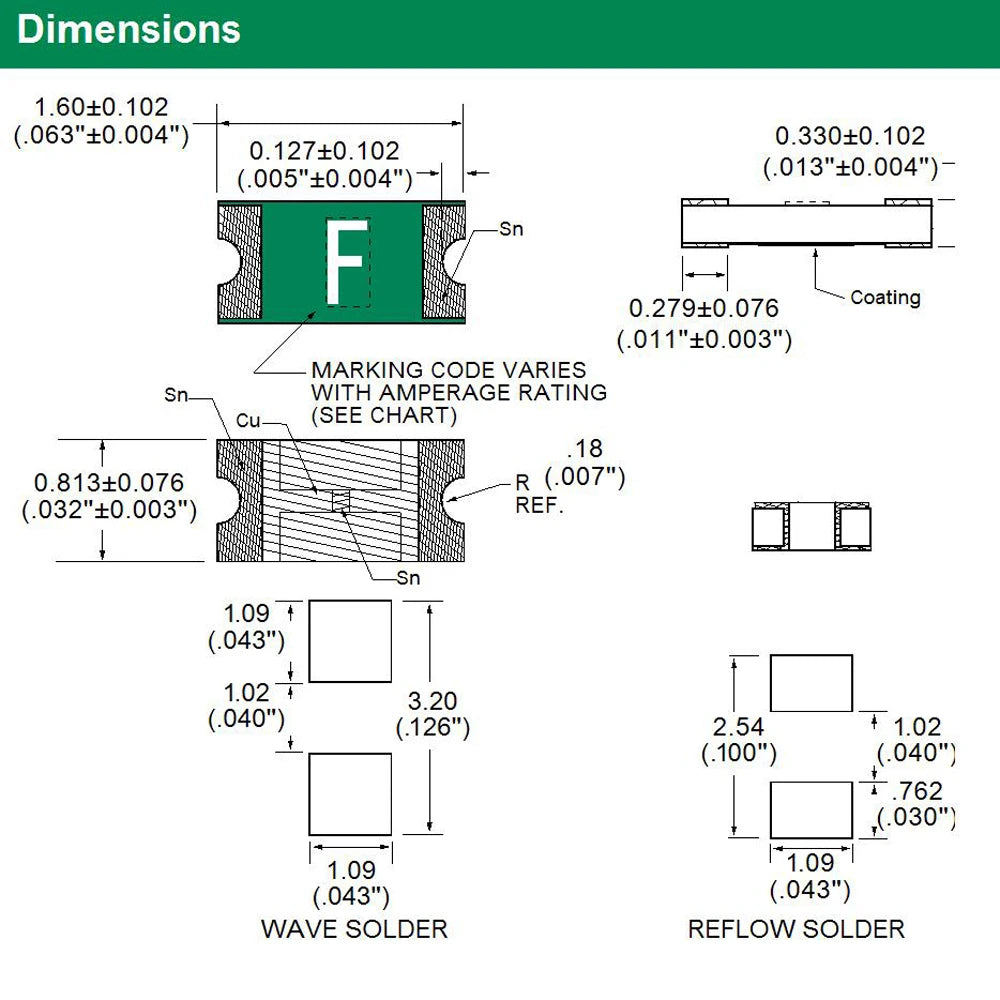

Package Size: 0603(1608)
Part No. :0467.500

Package includes

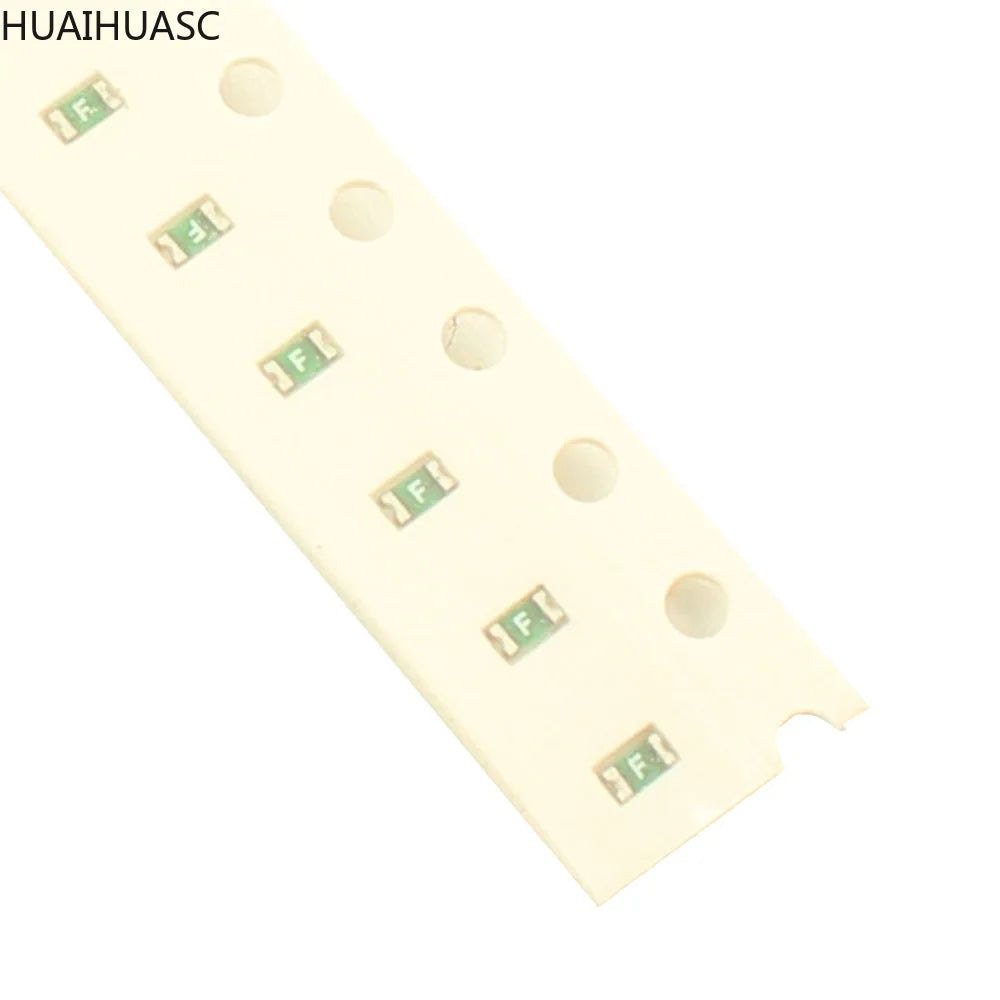

10 pcs Littelfuse 0603 0.5A 500mA SMD Fuse 32V Very Fast Acting Surface Mount 0467.500 Marking Code F

Features

Compatible with leadfree solders and higher temperature profiles

High performance materials provide improved performance in elevated ambient temperature applications

Marked on top surface with code to allow amp rating identification without testing

Low profile for height sensitive applications

Flat top surface for pickand- place operations

Element covering material is resistant to industry standard cleaning operations

Mounting pad and electrical performance is identical to Littelfuse 431 and 434 Series products

Halogen free, Lead-free and RoHS compliant
