10Pcs/Lot 1.27mm Pitch IDC 6P 8 10 12 14 16 20 24 26 30 34 40 50 Pin FC Female Header Socket Cable Connector
12P
$12.84
Sale price
$12.84
Regular price
$0.00
Skip to product information
10Pcs/Lot 1.27mm Pitch IDC 6P 8 10 12 14 16 20 24 26 30 34 40 50 Pin FC Female Header Socket Cable Connector
$12.84
Sale price
$12.84
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Model Number: FC 1.27
Origin: Mainland China
Voltage: none

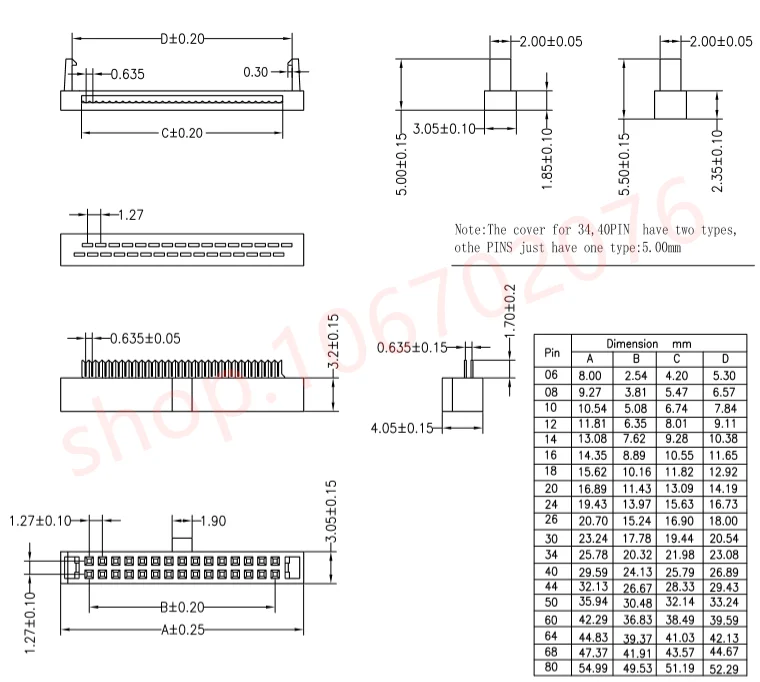

1.27 mm IDC Socket 6 8 10 14 16 18 20 24 26 30 34 40 50 60 80 Pin
Features:
Quantity:10pcs
Pitch: 1.27mm
Gender: Female
Connector type: IDC
Type of Row: Double-Row
Specifications:
Current Rating: 1AMP
Operation Temperature: -40°C to +105°C
Contact Resistance: 20mΩ Max. at DC 100mA
Insulation Resistance: 1000MΩ Min. at 500V DC
Withstanding Voltage: 500V AC/rms 50Hz For 1 minute
Cable: 0.635mm(0.025") pitch flat cable
Material:
Insulator Material: Glass Fiber PBT UL94V-0, Black
Contact: Phosphor Bronze T=0.15
Plating: Whole Gold plating over Nickel
