10Pcs/Lot KF128-2Pin/3Pin 2.54/3.5/3.81/5.0/7.5mm Spacing Terminal Block Splice Terminal Screw Type PCB Screw Terminal 300V 10A

10Pcs/Lot KF128-2Pin/3Pin 2.54/3.5/3.81/5.0/7.5mm Spacing Terminal Block Splice Terminal Screw Type PCB Screw Terminal 300V 10A

3Pin / KF128-5.0mm
$14.32
$14.32 $0.00
Skip to product information
10Pcs/Lot KF128-2Pin/3Pin 2.54/3.5/3.81/5.0/7.5mm Spacing Terminal Block Splice Terminal Screw Type PCB Screw Terminal 300V 10A
  • 10Pcs/Lot KF128-2Pin/3Pin 2.54/3.5/3.81/5.0/7.5mm Spacing Terminal Block Splice Terminal Screw Type PCB Screw Terminal 300V 10A
  • 10Pcs/Lot KF128-2Pin/3Pin 2.54/3.5/3.81/5.0/7.5mm Spacing Terminal Block Splice Terminal Screw Type PCB Screw Terminal 300V 10A
  • 10Pcs/Lot KF128-2Pin/3Pin 2.54/3.5/3.81/5.0/7.5mm Spacing Terminal Block Splice Terminal Screw Type PCB Screw Terminal 300V 10A
  • 10Pcs/Lot KF128-2Pin/3Pin 2.54/3.5/3.81/5.0/7.5mm Spacing Terminal Block Splice Terminal Screw Type PCB Screw Terminal 300V 10A
  • 10Pcs/Lot KF128-2Pin/3Pin 2.54/3.5/3.81/5.0/7.5mm Spacing Terminal Block Splice Terminal Screw Type PCB Screw Terminal 300V 10A
  • 10Pcs/Lot KF128-2Pin/3Pin 2.54/3.5/3.81/5.0/7.5mm Spacing Terminal Block Splice Terminal Screw Type PCB Screw Terminal 300V 10A
  • 10Pcs/Lot KF128-2Pin/3Pin 2.54/3.5/3.81/5.0/7.5mm Spacing Terminal Block Splice Terminal Screw Type PCB Screw Terminal 300V 10A
  • 10Pcs/Lot KF128-2Pin/3Pin 2.54/3.5/3.81/5.0/7.5mm Spacing Terminal Block Splice Terminal Screw Type PCB Screw Terminal 300V 10A
  • 10Pcs/Lot KF128-2Pin/3Pin 2.54/3.5/3.81/5.0/7.5mm Spacing Terminal Block Splice Terminal Screw Type PCB Screw Terminal 300V 10A
  • 10Pcs/Lot KF128-2Pin/3Pin 2.54/3.5/3.81/5.0/7.5mm Spacing Terminal Block Splice Terminal Screw Type PCB Screw Terminal 300V 10A
  • 10Pcs/Lot KF128-2Pin/3Pin 2.54/3.5/3.81/5.0/7.5mm Spacing Terminal Block Splice Terminal Screw Type PCB Screw Terminal 300V 10A
  • 10Pcs/Lot KF128-2Pin/3Pin 2.54/3.5/3.81/5.0/7.5mm Spacing Terminal Block Splice Terminal Screw Type PCB Screw Terminal 300V 10A
  • 10Pcs/Lot KF128-2Pin/3Pin 2.54/3.5/3.81/5.0/7.5mm Spacing Terminal Block Splice Terminal Screw Type PCB Screw Terminal 300V 10A
  • 10Pcs/Lot KF128-2Pin/3Pin 2.54/3.5/3.81/5.0/7.5mm Spacing Terminal Block Splice Terminal Screw Type PCB Screw Terminal 300V 10A
10Pcs/Lot KF128-2Pin/3Pin 2.54/3.5/3.81/5.0/7.5mm Spacing Terminal Block Splice Terminal Screw Type PCB Screw Terminal 300V 10A
10Pcs/Lot KF128-2Pin/3Pin 2.54/3.5/3.81/5.0/7.5mm Spacing Terminal Block Splice Terminal Screw Type PCB Screw Terminal 300V 10A
$14.32
$14.32 $0.00
Pins
Package Quantity
Description

SPECIFICATIONS

Brand Name: NONE

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: Yes

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: KF128

Origin: Mainland China

Voltage: 自定义编辑

semi_Choice: yes

电压: 1V 2V 4V 5V 12V 12V 等 或自定义

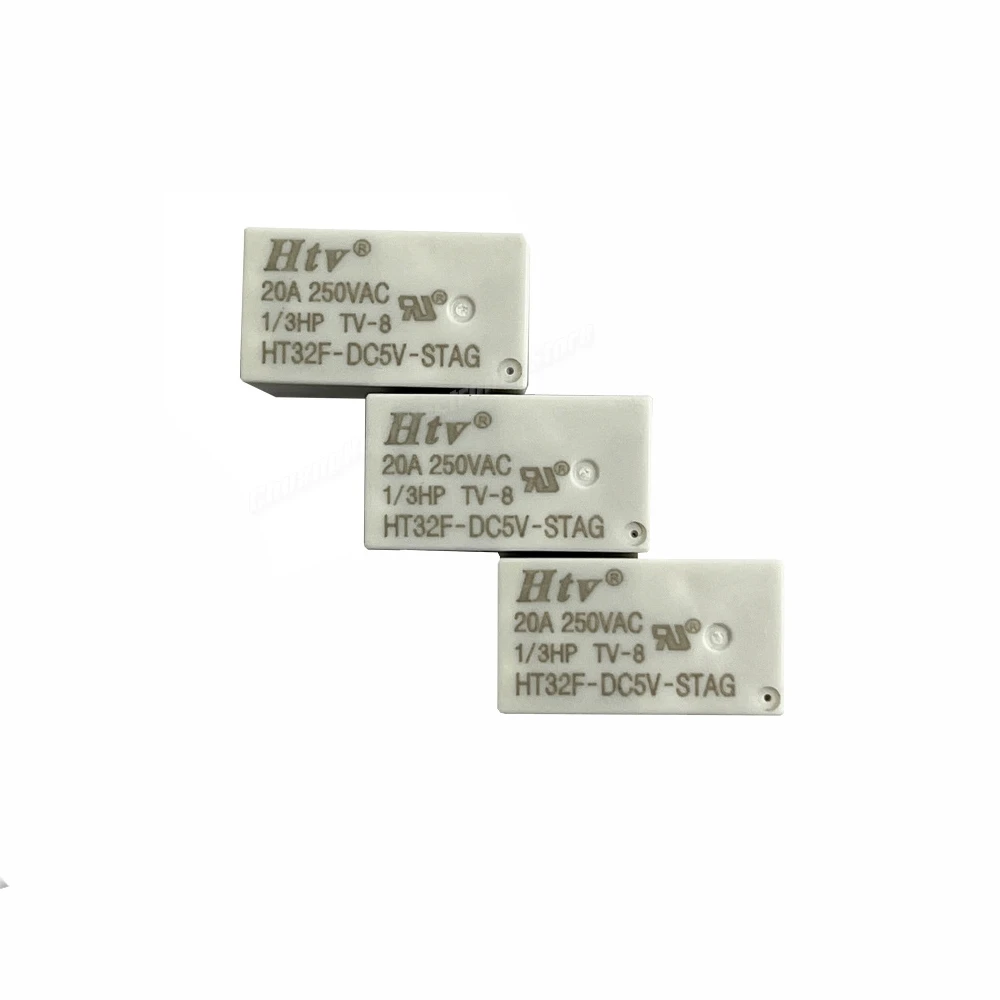

10Pcs/Lot Power Relay HT32F-DC5V-STAG with a White Shell One Set of Normally Open Contacts 20A Rating and 4 Pins.CNY 43.48 / piece /lot 10

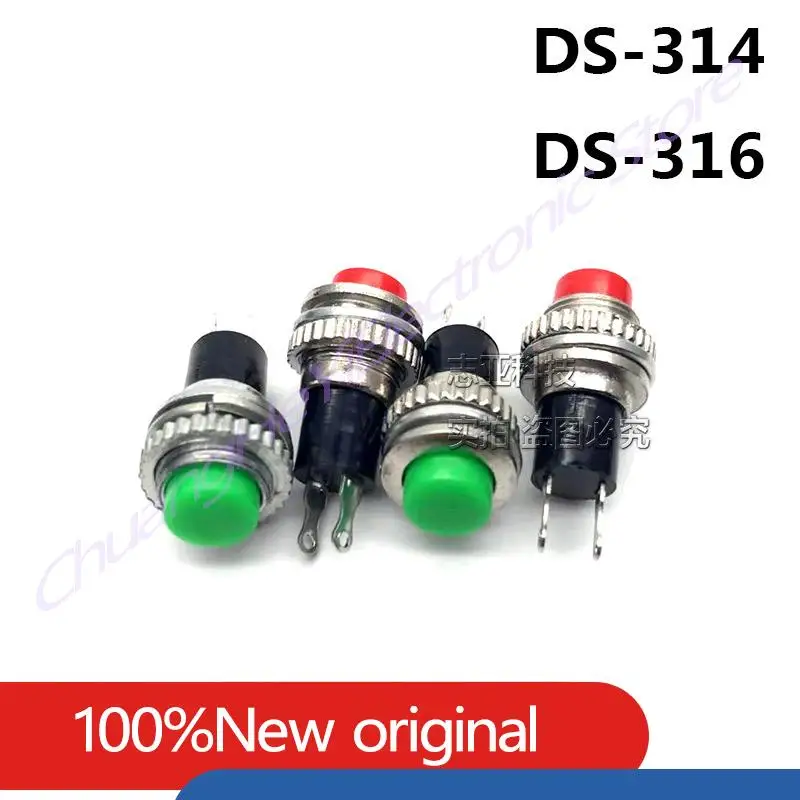

5Pcs/Lot Factory Direct Sales DS-316 DS-314 Button Opening 10mm Self-Resetting Non-Locking Point Push Through SwitchCNY 7.34 / piece /lot 1

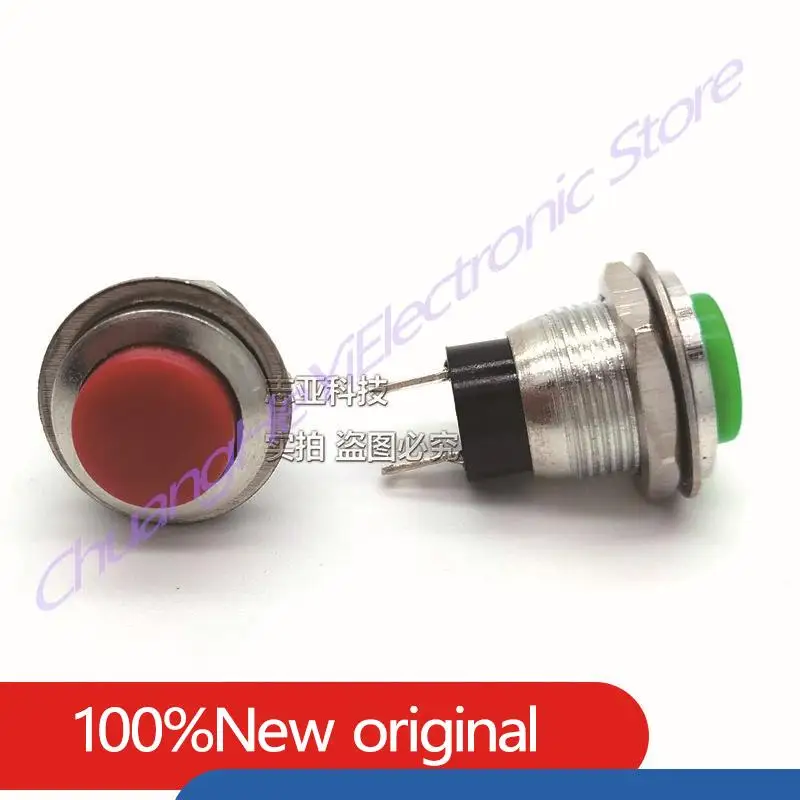

5Pcs/Lot Factory Direct Sales DS-318 Metal key switch Self-reset unlocked 12mm1A250V round button switchCNY 16.3 / piece /lot 1
SLD/SLDH-12VDC-1C/1A Songle Relay SLDH-24VDC-1C Wide-pin Soldering Pins 4Pin/5Pin 60A 14VDC New and OriginalCNY 8.8 / piece /lot 1

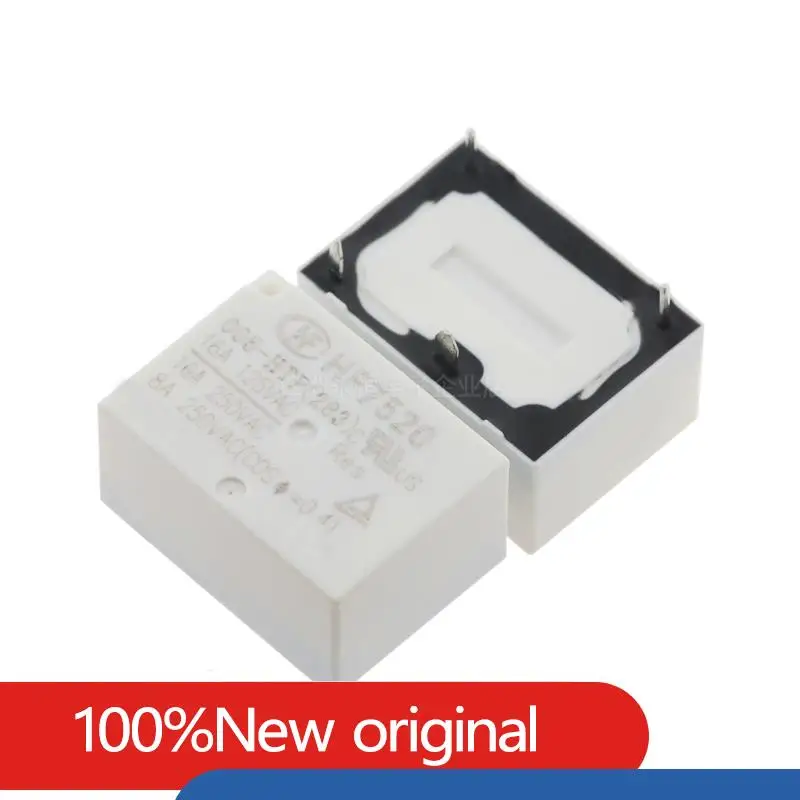

Original New Relay HF7520 HF7520-005-HTP 5VDC 16A 4PIN 5V Power relay Replaceable V6-S-DC5V SPA-S-105DM2CNY 6 / piece /lot 1

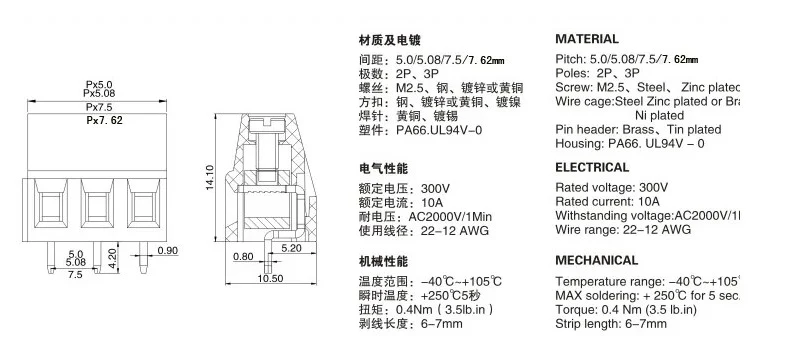

MATERIAL

  • Pitch: 5.0/5.08/7.5/7.62mm

  • Poles: 2P、3P

  • Screw: M2.5、Steel、Zinc plated

  • Wire cage:Steel Zinc plated or Brass Ni plated

  • Pin header: Brass、Tin plated

  • Housing: PA66, UL94V - 0

ELECTRICAL

  • Rated voltage: 300V

  • Rated current: 10A

  • Withstanding voltage: AC2000V/1min

  • Wire range: 22 - 12 AWG

MECHANICAL

  • Temperature range: -40℃~+105℃

  • MAX soldering: +250℃ for 5 sec.

  • Torque: 0.4 Nm (3.5 lb.in)

  • Strip length: 6 - 7mm

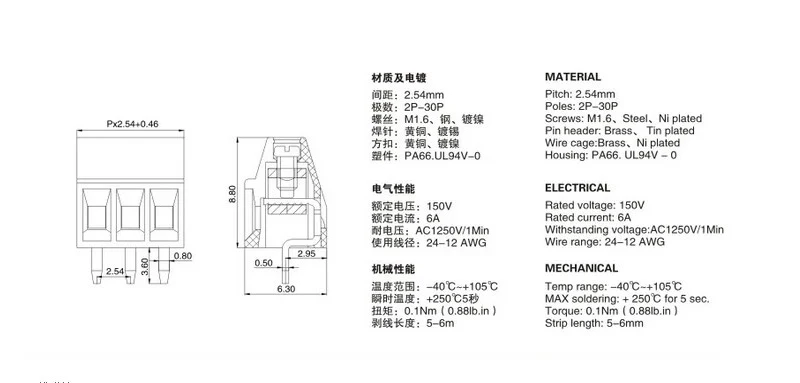

  • MATERIAL

    • Pitch: 2.54mm

    • Poles: 2P-30P

    • Screws: M1.6、Steel、Ni plated

    • Wire cage:Brass、Ni plated

    • Pin header: Brass、Tin plated

    • Housing: PA66, UL94V - 0

    ELECTRICAL

    • Rated voltage: 150V

    • Rated current: 3A

    • Withstanding voltage: AC1250V/1Min

    • Wire range: 24-20 AWG

    MECHANICAL

    • Temp range: -40℃~+105℃

    • Max soldering: +250℃ for 5 sec.

    • Torque: 0.1Nm (0.88lb.in)

    • Strip length: 5-6mm

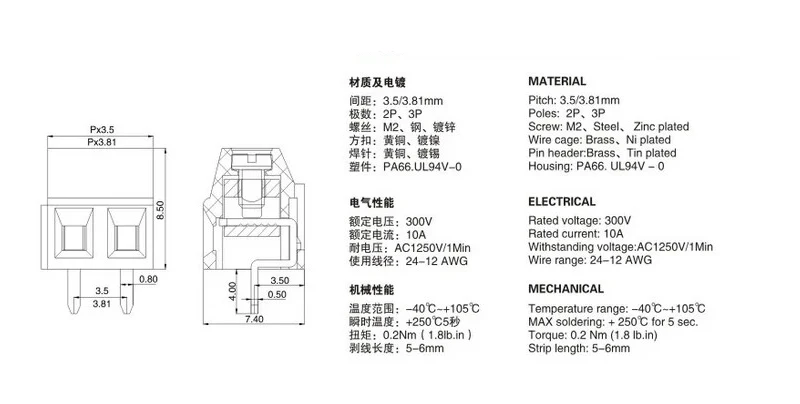

    • MATERIAL

      • Pitch: 3.5/3.81mm

      • Poles: 2P、3P

      • Screw: M2、Steel、Zinc plated

      • Wire cage:Brass、Ni plated

      • Pin header:Brass、Tin plated

      • Housing: PA66, UL94V - 0

      ELECTRICAL

      • Rated voltage: 300V

      • Rated current: 10A

      • Withstanding voltage: AC1250V/1Min

      • Wire range: 24-12 AWG

      MECHANICAL

      • Temperature range: -40℃~+105℃

      • MAX soldering: +250℃ for 5 sec.

      • Torque: 0.3 Nm (2.6 lb.in)

      • Strip length: 5-6mm
