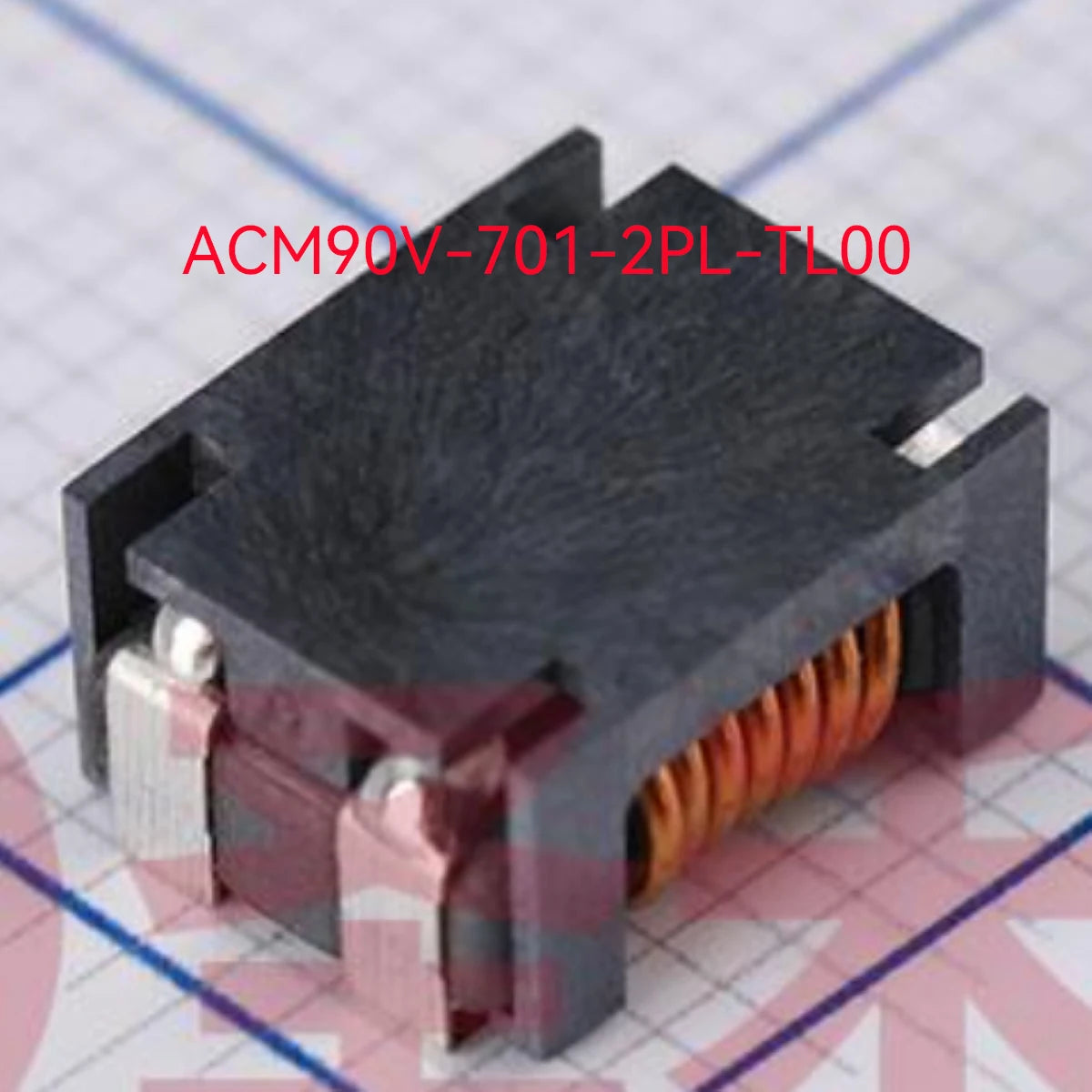

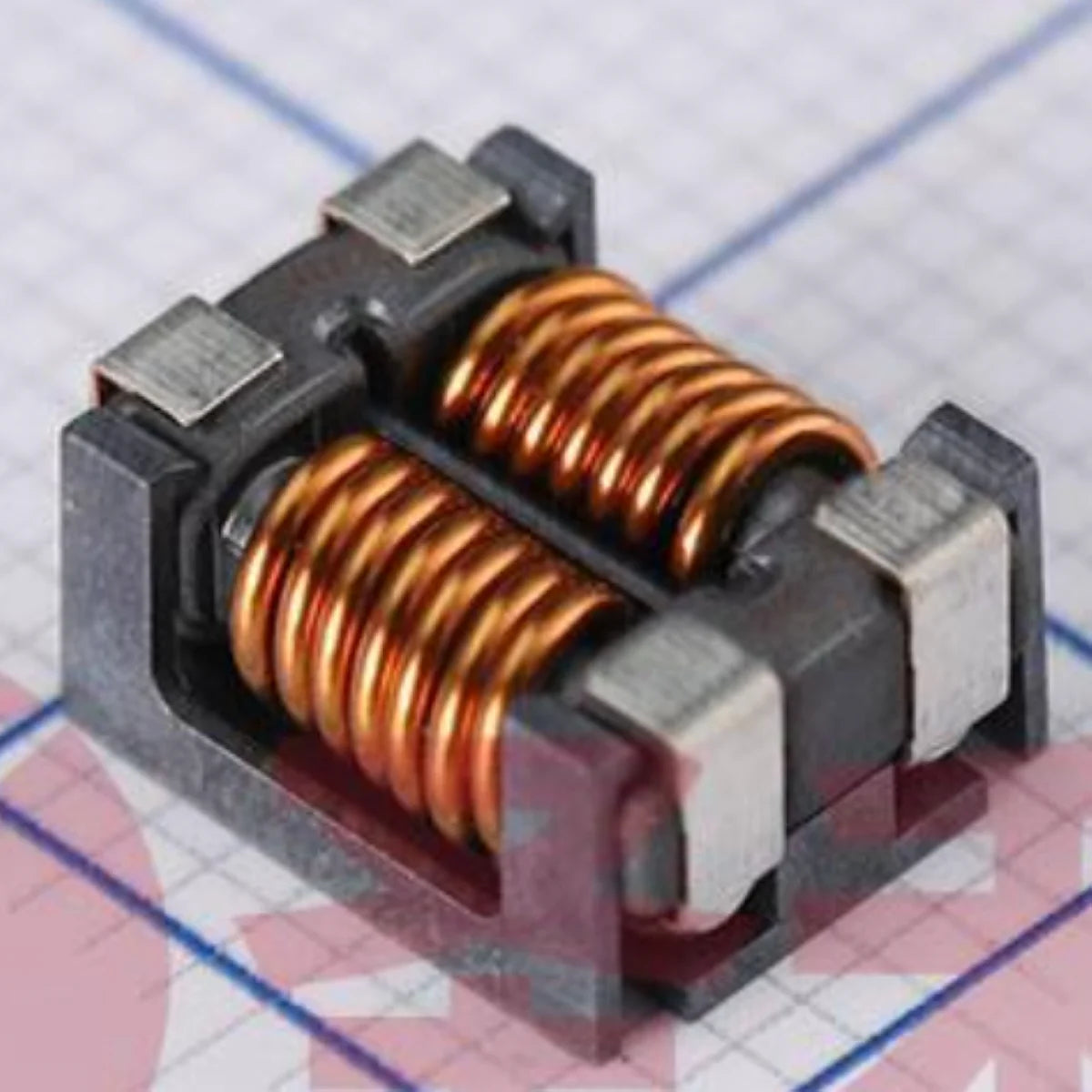

10PCS original ACM90V common mode filter 50V 80V 5A SMD 700Ω@100MHz 10mΩ channel number 2 ACM90V-701-2PL-TL00 700 Ohm DCR 10mOhm
Default Title
$61.29
Sale price
$61.29
Regular price
$0.00
Skip to product information
10PCS original ACM90V common mode filter 50V 80V 5A SMD 700Ω@100MHz 10mΩ channel number 2 ACM90V-701-2PL-TL00 700 Ohm DCR 10mOhm
$61.29
Sale price
$61.29
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
High-concerned chemical: none
Model Number: ACM90V-701-2PL-TL00
Origin: Mainland China
Package Type: Surface mount
Type: COMMON MODE FILTER
is_customized: Yes
If you need other products, please contact us

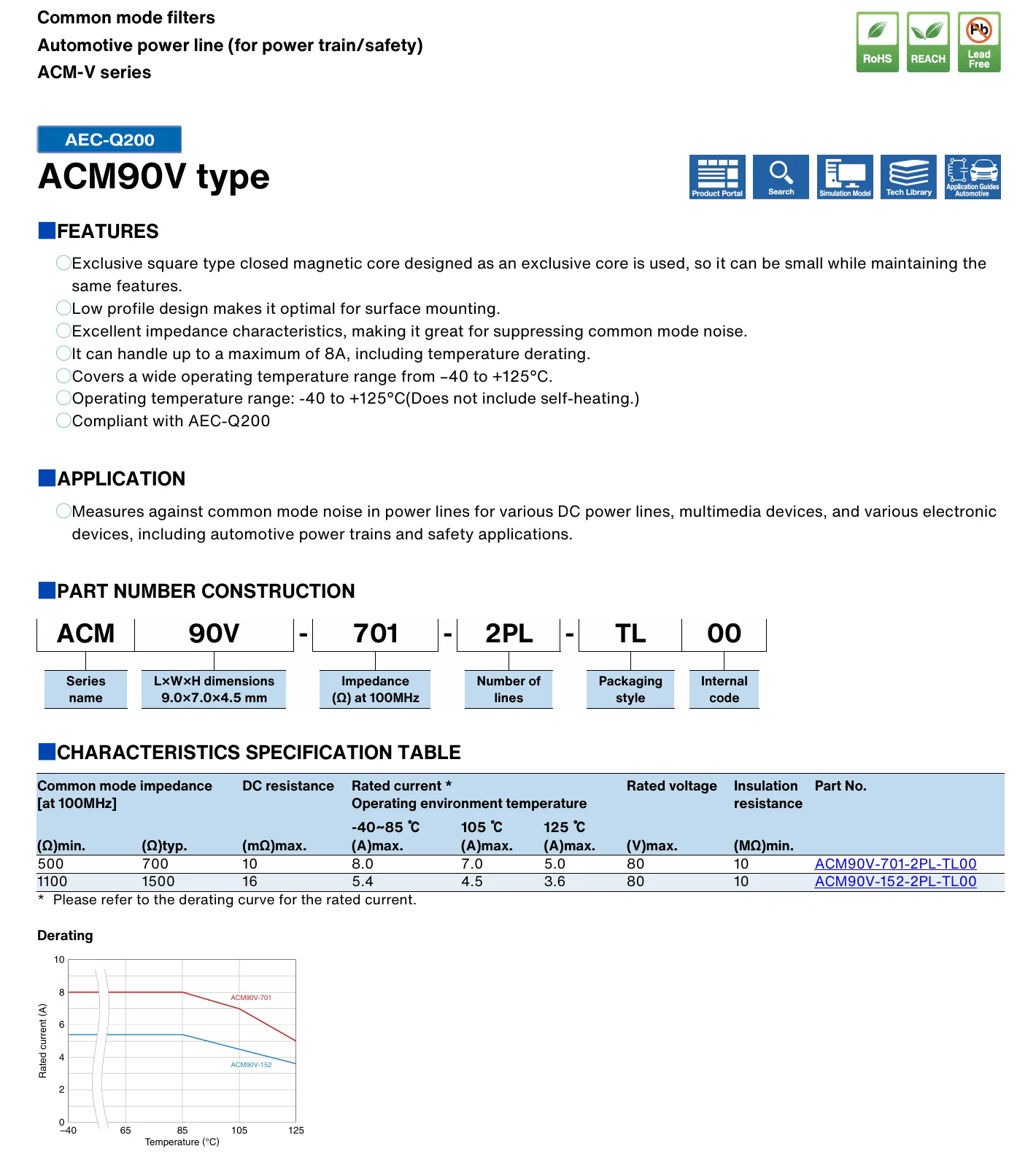

Model marking; attribute parameter
-----------------------------------------------------
Filter type power cord
Number of lines 2

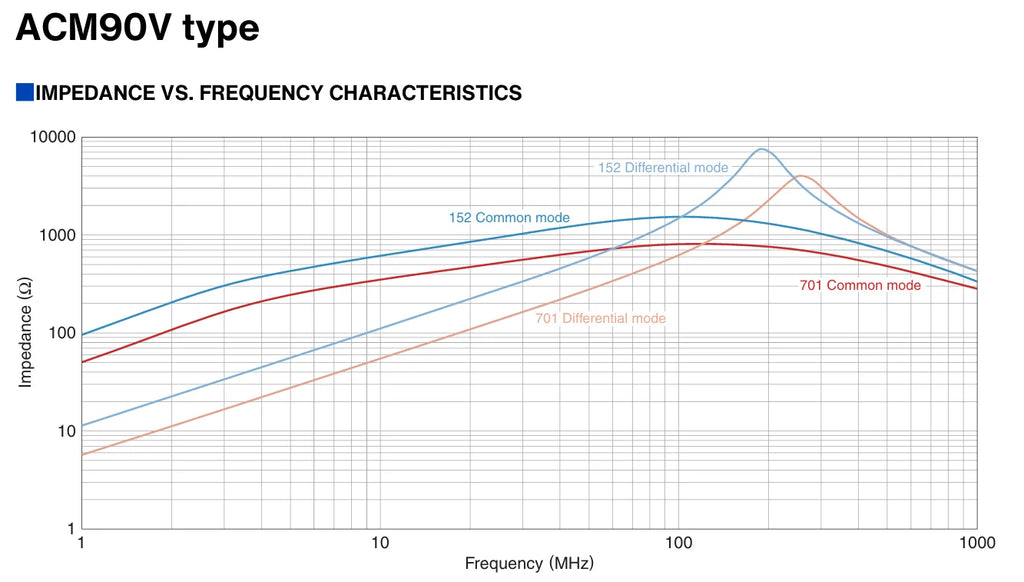

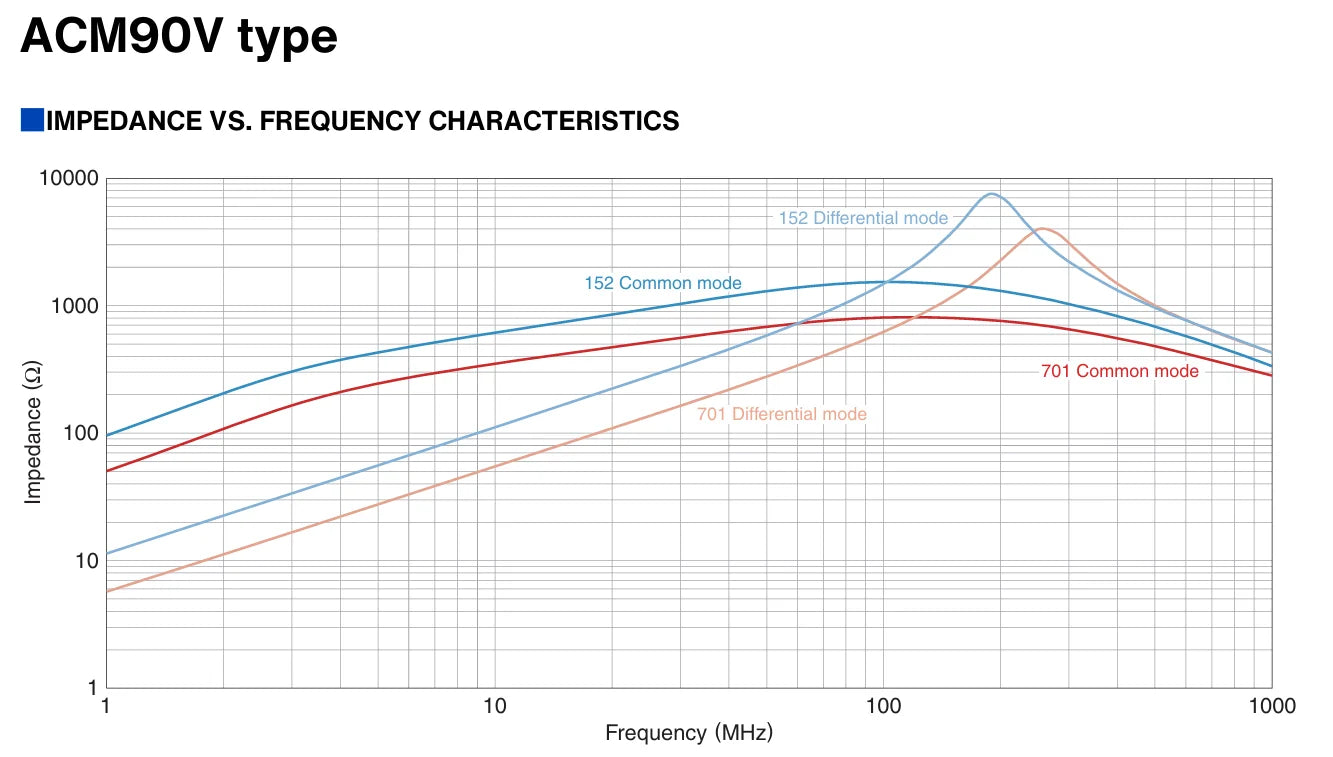

Impedance at 700 Ohms @ 100MHz at different frequencies
Rated current (maximum) 5A
DC resistance (DCR) (maximum) 10 milliohms
Rated voltage - DC 80V
Working temperature -40 ° C~125 ° C
Grade AEC-Q200
Installation type: Surface mount type

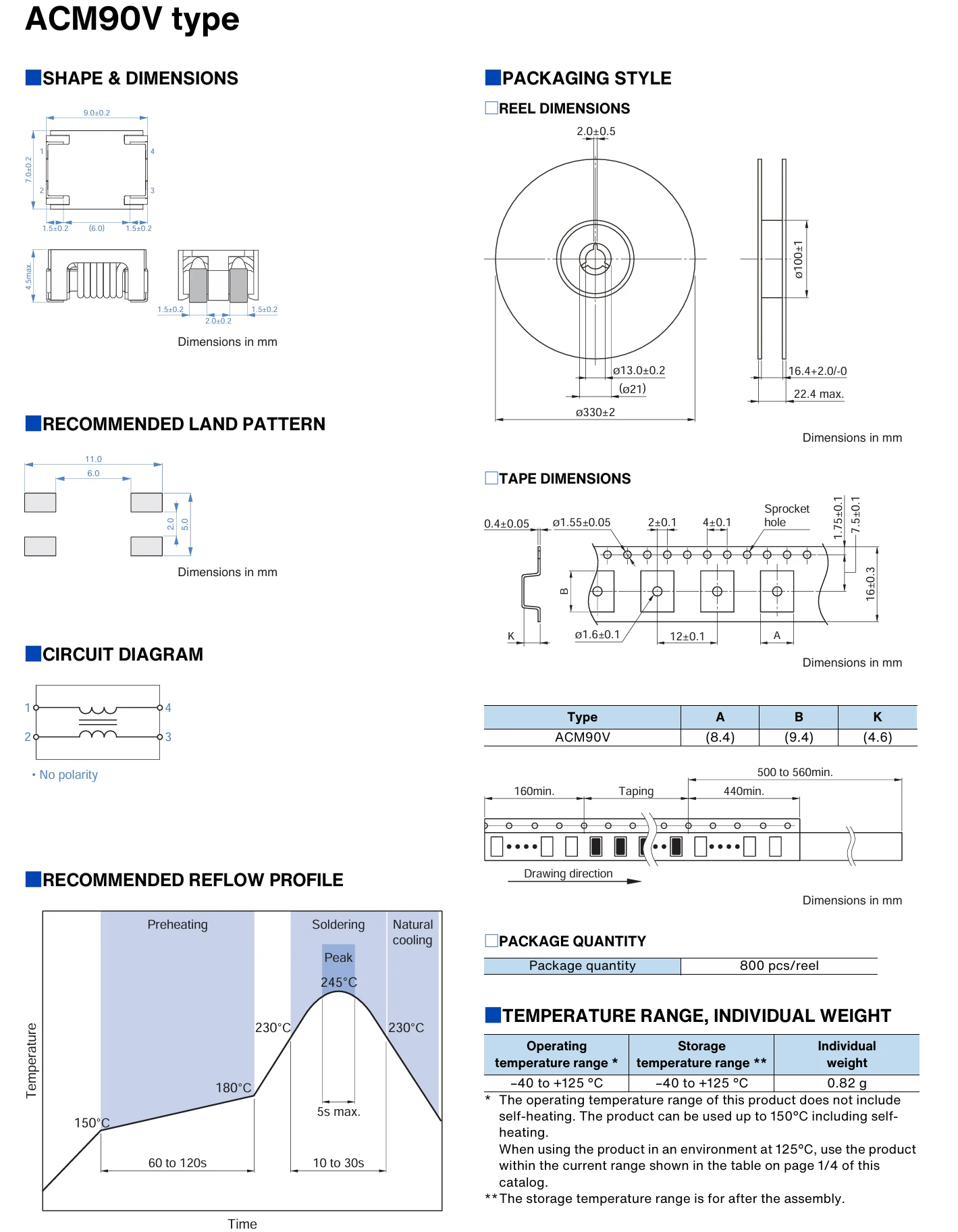

Size/Dimensions 0.354 "L x 0.276" W (9.00mm x 7.00mm)
Height (maximum) 0.177 "(4.50mm)
Horizontal packaging/shell, 4 J-shaped leads
