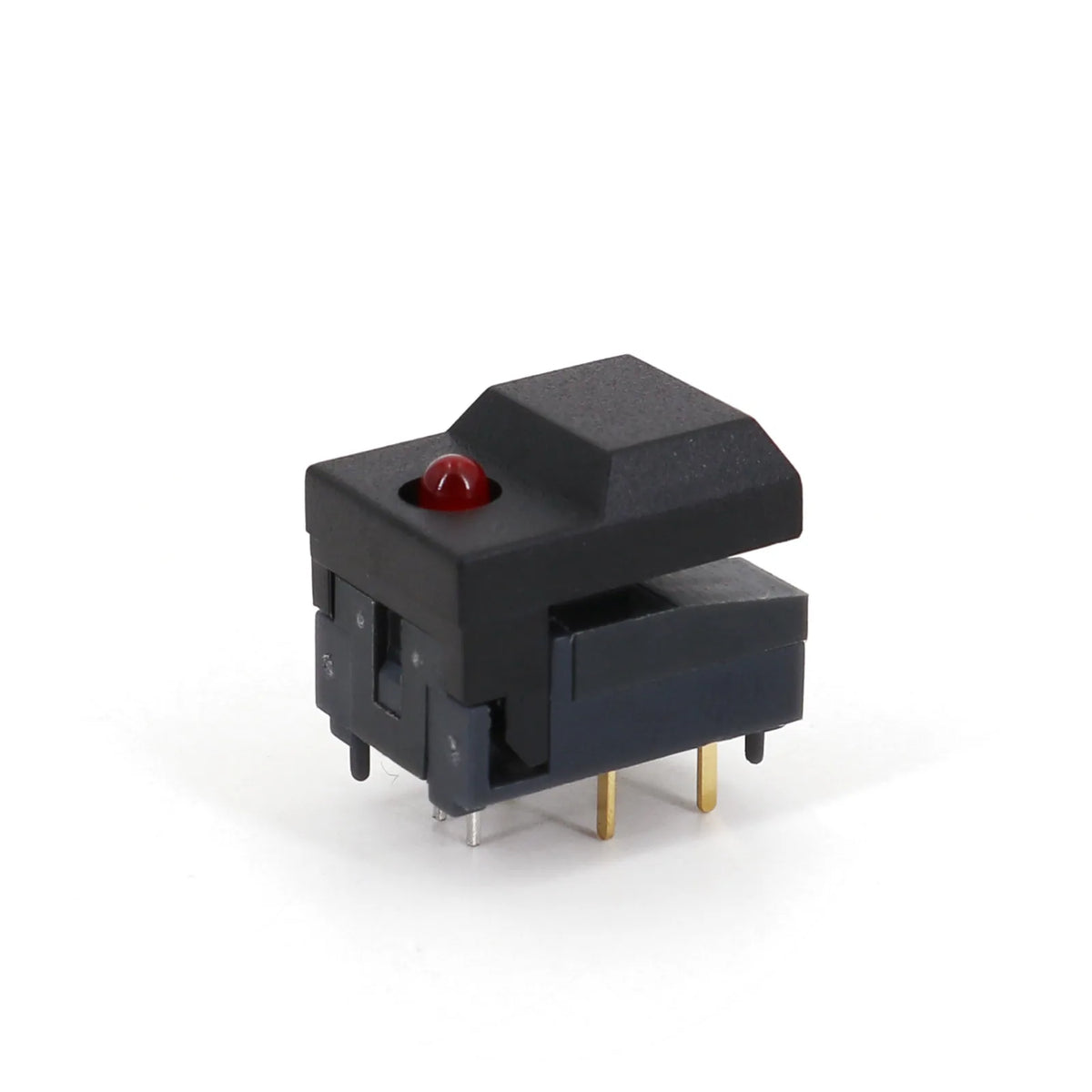

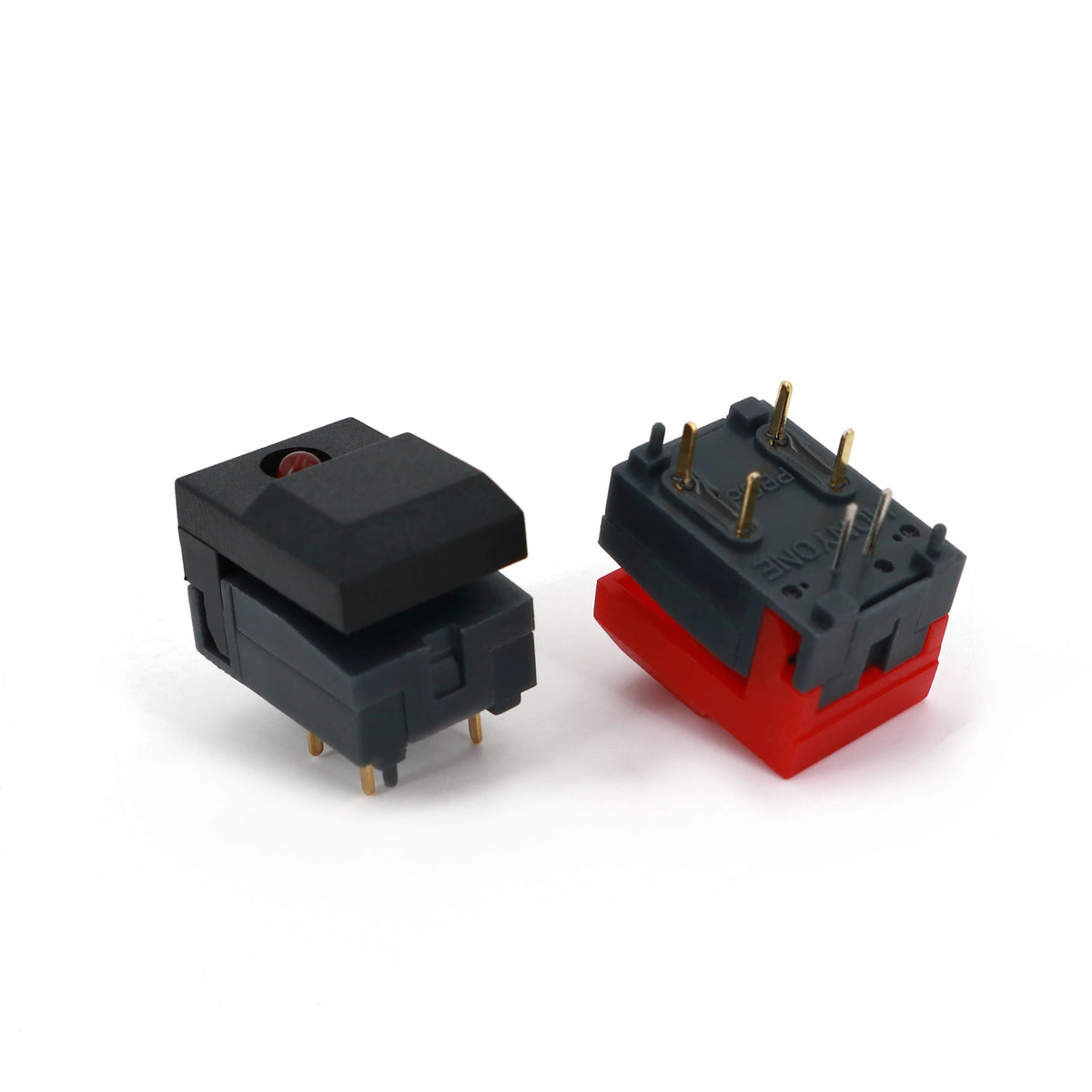

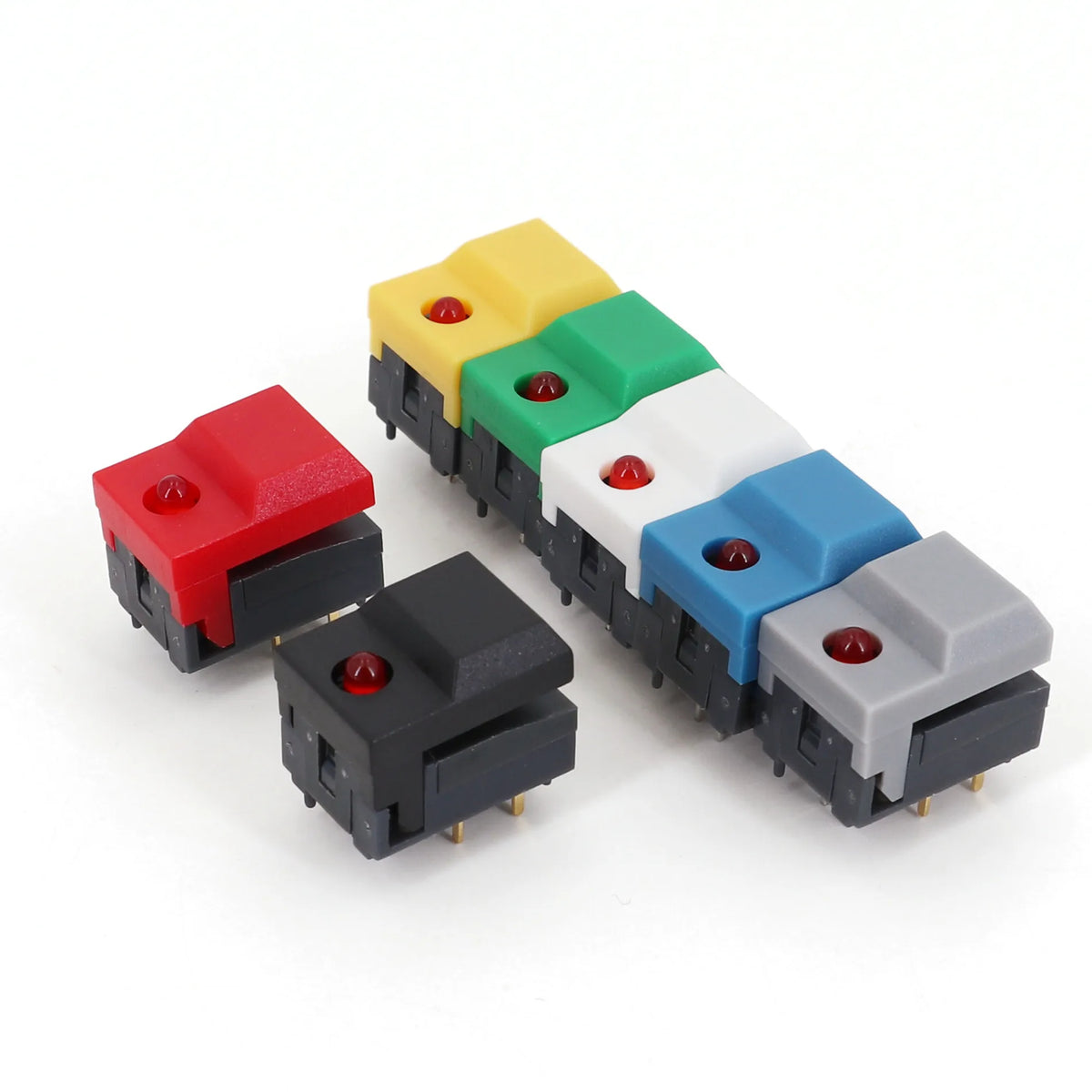

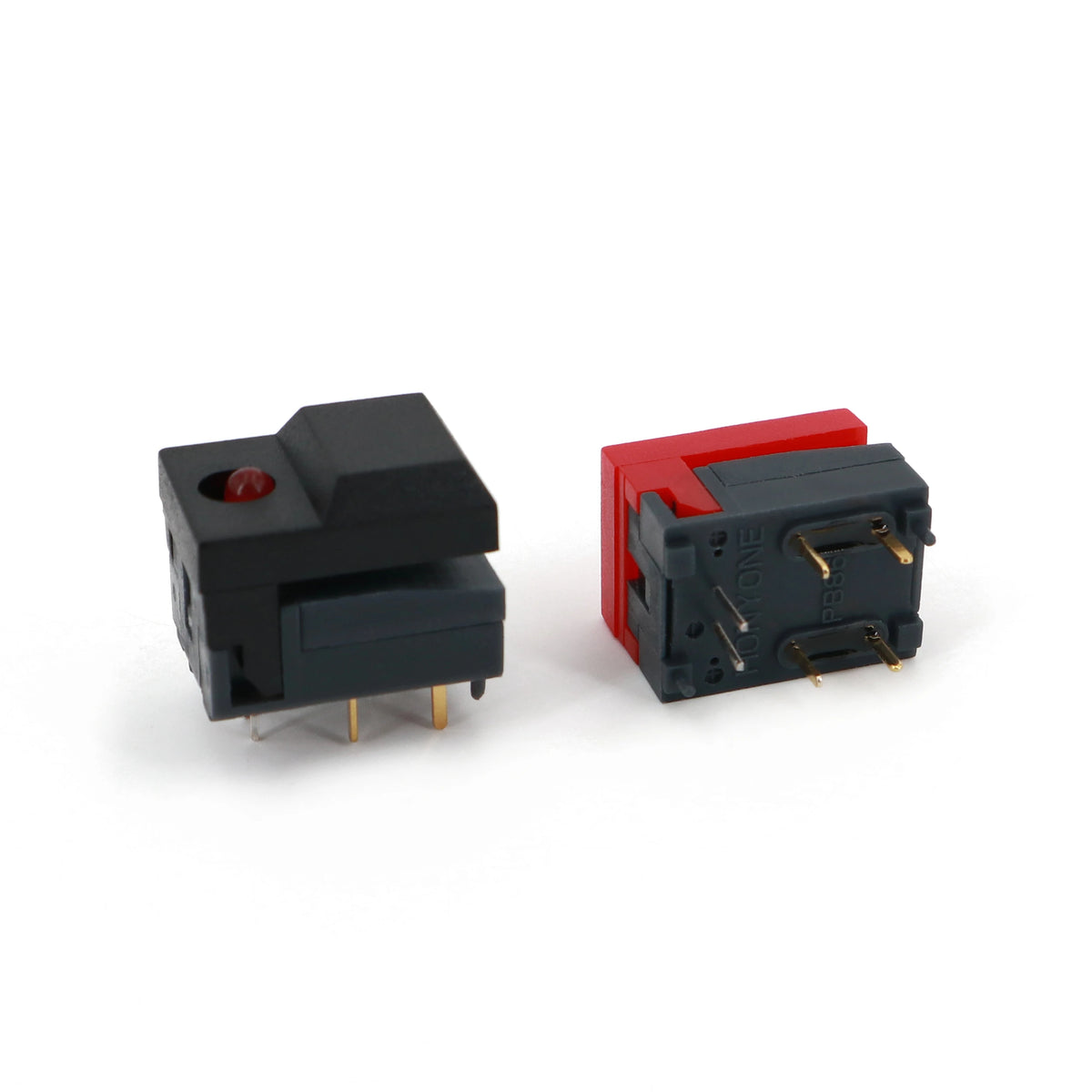

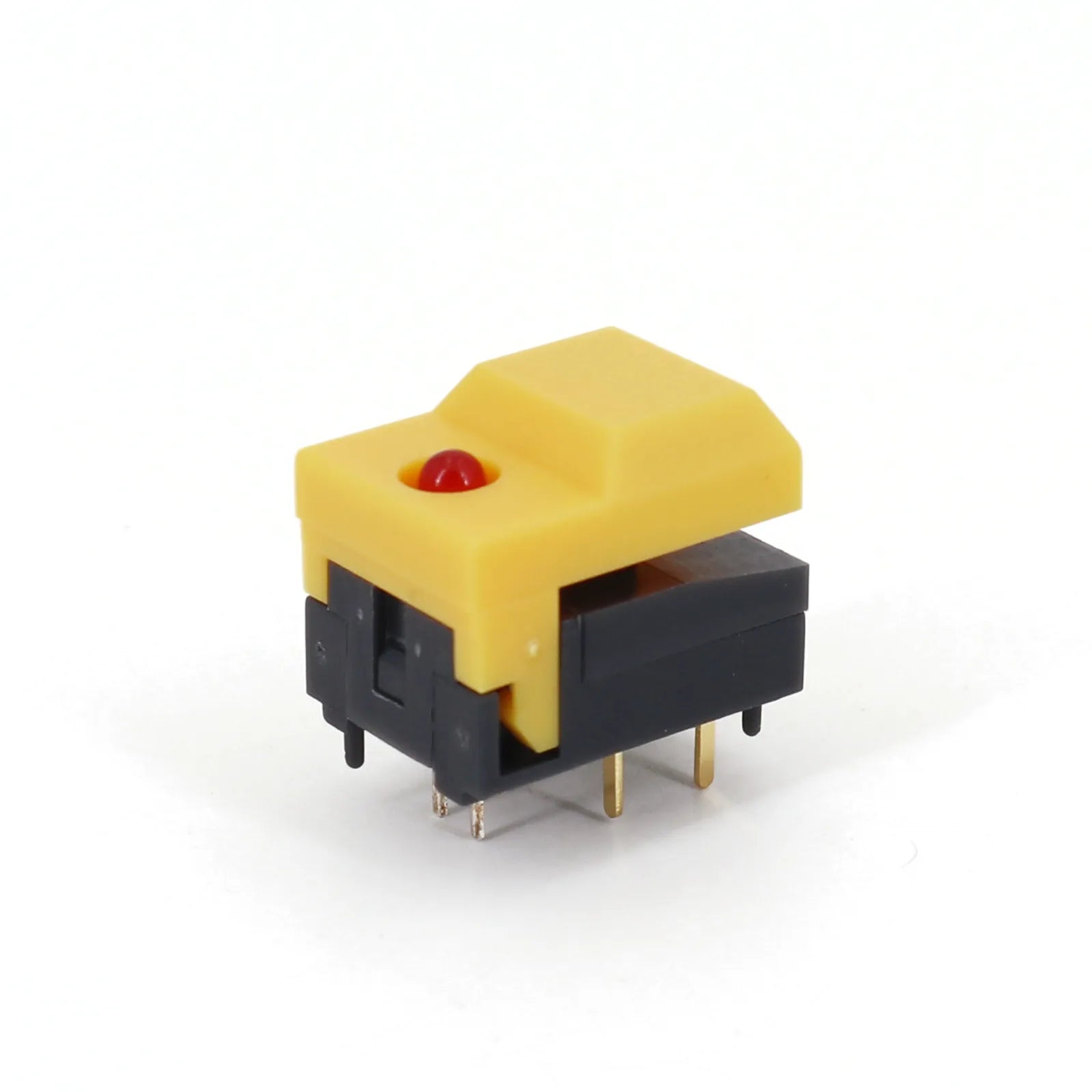

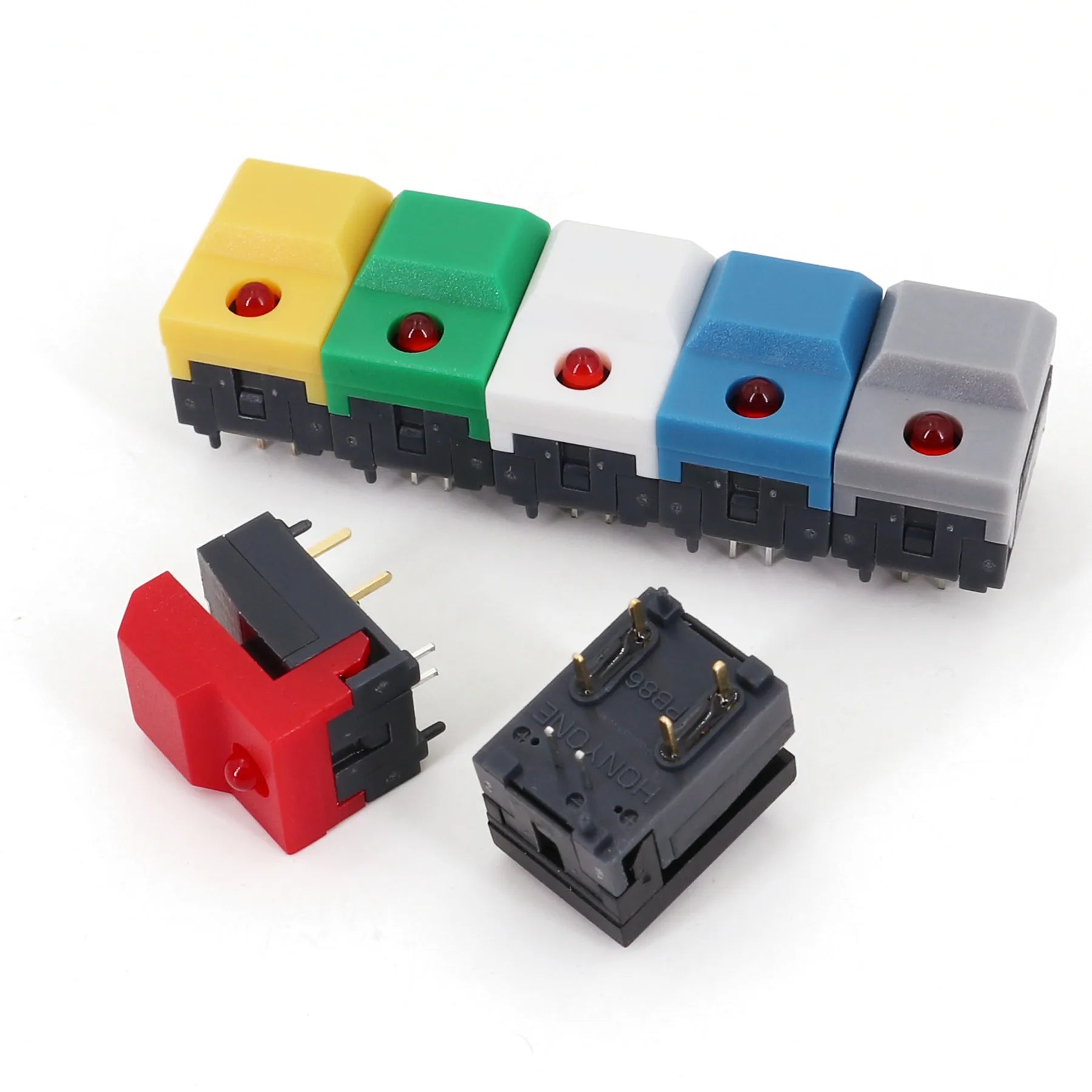

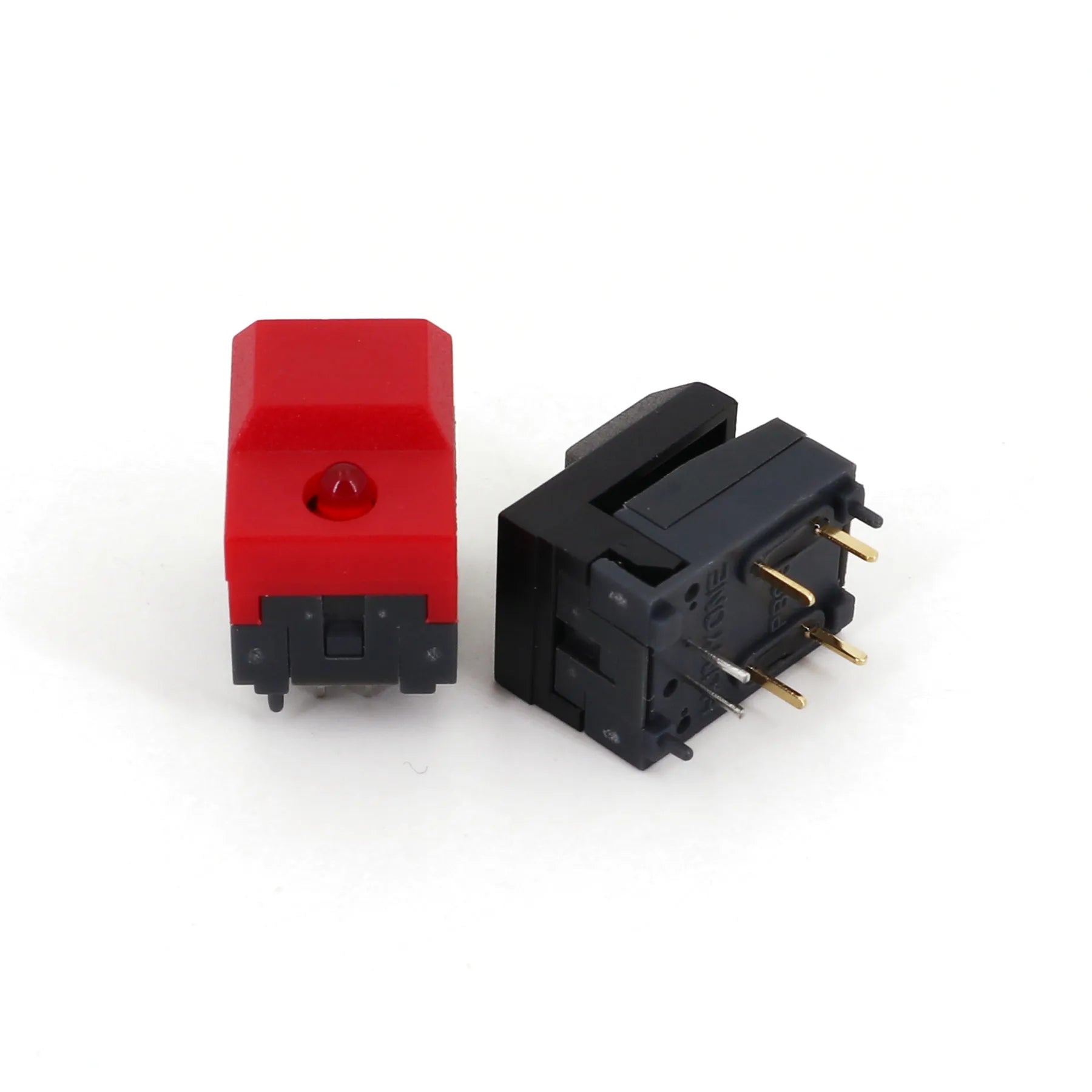

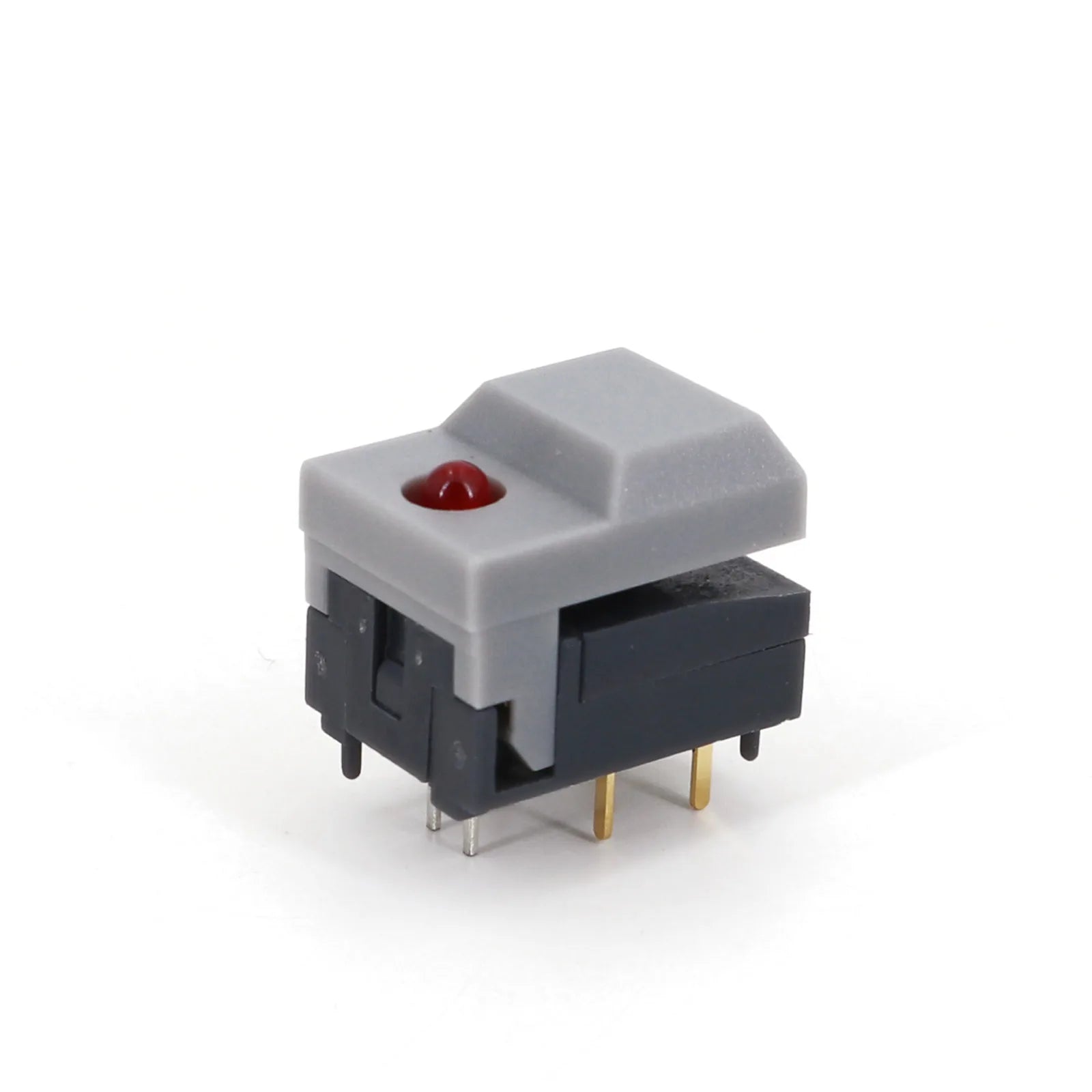

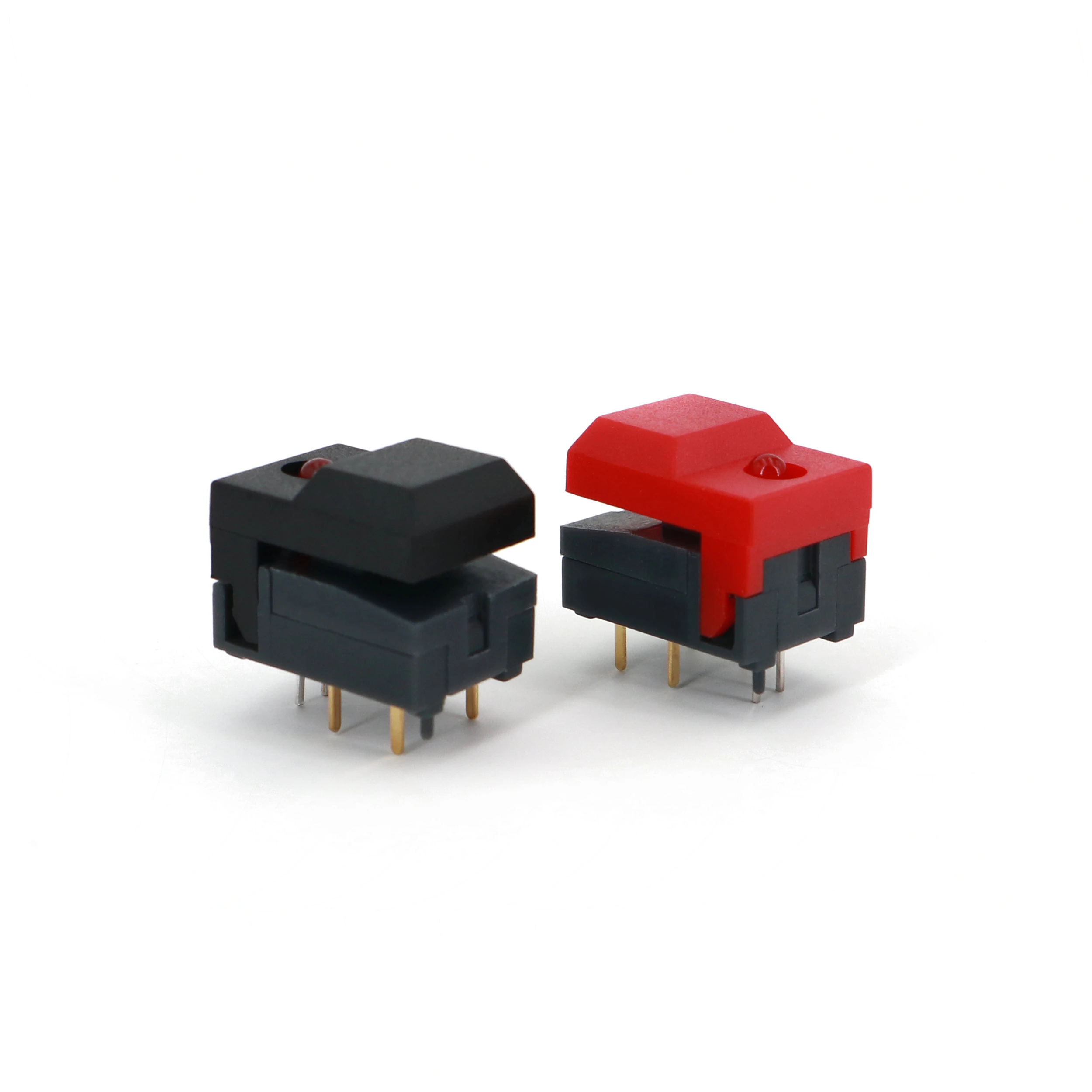

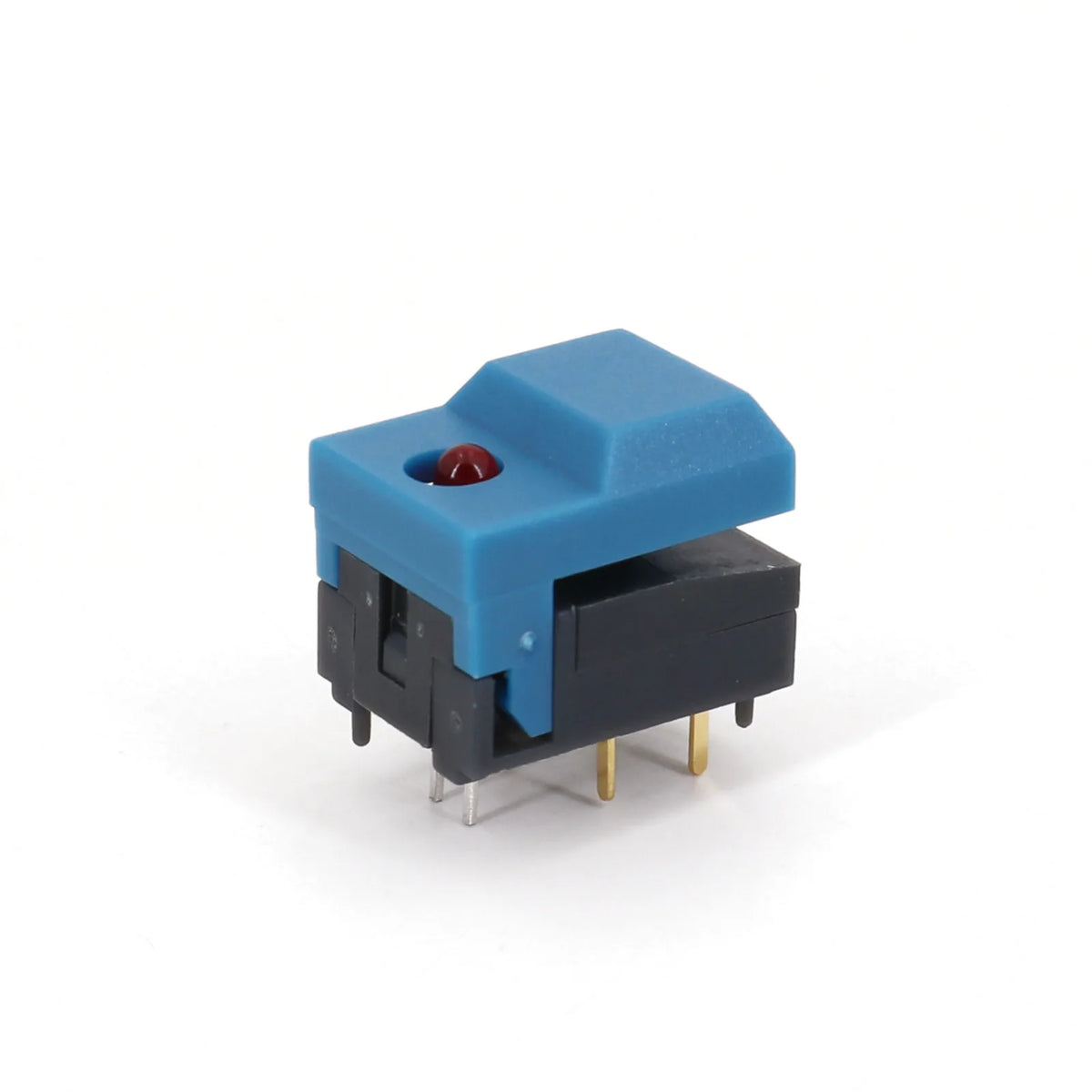

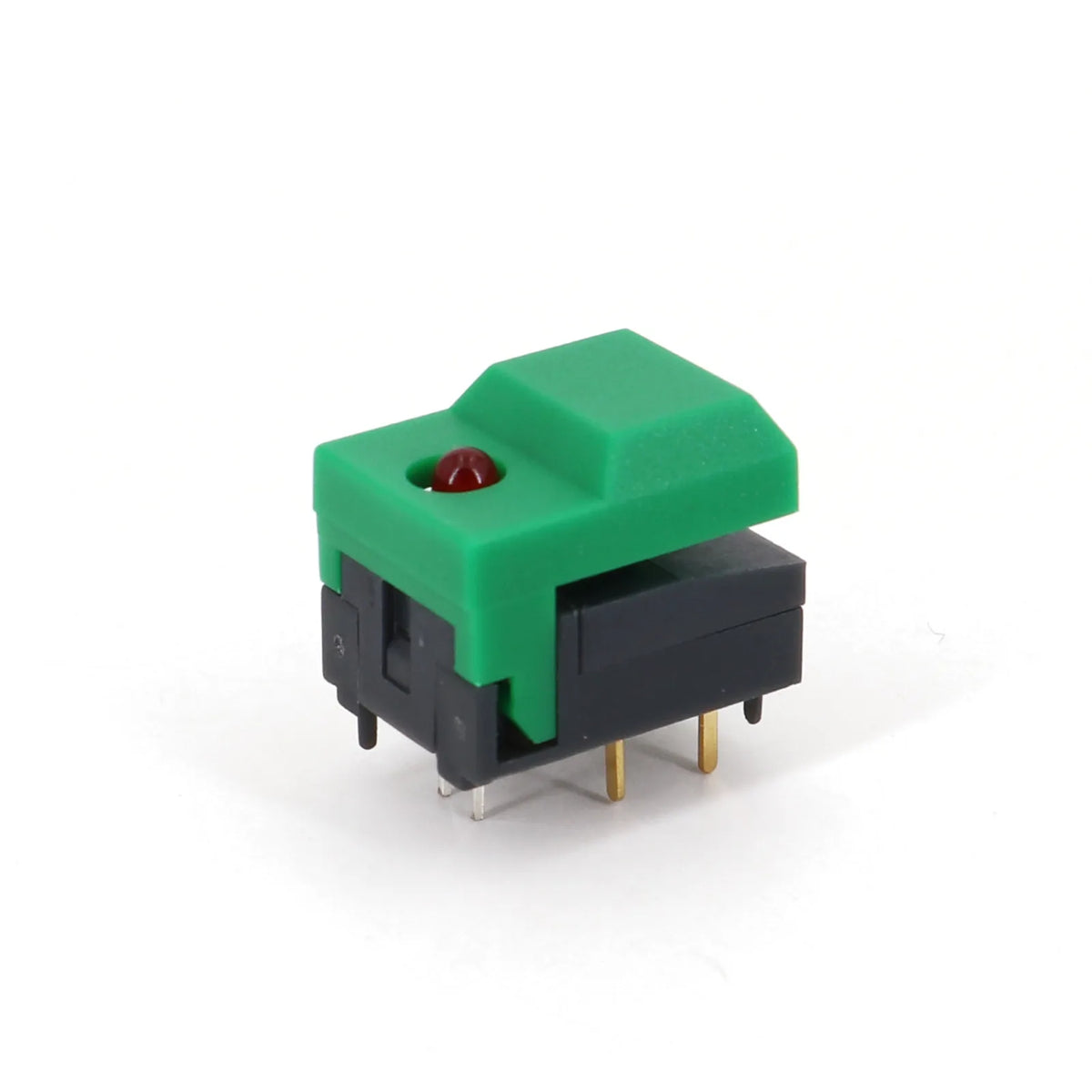

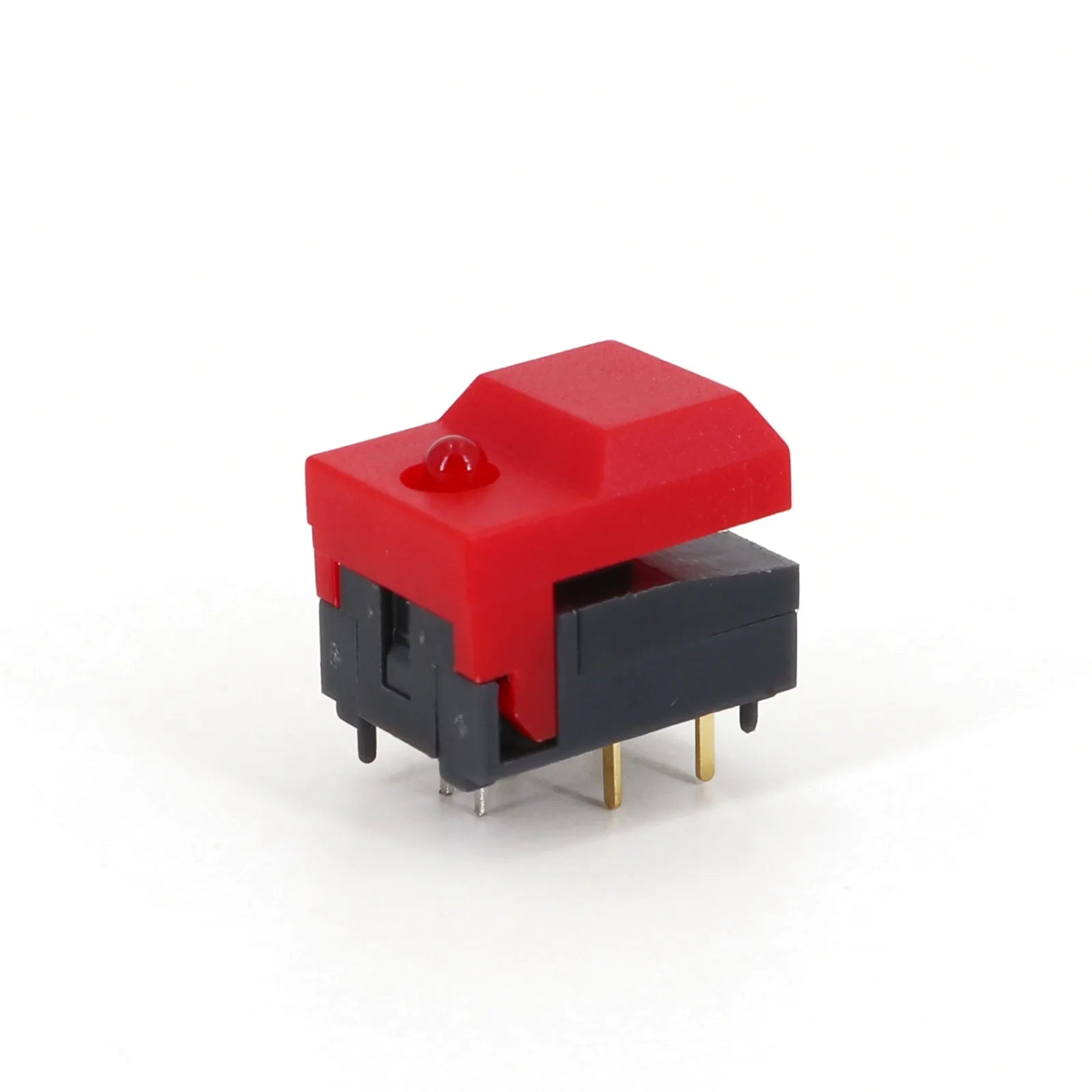

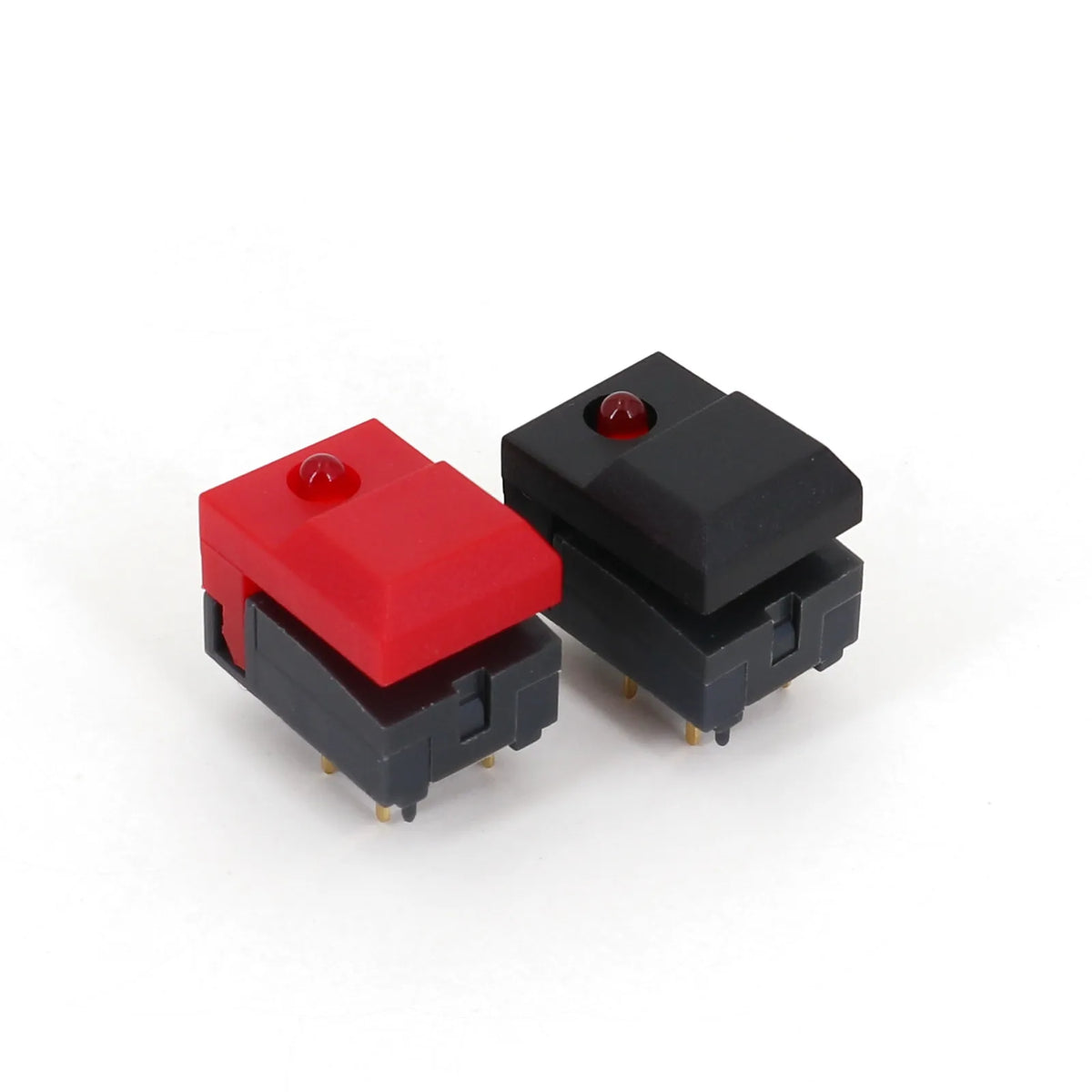

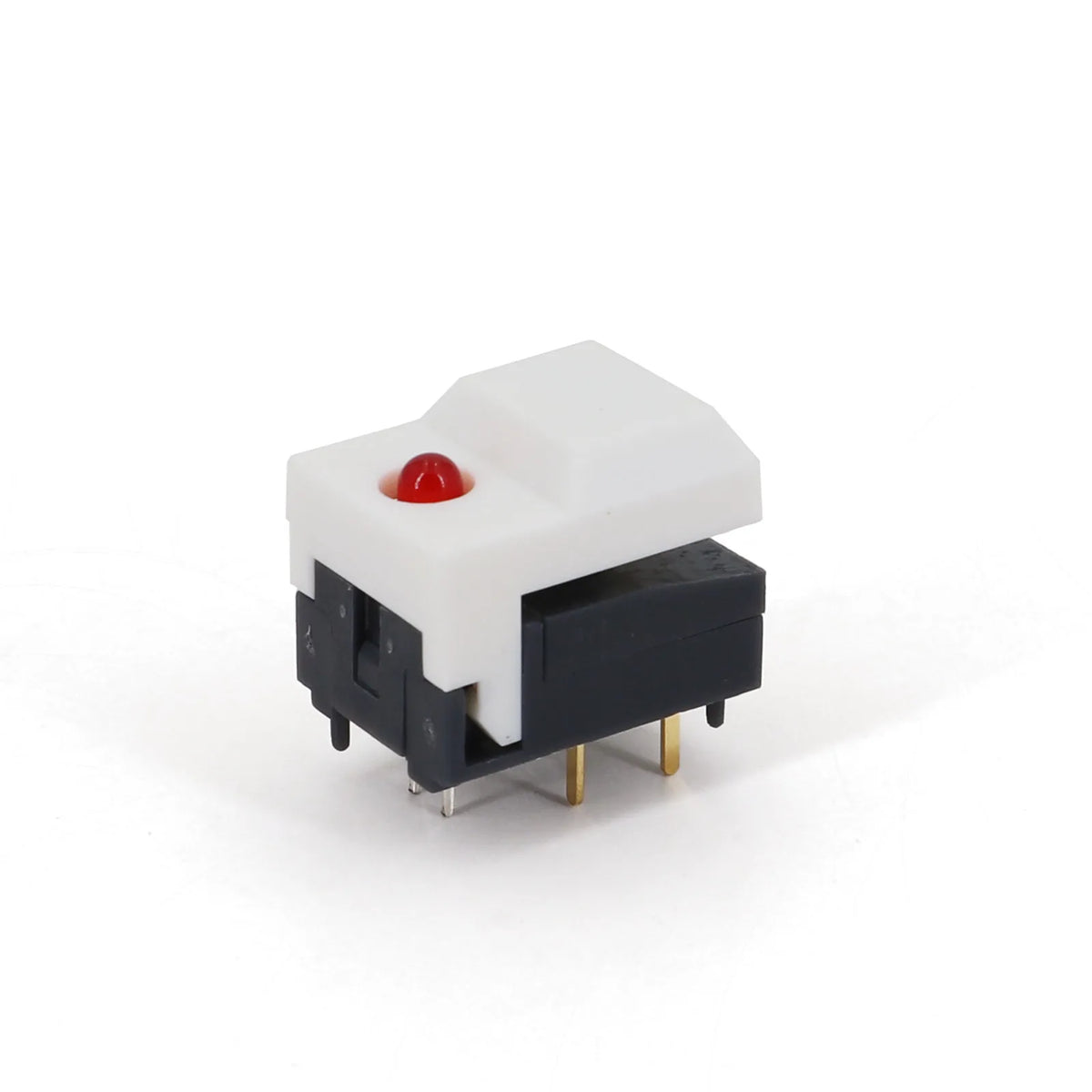

10Pcs PB86-A1 6Pin With LED Momentary SPDT Square Push Button Tact Switch for Stage Equipment Control

10Pcs PB86-A1 6Pin With LED Momentary SPDT Square Push Button Tact Switch for Stage Equipment Control

10Pcs Black
$34.11
$34.11 $0.00
Skip to product information
10Pcs PB86-A1 6Pin With LED Momentary SPDT Square Push Button Tact Switch for Stage Equipment Control
  • 10Pcs PB86-A1 6Pin With LED Momentary SPDT Square Push Button Tact Switch for Stage Equipment Control
  • 10Pcs PB86-A1 6Pin With LED Momentary SPDT Square Push Button Tact Switch for Stage Equipment Control
  • 10Pcs PB86-A1 6Pin With LED Momentary SPDT Square Push Button Tact Switch for Stage Equipment Control
  • 10Pcs PB86-A1 6Pin With LED Momentary SPDT Square Push Button Tact Switch for Stage Equipment Control
  • 10Pcs PB86-A1 6Pin With LED Momentary SPDT Square Push Button Tact Switch for Stage Equipment Control
  • 10Pcs PB86-A1 6Pin With LED Momentary SPDT Square Push Button Tact Switch for Stage Equipment Control
  • 10Pcs PB86-A1 6Pin With LED Momentary SPDT Square Push Button Tact Switch for Stage Equipment Control
  • 10Pcs PB86-A1 6Pin With LED Momentary SPDT Square Push Button Tact Switch for Stage Equipment Control
  • 10Pcs PB86-A1 6Pin With LED Momentary SPDT Square Push Button Tact Switch for Stage Equipment Control
  • 10Pcs PB86-A1 6Pin With LED Momentary SPDT Square Push Button Tact Switch for Stage Equipment Control
  • 10Pcs PB86-A1 6Pin With LED Momentary SPDT Square Push Button Tact Switch for Stage Equipment Control
  • 10Pcs PB86-A1 6Pin With LED Momentary SPDT Square Push Button Tact Switch for Stage Equipment Control
  • 10Pcs PB86-A1 6Pin With LED Momentary SPDT Square Push Button Tact Switch for Stage Equipment Control
  • 10Pcs PB86-A1 6Pin With LED Momentary SPDT Square Push Button Tact Switch for Stage Equipment Control
  • 10Pcs PB86-A1 6Pin With LED Momentary SPDT Square Push Button Tact Switch for Stage Equipment Control
10Pcs PB86-A1 6Pin With LED Momentary SPDT Square Push Button Tact Switch for Stage Equipment Control
10Pcs PB86-A1 6Pin With LED Momentary SPDT Square Push Button Tact Switch for Stage Equipment Control
$34.11
$34.11 $0.00
Color
Description

SPECIFICATIONS

Brand Name: NONE

Certification: RoHS

Choice: yes

Current: 12mA

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Features: Momentary (Self-Return)

High-concerned chemical: none

Item Type: SWITCHES

Material: Plastic

Model Number: PB86-A1

Origin: Mainland China

Switch Type: Push Button Switch

semi_Choice: yes

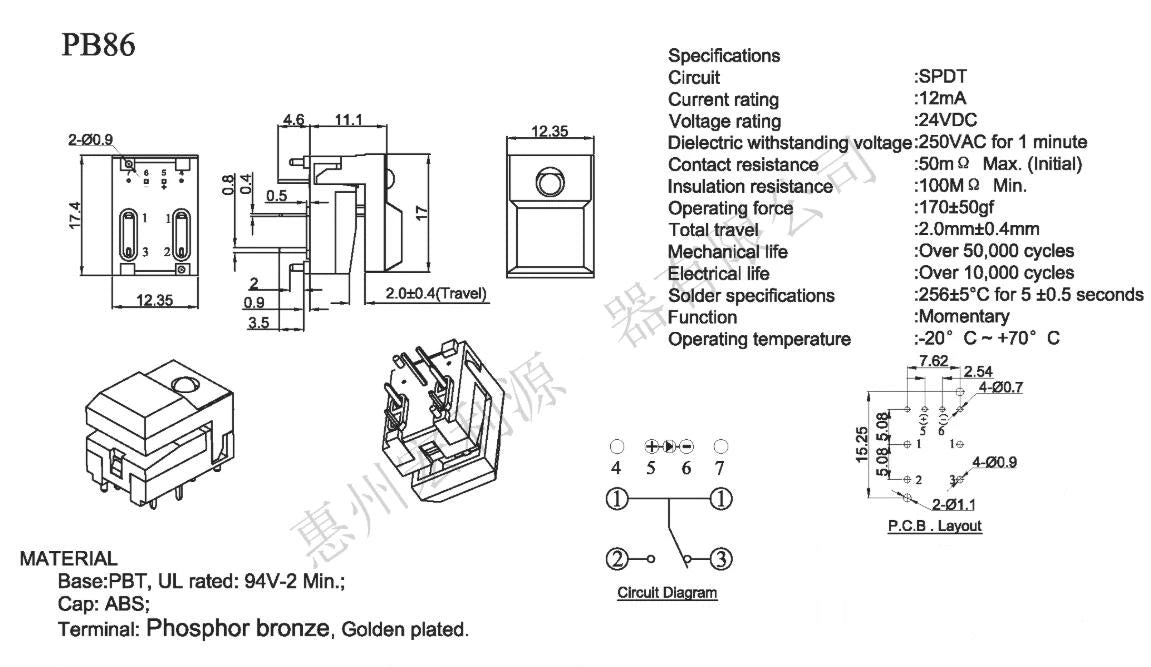

Feature

Model: PB86-A1

Current Rating: 12mA

Voltage Rating: 24VDC

LED Working Voltage: 1.8-2.4V (20mA Max)

Switch Action: Momentry (When you release,the button will return)

Button Size: 17.4 x 12.3 mm

Contact Resistance: 100m ohm Max (lnitial)

Insulation Resistance: 100M ohm Min

Operating Force: 170±50gf

Travel: 2.0mm±0.4mm

Solder Specifications: 260℃ for 5 seconds

Operating Temperature: -20 ℃ ~ +70 ℃

Weight: 11g


Package Includes:

1 Lot = 10Pcs
