SPECIFICATIONS

Feature:

100% high quality and brand new

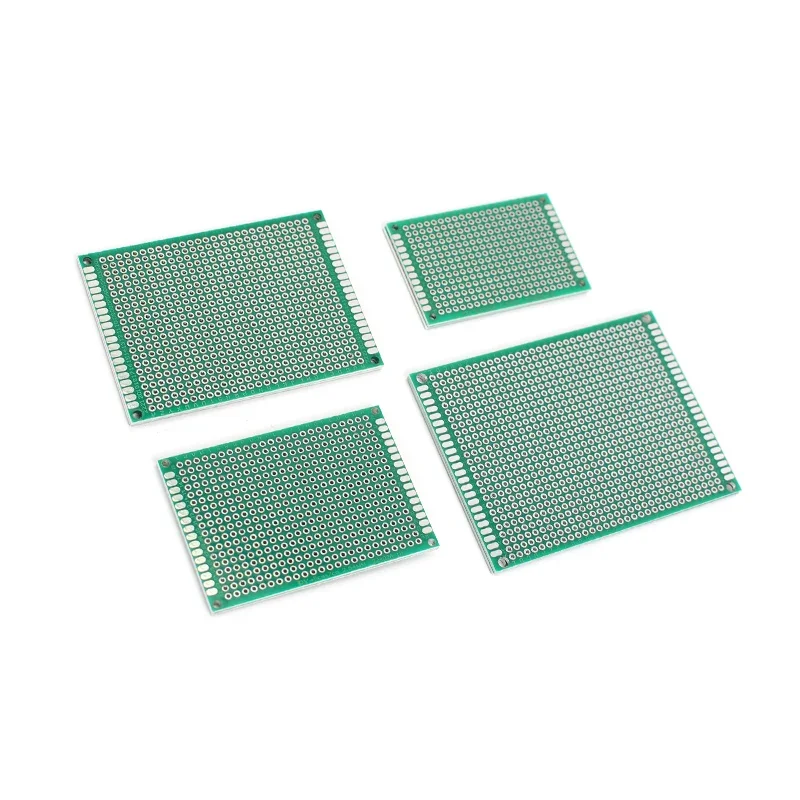

 Name:Double Sided Board

Size:2x8 cm 3x7cm 4x6cm 5x7cm 7x9cm
Thickness: 1.6mm; Hole spacing: 2.54mm
Material: fiberglass board/FR-4

Package list:

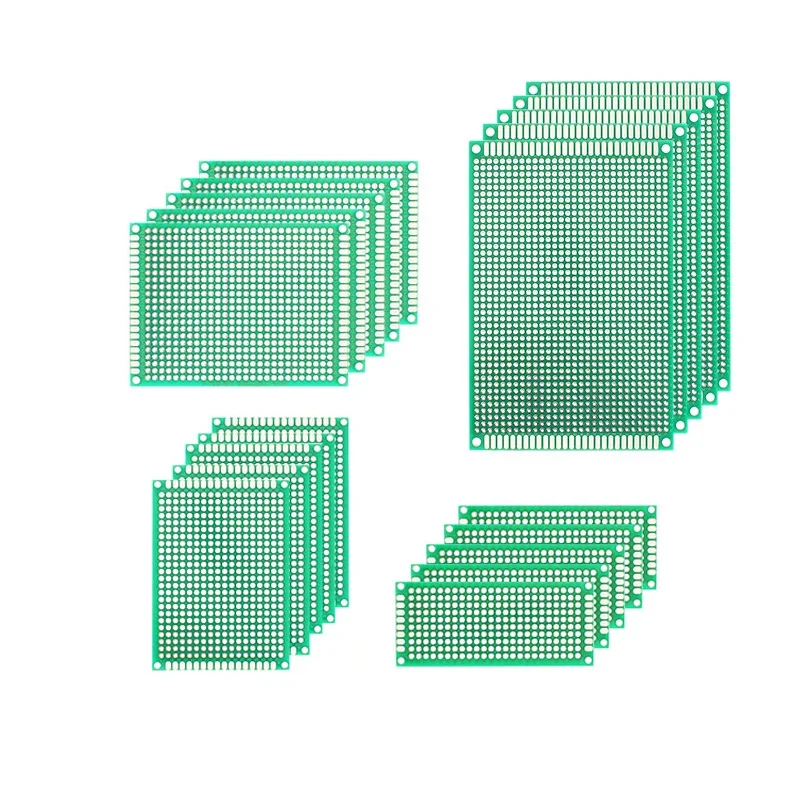

10PCS PCB Board

Product Introduction:

A solder board is a general-purpose design circuit board that is typically covered with standard IC pitches

(2.54mm) round independent welded plate, which looks like the entire board is full of small holes, so it is also commonly known as "hole plate". Compared with professional PCB printed circuit boards, perforated boards have the characteristics of easy use and flexible expansion, also known as universal circuit boards and experimental boards.

What is the difference between double-sided PCB board and single-sided PCB board?

The difference between a double-sided PCB board and a single-sided PCB board is that the single-sided PCB circuit is only on one side of the PCB board, while the double-sided PCB circuit can be connected in the middle of the two sides of the PCB board with vias. Parameters of double-sided PCB boardDouble-sided PCB board production and single-sided PCB board in addition to the production process is different, there is also an additional copper sinking process, that is, the process of conducting double-sided lines. (For reference only)

Wide range of applications

The role of the experimental plate

1. The development board is for learning, and the development board has designed a common circuit for learners.

Learners don't have to make their own circuit boards, procure their own devices, and solder assemblies. 2. Most of the development boards are related to microprocessors, and the development boards will be designed for various typical applications

Count some typical programs that are used to test and learn for learners.

3. The development board can effectively improve the learning efficiency and shorten the R&D progress.
