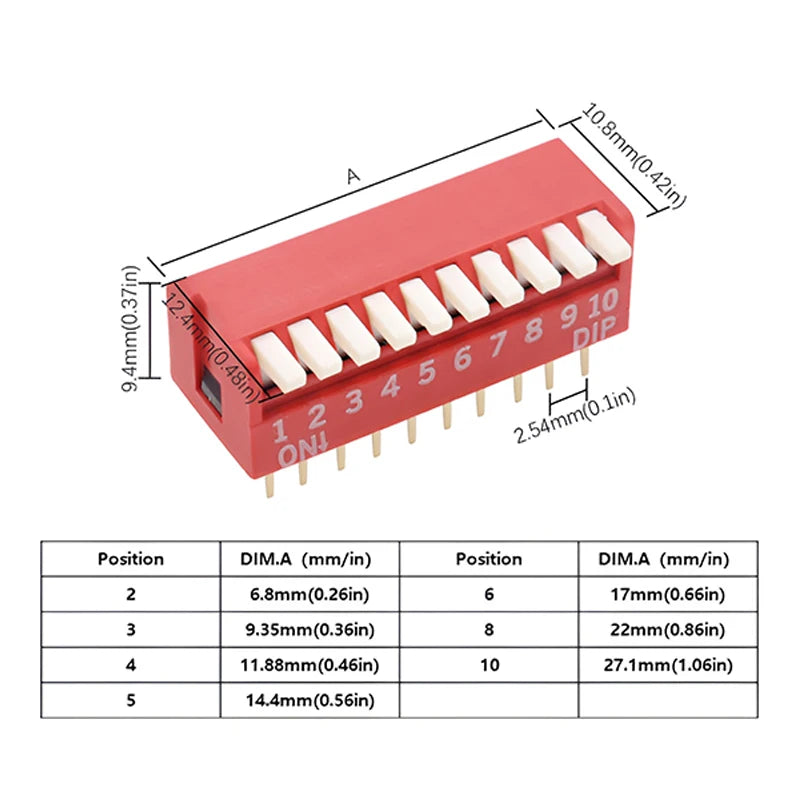

10PCS Piano Type Red Toggle Switch Module Spacing 2.54MM Horizontal Type Side Plug DP-1/2/3/4/5/6/7/8/10 Position DIP Switch

10PCS Piano Type Red Toggle Switch Module Spacing 2.54MM Horizontal Type Side Plug DP-1/2/3/4/5/6/7/8/10 Position DIP Switch

$17.37

$17.37 $0.00

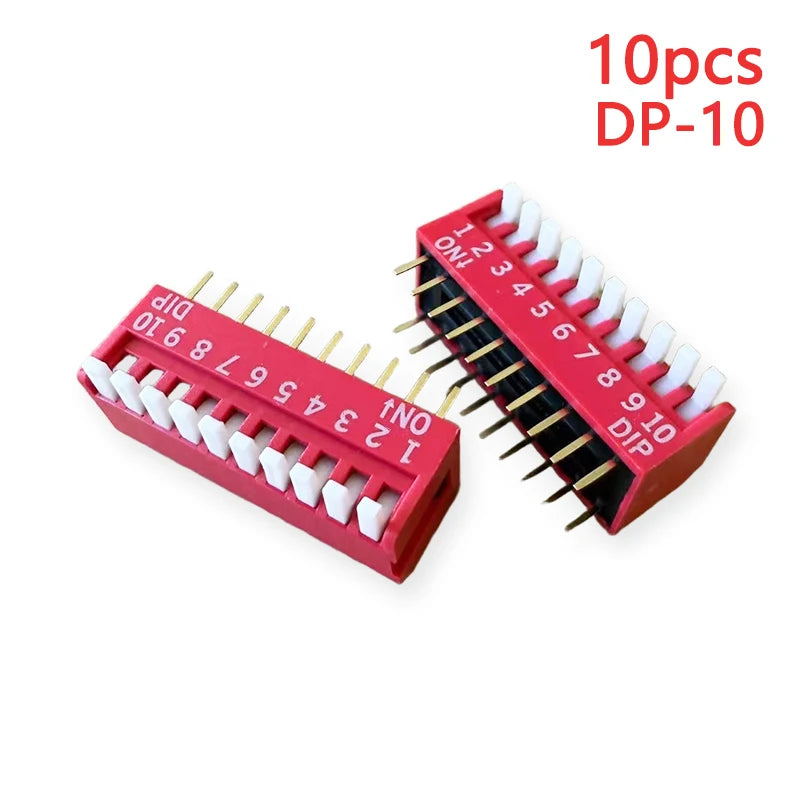

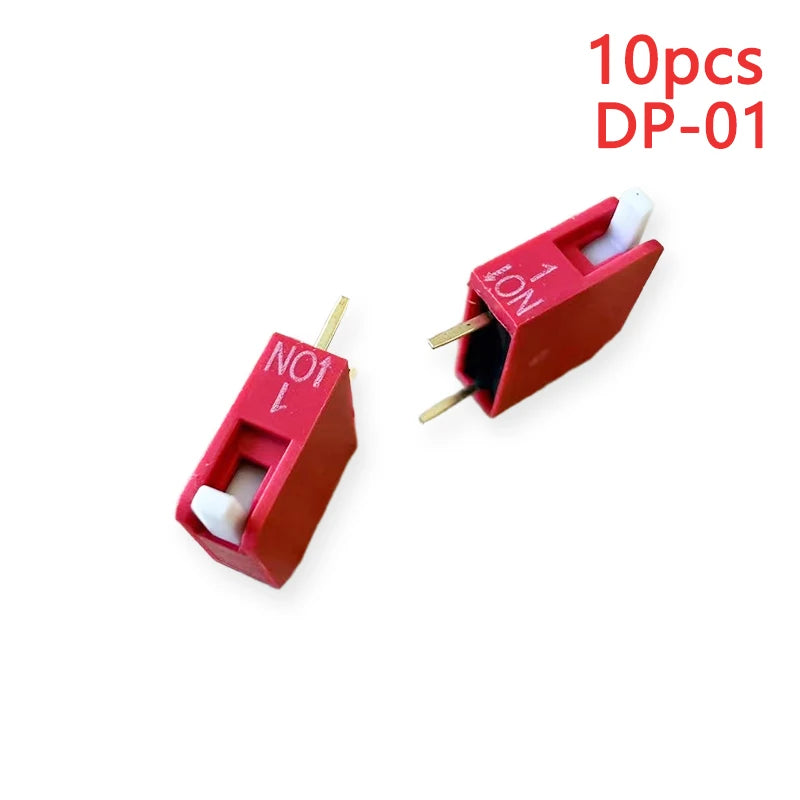

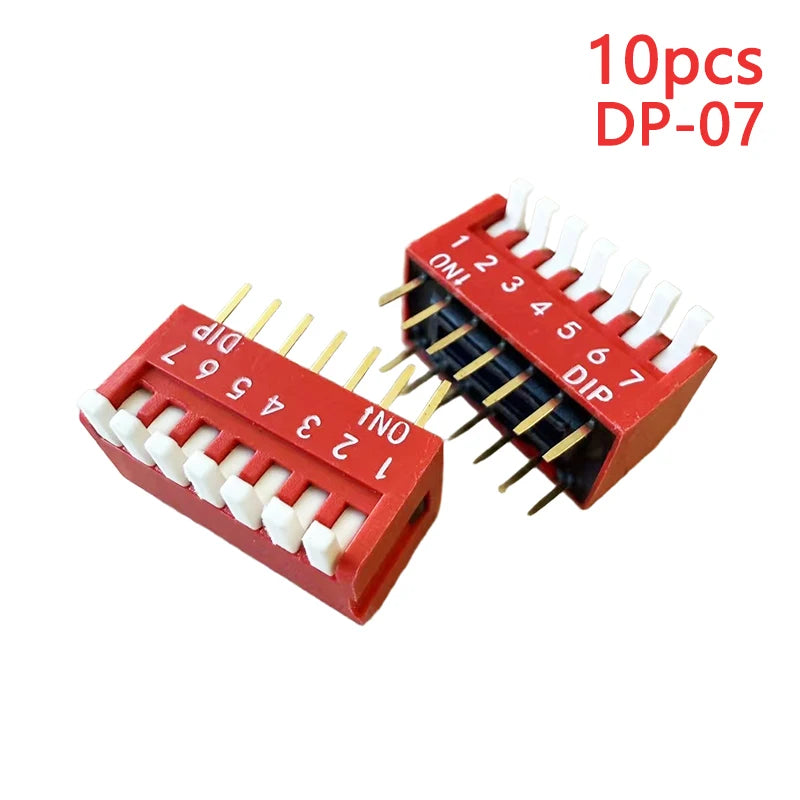

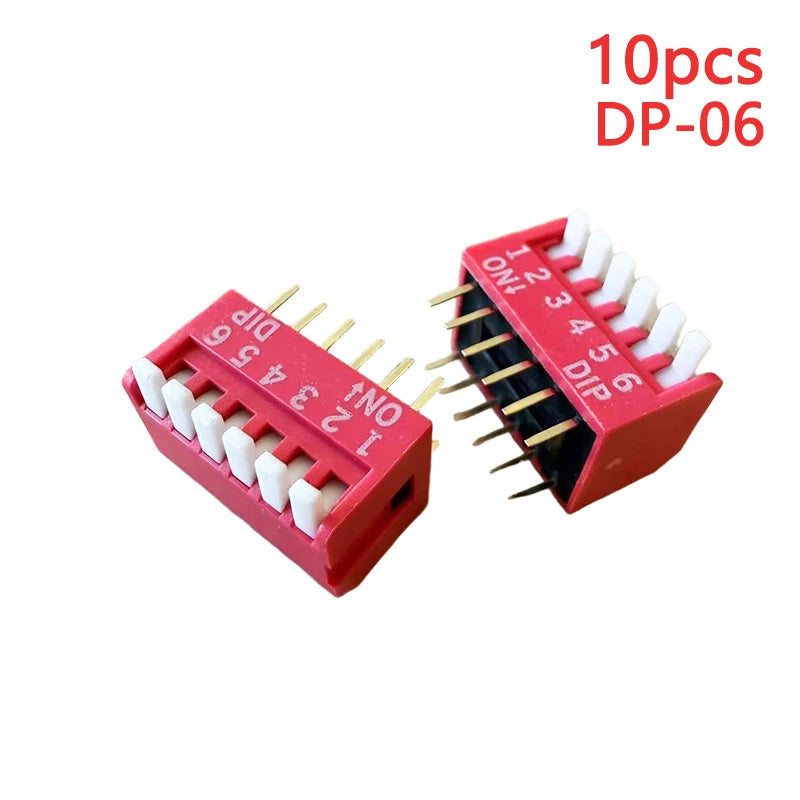

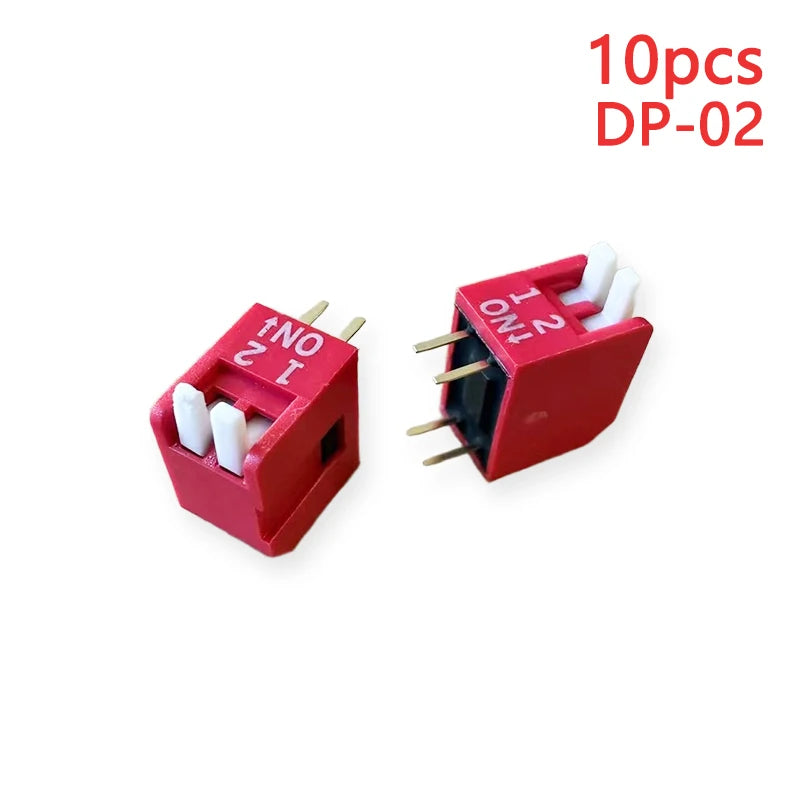

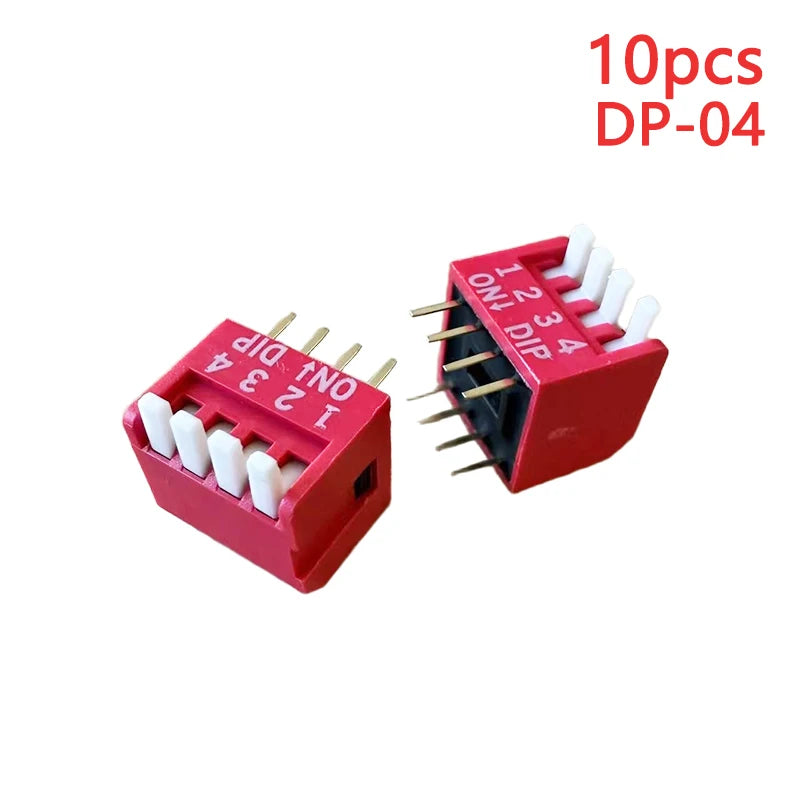

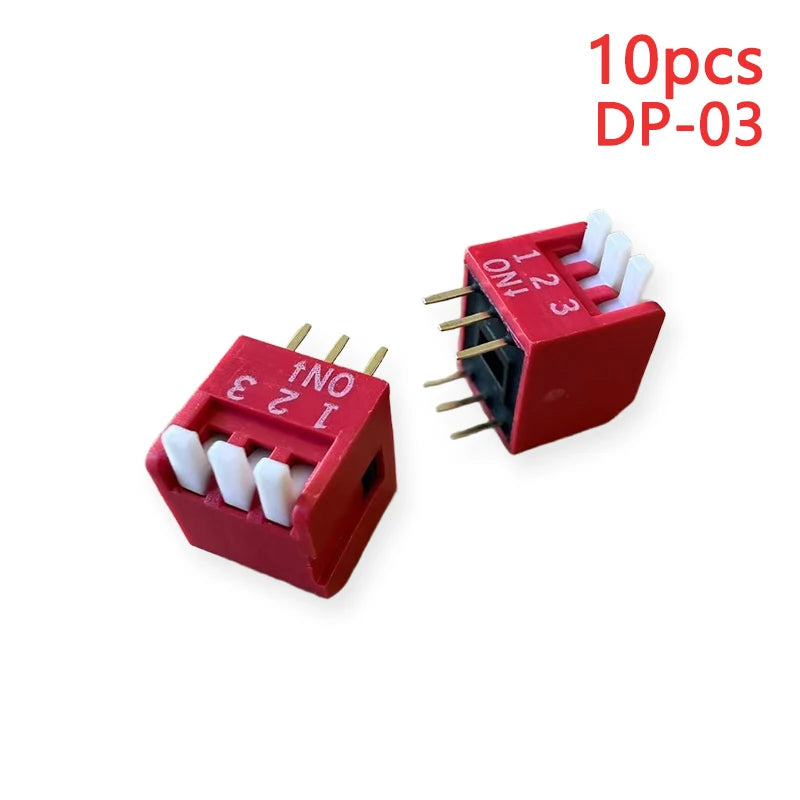

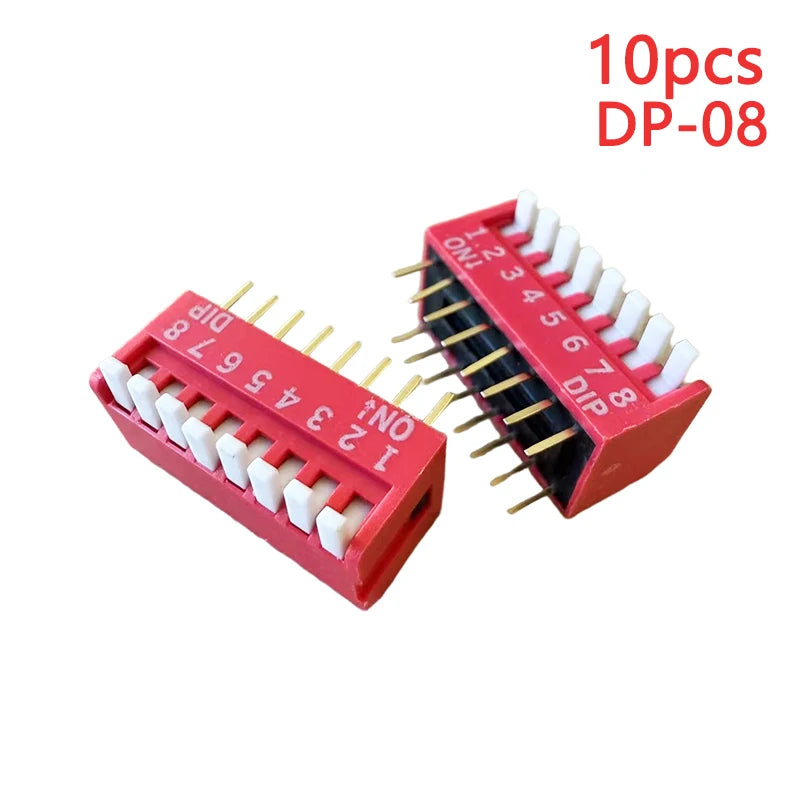

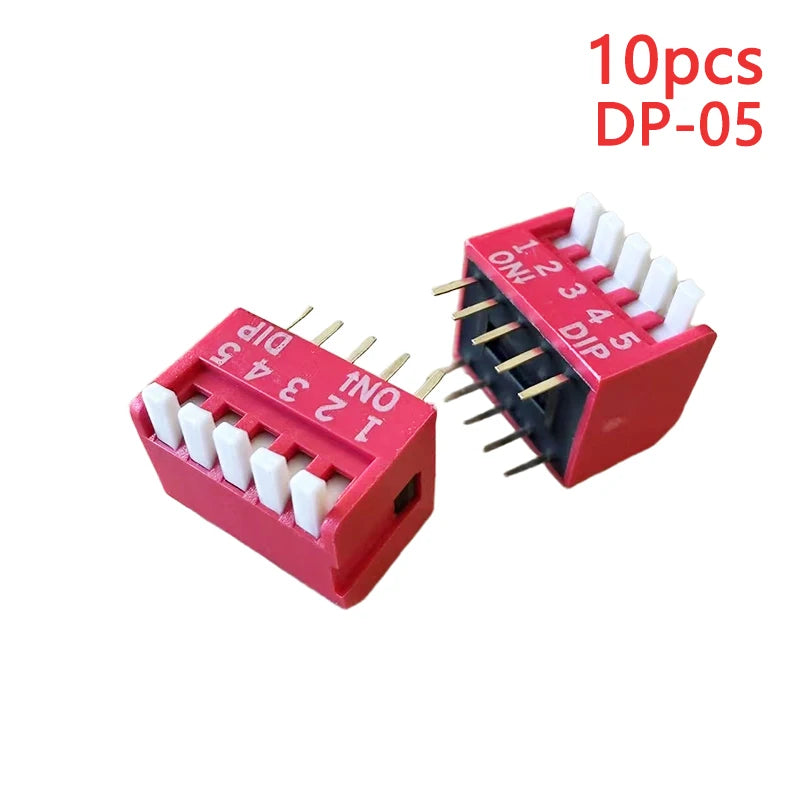

Color K090b045-DP-02 K090c045-DP-03 K090a070-DP-01 K090h075-DP-08 K090i095-DP-10 K090f060-DP-06 K090g075-DP-07 K090d045-DP-04 K090e060-DP-05

Ships FromChina Mainland

Description

SPECIFICATIONS

Brand Name: NONE

Choice: yes

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

Features: Piano Type

High-concerned chemical: none

Is Smart Device: no

Item Type: SWITCHES

Material: Plastic

Model Number: Piano Type Red DIP Switch

Name1: 10PCS Switch

Name2: Piano Type Switch

Name3: Red Switch

Name4: Toggle Switch

Name5: Module Spacing 2.54MM Switch

Name6: Horizontal Type Switch

Name7: Side Plug Switch

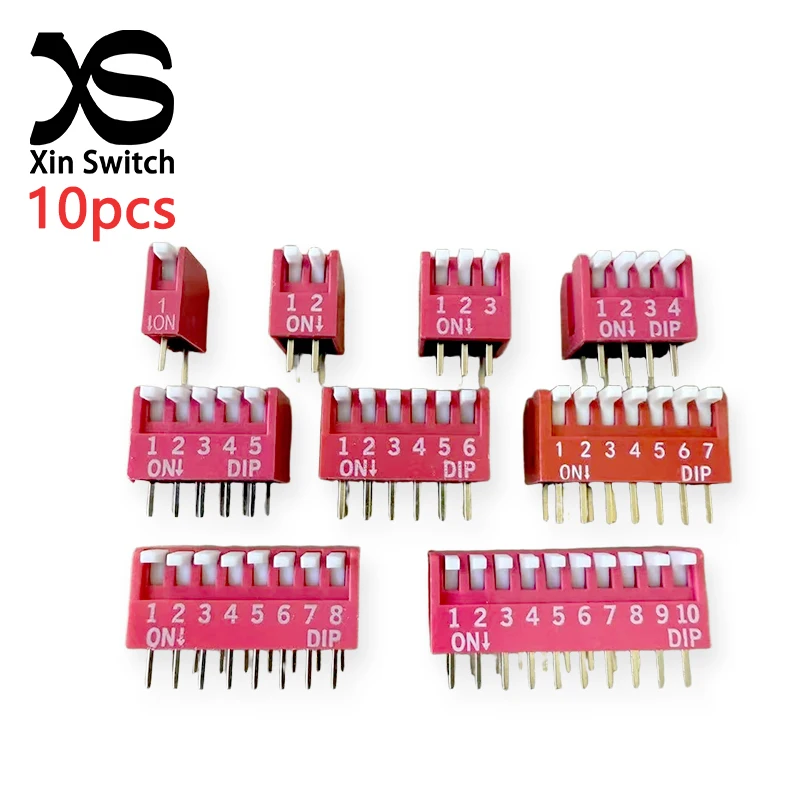

Name8: DP-1/2/3/4/5/6/7/8/10 Position Switch

Name9: DIP Switch

Origin: Mainland China

Switch Type: Toggle Switch

Warranty: 2000 cycles

semi_Choice: yes

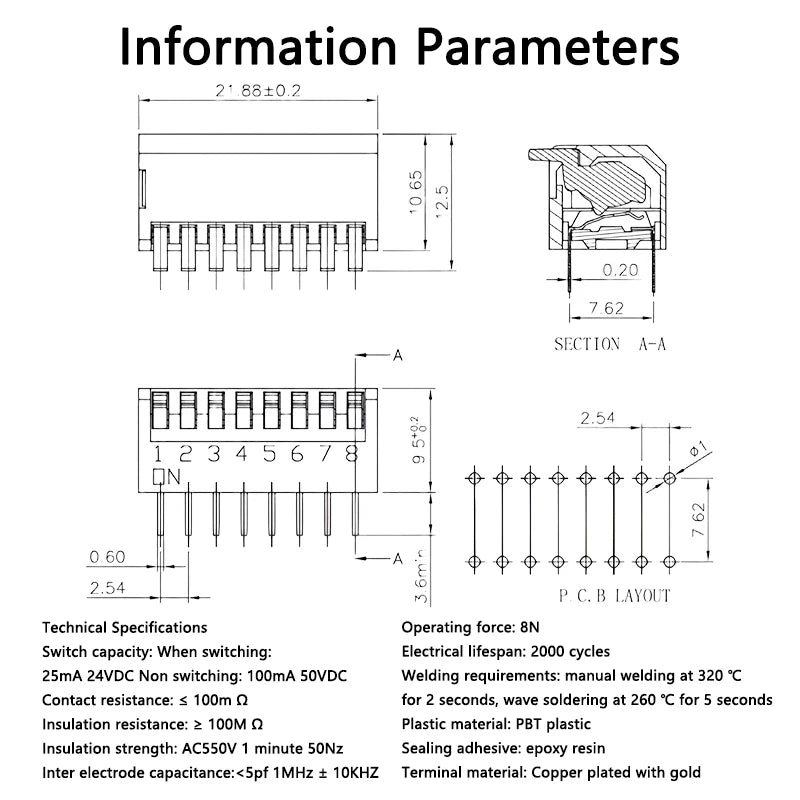

Main Technical Specifications Of Piano Type Red DIP Switch

Technical Specifications
Switch capacity: When switching: 25mA 24VDC Non switching: 100mA 50VDC
Contact resistance: ≤ 100m Ω
Insulation resistance: ≥ 100M Ω
Insulation strength: AC550V 1 minute 50Nz
Inter electrode capacitance:<5pf 1MHz ± 10KHZ
Operating force: 8N
Electrical lifespan: 2000 cycles
Welding requirements: manual welding at 320 ℃ for 2 seconds, wave soldering at 260 ℃ for 5 seconds
Plastic material: PBT plastic
Sealing adhesive: epoxy resin
Terminal material: Copper plated with gold

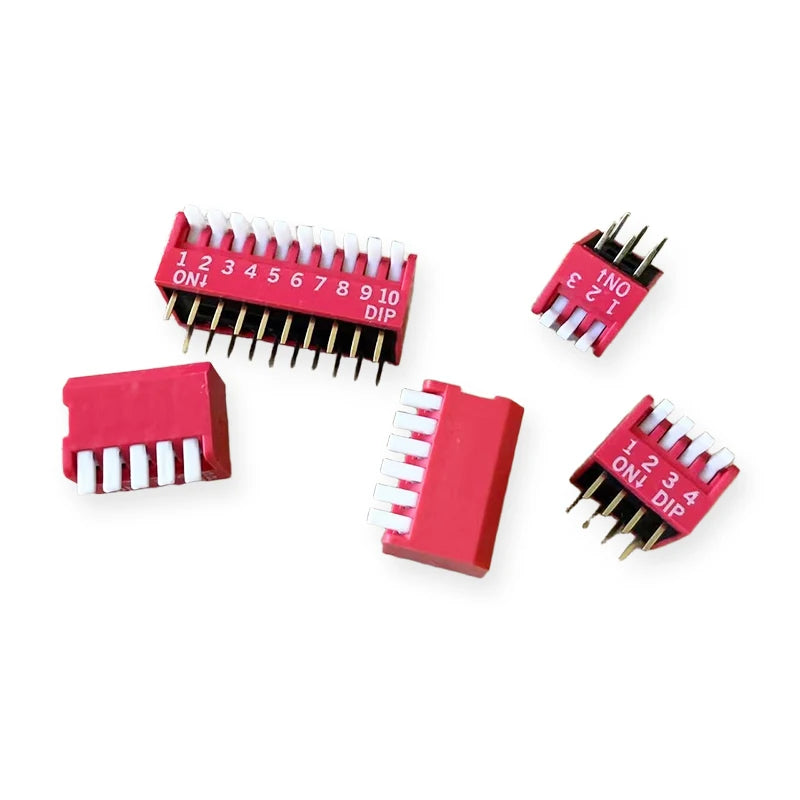

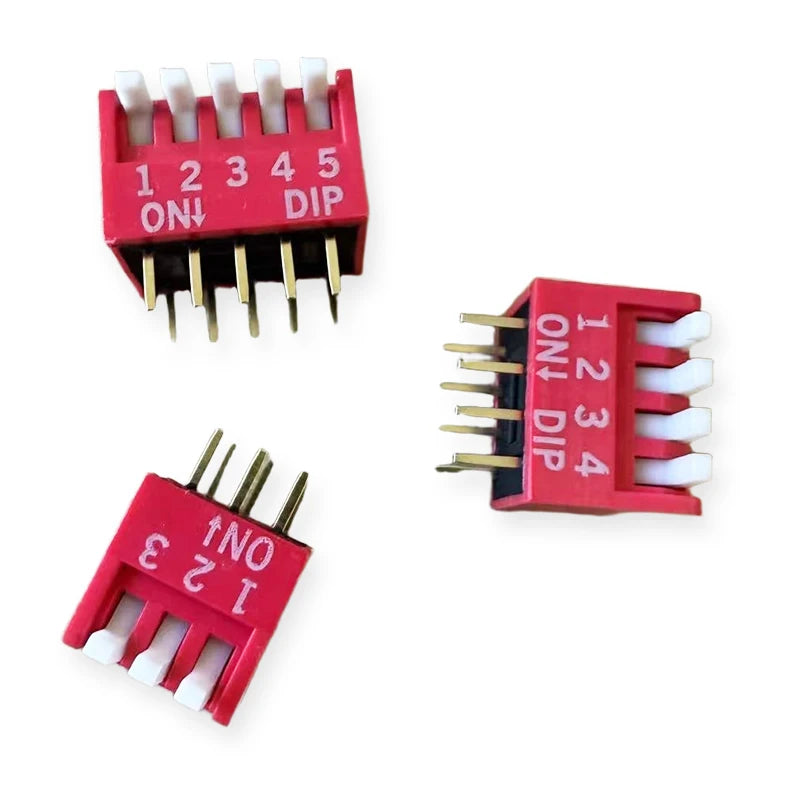

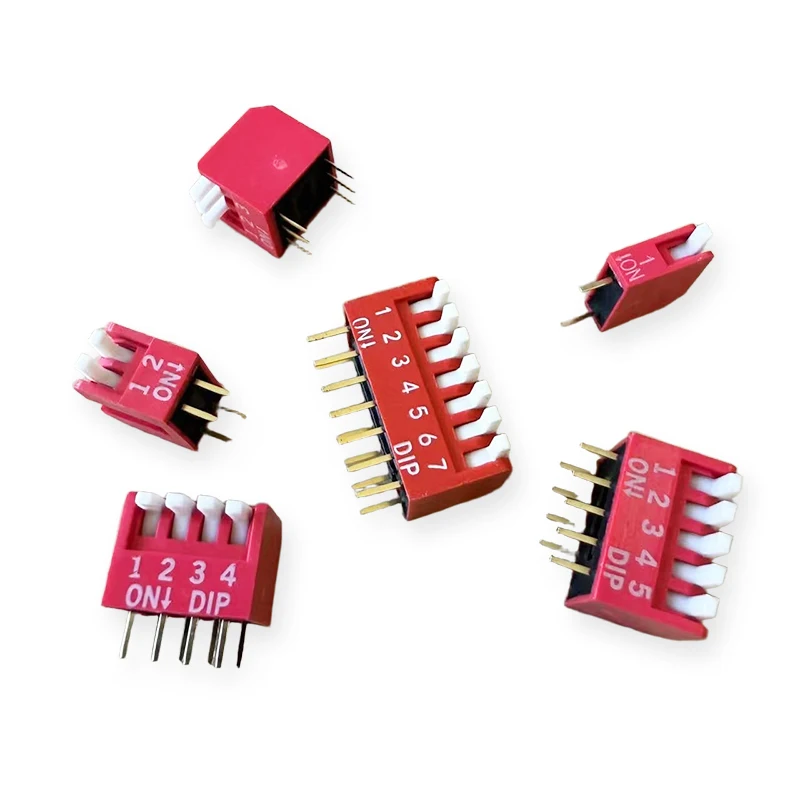

Piano Type Red DIP Switch
