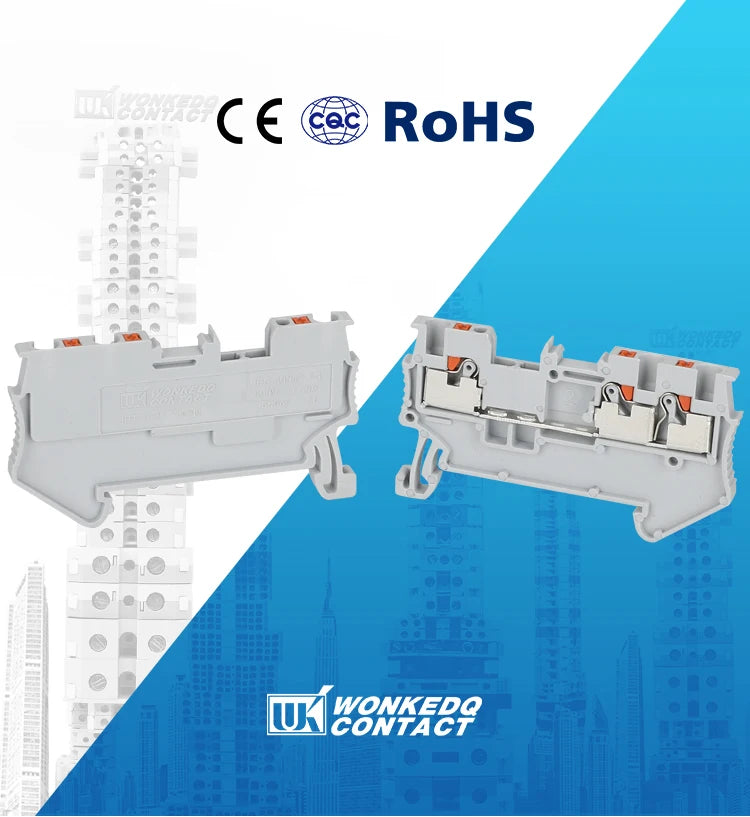

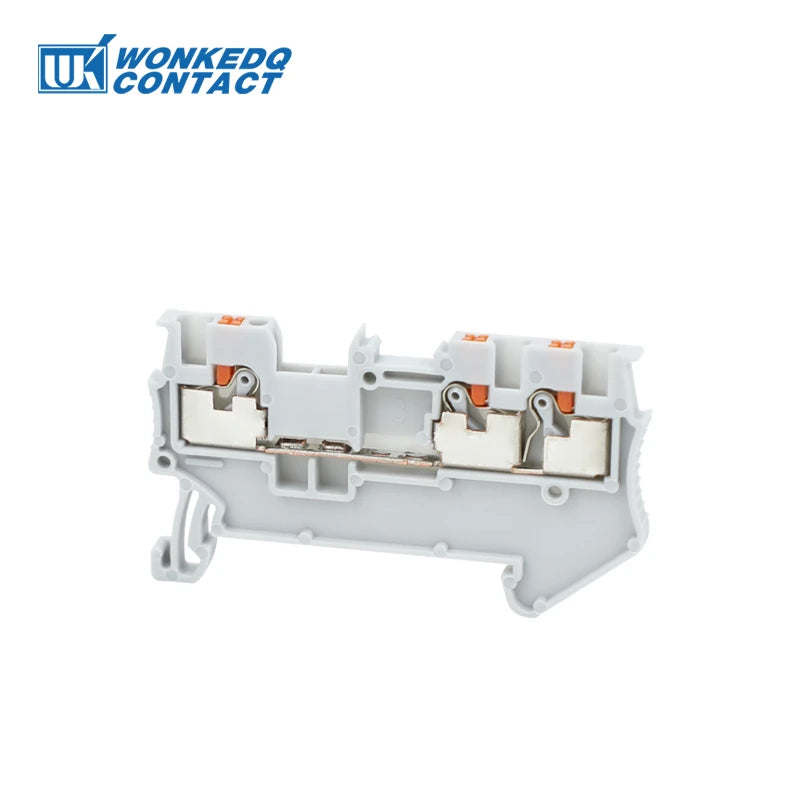

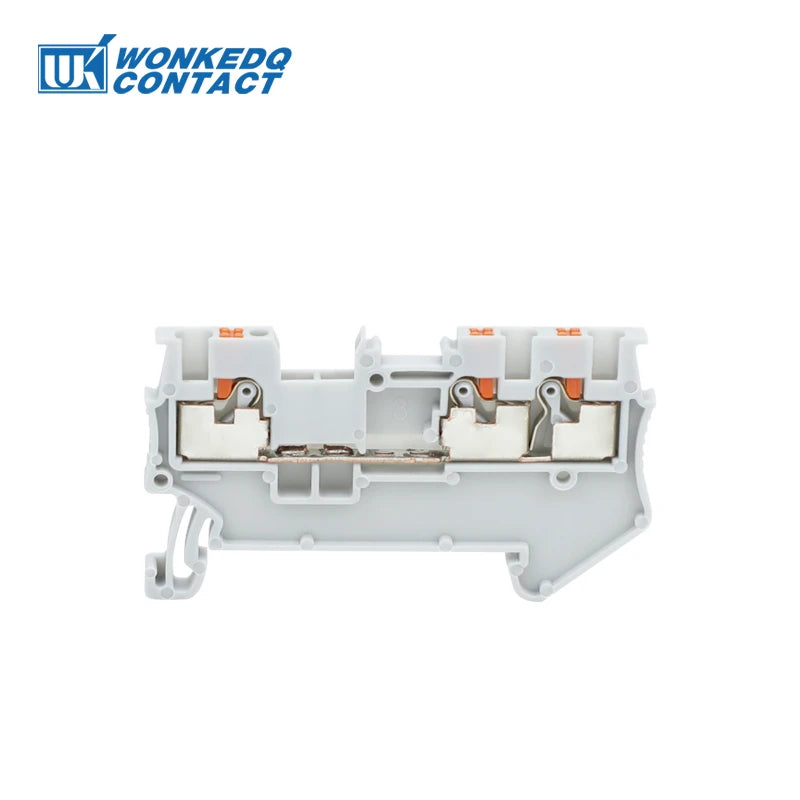

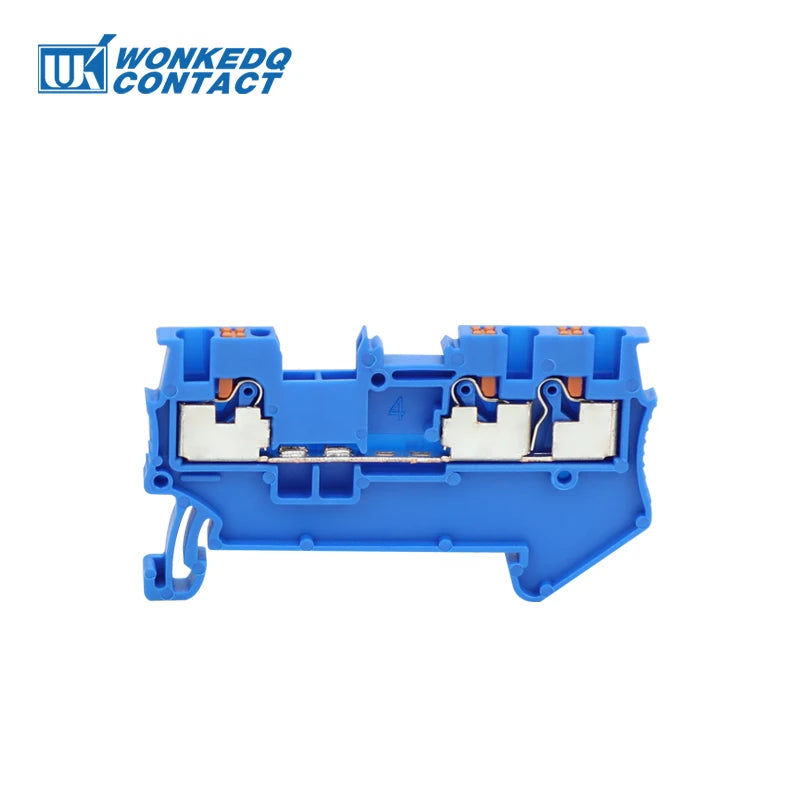

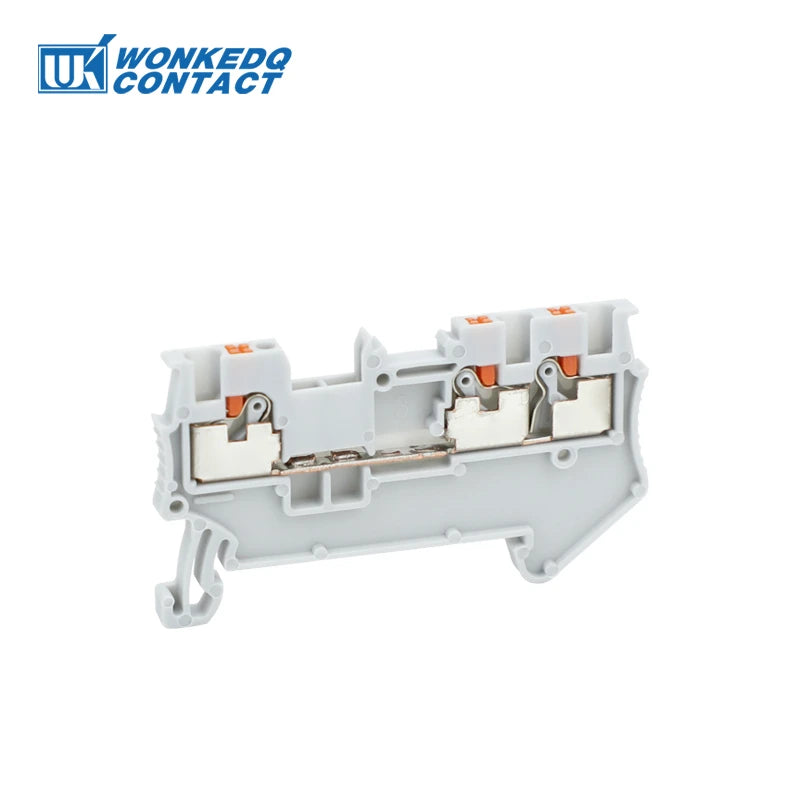

10Pcs PT1.5-TW PT 1.5-TW Push-In Twin 3-Conductor Feed-Through Strip Wire Electrical Connector Din Rail Terminal Block PT 1.5TW

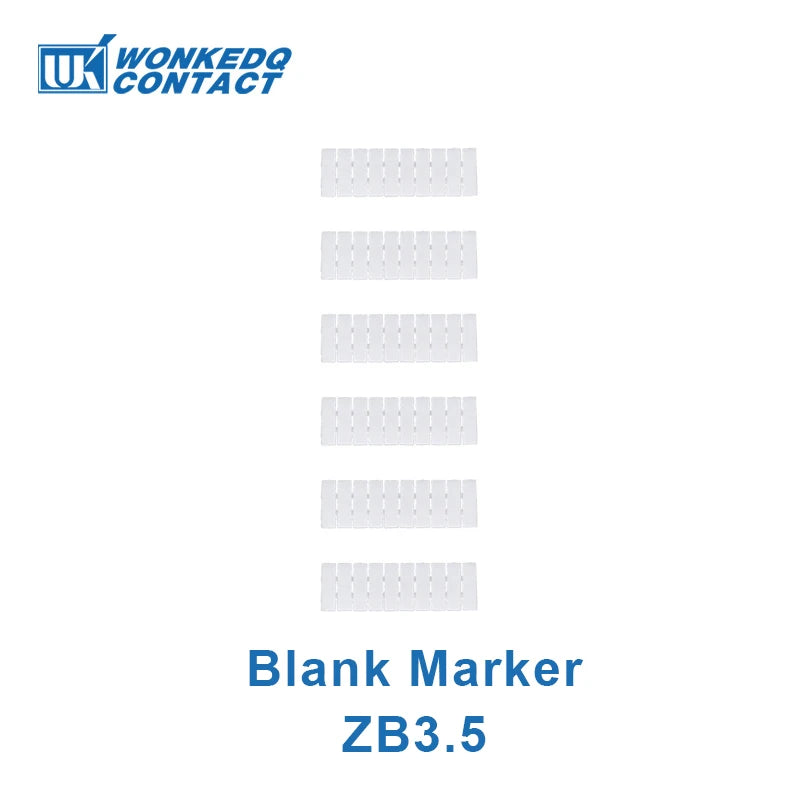

Blank Marker ZB3.5 / 10 Pcs
$12.88
Sale price
$12.88
Regular price
$0.00
Skip to product information
10Pcs PT1.5-TW PT 1.5-TW Push-In Twin 3-Conductor Feed-Through Strip Wire Electrical Connector Din Rail Terminal Block PT 1.5TW
$12.88
Sale price
$12.88
Regular price
$0.00
Description
SPECIFICATIONS
Application: Distribution Cabinet/panel
Brand Name: WONKEDQ
Certification: CE,RoHS
Conductor size: 26-16AWG
Connection Method: Push in
Cross section soft cable: 0.14-1.5mm2
Cross section solid cable: 0.14-1.5mm2
Current: 17.5A
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
High-concerned chemical: none
Model Number: PT1.5-TW
Mounting Type: Din Rail
Origin: Mainland China
Type: Push-in Terminal
Usage: Electrical Wiring
Voltage: 500V
is_customized: Yes
DESCRIPTION
ACCESSORIES( Click the pictures to the links)
|
|
|
|
End Cover |
Jumper Bridges |
Marker Strips |
End Stop |
|
|
|
|
Marker Carrier |
Marker Clips |
Din Rail |
RECOMMEND |
Type No. |
Details |
Accessories |
PT 1.5 -TW |
500V/17.5A 0.14-1.5mm²/0.14-1.5mm² L54.5/H30.5/W3.5 mm |

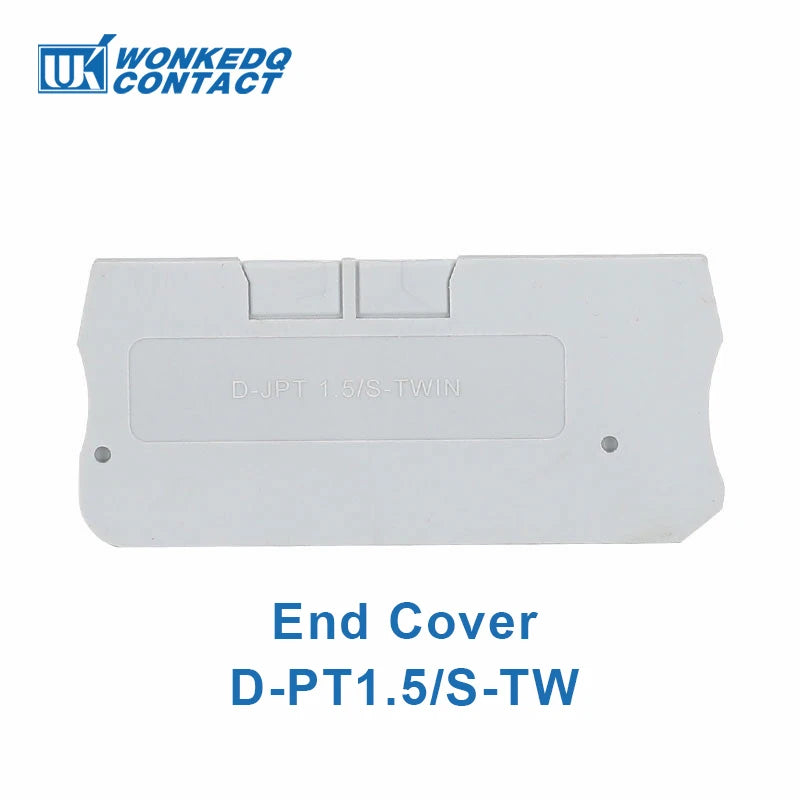

End Cover:D-PT1.5-TW |
Bridge : FBS10-3.5 | ||
Marker Strips:ZB3.5 |

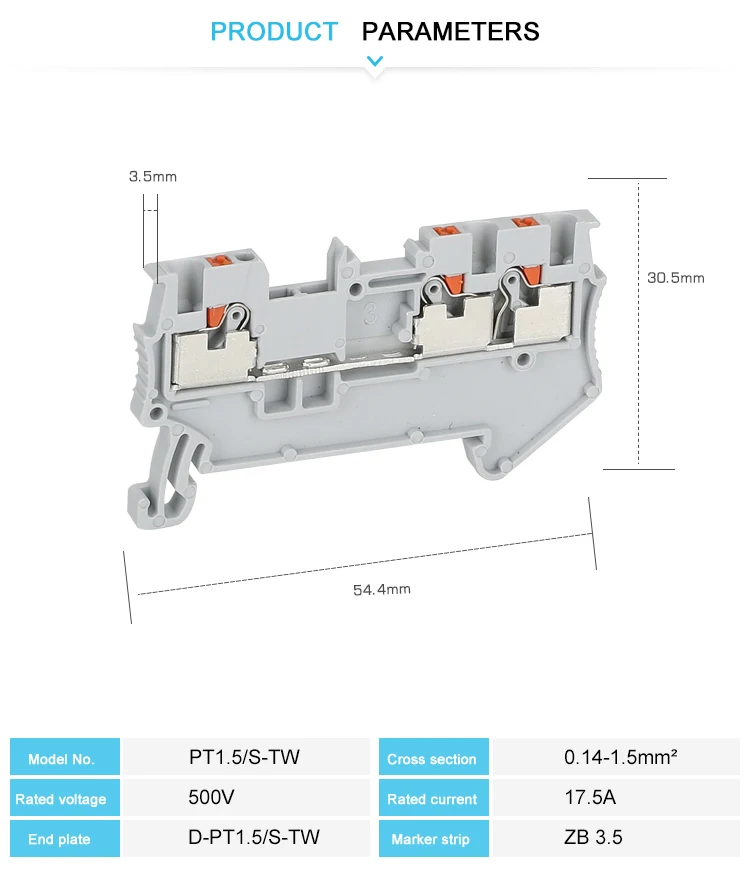

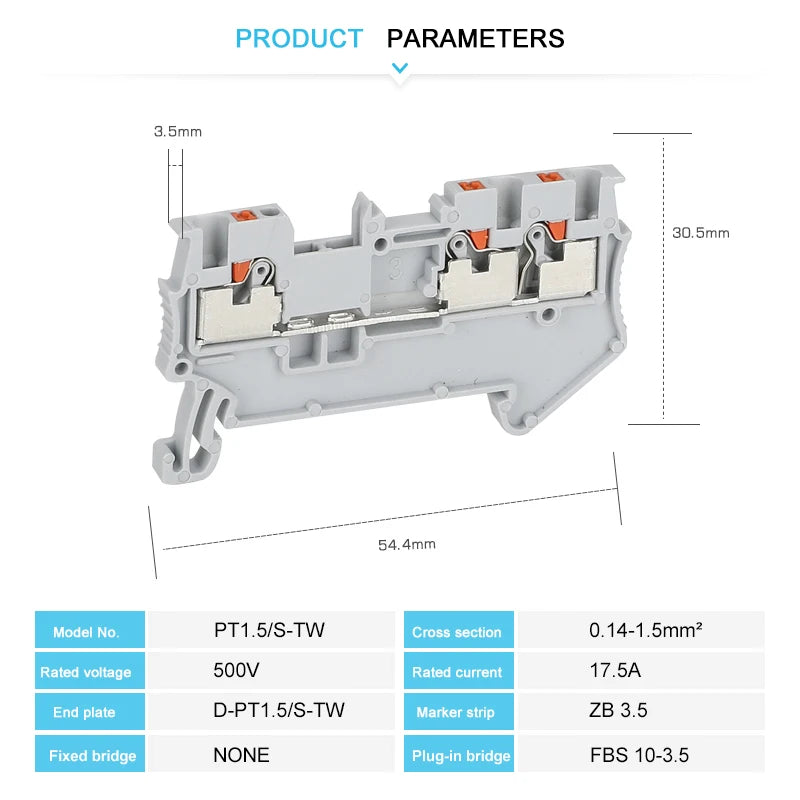

TECHNICAL PARAMETERS
Model No. |
PT 1.5-TW |
Length/Height/Wide(mm) |
54.5/30.5/3.5 |
Connection method |
Push-in connection |

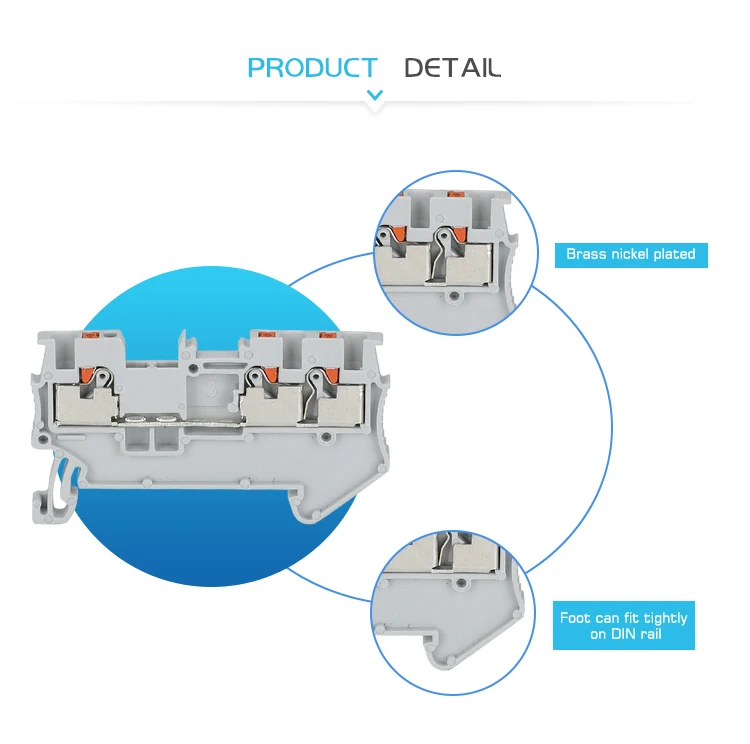

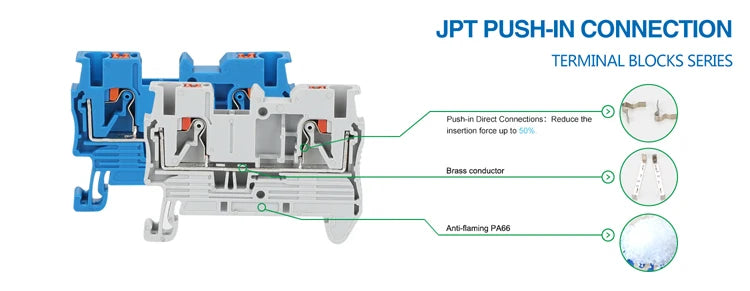

Material |
Flame resistantNylon PA66, Tin plated brass conductor |
Rated Voltage/Current |
800V/31A |
Cross section, solid/soft Cable |
0.14-1.5mm2/ 0.14-1.5mm2 |
Conductor Size |
26-16 AWG |
Mounting Type |
DIN RailNS 35 |
Standard |
IEC 60947-7-1 |
LOGO |
WonkeDQ, LOGO can be customized |
Packing Detail |
7.19g/PC, 50PCS/BOX |
Certification |
CE/RoHS/CQC/ISO 9001 |
