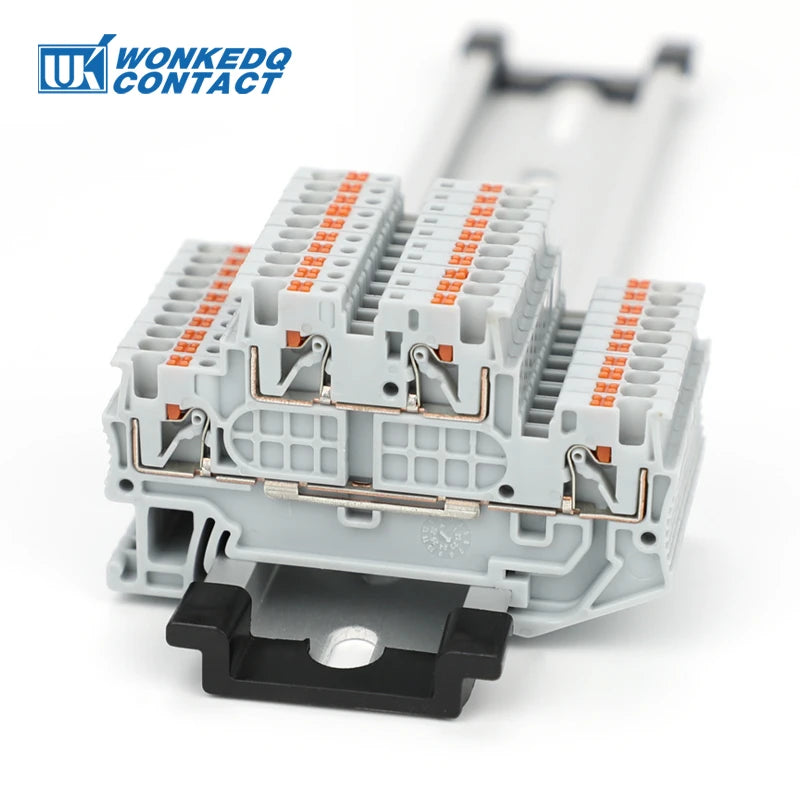

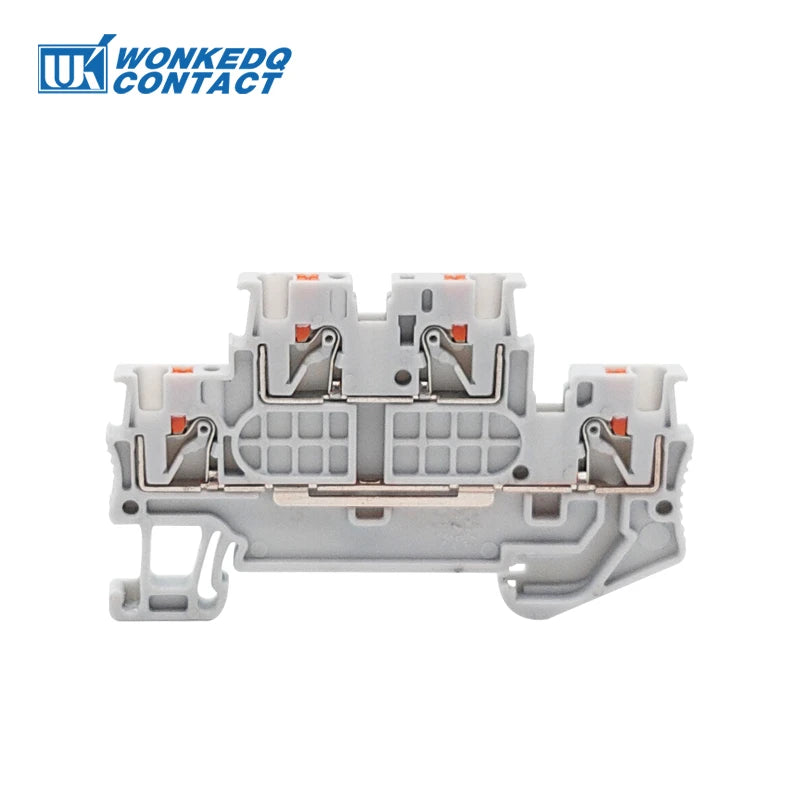

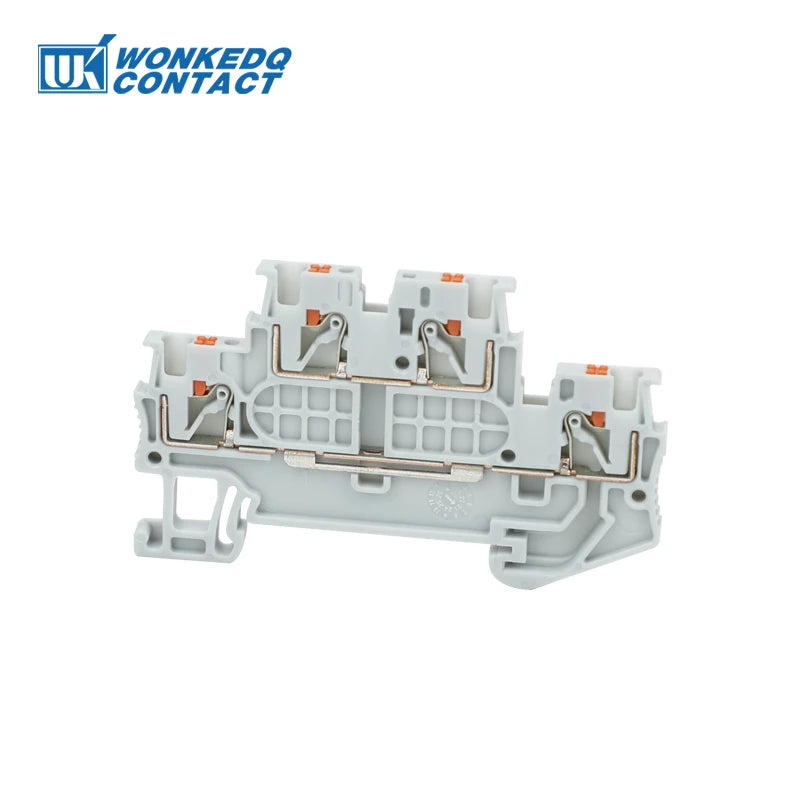

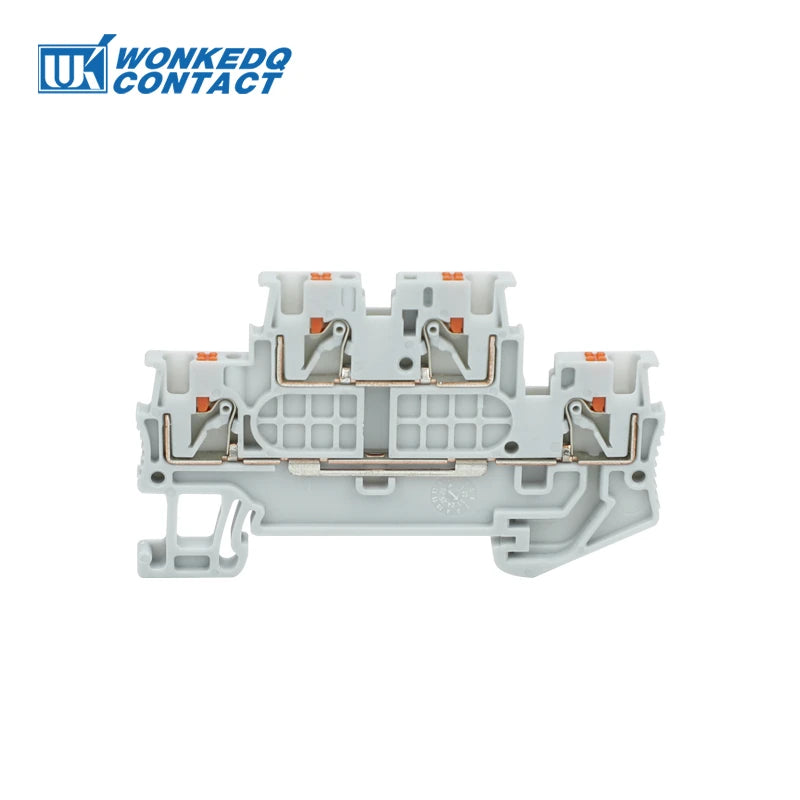

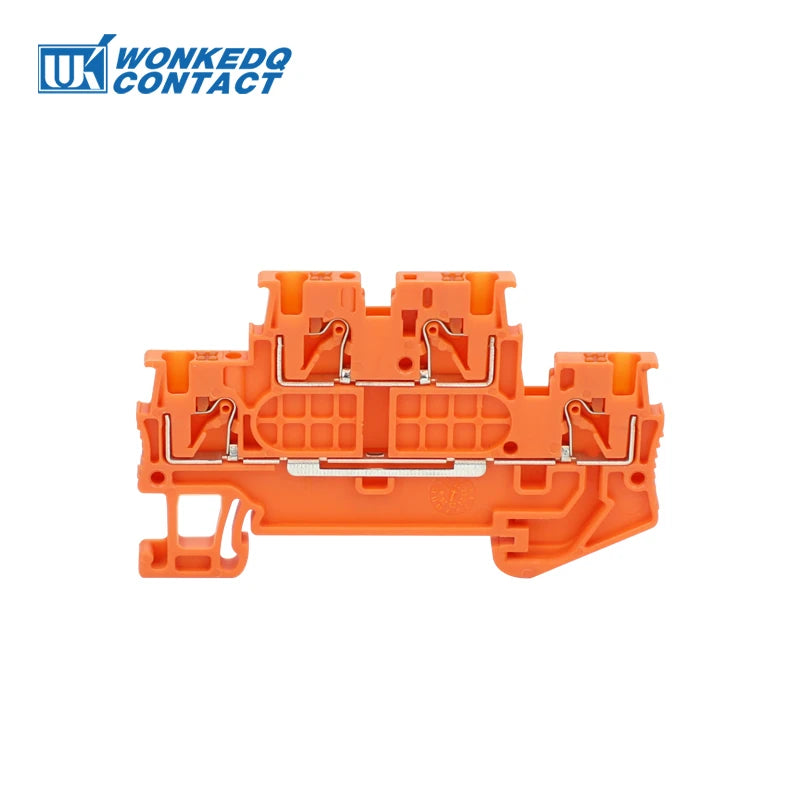

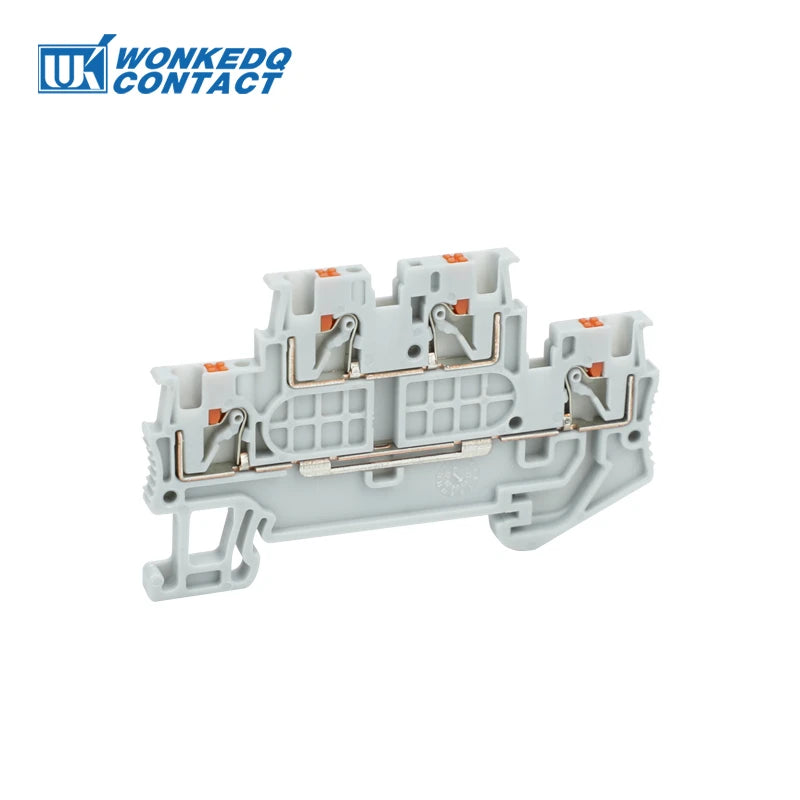

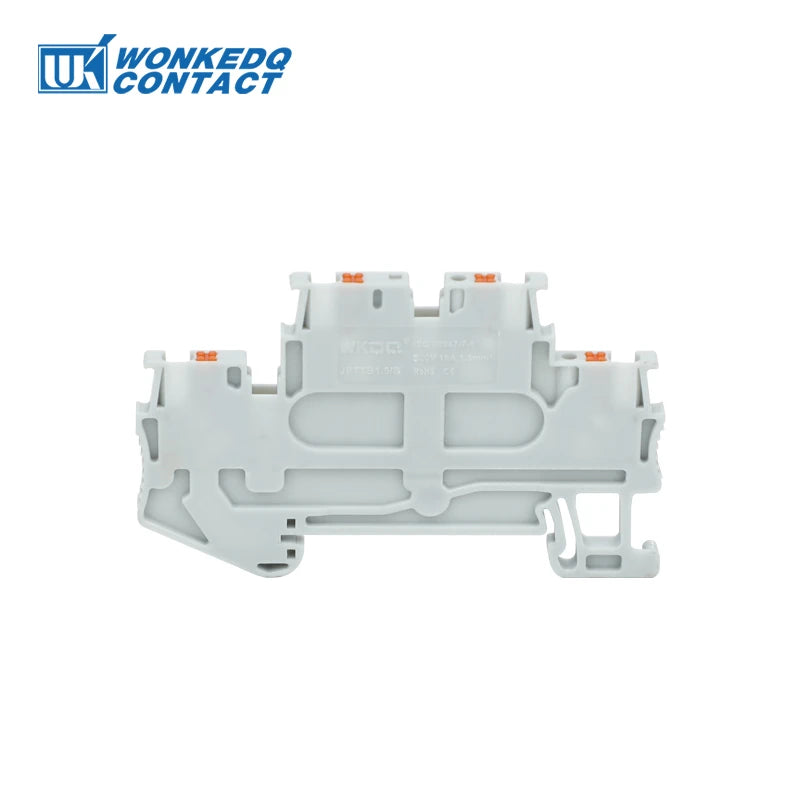

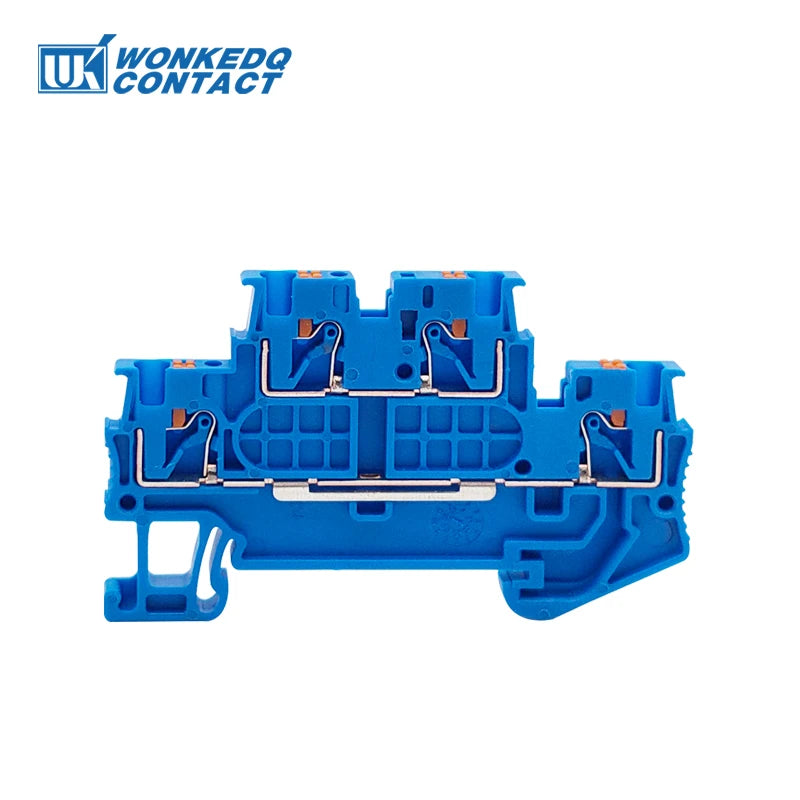

10Pcs PTTB 1.5/S Double Level Push-in Din Rail Terminal Block PT 1.5mm² Cable Electrical Wire Connector PTTB1.5 PTTB-1.5
PTTB1.5-S-Orange / 10 Pcs
$42.28
Sale price
$42.28
Regular price
$0.00
Skip to product information
10Pcs PTTB 1.5/S Double Level Push-in Din Rail Terminal Block PT 1.5mm² Cable Electrical Wire Connector PTTB1.5 PTTB-1.5
$42.28
Sale price
$42.28
Regular price
$0.00
Description
SPECIFICATIONS
Application: Electric Wire conductor
Apply: Distribution Cabinet
Brand Name: WONKEDQ
Certification: CE,RoHS
Conductor Size: 26-16 AWG

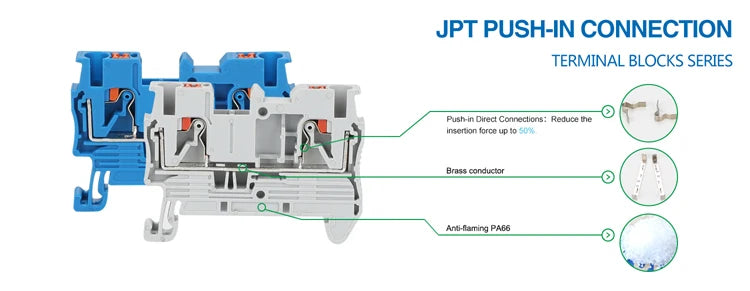

Connection method: Push-in connection
Cross Section: 1.5mm²
Cross section, solid/soft Cable: 0.14-1.5mm²/0.14-1.5mm²
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
High-concerned chemical: none
Length/Wide/Height (mm): L77/H36.5/W6.2 mm
Material: Flame resistant Nylon PA66
Model: Double-level terminal block PTTB 1.5/S
Model Number: PTTB 1.5/S,PTTB1.5/S
Mounting Type: DIN Rail NS 35
Number of Contacts: 1 - 10
Origin: Mainland China
Rated Voltage/Current: 500V/16A
Standard: IEC 60947-7-1
Type: Push-in Terminal,Push-in
Usage: Power Distribution Cabinet
DESCRIPTION
ACCESSORIES ( Click the pictures to the links)
|
|
|
|
END COVER |
JUMPERS BRIDGE |
MARKER STRIPS |
END STOP |
|
|
|
|
MARKER CARRIER |
MARKER CLIPS |
DIN RAIL |
TERMINAL BLOCK |

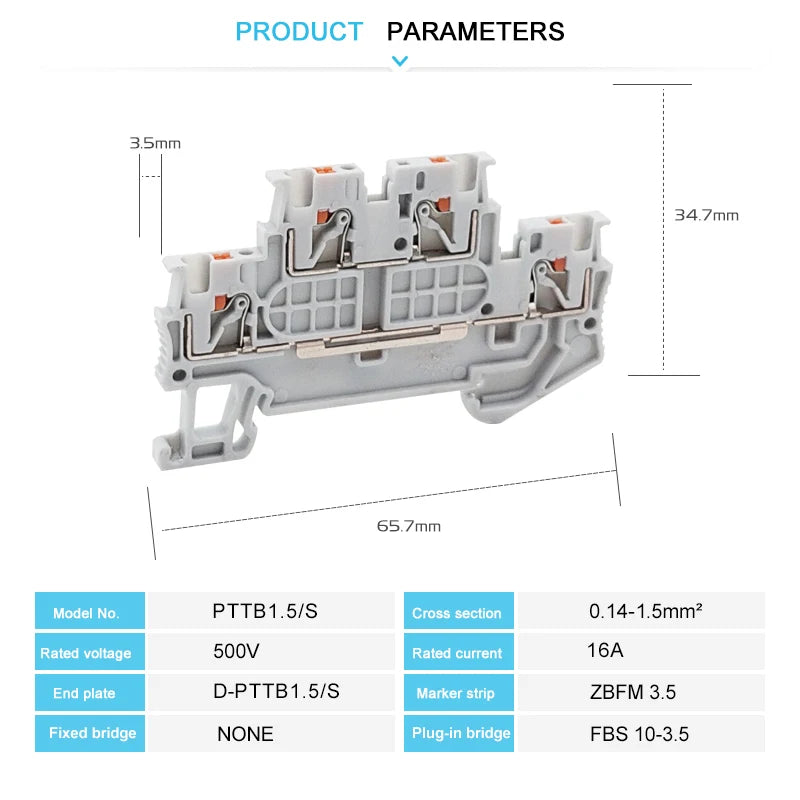

TECHNICAL PARAMETERS
Type No. |
Details |
Accessories |
PTTB 1.5/S |
500V/16A L77/H36.5/W6.2 mm |

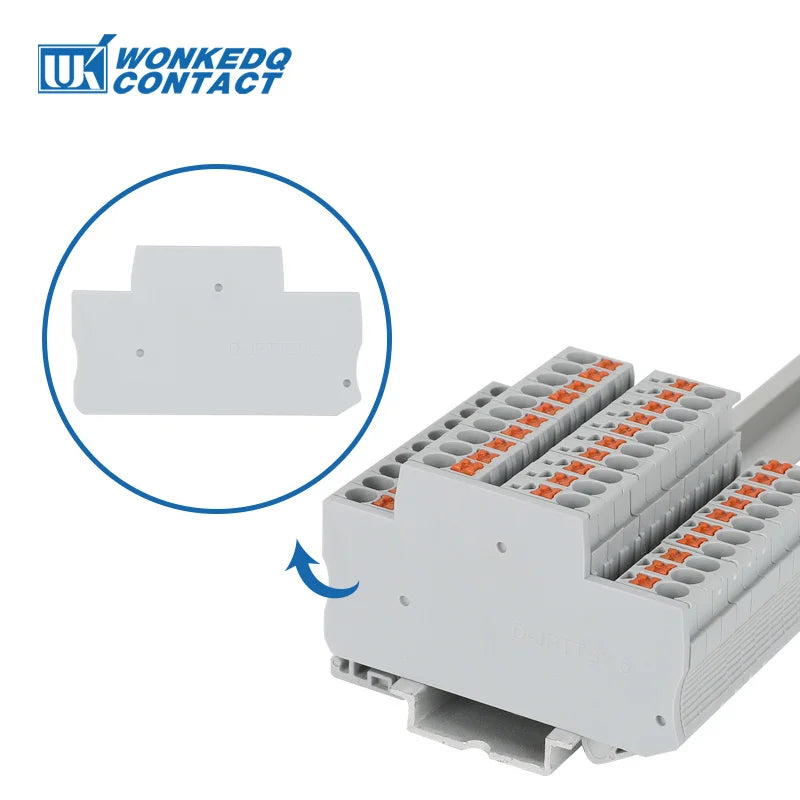

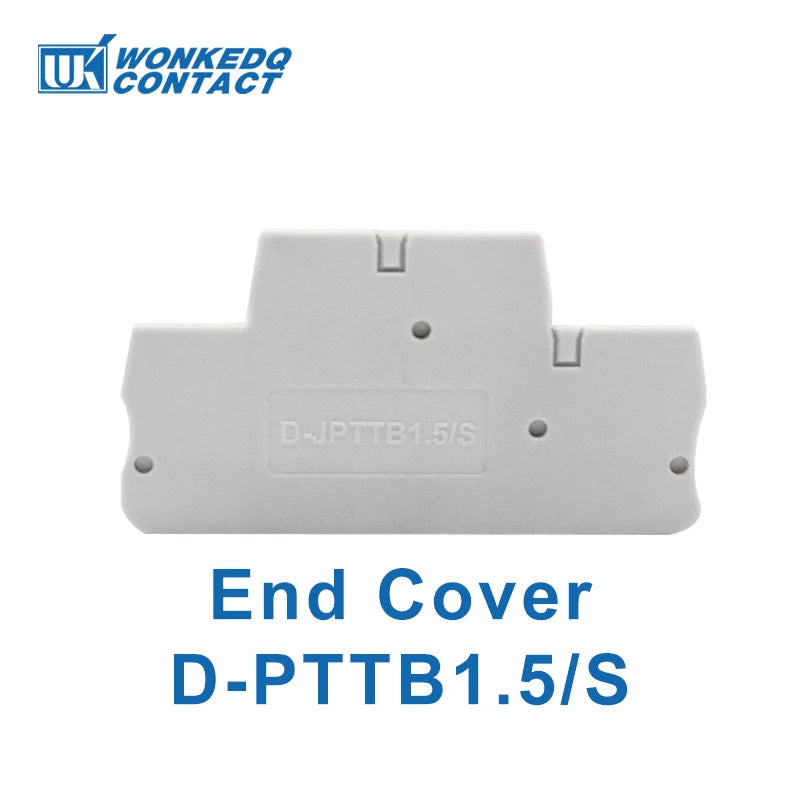

End cover: D-PTTB 1.5/S |

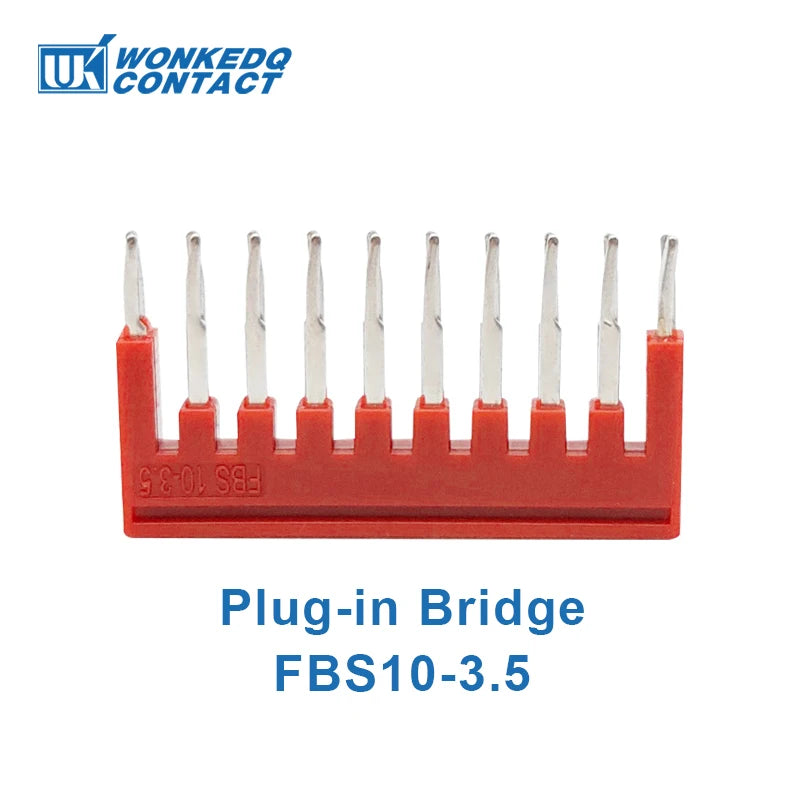

Plug-in bridge: FBS 10-3.5 | ||

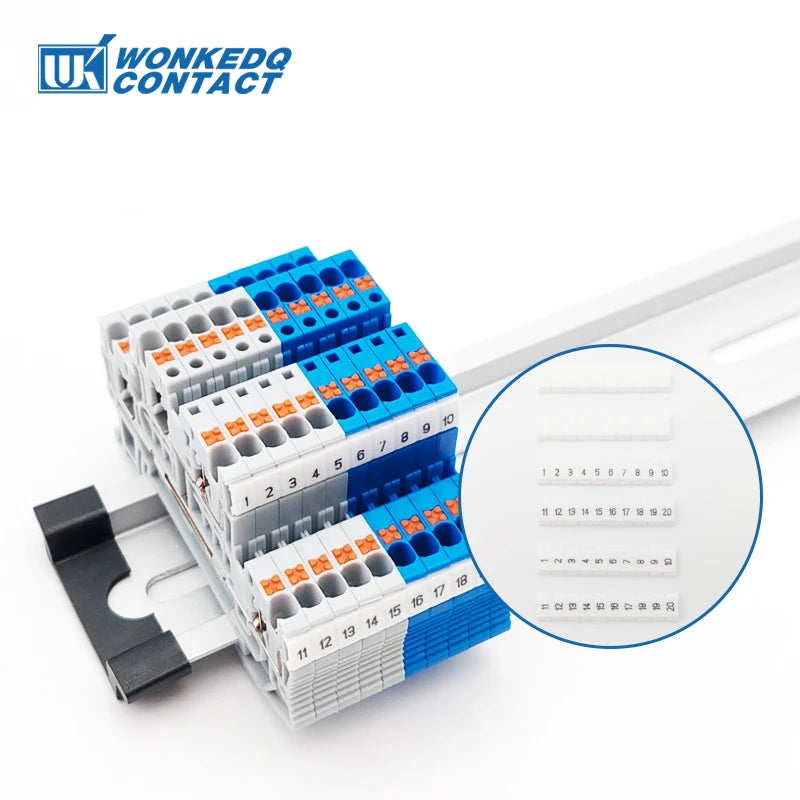

Marker strip: ZBFM 3.5 |
Model Number |
PTTB 1.5-S |
Color |
Grey, Blue, other color can be customized |
Length/Wide/Height (mm) |
L77/H36.5/W6.2 mm |
Connection method |
Push-in connection |
Material |
Nylon PA66 |
Rated Voltage/Current |
500V/16A |
Cross section, solid/soft Cable |
0.14-1.5mm²/0.14-1.5mm² |
Conductor Size |
26-16 AWG |
Mounting Type |
NS 35/7.5 |
Standard |
IEC 60947-7-1 |
LOGO |
Customized logo are supported |
Certification |
CE/RoHS/CQC/ISO 9001 |
