SPECIFICATIONS

Battery Included: no

Brand Name: TONIFISHI

Certification: NONE

High-concerned chemical: none

Origin: Mainland China

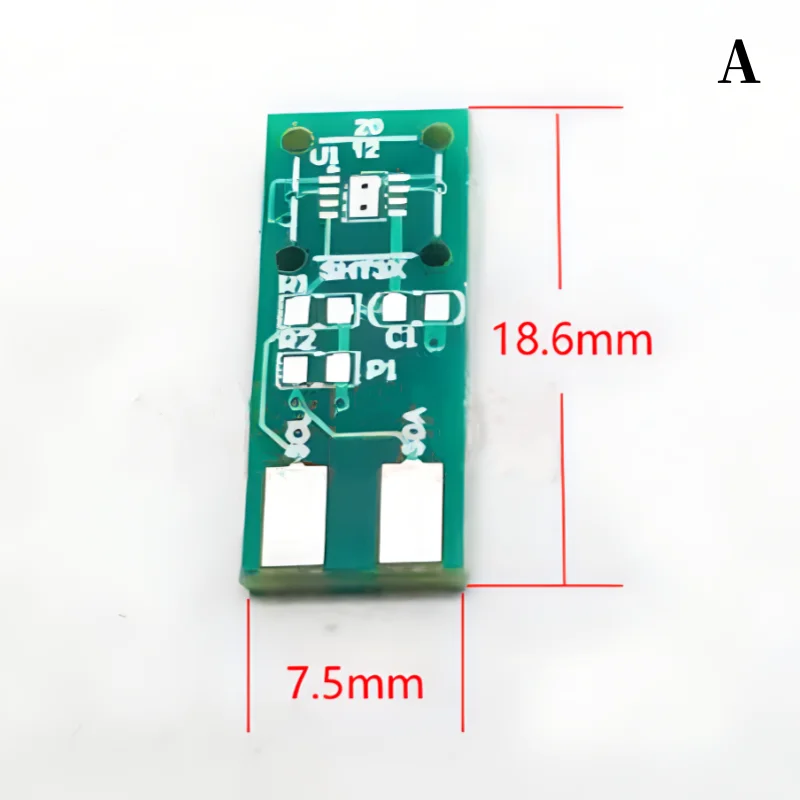

A: SHT20 empty base plate

B: SHT30 empty base plate

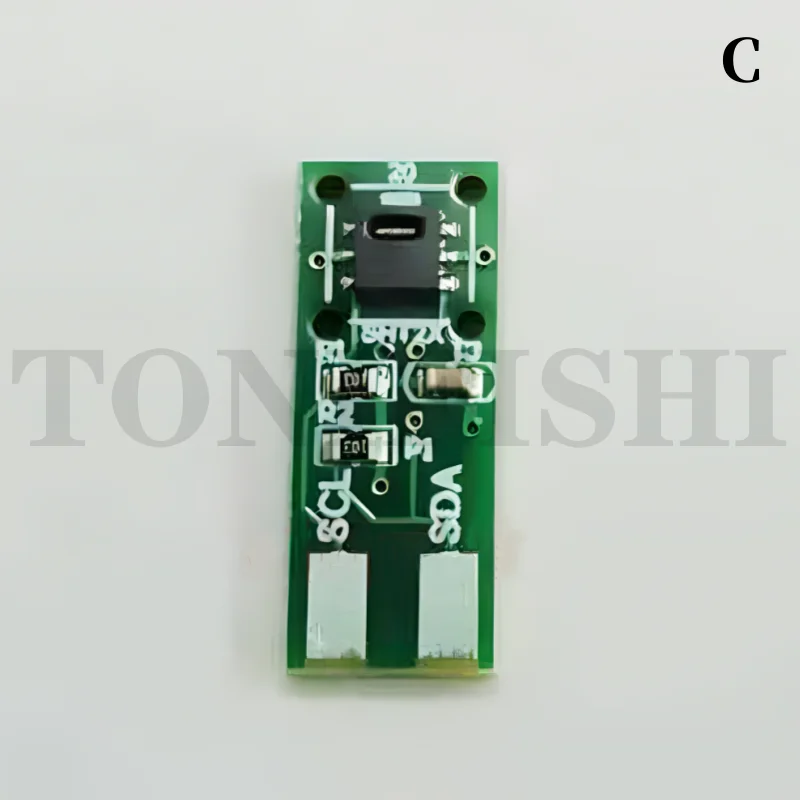

C: SHT20 module

D: SHT30 module

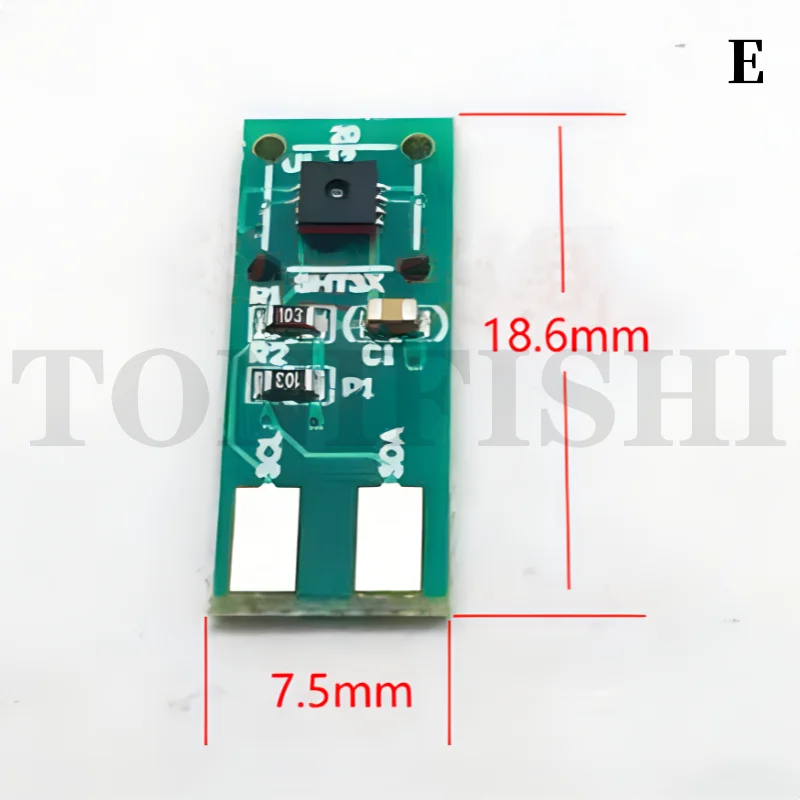

E: SHT35 module

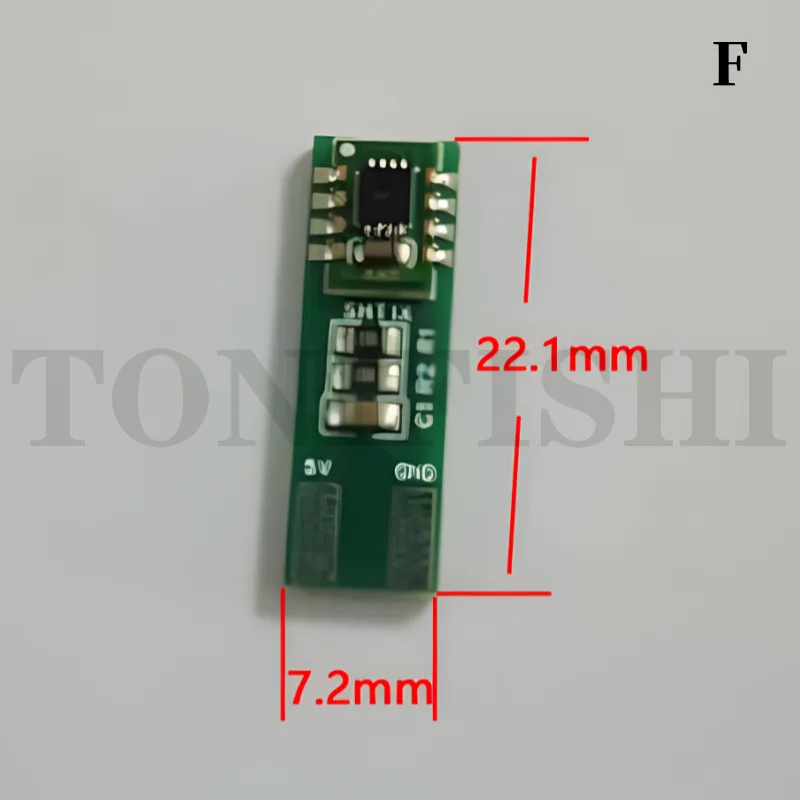

F: SHT1X module (can replace SHT10, SHT11, SHT15 modules)

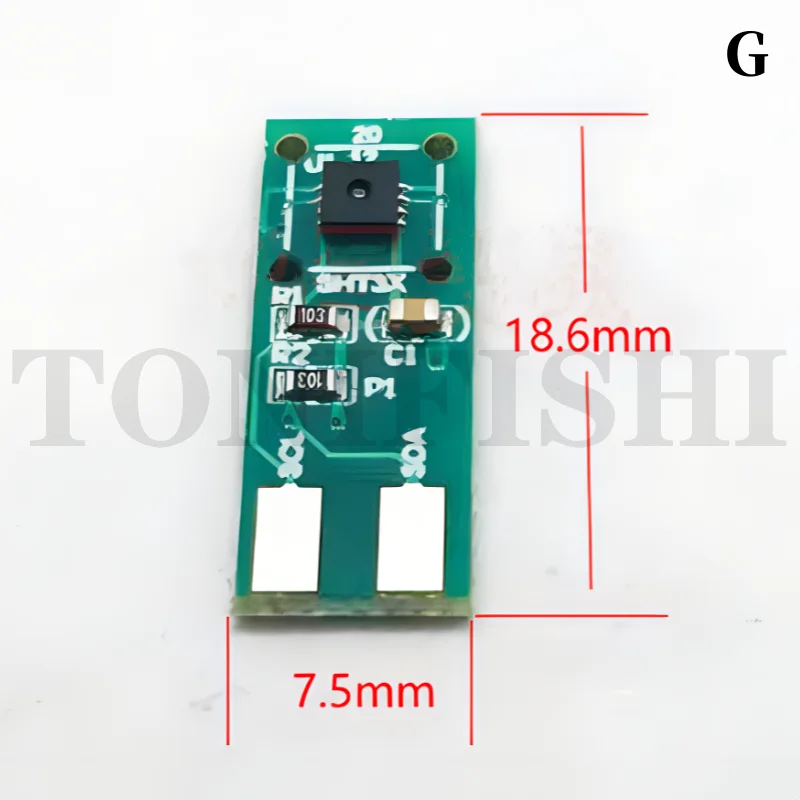

G: SHT31 module

SHT1X parameter description:

Completely replaces SHT10 SHT11 SHT15, no need to change the code, just connect and use

Power supply: 2.4-5.5V DC

Measurement accuracy: temperature ±0.3℃, humidity ±3%RH

Measuring range: temperature -40~+125℃, humidity 0~100%RH

Resolution: 0.1℃, 0.1%RH

Communications: I2C (IIC)

Pin description:

VDD=supply voltage

GND=ground

DATA=serial data

CLK = serial clock

SHT20 parameter description:

Power supply: 2.1-3.6V DC (please do not use 5V, otherwise it will burn and refuse to return)

Measurement accuracy: temperature ±0.3℃, humidity ±3%RH

Measuring range: temperature -40~+125℃, humidity 0~100%RH

Resolution: 0.1℃, 0.1%RH

Communications: I2C (IIC)

Pin description:

VDD=supply voltage

VSS=ground

SDA = serial data

SCL = serial clock

SHT30 parameter description:

Power supply: 2.4-5.5V DC

Measurement accuracy: temperature ±0.3℃, humidity ±3%RH

Measuring range: temperature -40~+125℃, humidity 0~100%RH

Resolution: 0.1℃, 0.1%RH

Communications: I2C (IIC)

Pin description:

VDD=supply voltage

VSS=ground

SDA = serial data

SCL = serial clock

SHT35 parameter description:

Power supply: 2.4-5.5V DC

Measurement accuracy: temperature ±0.1℃, humidity ±1.5%RH

Measuring range: temperature -40~+125℃, humidity 0~100%RH

Resolution: 0.1℃, 0.1%RH

Communications: I2C (IIC)

Pin description:

VDD=supply voltage

VSS=ground

SDA = serial data

SCL = serial clock
