10pcs SMA Male Plug SMA Female RP SMA Male Female Connector Crimp for RG58 U LMR195 RG142 RG400 CABLE Wire Terminal Straight

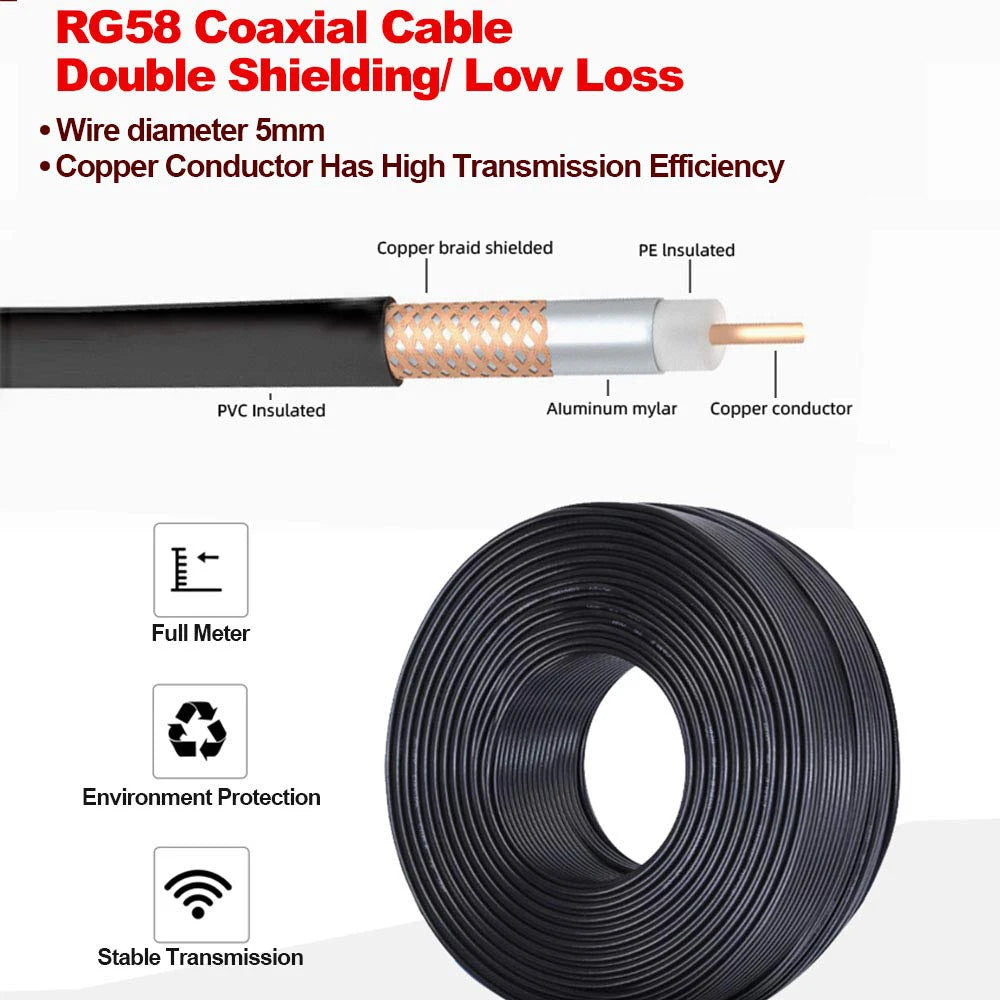

1Meter RG58 CABLE
$16.32
Sale price
$16.32
Regular price
$0.00
Skip to product information
10pcs SMA Male Plug SMA Female RP SMA Male Female Connector Crimp for RG58 U LMR195 RG142 RG400 CABLE Wire Terminal Straight
$16.32
Sale price
$16.32
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: RF JKM
Certification: CE
Choice: yes
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: Cupferron
Model Number: SMA RG58
Origin: Mainland China
Voltage: 1000 V
semi_Choice: yes
10pcs SMA Male Plug SMA Female RP SMA Male female Connector Crimp for RG58 U LMR195 RG142 RG400 CABLE Wire Terminal Straight ADAPTER
Description:
SMA connector series product is a widely used small coaxial connectors with threaded connections. The SMA series inch threaded connections, high strength, good shock resistance. The outer conductor ends in direct contact, so that the insertion loss to a minimum.
status: 100% brand new
type: RF connector SMA

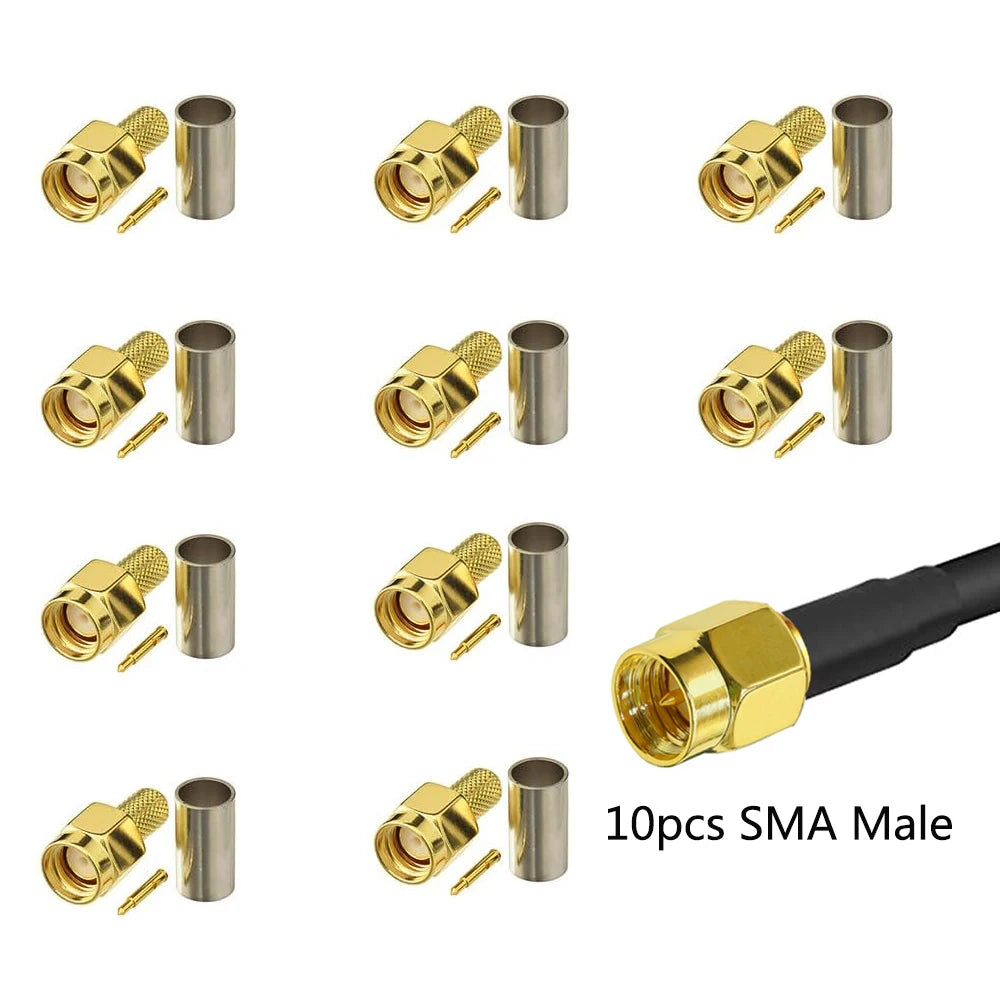

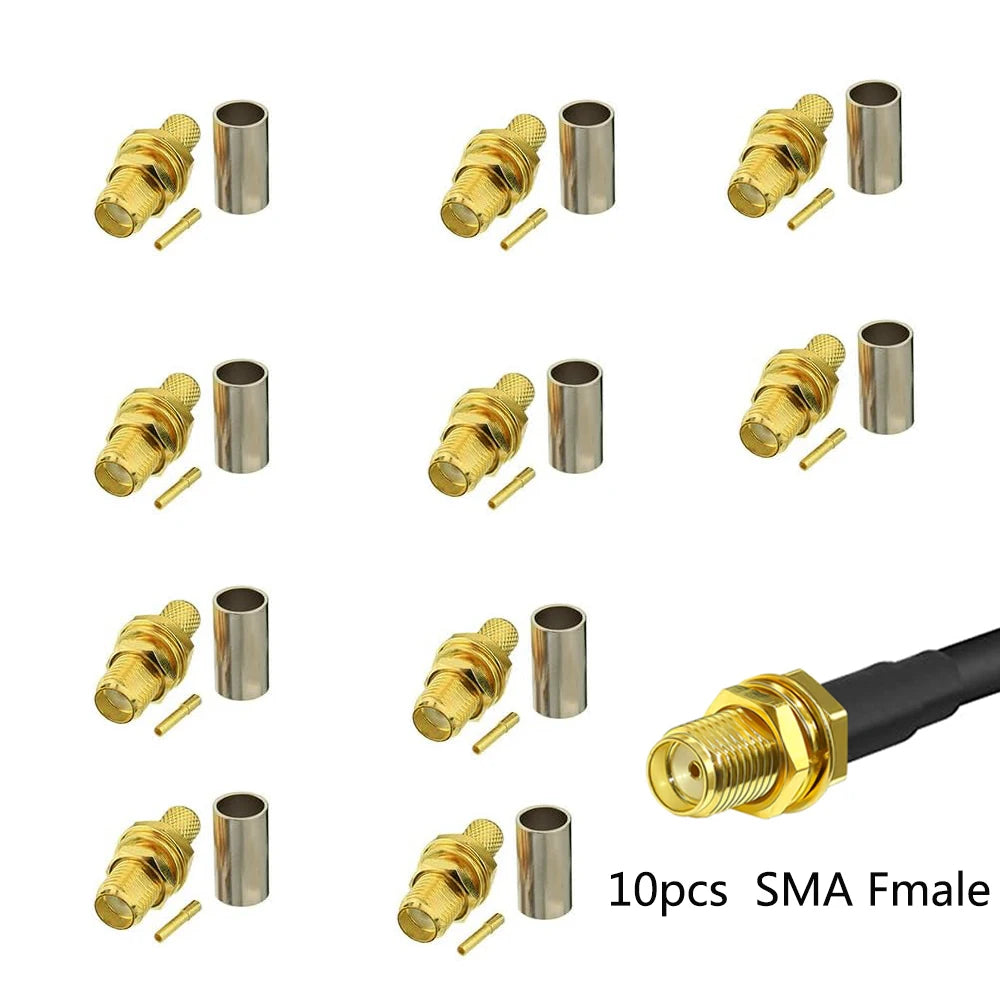

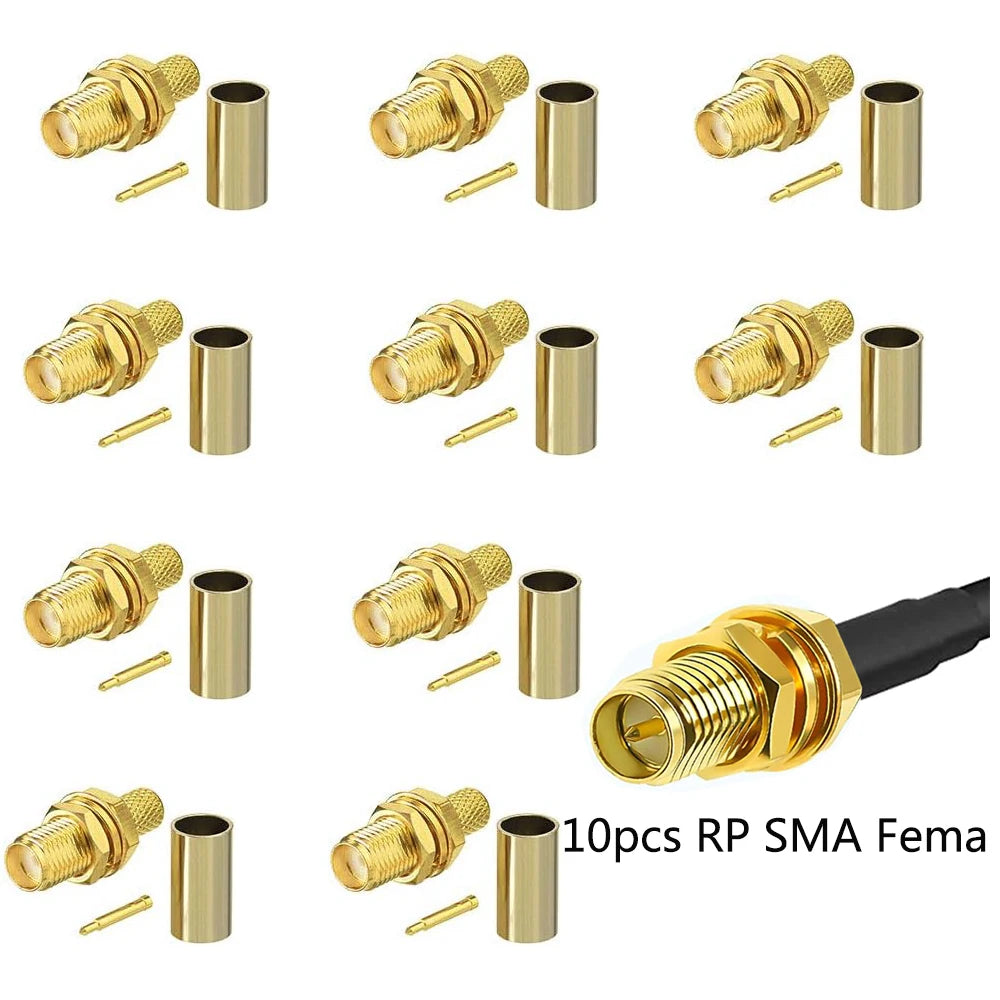

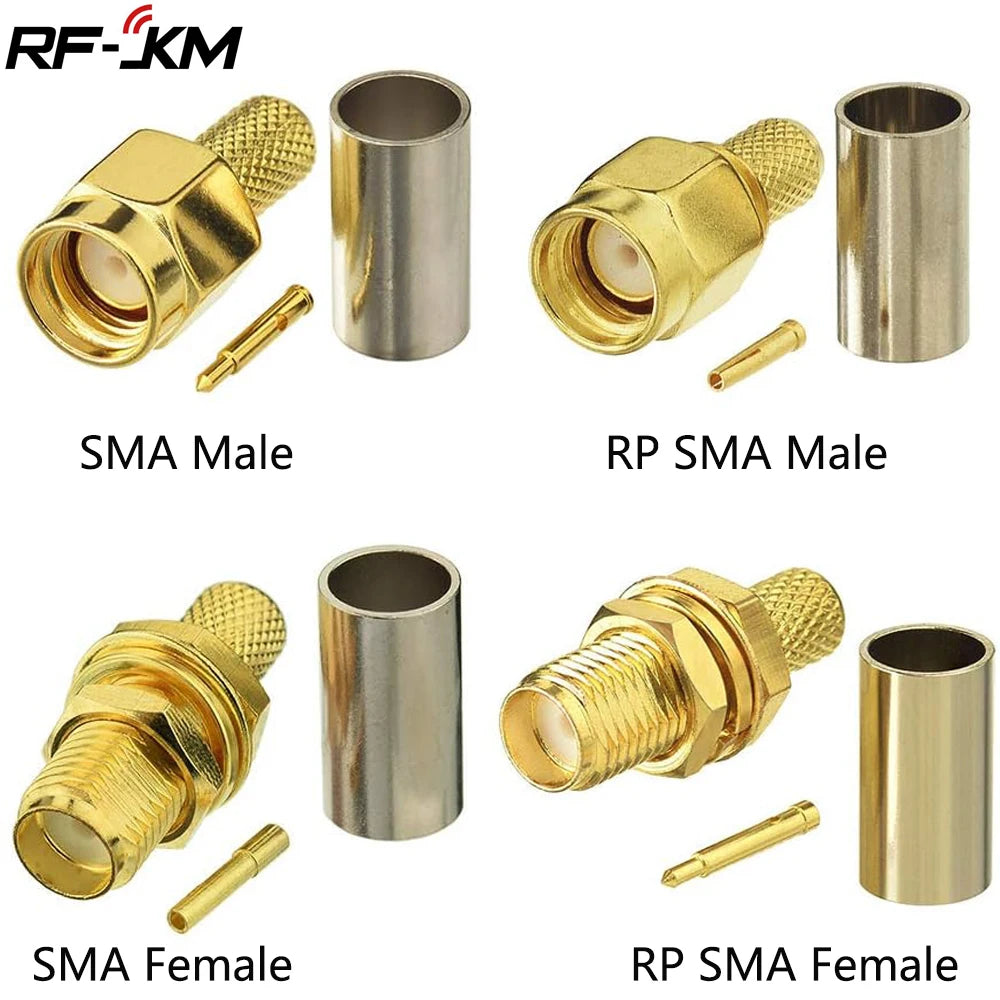

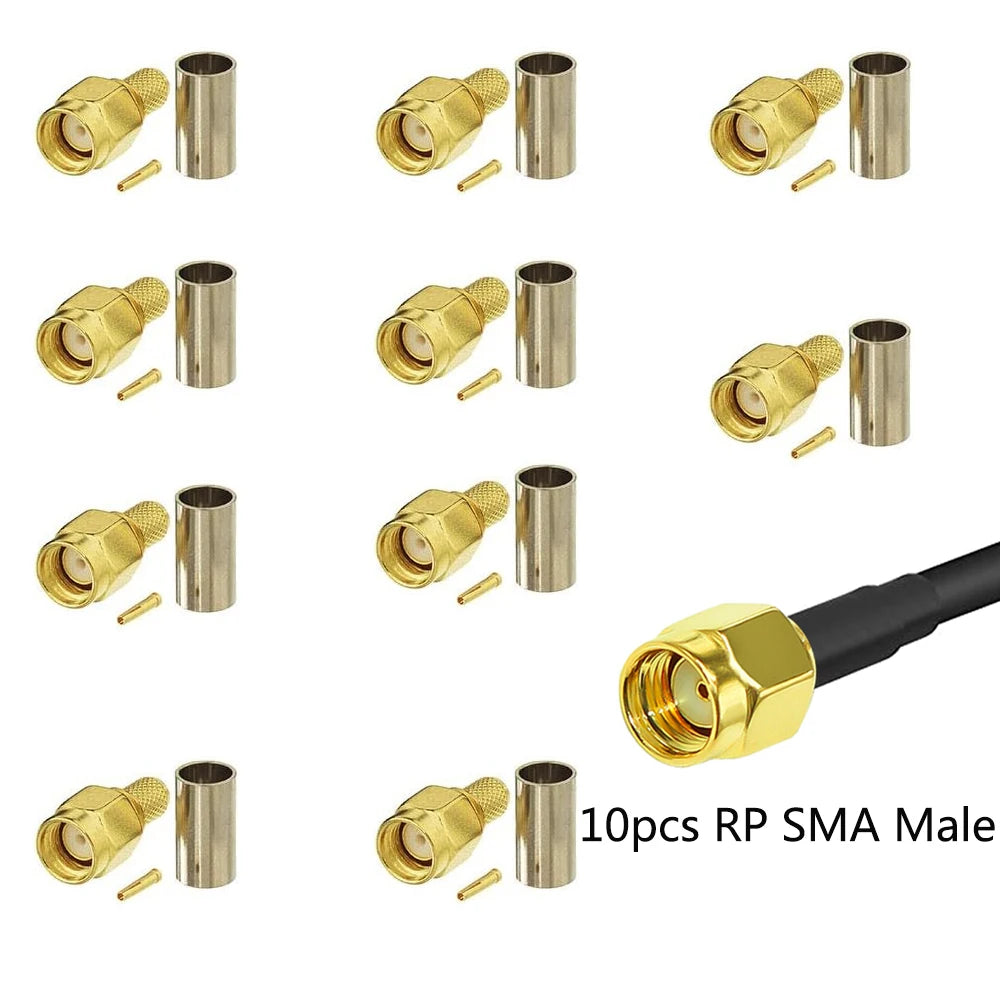

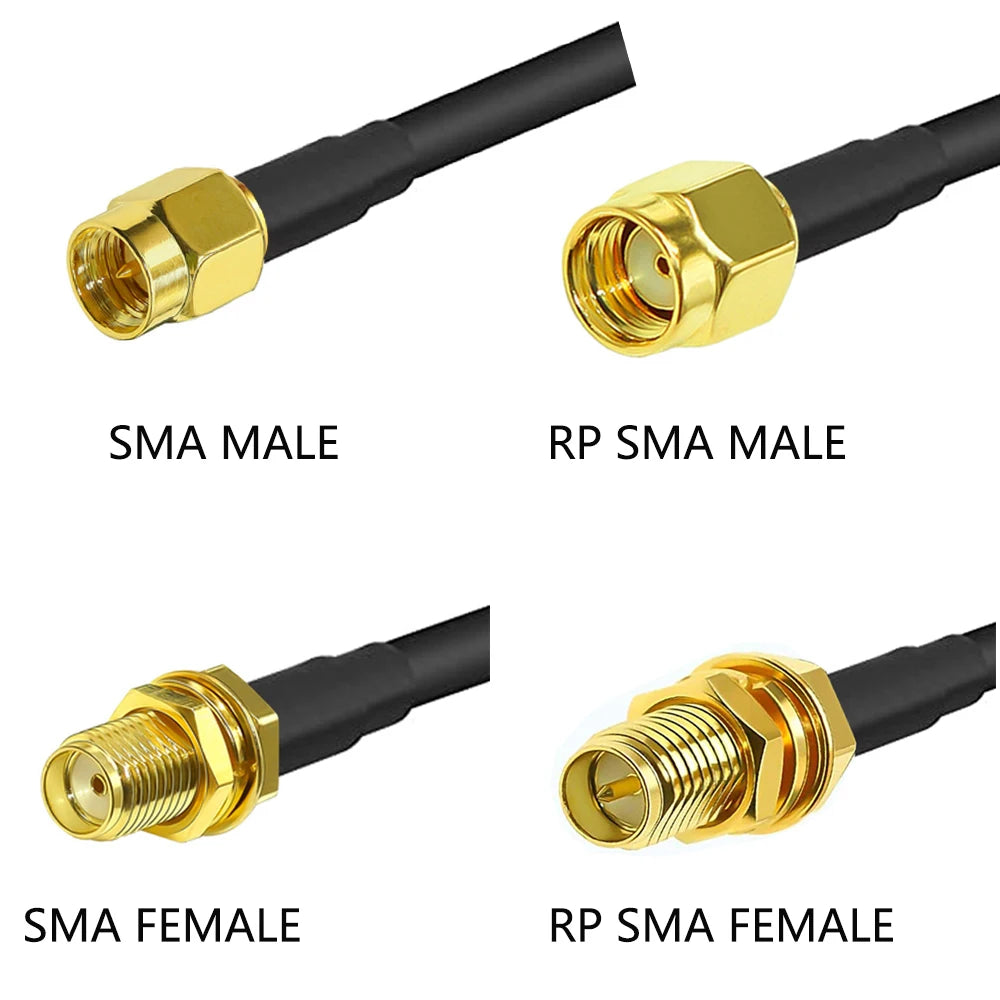

gender: male/ female/ RP plug/ RP jack
style: cable mount
body plating: goldplated
body style: straight
mounting: crimp

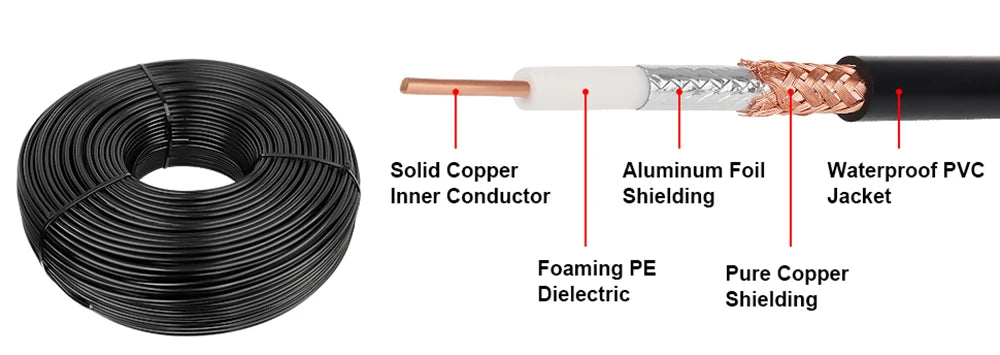

cable type: RG58 LMR195
Applications
1.Antennas
2.Broadcast
3.radios
4.Electronic test equipment
5.Serial digital and Analog interface
6,Non-professional radio antenna connections
50Ω Specifications
Electrical | ||||
Impedance |
50 Ω |
|||
Frequency Range |
0-4 GHz with low reflection |
|||
Voltage Rating |
500 volts peak |
|||
Dielectric Withstanding Voltage |
1,500 volts rms |
|||
VSWR |
M39012 straight connectors: 1.3 max 0-4 GHz M39012 right angle connectors: 1.35 max 0-4 GHz |
|||
MIL-C-39012 Contact Resistance |
Center contact: ≤3mΩ; Outer contact: ≤2mΩ |
|||
MIL-C-39012 Insulation Resistance |
5,000 MΩ |
|||
Durability |
500 Cycles |
|||
APPLICABLE STANDARD |
|
|||
Material | ||||
Contact |
Brass,goldplated |
|||
Insulator |
PTFE |
|||
Crimp Ferrule |
Copper/brass |
|||
Environmental | ||||
Temperature Range |
TFE insulators: - 65°C to + 165 °C Copolymer of Styrene: - 55°C to + 85°C |
|||
