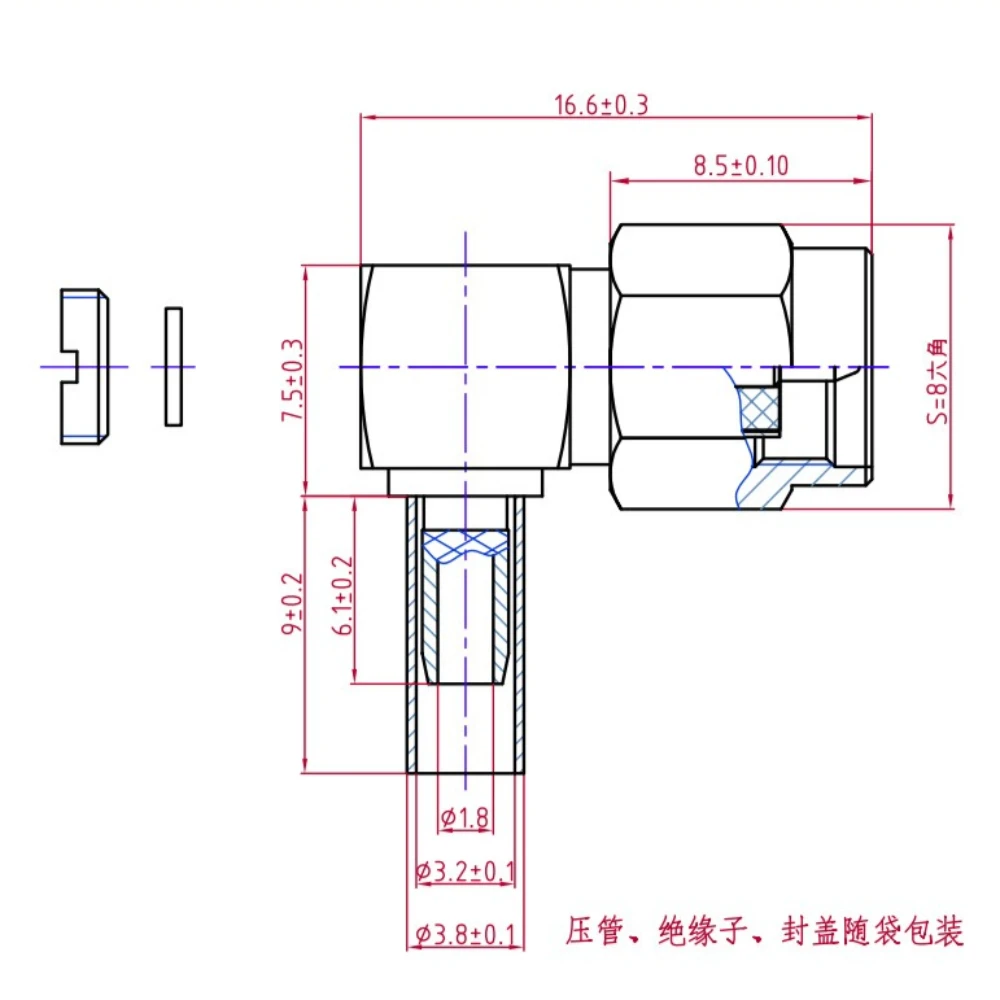

SPECIFICATIONS

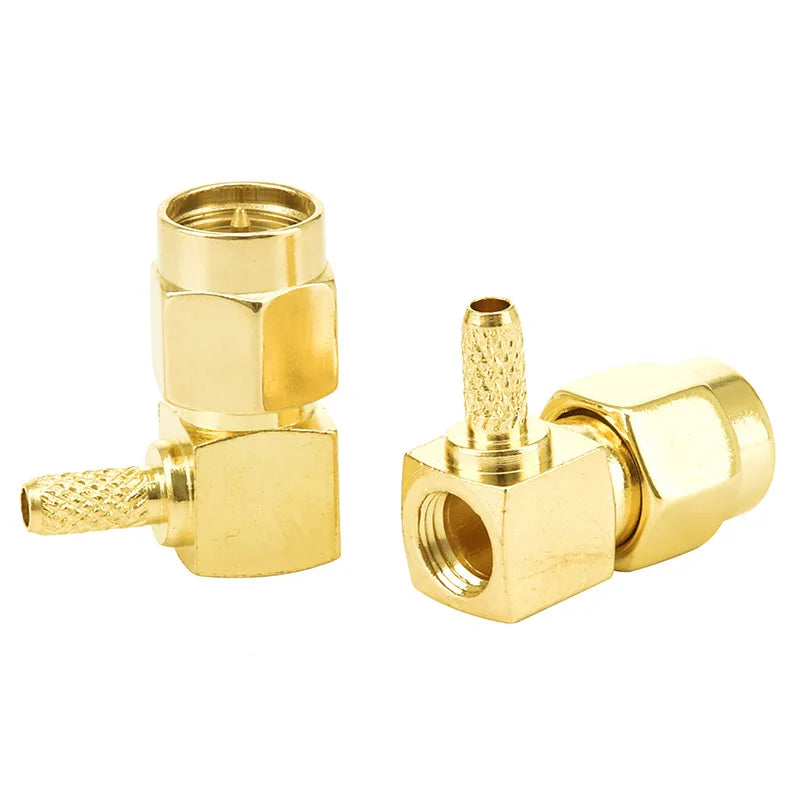

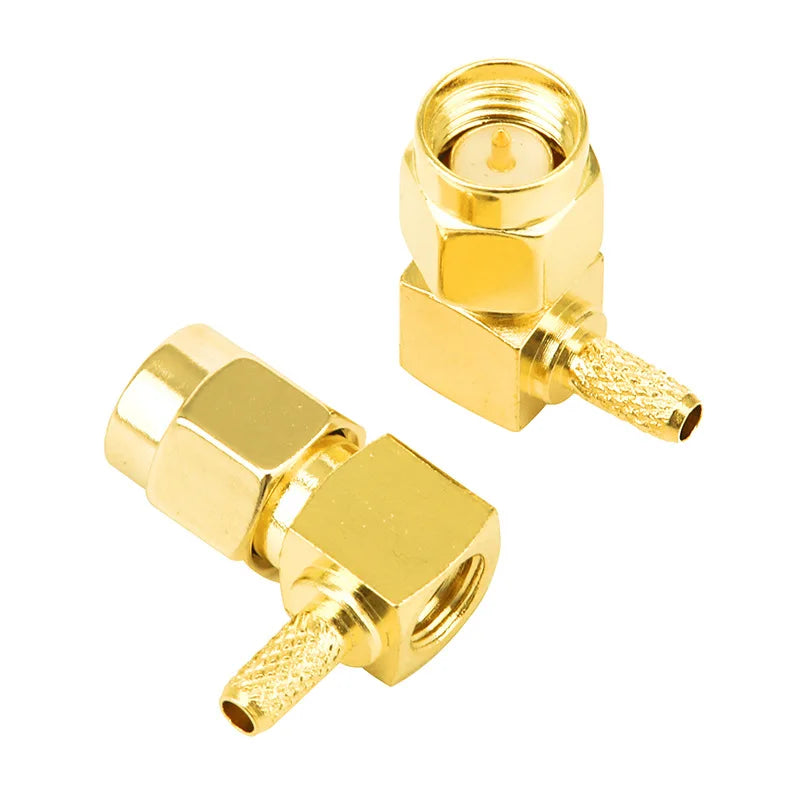

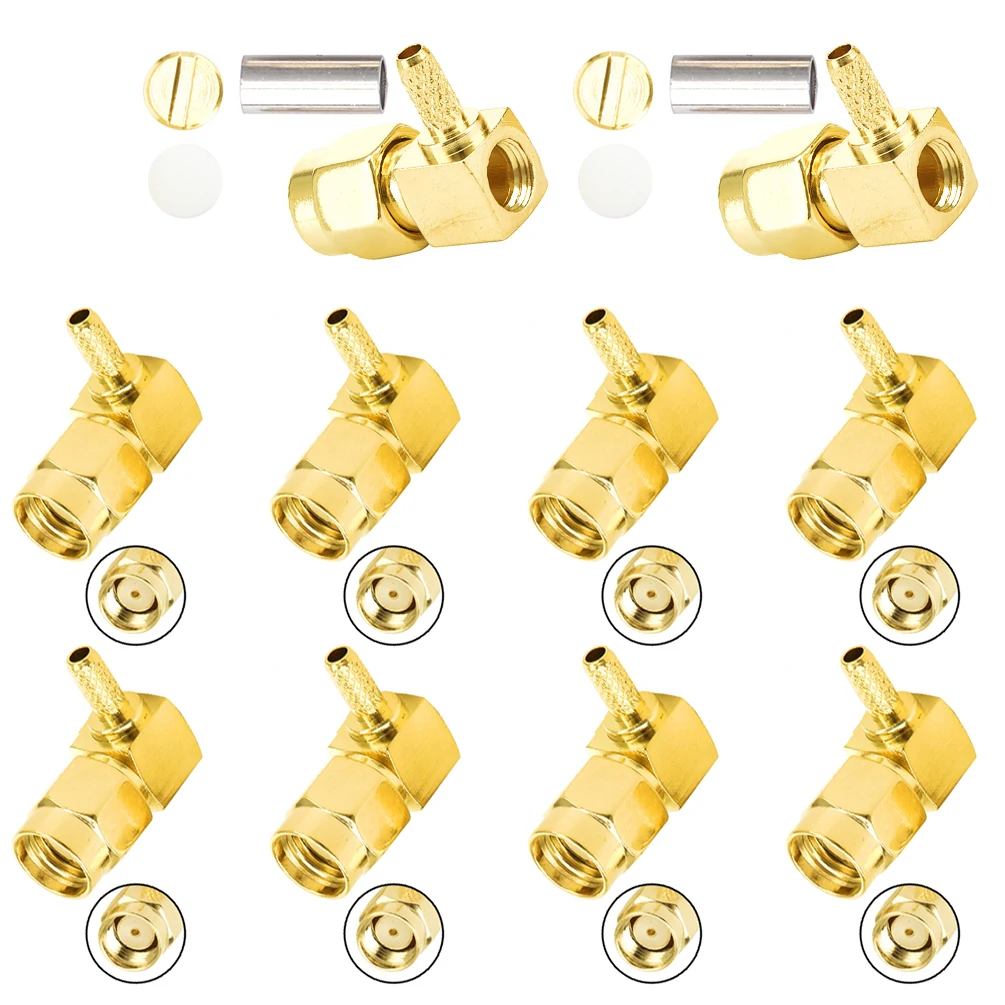

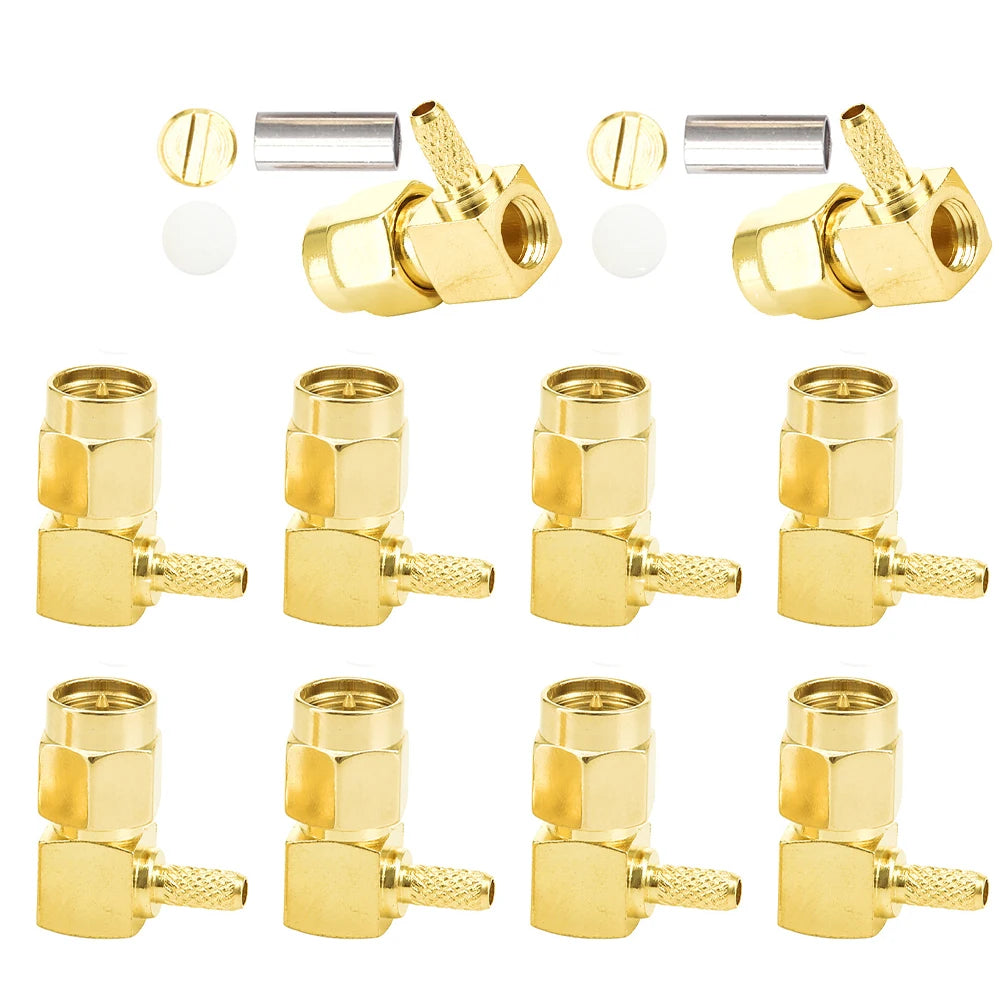

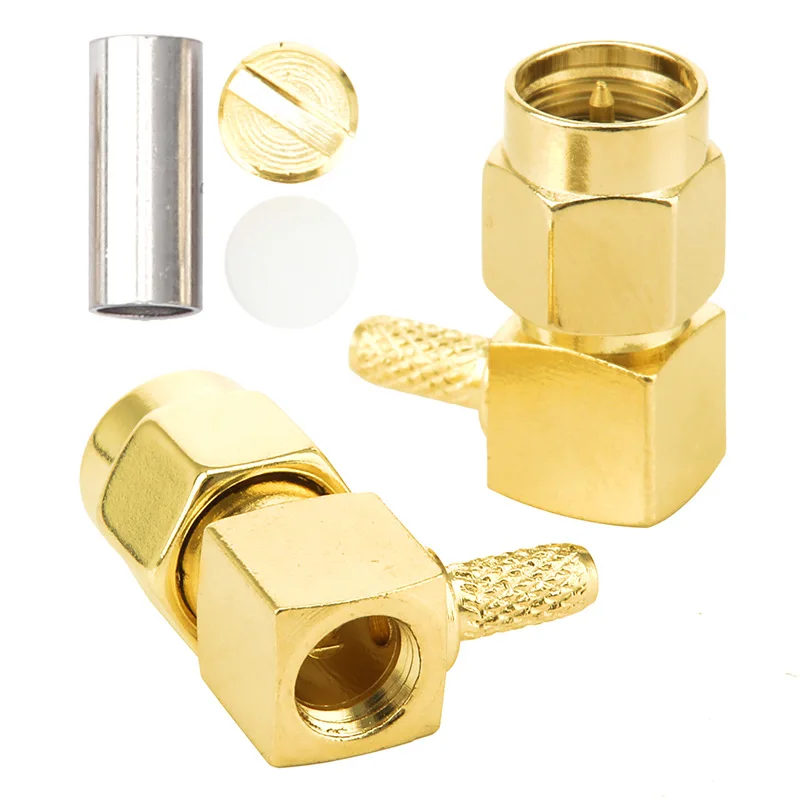

Introducing our top - notch right - angle RF connector crimp, available in both SMA Male and RP - SMA Male (Female Pin) configurations. This versatile connector is specifically designed to work seamlessly with RG174, RG316, and LMR100 cables, making it an ideal choice for a wide range of radio - frequency applications.

Key Features
1. Precise Compatibility
Our RF connector is precisely engineered to fit RG174, RG316, and LMR100 cables perfectly. This ensures a secure and reliable connection, minimizing signal loss and interference. Whether you're working on a professional communication system or a DIY electronics project, you can trust this connector to deliver consistent performance.

2. High - Quality Construction
Made from premium materials, this connector is built to last. It can withstand harsh environmental conditions, including extreme temperatures. The operating temperature range is from - 65°C to +165°C (for non - PE cables) and - 40°C to +85°C for PE cables. This wide temperature tolerance makes it suitable for use in various settings, from outdoor installations to industrial environments.

3. Excellent Electrical Performance

Characteristic Impedance: The connector has a characteristic impedance of 50 ohms, which is a standard value in RF systems. This ensures proper impedance matching, reducing signal reflections and improving overall system efficiency.
Frequency Range: It supports a frequency range of up to 6 GHz (0 - 18 GHz for semi - rigid cables). This wide frequency range allows it to handle a variety of high - frequency signals, making it suitable for applications such as wireless communication, satellite systems, and radar.
Voltage Ratings: The working voltage is a maximum of 335 V (root - mean - square value), and the withstand voltage is 1000 V (root - mean - square value, at sea level minimum). These high voltage ratings ensure the connector can handle high - power signals without any issues.
4. Reliable Contact Resistance

Center Contact: The center contact resistance is ≤ 3 mΩ between internal conductors, ensuring a low - resistance path for the signal and minimizing power loss.
Outer Contact: The outer contact resistance is ≤ 2 mΩ between external conductors, further enhancing the electrical performance of the connector.
5. High Insulation Resistance
The insulation resistance of the connector is ≥ 5000 MΩ, which effectively isolates the electrical signals and prevents short - circuits, ensuring the safety and reliability of the entire system.

6. Low Voltage Standing Wave Ratio (VSWR)

Straight Configuration: The VSWR for the straight configuration is ≤ 1.1, indicating minimal signal reflections and efficient power transfer.
Right - Angle Configuration: For the right - angle configuration, the VSWR is ≤ 1.2, still providing excellent performance in applications where a right - angle connection is required.
7. Durable and Long - Lasting
This connector has a durability of ≥ 500 cycles (connections and disconnections). This means you can use it repeatedly without worrying about wear and tear, saving you time and money on replacements.

Applications
This right - angle RF connector crimp is widely used in various industries and applications, including:

Wireless communication systems (e.g., Wi - Fi, cellular networks)
Satellite communication
Radar systems
Test and measurement equipment
Industrial automation
Aerospace and defense

Don't miss out on this high - quality RF connector that combines precision, durability, and excellent electrical performance. Order now and take your RF projects to the next level!
