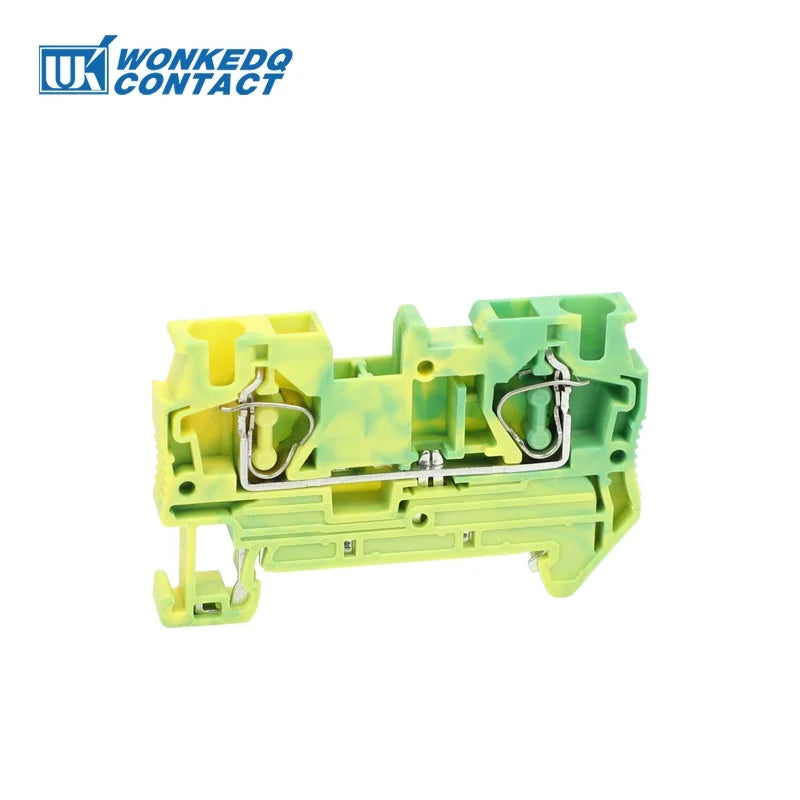

SPECIFICATIONS

Brand Name: WONKEDQ

Certification: CE,RoHS

Color: Yellow/Green, other color can be customized

Conductor Size: 28-10 AWG, 28-12 AWG

Connection method: Spring-cage connection

Cross section, solid/soft Cable: 0.5-6mm²/0.5-4mm²

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Length/Wide/Height (mm): L56.5/H35.5/W6.2 mm

Material: Nylon PA66

Model Number: ST-4-PE,ST 4-PE

Mounting Type: NS 35/7.5

Number of Contacts: 1 - 10

Origin: Mainland China

Rated Voltage/Current: 800V/41A

Standard: IEC 60947-7-1

Type: Feed-through Terminal,Spring

DESCRIPTION

ACCESSORIES ( Click the pictures to the links)

END COVER D-ST 4	MARKER STRIPS ZB6	END STOP E-UK	MARKER CARRIER B1
MARKER CLIPS KLM-A	DIN RAIL NS35-S	RECOMMEND (ST4)	RECOMMEND (ST2.5-3L)

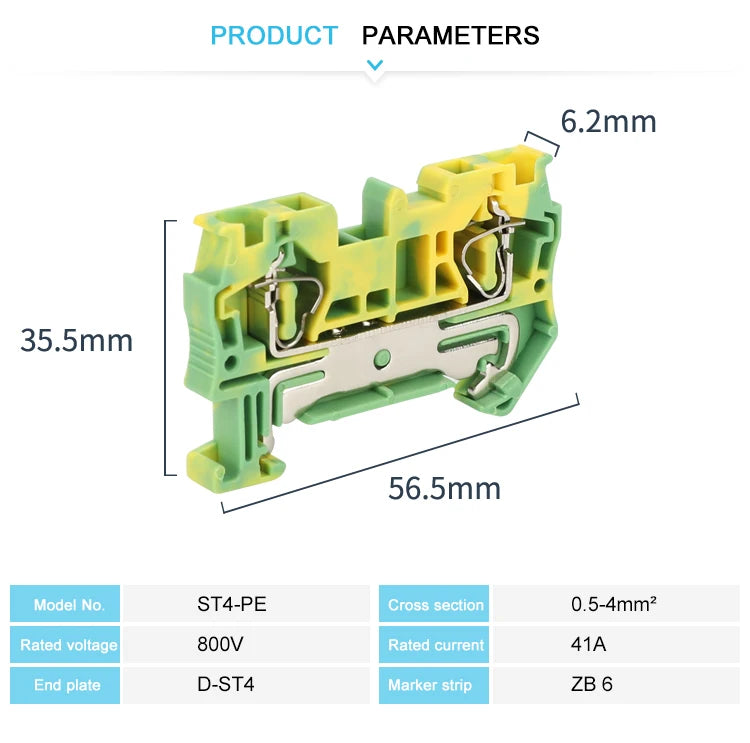

Technical Parameters

Type No.	Details	Accessories
ST 4-PE	800V/41A 0.5-6mm²/0.5-4mm² L56.5/H35.5/W6.2 mm	End cover:  D-ST 4
		Marker strip:  ZB  6

Model Number	ST 4-PE
Color	Yellow/Green, other color can be customized
Length/Wide/Height (mm)	56.5/35.5/6.2

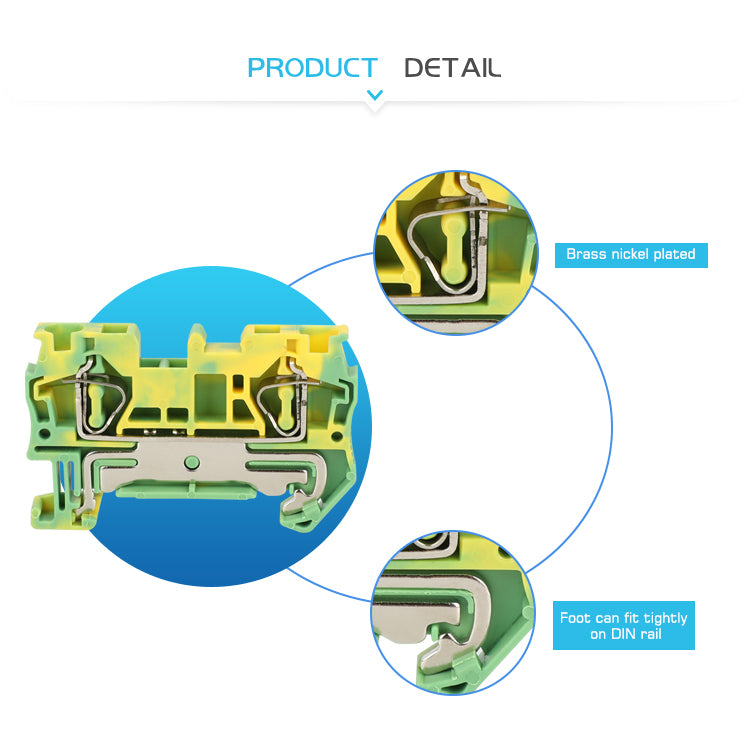

Connection method	Spring-cage connection
Material	Nylon PA66
Rated Voltage/Current	800V/41A
Cross section, solid/soft Cable	0.5-6mm²/0.5-4mm²
Conductor Size	20-10 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	12.1g/pc, 50PCS/BOX

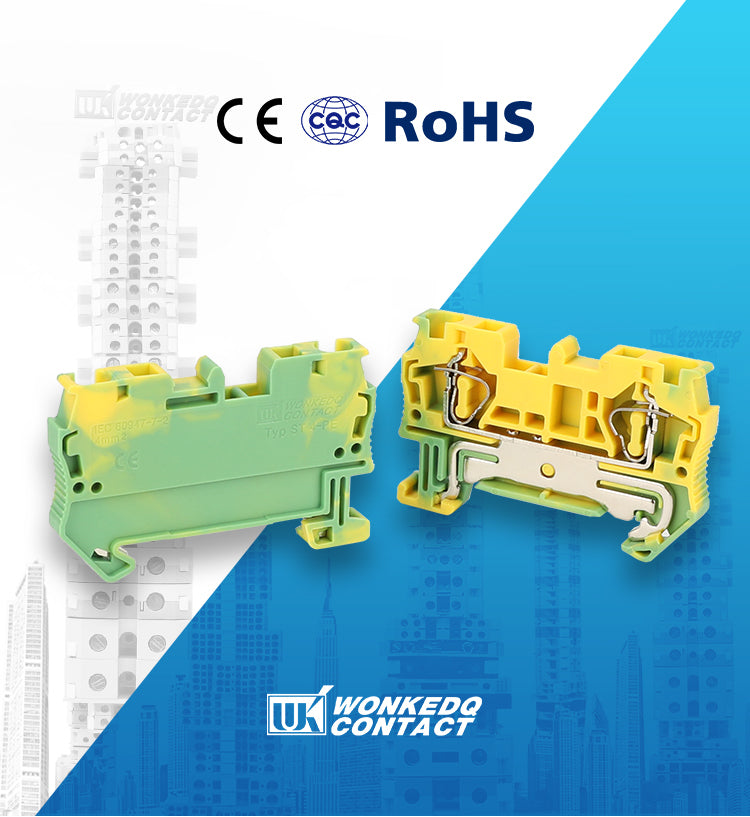

Certification	CE/RoHS/CQC/ISO 9001
