SPECIFICATIONS

Brand Name: HORNAXYS

Choice: yes

Condition: New

Dissipation Power: Step Up Module

Model Number: 3.7V Liter 9V 5V 2A

Operating Temperature: Step Up Module

Origin: Mainland China

Supply Voltage: Step Up Module

Type: Voltage Regulator

is_customized: Yes

semi_Choice: yes

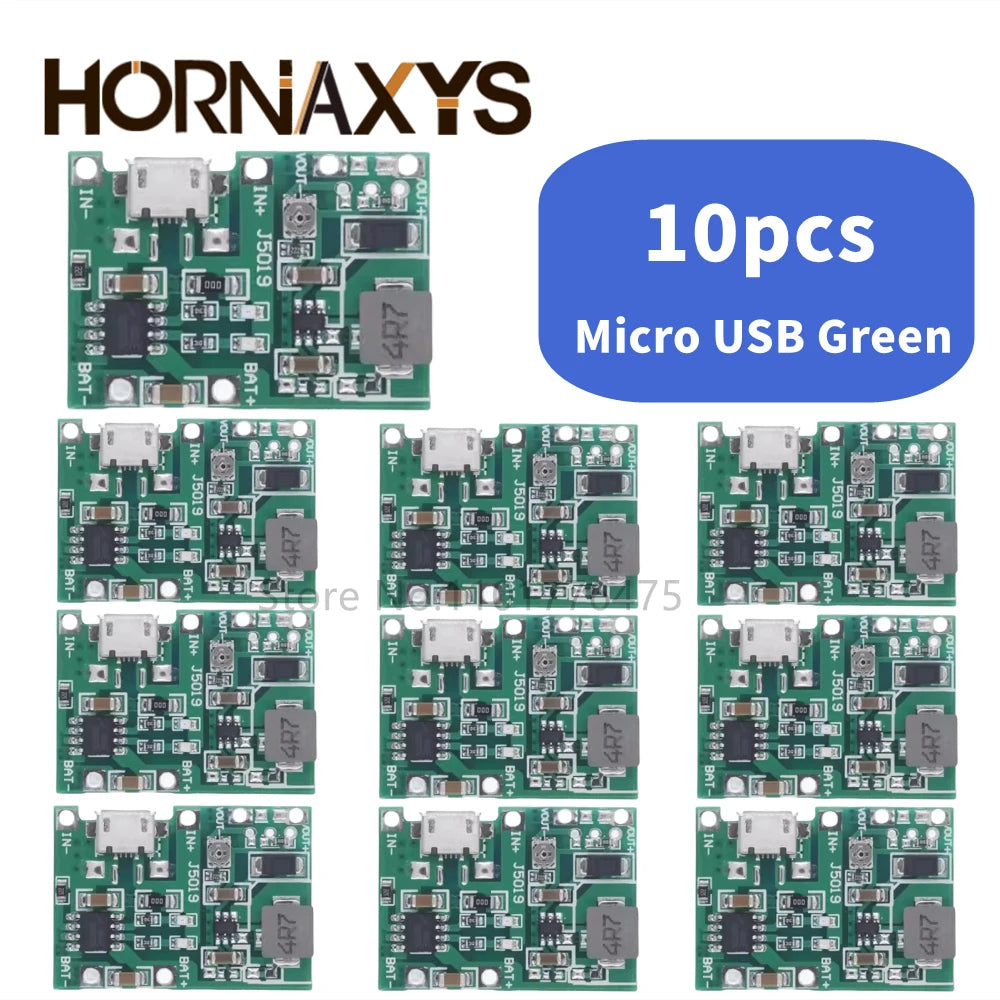

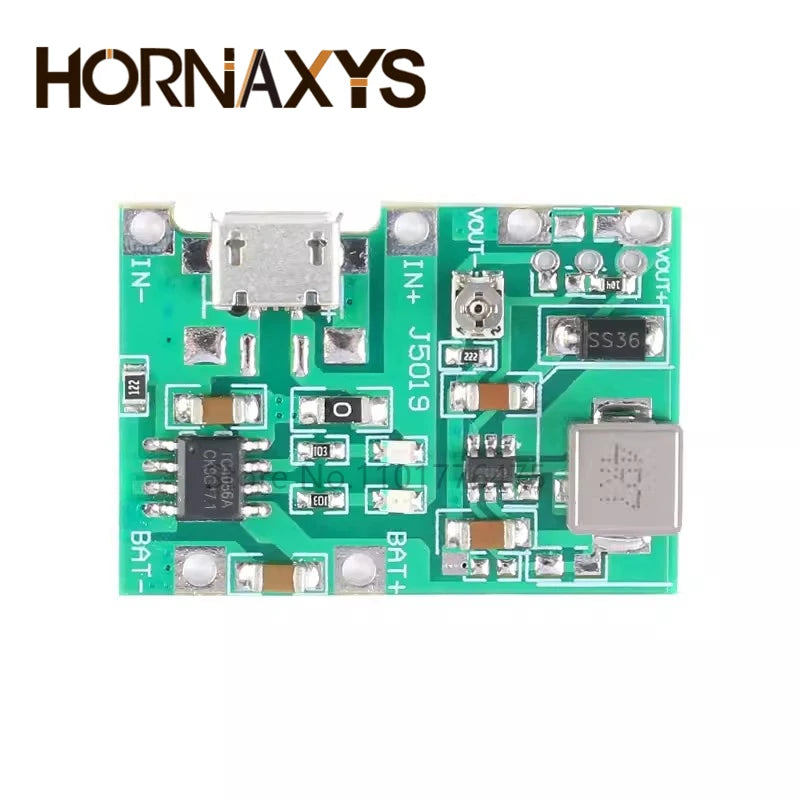

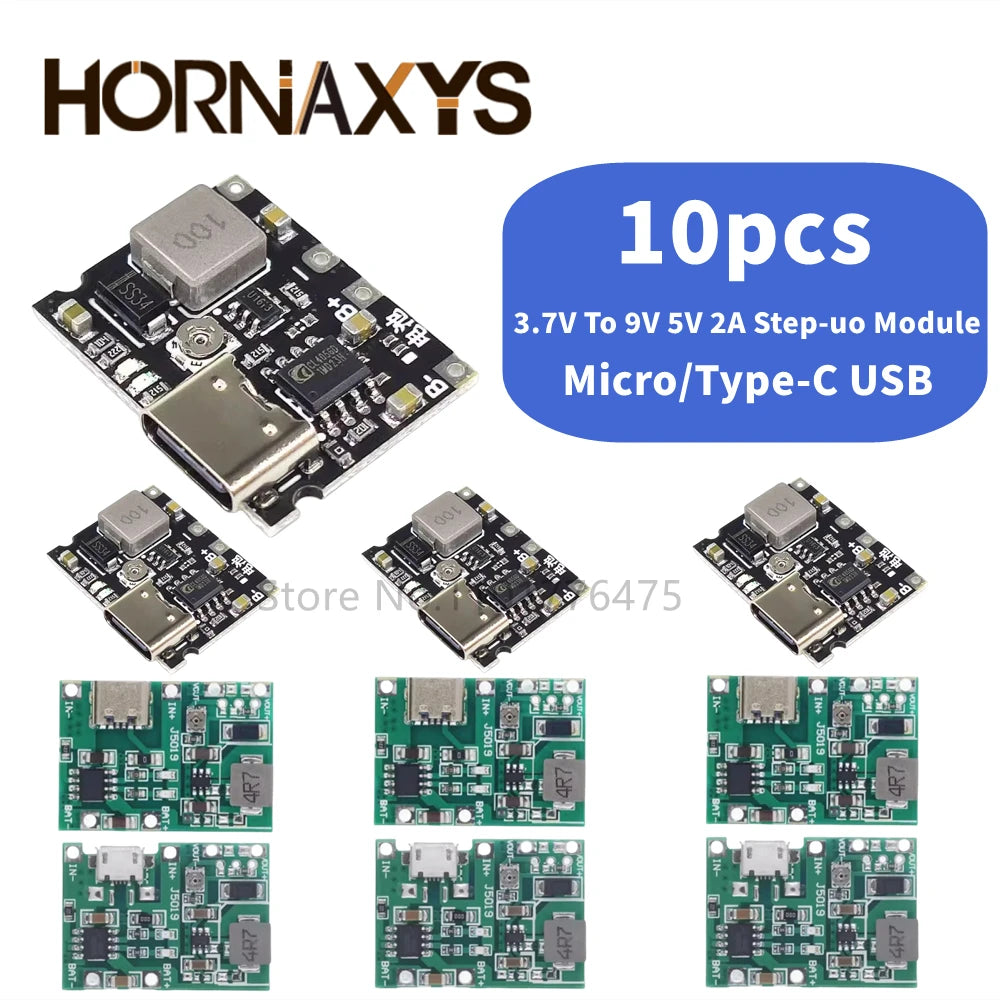

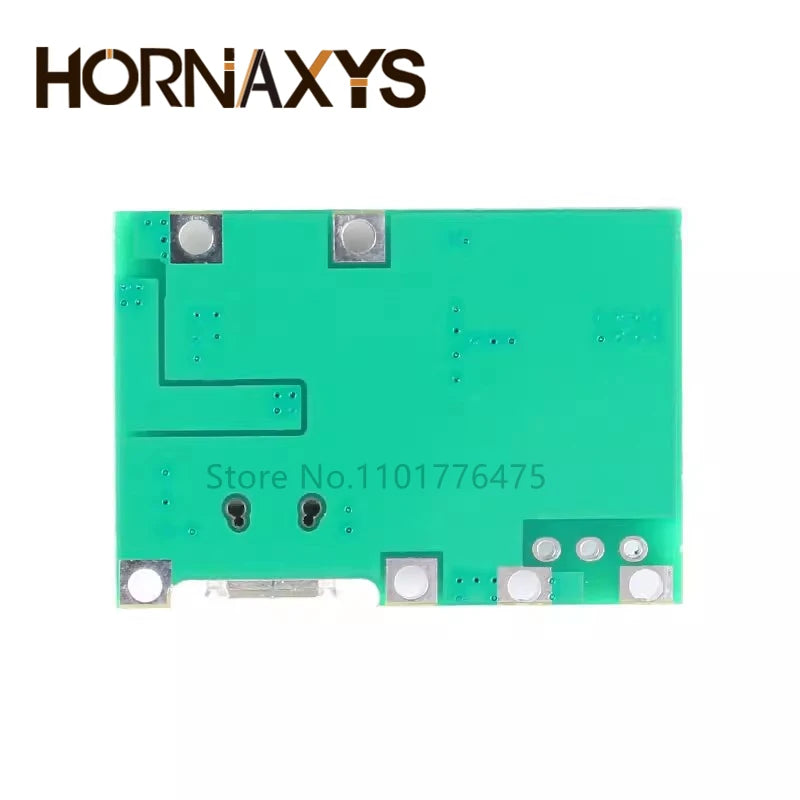

Green Module

Features:

1.100% brand new high-quality product with 2 interfaces to choose from.
2.Made of high-quality materials, DC4.3-27V adjustable voltage, durable and practical.
3.Small in size, only 3.3X2.3X0.9 CM, simple in application and easy to install.
4.Efficient and stable performance, long working life.
5.It has a wide range of applications and can be used for modifying a multimeter to charge lithium batteries.

Parameters:

USB interface model:

Interface: USB interface
Input voltage: DC4.5-8V
Output voltage: DC4.3V~27V adjustable
Output current: 2A MAX
Charging voltage: 4.2V
Charging current: 1A

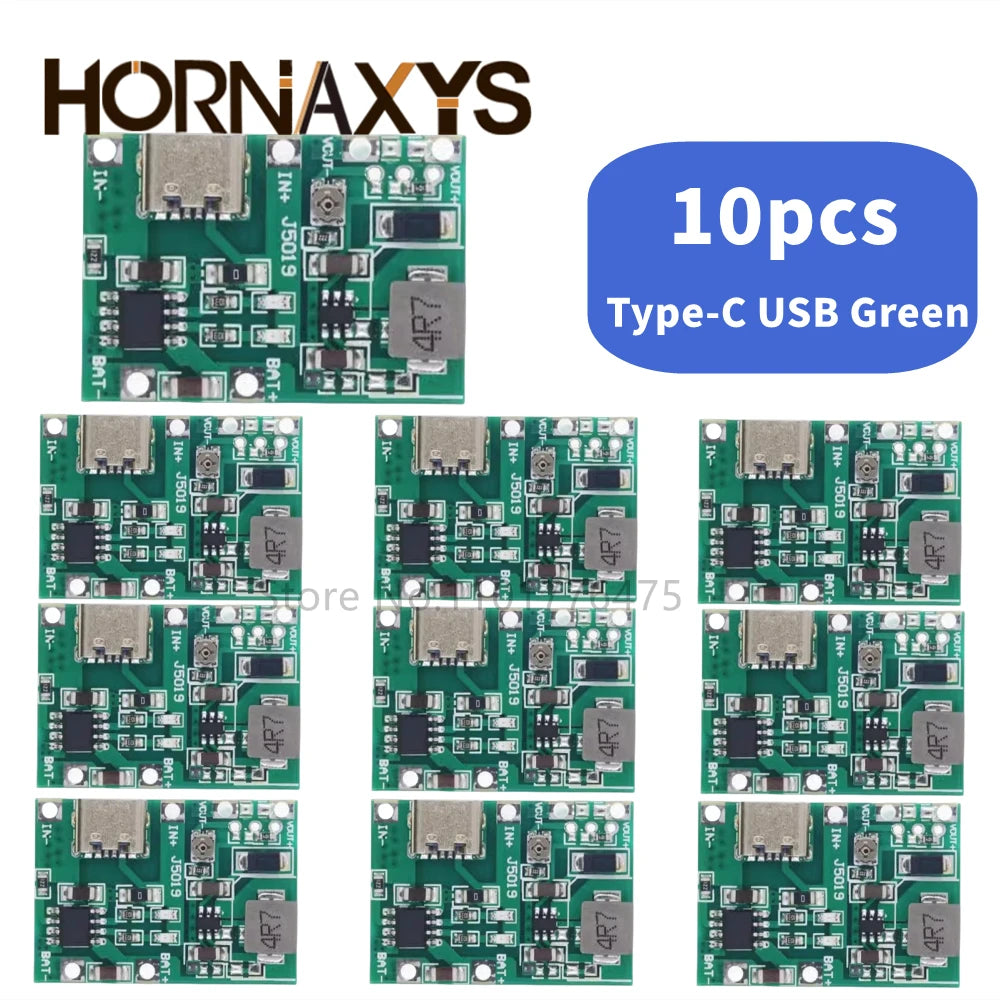

TYPE-C interface model:

Interface: TYPE-C interface
Debugging is completed before use, and the default output is about 9V
Input voltage: DC 4.5-8V
Output voltage: DC4.3-27V adjustable (any voltage above 4.3V and below 27V can be output, self adjustable, counterclockwise adjustable boost)
Charging voltage: 4.2V
Charging current: maximum 1A
Discharge current: maximum 2A (output current to be calculated by oneself, output reference maximum current 5V 1.4A, 9V 0.8A, 12V 0.6A
Quiescent current: approximately 0.5MA
Overcurrent protection: Yes
Size: 3.3X2.3X0.9 CM

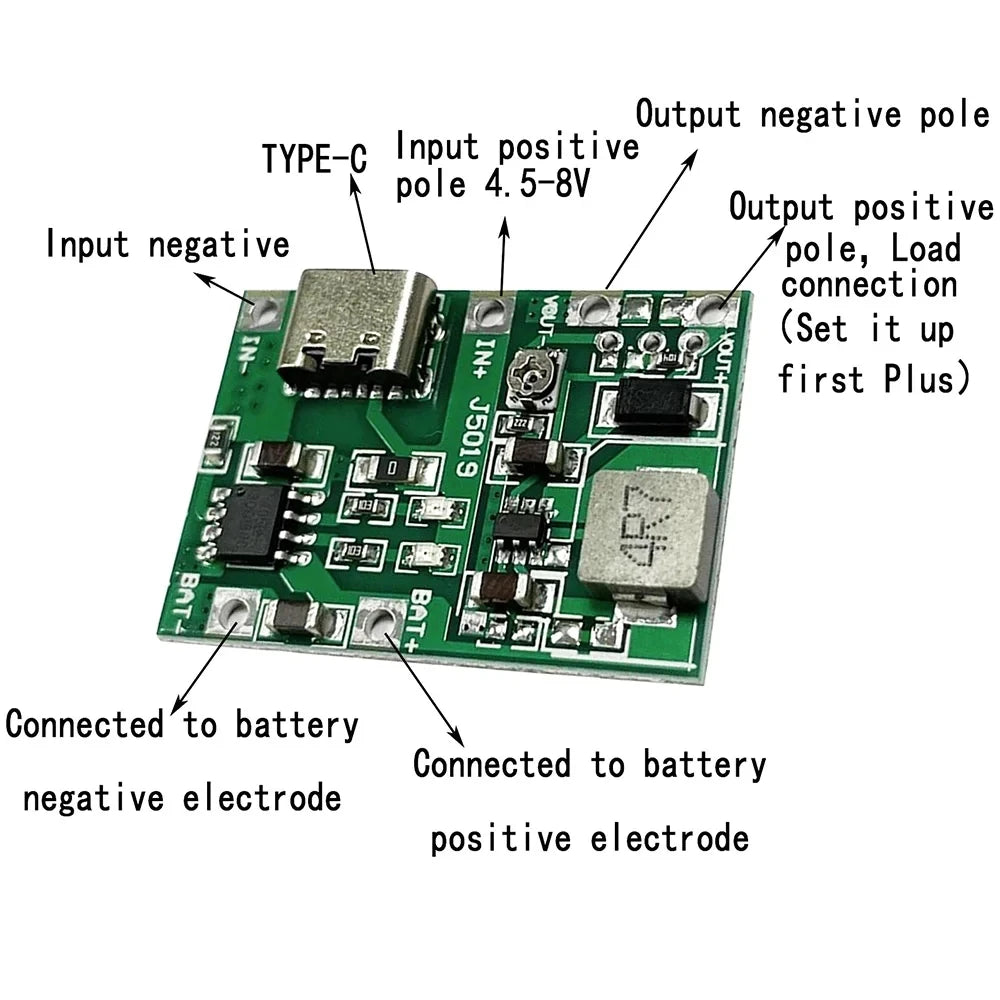

Wiring example:

For example, the VIN+terminal is connected to a 5V solar panel, and the BAT+terminal can output 4.2V to charge a 3.7V 18650 battery,
The OUT+terminal can output an adjustable voltage, which can be adjusted by oneself and used for modifying a multimeter to charge lithium batteries

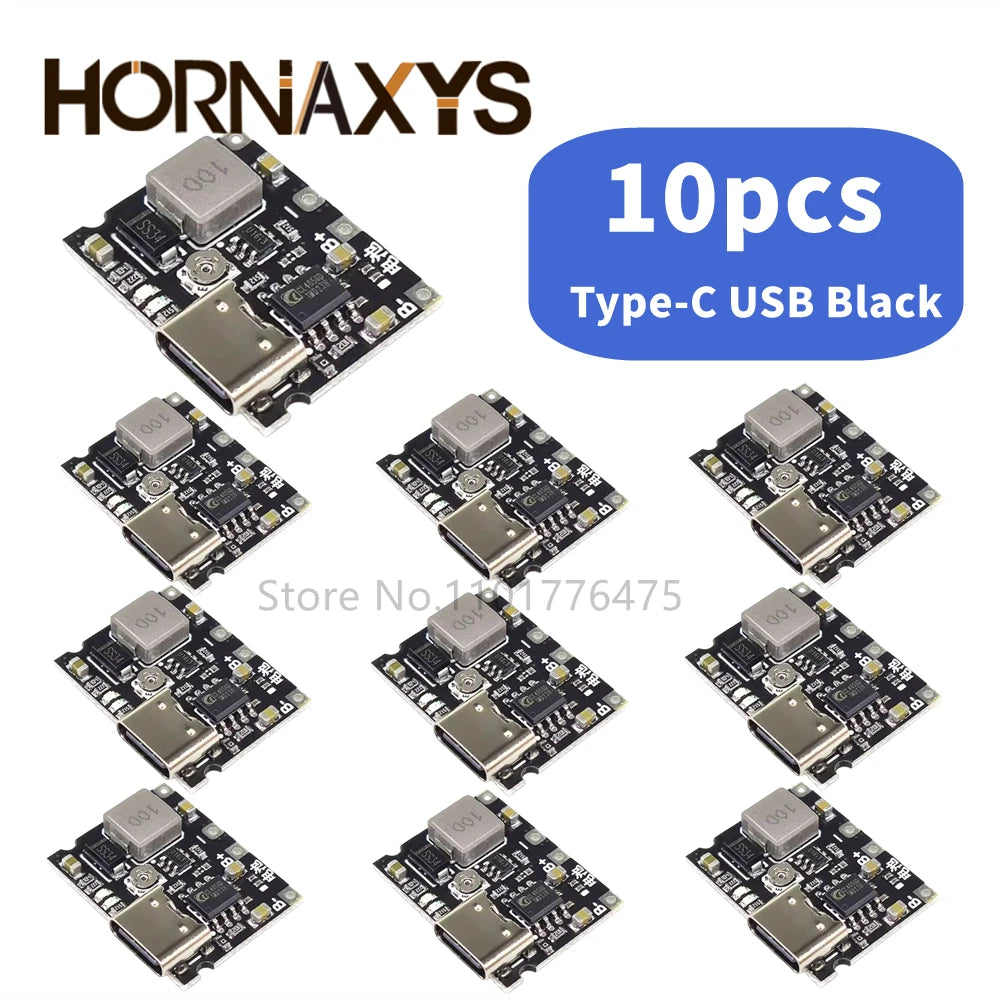

Black Module

3.7V Liter 9V Charging Boost Discharge Integrated Module 5V Multimeter Modified Charge Discharge Integrated Step Up Module Voltage Adjustable 2A for 18650 Lithium Battery
Feature:
1. Ultra-thin and Ultra-mini Design: With its super slim and compact design, this charge boost discharge adjustable module stands out for its exceptional chip quality control. It also features adjustable boost output voltage, allowing you to customize the output according to your needs.
2. Optional Battery Protection: Choose whether to include battery protection. With a programmable linear charging current of up to 1A, charging boost discharge integrated module ensures efficient and safe charging while extending battery life.
3. Multiple Protection Mechanisms: This charge discharge integrated module is equipped with multiple built-in protection mechanisms such as overvoltage protection, overcurrent protection, and short-circuit protection, ensuring the safety of both the module and connected devices.
4. Adjustable Parameters: Enjoy flexibility with adjustable parameters. This charge discharge integrated step up module typically offers adjustable output voltage and output current, empowering you to tailor the settings to meet specific requirements.
5. Integrated Design: Designed for convenience, this li-ion battery charger module integrates the functions of boosting and discharging into a single unit. The seamless integration simplifies wiring and installation processes, saving you time and effort.

Specification:
Origin: Mainland China
Type: Module
Condition: New
Product size: 24.00x20.00x4.00mm
Product size: 0.94x0.79x0.16inch

1. This link module is protected, and the battery can be used with or without protection. You do not need to worry about the T point. Just ignore these.
2. Attention! Notice! Customers who do not have a multimeter should not purchase this product. Do not ask for advice on how to adjust the voltage if you do not have a multimeter. The factory voltage is random.

Product features and parameters
1. Up to 1A programmable linear charging current
2. For single cell 3.7V lithium battery, fully charged 4.2V
3. Constant current/constant voltage charging with over-temperature protection
4. Soft start limits surge current, with battery reverse connection protection
5. Low power consumption standby to extend battery life
6. Dual output of charging status, no battery and fault status display
7. Can be activated at 0V and trickle charged at 2.9V
8. Working temperature -40~80℃
9. Input voltage range 4.2V~6.5V
10.Output voltage 4.2V-28V adjustable
11.Maximum power 5W

Charging indicator light description
The module can roughly judge the working status of the module through the two LED lights and other status. CHRG
It's red, stdby is blue. When the battery is charging, the red light is highlighted and the blue light is on.
Not on, but the red light is slightly brighter. If there is a boost output
Depending on the output power, the red light may be highlighted during charging but not connected.
When there is no load, the blue light is on and the red light is dimly on.

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
