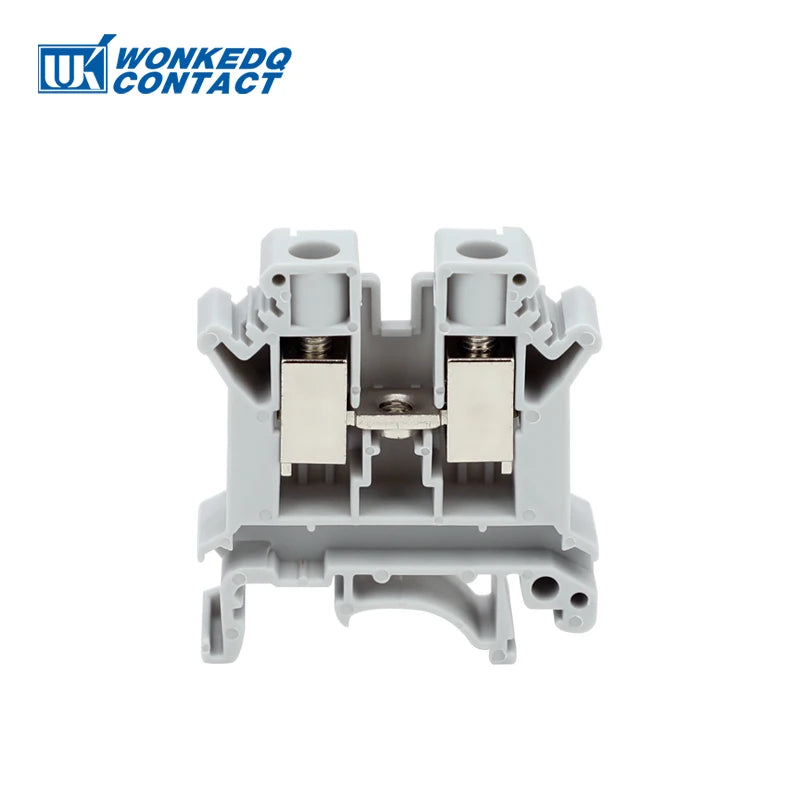

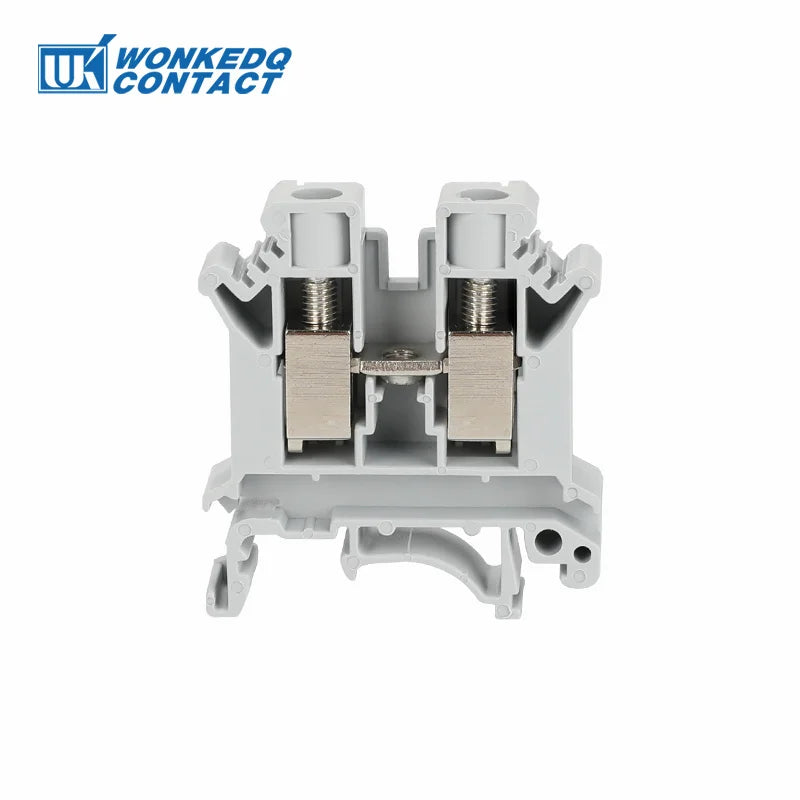

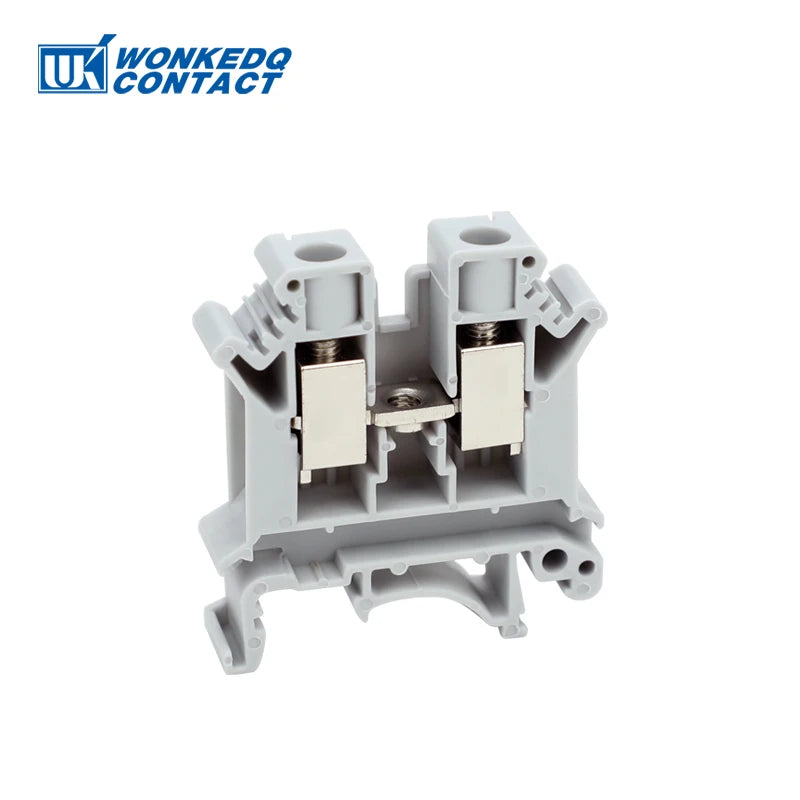

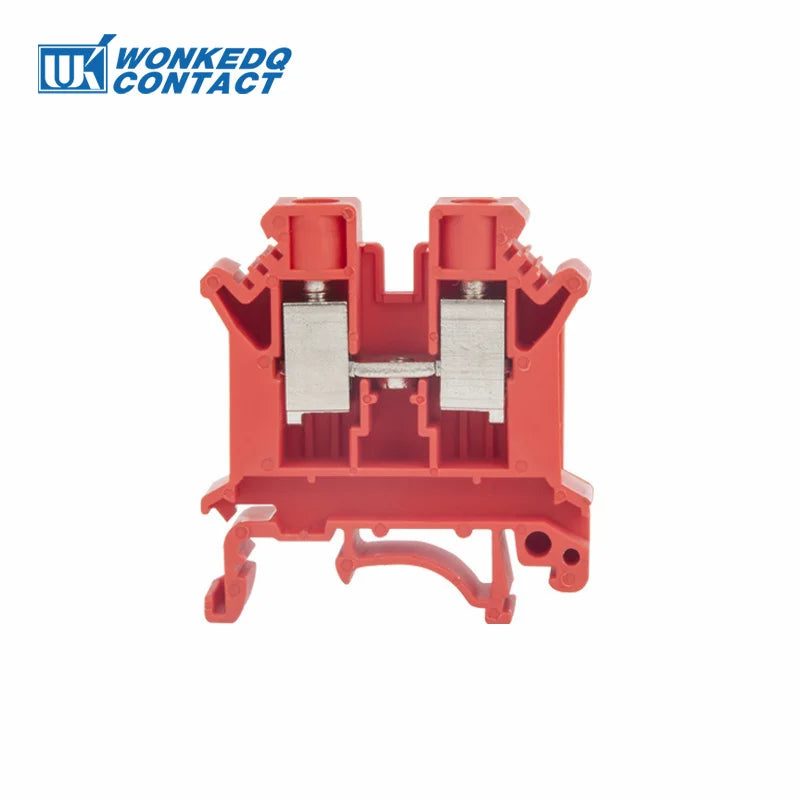

10Pcs UK 10N Screw Feed-through DIN Rail Terminal Block 10mm Cable Plug Multi-color Universal Wire Electrical Connector UK10N

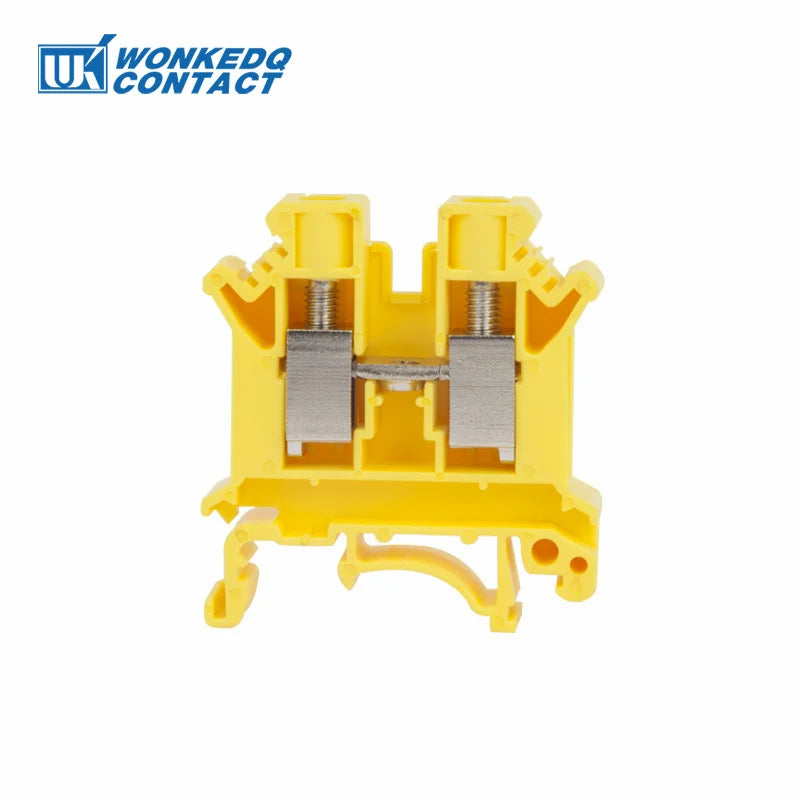

UK10N-Yellow / 10 Pcs
$33.84
Sale price
$33.84
Regular price
$0.00
Skip to product information

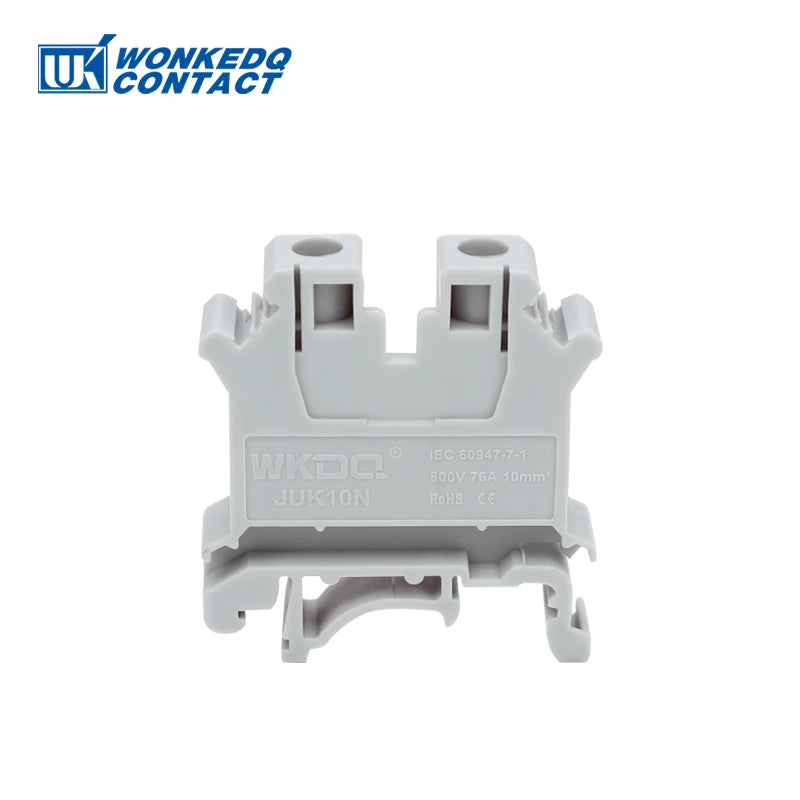

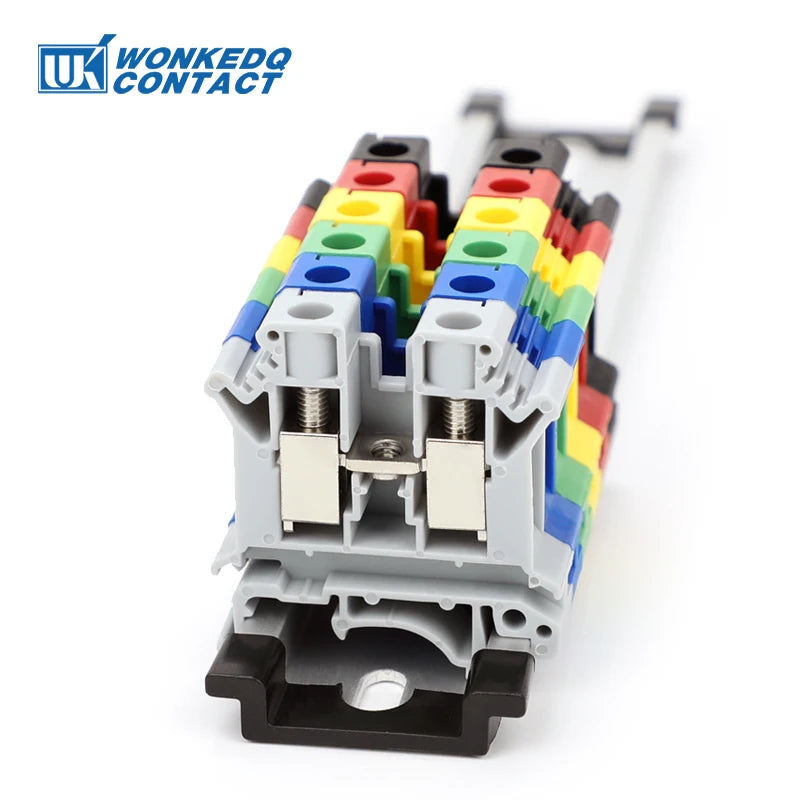

10Pcs UK 10N Screw Feed-through DIN Rail Terminal Block 10mm Cable Plug Multi-color Universal Wire Electrical Connector UK10N
$33.84
Sale price
$33.84
Regular price
$0.00
Description
SPECIFICATIONS
Application: Distribution Panel
Brand Name: WONKEDQ
Certification: CE,RoHS
Cross section soft cable: 0.5-10mm2
Cross section solid cable: 0.5-16mm2
Current: 76A
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
High-concerned chemical: none
Model Number: UK10N
Mounting Type: Din Rail
Origin: Mainland China
Size: 42.5/46.2/10.2mm
Type: Screw Terminal
Usage: Electrical wiring
Voltage: 800V
is_customized: Yes
DESCRIPTION
ACCESSORIES ( Click the pictures to the links)
ACCESSORIES ( Click the pictures to the links)
|
|
|
|
END COVER |
FIXED BRIDGE |
PLUG-IN BRIDGE |
MARKER STRIPS |
|
|
|
|
MARKER CARRIER |
MARKER CLIPS |
DIN RAIL |
END STOP |

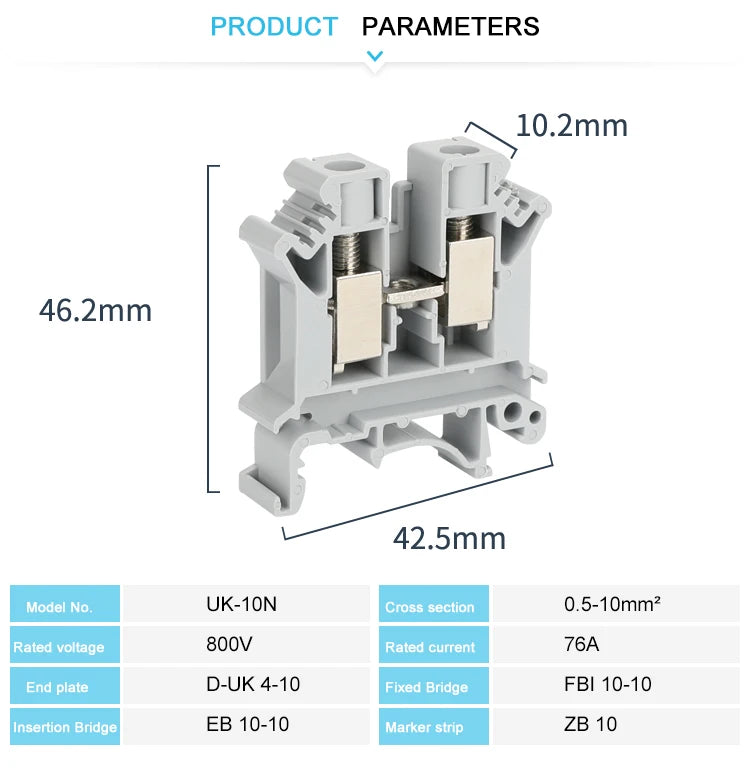

Technical Parameters
Type No. |
Details |
Accessories |
UK 10N |
800V/76A 0.5-16mm²/0.5-10mm² L42.5/H46.2/W10.2 mm |

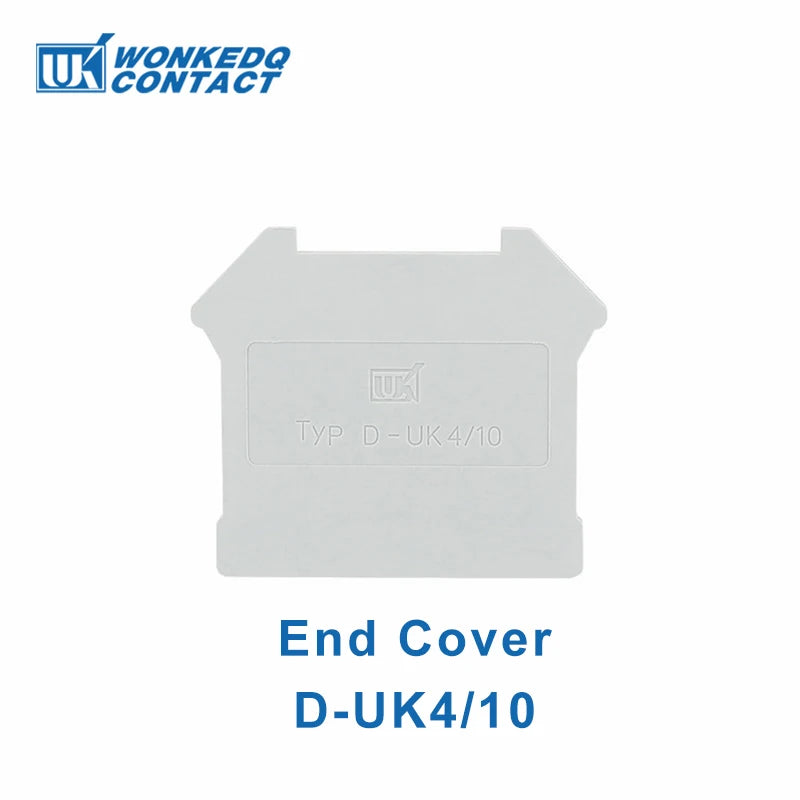

End cover: D-UK 4-10 |
Fixed bridge: FBI 10-10 | ||

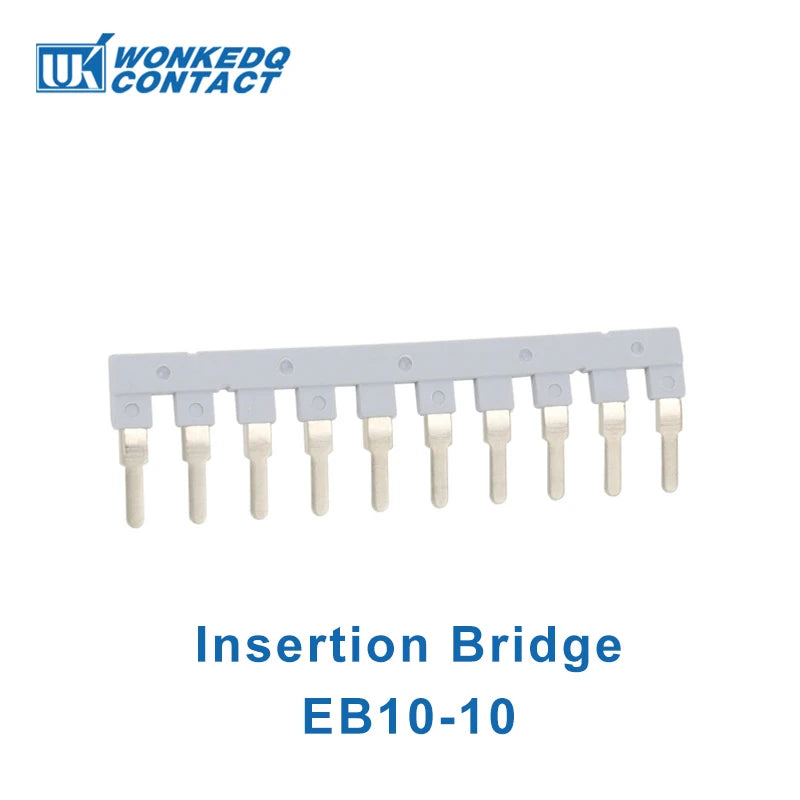

Plug-in bridge: EB 10-10 | ||
Marker strip: ZB 10 |
Model Number |
UK 10N |
Color |
Grey, Blue, other color can be customized |
Length/Height/Wide (mm) |
42.5/46.2/10.2 |
Connection method |
Screw connection |
Material |
Nylon PA66 |
Rated Voltage/Current |
800V/76A |
Cross section, solid/soft Cable |
0.5-16mm²/0.5-10mm² |
Conductor Size |
20-6 AWG |
Mounting Type |
NS 35/7.5 |
Standard |
IEC 60947-7-1 |
LOGO |
Customized logo are supported |
Packing Detail |
16.38g/pc, 50PCS/BOX,1200PCS/CTN |
Certification |
CE/RoHS/CQC/ISO 9001 |
