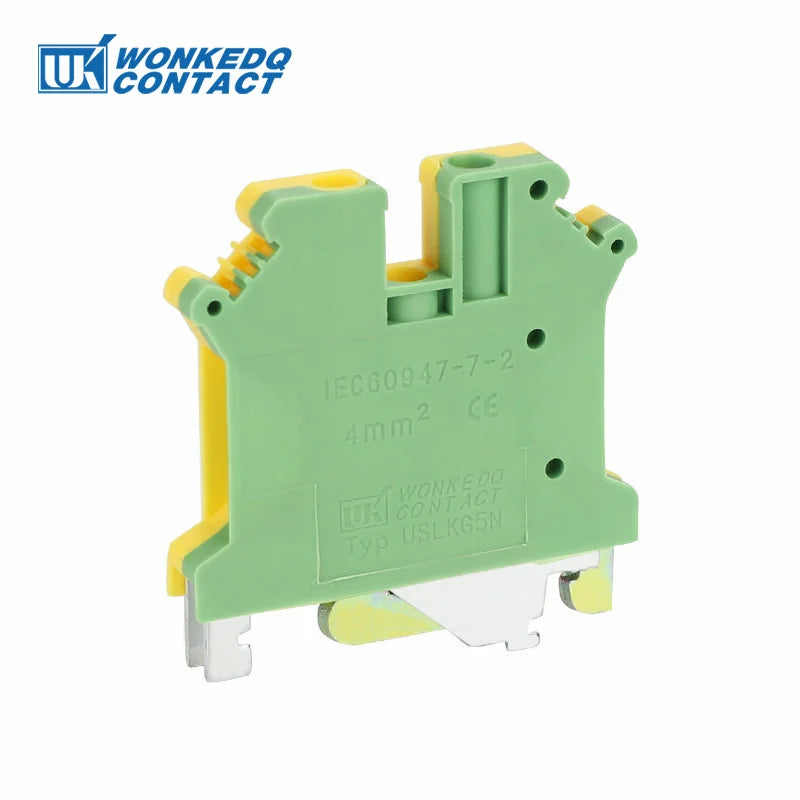

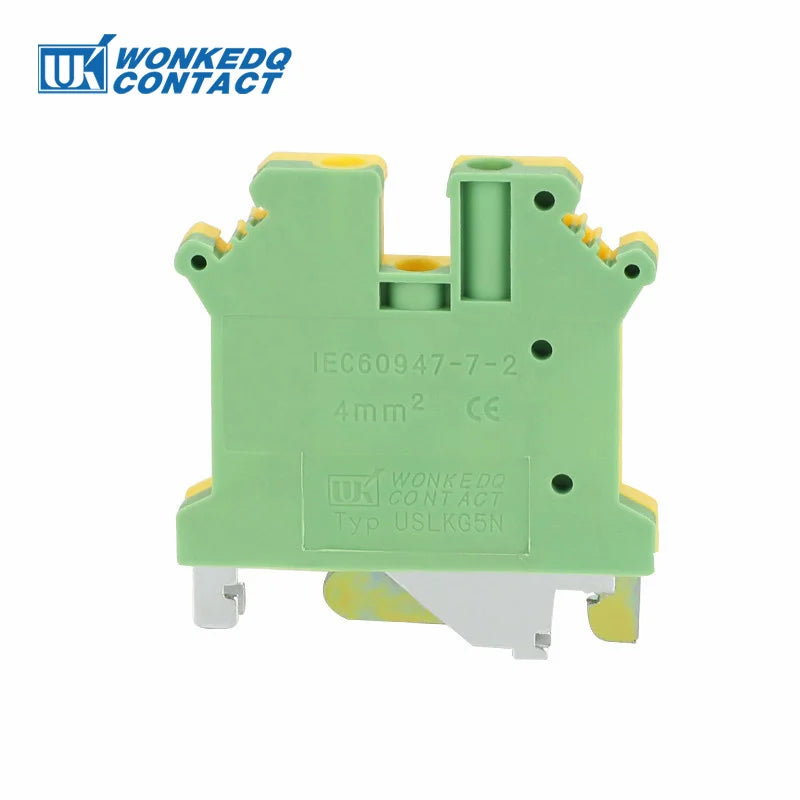

10Pcs USLKG5N USLKG5 Universal Screw Ground Protective Earth Modular Wire Electrical Connector Din Rail Terminal Block USLKG 5mm
USLKG5N / 10 Pcs
$46.68
Sale price
$46.68
Regular price
$0.00
Skip to product information
10Pcs USLKG5N USLKG5 Universal Screw Ground Protective Earth Modular Wire Electrical Connector Din Rail Terminal Block USLKG 5mm
$46.68
Sale price
$46.68
Regular price
$0.00
Description
SPECIFICATIONS
Application: Electrical wire conductor
Brand Name: WONKEDQ
Certification: CE,RoHS
Connection way: Screw
Cross section soft cable: 0.2-4mm2
Cross section solid cable: 0.2-6mm2
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
High-concerned chemical: none
Model Number: USLKG 5N

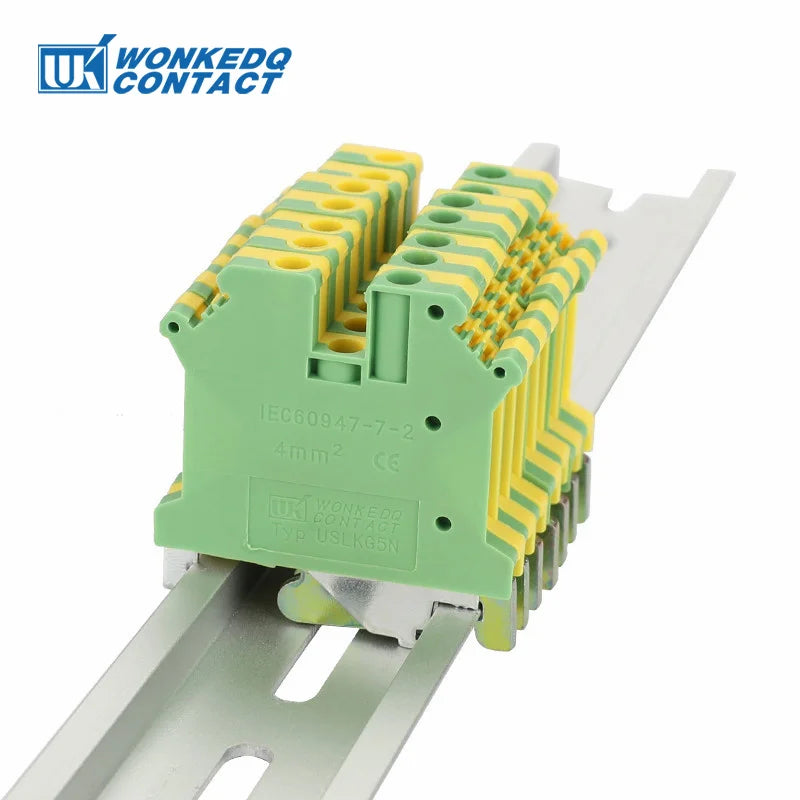

Mounting Type: Din Rail
Origin: Mainland China

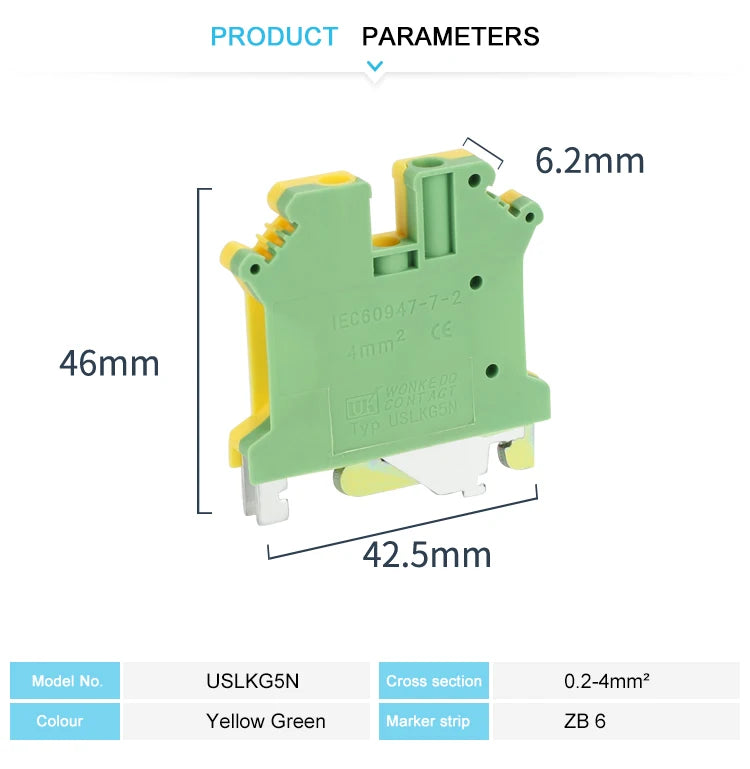

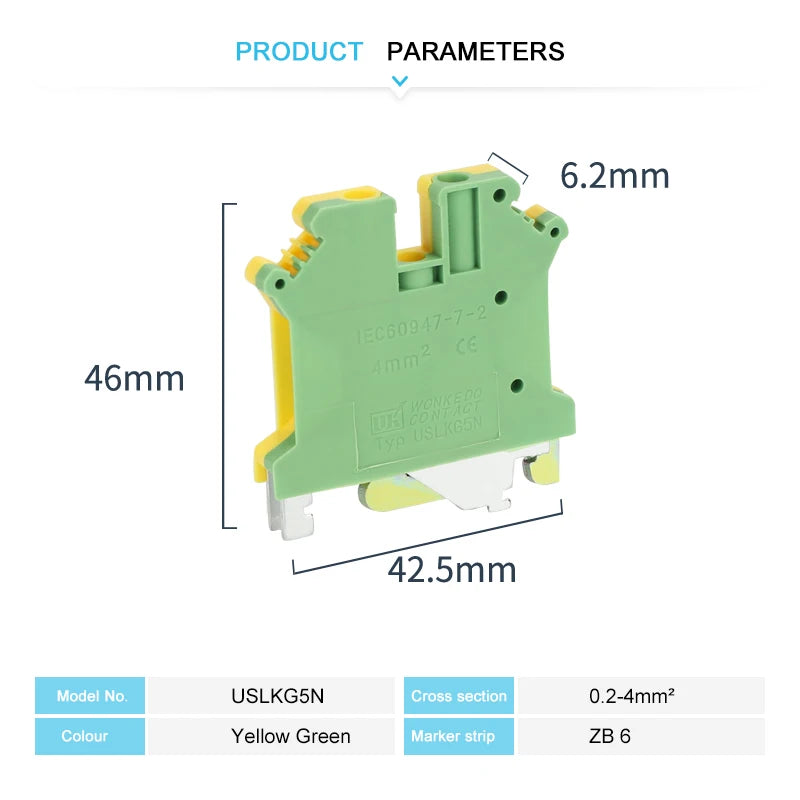

Size L/H/W: 42.5/46/6.2mm
Type: Screw Terminal
Usage: Distribution Panel
is_customized: Yes
DESCRIPTION
ACCESSORIES ( Click the pictures to the links)
ACCESSORIES ( Click the pictures to the links)
|
|
|
|
MARKER STRIPS |
END STOP |
MARKER CARRIER |
MARKER CLIPS |
|
|
|
|
DIN RAIL |
RECOMMEND (DIKD1.5) |
RECOMMEND (UK5N) |
RECOMMEND (UK3N) |
TECHNICAL PARAMETERS
Type No. |
Details |
Accessories |
USLKG 5N |
0.2-6mm²/0.2-4mm² L42.5/H46/W6.2 mm |
Marker strip: |
Model Number |
USLKG 5N, Ground Modular Terminal Block |
Color |
Yellow/Green, other color can be customized |
Length/Height/Wide (mm) |
42.5/46/6.2 |
Connection method |
Screw connection |
Material |
Nylon PA66 |
Rated Voltage/Current |
800V/41A |
Cross section, solid/soft Cable |
0.2-6mm2; /0.2-4mm2; |
Conductor Size |
24-10 AWG |
Mounting Type |
NS 35/7.5 |
Standard |
IEC 60947-7-1 |
LOGO |
Customized logo are supported |
Packing Detail |
18.87g/pc, 50PCS/BOX |
Certification |
CE/RoHS/CQC/ISO 9001 |
