SPECIFICATIONS

Application: Computer

Brand Name: NONE

Condition: New

High-concerned chemical: none

Origin: Mainland China

Package: SOP

Quantity: 10

Supply Voltage: 5V-80V

Type: buck (stepdown) regulator

is_customized: Yes

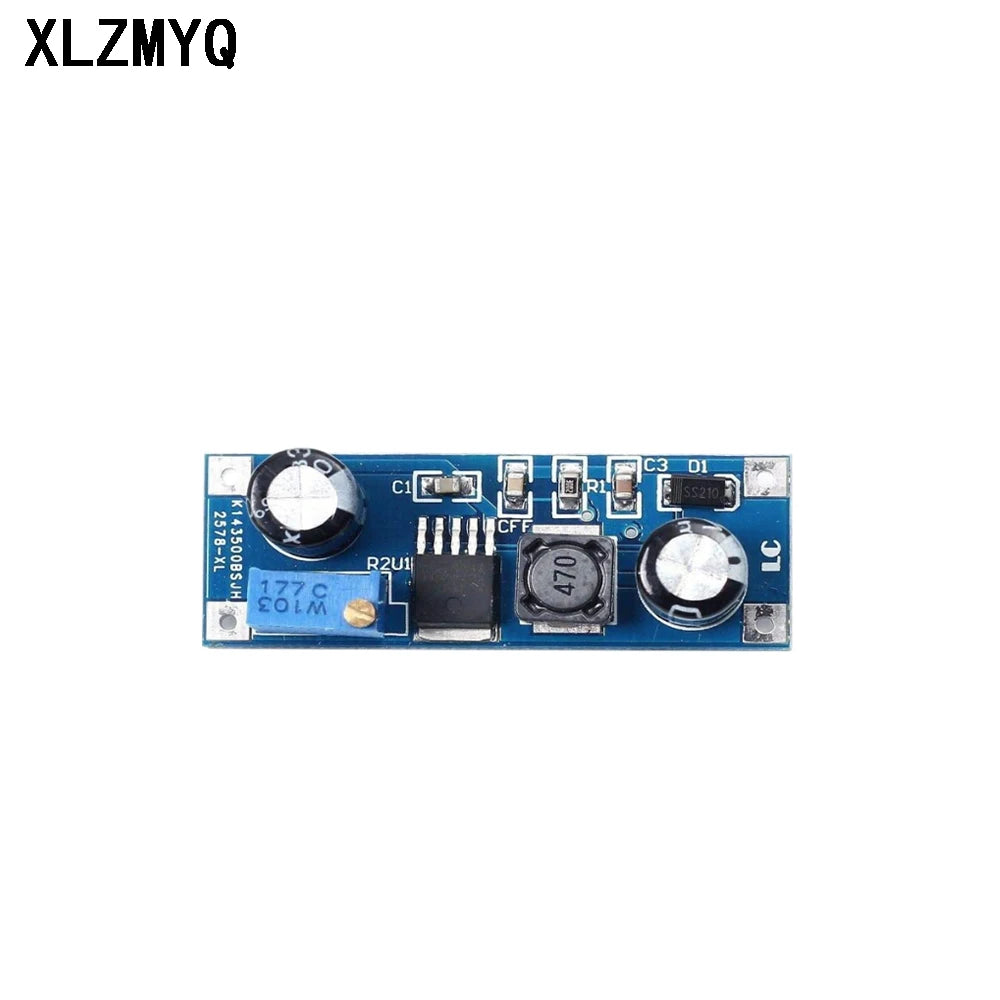

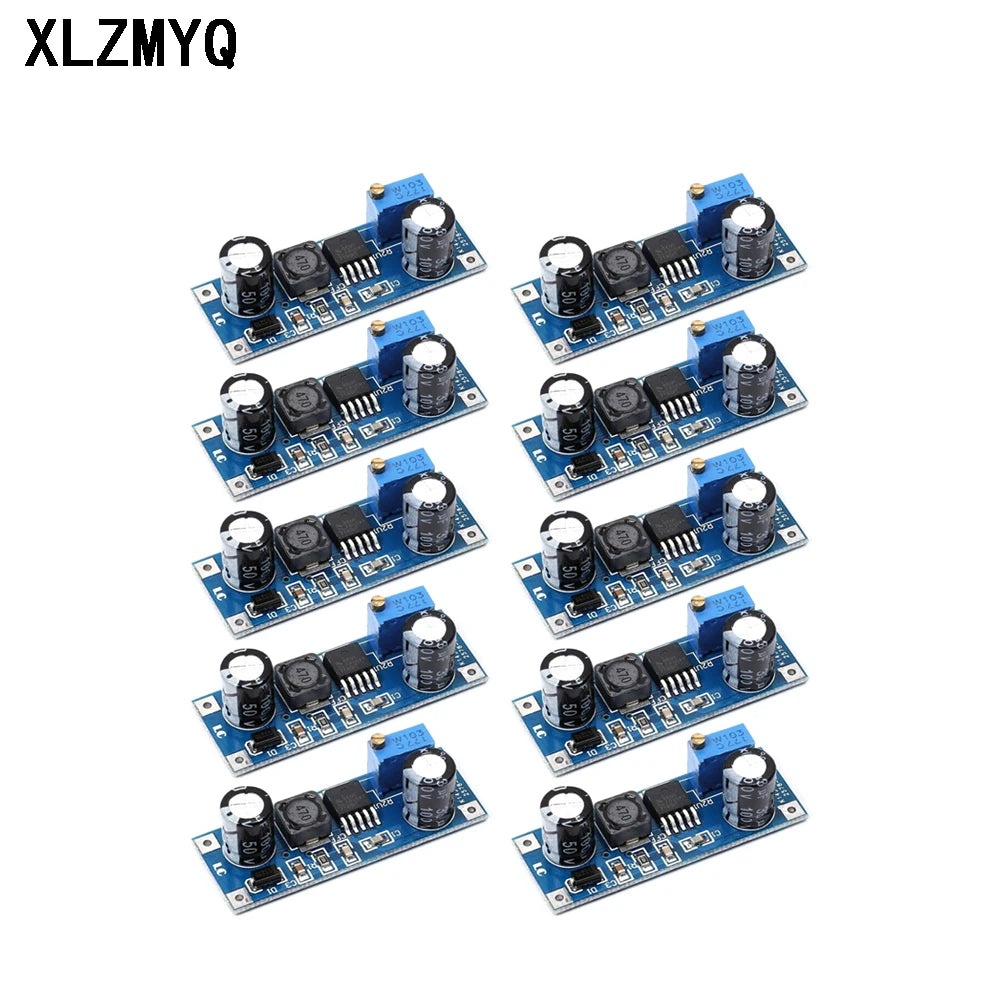

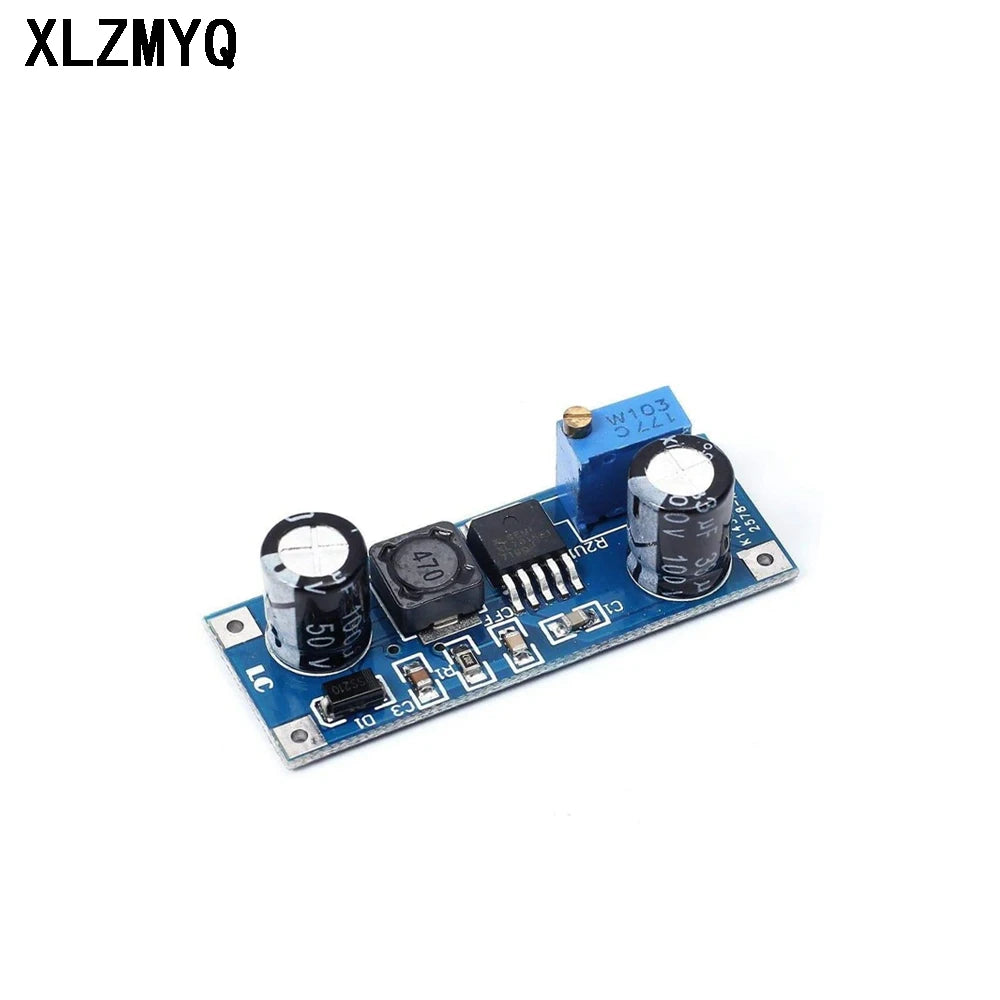

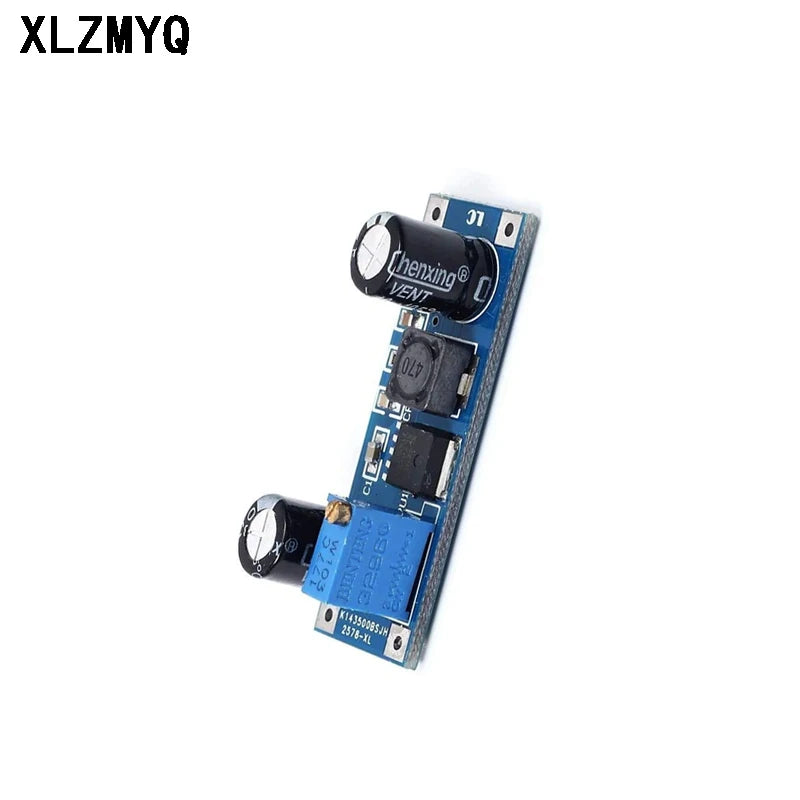

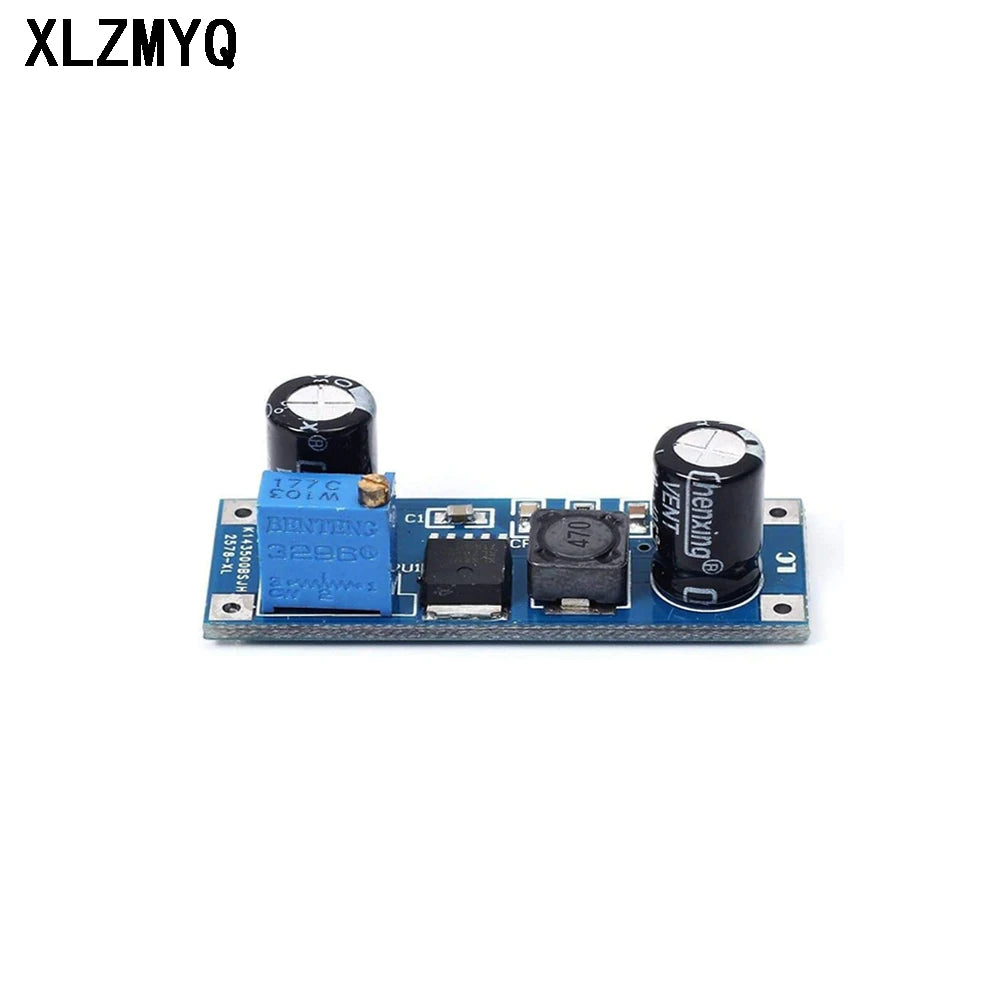

10PCS XL7015 5V-80V DC-DC 0.8A DC-DC Buck Converter Step-down Module Wide Voltage Input XL7005A LM2596 Power Supply Board

Product introduction:
The XL7015 DC-DC step-down module is a high-efficiency, high-voltage step-down DC-DC converter that provides high 0.8A output current capability, low ripple, excellent line regulation and load regulation, and the input voltage can reach 80V, far more than 2596 and other modules. The chip has built-in various protection mechanisms. It can be applied to electric vehicle controller, etc.

1. Wide input voltage range from 5V to 80V;
2. The output voltage is adjustable from 5V to 20V;
3. Small voltage drop 1V;
4. Large switch current 0.8A;
5. The recommended output power is less than 7W;
6. Built-in overheat shutdown protection, output short circuit protection, overcurrent protection;
7. Excellent linear and load regulation;

Wiring Instructions：
1. VIN: voltage input terminal (5V-80V);
2. GND: input voltage ground terminal;
3. VOUT: output voltage terminal (5V-20V);
4. GND: output voltage ground terminal.
