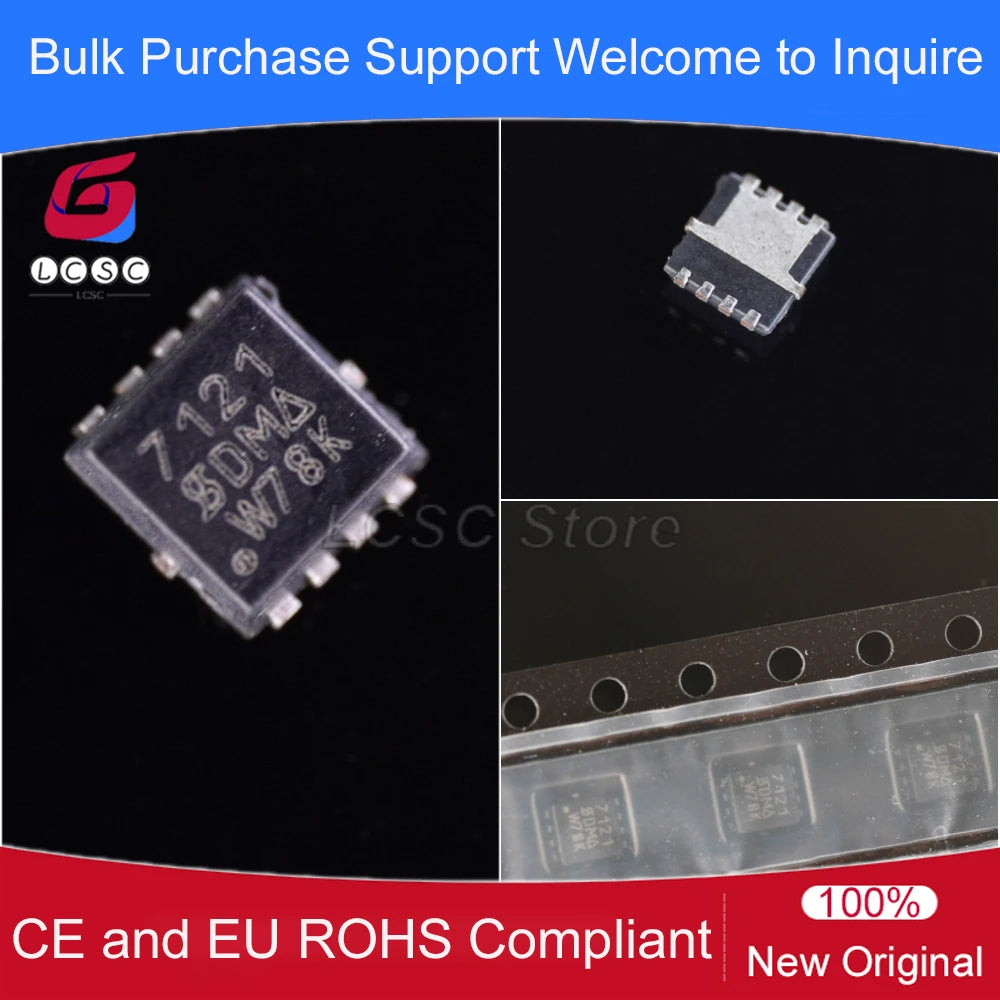

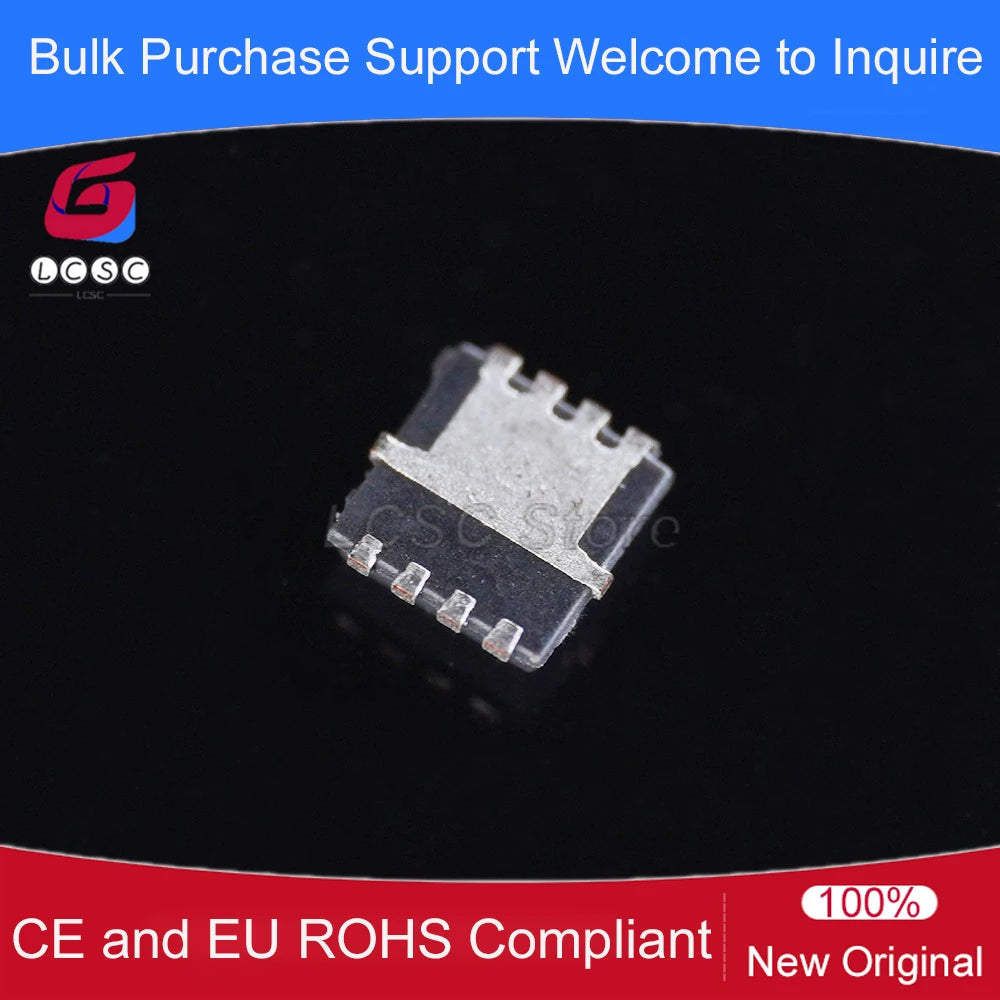

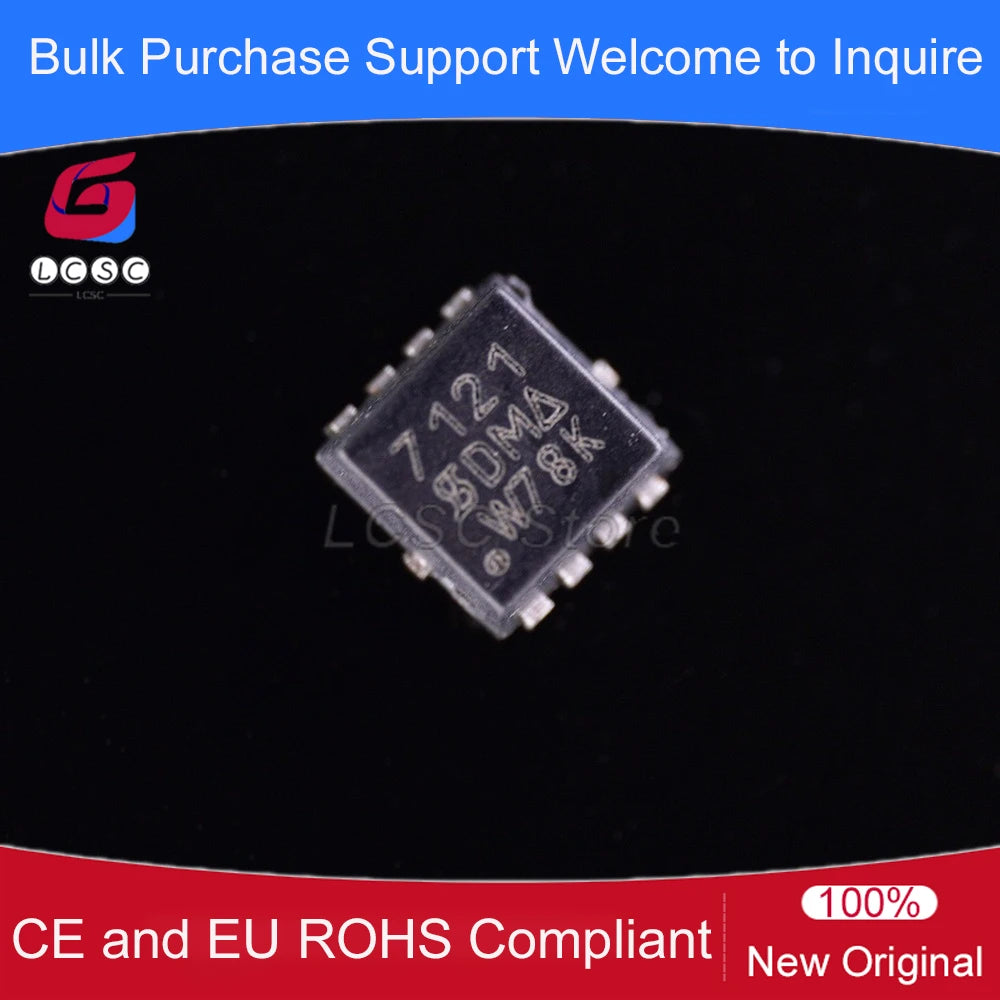

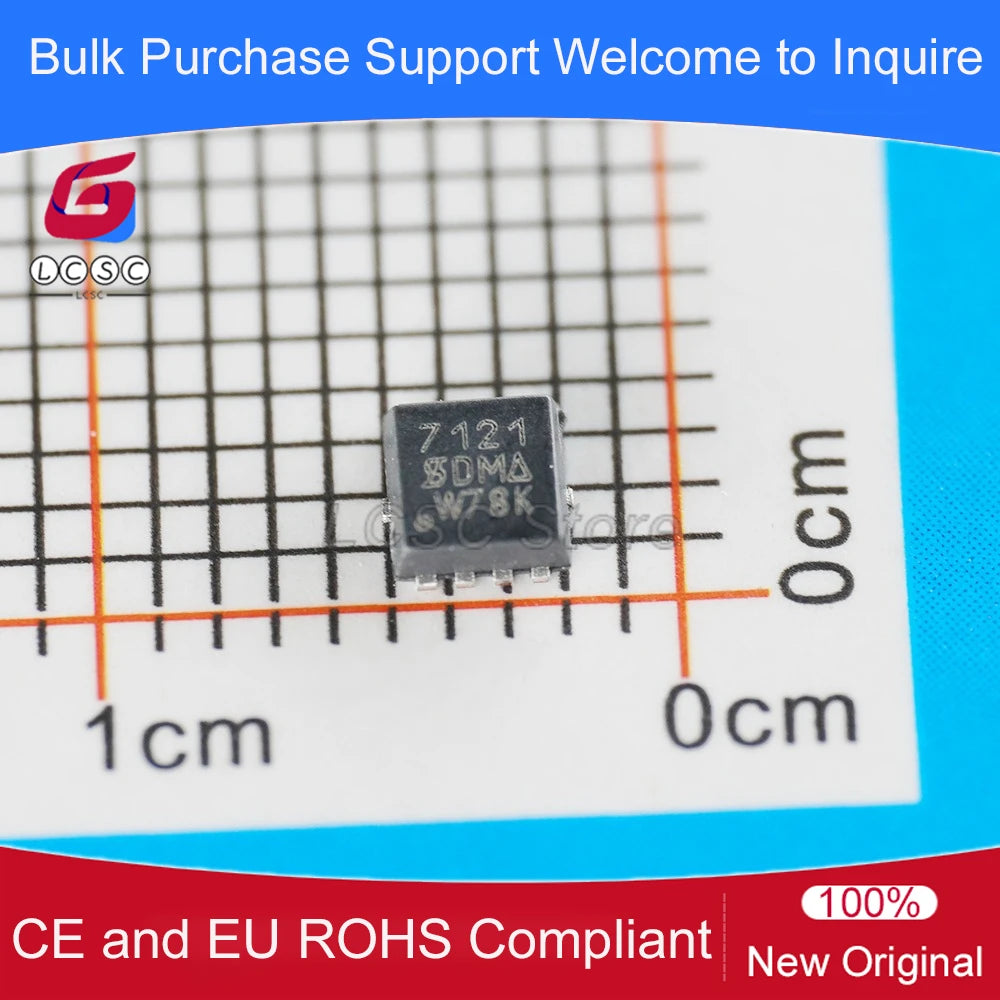

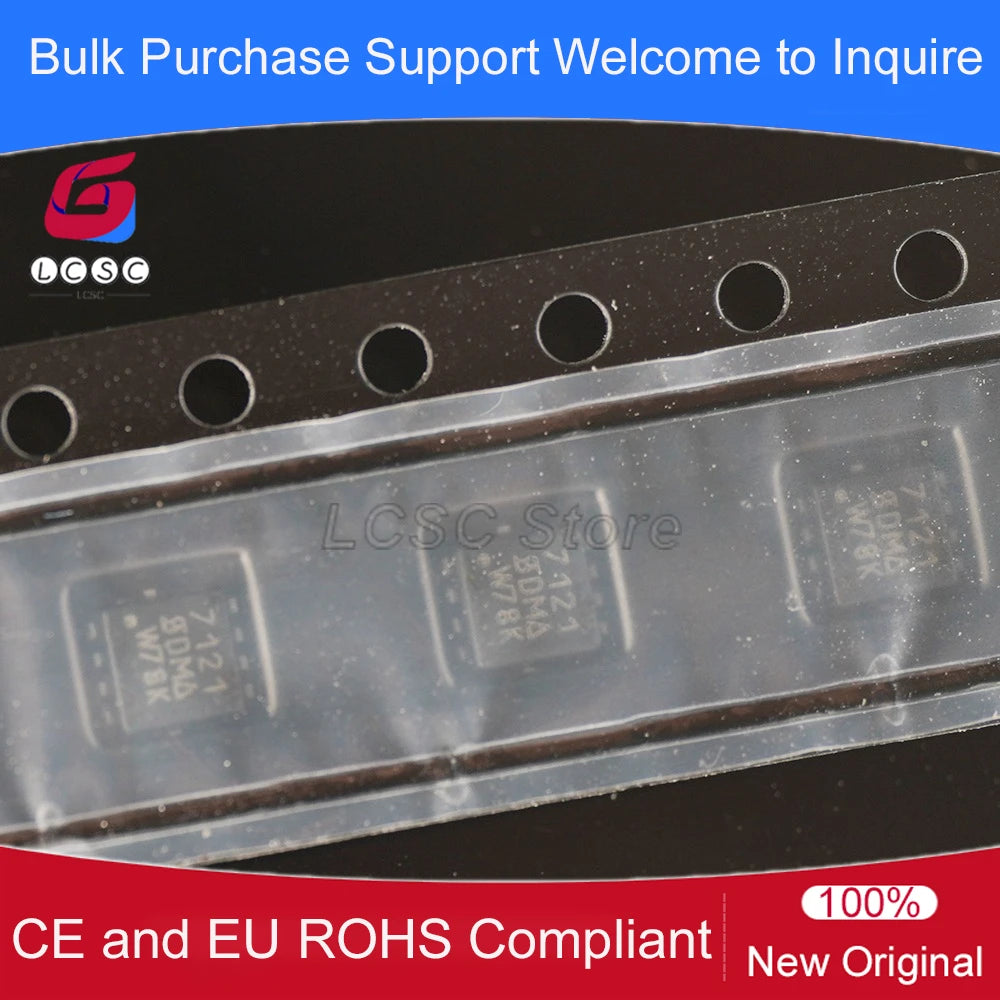

10pieces/Pack SI7121DN-T1-GE3 SMD-8 MOSFET P-Channel 30V 18A Field Effect Transistor Code Mark 7121
SI7121DN-T1-GE3
$36.68
Sale price
$36.68
Regular price
$0.00
Skip to product information
10pieces/Pack SI7121DN-T1-GE3 SMD-8 MOSFET P-Channel 30V 18A Field Effect Transistor Code Mark 7121
$36.68
Sale price
$36.68
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Choice: yes
Condition: New
High-concerned chemical: none
Model Number: SI7121DN-T1-GE3
Origin: Mainland China
Package Type: Surface mount
Type: Field-Effect Transistor
semi_Choice: yes
Packaging PowerPAK1212-8
Configuration -
Drain to Source Voltage 30V
Output Capacitance(Coss) 245pF
Current - Continuous Drain(Id) 18A
Operating Temperature - -50℃~+150℃
Gate Threshold Voltage (Vgs(th)) 2.5V
Pd - Power Dissipation 27.8W
Reverse Transfer Capacitance (Crss@Vds) 212pF
RDS(on) 26mΩ@4.5V
Number 1 P-Channel
Input Capacitance(Ciss) 1.87nF
Gate Charge(Qg) 50nC@10V
Type P-Channel
Configuration -
Drain to Source Voltage 30V
Output Capacitance(Coss) 245pF
Current - Continuous Drain(Id) 18A
Operating Temperature - -50℃~+150℃
Gate Threshold Voltage (Vgs(th)) 2.5V
Pd - Power Dissipation 27.8W
Reverse Transfer Capacitance (Crss@Vds) 212pF
RDS(on) 26mΩ@4.5V
Number 1 P-Channel
Input Capacitance(Ciss) 1.87nF
Gate Charge(Qg) 50nC@10V
Type P-Channel
Features
- TrenchFET Power MOSFET
- Low thermal resistance PowerPAK package
- 100 % Rg and UIS tested
- RoHS COMPLIANT HALOGEN FREE
Applications
- Notebook computers and mobile computing
- Adaptor switch / Load switch
- Battery management
- Power management
