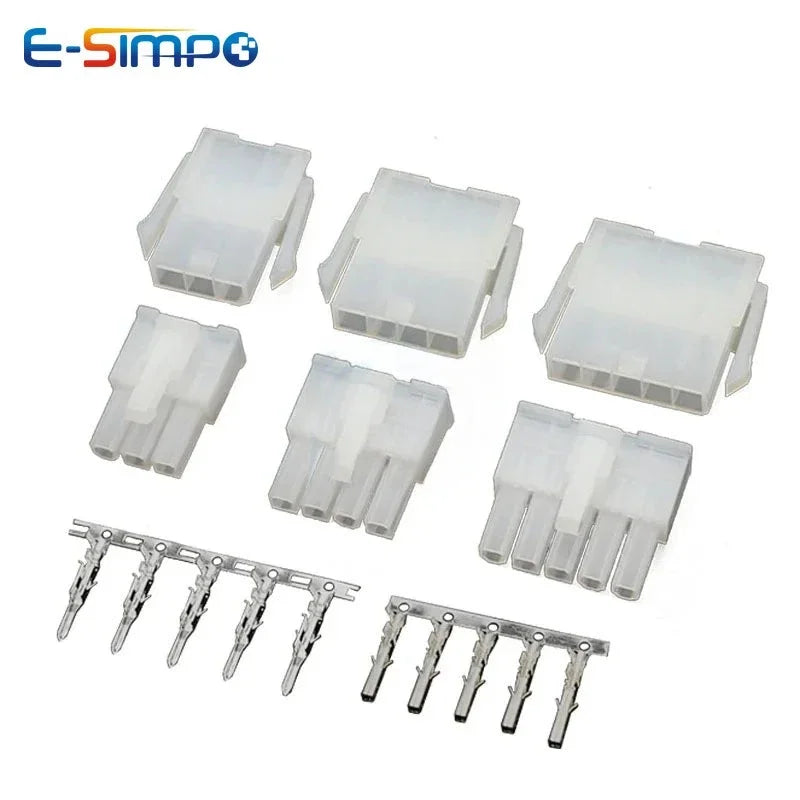

10Sets 4.2mm 0.165" Pitch MOLEX Mini-Fit 5557/5559 Single Row 1*2/3/4/5/6Pin Male Plug Female Receptacle Terminal Connector

10Sets 4.2mm 0.165" Pitch MOLEX Mini-Fit 5557/5559 Single Row 1*2/3/4/5/6Pin Male Plug Female Receptacle Terminal Connector

1x6P
$26.72
$26.72 $0.00
Skip to product information
10Sets 4.2mm 0.165" Pitch MOLEX Mini-Fit 5557/5559 Single Row 1*2/3/4/5/6Pin Male Plug Female Receptacle Terminal Connector
  • 10Sets 4.2mm 0.165" Pitch MOLEX Mini-Fit 5557/5559 Single Row 1*2/3/4/5/6Pin Male Plug Female Receptacle Terminal Connector
  • 10Sets 4.2mm 0.165" Pitch MOLEX Mini-Fit 5557/5559 Single Row 1*2/3/4/5/6Pin Male Plug Female Receptacle Terminal Connector
  • 10Sets 4.2mm 0.165" Pitch MOLEX Mini-Fit 5557/5559 Single Row 1*2/3/4/5/6Pin Male Plug Female Receptacle Terminal Connector
  • 10Sets 4.2mm 0.165" Pitch MOLEX Mini-Fit 5557/5559 Single Row 1*2/3/4/5/6Pin Male Plug Female Receptacle Terminal Connector
  • 10Sets 4.2mm 0.165" Pitch MOLEX Mini-Fit 5557/5559 Single Row 1*2/3/4/5/6Pin Male Plug Female Receptacle Terminal Connector
  • 10Sets 4.2mm 0.165" Pitch MOLEX Mini-Fit 5557/5559 Single Row 1*2/3/4/5/6Pin Male Plug Female Receptacle Terminal Connector
  • 10Sets 4.2mm 0.165" Pitch MOLEX Mini-Fit 5557/5559 Single Row 1*2/3/4/5/6Pin Male Plug Female Receptacle Terminal Connector
  • 10Sets 4.2mm 0.165" Pitch MOLEX Mini-Fit 5557/5559 Single Row 1*2/3/4/5/6Pin Male Plug Female Receptacle Terminal Connector
  • 10Sets 4.2mm 0.165" Pitch MOLEX Mini-Fit 5557/5559 Single Row 1*2/3/4/5/6Pin Male Plug Female Receptacle Terminal Connector
  • 10Sets 4.2mm 0.165" Pitch MOLEX Mini-Fit 5557/5559 Single Row 1*2/3/4/5/6Pin Male Plug Female Receptacle Terminal Connector
10Sets 4.2mm 0.165" Pitch MOLEX Mini-Fit 5557/5559 Single Row 1*2/3/4/5/6Pin Male Plug Female Receptacle Terminal Connector
10Sets 4.2mm 0.165" Pitch MOLEX Mini-Fit 5557/5559 Single Row 1*2/3/4/5/6Pin Male Plug Female Receptacle Terminal Connector
$26.72
$26.72 $0.00
Pins
Description

SPECIFICATIONS

Brand Name: E-SIMPO

Certification: RoHS

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: 5557/5559 Single Row Male Female Rubber Housing Male Female Terminal

Origin: Mainland China

Voltage: 5 V 12 V 20 V 30 V

10Sets 4.2mm 0.165" Pitch MOLEX Mini-Fit 5557/5559 Single Row 1*2/3/4/5/6Pin Male Plug Female Receptacle Terminal Connector

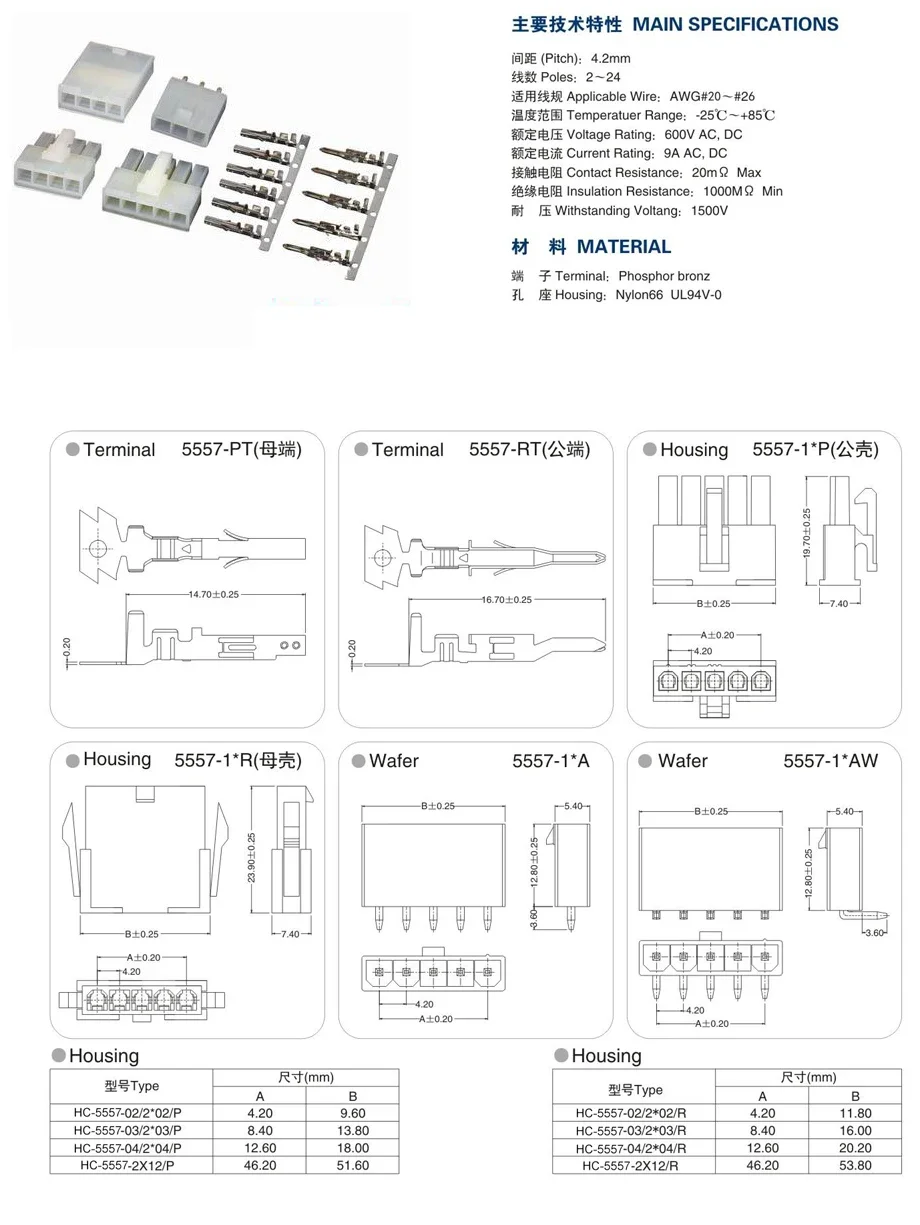

MAIN SPECIFICATIONS
Pitch:4.2mm
Poles:2~24
Applicable Wire:AWG#20~#26
Temperatuer Range:-25℃~+85℃
Voltage Rating:600V AC,DC
Current Rating:9A AC,DC
Contact Resistance:20mΩ Max
Insulation Resistance:1000MΩ Min
Withstanding Voltang:1500V

MATERIAL
Terminal:Phosphor bronz
Housing:Nylon66 UL94V-0
