SPECIFICATIONS

Brand Name: Aideepen

Certification: NONE

Choice: yes

Condition: New

DIY Supplies: Electrical

Dropship: Support

Electronic: No

High-concerned chemical: none

Key Word: Chip micro IC Clamp

Model Number: 10 PCS Chip Clamp

Origin: Mainland China

Output Voltage: As Description

Semi-finishedproduct: No

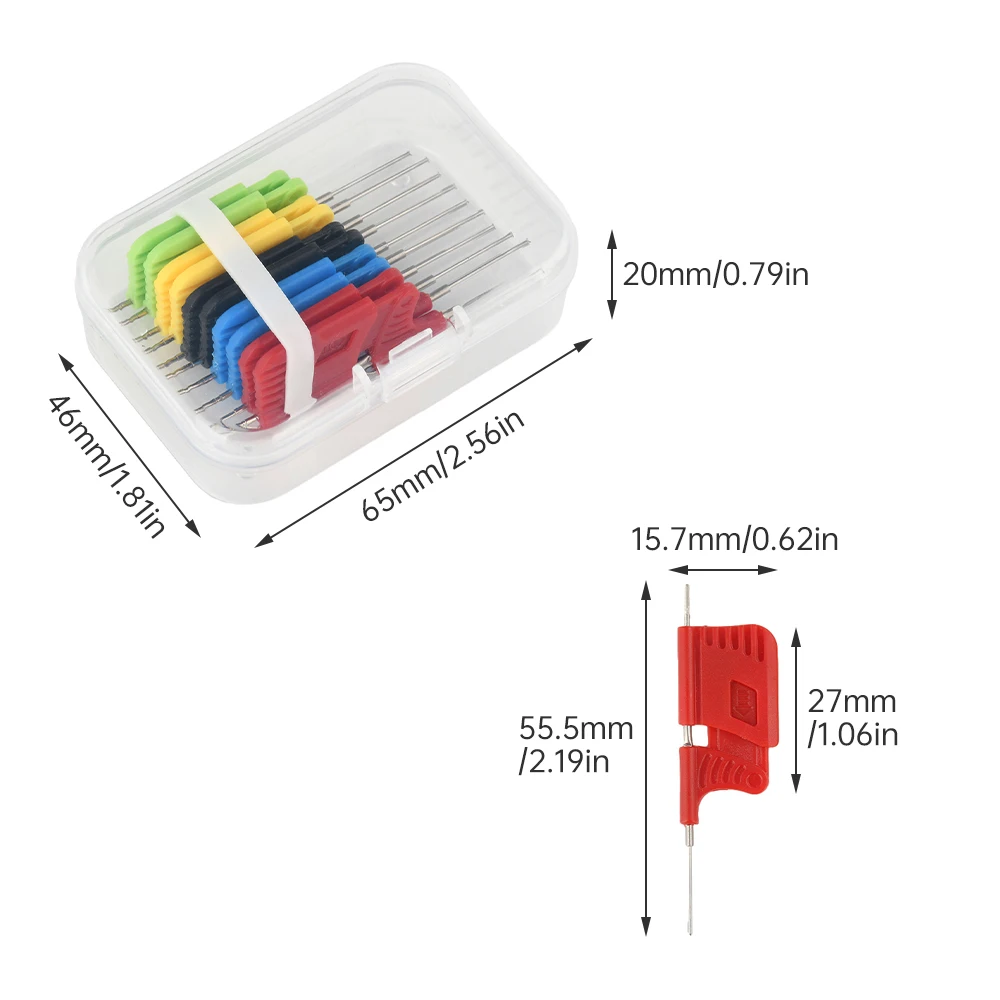

Size: As Description

Style: As Description

Type: Chip Clamp,Chip Clamp

semi_Choice: yes

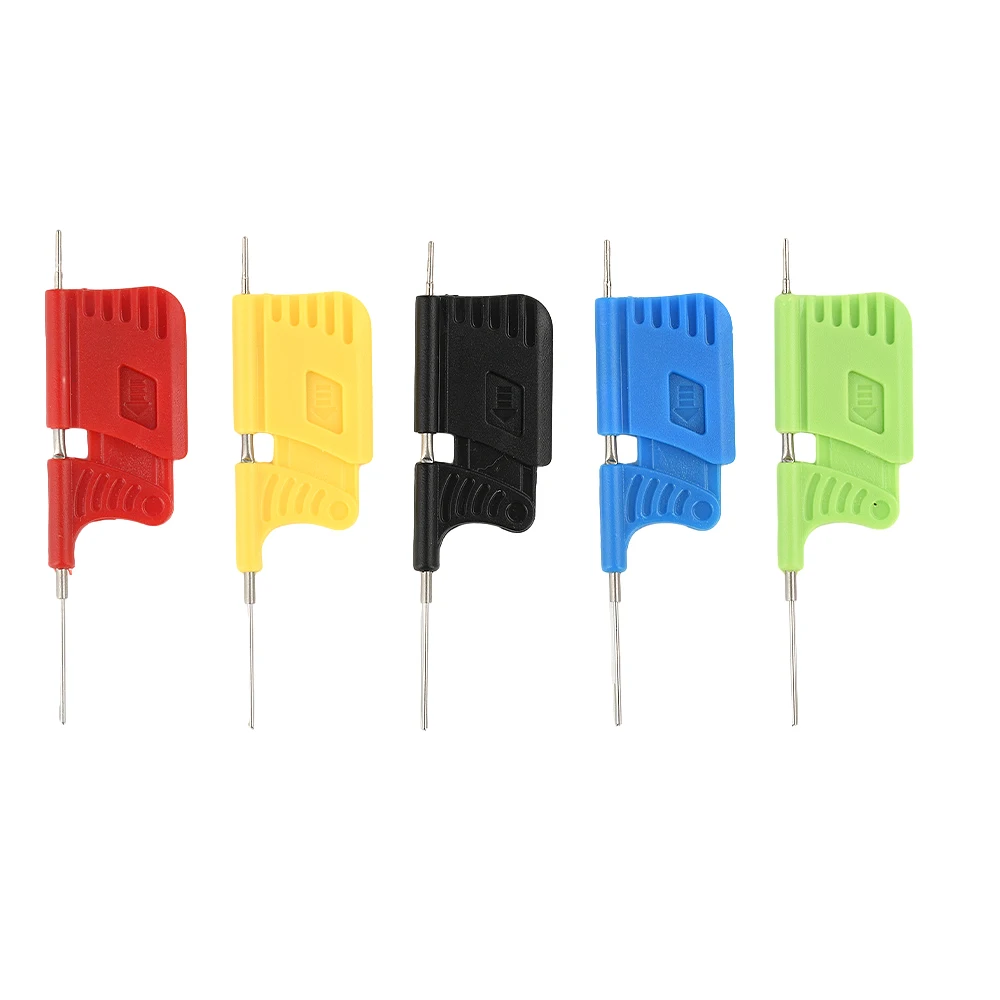

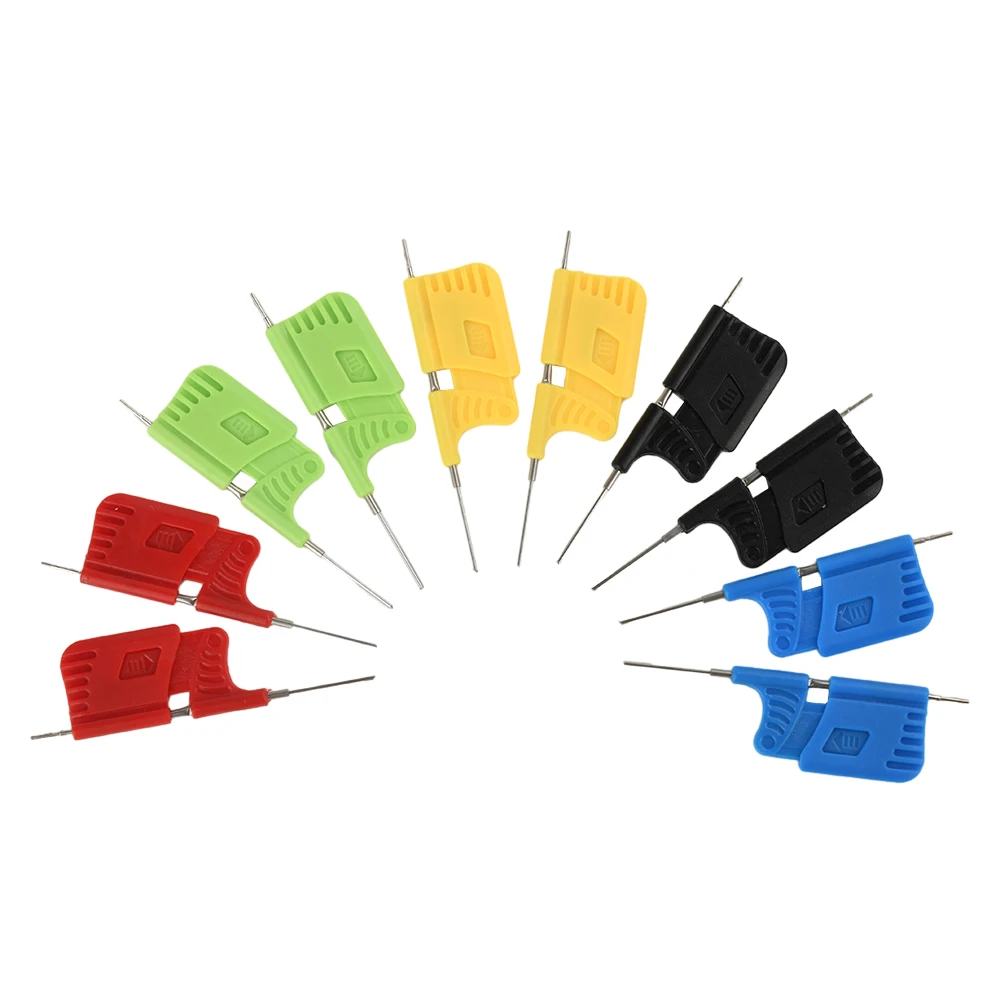

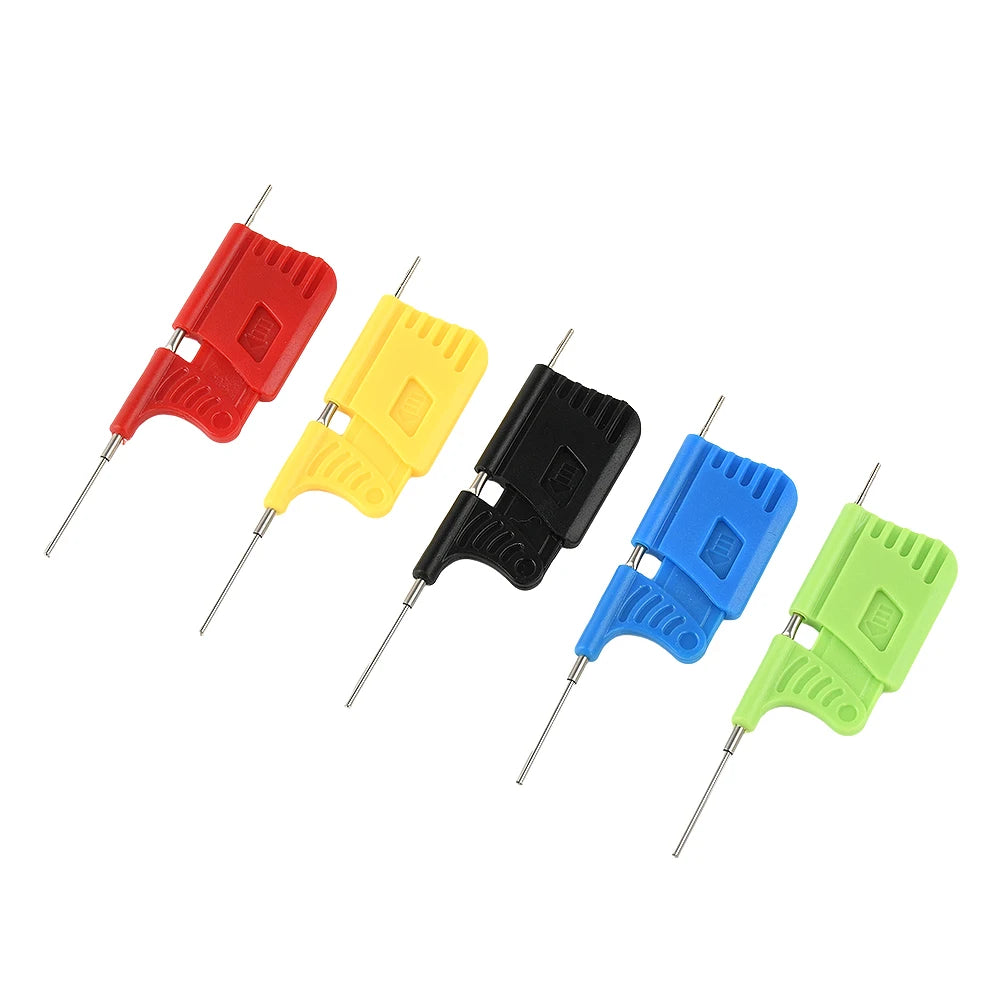

10X Universal Chip micro IC Clamp SOP SOIC TSOP MSOP SSOP SOP8 SMD IC Test Clip Pin Adpter Programmer for Logic Analyzer Tool

Features:

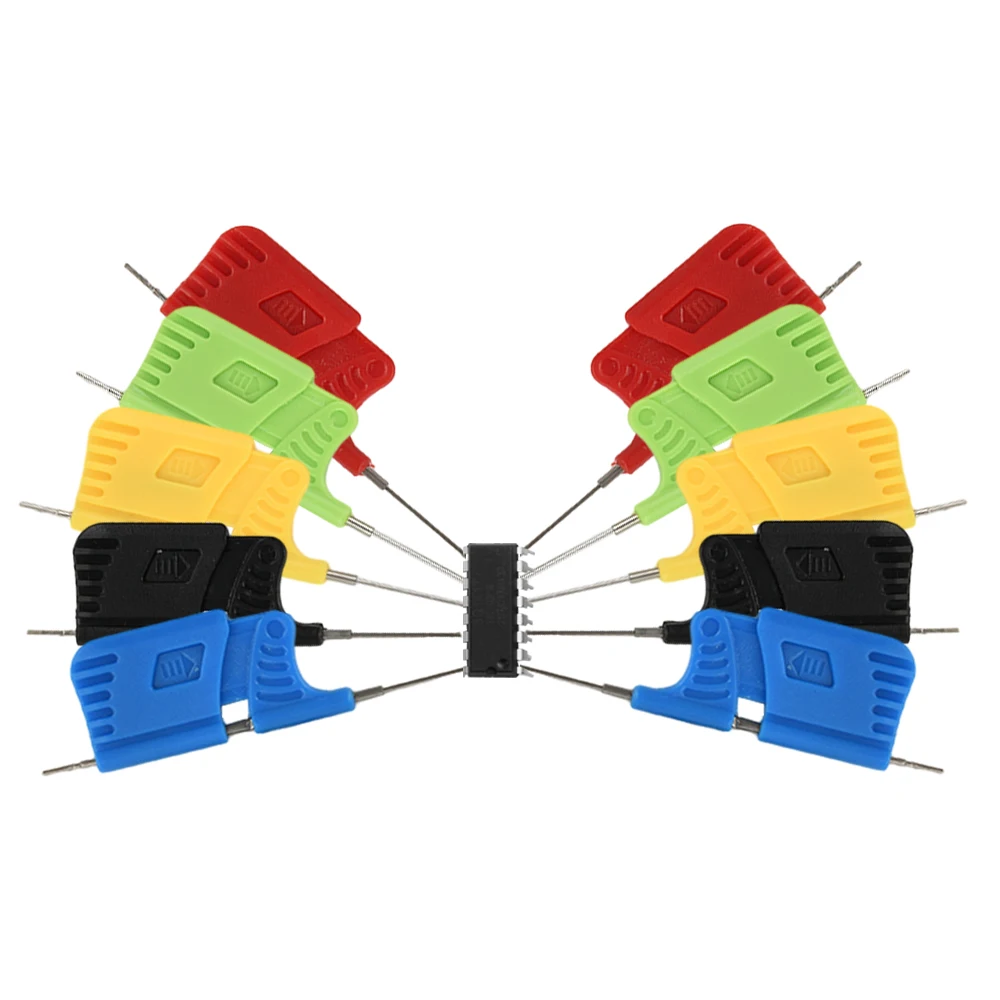

1. Universal IC Compatibility: Suitable for various SMD/IC packages, such as SOP, TSSOP, QFP, etc.

2. Precise Clamping Design: For chip pins with a pitch greater than 0.3mm, ensuring stable contact.

3. Safety Isolation Layer: The clip surface is covered with a non-conductive isolation layer to ensure safe handling.

4. Easy to Use: Simple clip design allows for quick and easy testing without soldering.

5. Compact and Portable: The smallest integrated circuit clip, designed for portability and easy use in various electronic projects.

Product Parameters:

Product Name: SDK08 Chip Test Clip

Voltage: DC 40V

Current: 2A

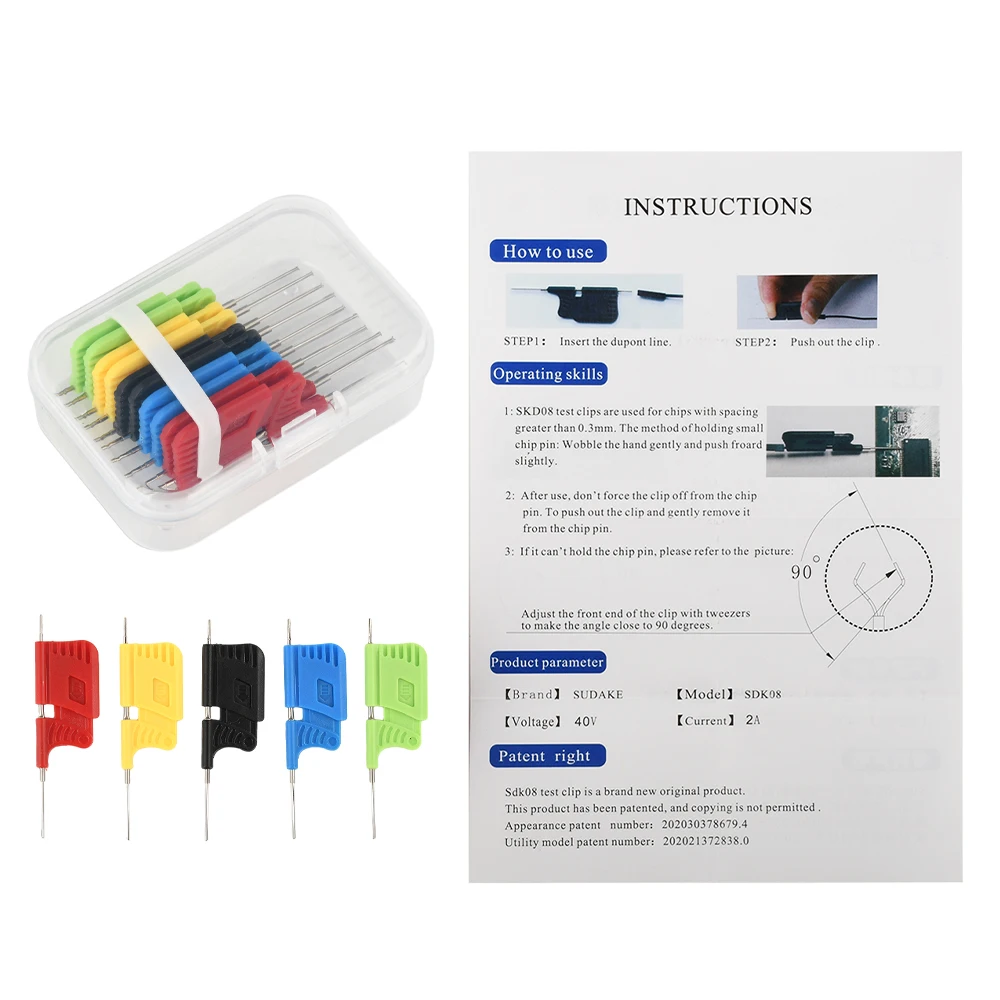

Instructions for Use:

Step 1: Insert the DuPont wire.

Step 2: Push out the clip.

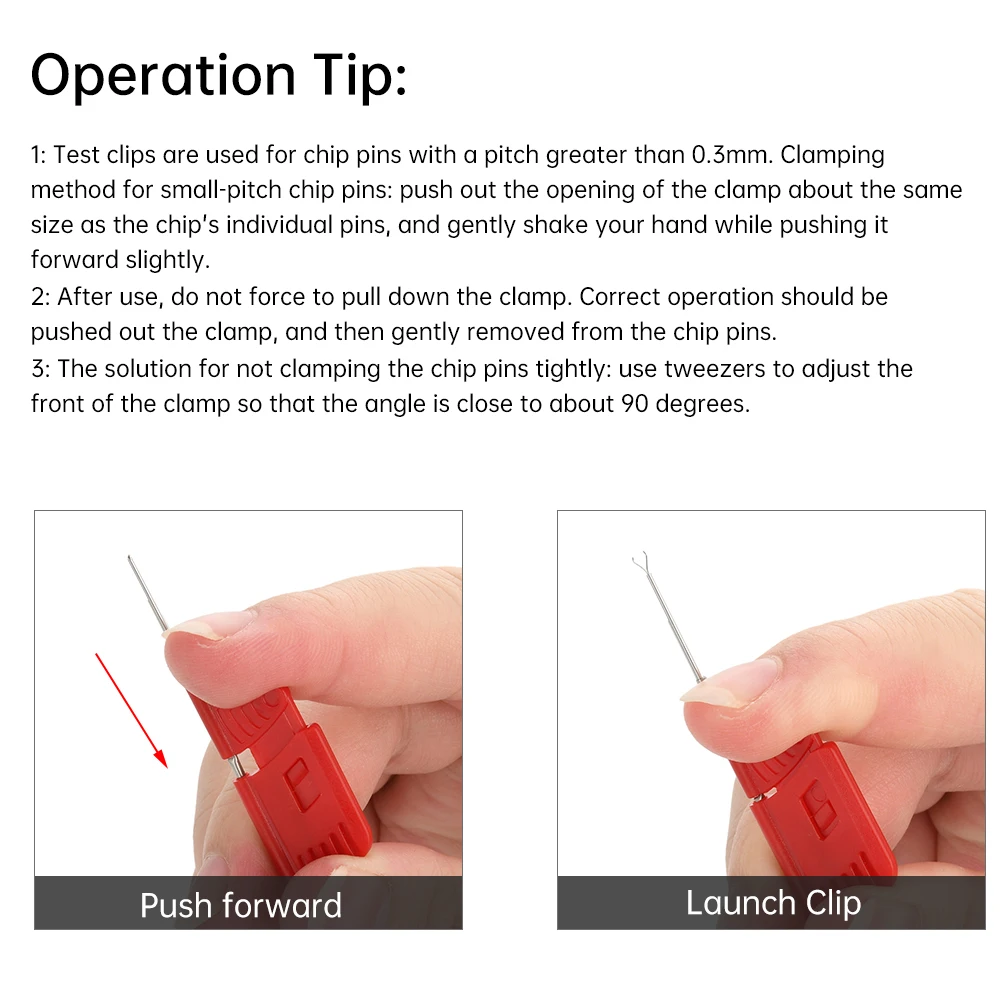

Operation Tips:

1: The test clip is for chip pins with a pitch greater than 0.3mm. Clamping method for small-pitch chip pins: Push the clip opening out to approximately the size of a single chip pin, gently shaking your hand while slightly pushing it forward.

2: After use, do not forcibly pull off the clip. The correct procedure is to push out the clip and then gently remove it from the chip pins.

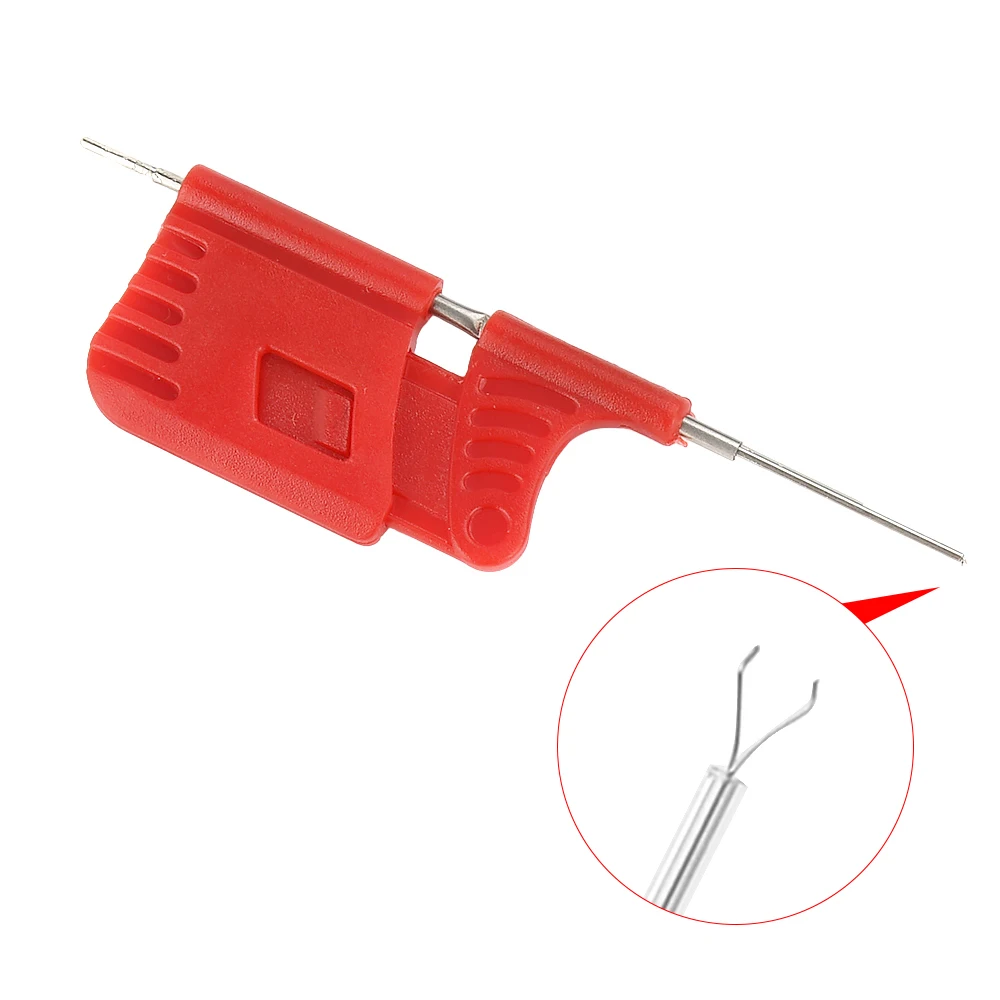

3: Solution for loose chip pins: Use tweezers to adjust the tip of the clip until the angle is approximately 90 degrees.

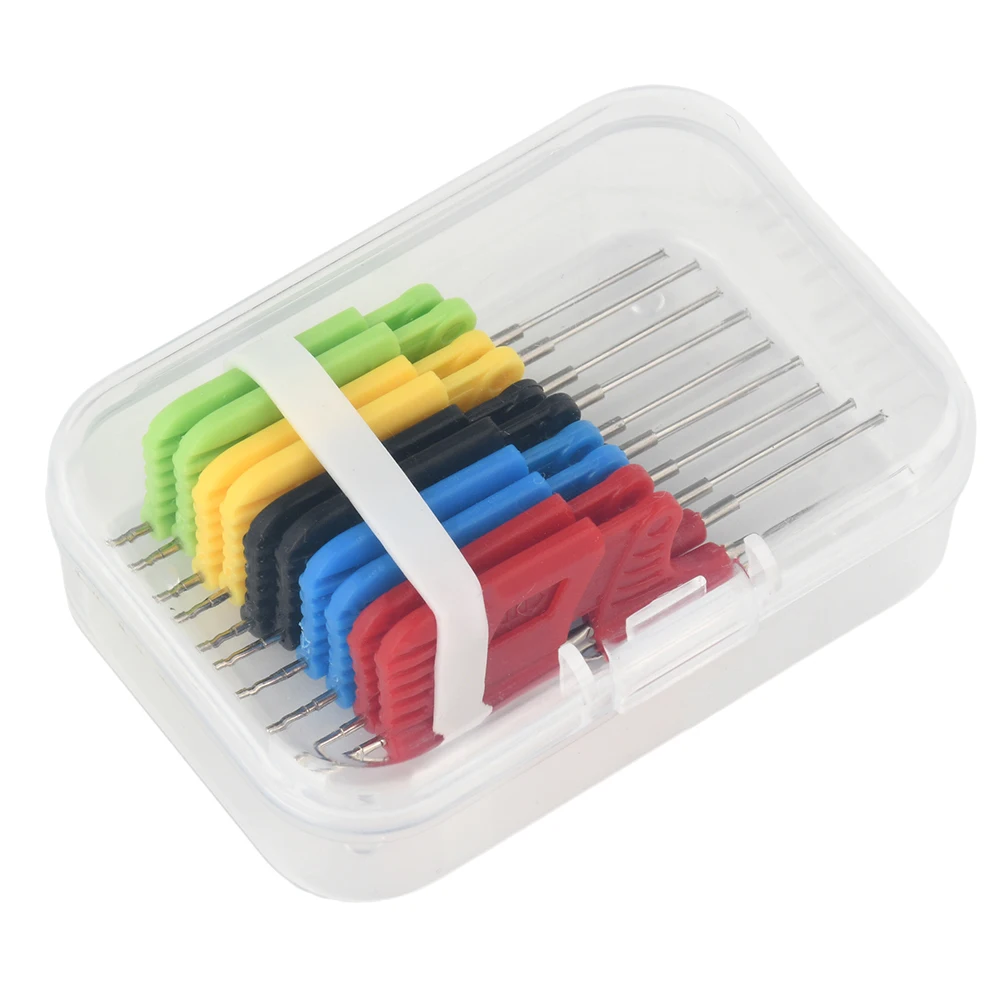

Product List:

Test Clip x1

Instruction Manual x1
