110VAC 120V Dual/Three Display Adjustable Over Voltage Current Under Voltage Protector KWh Energy Meter 40A 63A Protection Relay
V A kWh Type / 63A
$111.20
Sale price
$111.20
Regular price
$0.00
Skip to product information
110VAC 120V Dual/Three Display Adjustable Over Voltage Current Under Voltage Protector KWh Energy Meter 40A 63A Protection Relay
$111.20
Sale price
$111.20
Regular price
$0.00
Description
SPECIFICATIONS
Ampmeter: Yes, Below LED
Applicable Object: Electromechanica
Brand Name: SINOTIMER
Display: Dual/Three LED Displays
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
Functions: under/over-voltage protection
High-concerned chemical: none
Installation: Din RAIL
Limit Current Protection: Yes, 40A/63A default
Load Current: 40A
Max Load: 40A, 63A
Model Number: SVP716-1-40A/SVP716-1-63A/SVP719-1-40A_N/SVP719-1-63A_N
Origin: Mainland China
Poles: 2 Poles
Power Source: Ac,Ac
Power Supply: 110V, 50/60Hz
Protect Feature: Sealed
Protection Value: Adjustable
Rate Voltage: 110V, 120V AC
Theory: Voltage relay
Use: Protective
Voltage: 120V
Voltmeter: Yes, Upper LED
is_customized: Yes

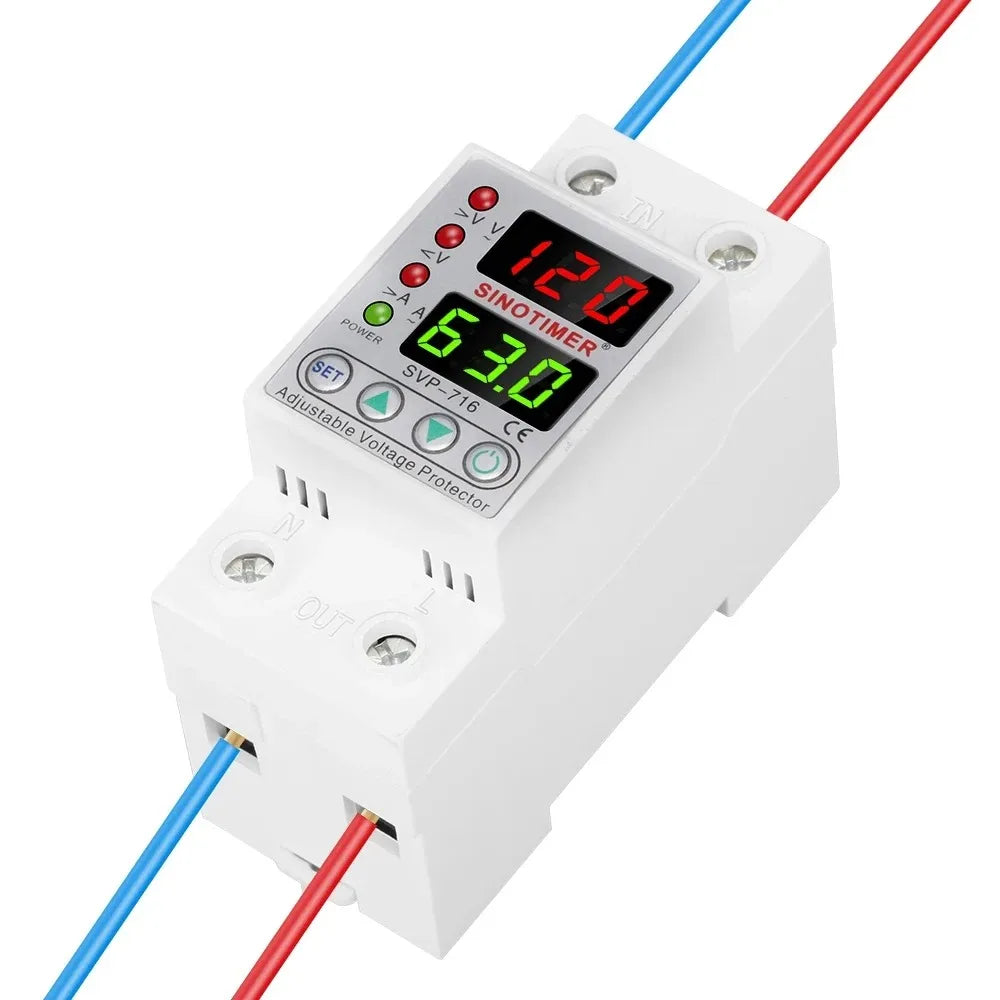

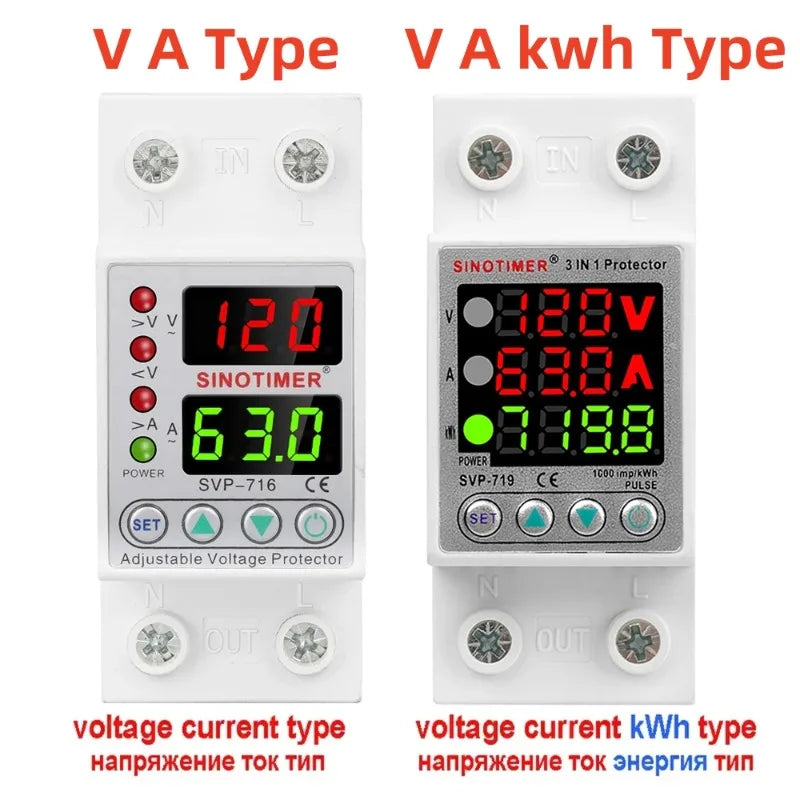

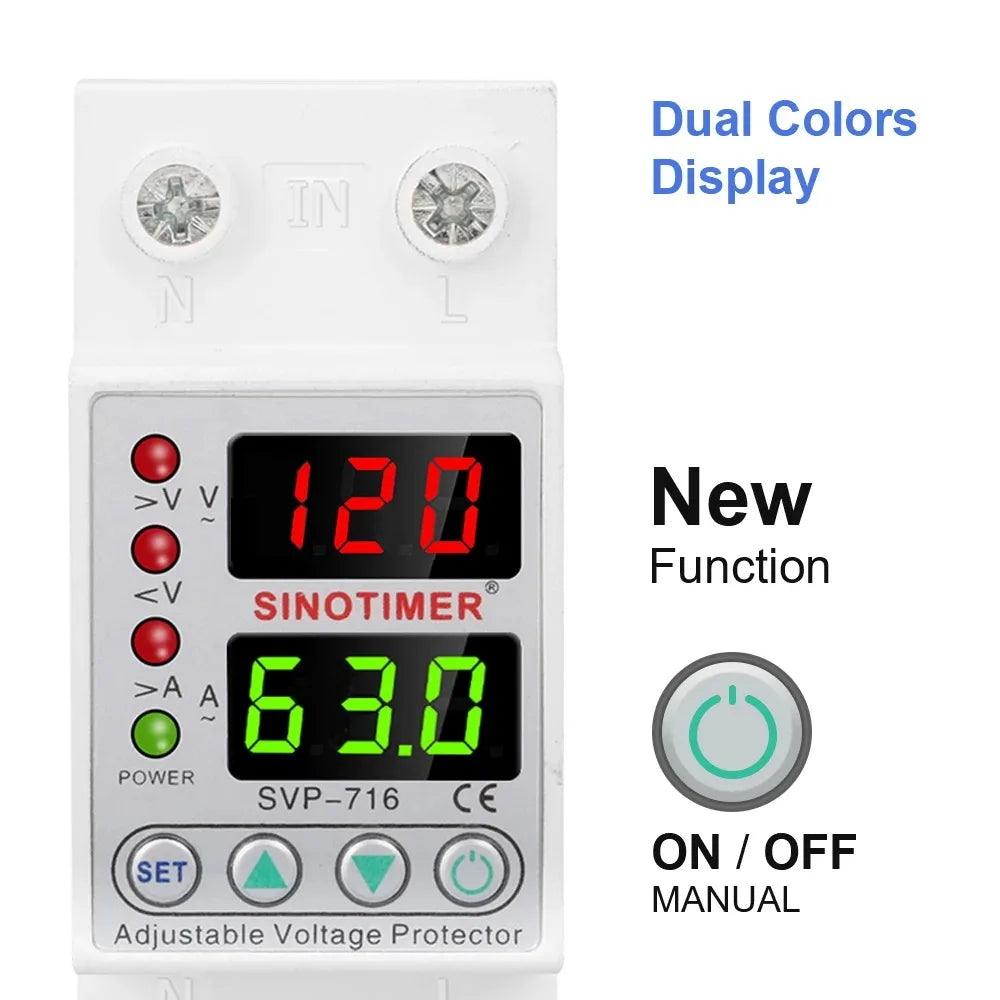

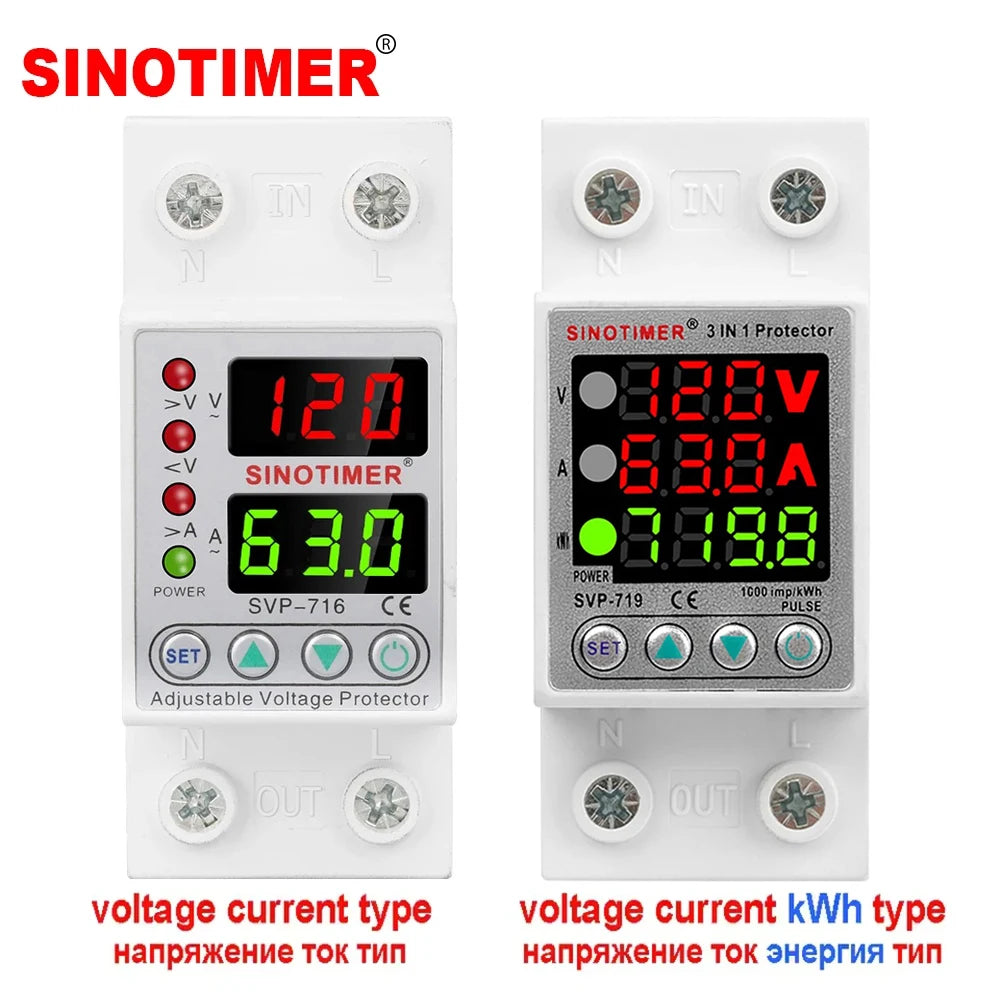

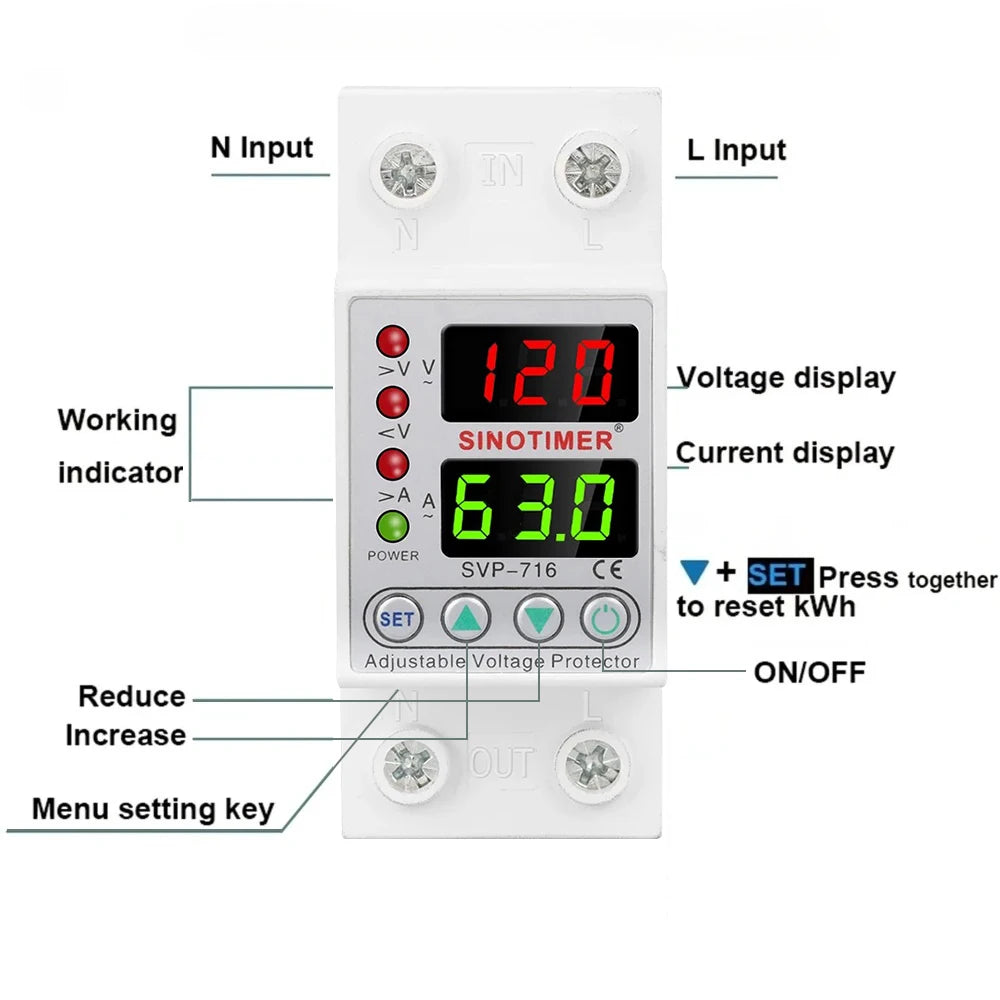

V A Type-
-Model: SVP716-1-40A / SVP716-1-63A
Functions:
1. Over-voltage protection
2. Under-voltage protection
3. Over-current protection
4. Automatic recovery
5. Voltage display(voltage measurement)
6. Current display (current measurement)
Noted:
When you first connect the product, you have to wait about 1 minute, after the red light turn off, then the product will work.
The model 63A and 80A , it displays in two colors (Red and Green).

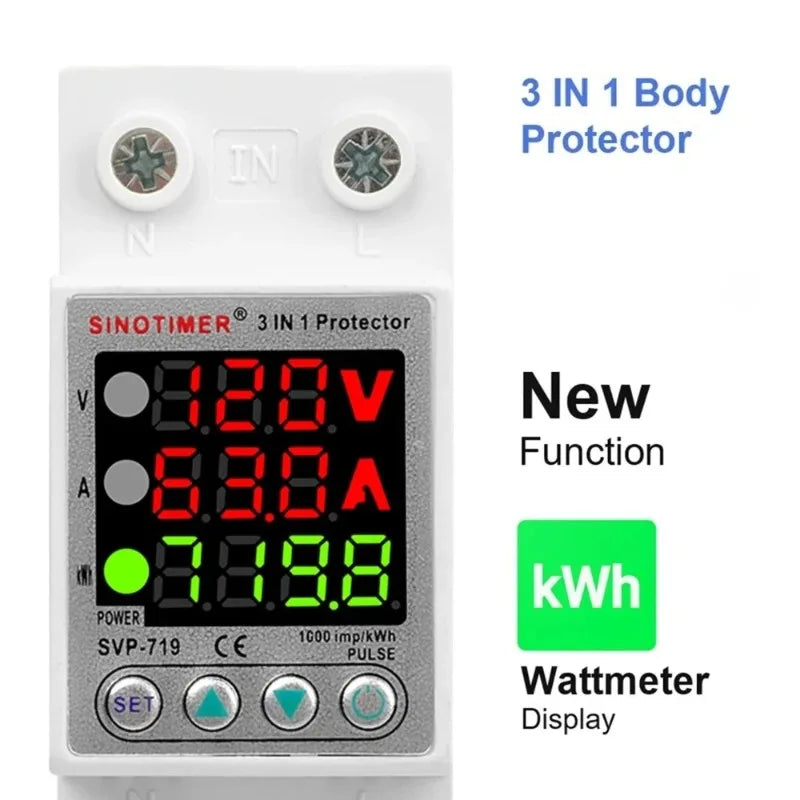

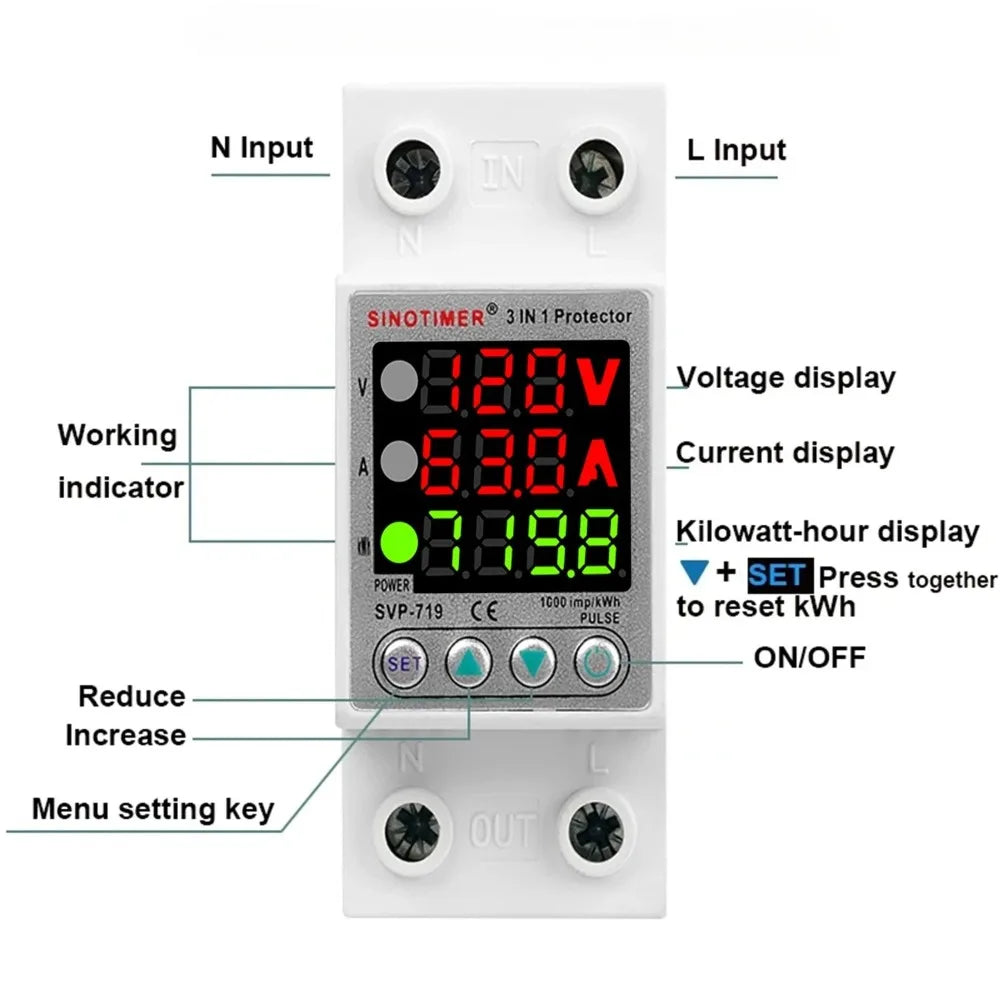

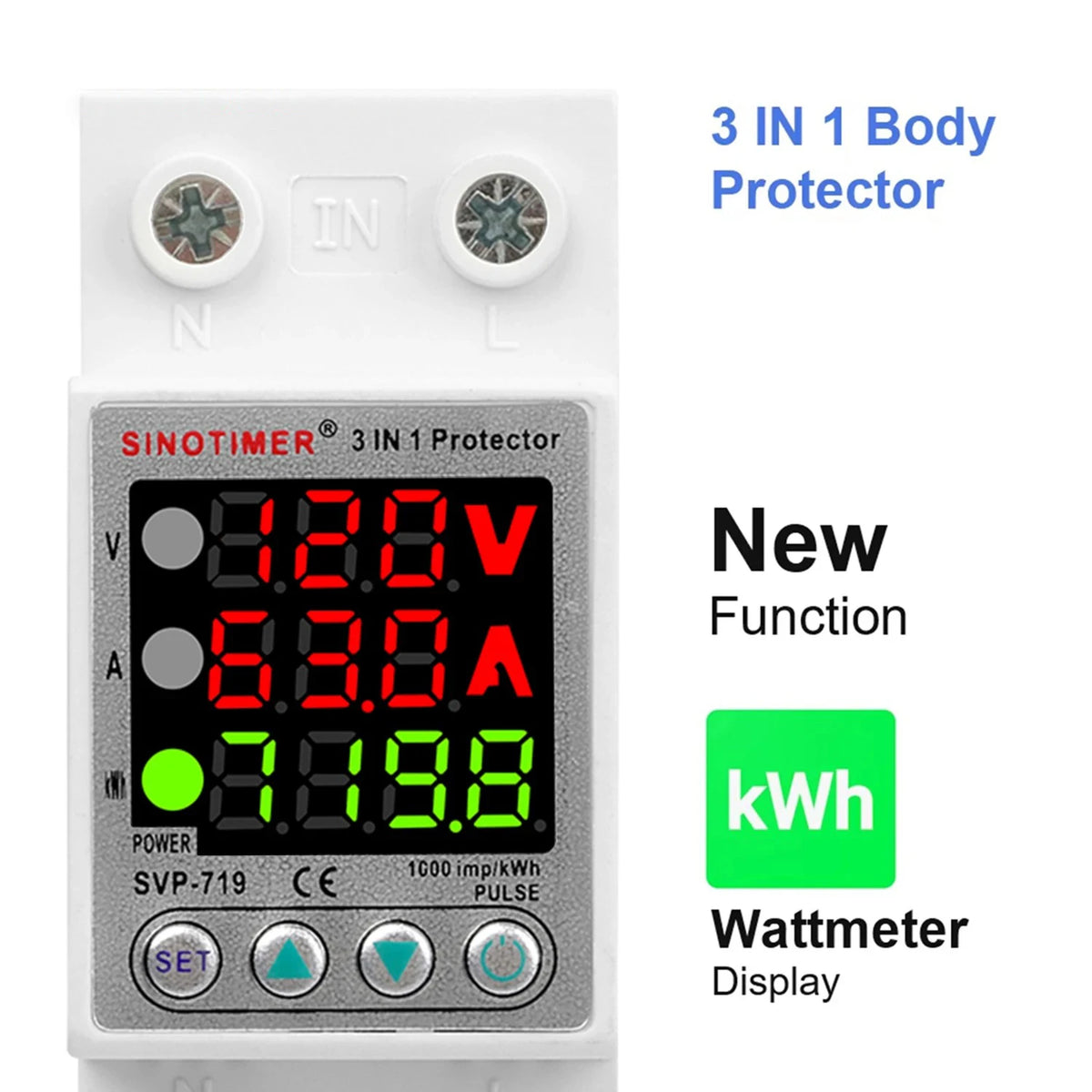

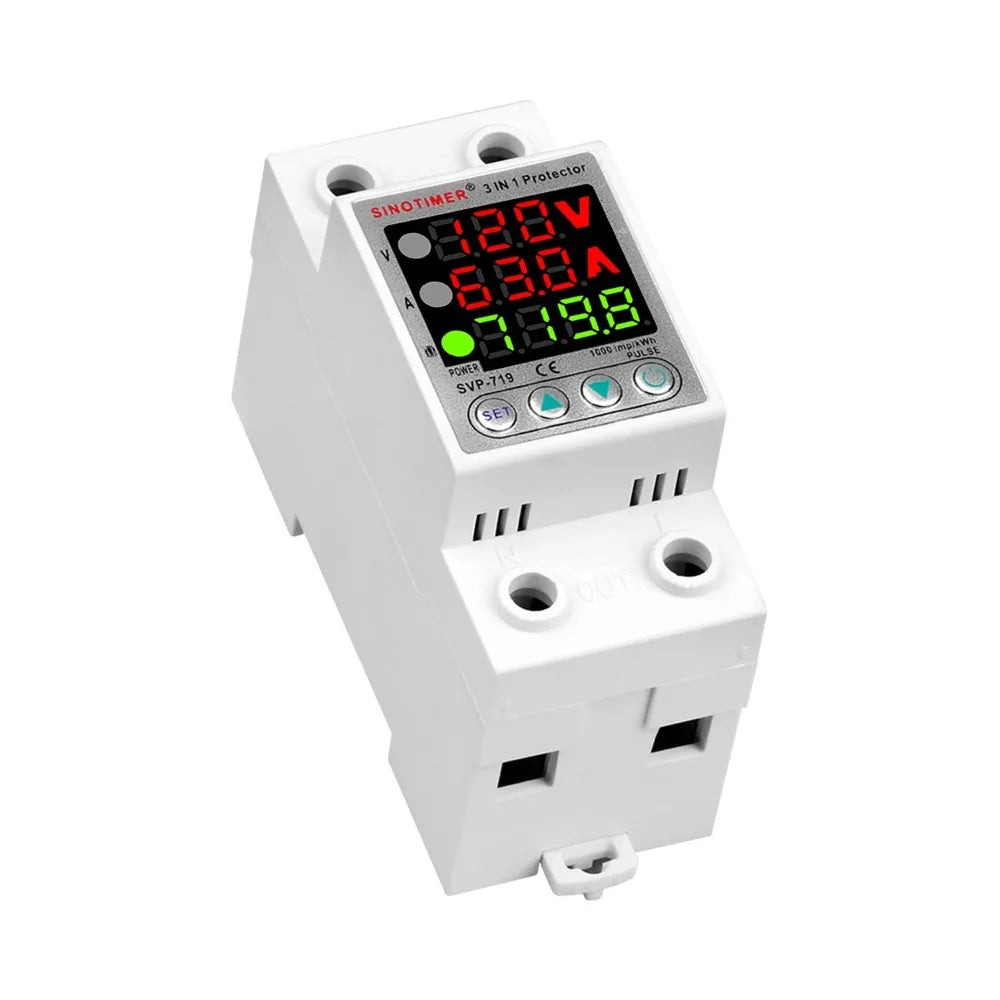

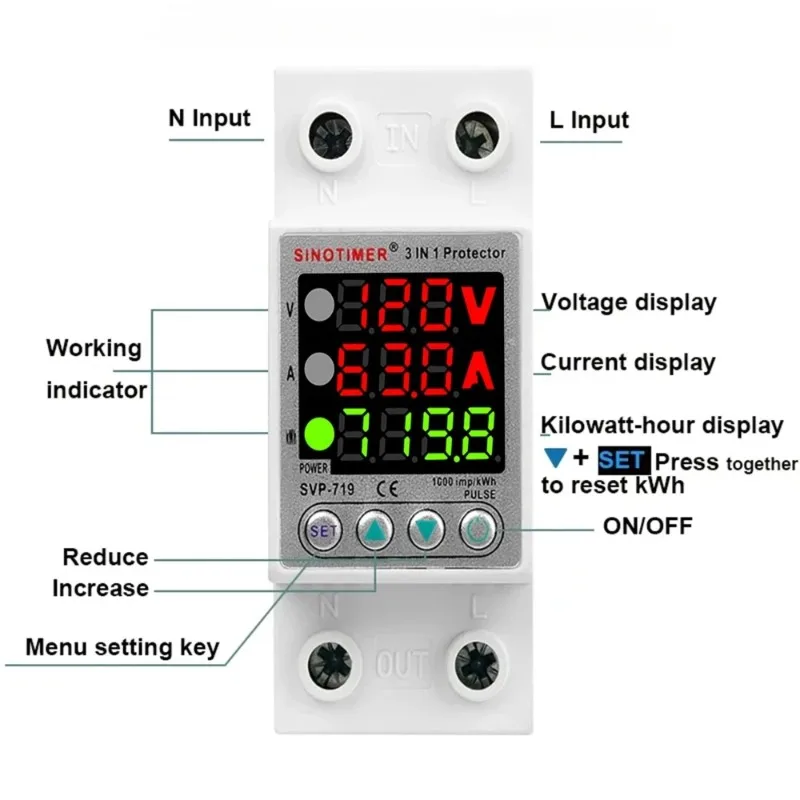

V A kWh Type
-Model: SVP719-1-40A / SVP719-1-63A
Functions:
1. Over-voltage protection
2. Under-voltage protection
3. Over-current protection
4. Automatic recovery
5. Voltage display(voltage measurement)
6. Current display (current measurement)
7. Wattmeter kWh Energy Meter Power Consumption
Product Parameters:
1. Rated supply voltage: AC 120V
2. Operation voltage: AC 80-300V (single phase)
3. Rated frequency: 50/60HZ
4. Electric current (>A) setting range: 1- 40/63A OFF
5. Overvoltage (>U) setting range: 130-300V/OFF
6. Undervoltage (<U) setting range: 80-210V/OFF
7. Kilowatt-hour protection value: 0-9999/OFF
8. Rated current: 40/63A (subject to product label)
9. >U and <U trip delay time: 0.5s
10. Reset /start delay time: 1-600s
11. Voltage measurement accuracy: 2% (not exceeding 2% of the overall range)
12. Rated insulation voltage: 300V
13. Output contact: 1NO
14. Electrical life: 100000
15. Mechanical life: 1000000
16. Protection degree: IP20
17. Pollution degree: 3
18. Operating temperature: -50℃-55℃
19. Humidity: ≤50% at 40℃ (without condensation)
20. Storage temperature: -30℃-70℃
