Description

SPECIFICATIONS

Brand Name: PRONCH

Certification: CE,CCC,CCC,ce

Current: ≤3A

Customization: Yes , please leave a message to us

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Features: self-recovery and self-lock

High-concerned chemical: none

Is Smart Device: no

Item Type: SWITCHES

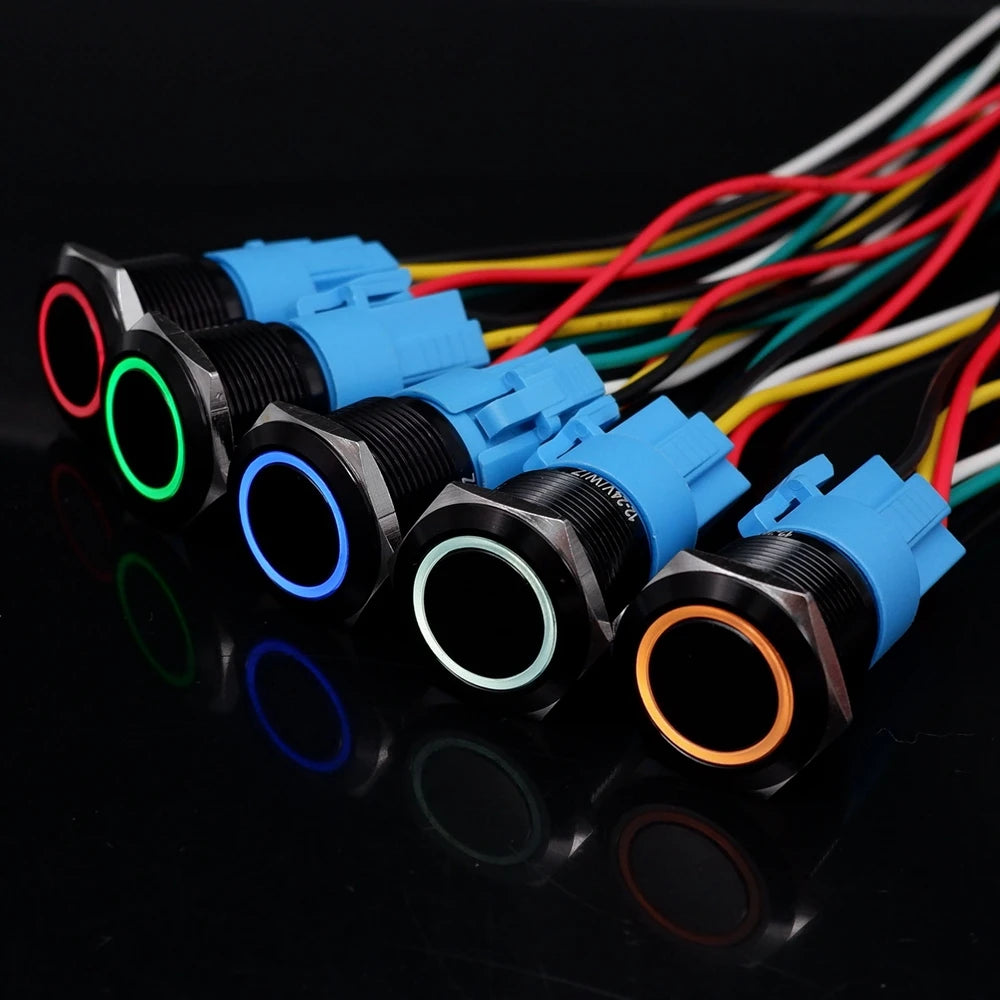

LED Color: Red Yellow Blue White Green

LED Voltage: 3-6V;9-24V;110-220V

Material: Alloy

Model Number: Push button switch

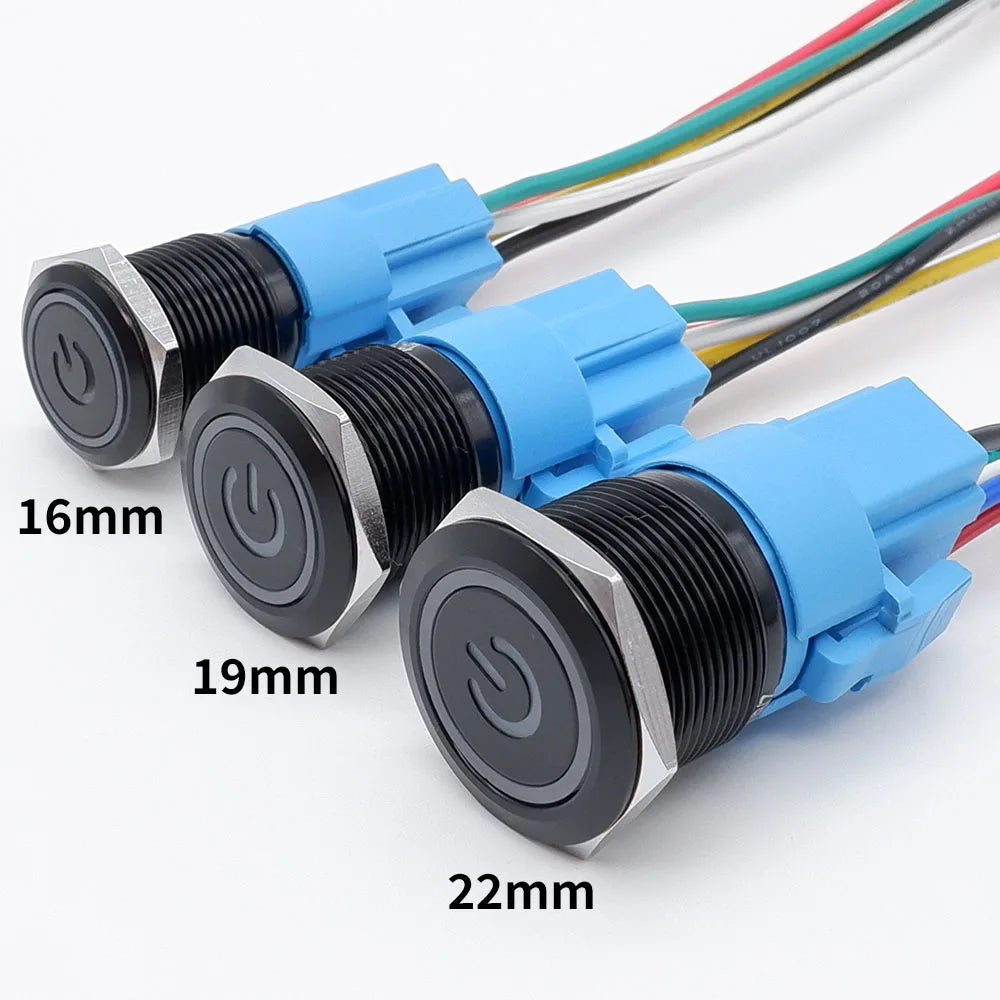

Opening Diameter: 16mm/19mm/22mm

Origin: Mainland China

Shell Material: Alumina

Switch Type: Push Button Switch,1NO1NC

Note: The price of this link includes the connector.

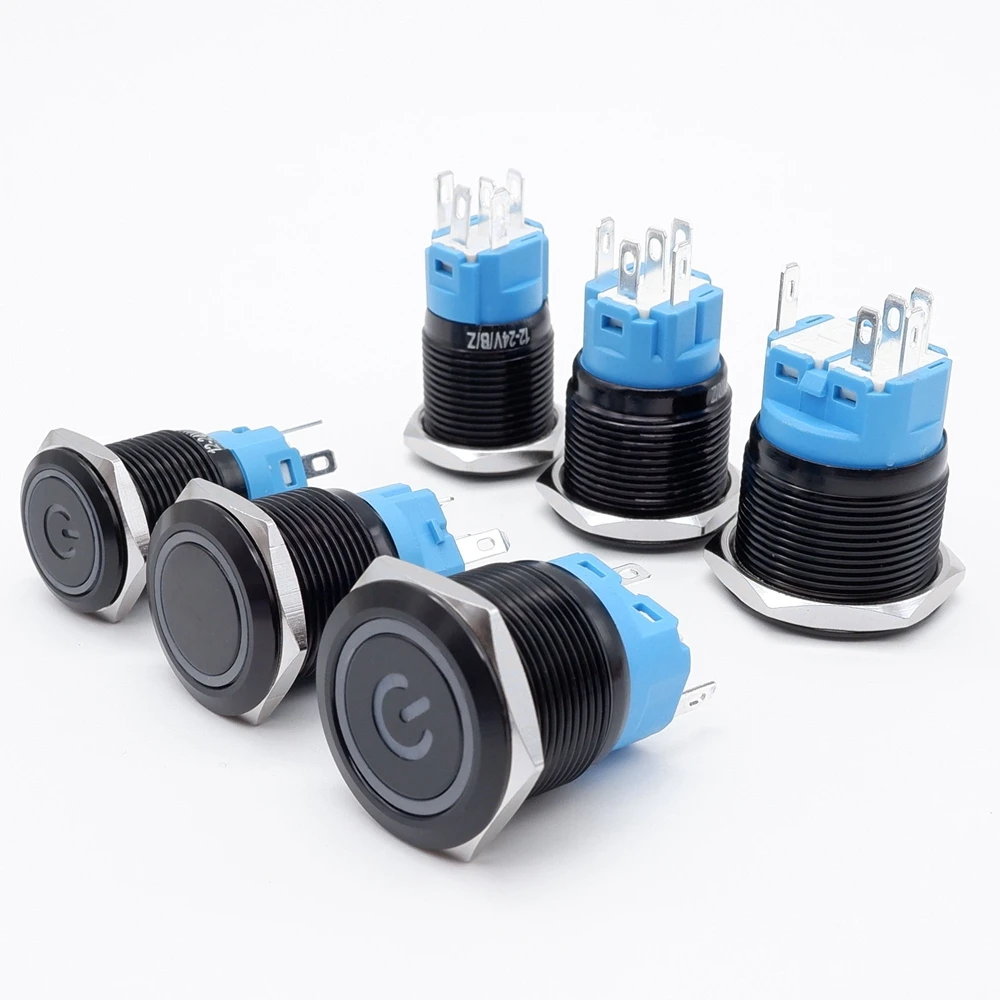

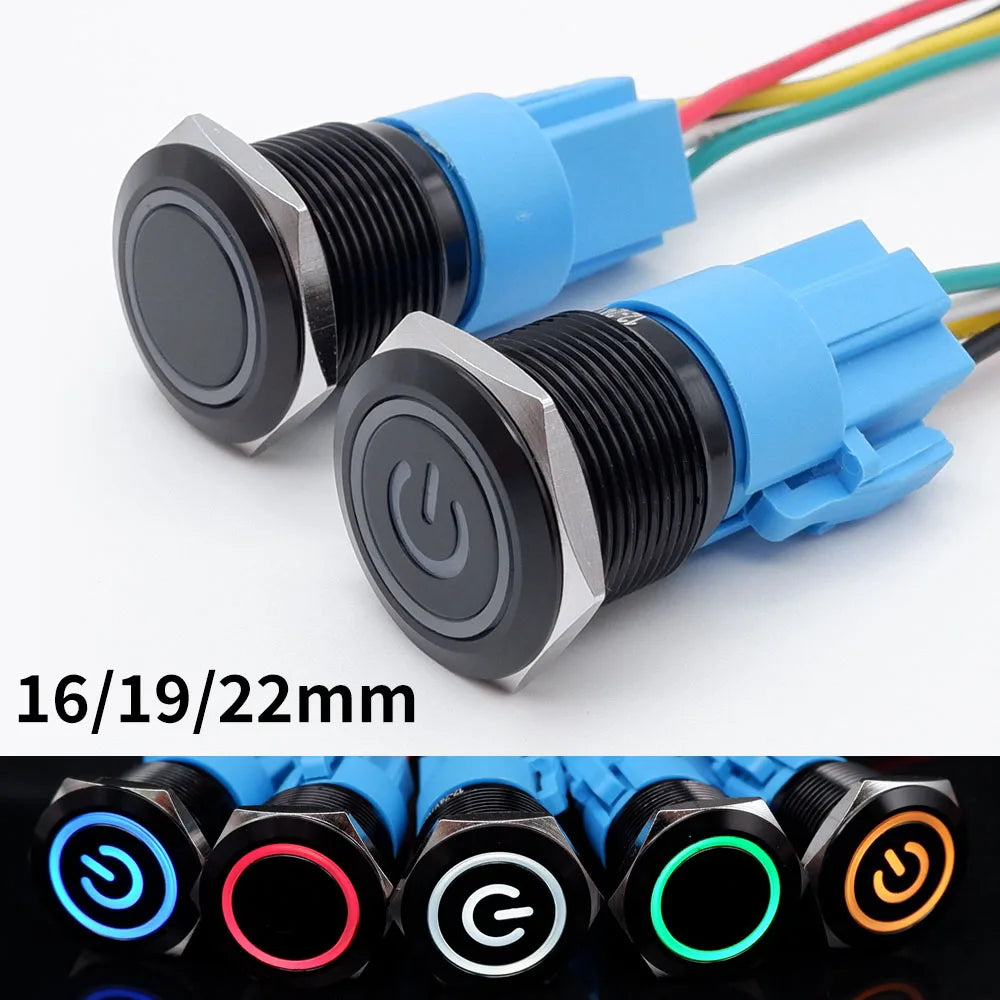

Product Name: Push Button Switch + Connector
Switch Combination: 1NO1NC

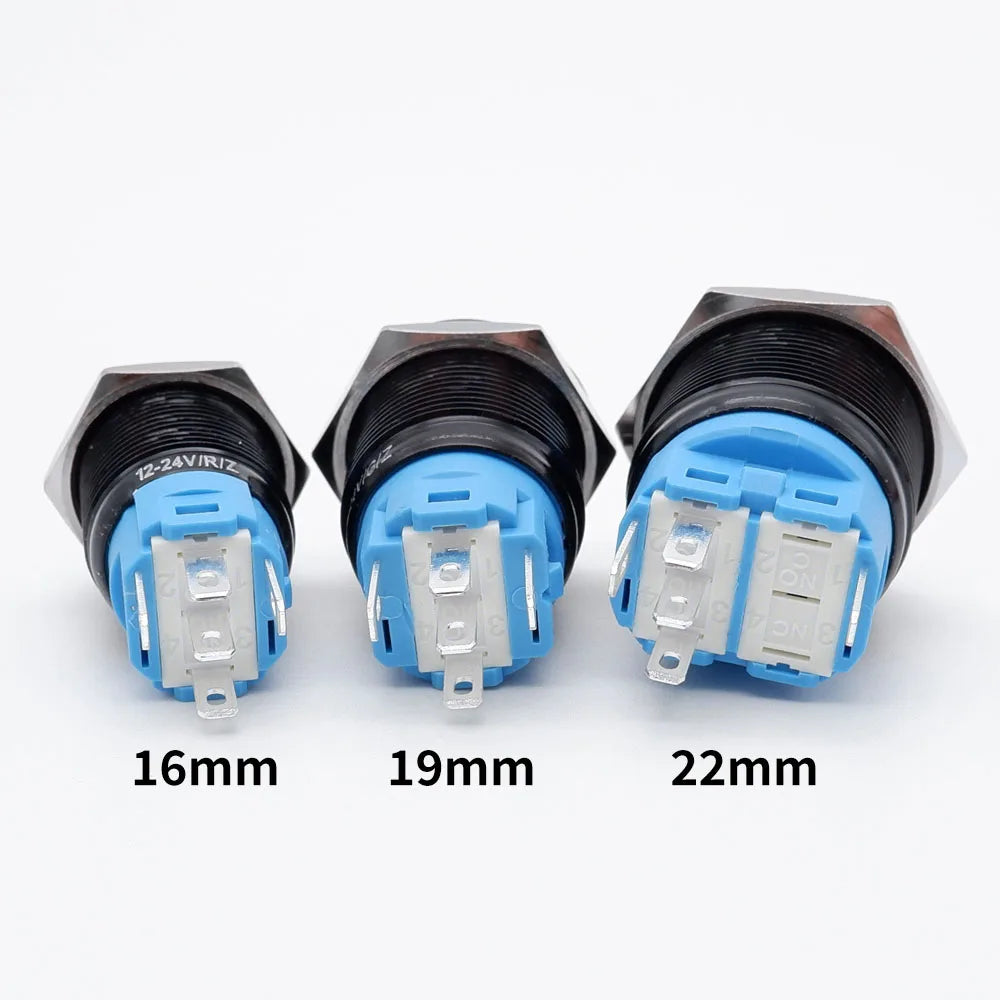

Opening Diameter:16mm/19mm/22mm
Max Current: 3A
Operation Type: Self-recovery 、Self-lock
Material: Alumina

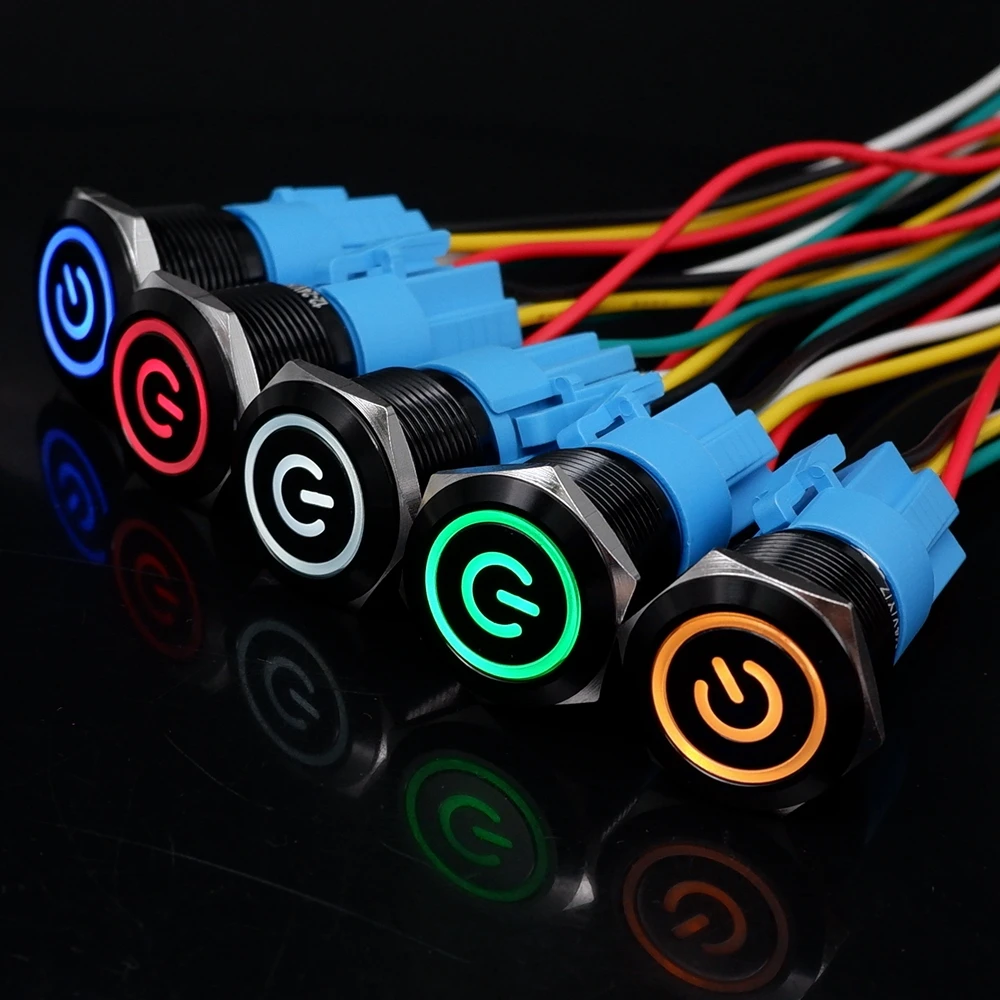

LED Colors: Red Yellow Blue White Green
LED Voltage: 3-6V;12-24V;110-220V
Waterproof Level: IP65
Customization: Yes , please leave a message to us

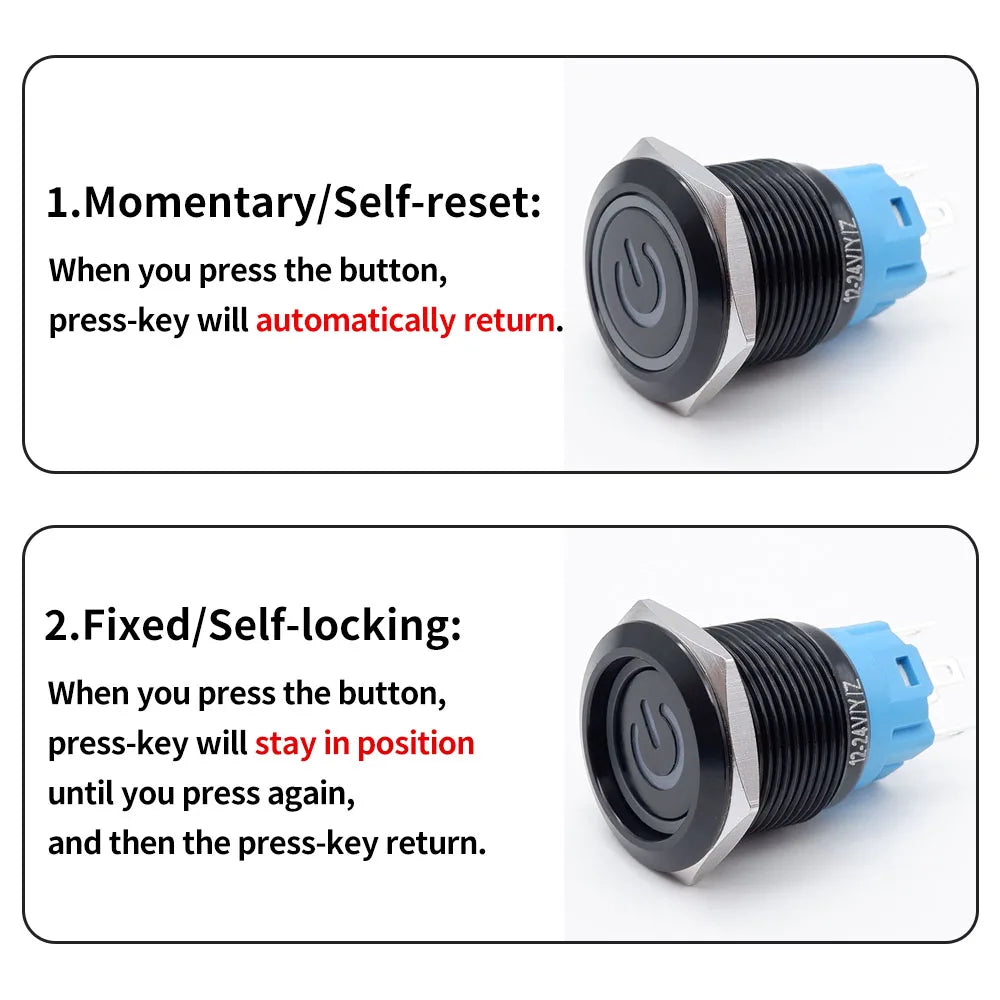

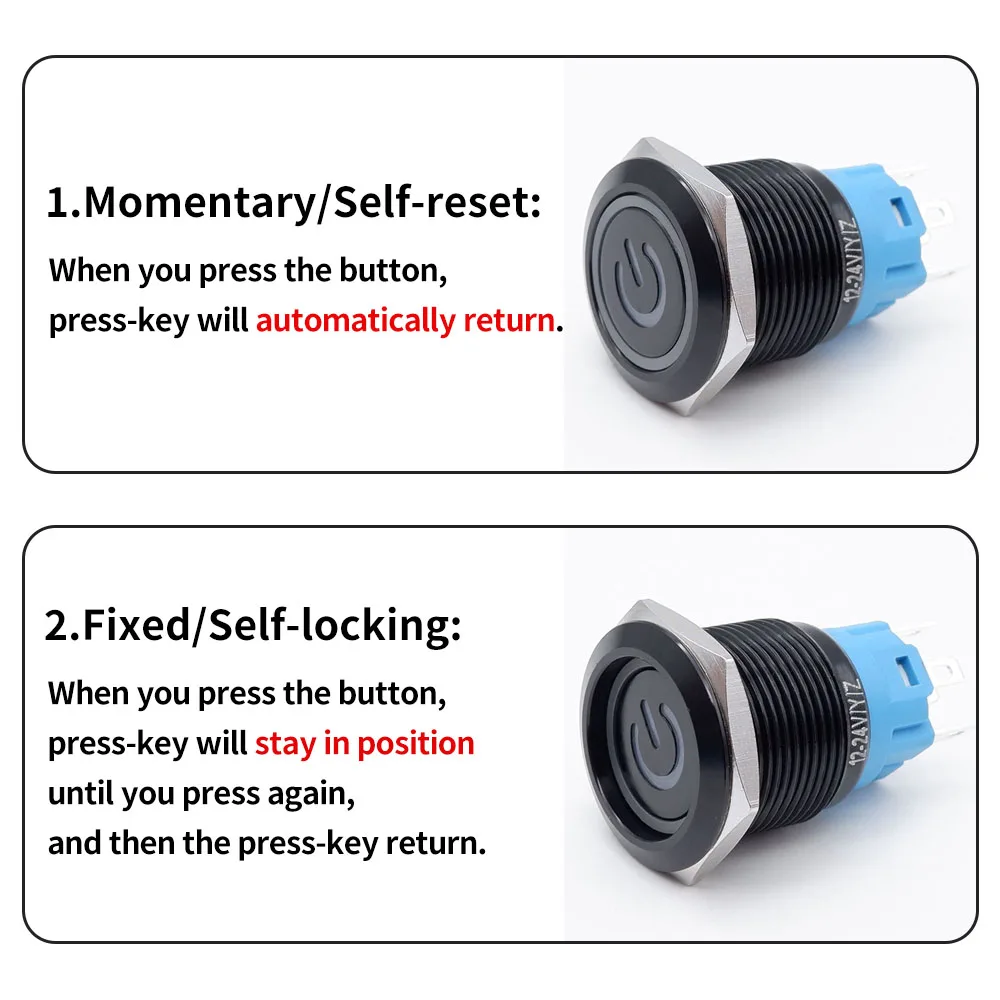

Switch Tip

1.Momentary/Self-reset: When you press the button, press-key will automatically return.

2.Fixed/Self-locking: When you press the button, press-key will stay in position until you press again.And then t he press-key return.
(The following picture is for comparison and is not the product sold by this link.)

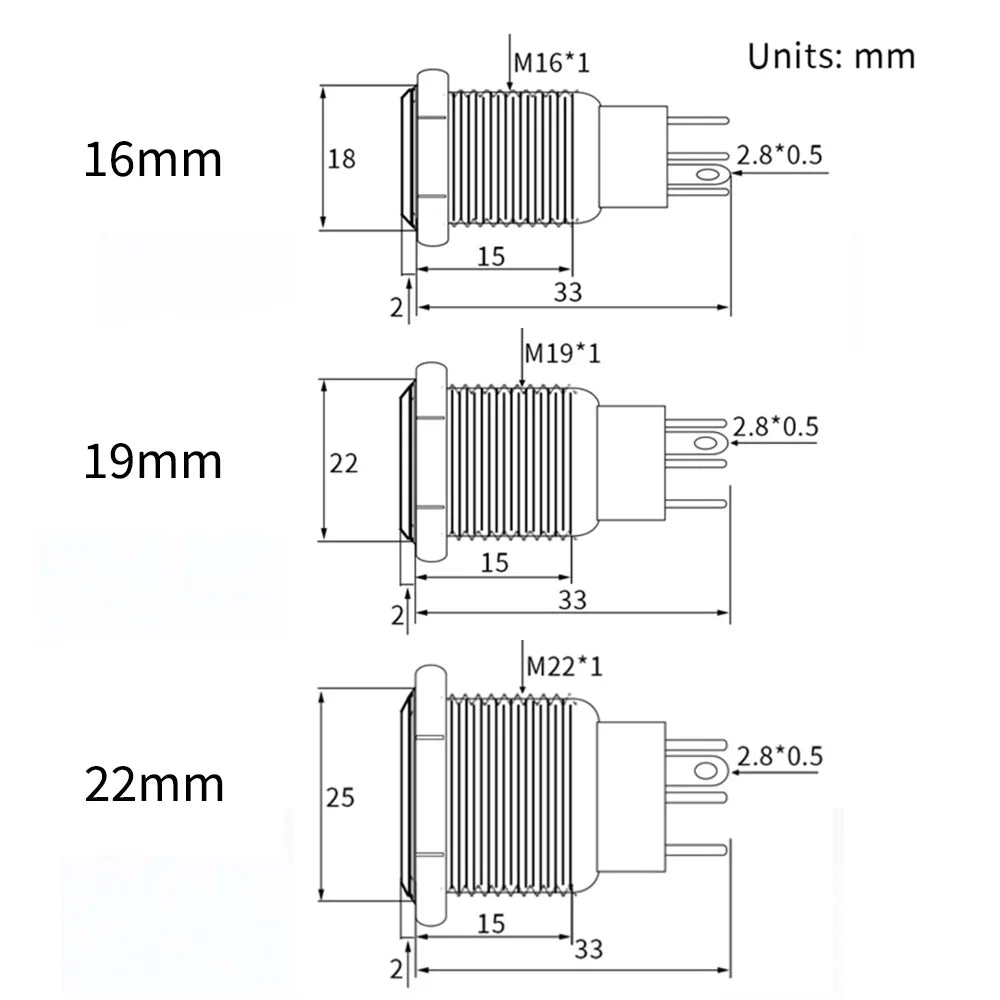

Due to manual measurement, please allow a little error.

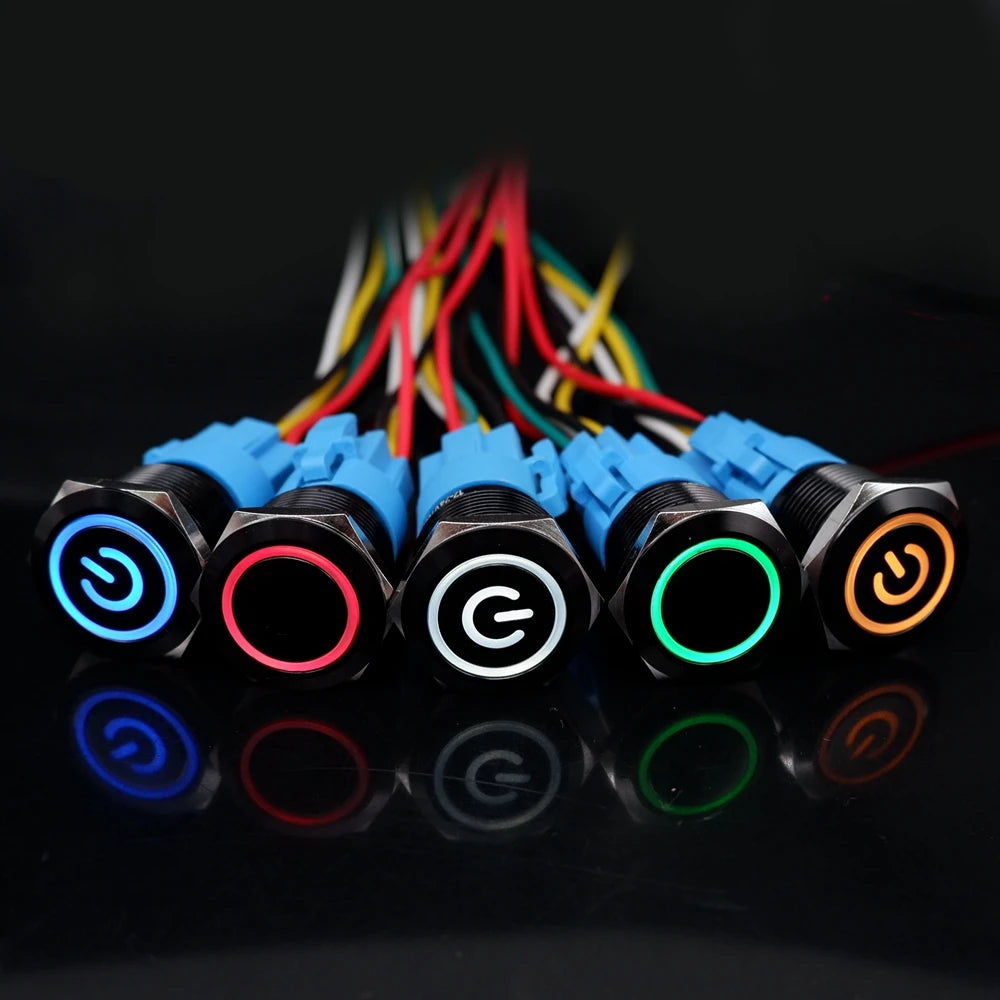

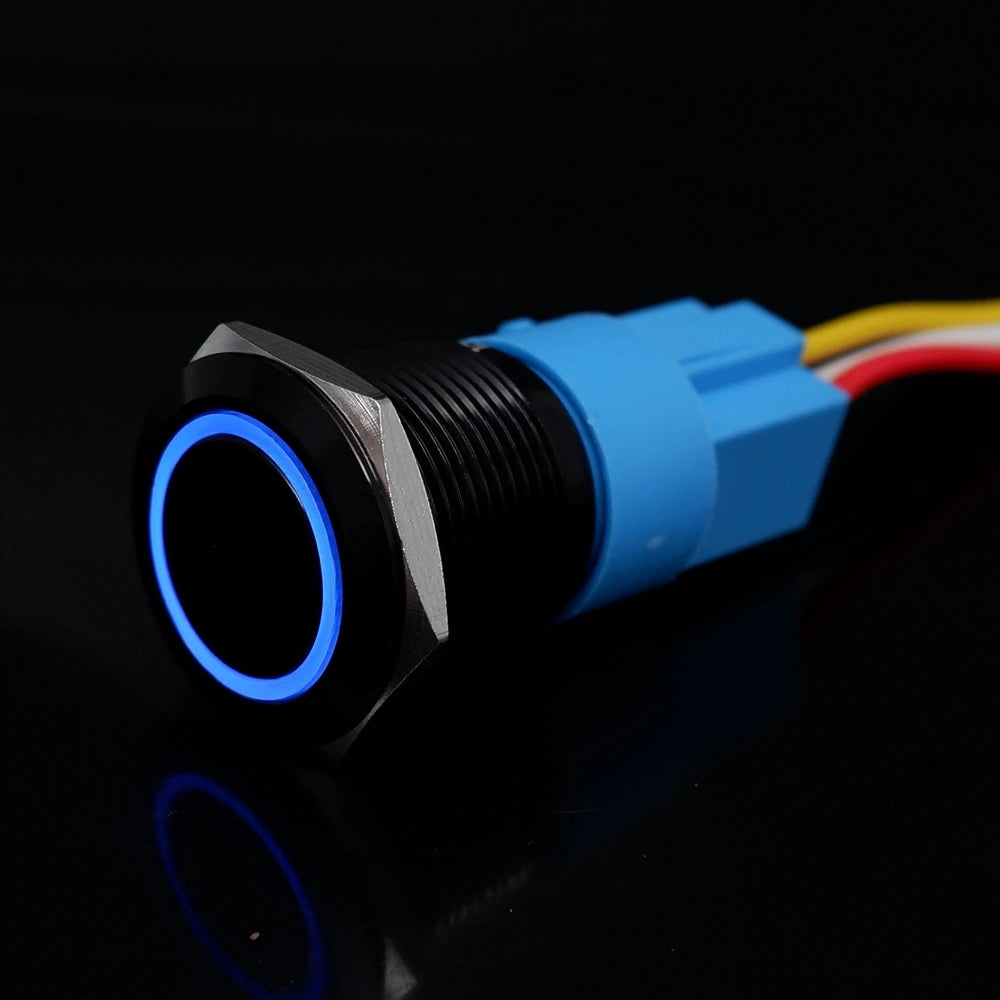

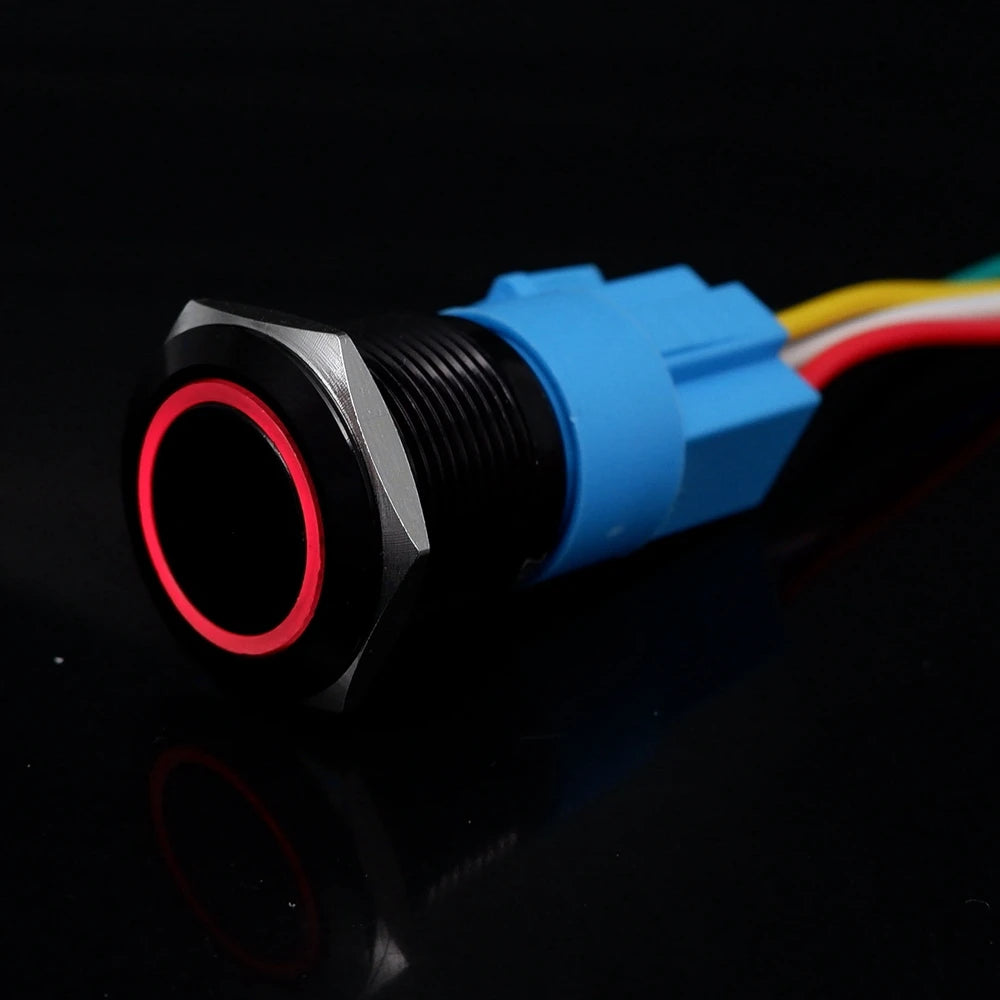

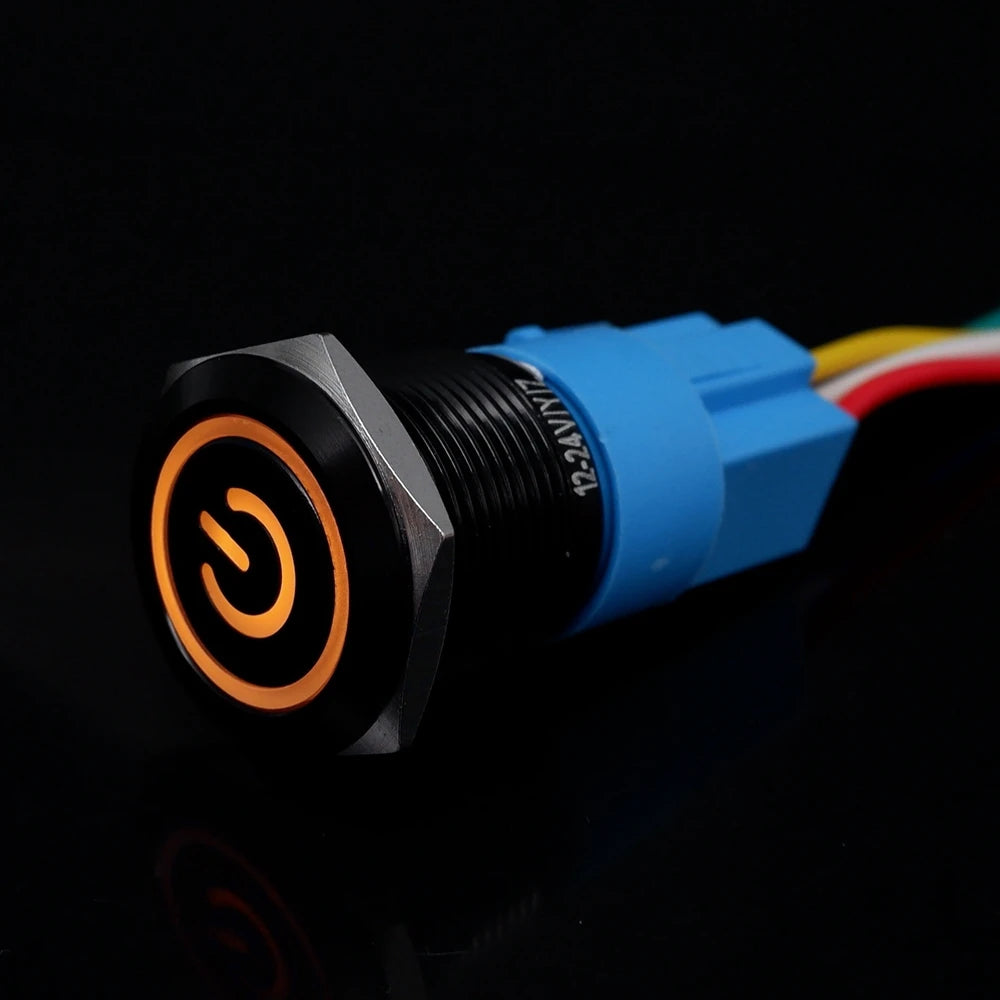

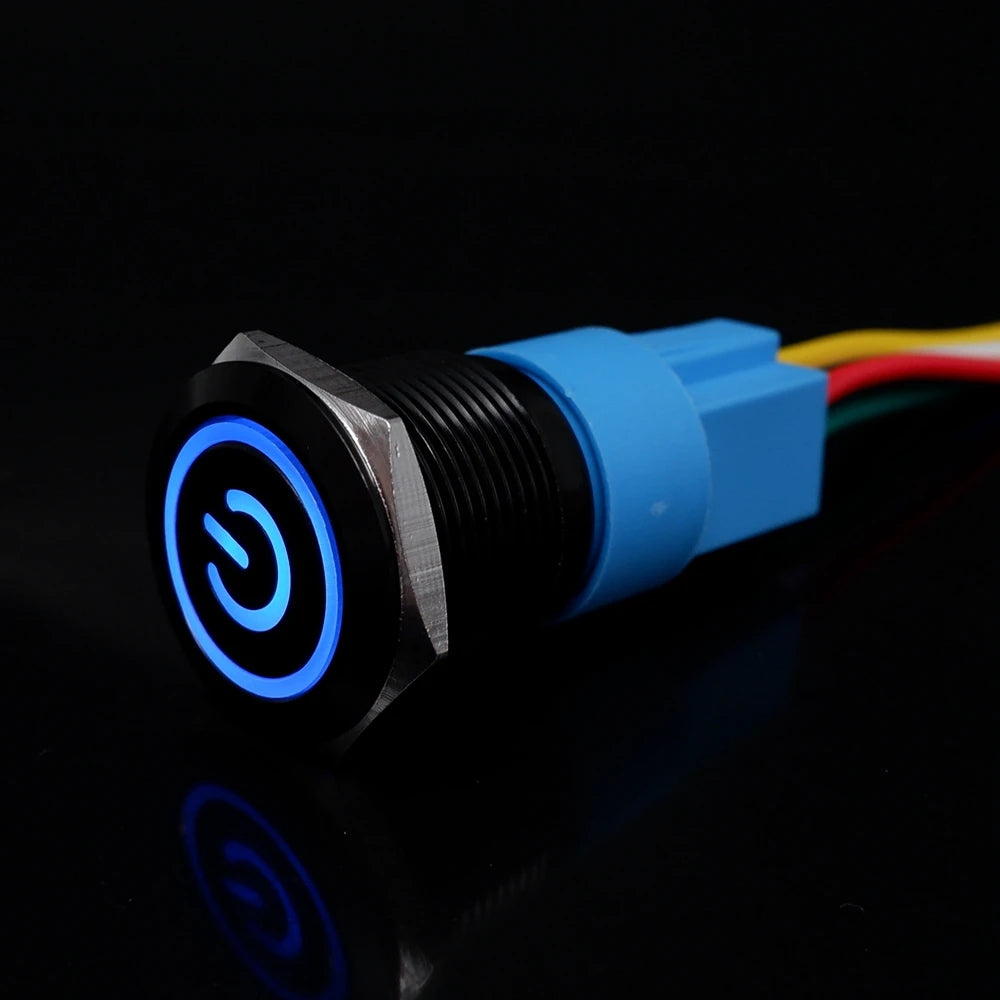

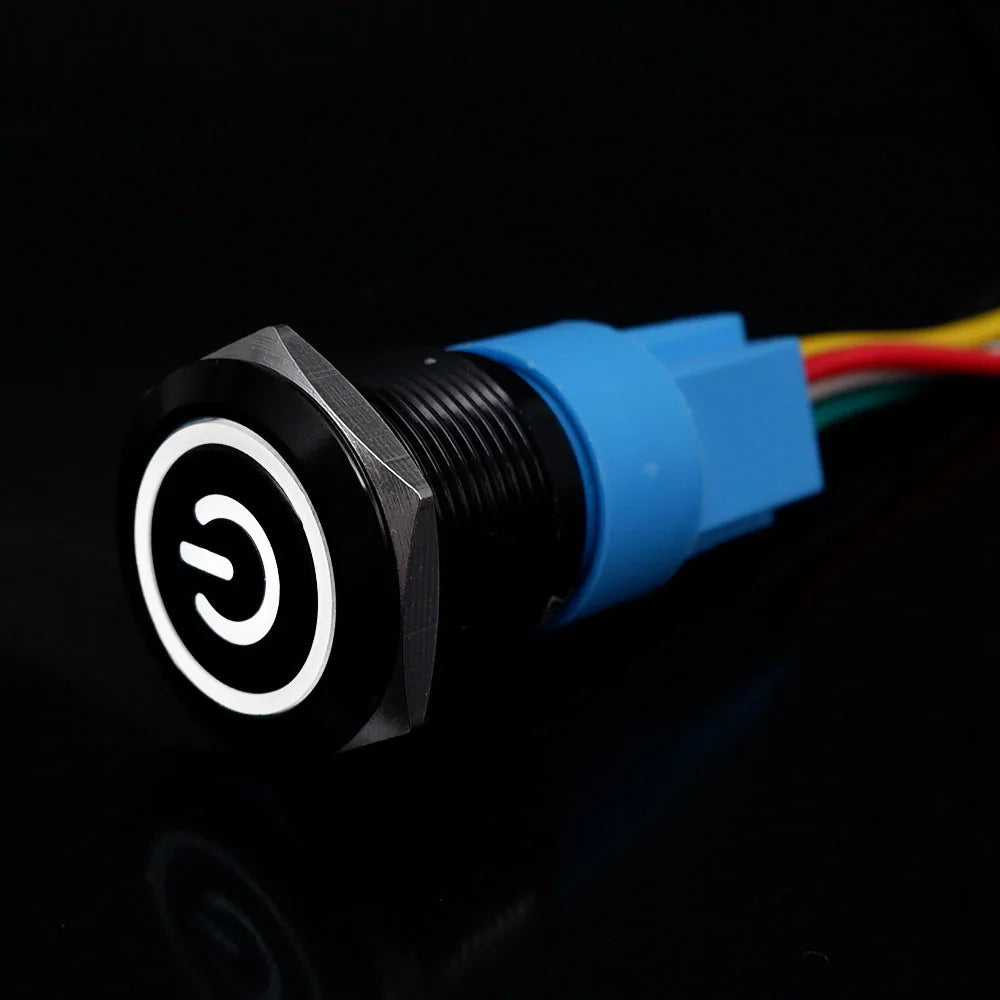

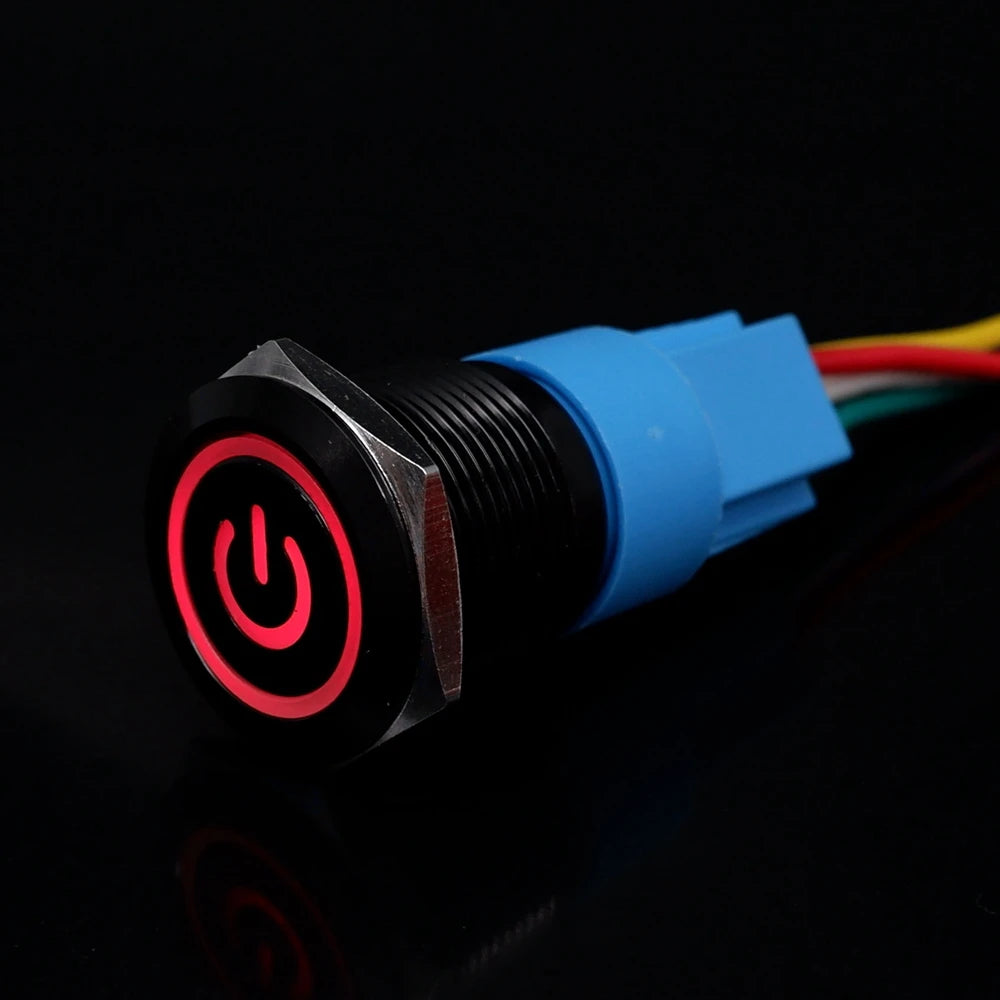

Non-polarity LED lamp makes wiring more convenient. High brightness and long service life.

The metal shell can resist corrosion, pressure and wear.

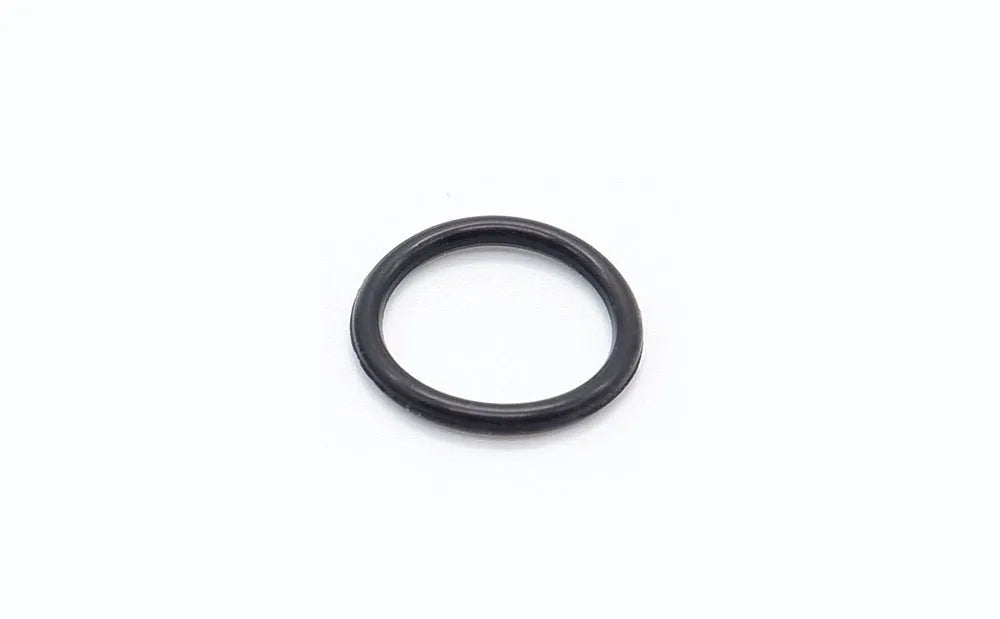

With rubber sealing ring, waterproof and dustproof.

Flame retardant base, fire and electricity proof, safer use.

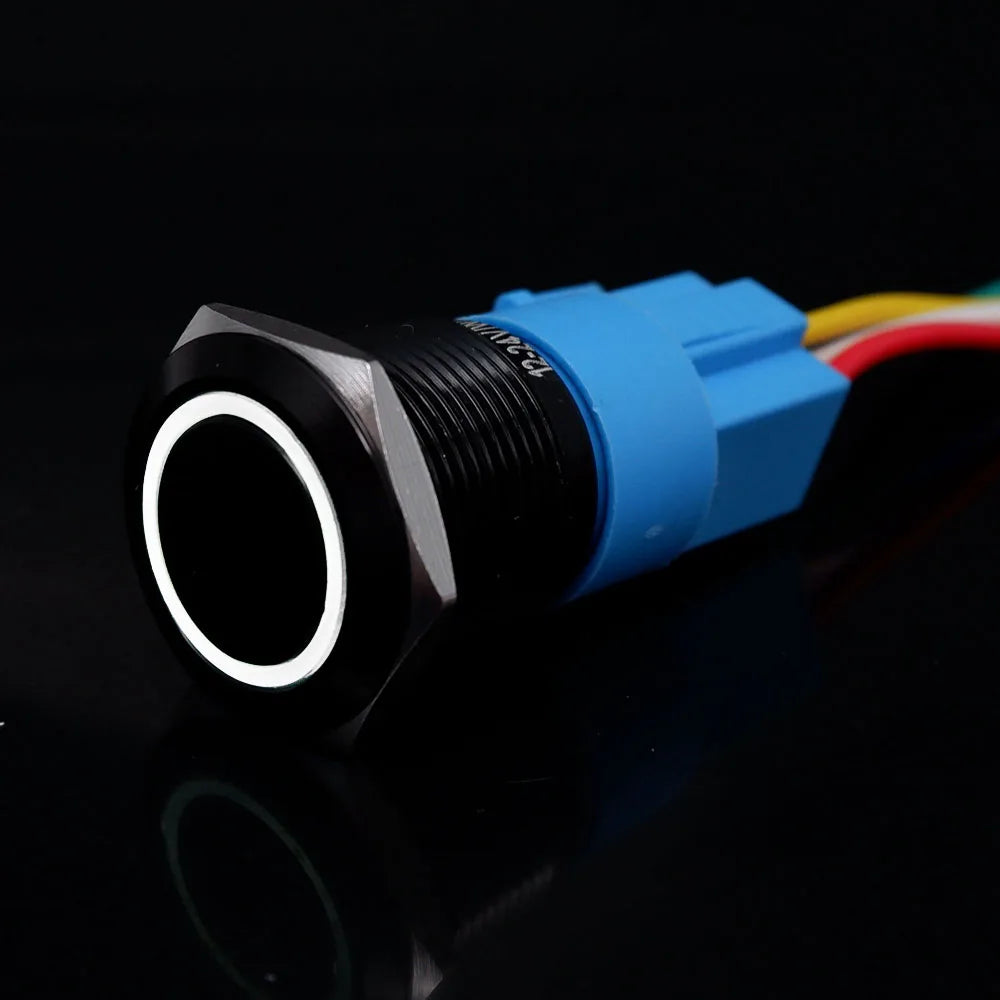

The wire length of the connector is about 15cm, which makes wiring more convenient.

Certificate

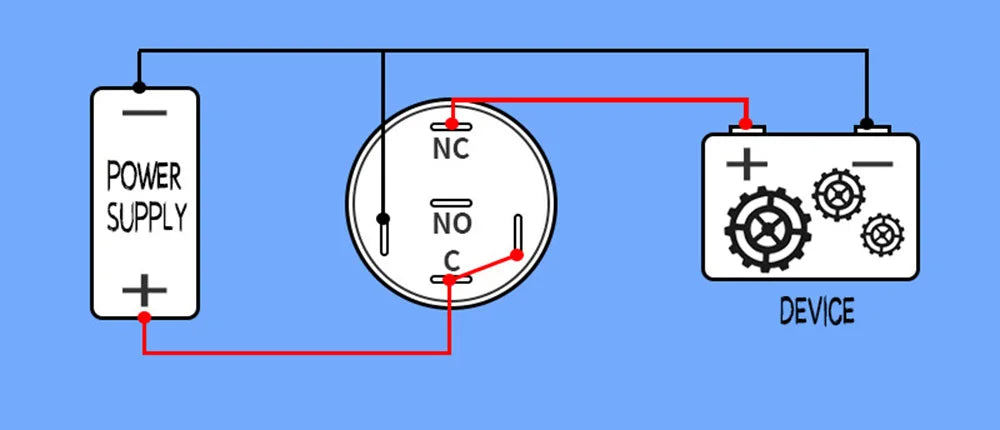

Wiring Instructions

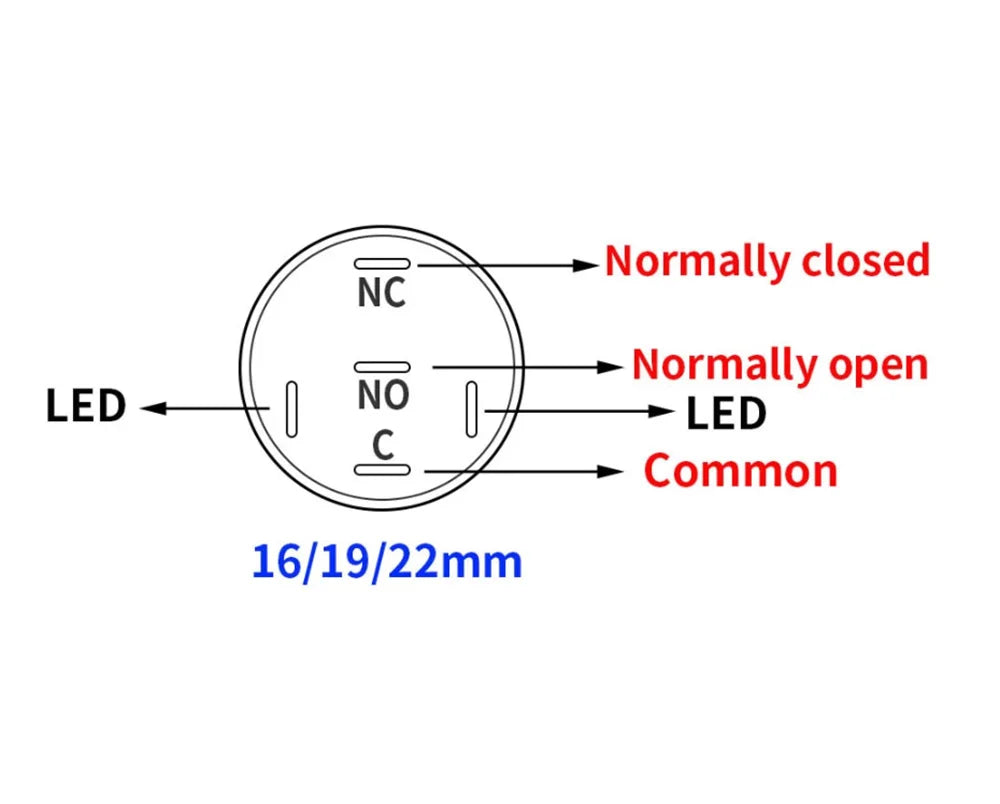

1.What does the signal “C”、"NC" and "NO" means?

" NC ": Normal Close
" NO ": Normal Open
" C " : Common

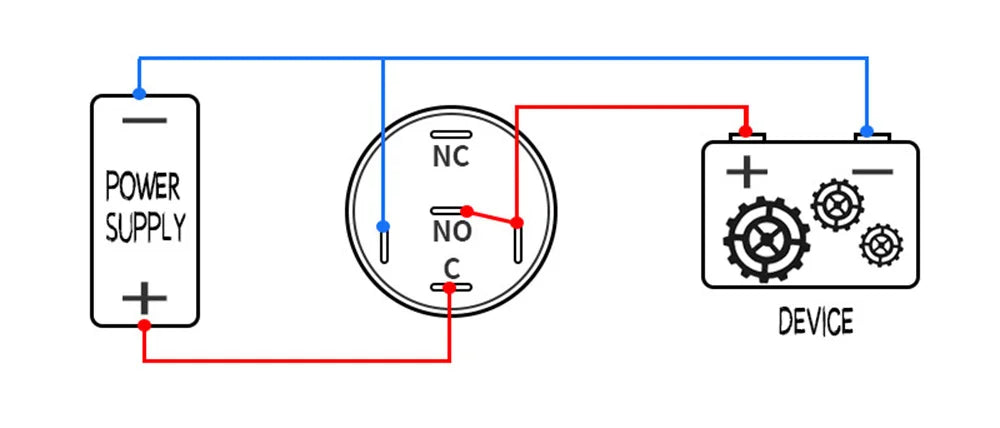

2.How to connect?

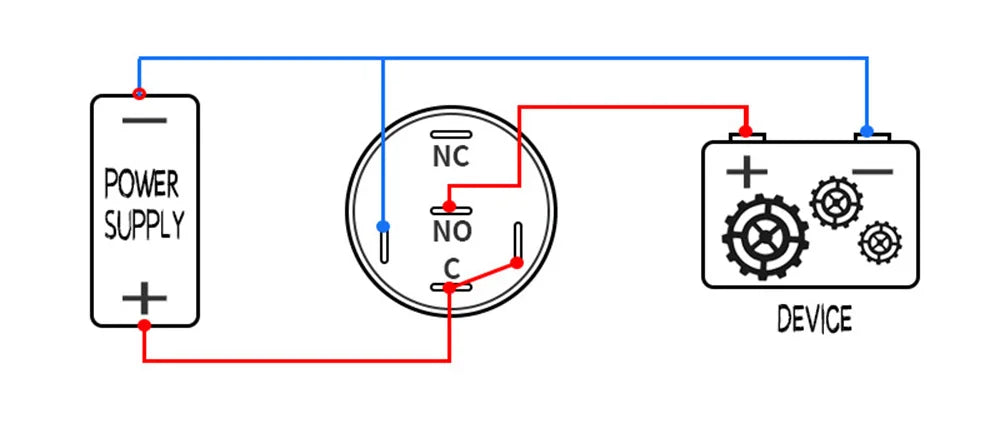

(1).Connect " NO " and " C " : The circuit is alway open unless press the button.

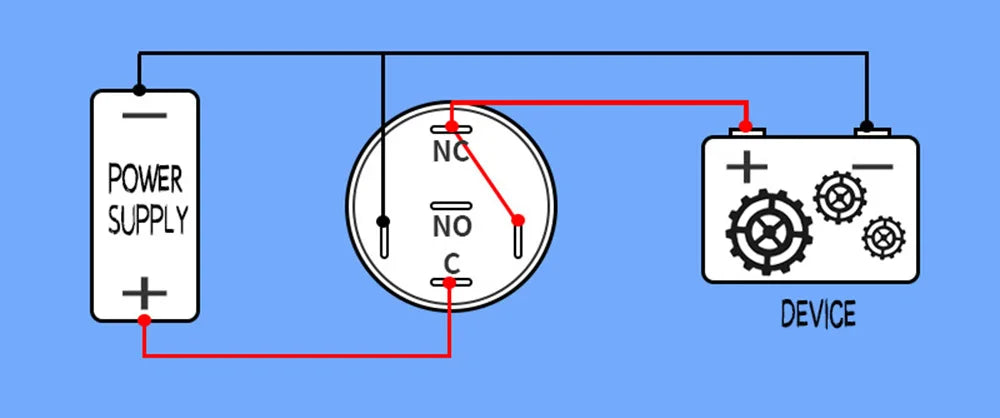

(2).Connect " NC " and " C " : The circuit is alway close unless press the button.

3.Do lights and switches have electrodes?

The lamp and switch have no electrode, no need to divide the positive and negative poles when wiring.
