Description

SPECIFICATIONS

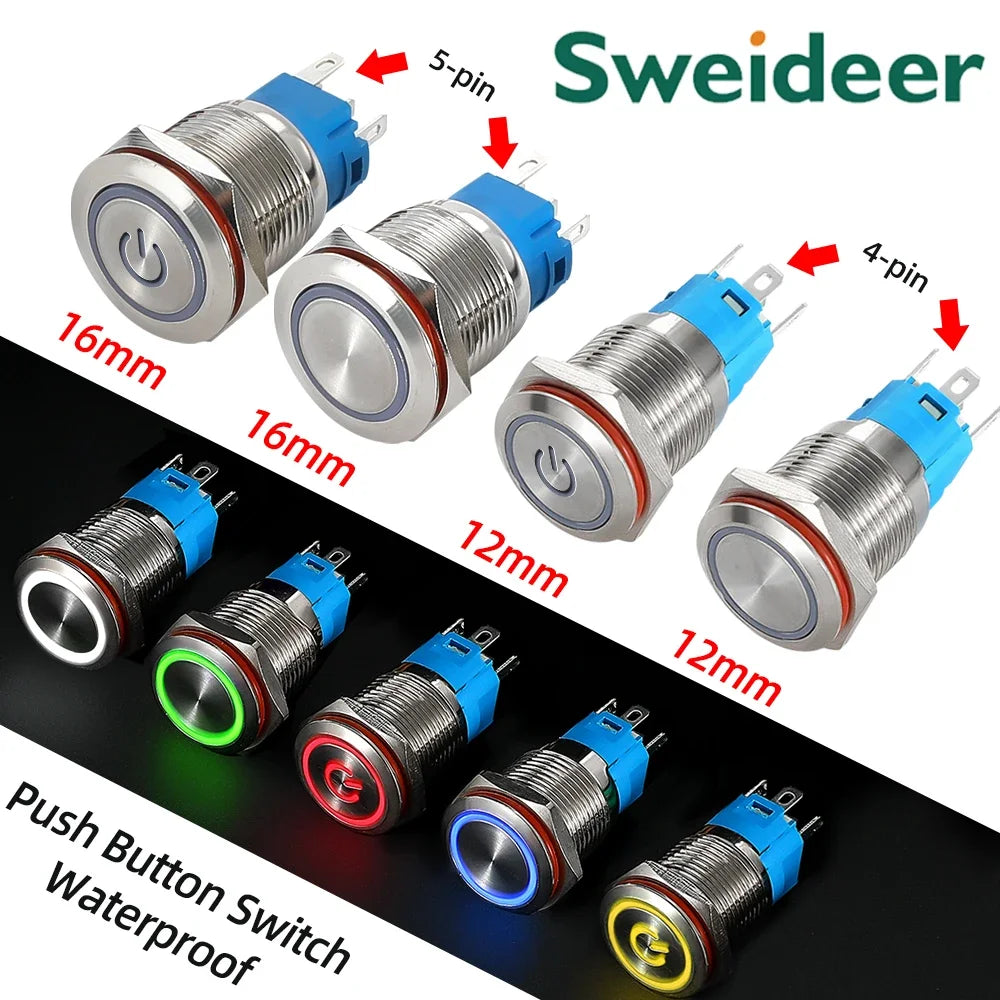

12mm: 4 Pins(1NO)

16mm: 5 Pins(1NO 1NC)

Brand Name: sweideer

Certification: CE,CCC,CCC,ce

Choice: yes

Current: 3A

Customizable LED Colors: Purple Orange

Customizable Material: Stainless steel

Customization: Yes , please leave a message to us

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

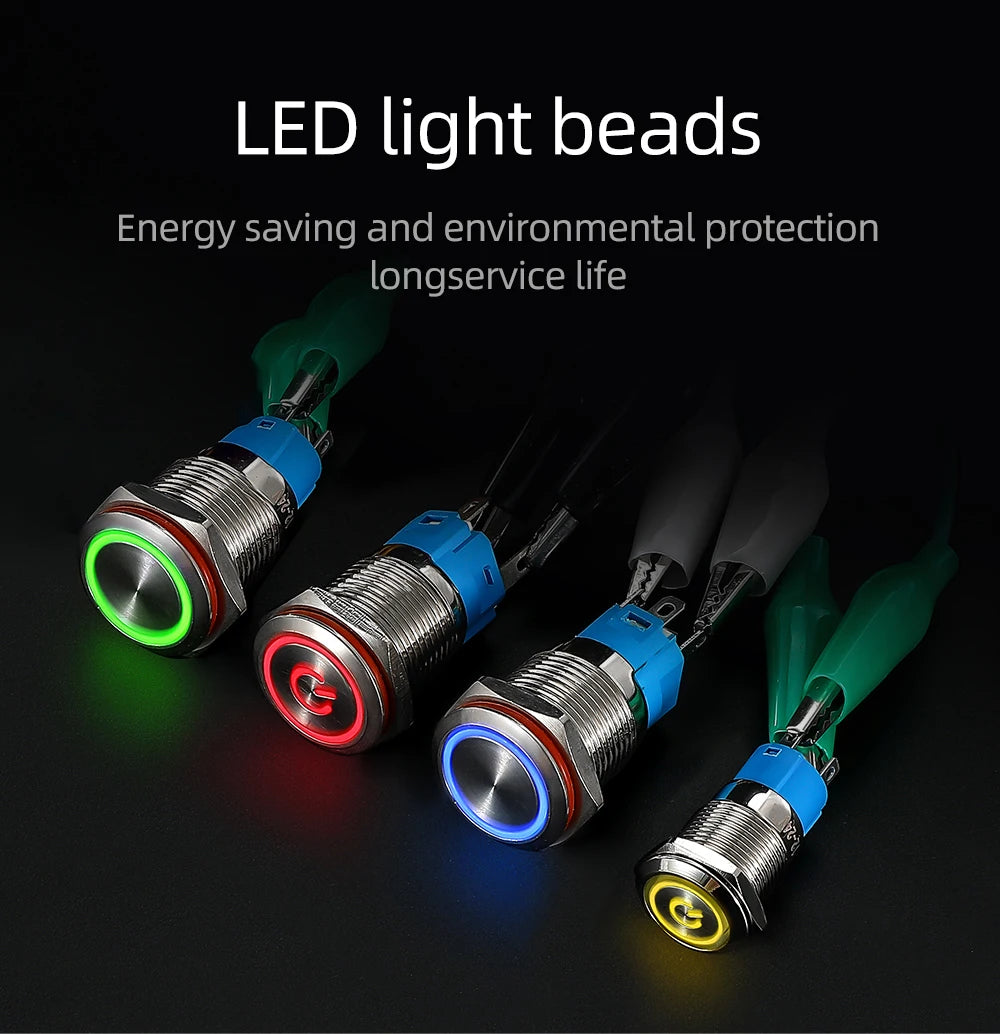

Emitting Type: Ring LED/Power Symbol LED

Features: self-recovery and self-lock type

High-concerned chemical: none

Is Smart Device: no

Item Type: SWITCHES

LED Colors: Red Yellow Blue White Green

LED Voltage: 3-6V 12-24V 220V,Please choose the right Voltage in option

Material: Alloy

Model Number: 12/16mm Metal Push Button Switch

Name: Power button/push button/switch button/Switches

No wire Metal Push Button Switch: Only metal button switch, no wire connector

Opening diameter: 12/16mm

Operation type: Momentary or Latching

Origin: Mainland China

Rating switch: 3A / 250VAC

Shell Material: Brass nickel plating

Switch Type: Push Button Switch

Switch type: 1NO 1NC(1 Normally Open and 1 Normally Closed);1NO(1 Normally Open)

Using: Car PC machine Device buttons

Warranty: 1 years

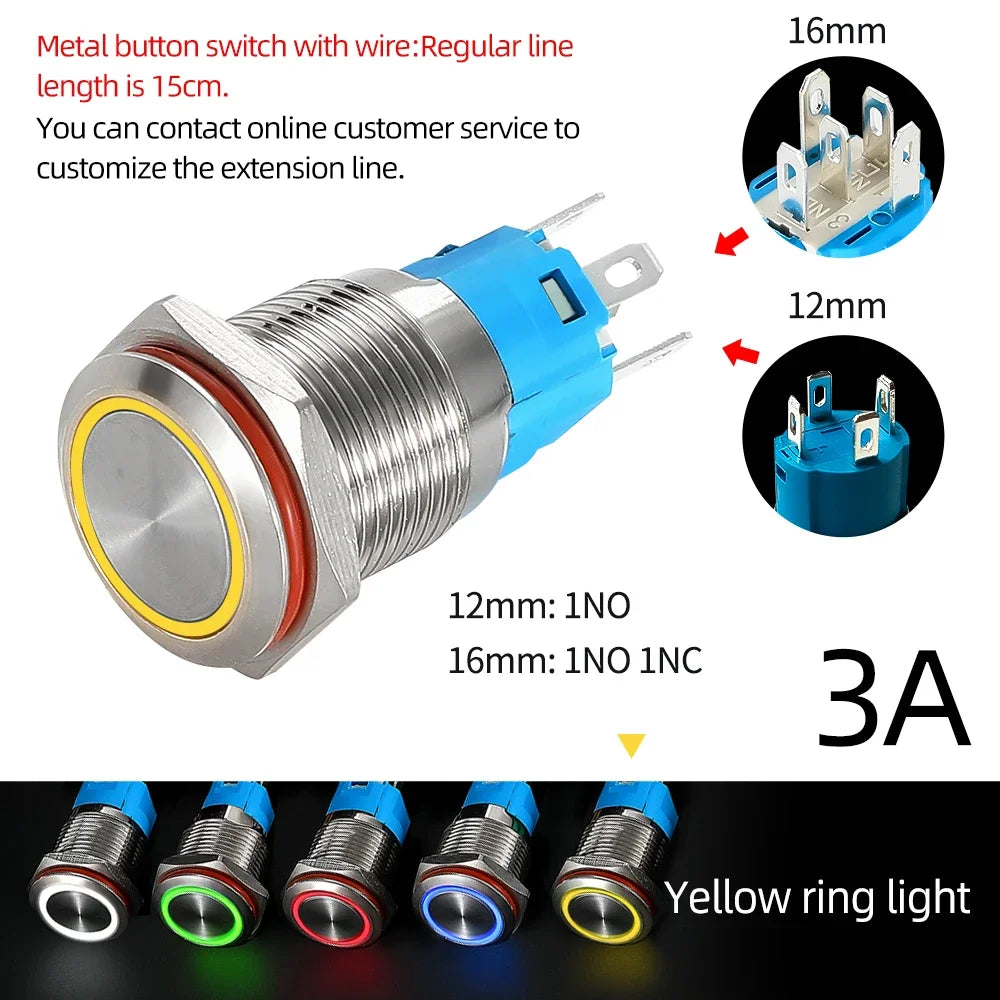

With wire Metal Push Button Switch: Have metal button switch and 15cm wire connector

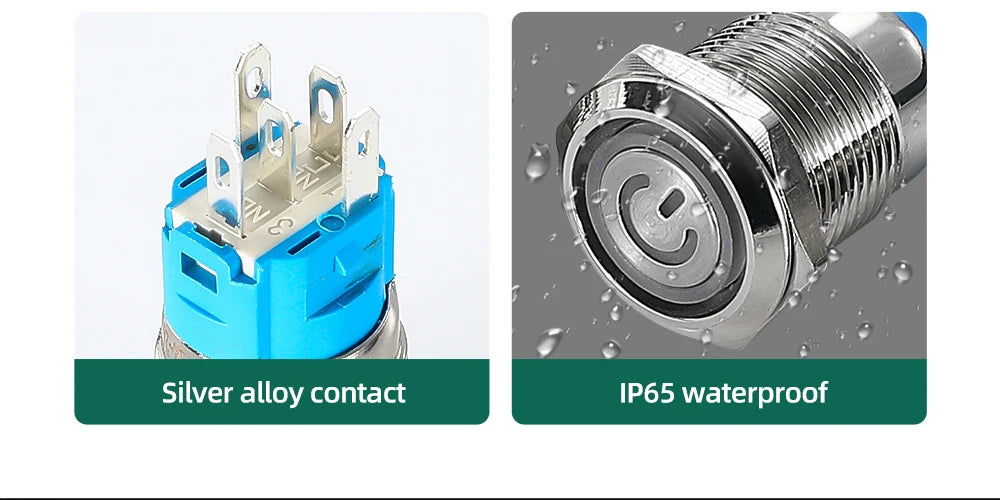

levels of protection: IP65

semi_Choice: yes

Due to the limitation of the specification page
If you need to choose the White power symbol,please contact us, thank you!

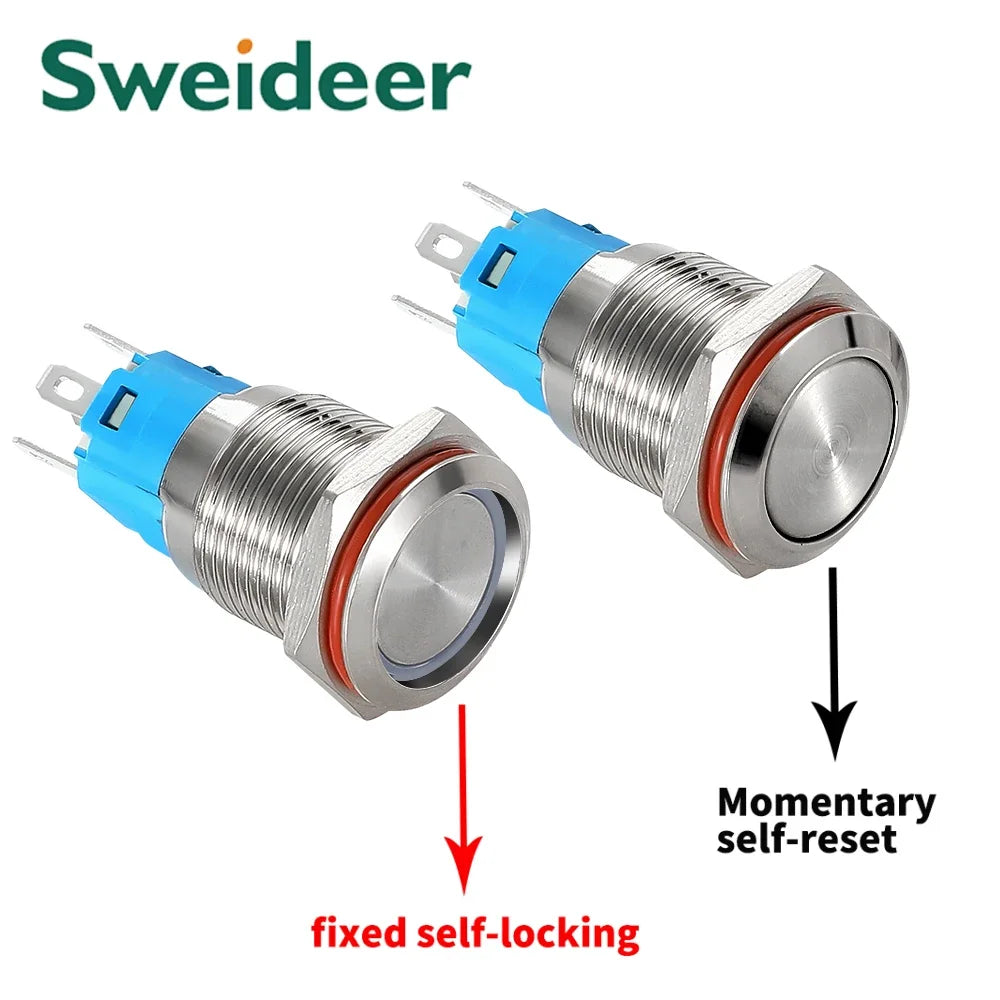

Difference between Momentary self-reset button and self-locking button:

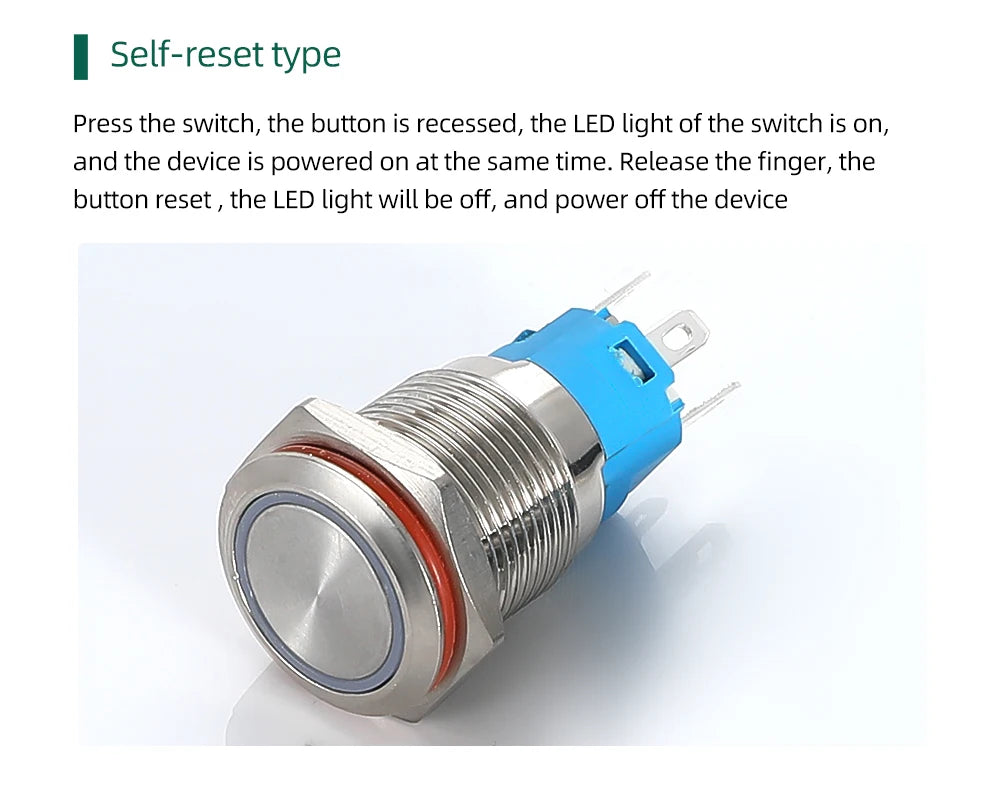

1. Momentary self-reset button: press this button to turn on the power (light on);
Release your hand, the power will appear and turn off automatically (the light goes out)

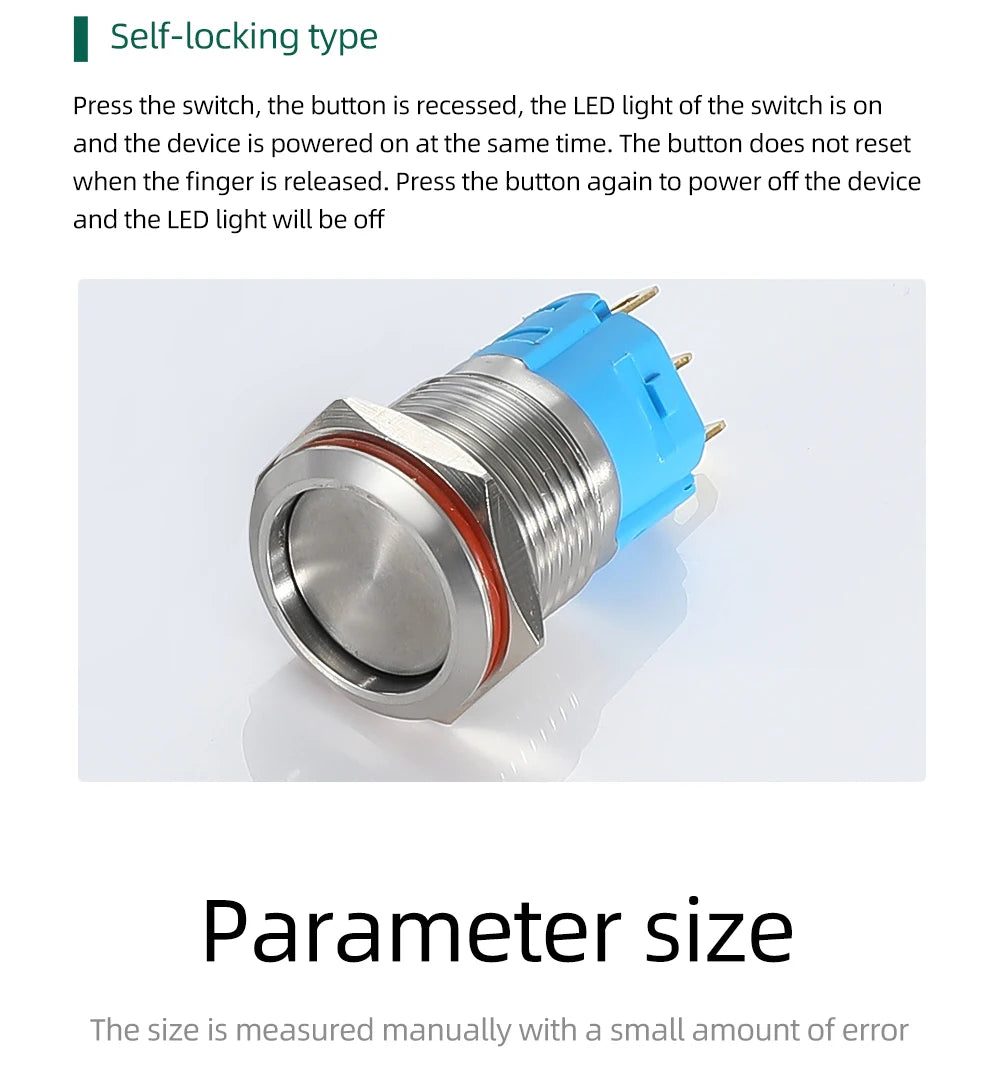

2. Self-locking button: press the power button, release your hand, and keep the button stationary (lit);
Press the button again to display and turn off the power (the light goes out).

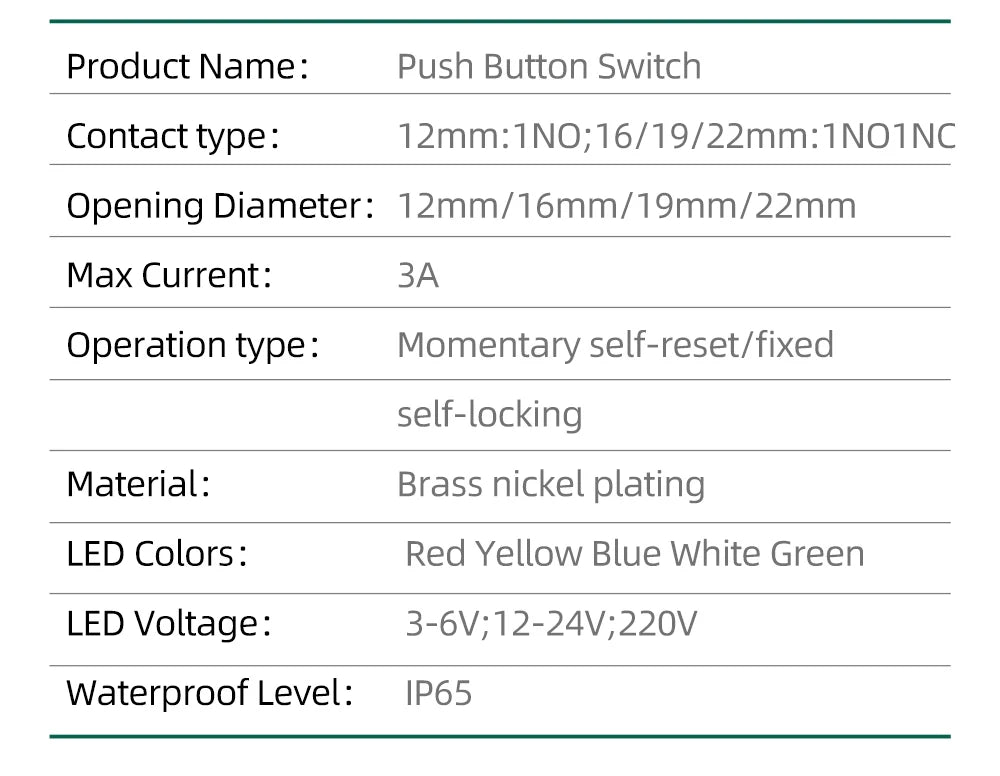

Product Specification

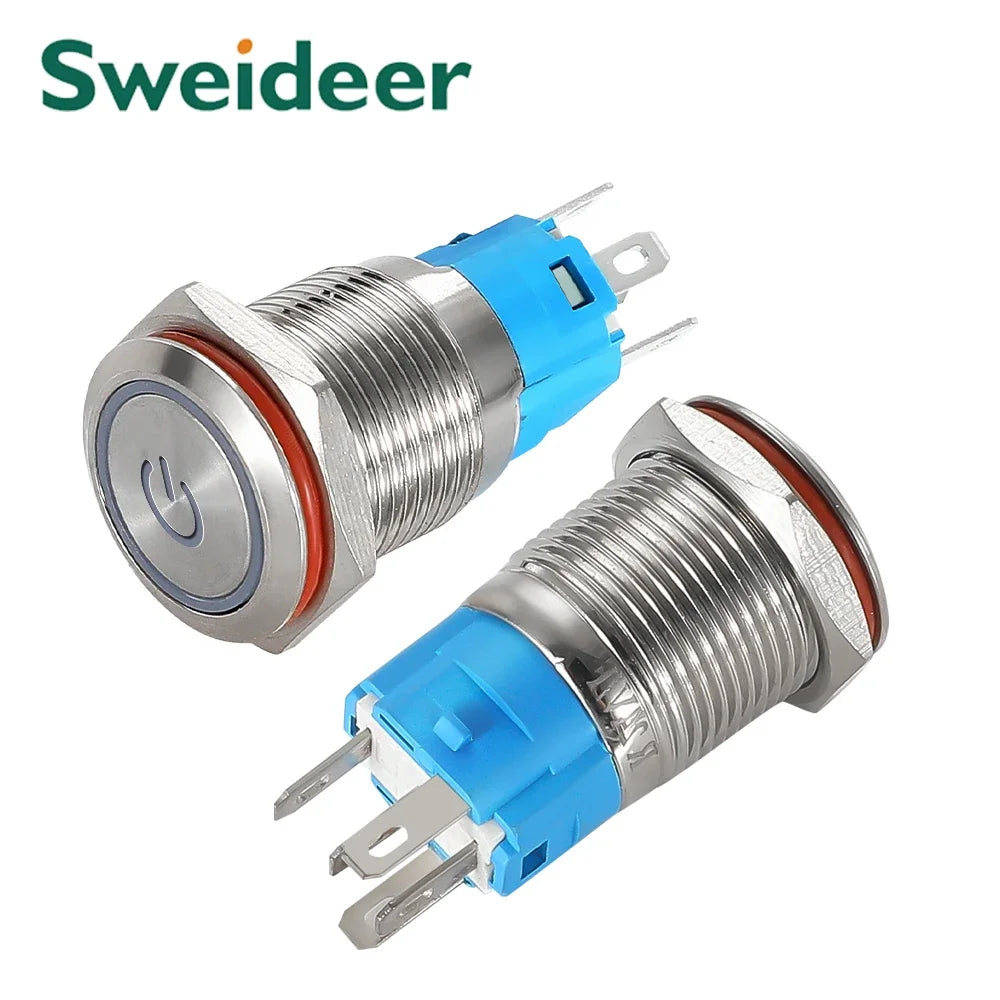

Product Name: Push Button Switch

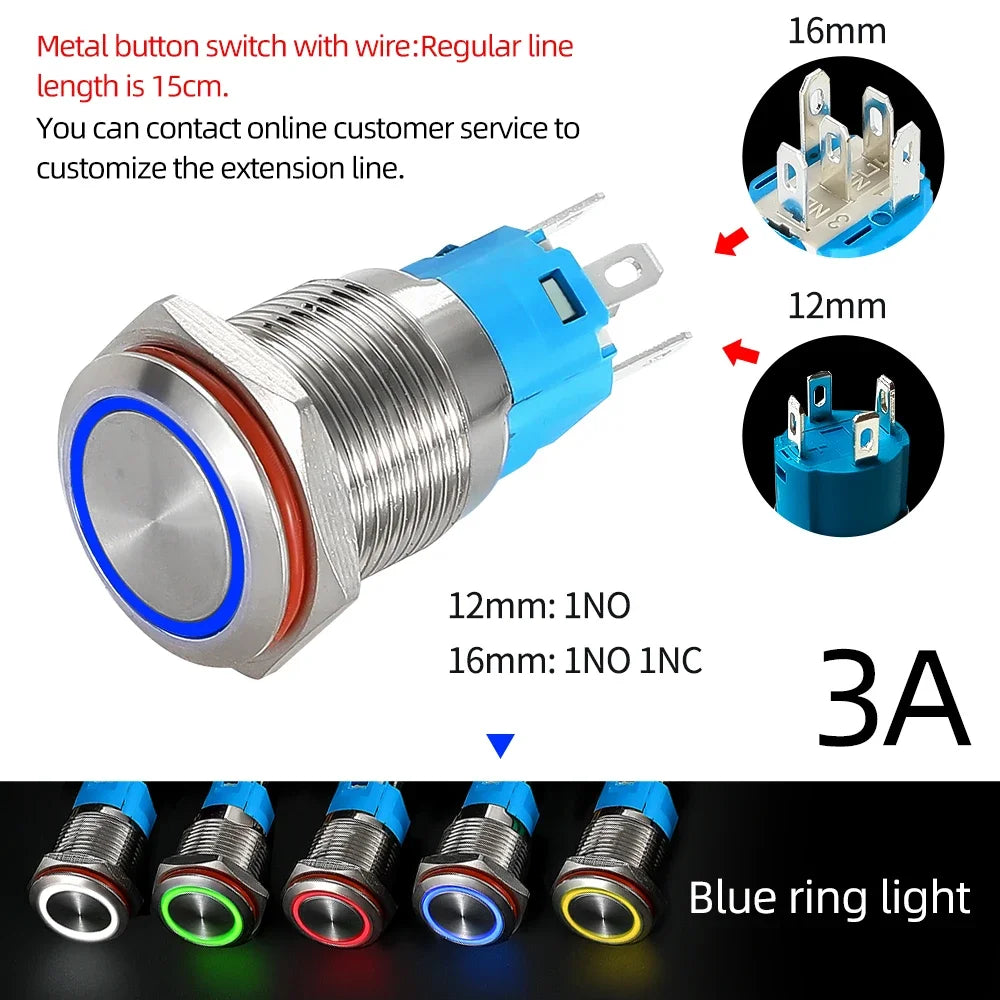

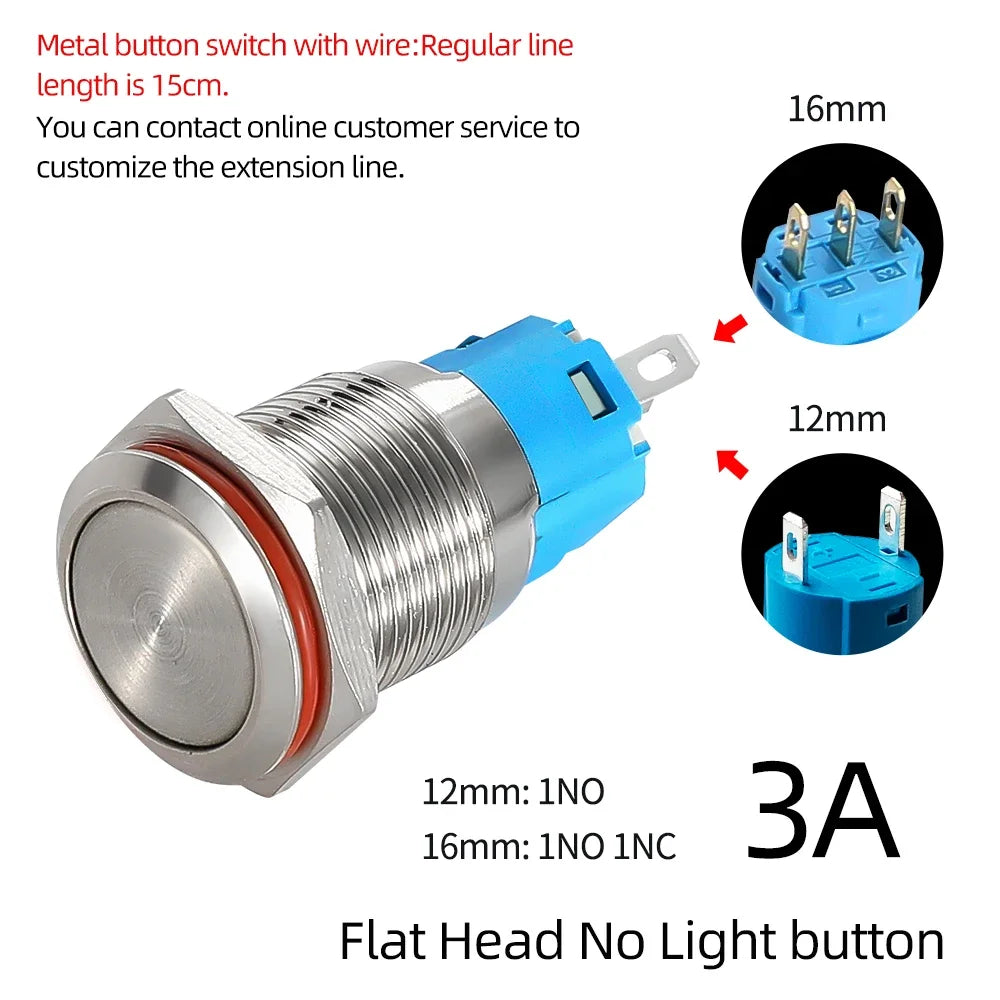

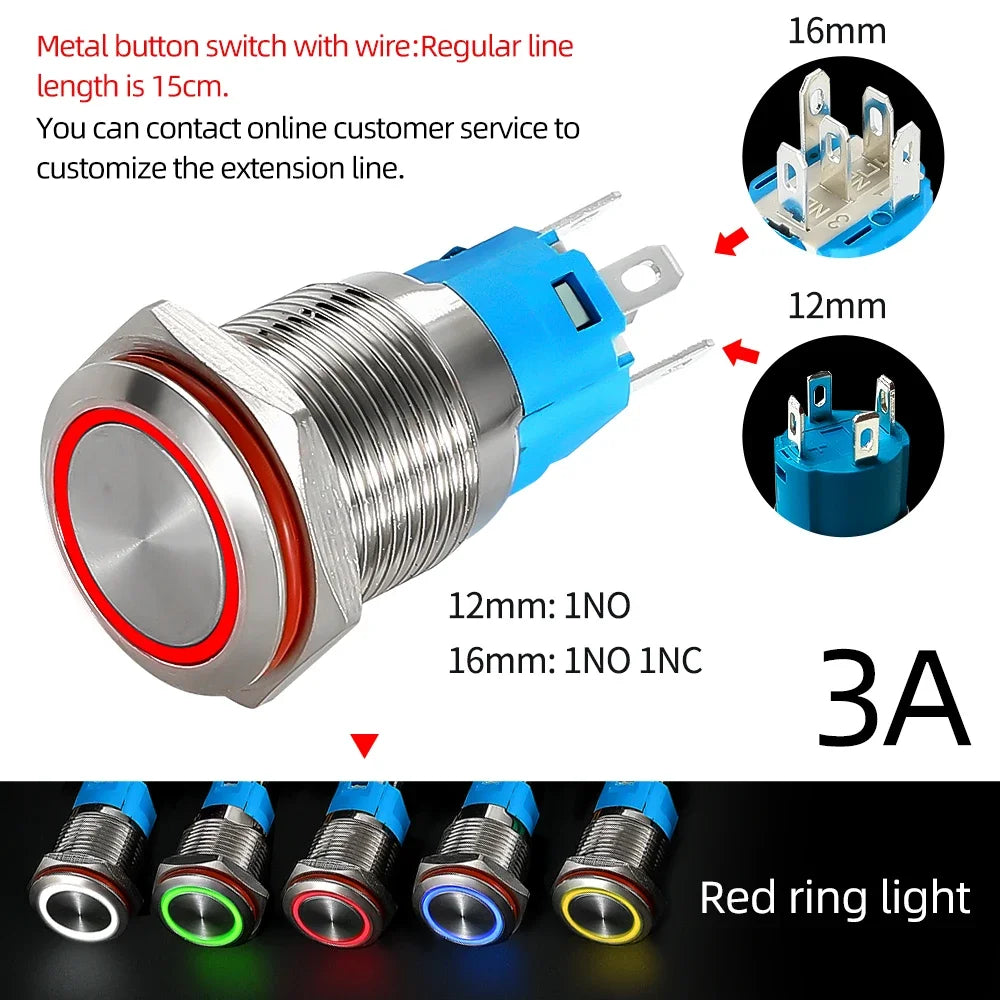

Contact type: 12mm:1NO ; 16mm:1NO1NC

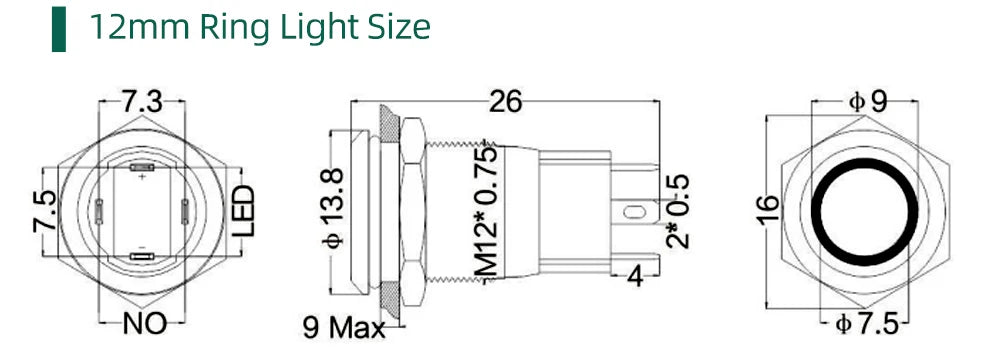

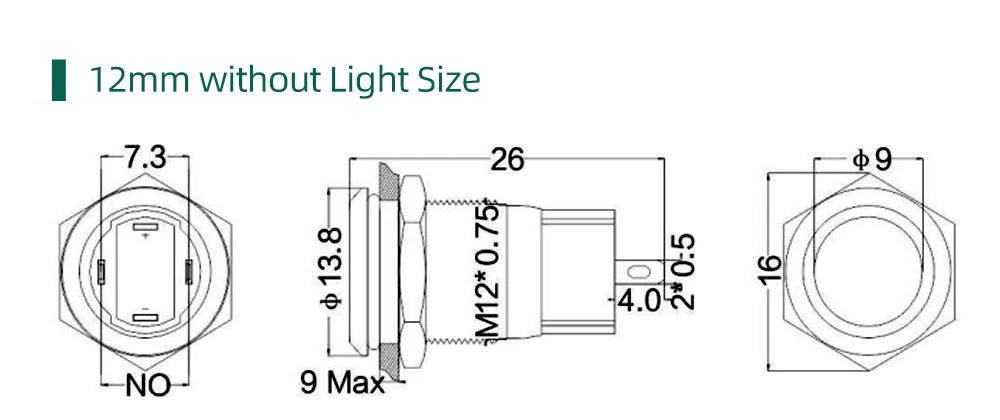

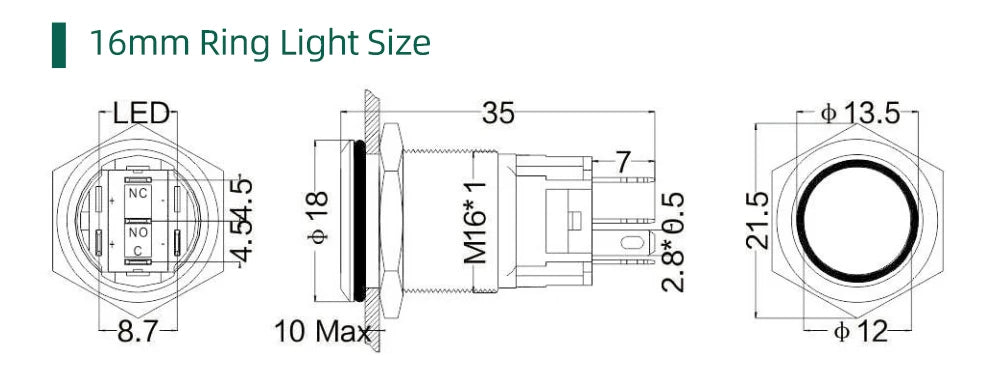

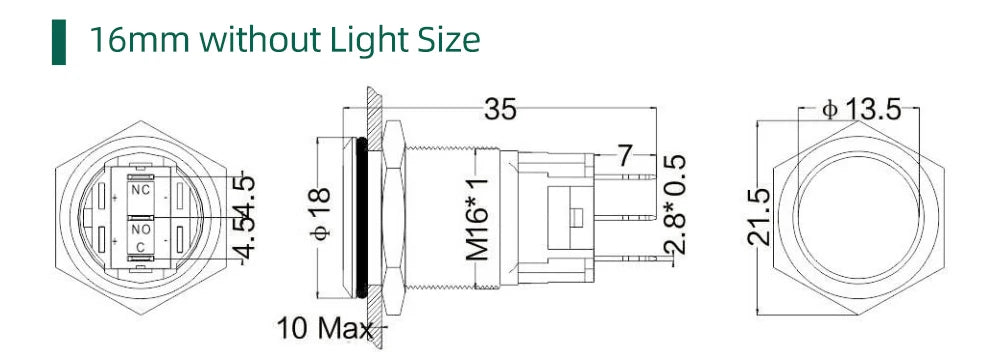

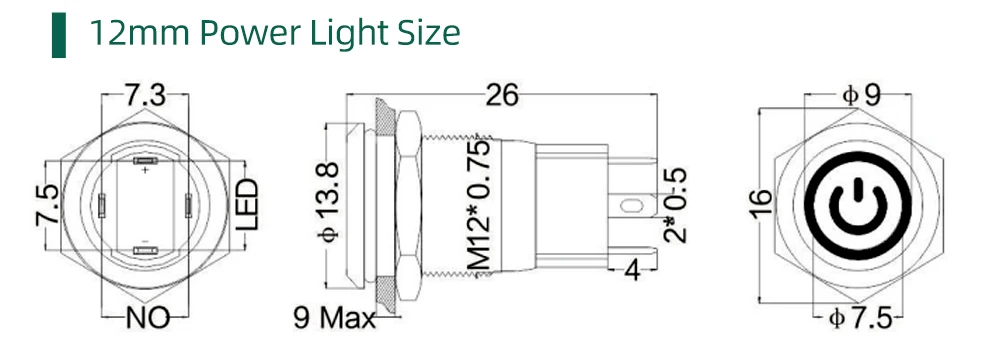

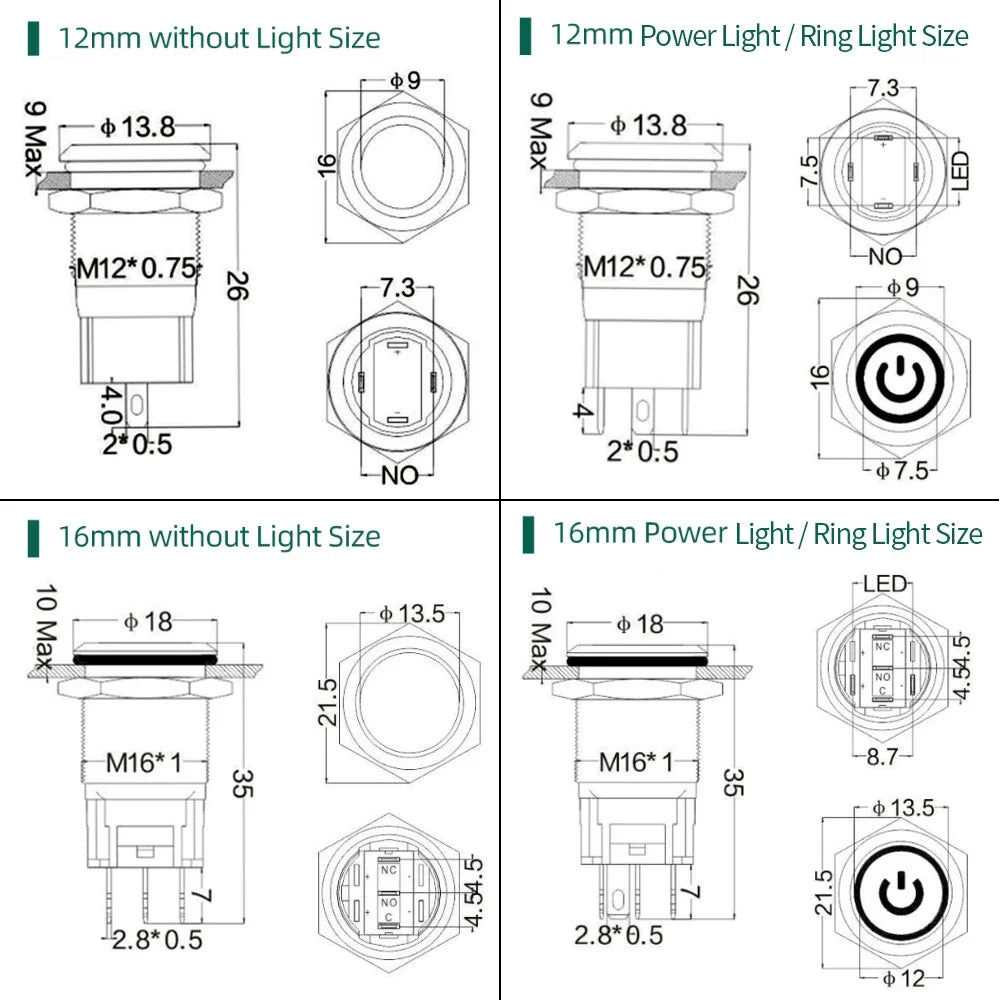

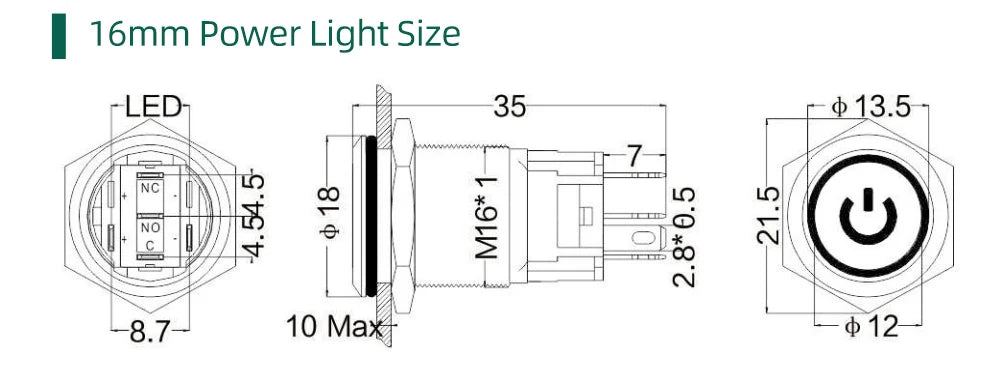

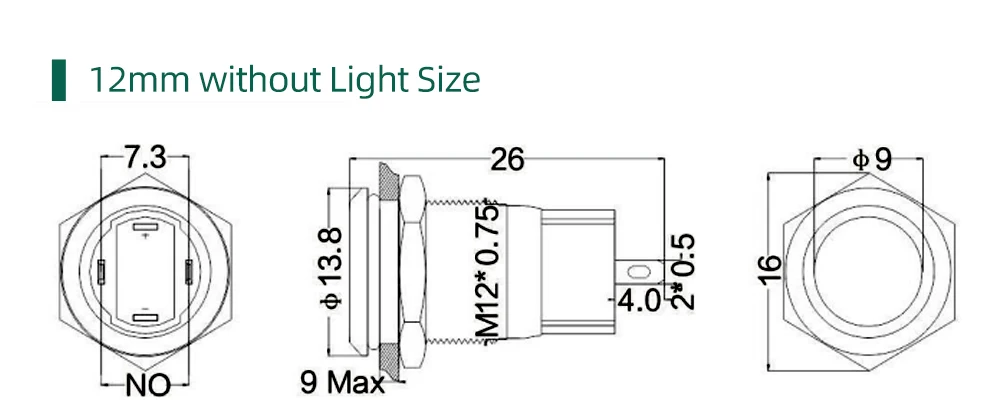

Opening Diameter: 12mm/16mm
Max Current: 3A
Operation type: Momentary self-reset / fixed self-locking

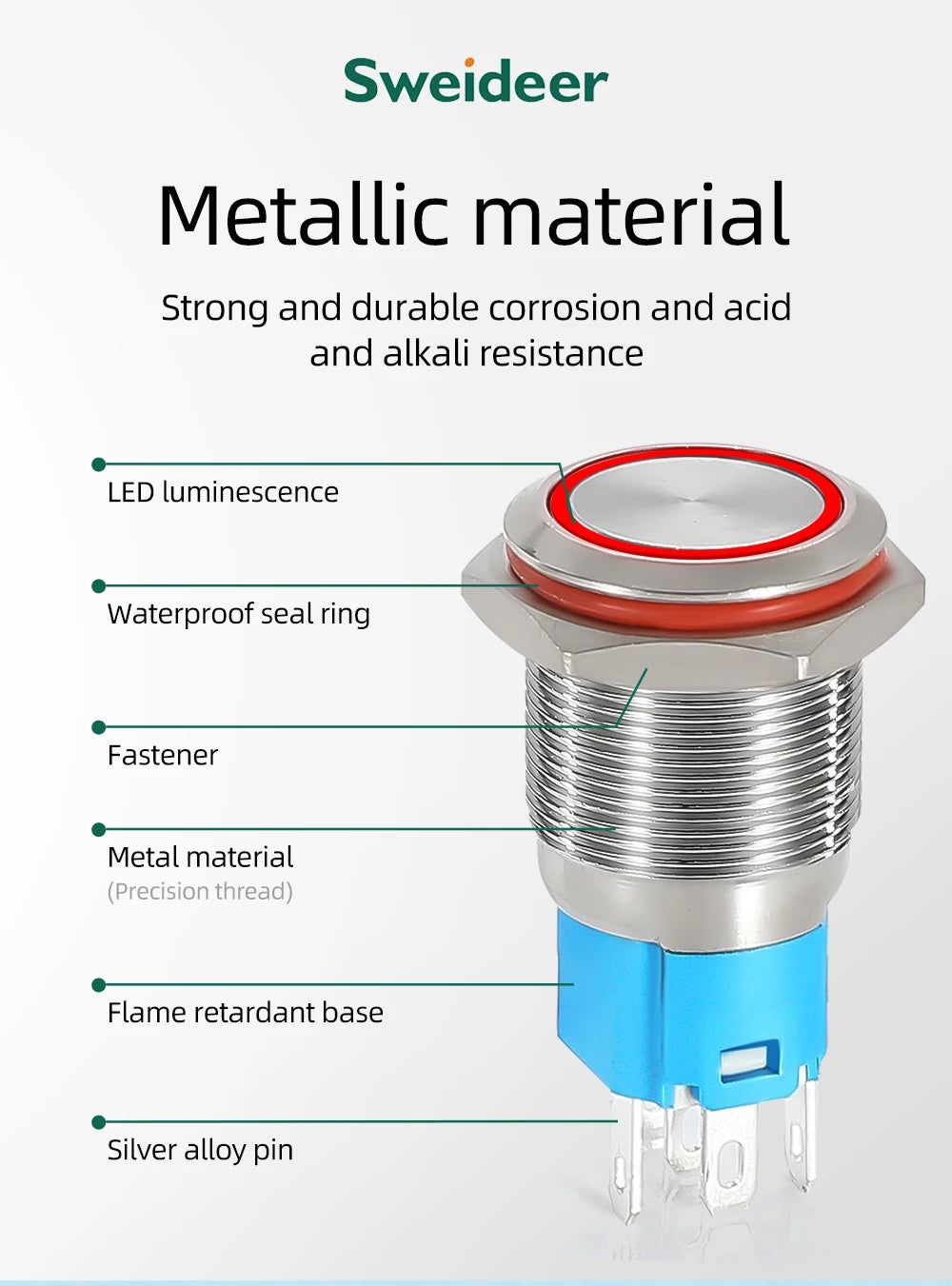

Material: Brass nickel plating
LED Colors: Red Yellow Blue White Green
LED Voltage: 3-6V;12-24V;220V

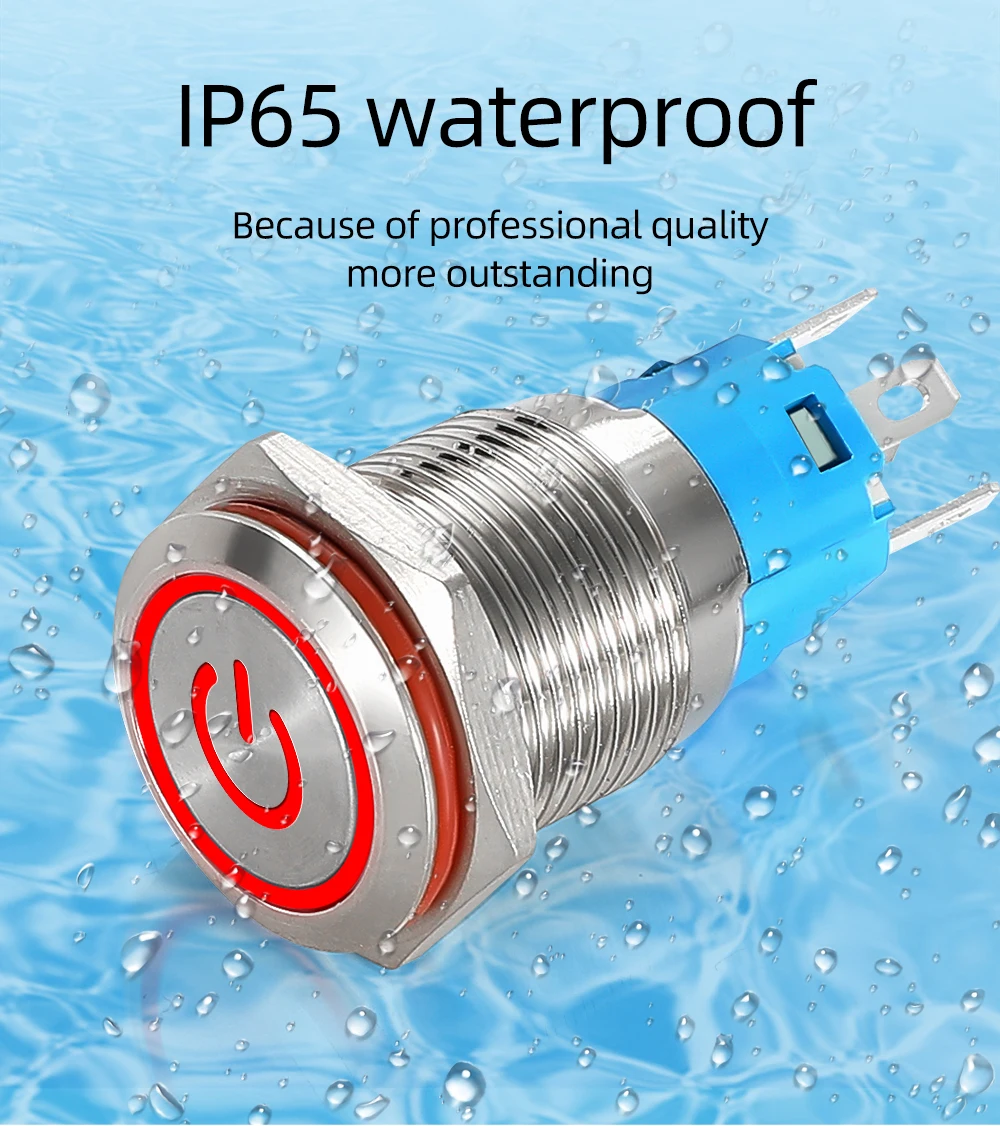

Waterproof Level: IP65

Package Content
No wire Metal Push Button Switch: Only metal button switch, no wire connector

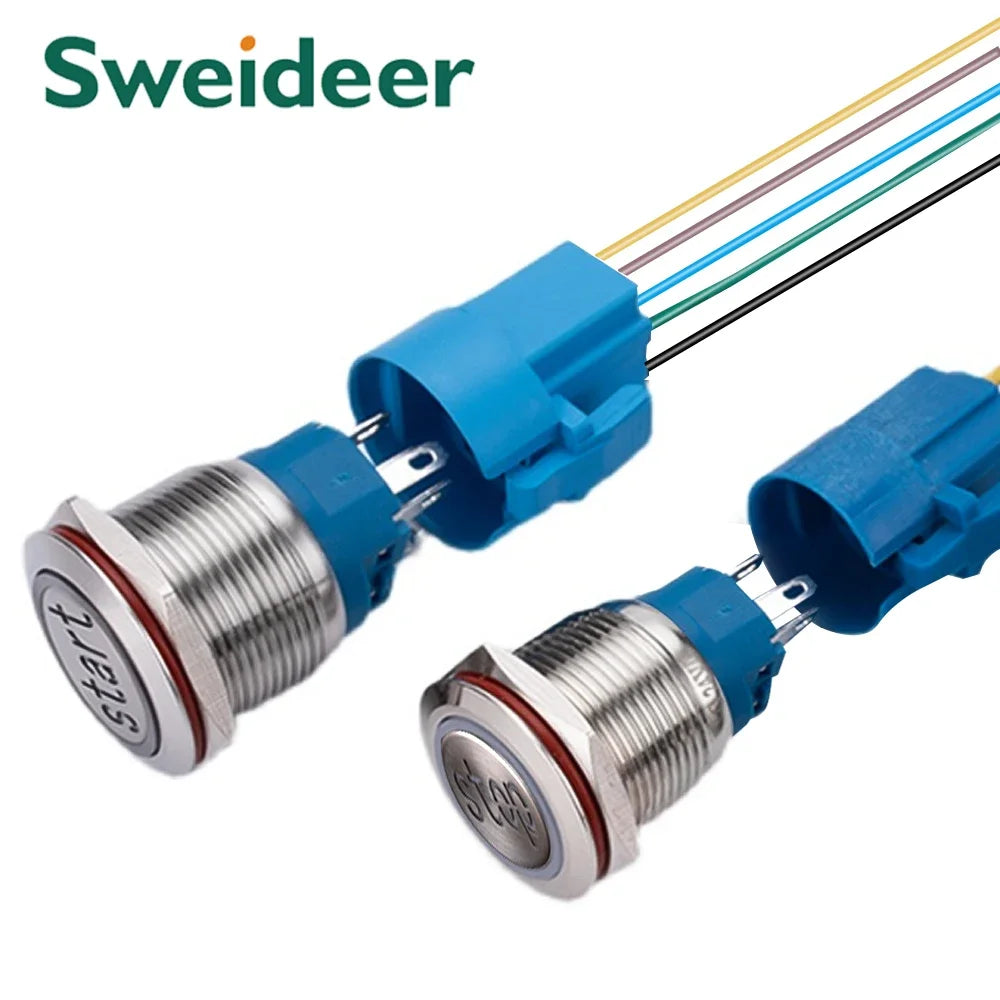

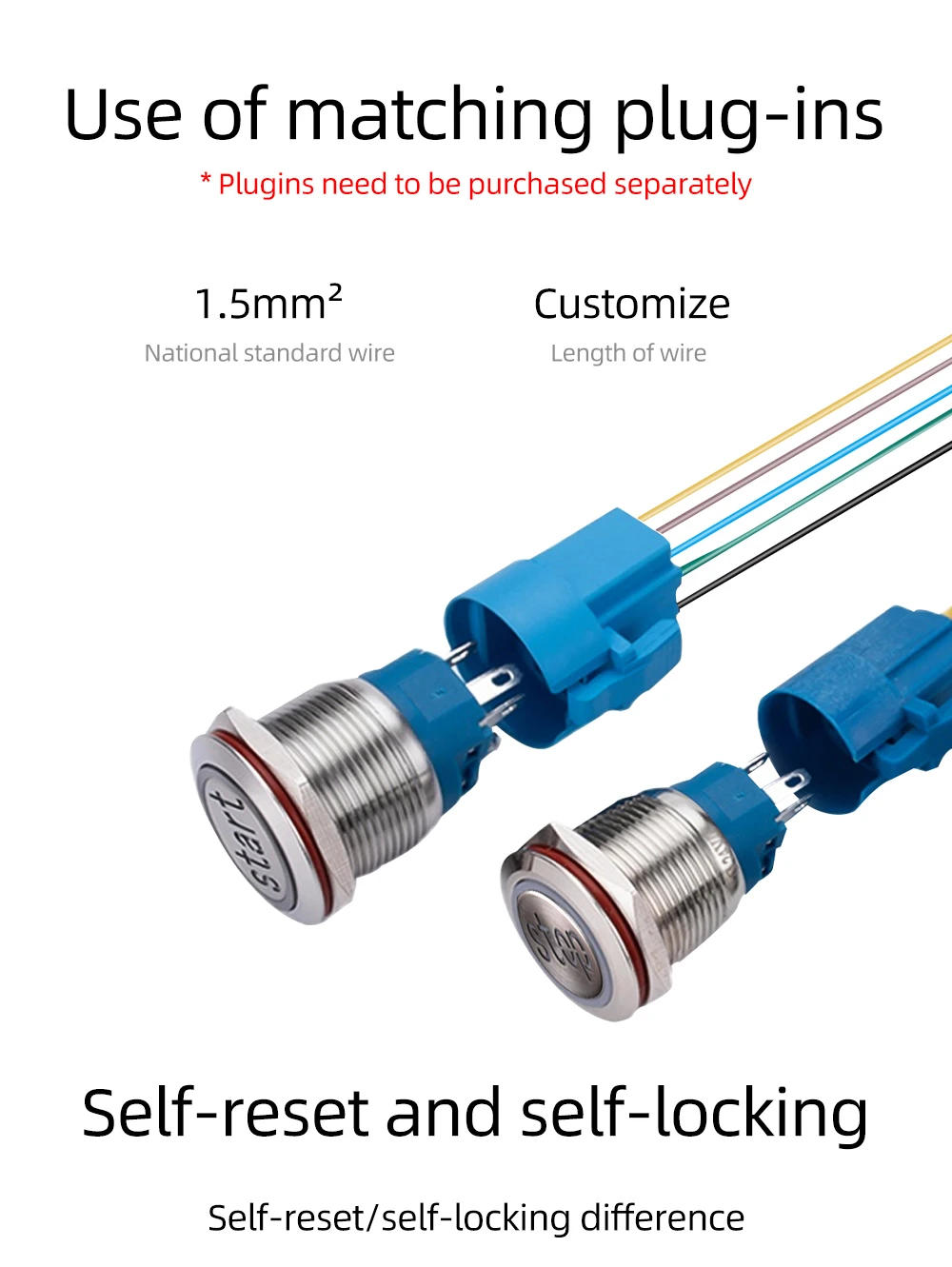

With wire Metal Push Button Switch: Have metal button switch and 15cm wire connector

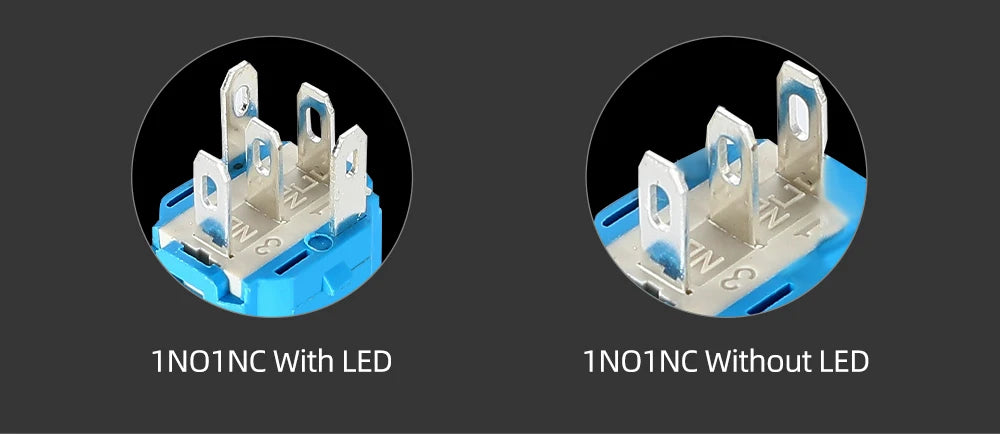

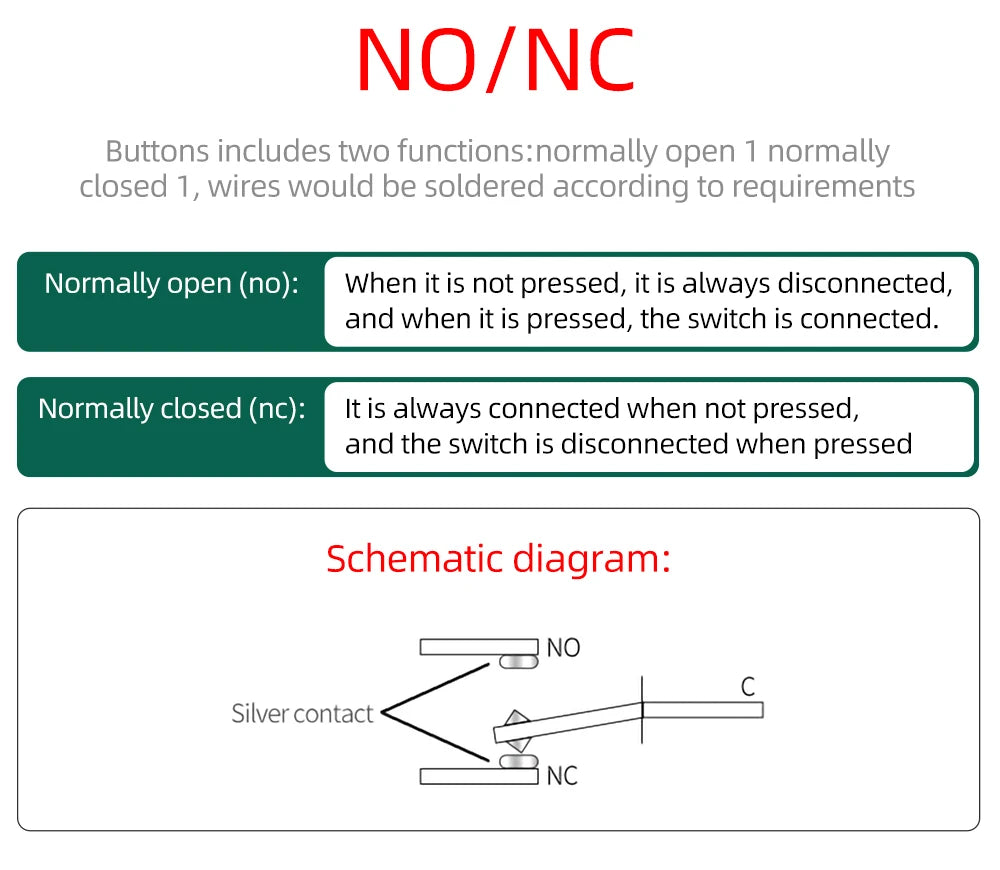

1.What does the signal "NC" and "NO" means?
"A" "+": positive pole of the led
"LED" " - ": negative pole of the led
" NC ": Normal Close
" NO ": Normal Open
" C " : Common

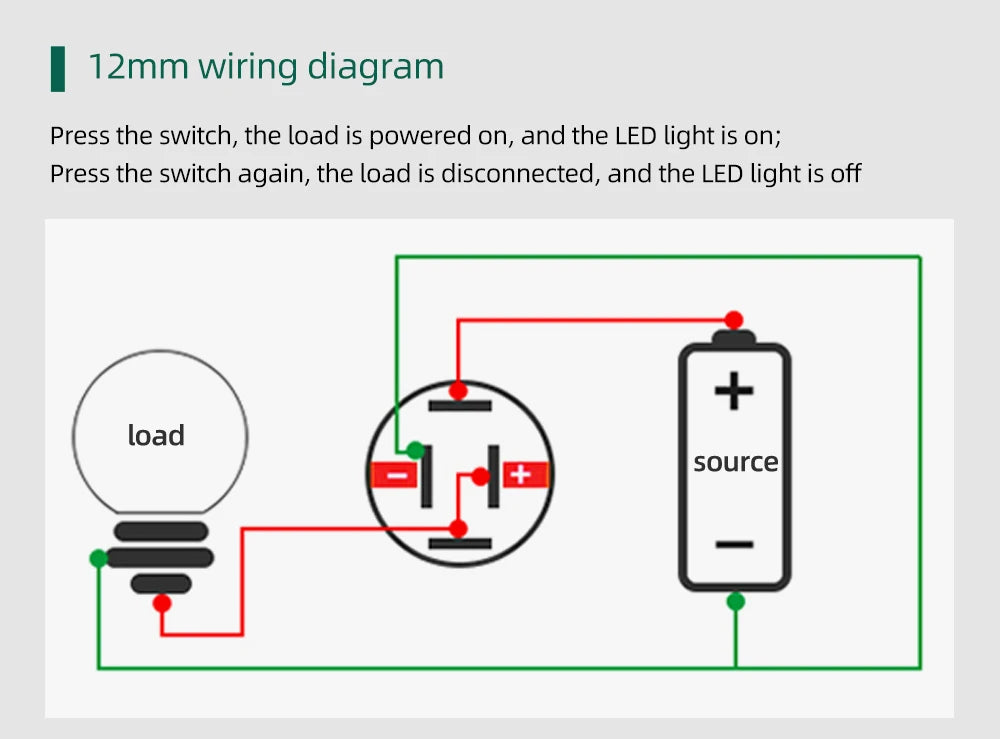

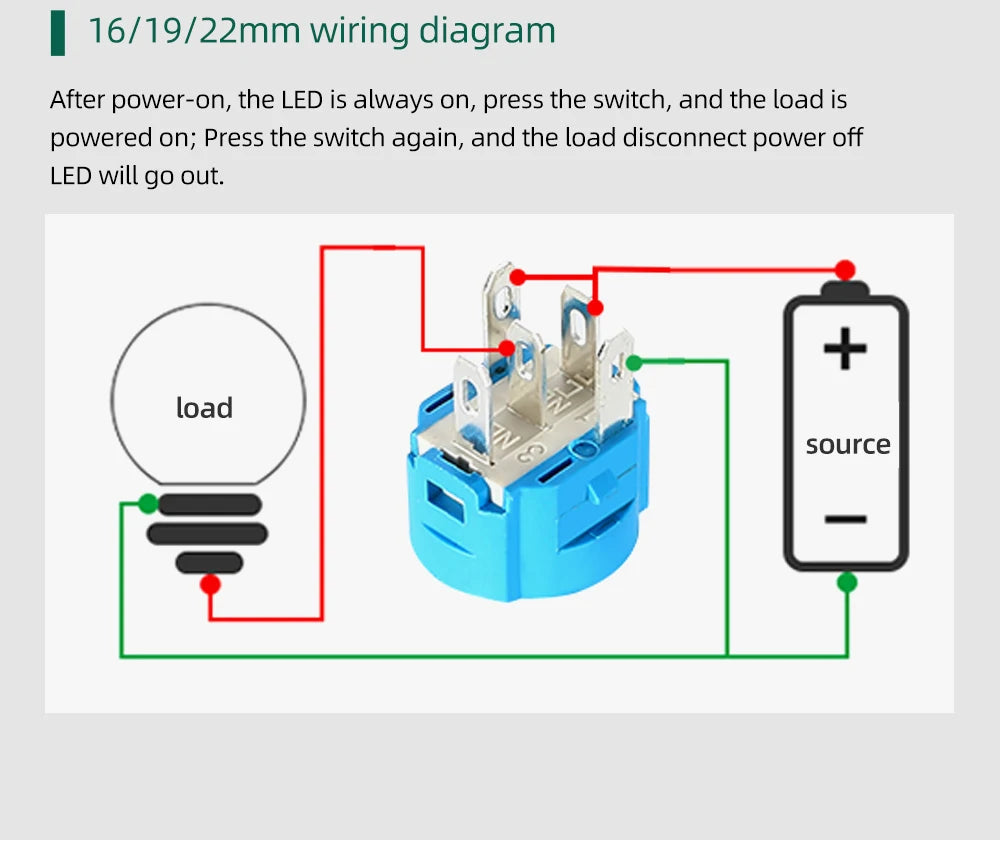

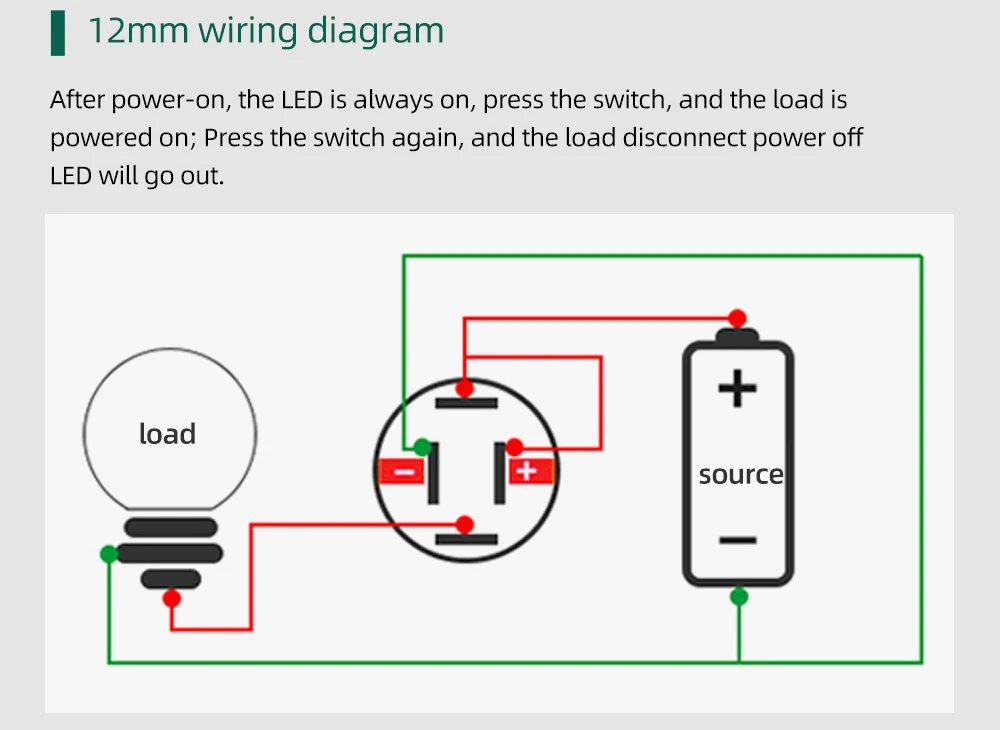

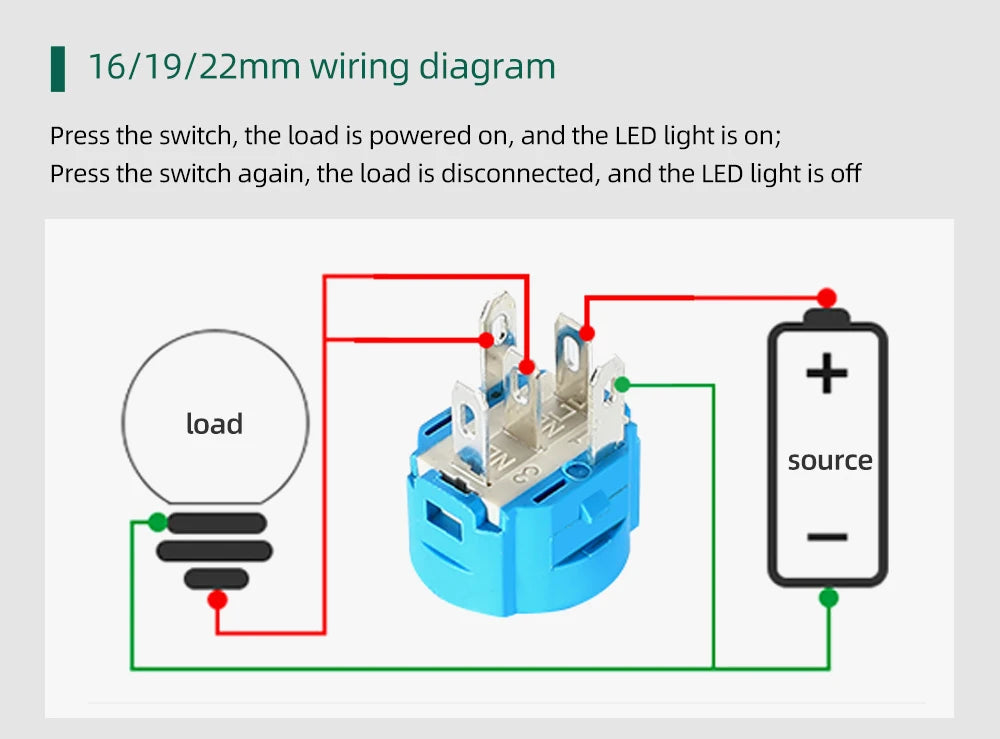

2.How to connect?
1.Connect " NO " and " C " : The circuit is alway open unless press the button.
2.Connect " NC " and " C " : The circuit is alway close unless press the button.

3. Can Customization it?
Yes , please leave a message to us.
