Description

SPECIFICATIONS

Accessory Type: Camera Module

Battery Included: no

Brand Name: SHCHV

Choice: yes

Compatible With: Raspberry Pi

High-concerned chemical: none

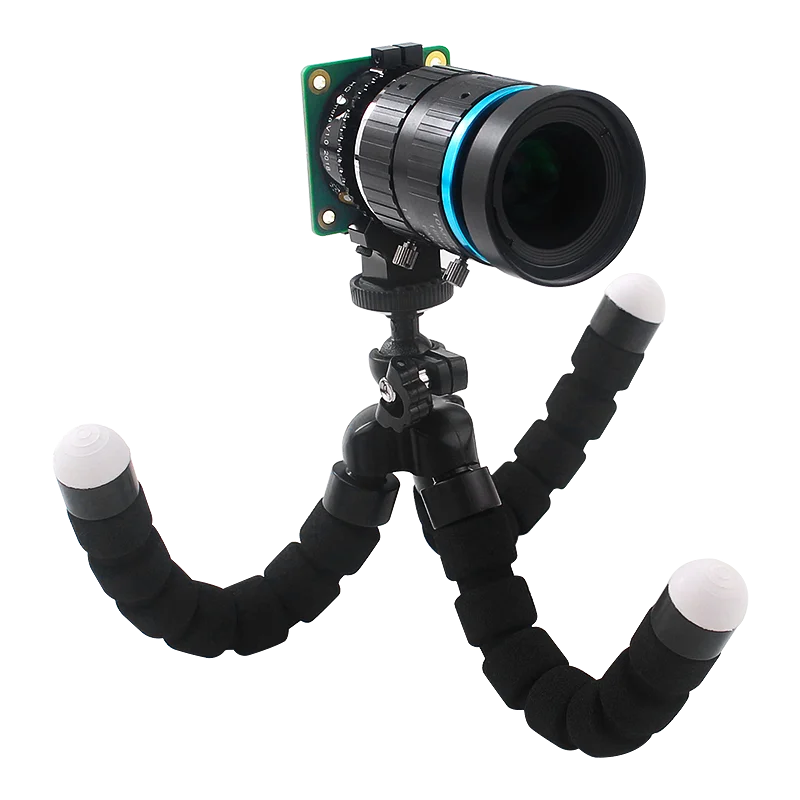

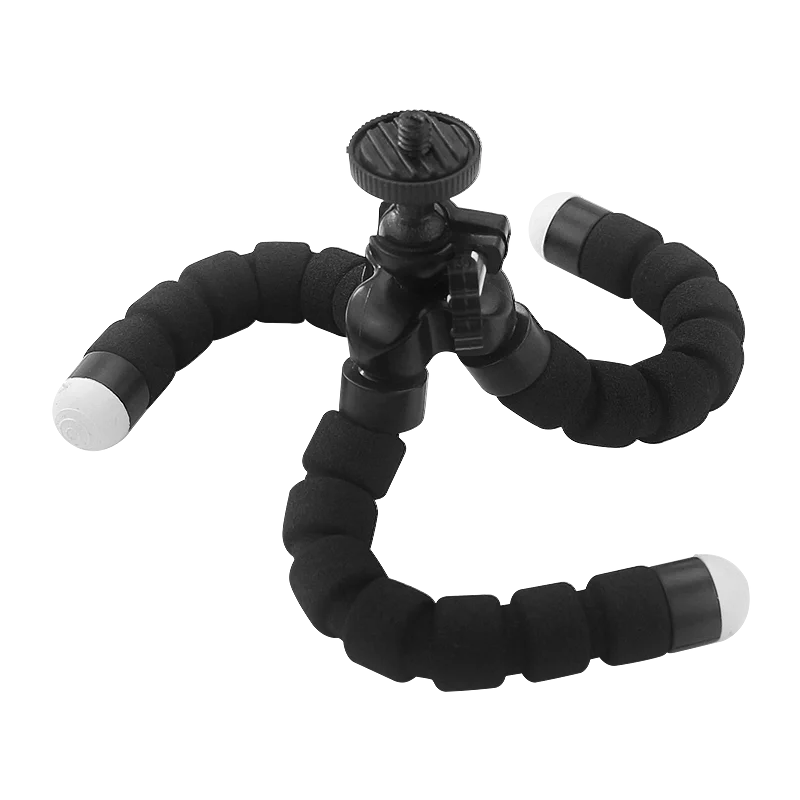

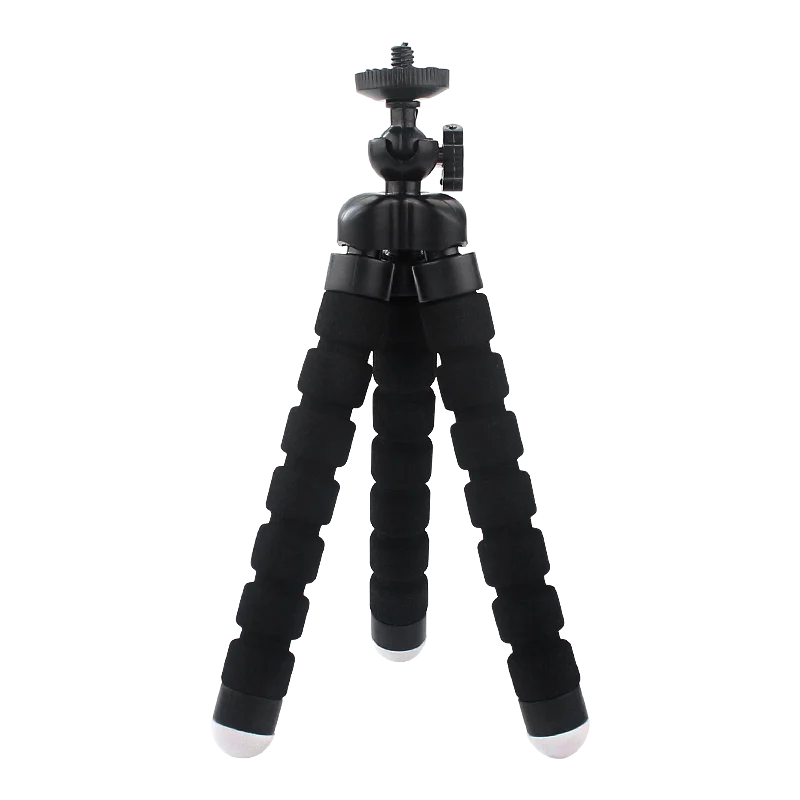

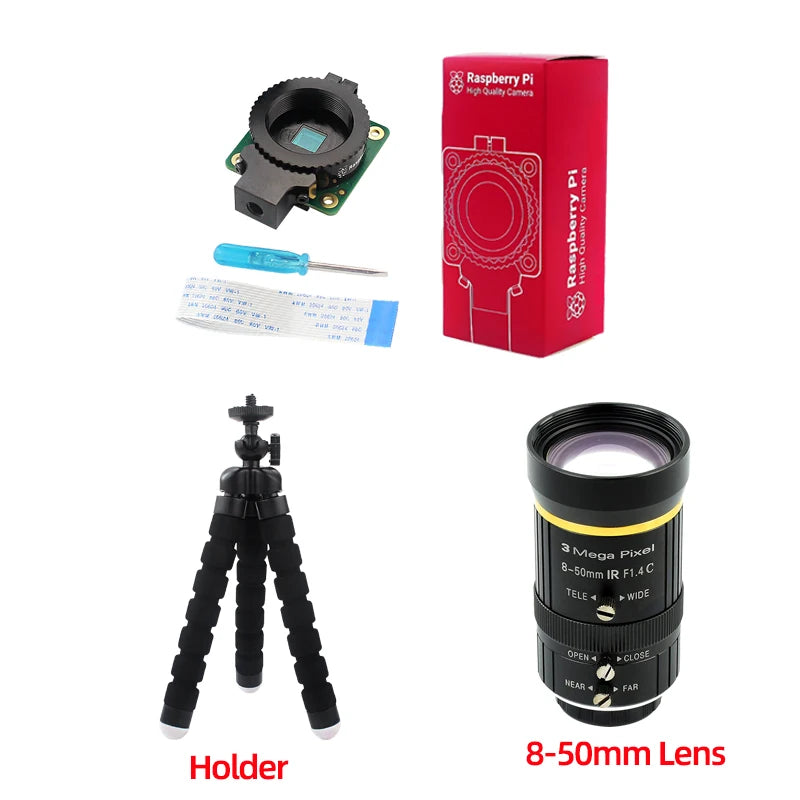

Holder: Adjustable Angle Octopus Holder

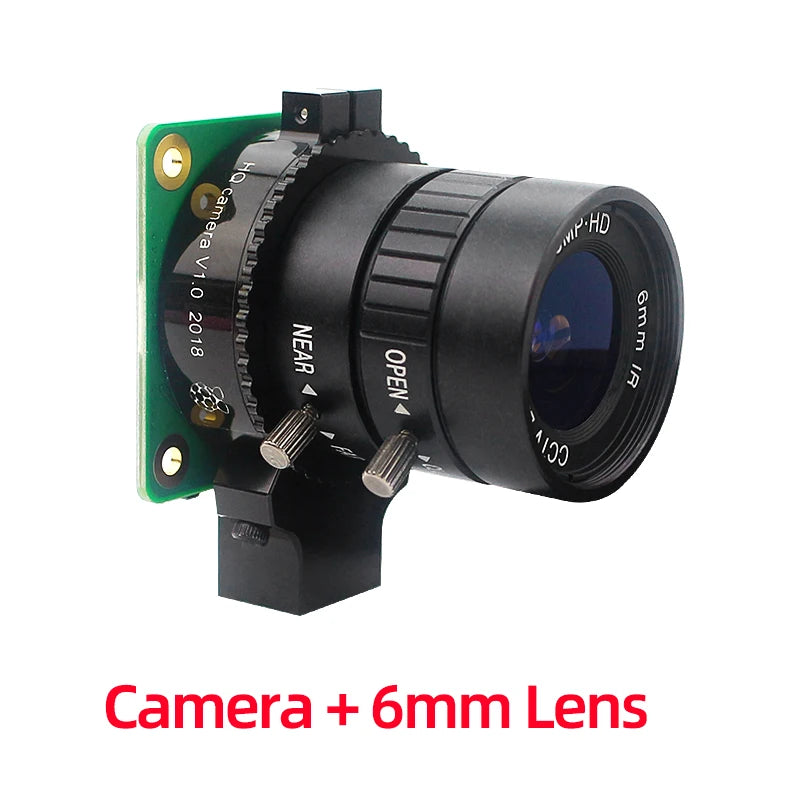

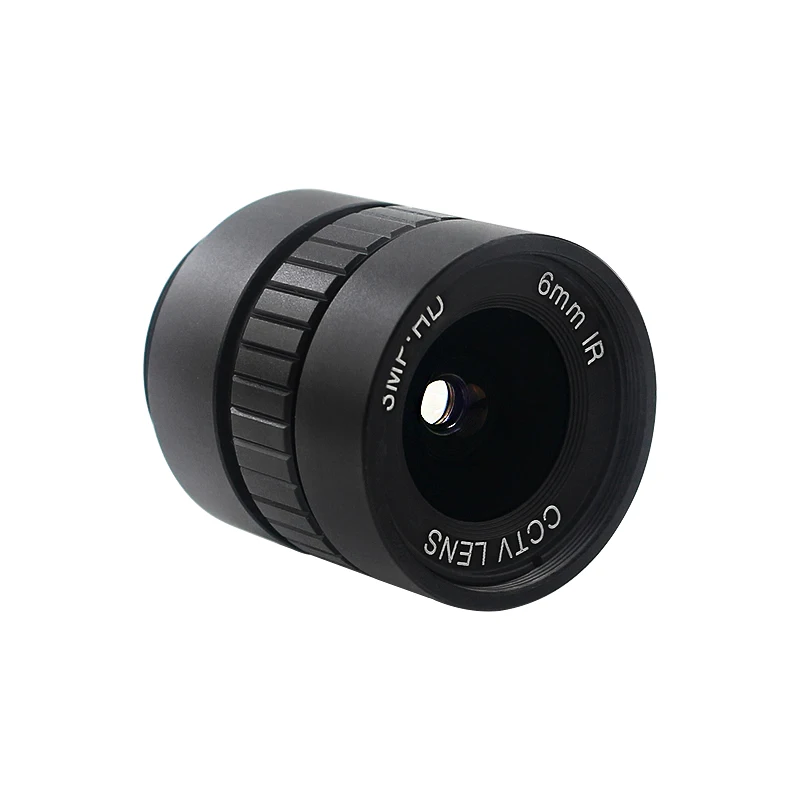

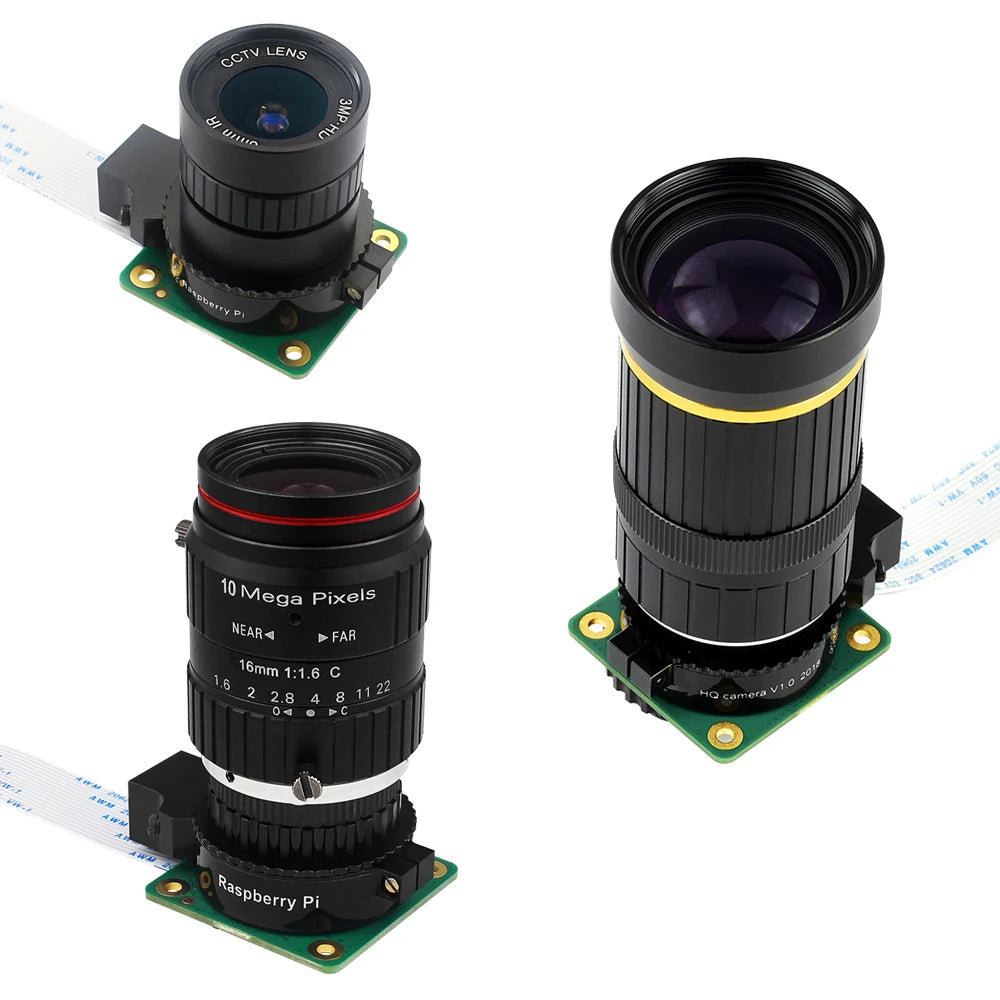

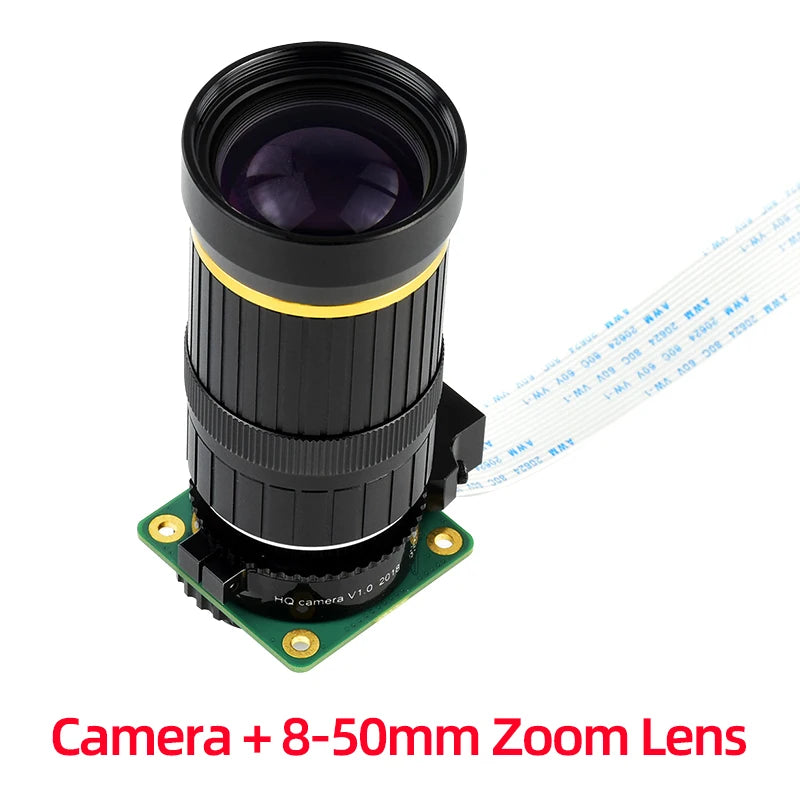

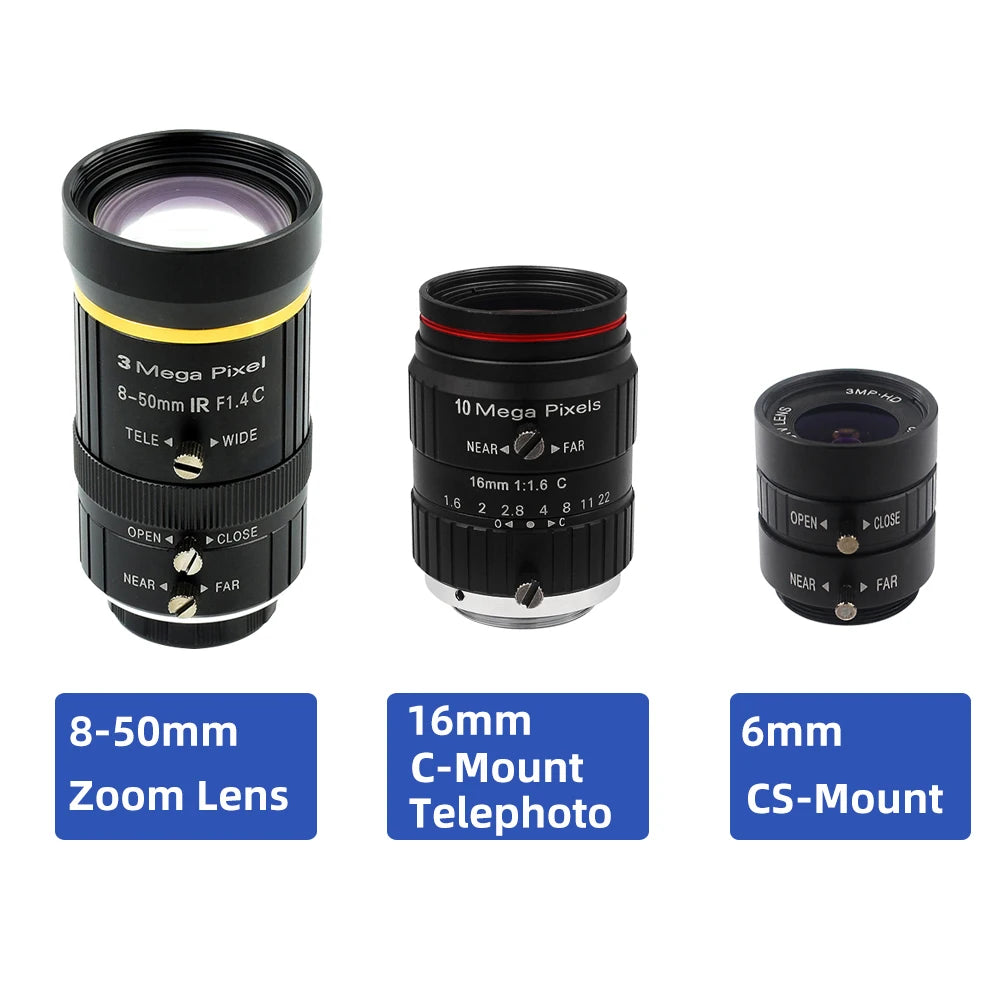

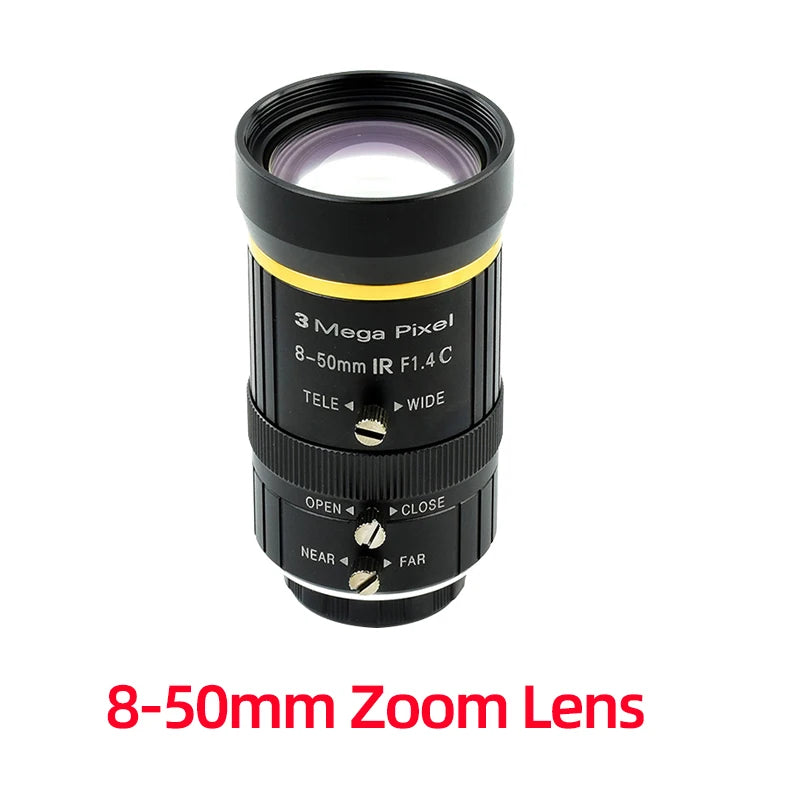

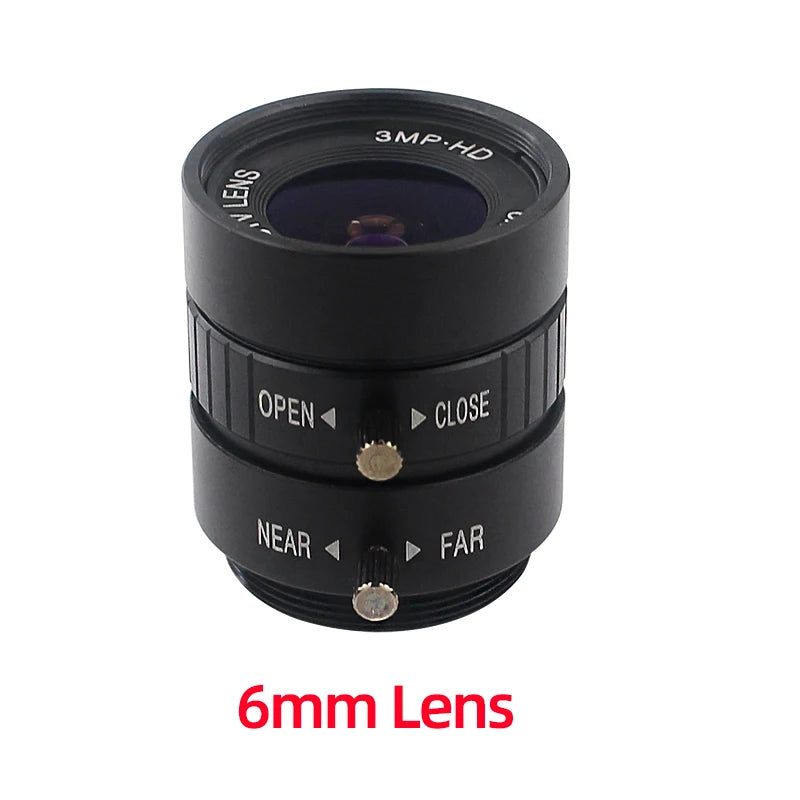

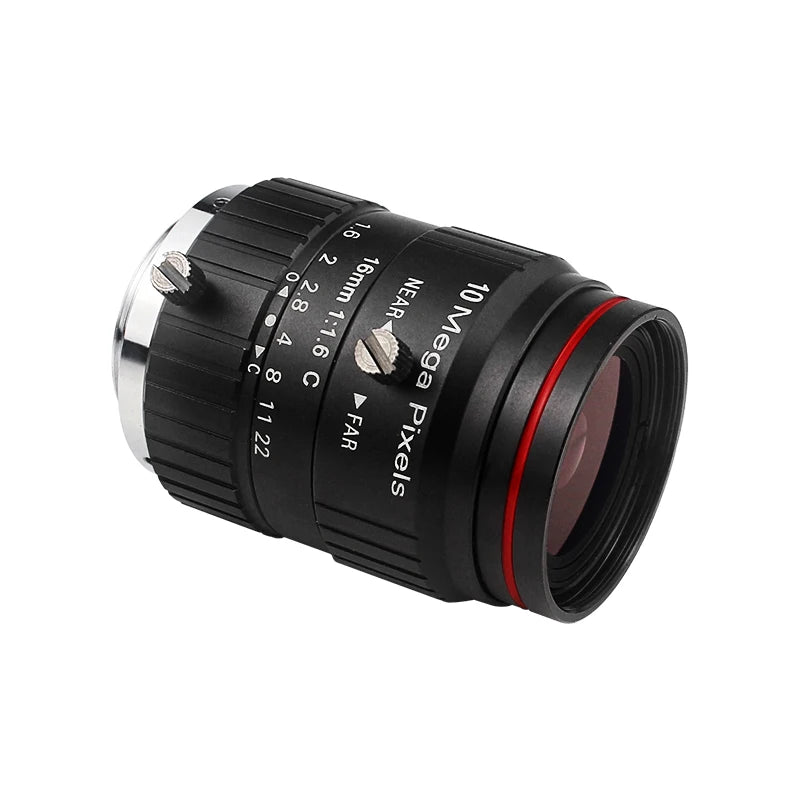

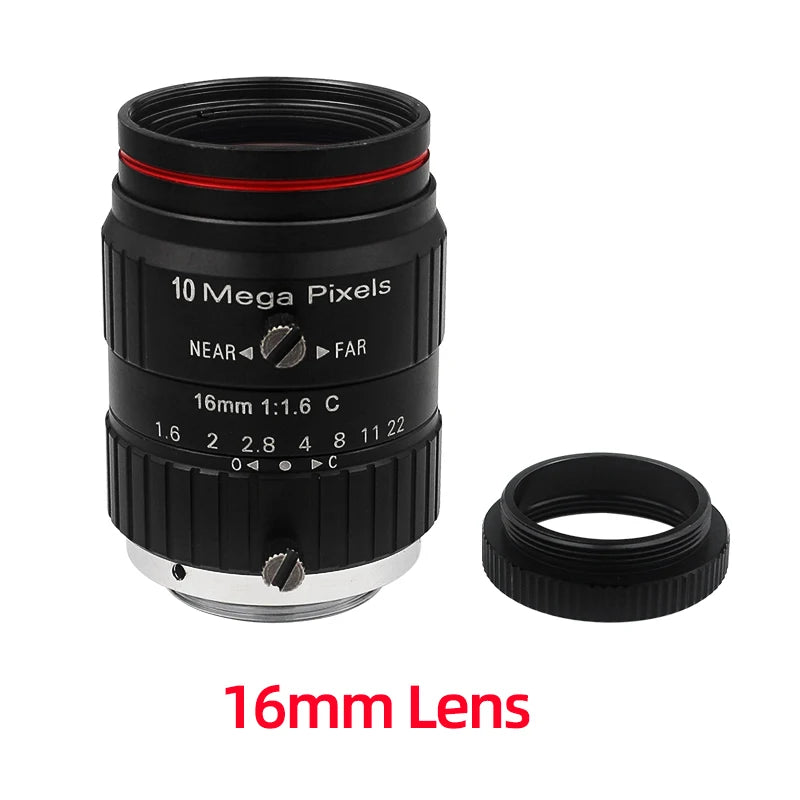

Les: 6mm CS-mount lens / 16 mm C-mount / 8-50mm lens

Origin: Mainland China

Typical Application Fields: Consumer Electronics

semi_Choice: yes

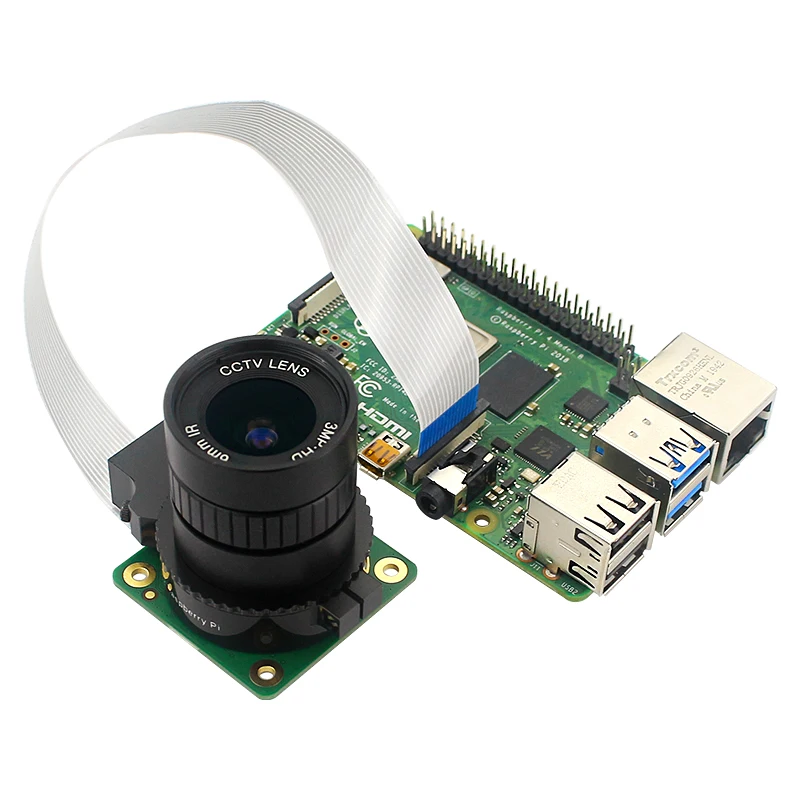

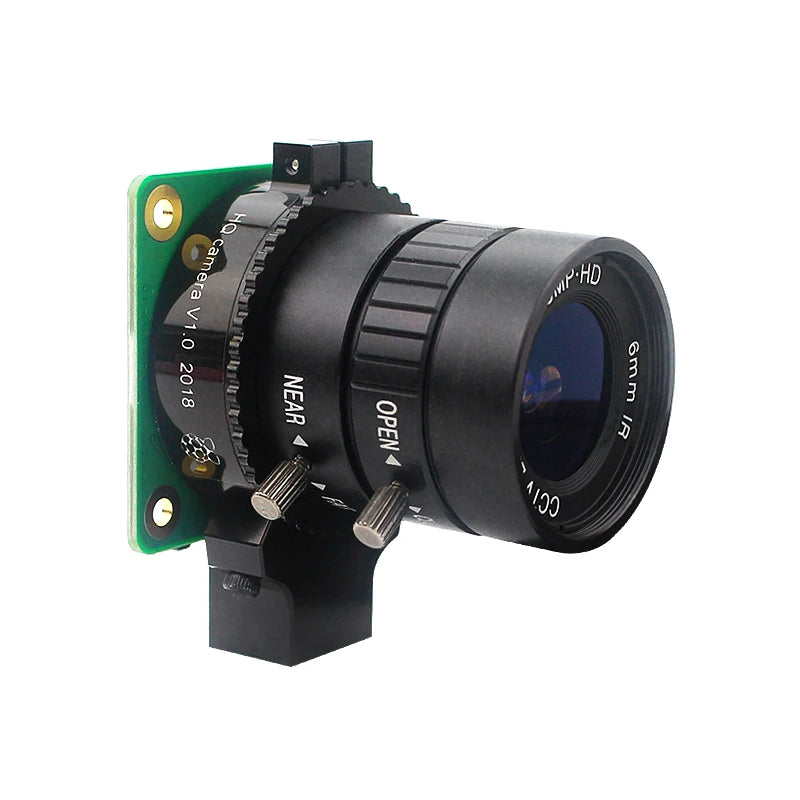

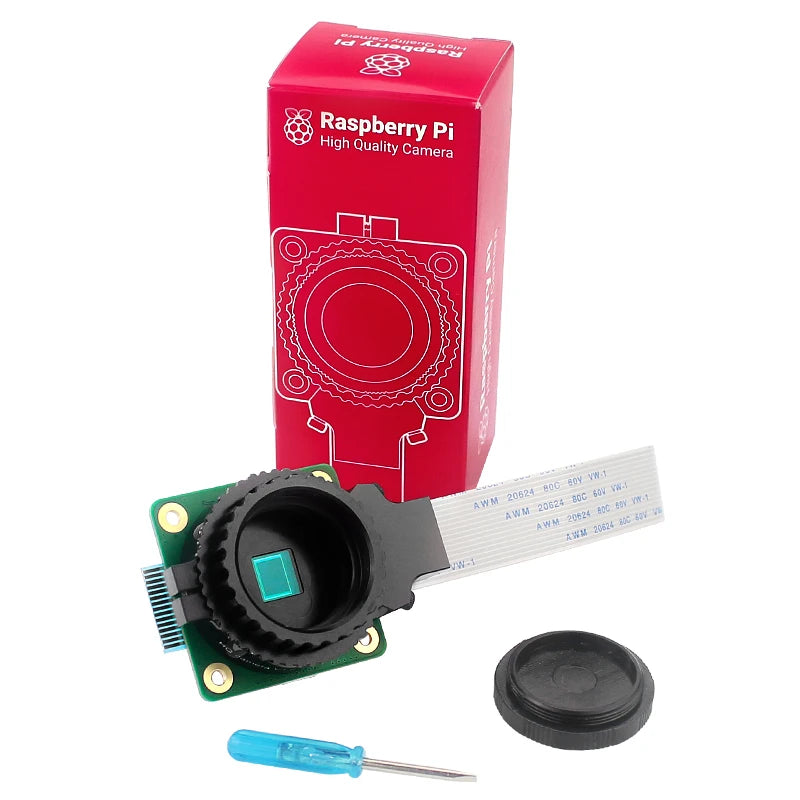

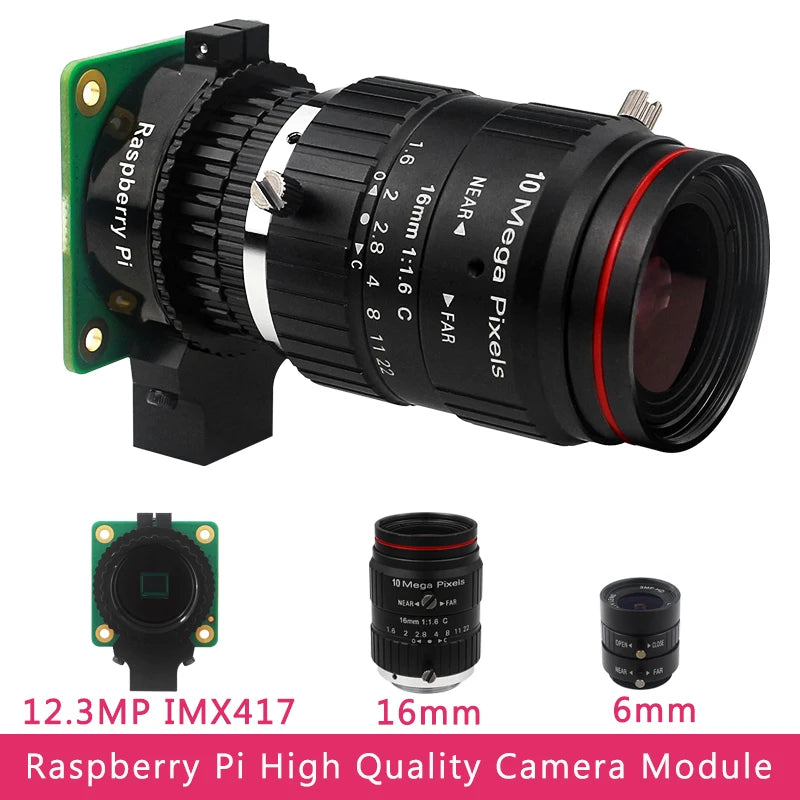

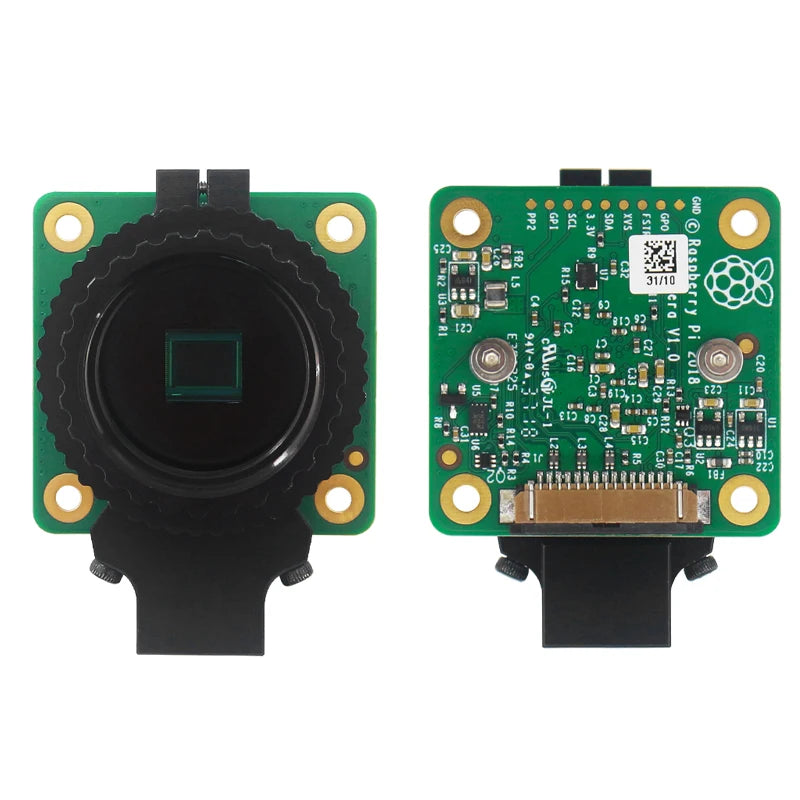

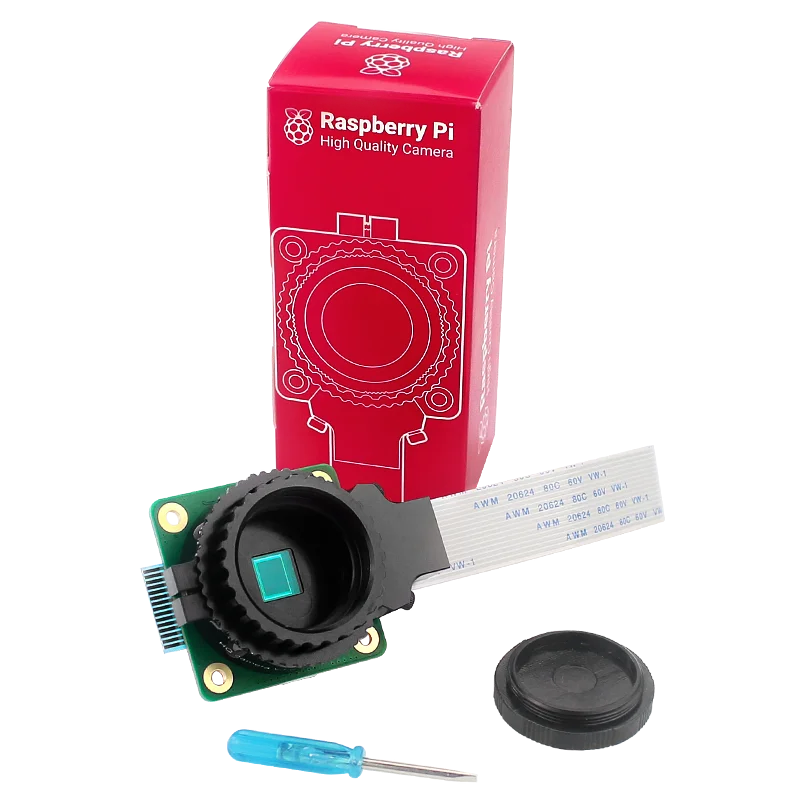

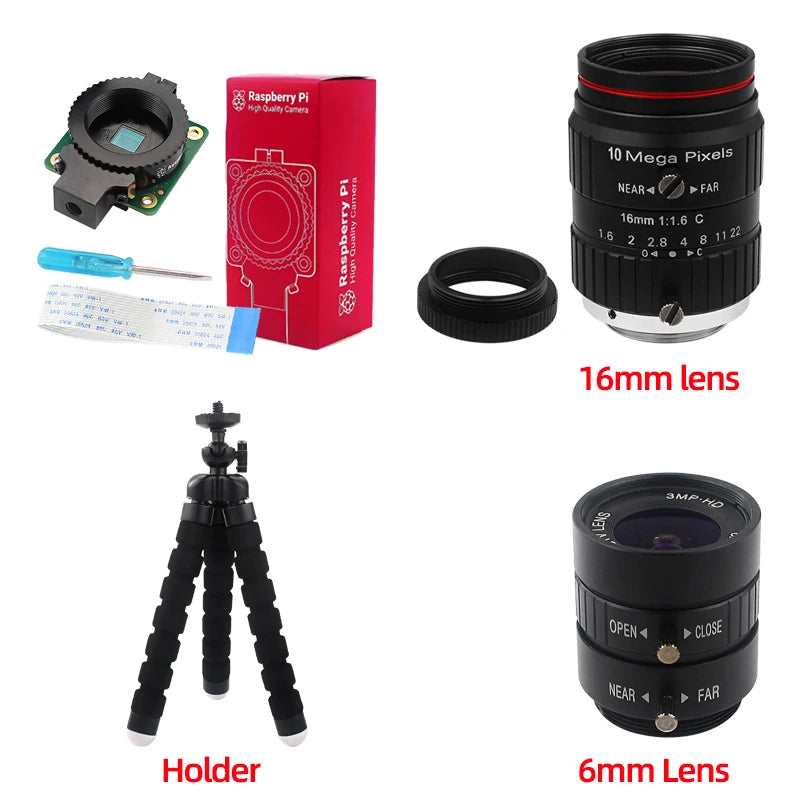

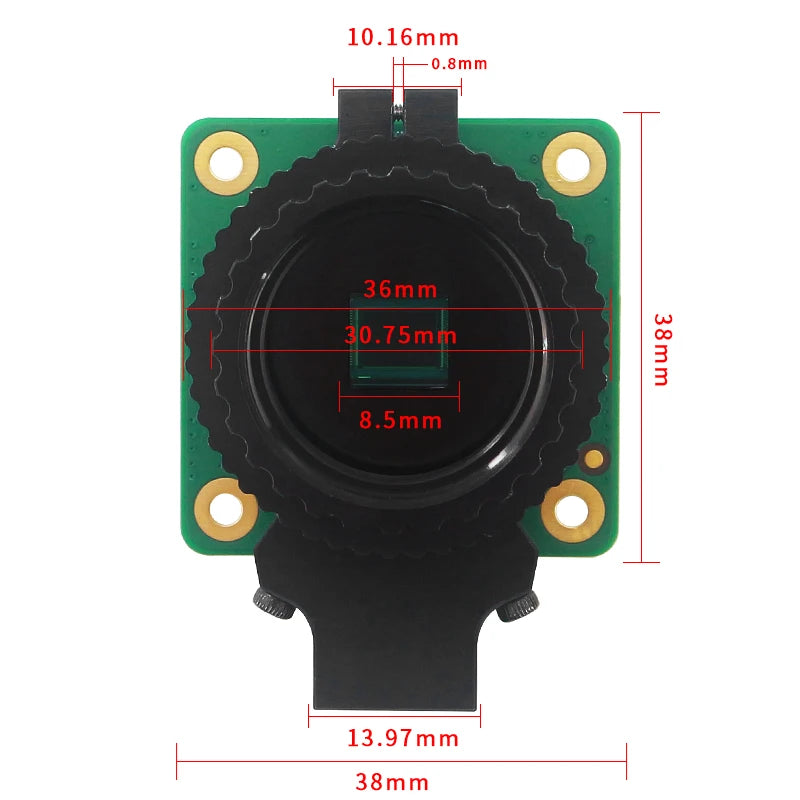

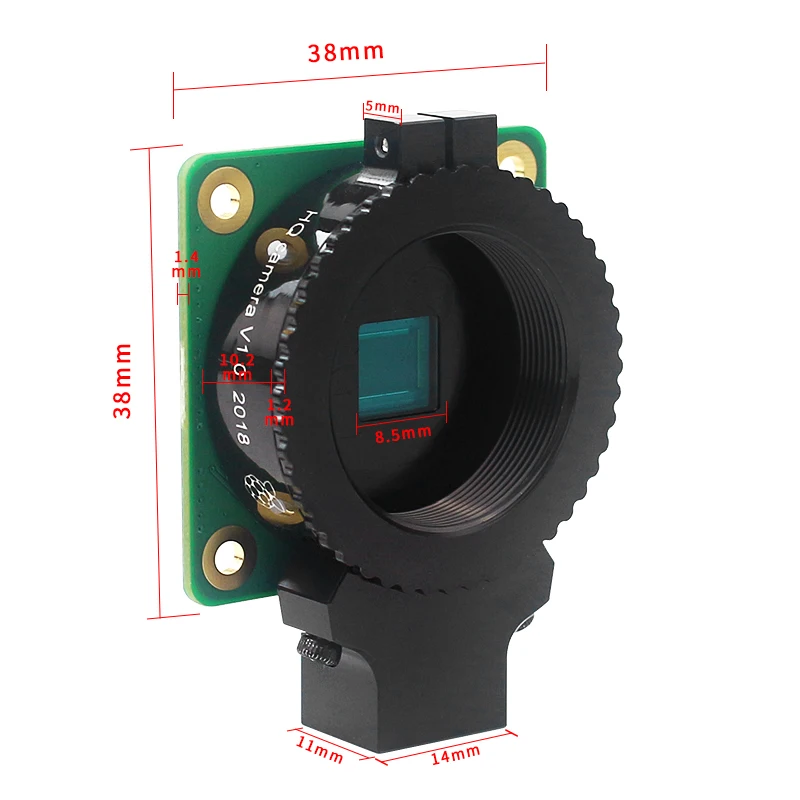

Raspberry Pi High Quality Camera Module 12.3 Megapixel Sony IMX477 Sensor Adjustable Focus 6mm CS 16mm C-mount Lens for Raspberry Pi Model 4B/3B+/3B/3A+/Zero

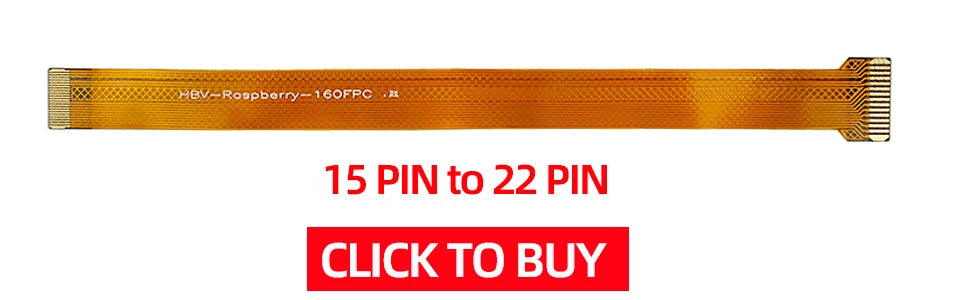

If you want to use for Raspberry Pi 5 or Zero, please buy this 15Pin to 22Pin camera cable

Introduction:

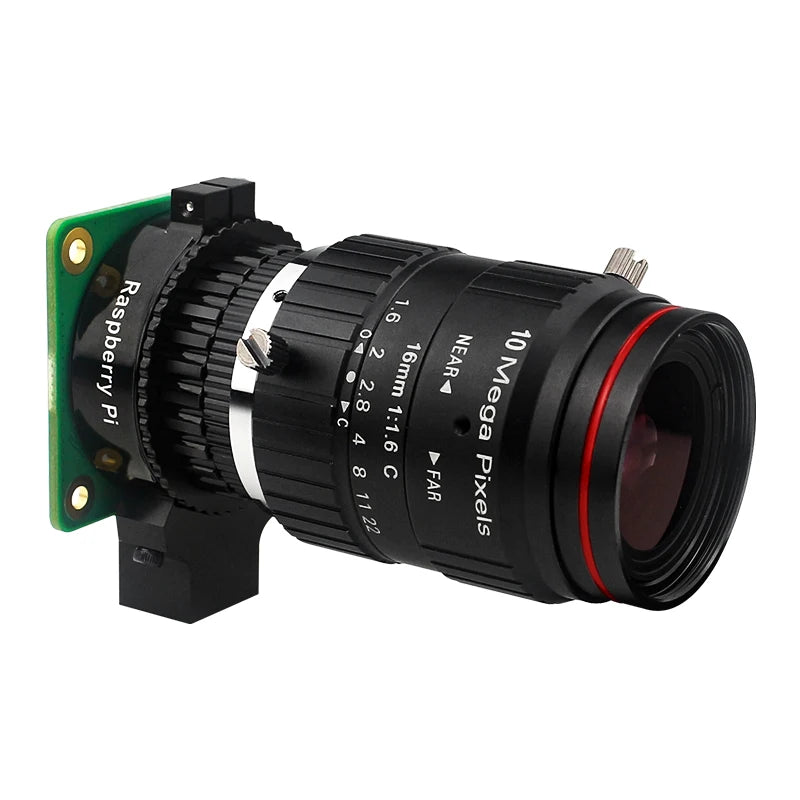

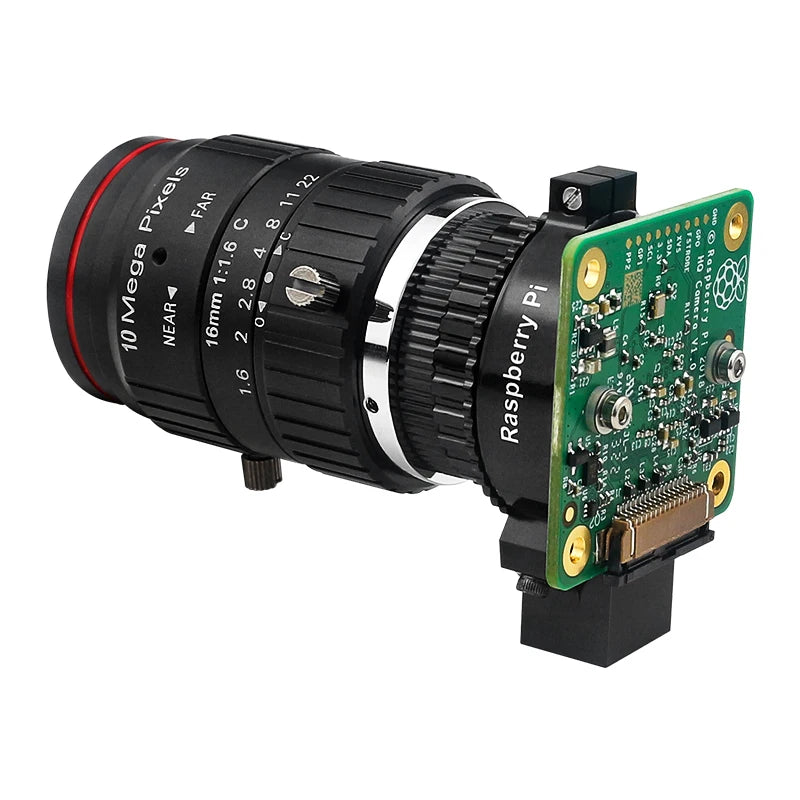

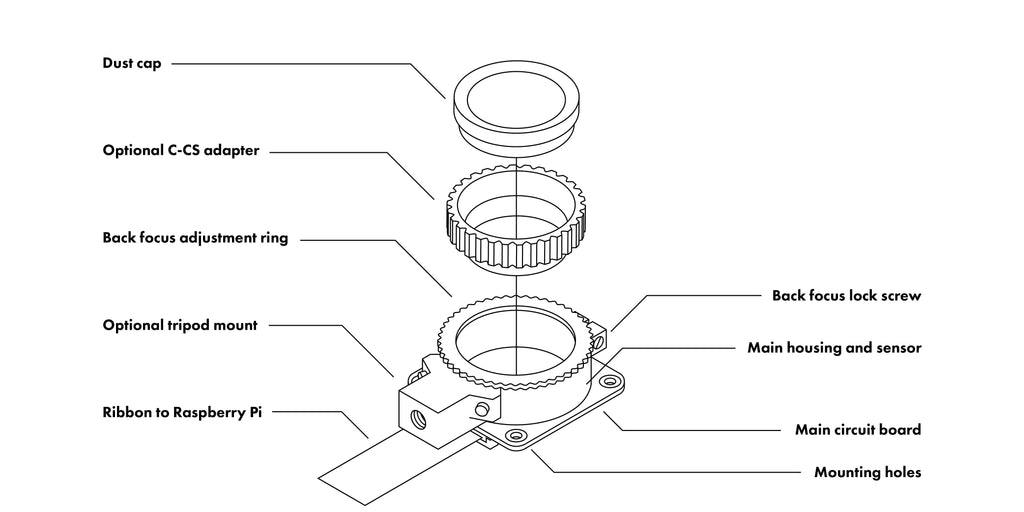

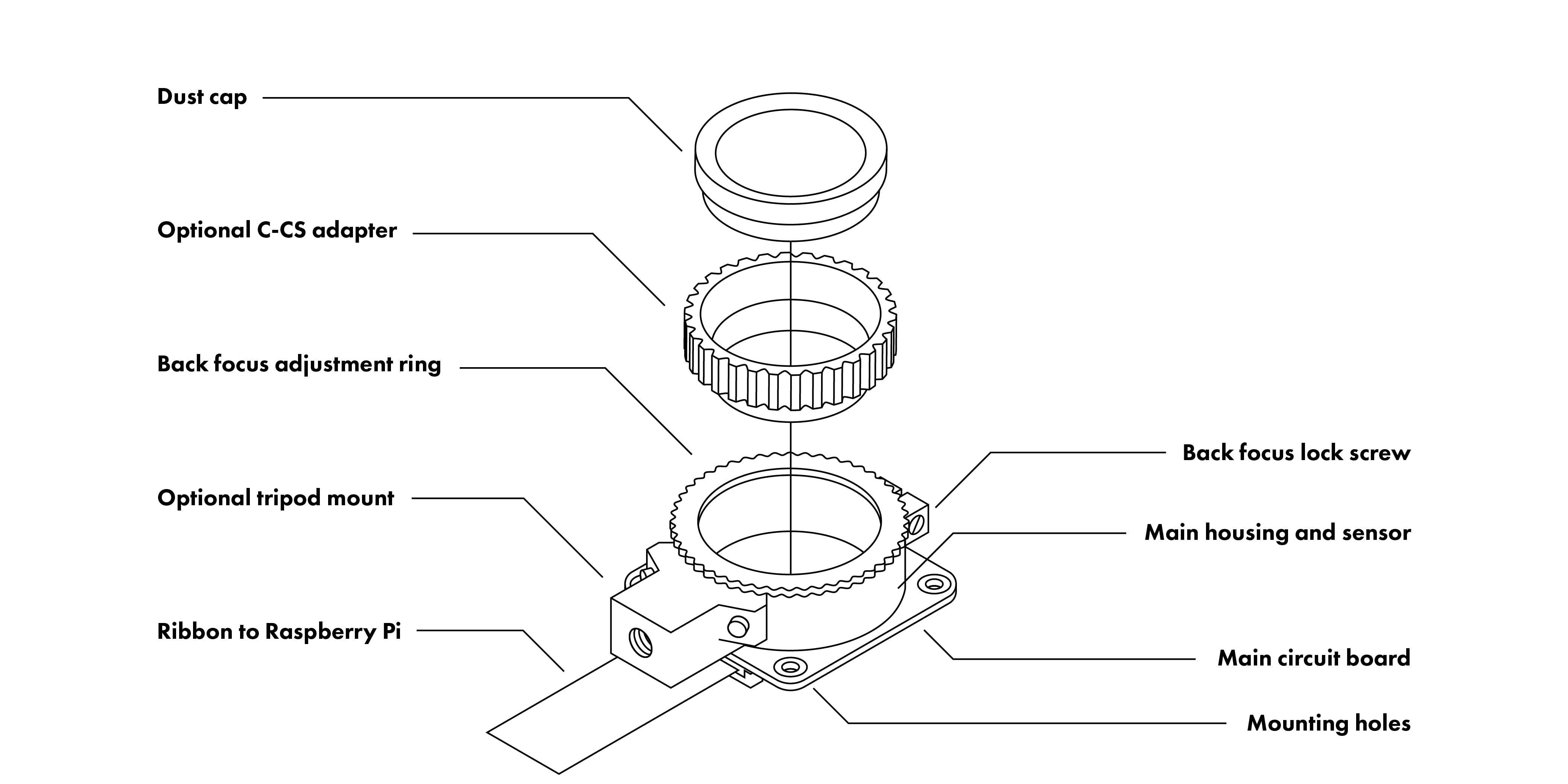

The High Quality Camera is designed to accept CS-mount lenses. An optional adapter is supplied to extend the back focus by 5 mm , such that the camera is also compatible with C-mount lenses.

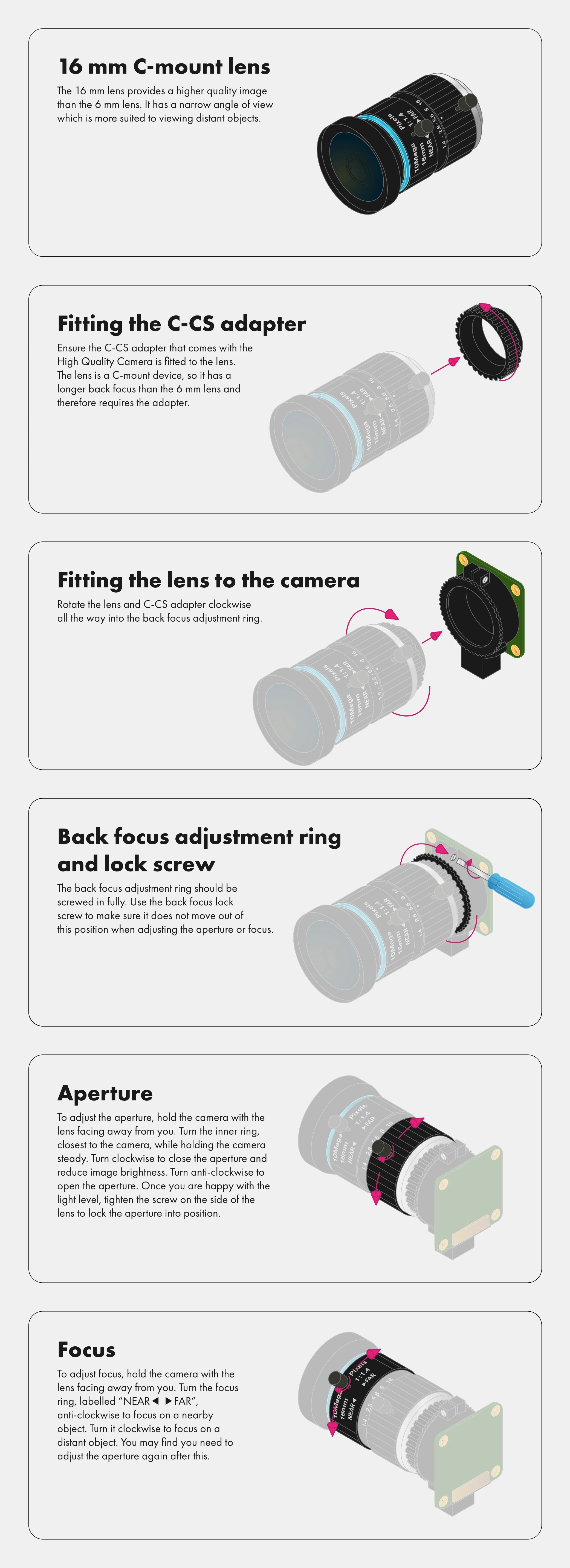

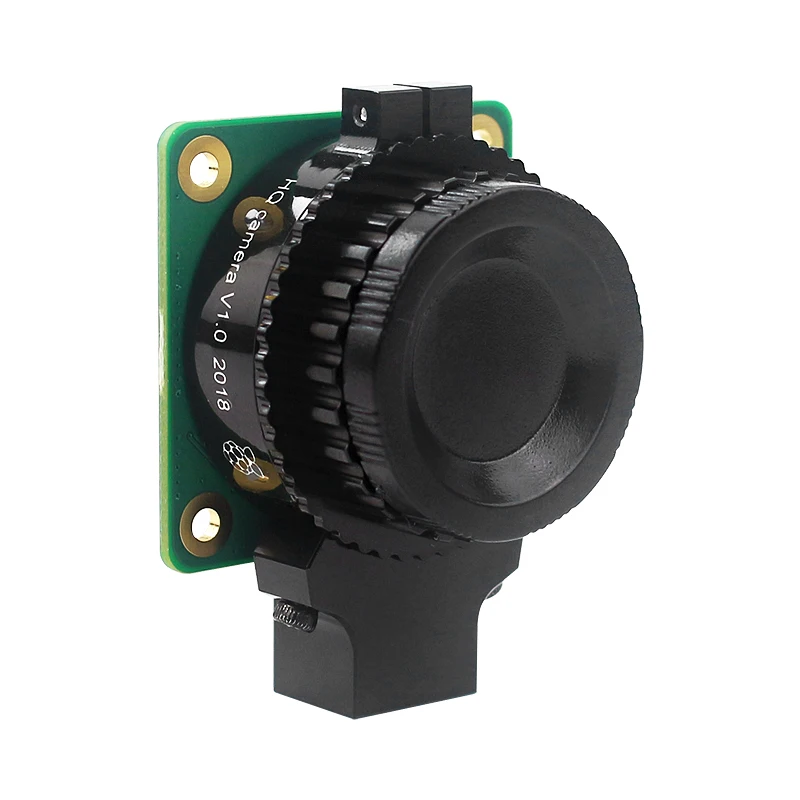

Please ensure that the dust cap is fitted when there is no lens fitted, because the sensor is sensitive to dust. To fit a lens, unscrew the dust cap and screw the lens into the threads. Remove the C-CS adapter when a CS-mount lens is to be fitted; it is only required when a C-mount lens is fitted.

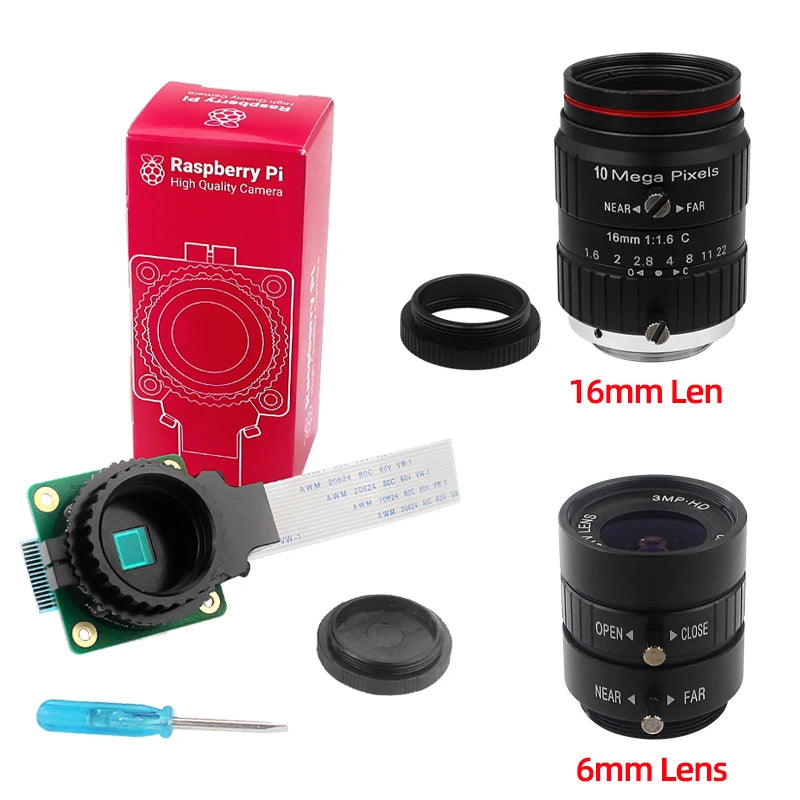

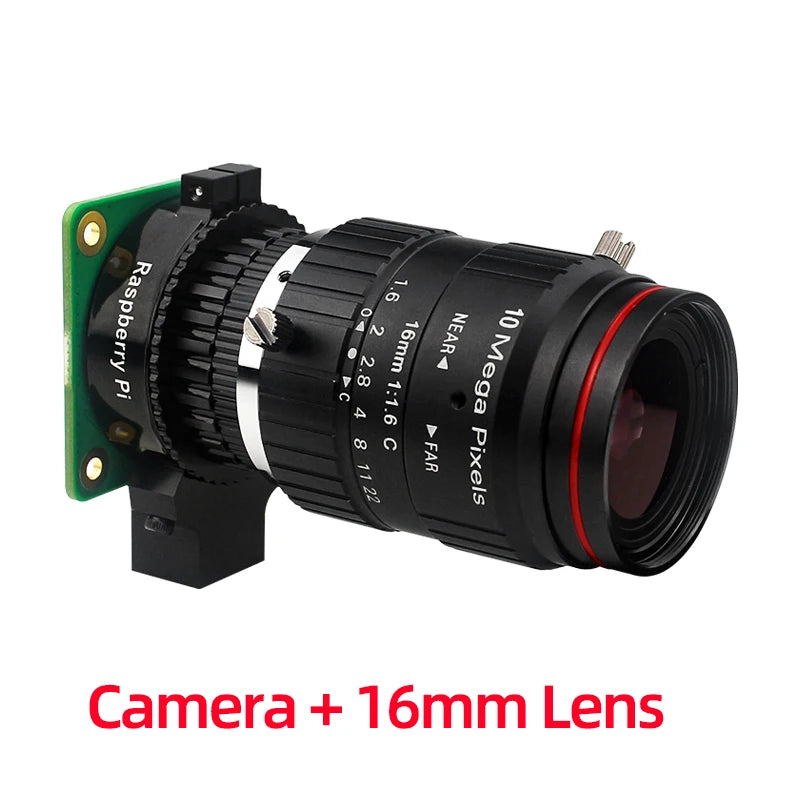

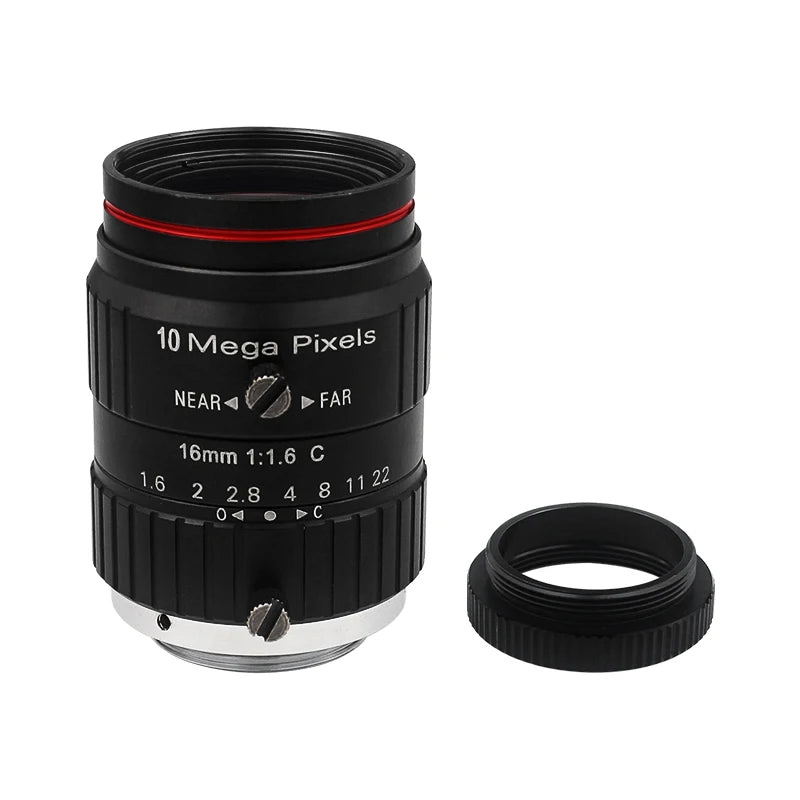

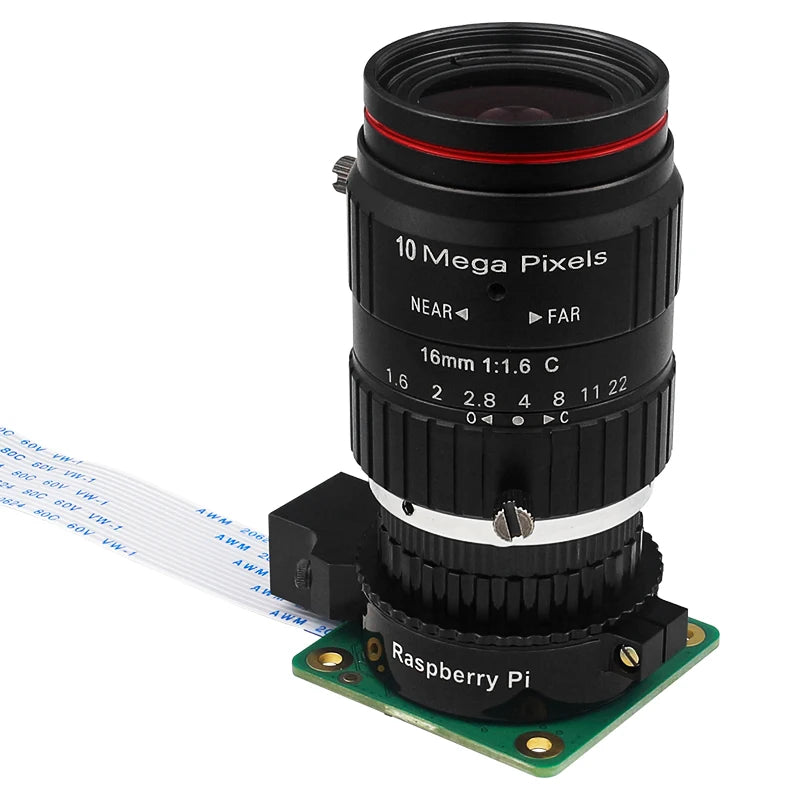

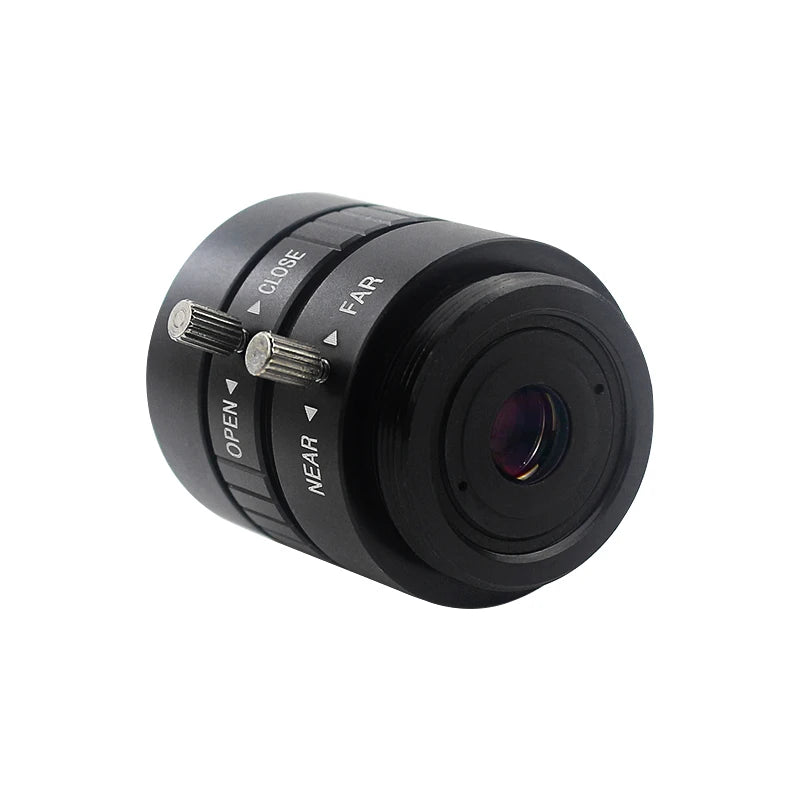

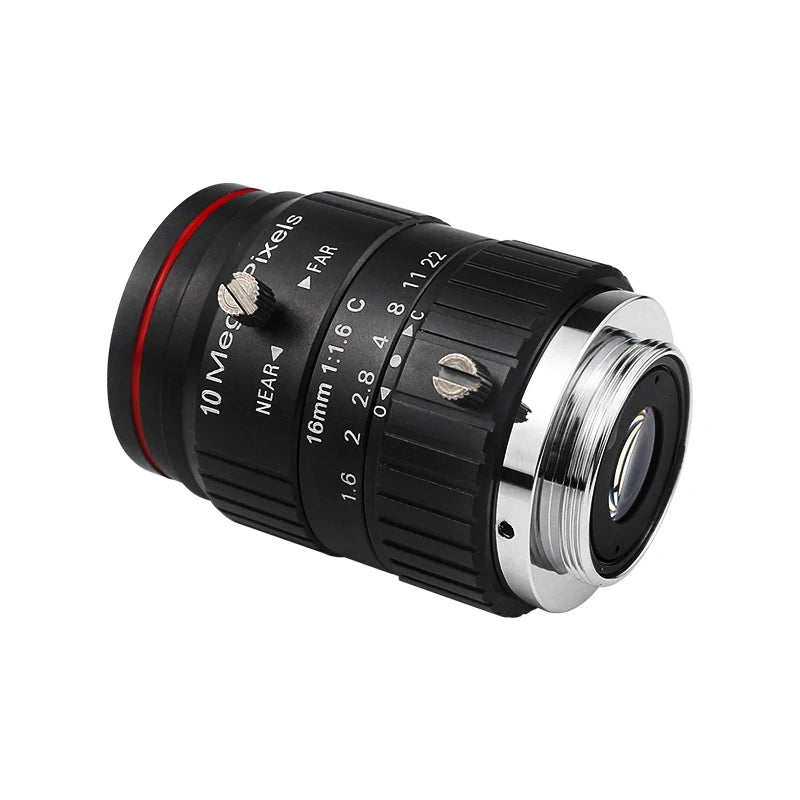

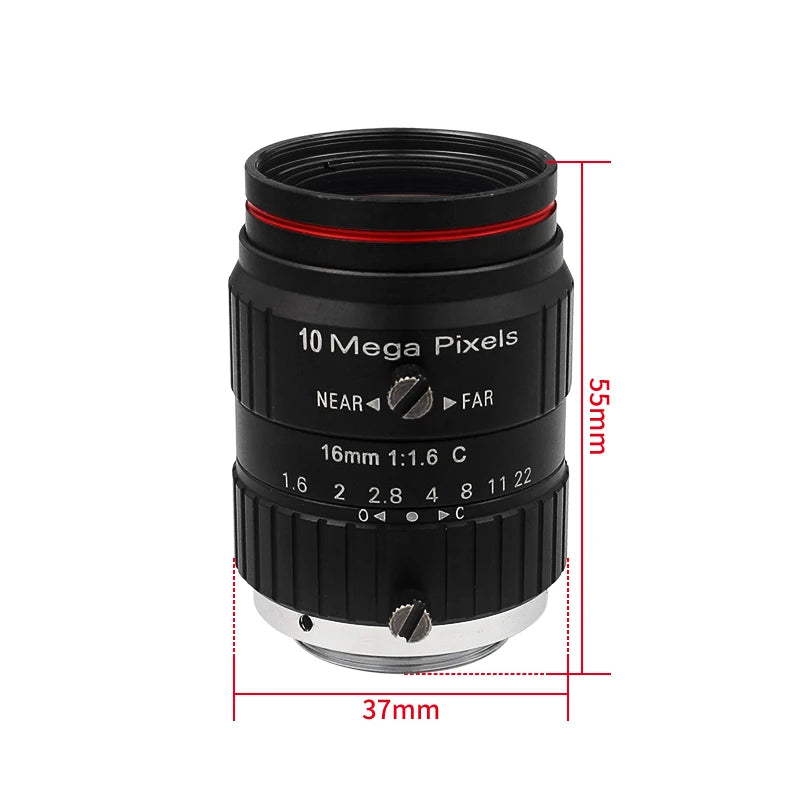

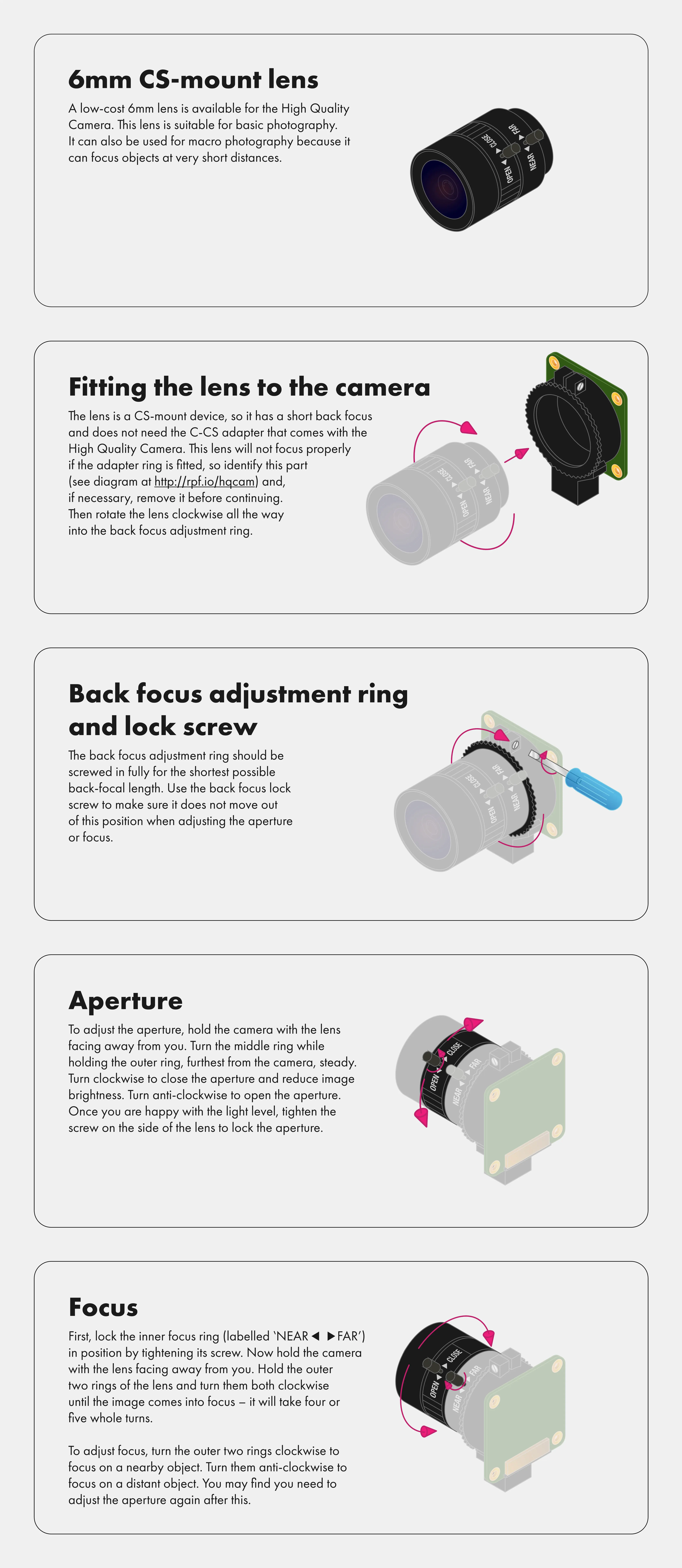

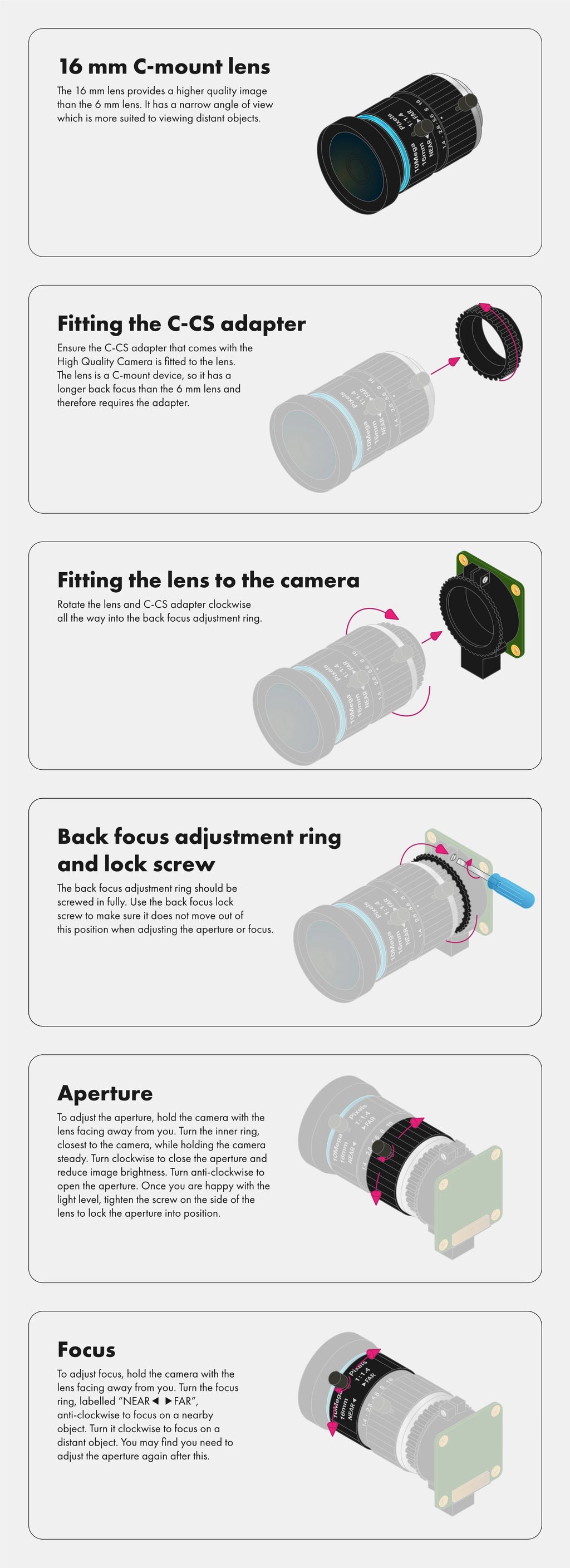

The CGL 6 mm CS-mount and 16 mm C-mount lenses are examples of third-party products that are compatible with the High Quality Camera. See step-by-step instructions for fitting the CS-mount and C-mount lenses

Here is the link of video to introduce :
https://youtu.be/YzEZvTwO7tA

Specifications :

1. Sony IMX477R stacked, back-illuminated sensor, 12.3 megapixels, 7.9 mm sensor diagonal, 1.55 μm × 1.55 μm pixel size
2. Ouput: RAW12/10/8, COMP8
3. Back focus: Adjustable (12.5 mm–22.4 mm)
4. Lens standards: C-mount, CS-mount (C-CS adapter included)
5. IR cut filter: Integrated
6. Ribbon cable length: 200 mm
7. Tripod mount: 1/4”-20

Documents

1. Getting started guide
https://static.raspberrypi.org/files/product-guides/Raspberry_Pi_High_Quality_Camera_Getting_Started.pdf

2. Raspberry Pi High Quality Camera - product brief
https://static.raspberrypi.org/files/product-briefs/Raspberry_Pi_HQ_Camera_Product_Brief.pdf

3. Raspberry Pi High Quality Camera mechanical drawing

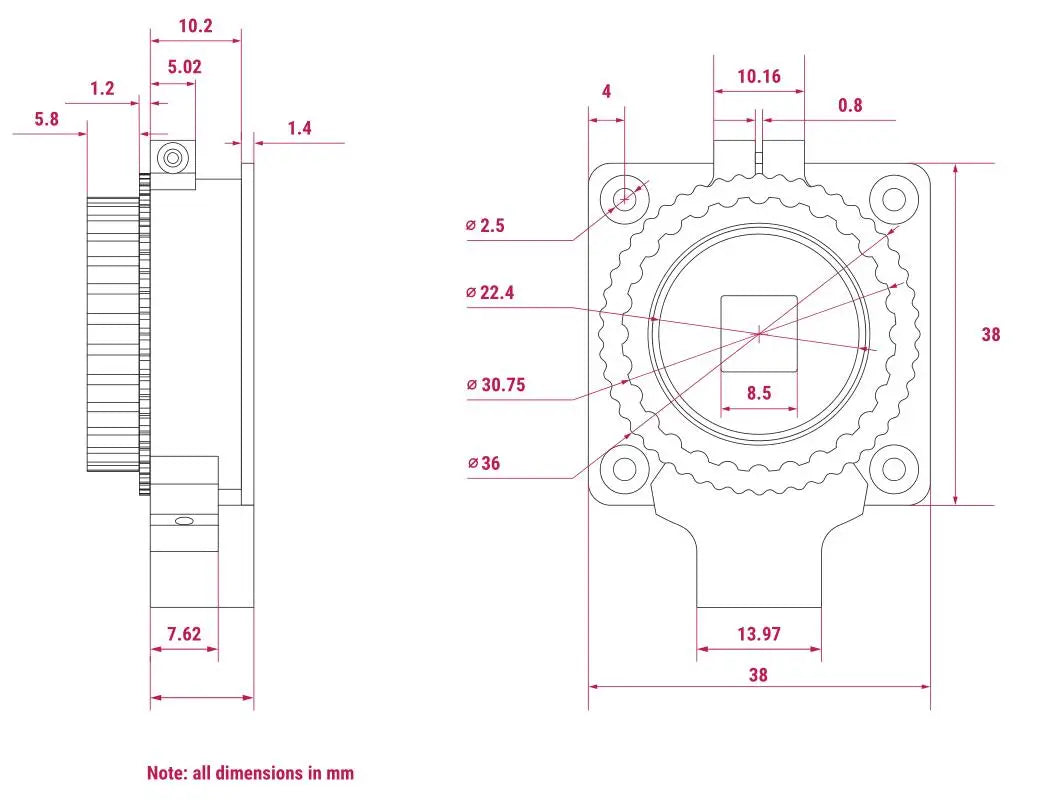

https://static.raspberrypi.org/files/product-mechanical-drawings/20200428_HQ_Camera_Technical_drawing.pdf

4. Example fitting instructions for a typical C-mount lens
https://static.raspberrypi.org/files/product-guides/Typical_C-Mount_Lens_Guide.pdf

5. https://static.raspberrypi.org/files/product-guides/Typical_CS-Mount_Lens_Guide.pdf
