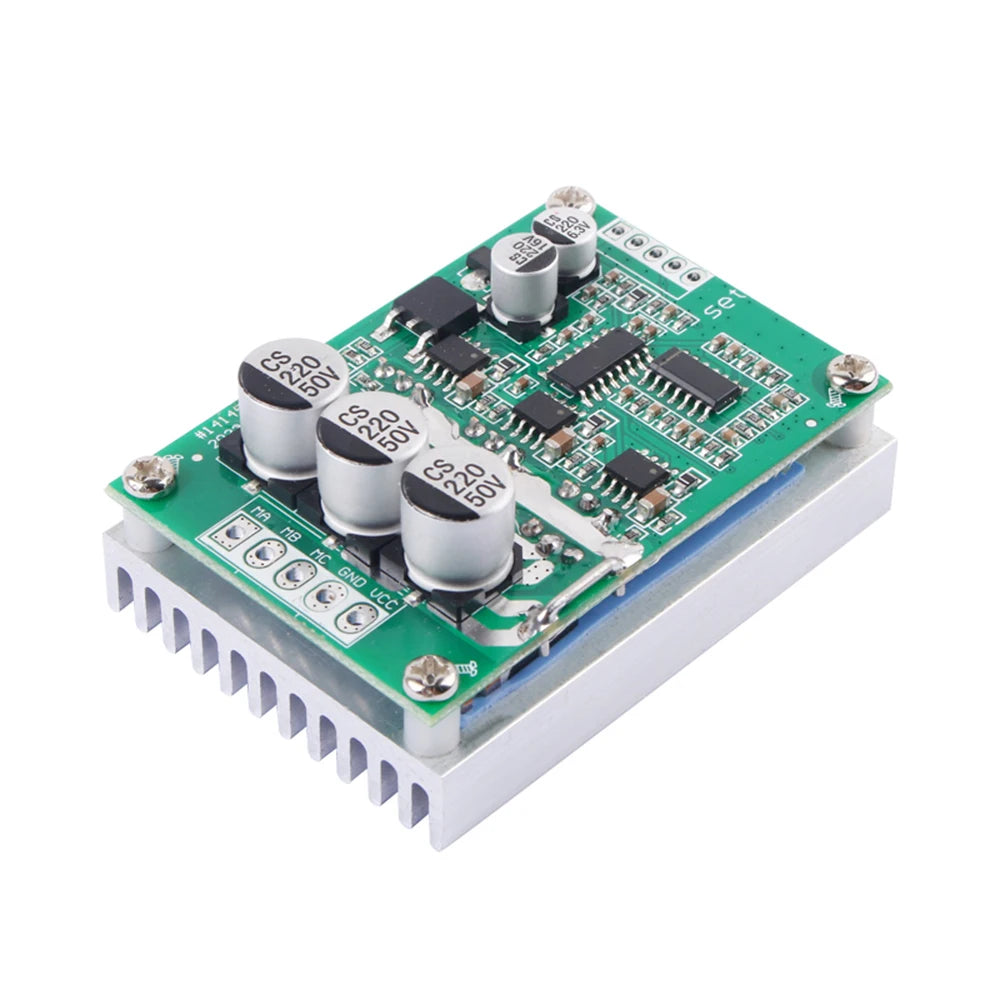

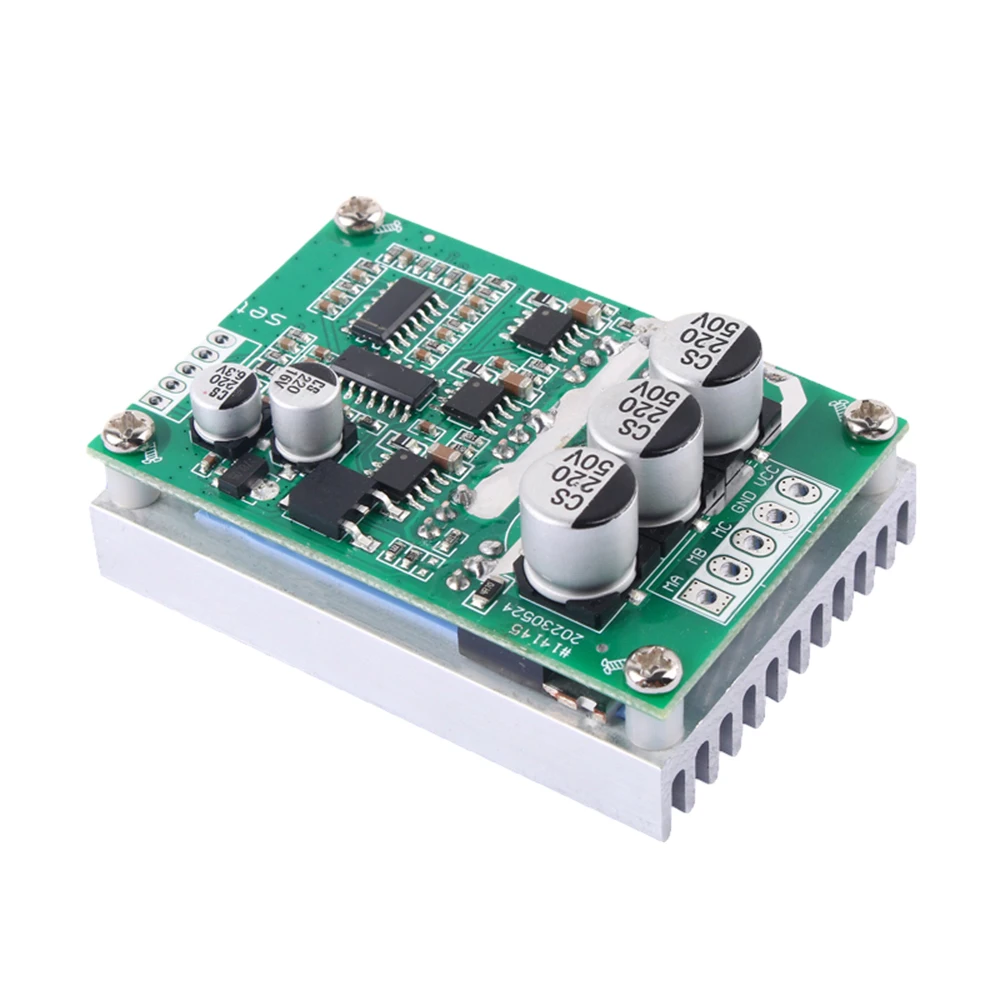

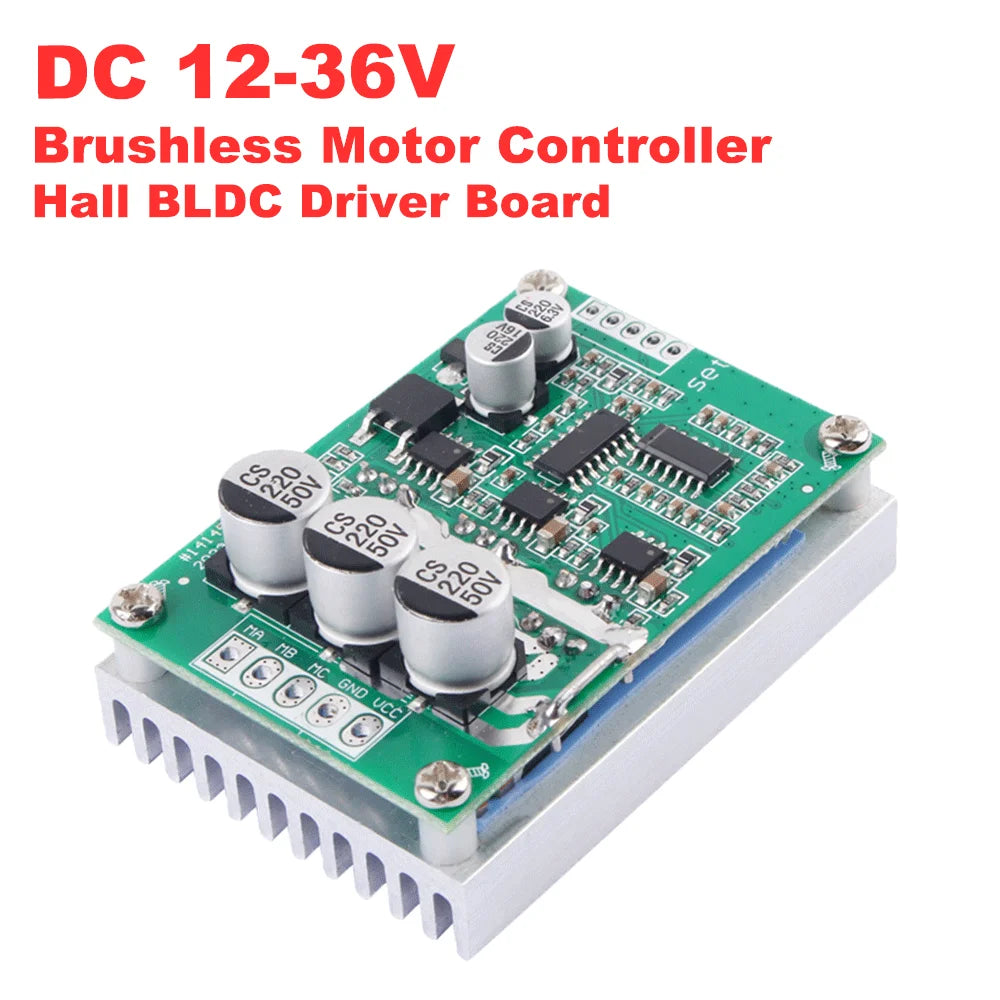

12-36V 15A 500W DC Motor Controller Module Hall Brushless BLDC Driver Board Motor Speed Regulator With Over-Current Protection

12-36V 15A 500W DC Motor Controller Module Hall Brushless BLDC Driver Board Motor Speed Regulator With Over-Current Protection

$53.78

$53.78 $0.00

Description

SPECIFICATIONS

Brand Name: NONE

Certification: CE

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

Feature 1: high-quality materials

Feature 2: forward and reverse switching

Feature 3: with a 18mm thick heat sink

Feature 4: PWM 5V signal speed control

High-concerned chemical: none

Maximum current: 15A

Maximum power: 500W

Model Number: DC Motor Controller Module

Motor: AC Motor

Origin: Mainland China

Power Source: DC

Power Supply: DC

Voltage input: DC12-36V

semi_Choice: yes

12-36V 15A 500W DC Motor Controller Module Hall Brushless BLDC Driver Board Motor Speed Regulator With Over-Current Protection

Features:
1.Use high-quality materials with guaranteed quality

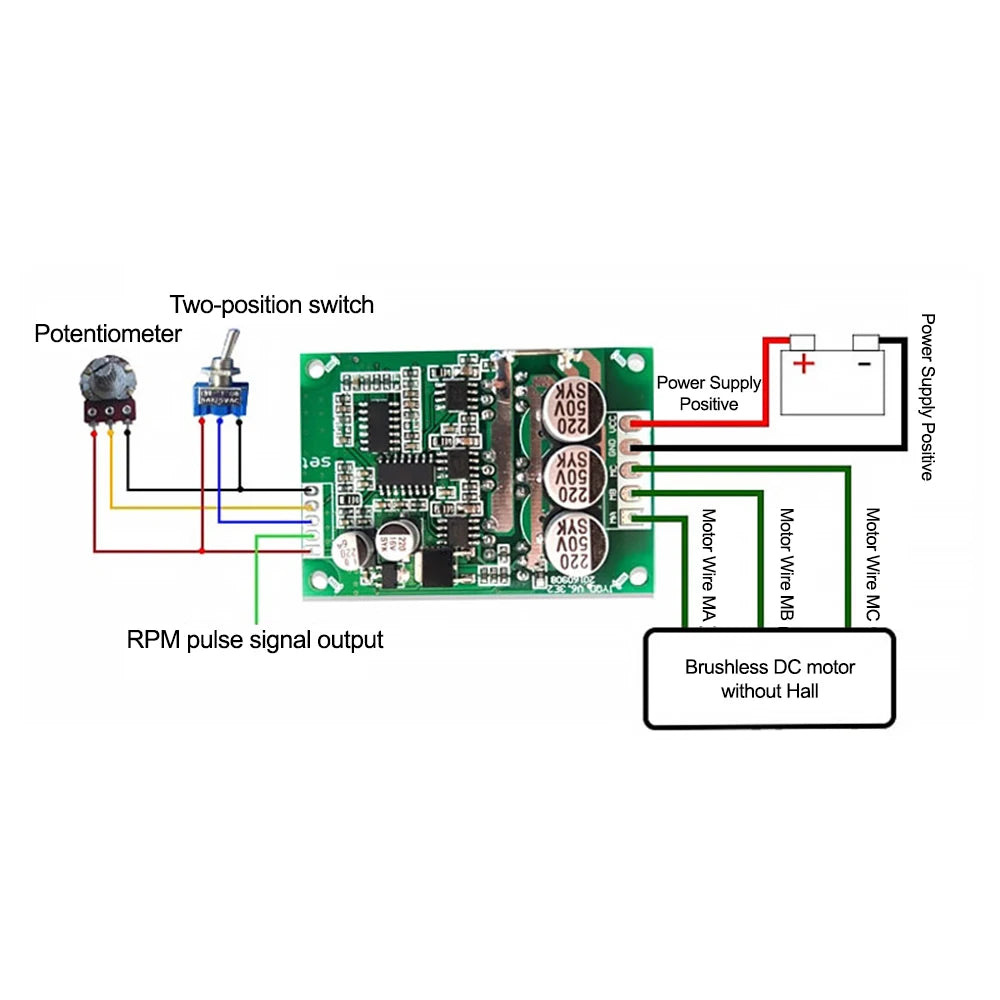

2.The drive supports forward and reverse switching, with potentiometer speed regulation. The potentiometer can generally be used for 10-50K, and PWM 5V signal speed regulation can also be used

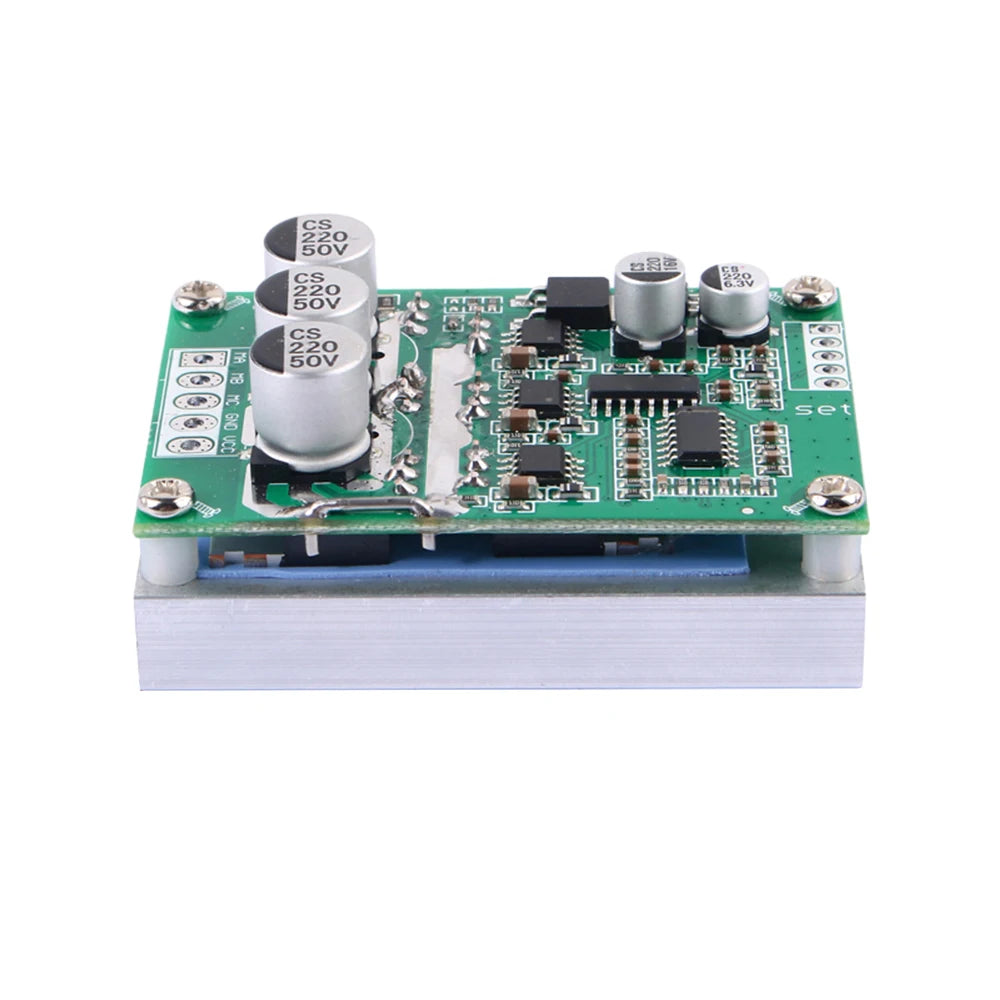

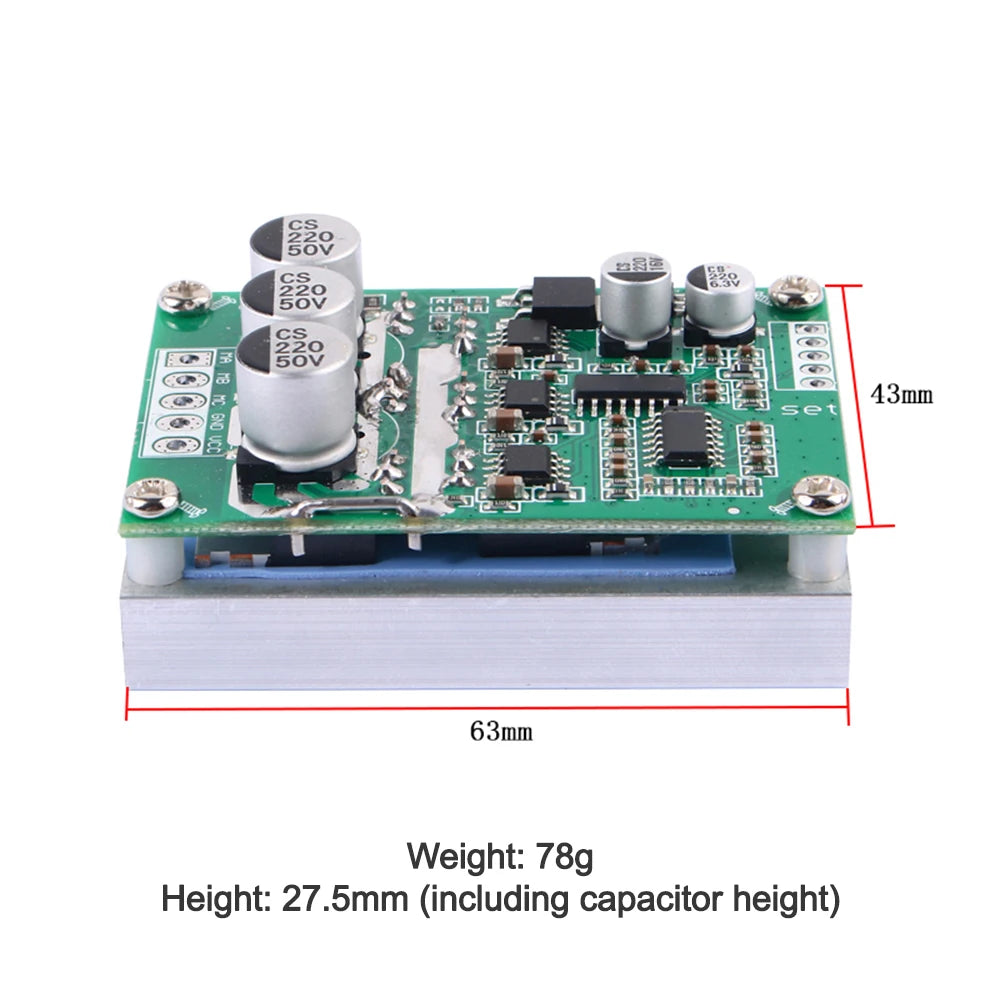

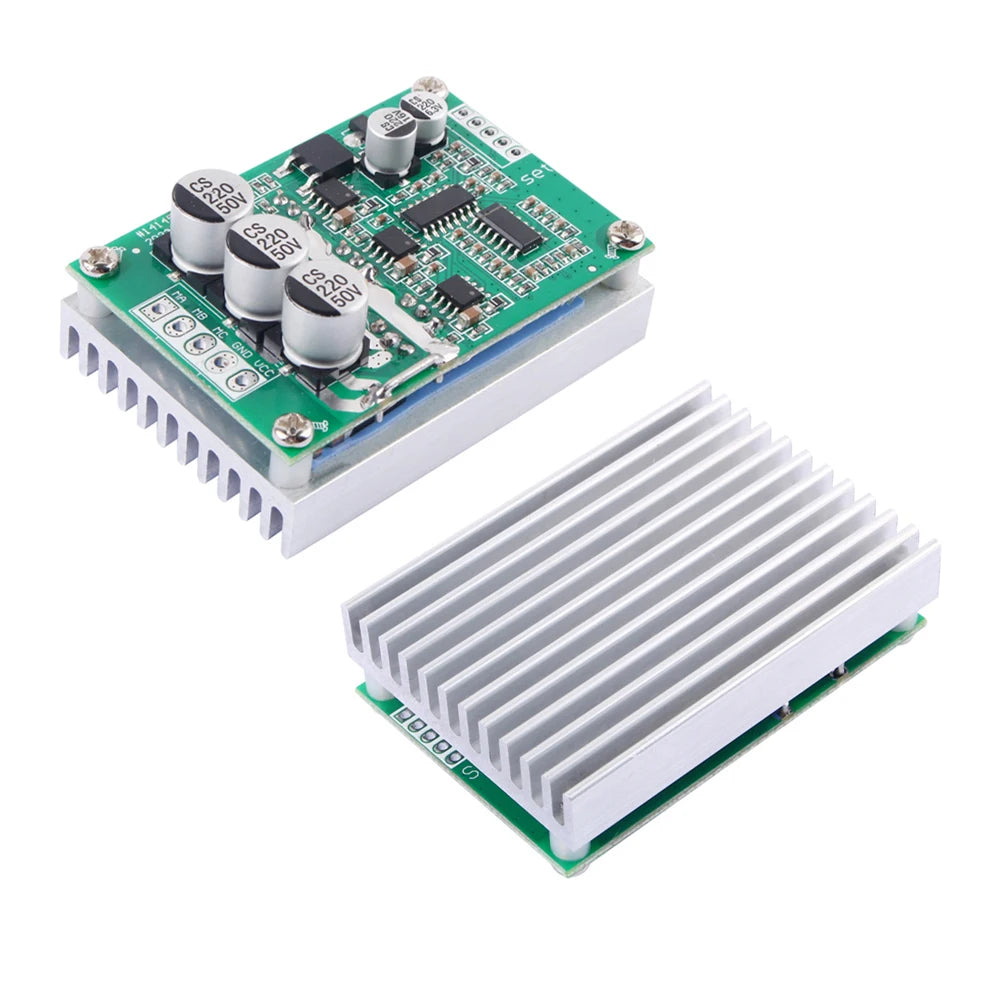

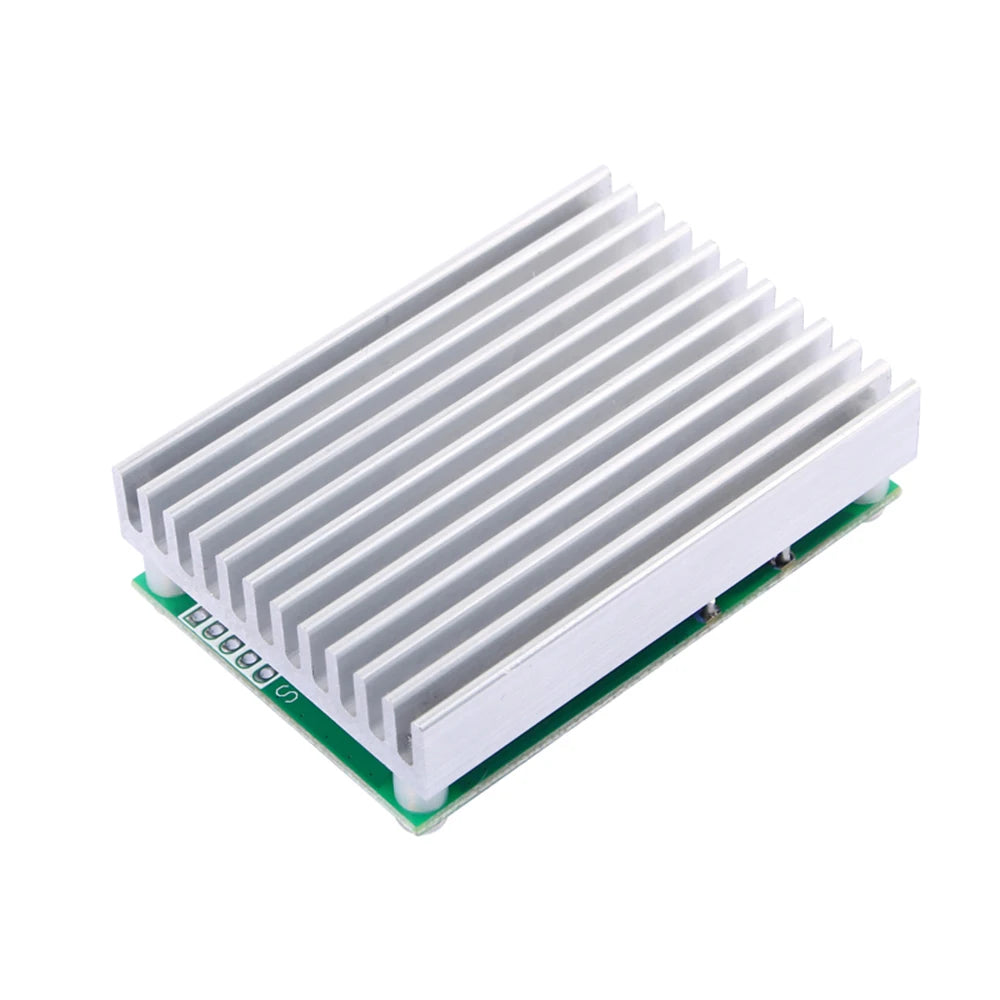

3.Easy to use, the drive board comes with an 18mm thick heat sink
4.Exquisite and compact appearance, with neatly arranged components
5.Wide application range

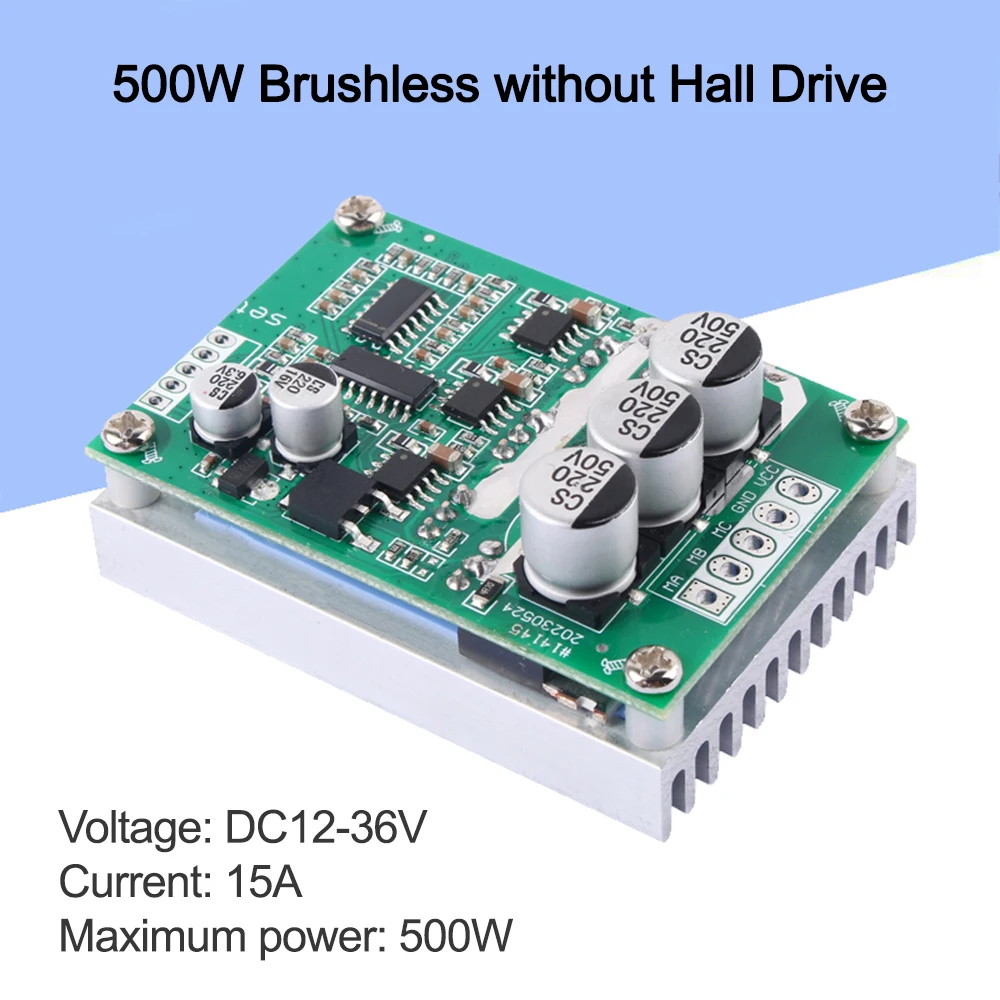

Parameter:
Voltage input: DC12-36V
Maximum current: 15A
Maximum power: 500W

Attention:
It is best to use adjustable power supply current limiting mode to test whether the actual no-load current is abnormal during drive testing, in order to avoid high-power burning of the drive during abnormal moments
Do not short circuit the output UVW three-phase, otherwise it will burn the drive. When using high-power, it depends on the actual heat generation size. If the heat generation is large, a fan should be added for forced air cooling to dissipate heat
The drive does not come with a socket or cable, and requires self soldering with an electric soldering iron. The forward and reverse switches and speed control potentiometers need to be prepared by oneself. The soldering iron must be well grounded to avoid damage to the drive caused by induced electricity

Package include:
Motor drive board * 1
