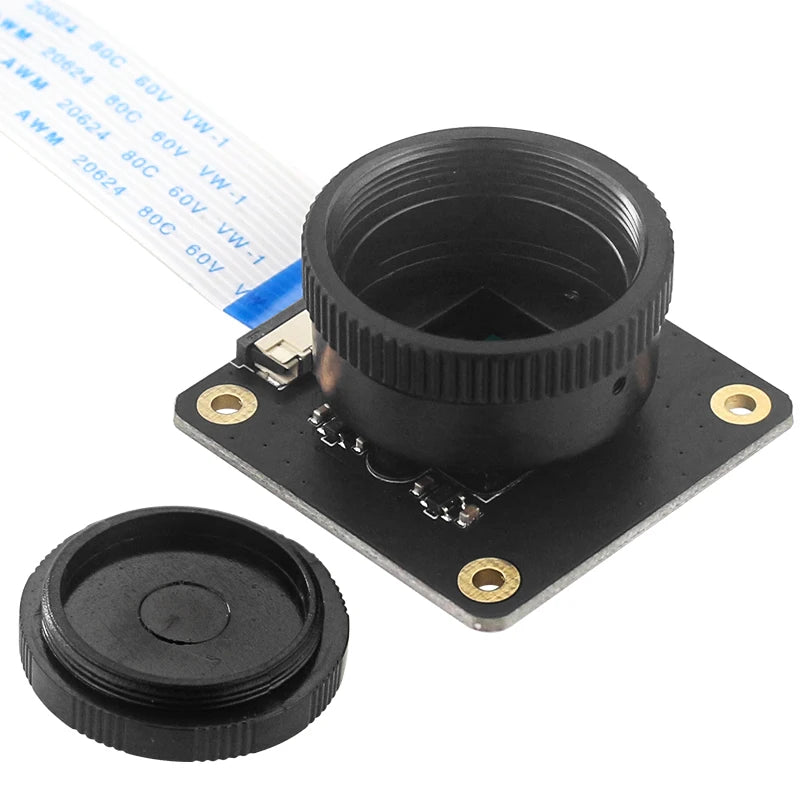

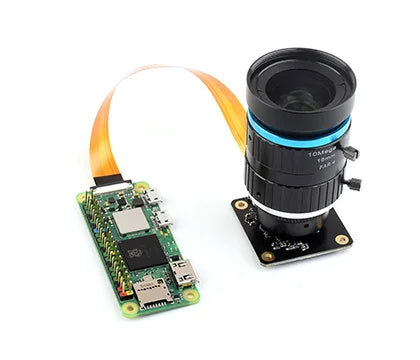

12.3MP IMX477 Camera Module for NVIDIA Jetson Nano Raspberry Pi 5 4 3 Zero CM4/3 High Quality Supports C- / CS-Mount Lens

12.3MP IMX477 Camera Module for NVIDIA Jetson Nano Raspberry Pi 5 4 3 Zero CM4/3 High Quality Supports C- / CS-Mount Lens

$278.32

$278.32 $0.00

Description

SPECIFICATIONS

Accessory Type: Camera Module

Back Focus: Adjustable

Battery Included: no

Brand Name: Caturda

Compatible With: Nvidia Jetson Nano Raspberry Pi CM3 CM3+ CM3+ Lite

High-concerned chemical: none

IR Cut Filter: Integrated

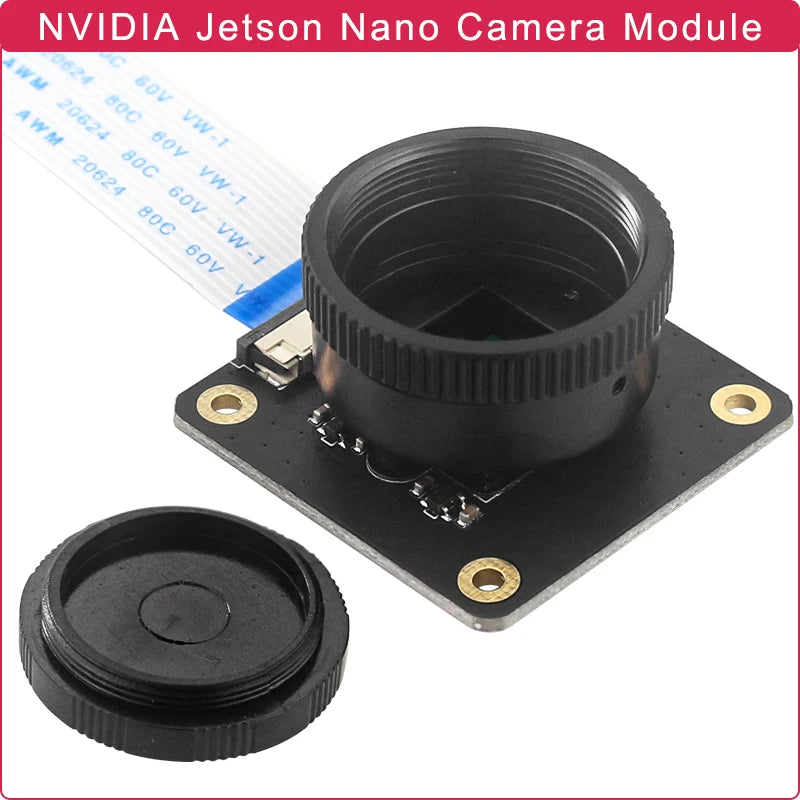

Lens Support: C-mount / CS-mount (C-CS adapter included)

Origin: Mainland China

Output: RAW12 / 10 / 8, COMP8

Resolution: 12.3MP

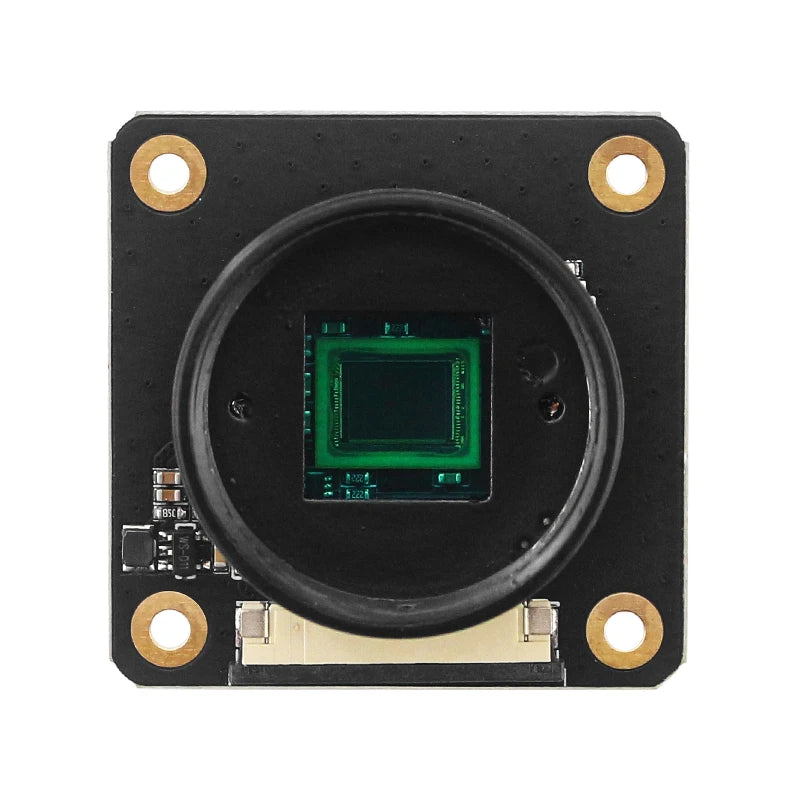

Sensor: Sony IMX477

Typical Application Fields: Education and Learning

12.3MP IMX477 Camera Module for NVIDIA Jetson Nano Raspberry Pi 5/4/3/Zero CM4/3 Lit Supports C- And CS-Mount Lens

Note:

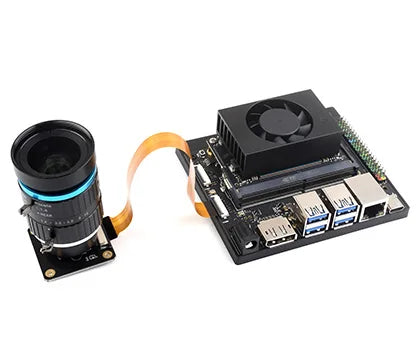

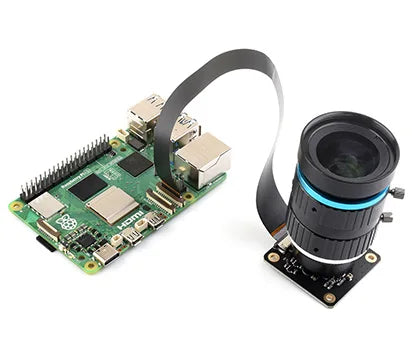

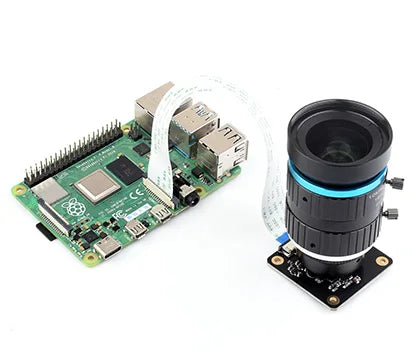

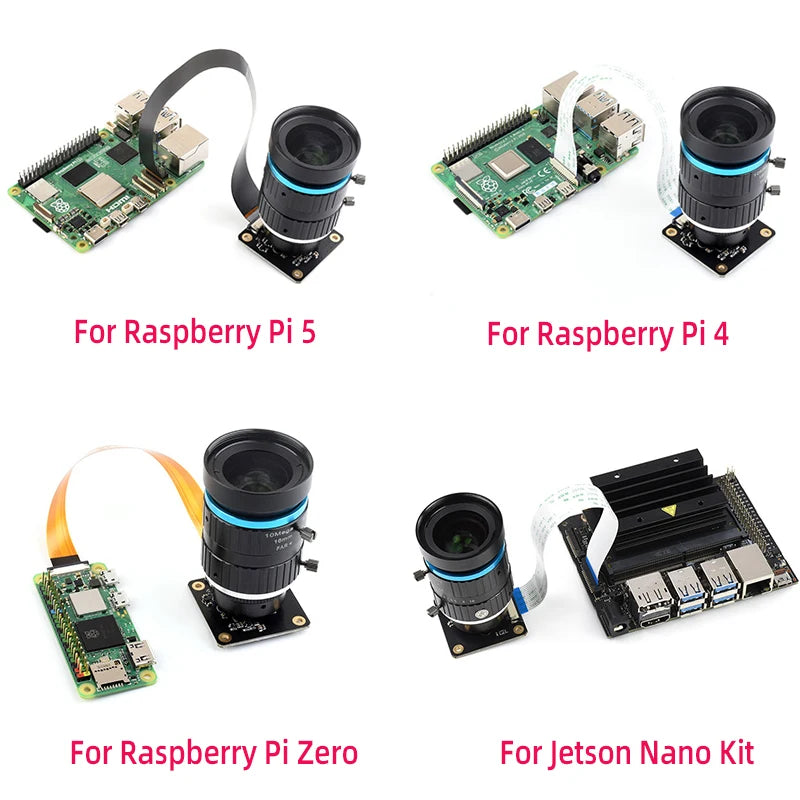

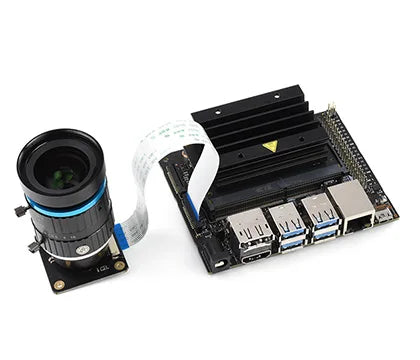

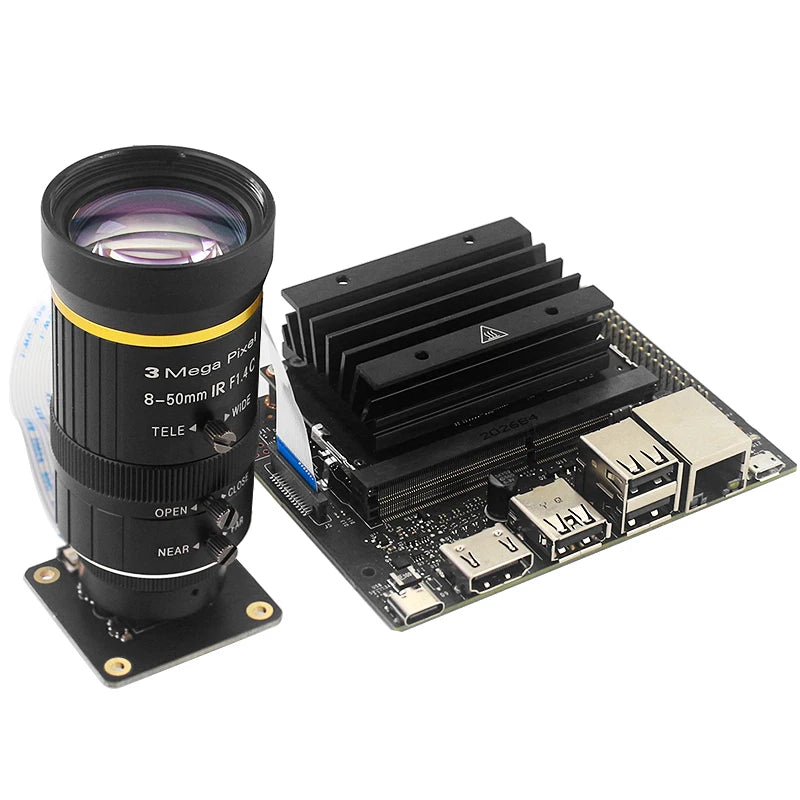

Supports Raspberry Pi and Jetson Nano developer Kit.

Introduction:

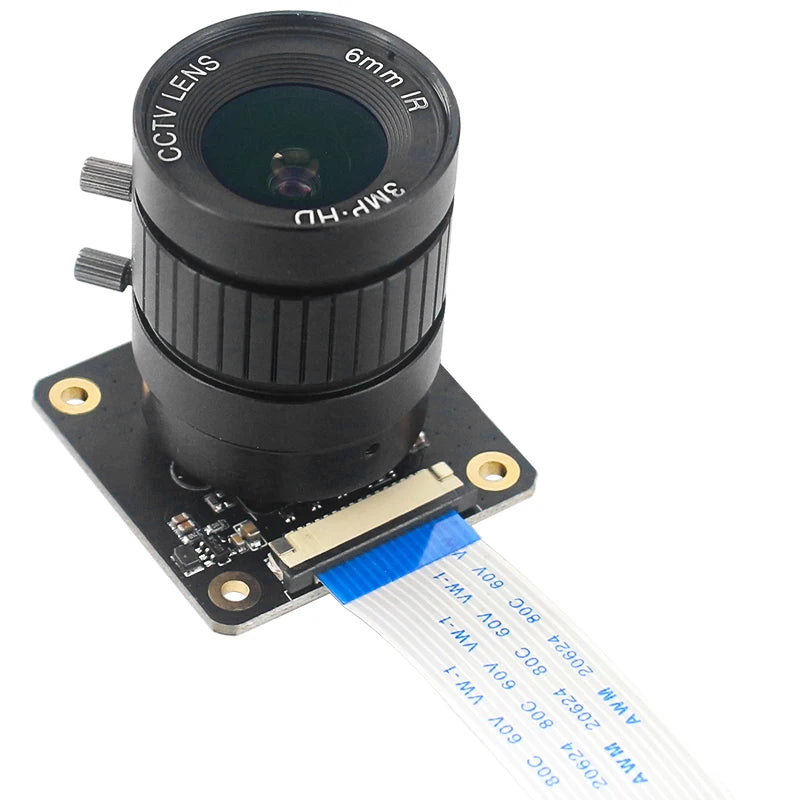

The IMX477 12.3MP Camera is a high quality camera module which adopts the IMX477R sensor, and requires a C- or CS-mount lens to work. It is compatible with Raspberry Pi Compute Module and NVIDIA Jetson Nano, offers higher resolution (12.3MP) and higher sensitivity (nearly 50% greater area per pixel for improved low-light performance) than IMX219 cameras.

The IMX477 12.3MP Camera is suitable for industrial and consumer applications like security camera, and other specialist optical devices which require higher level of visual fidelity.

Feature:

1. Sony IMX477 sensor with 12.3MP for high resolution
2. Greater pixel area for improved low-light performance
3. Back-illuminated sensor architecture for improved sensitivity

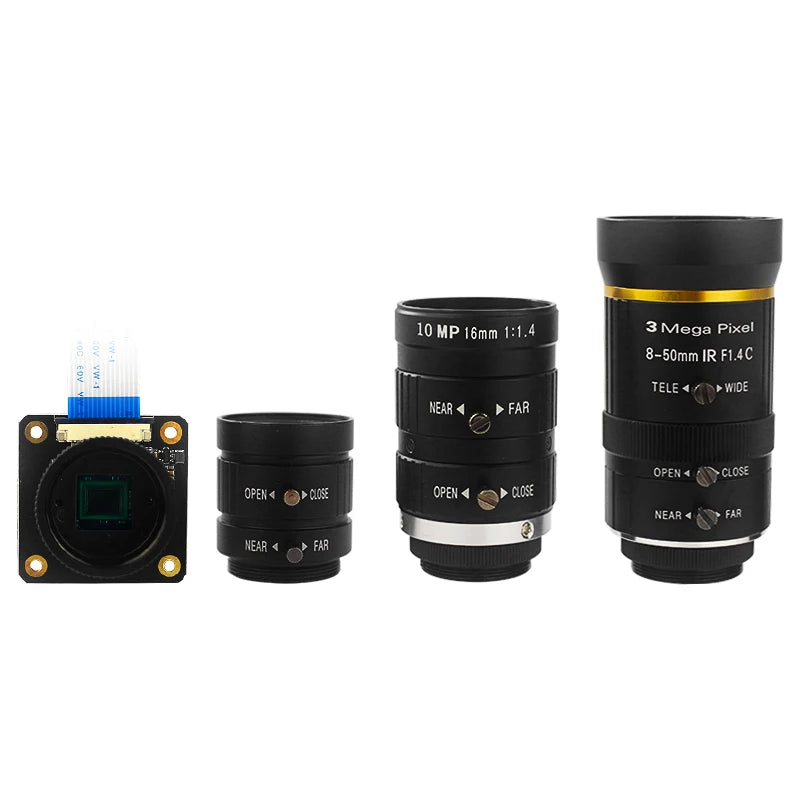

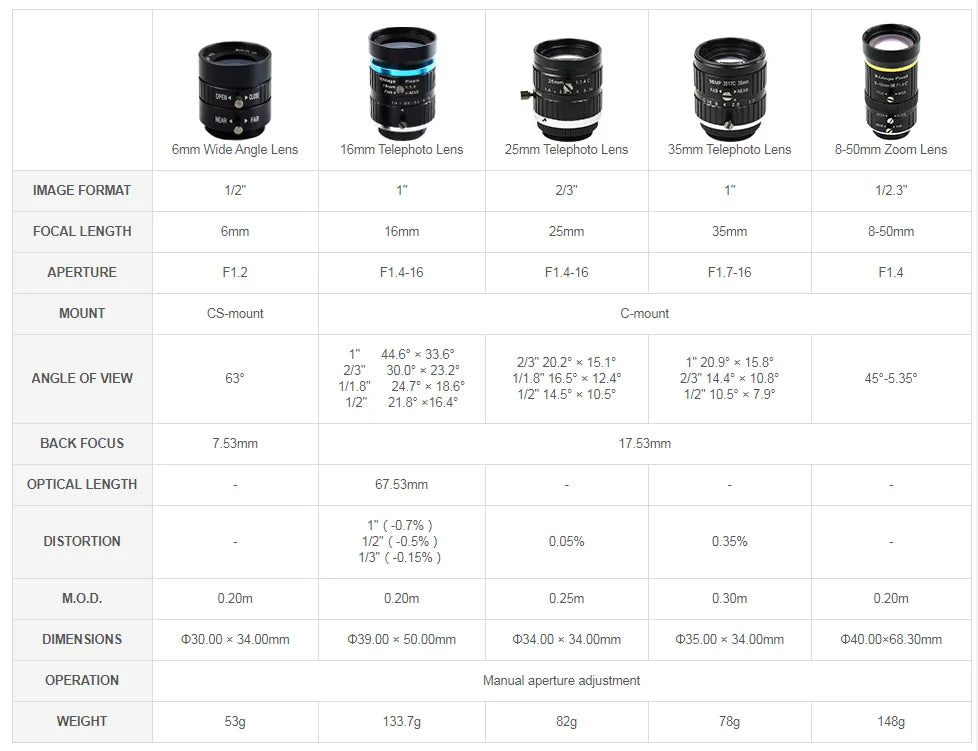

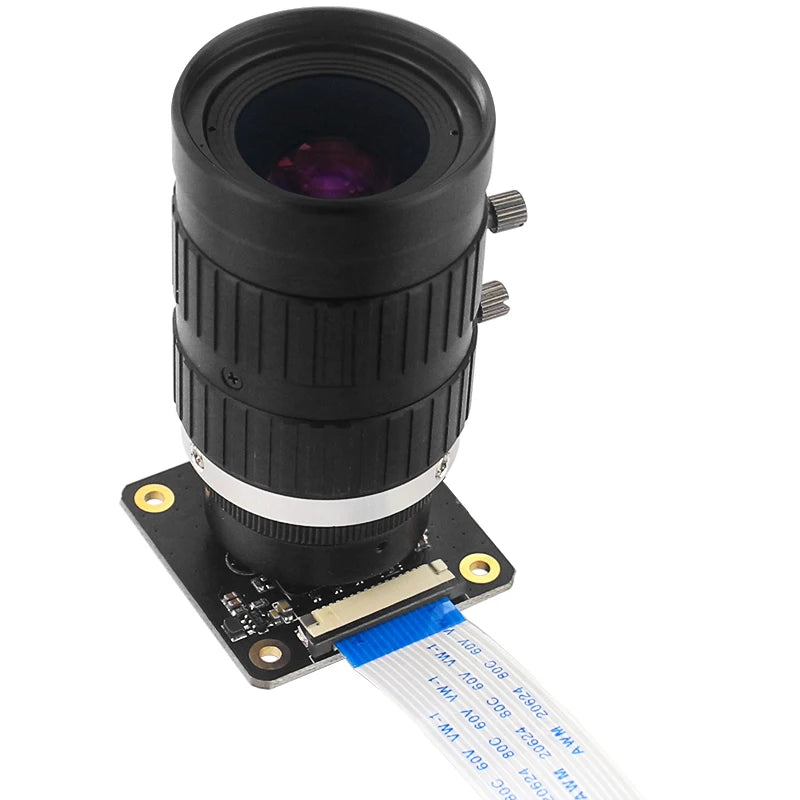

4. Supports a wide range of C and CS-mount lenses

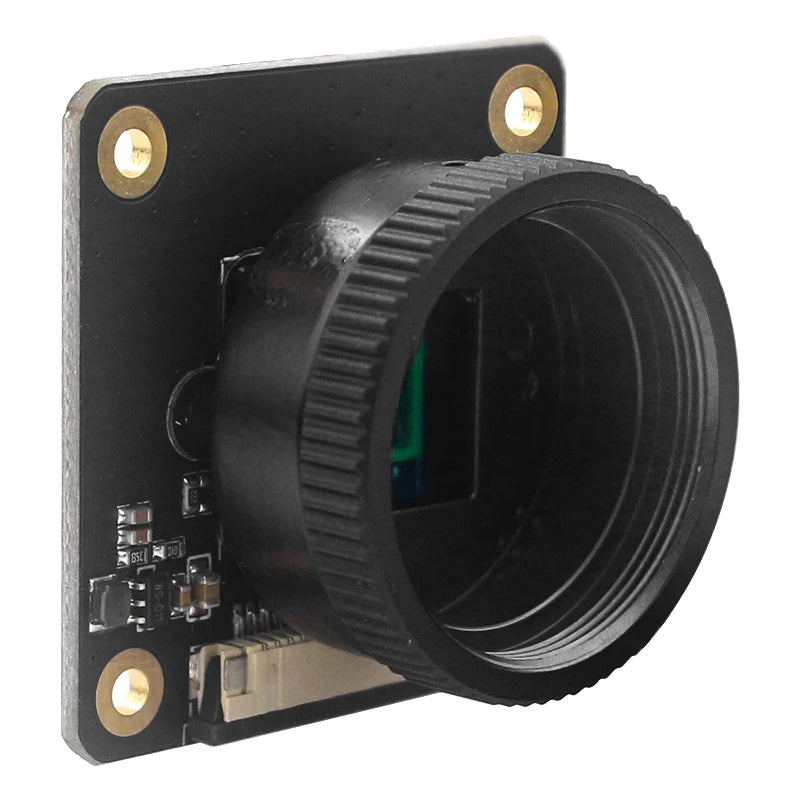

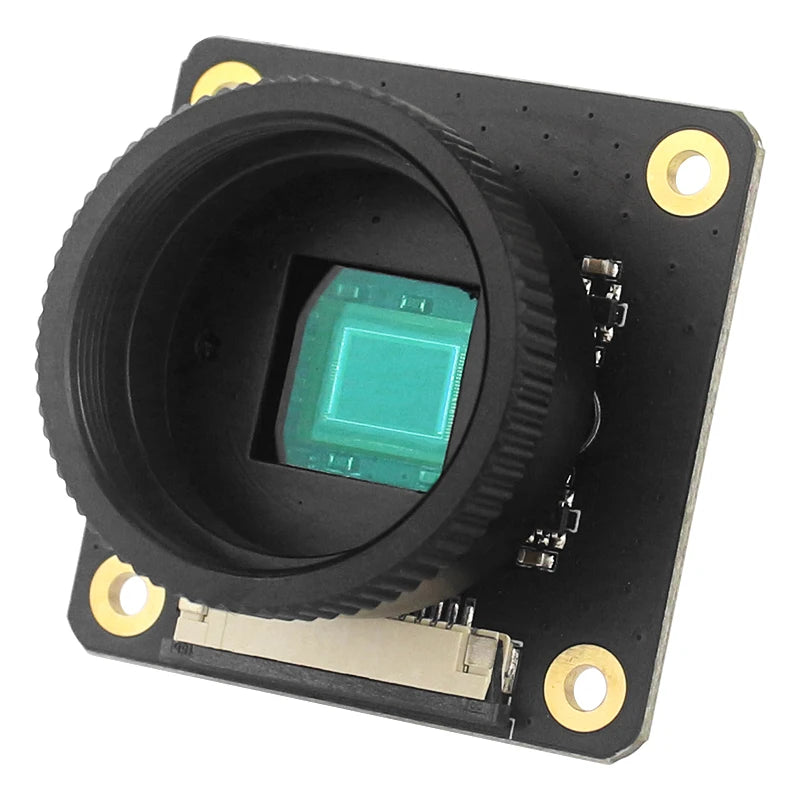

Integrated back-focus adjustment ring

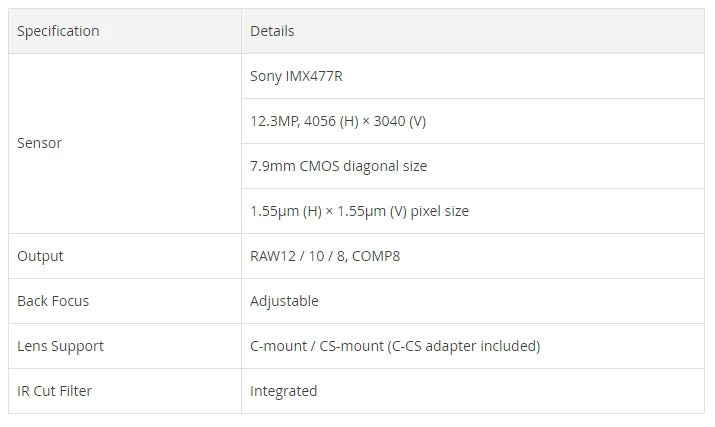

Specification:

Higher Resolution, Better Imaging Effect

This offers a higher resolution (12.3MP) and higher sensitivity (nearly 50% greater area per pixel for improved low-light performance) than the traditional 8MP IMX219 cameras.
