SPECIFICATIONS

Application: VCD/DVD Player

Audio input: AUX+XH2.54-3P

Brand Name: NONE

Choice: yes

Condition: New

Feature: Stereo Audio Amplifier Module

High-concerned chemical: none

Operating Temperature: With adjustable pre-amplifier gain

Origin: Mainland China

Package: TQFP

Product Name: Pure Power Amplifier Board

Quantity: 1

Supply Voltage: DC18-51V

Type: Module,TPA3255 Amplifier Chip

is_customized: Yes

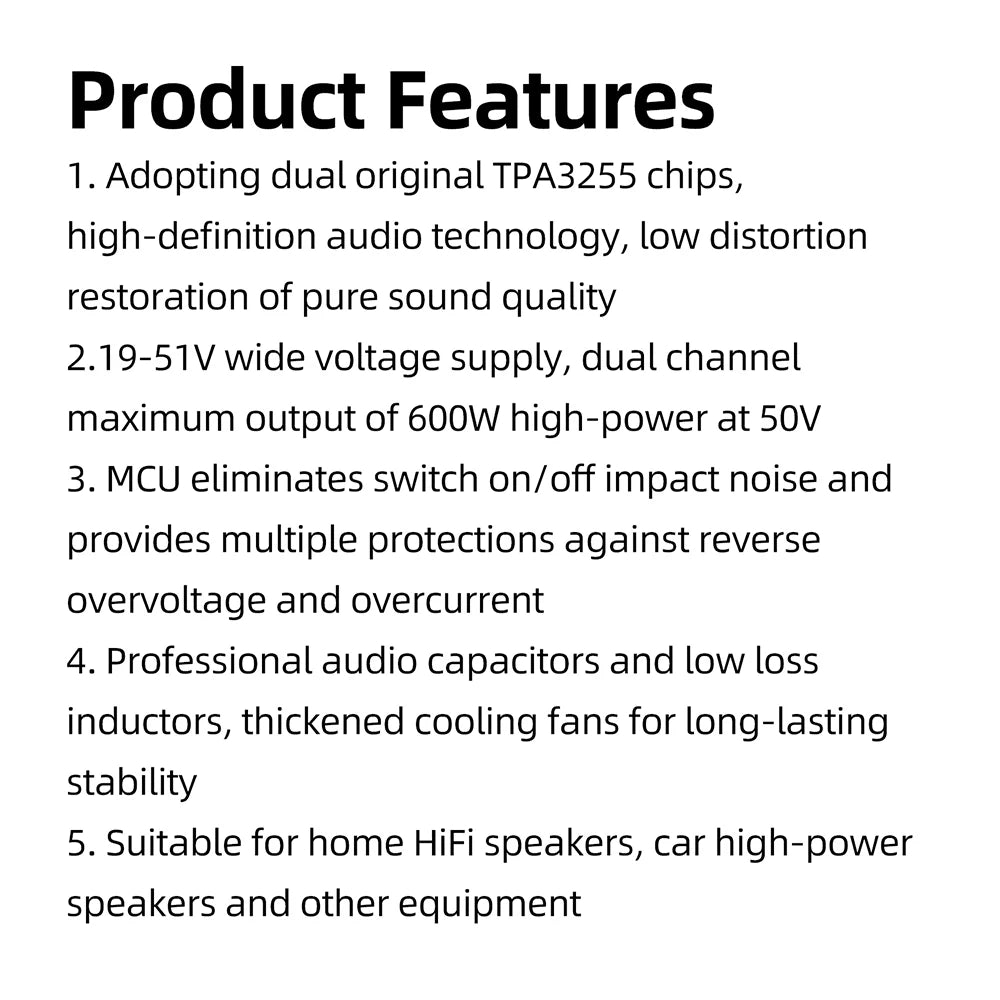

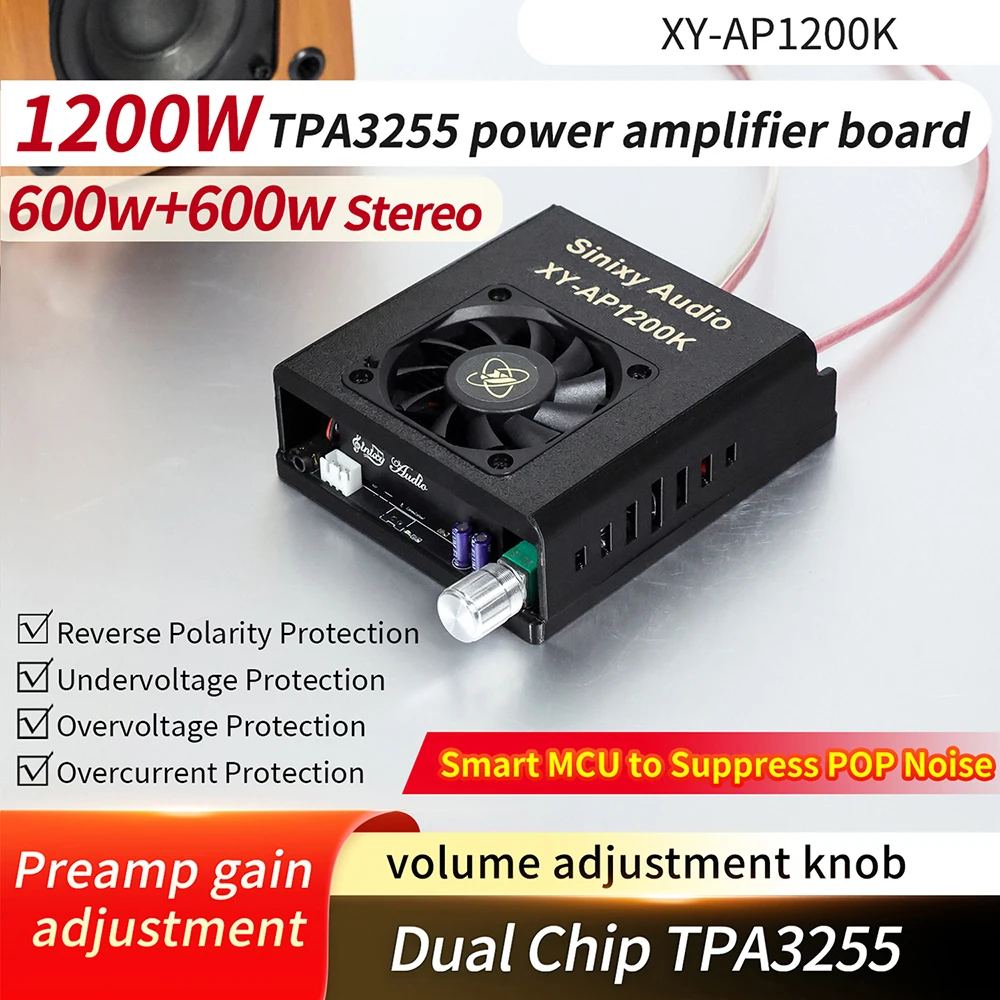

Features:

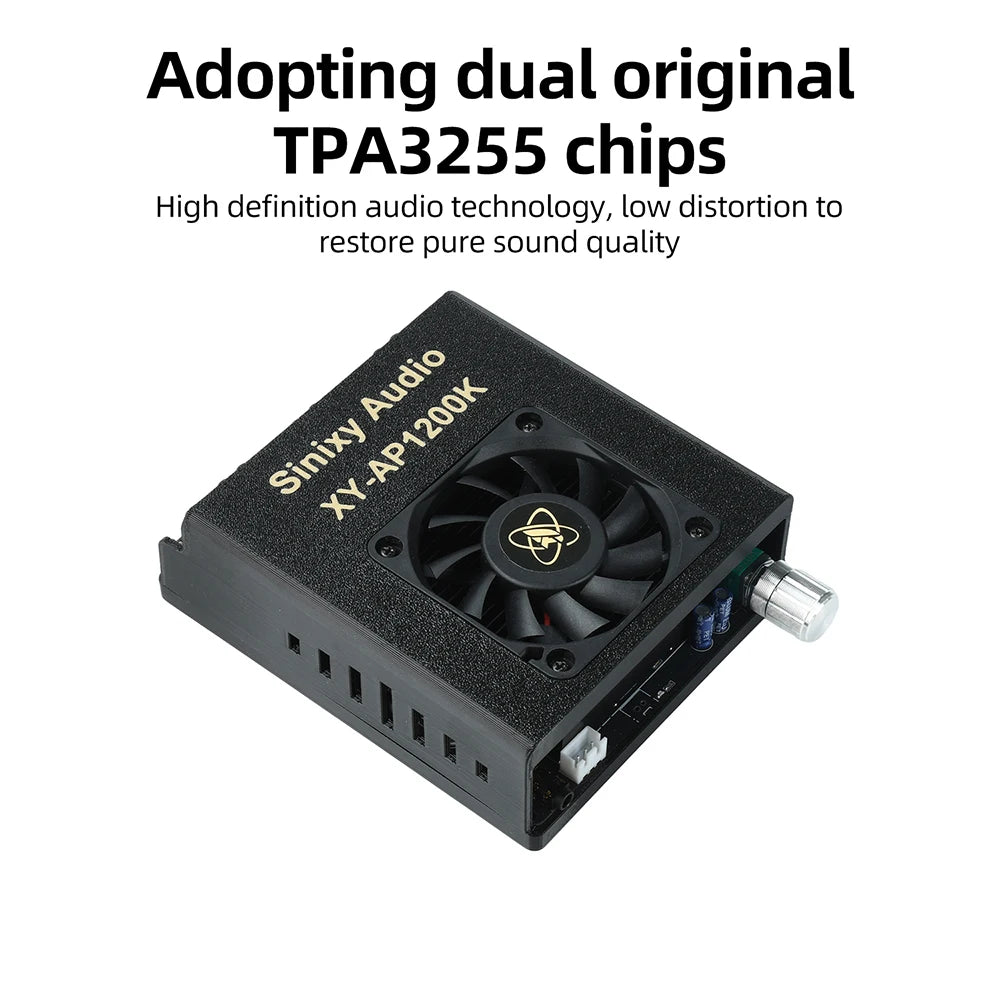

1. Adopting dual original TPA3255 chips, high-definition audio technology, low distortion restoration of pure sound quality

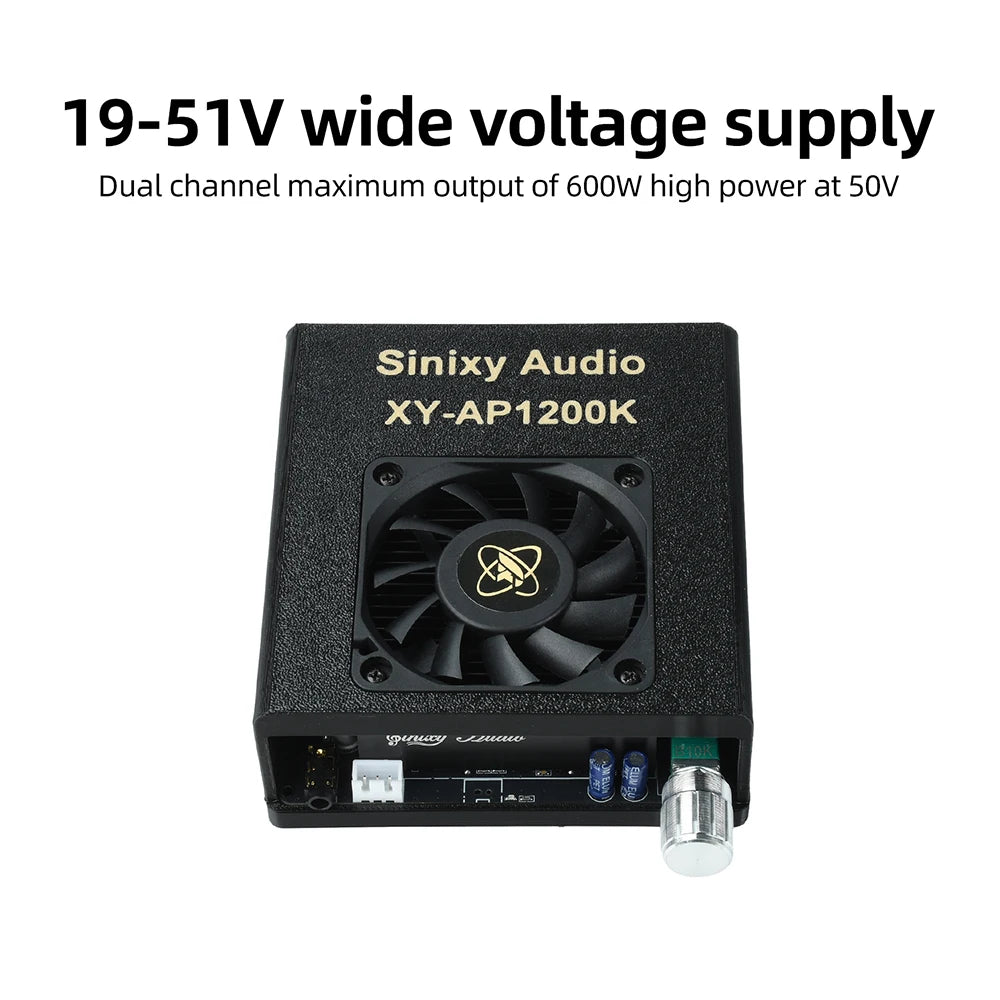

2.18-51V wide voltage supply, dual channel maximum output of 600W high-power at 50V

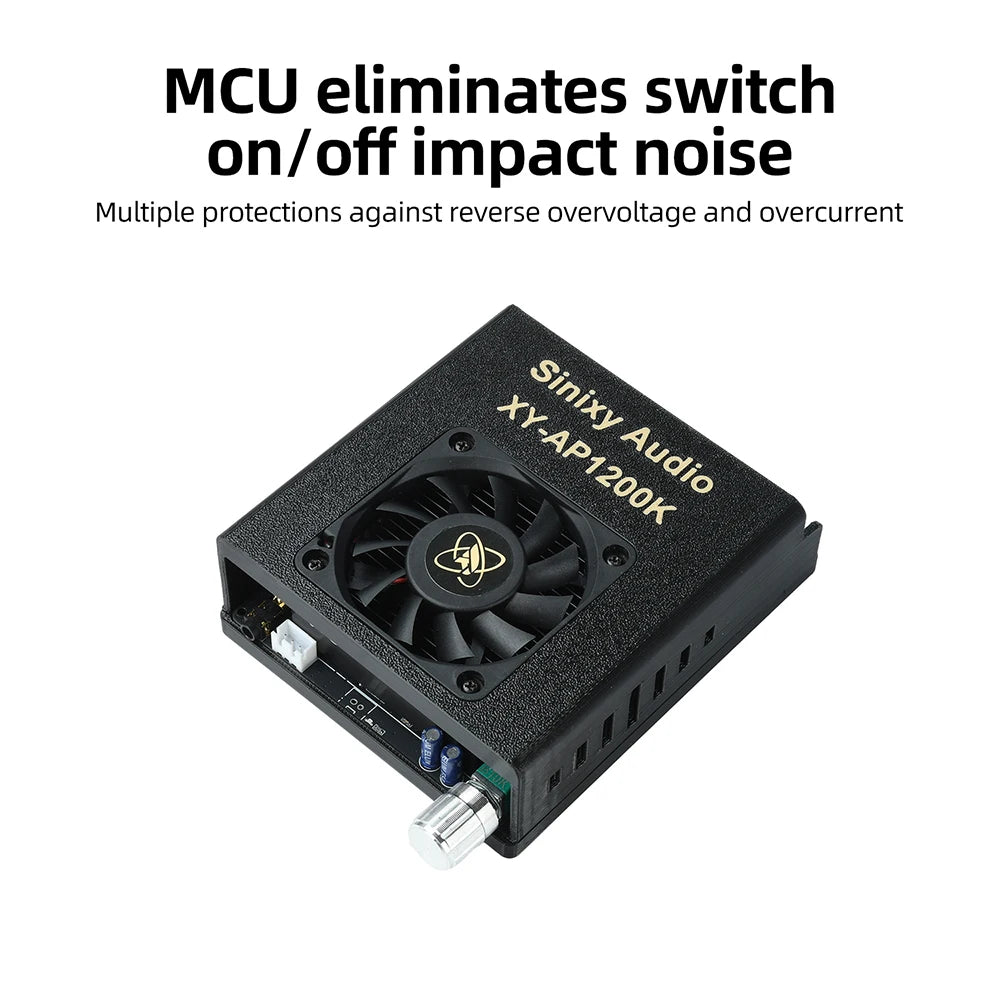

3. MCU eliminates switch on/off impact noise and provides multiple protections against reverse overvoltage and overcurrent

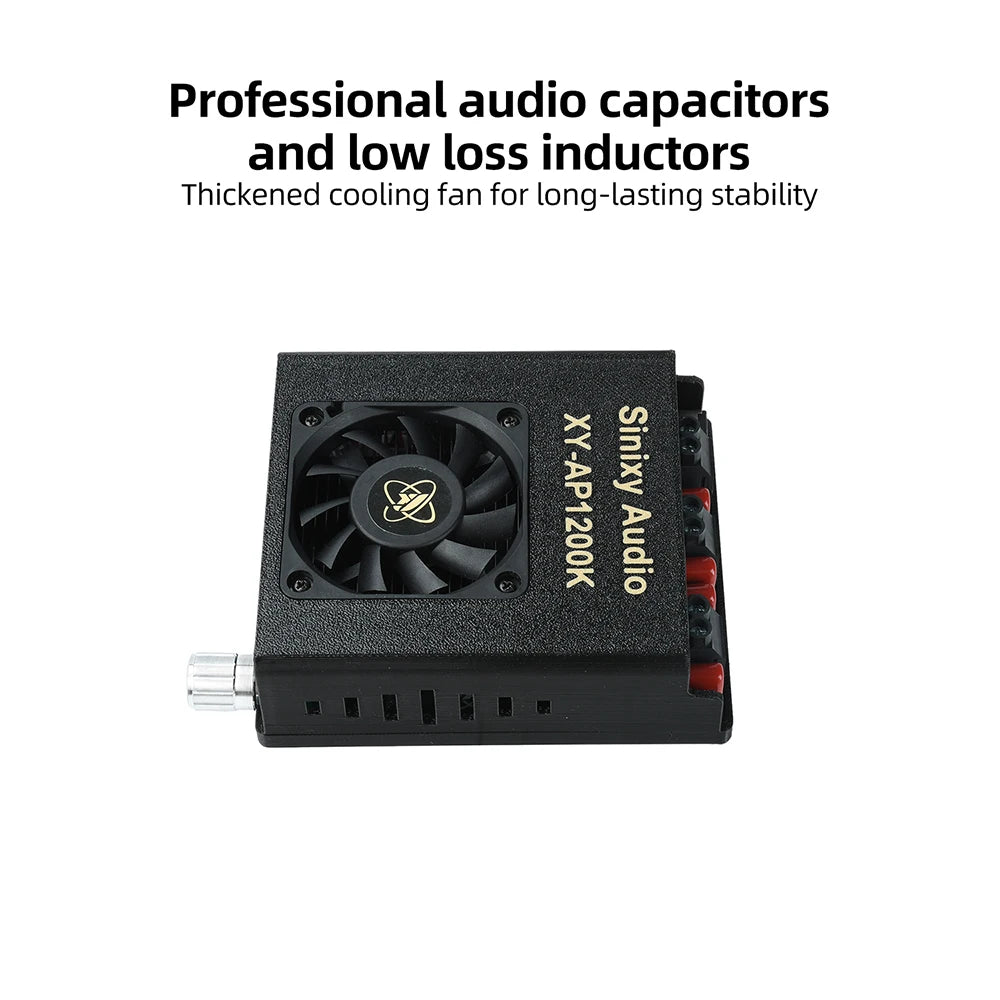

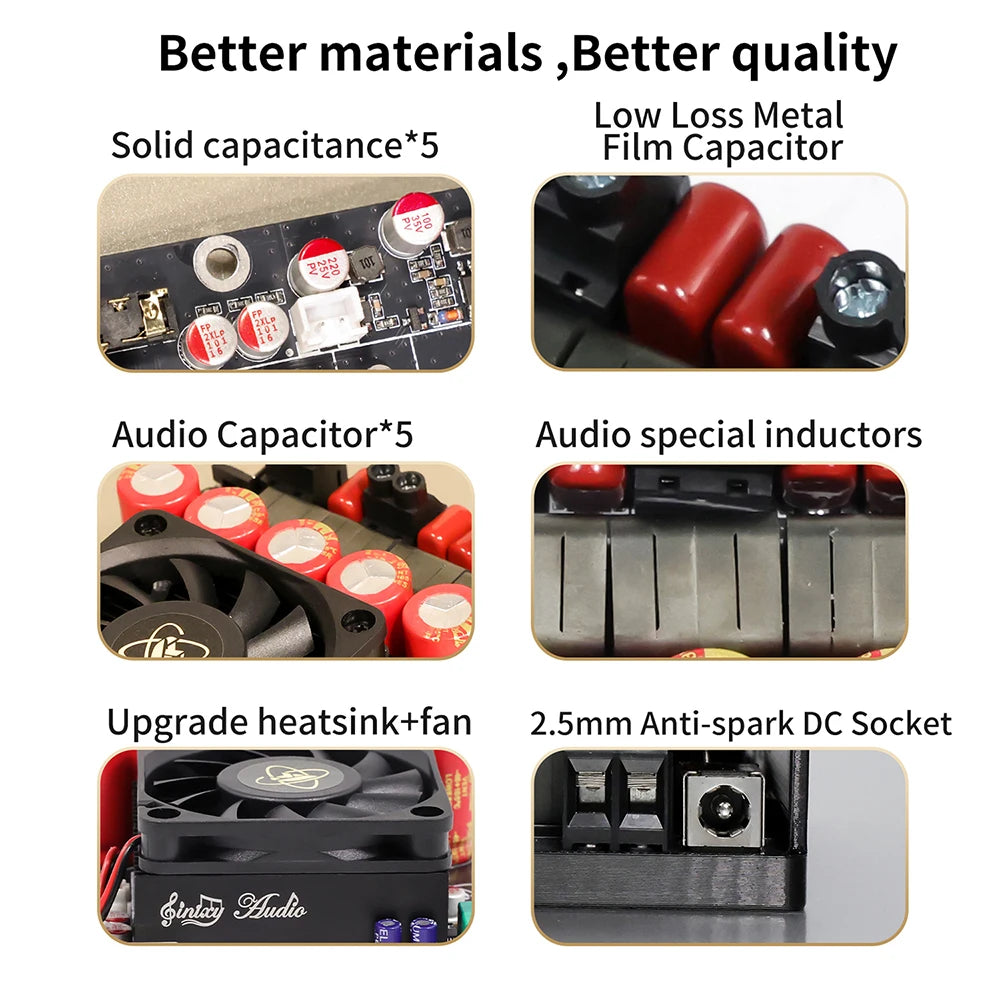

4. Professional audio capacitors and low loss inductors, thickened cooling fans for long-lasting stability

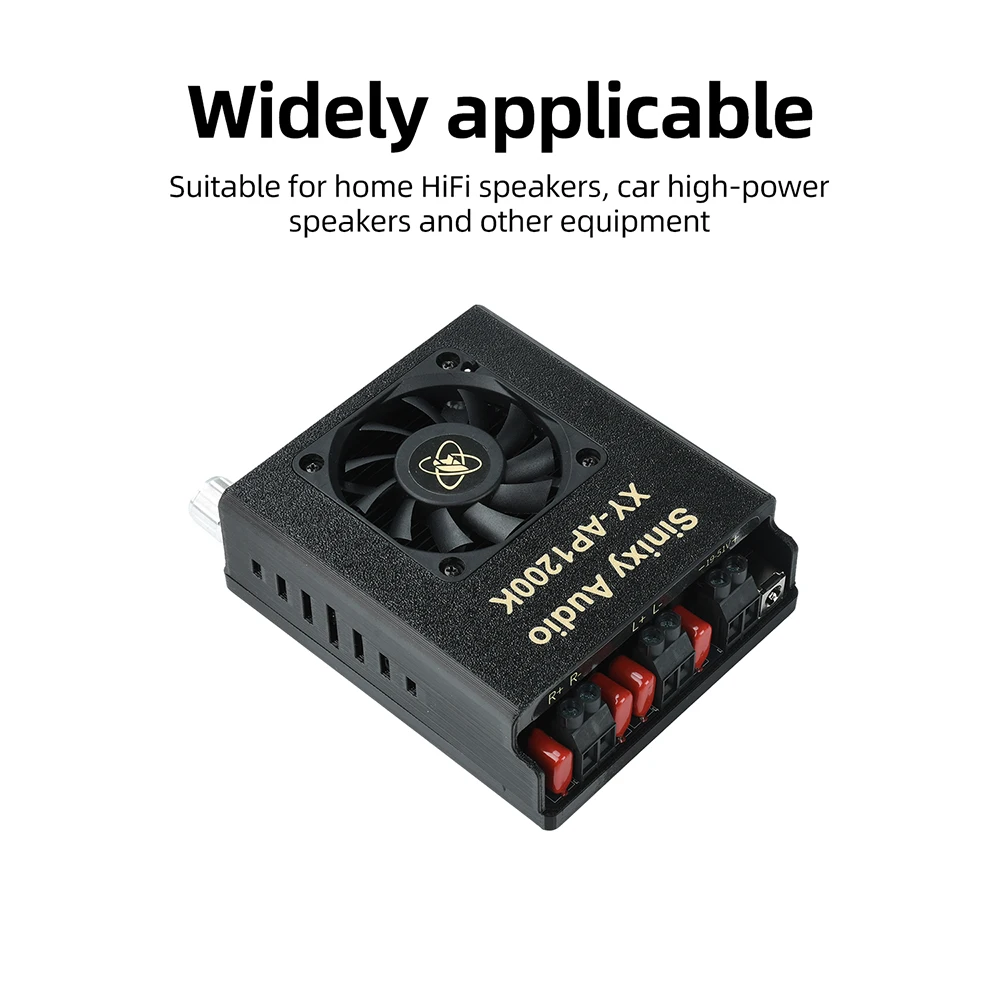

5. Suitable for home HiFi speakers, car high-power speakers and other equipment

Introduction

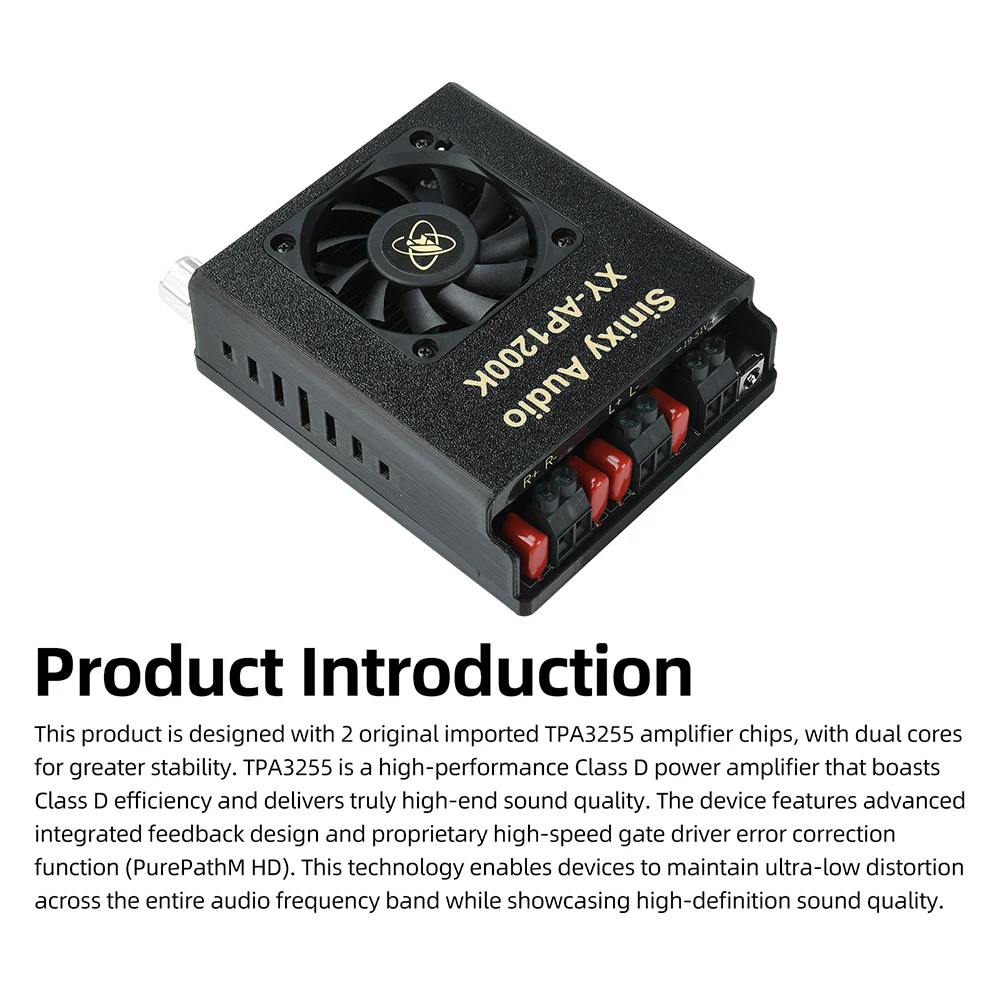

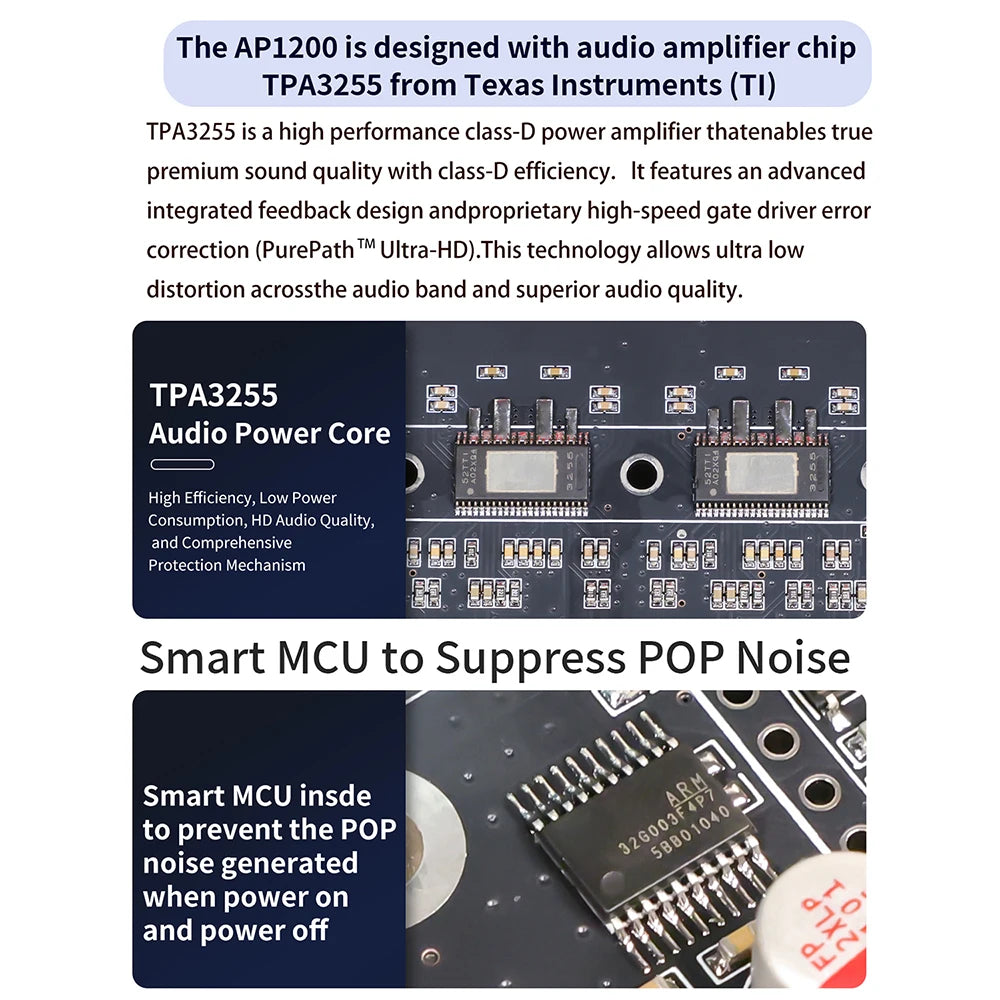

This product is designed with 2 original imported TPA3255 amplifier chips, with dual cores for greater stability. TPA3255 is a high-performance Class D power amplifier that boasts Class D efficiency and delivers truly high-end sound quality. The device features advanced integrated feedback design and proprietary high-speed gate driver error correction function (PurePathM HD). This technology enables devices to maintain ultra-low distortion across the entire audio frequency band while showcasing high-definition sound quality.

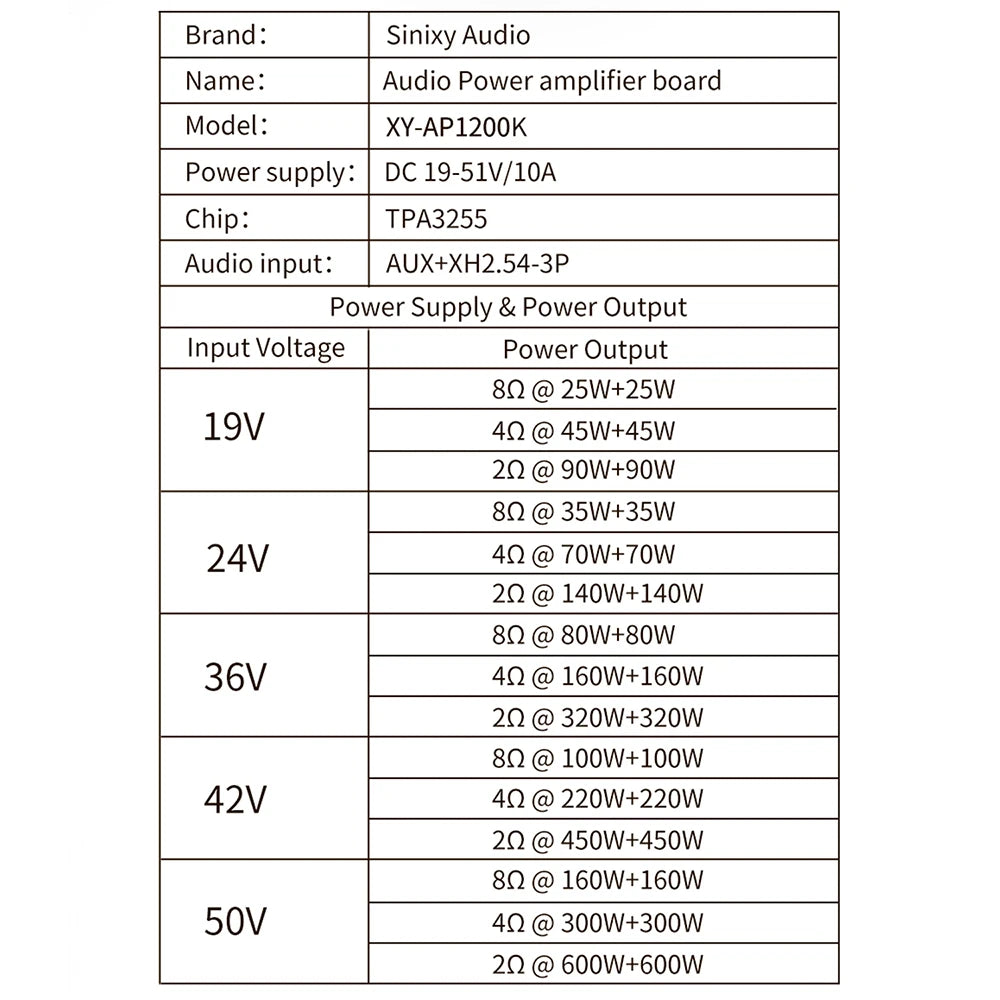

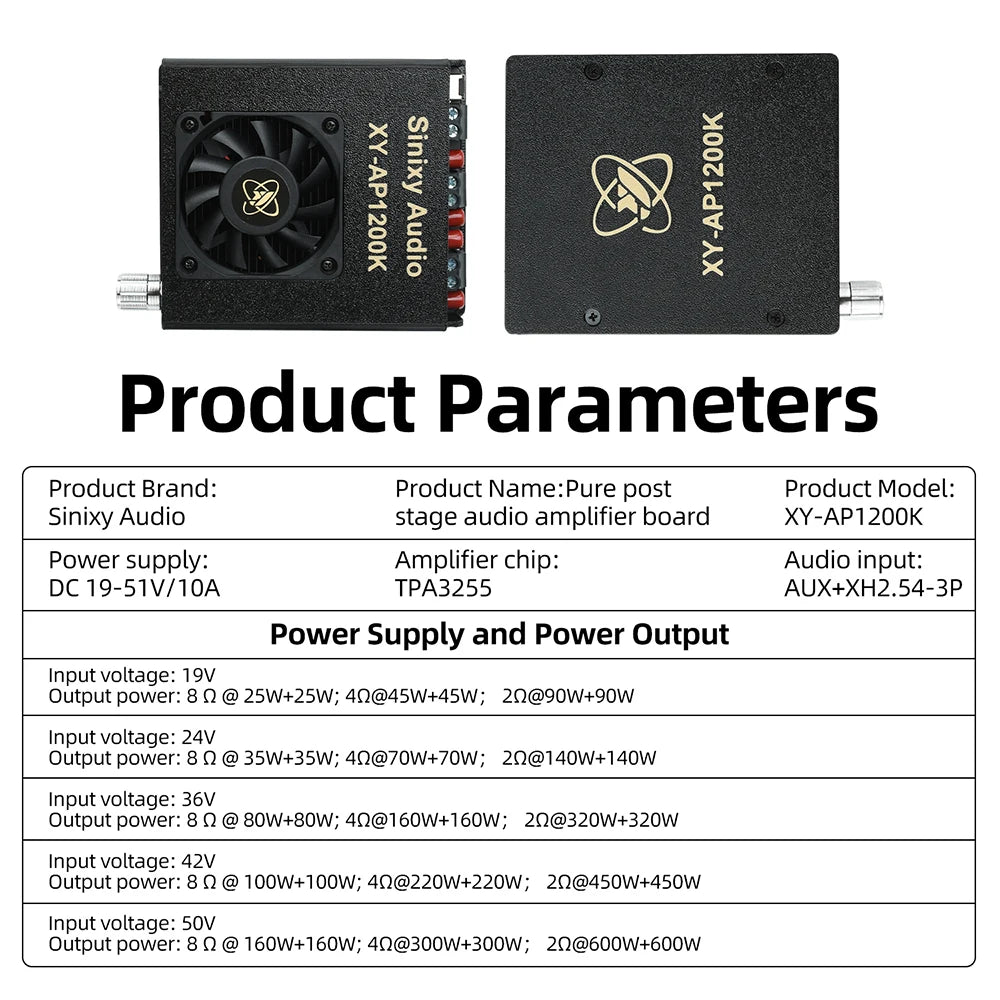

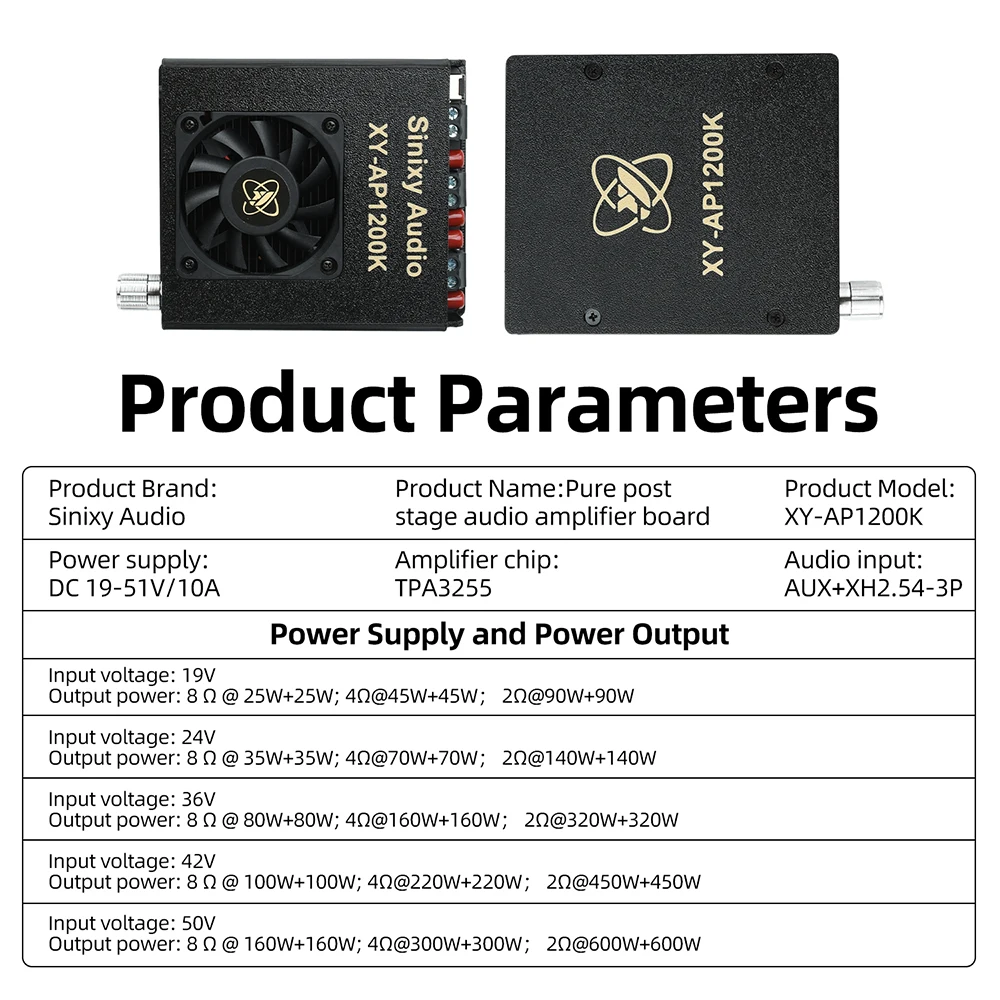

Parameters:

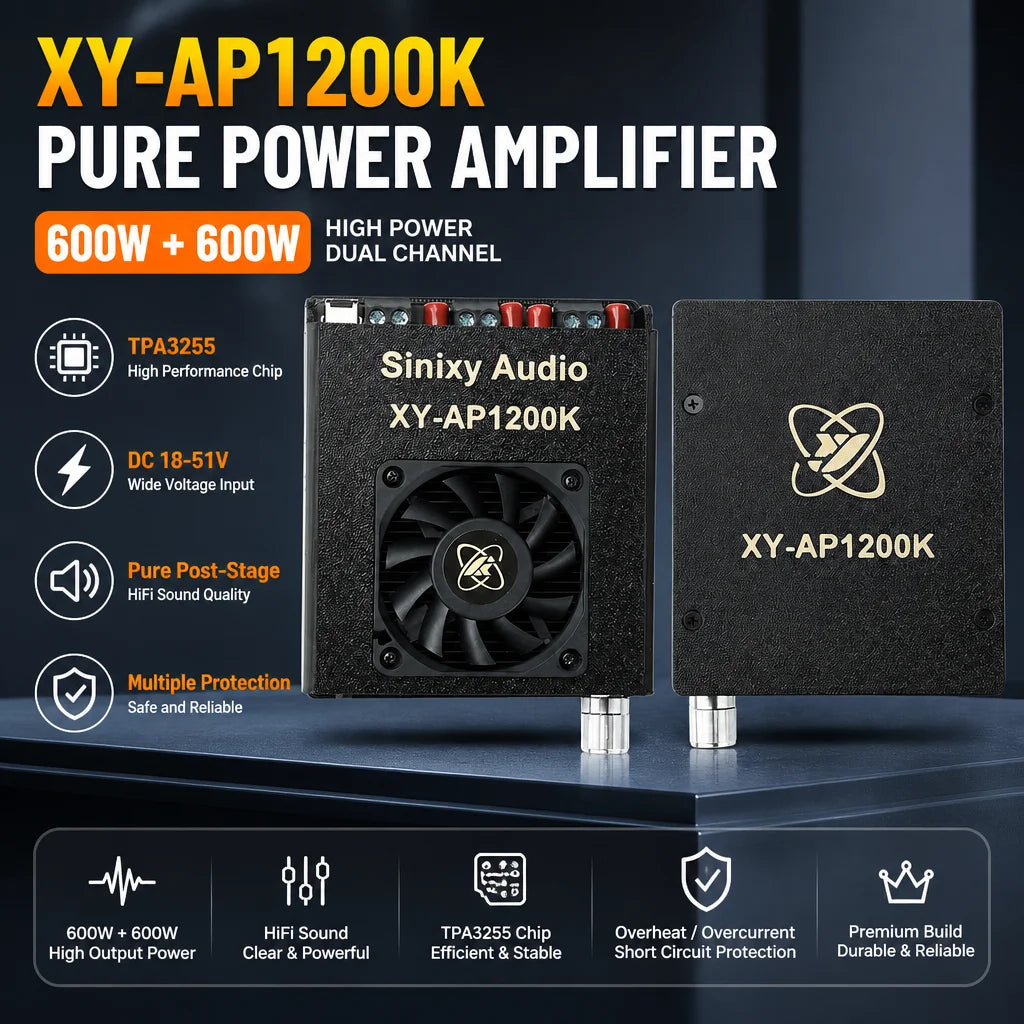

Product brand: Sinixy Audio

Product Name: Pure Rear Stage Audio Amplifier Board

Product Model: XY-AP1200K

Power supply: DC 18-51V/10A

Amplifier chip: TPA3255

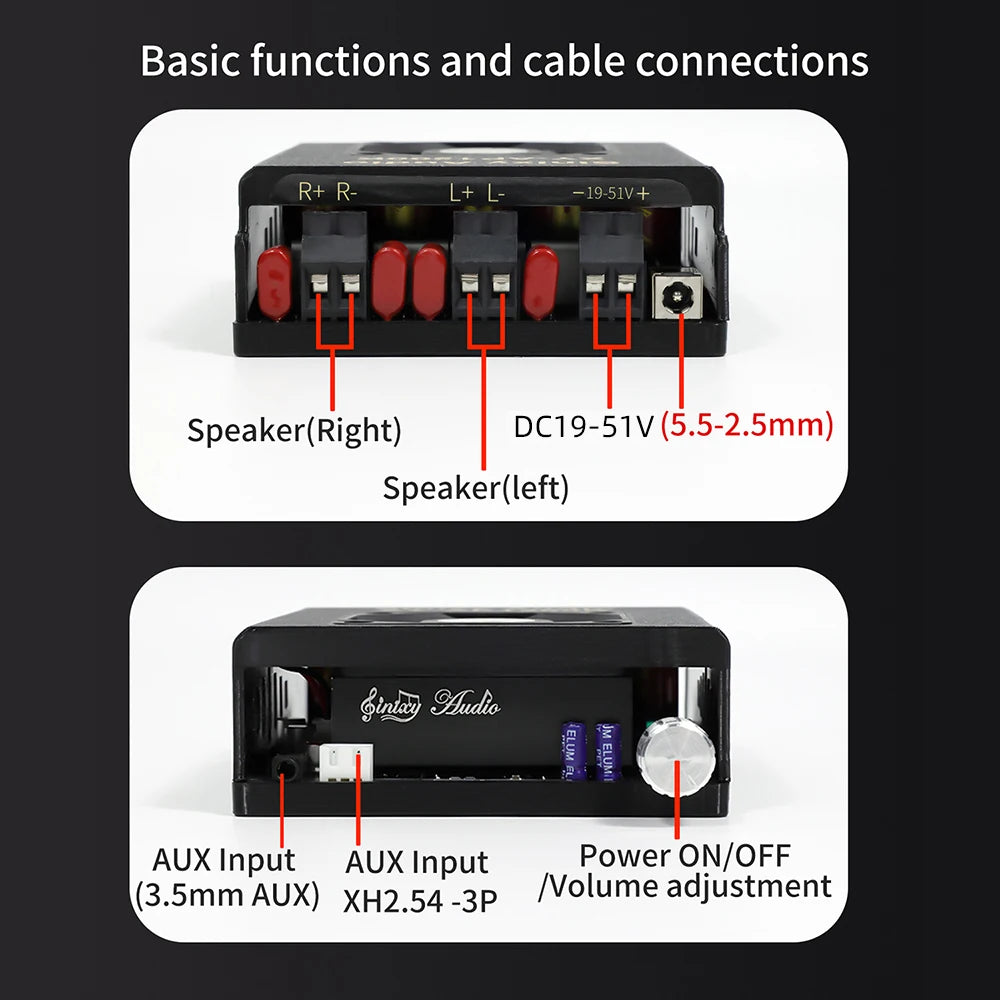

Audio input: AUX+XH2.54-3P

Power supply and power output:

Input voltage: 18V

Output power: 8 Ω @ 25W+25W; 4Ω@45W+45W； 2Ω@90W+90W

Input voltage: 24V

Output power: 8 Ω @ 35W+35W; 4Ω@70W+70W； 2Ω@140W+140W

Input voltage: 36V

Output power: 8 Ω @ 80W+80W; 4Ω@160W+160W； 2Ω@320W+320W

Input voltage: 42V

Output power: 8 Ω @ 100W+100W; 4Ω@220W+220W； 2Ω@450W+450W

Input voltage: 50V

Output power: 8 Ω @ 160W+160W; 4Ω@300W+300W； 2Ω@600W+600W

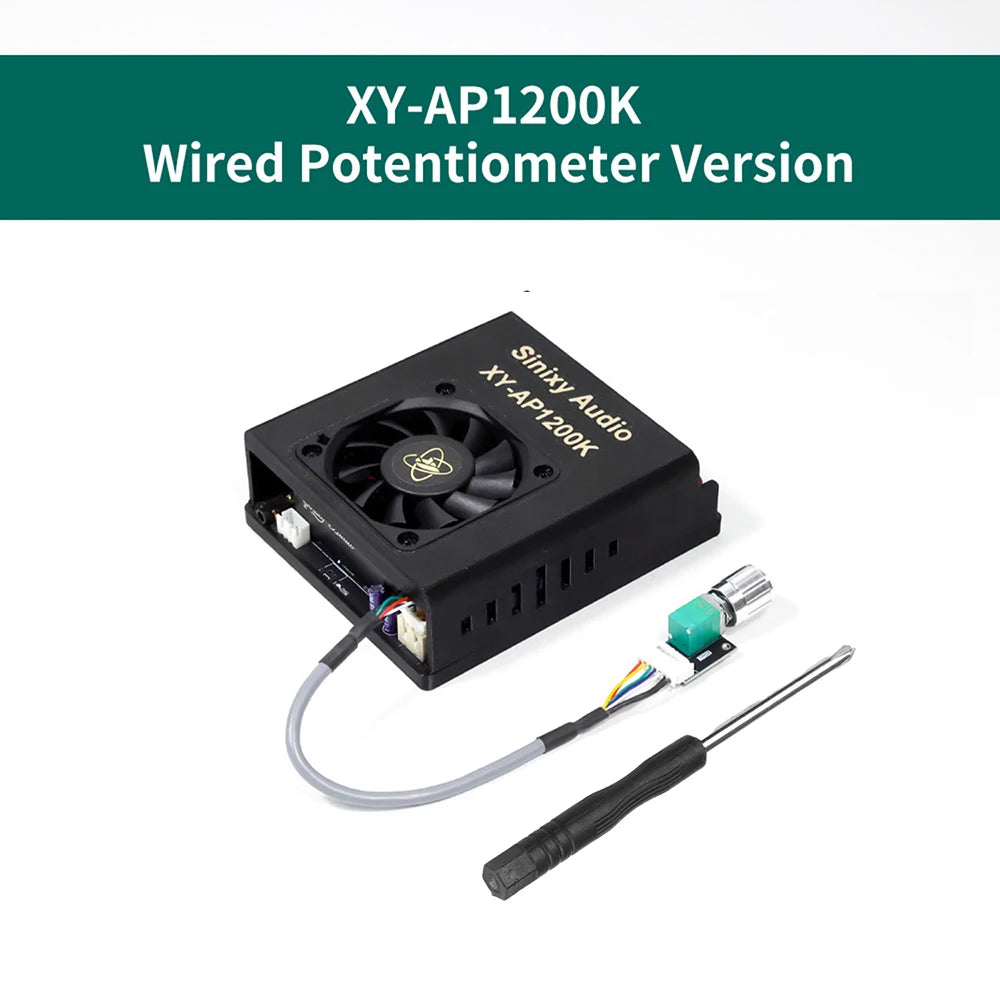

Product List:

1X power amplifier board

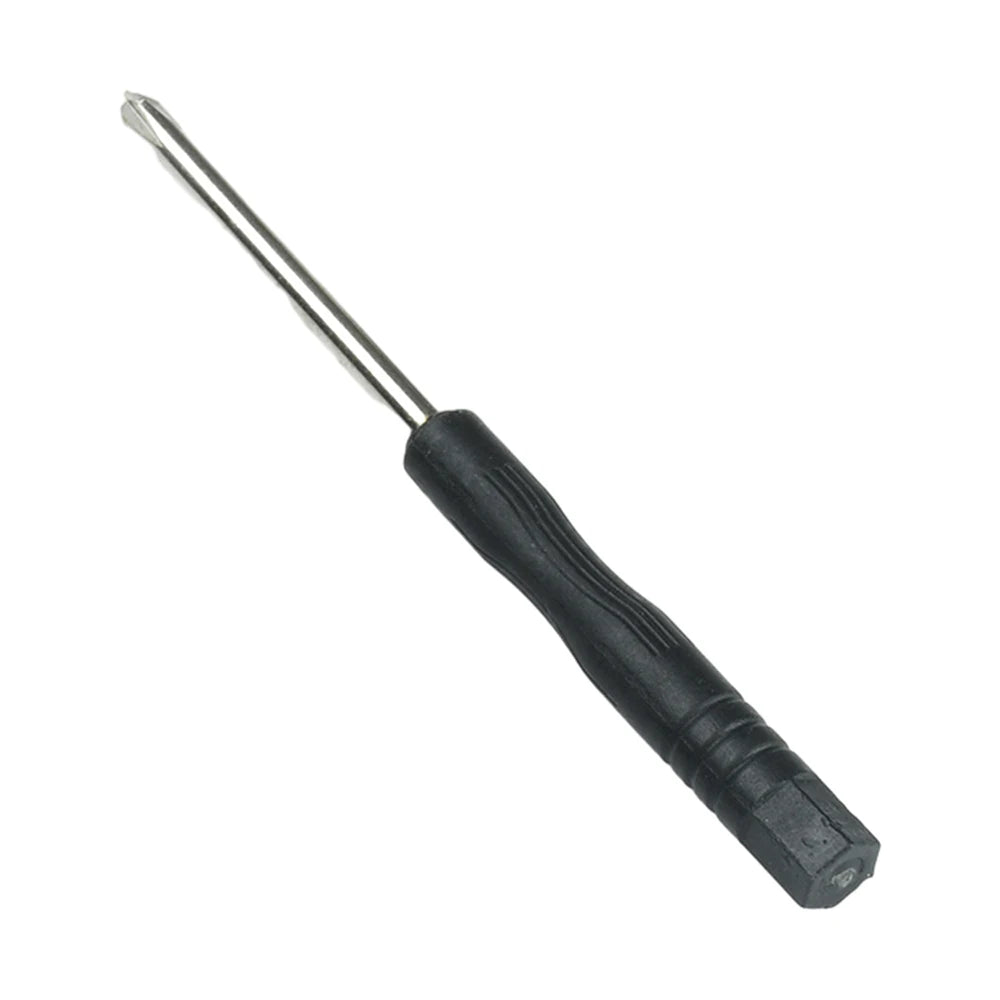

1X screwdriver
