SPECIFICATIONS

Brand Name: IVY METERING

Contact Form: 3A/3B

Contact Load: High Power

Contact Material: AgSnO2

Dielectric Strength: greater than 4000VAC(Motor to Contact)

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Electrical Endurance: 10000 Cycles

High-concerned chemical: none

Model Number: IM1201T

Origin: Mainland China

Picking-up/Release Time: less than or equal to 40ms

Power Source: Ac,Ac

Protect Feature: Sealed

Rated Load: 120A 250VAC

Theory: Electromagnetic Relay

Use: General Purpose

Voltage: 250V

is_customized: Yes

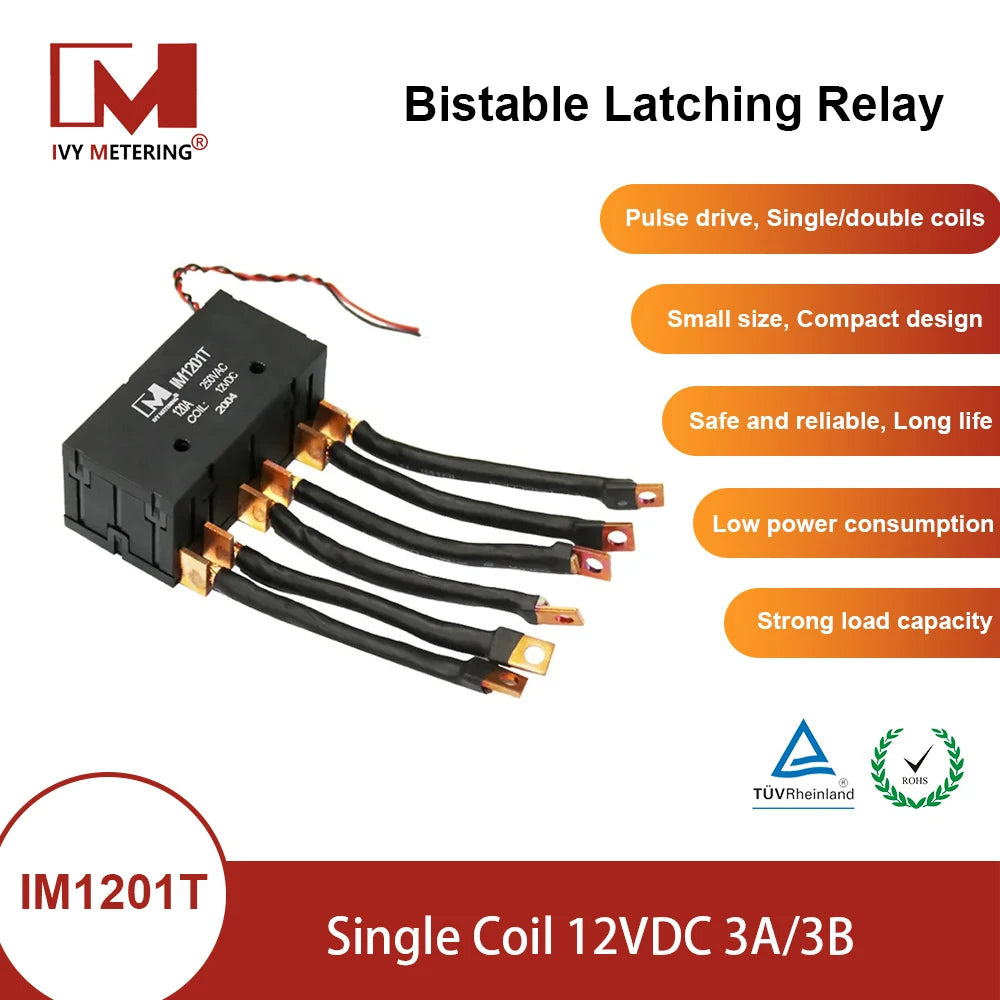

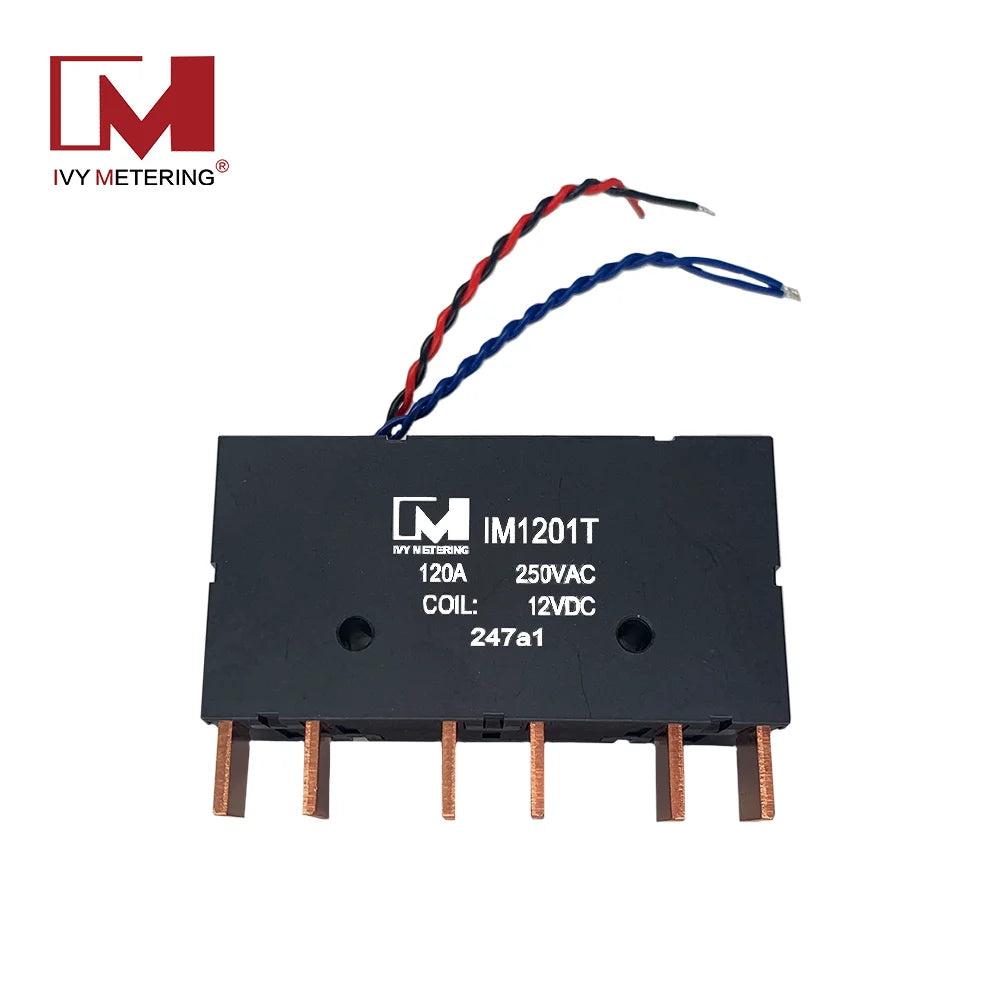

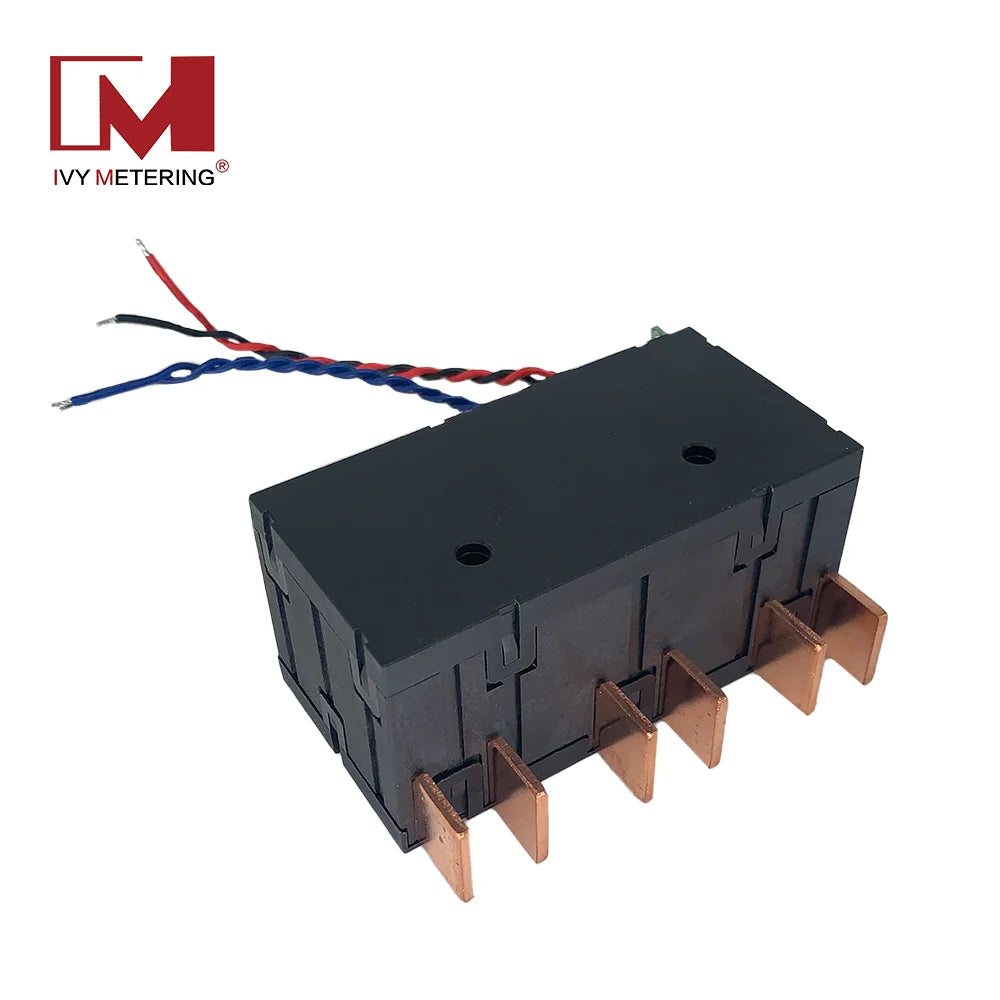

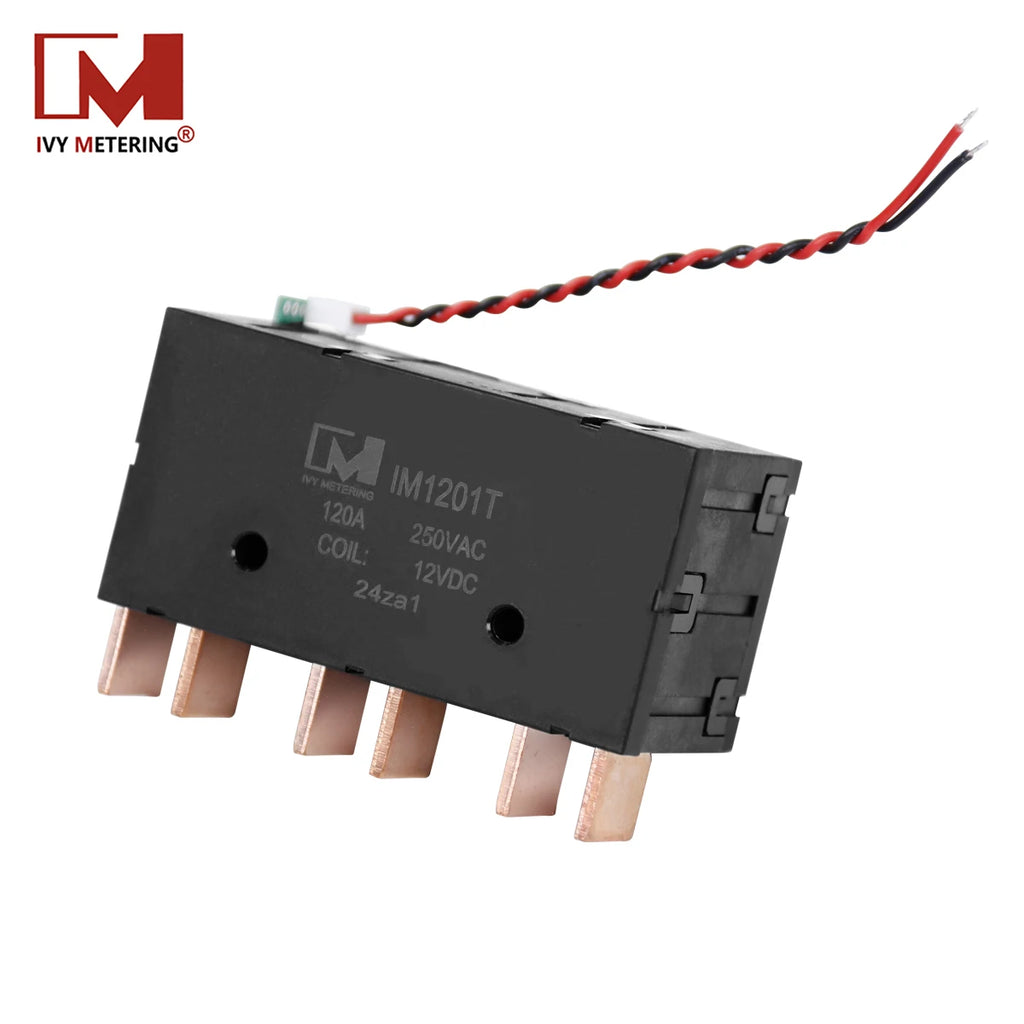

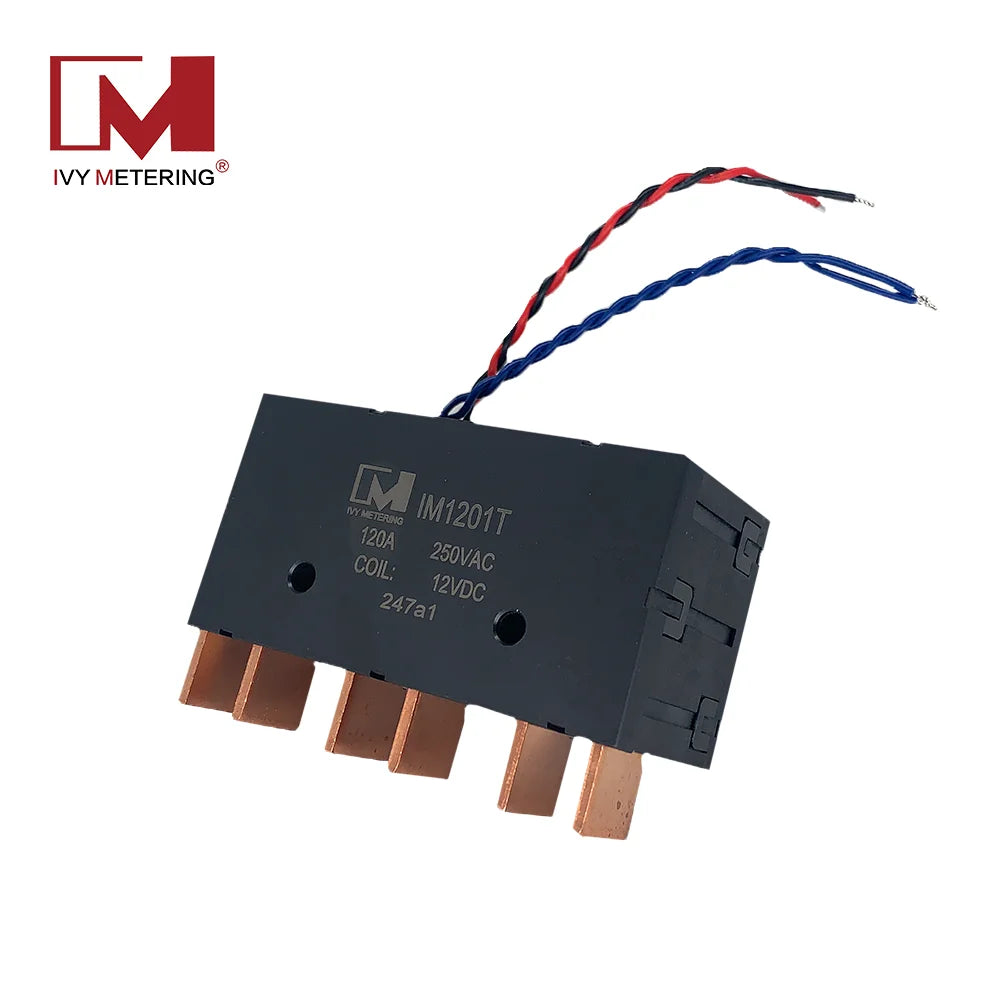

IM1201T Meter Use 120A 12VDC Coil 3 Phase Latching Relay

Note: The product delivery is different from the actual picture, it does not come with terminals. If you need Custom Assemblies, with Integrated Shunts, Flex-wire and Copper Extensions and Brass Terminals, please contact us online.

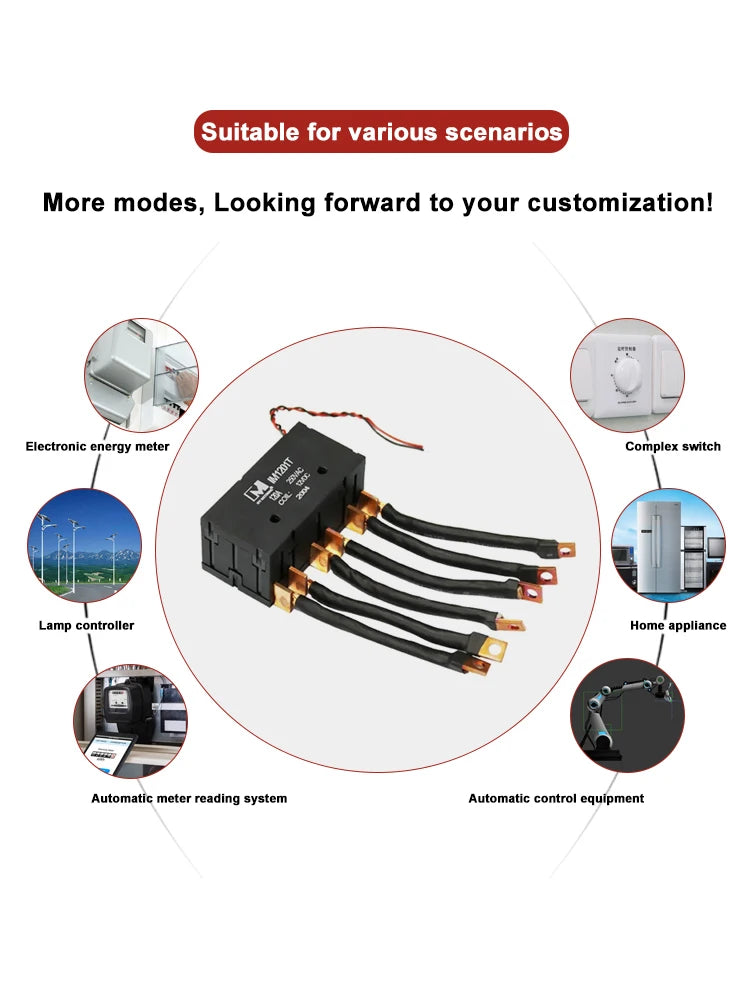

IM1201T is a 120a three phase latching relay. Wide Application for Energy Meter, EV Charger, Power Distribution Cabinet, IOT Device, Industrial Control etc. The three phase relay switch has the following characteristics:

Switching Capacity 120A, 250VAC; Single/Dual Coil Optional

3 Channel Contact, 3 Way Control (3A/3B)

CT Assembled, Low Consumption, Pulse Driving, Environment-friendly

RoHS Compliant and UC3 certified

Dielectric Strength of 4kV; Cost Efficiency & Surge Protection;

External Shielding Case Available;

Custom Assemblies, with Integrated Shunts, Flex-wire and Copper Extensions and Brass Terminals
