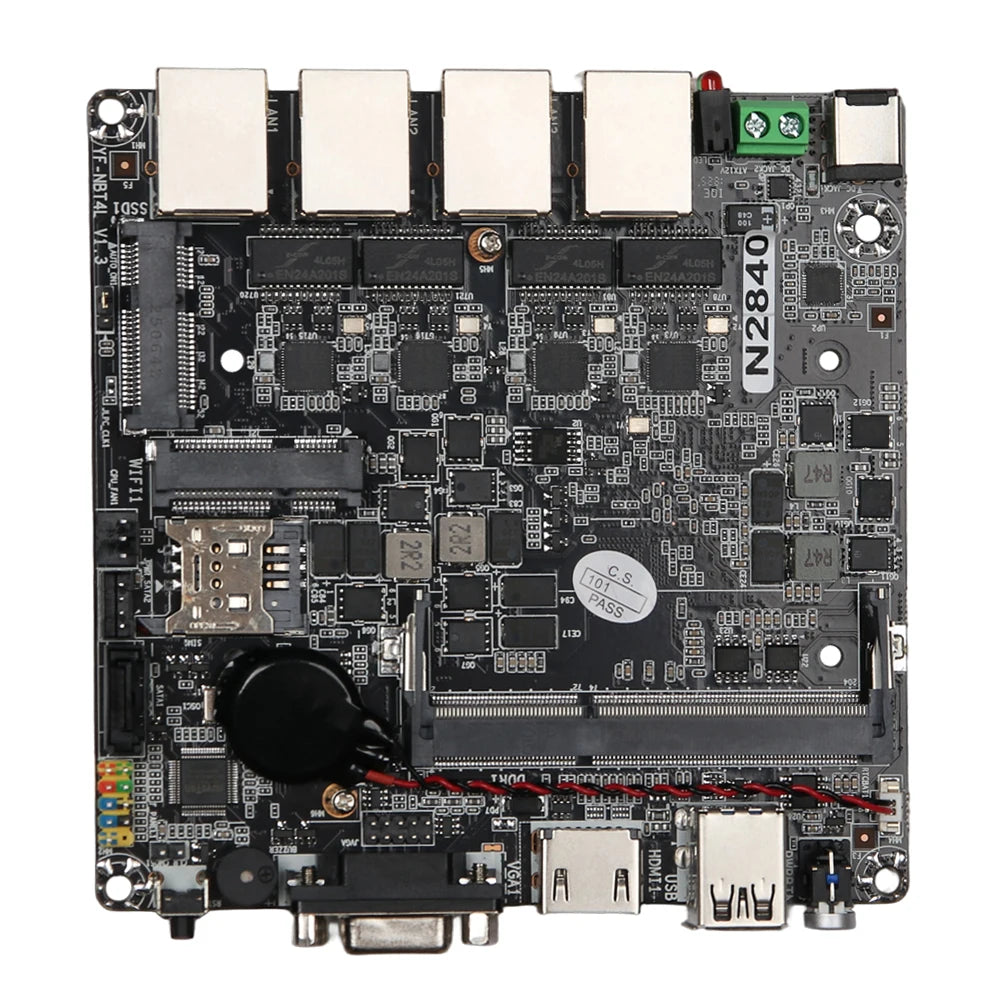

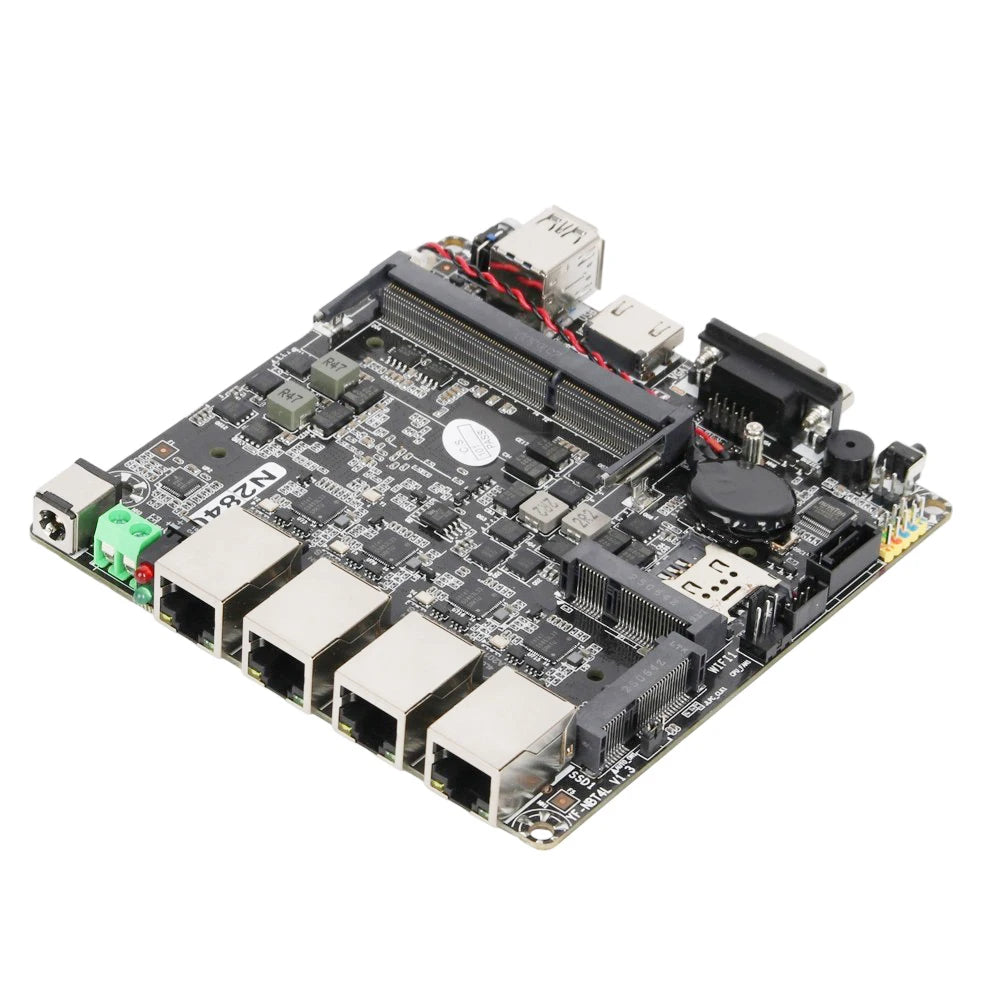

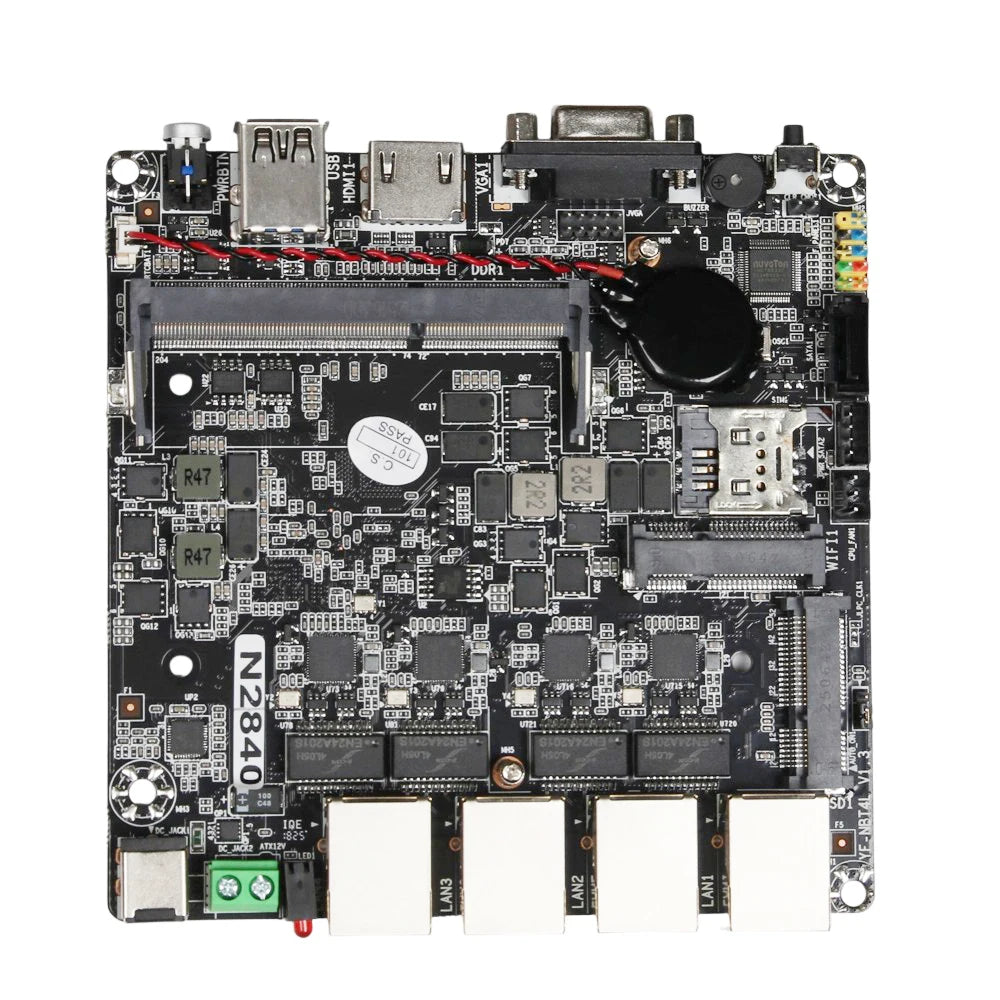

120x120mm Mini ITX X86 PC Motherboard intel Celeron N2830 CPU 4x 2.5G Ethernet HDMI VGA 2xUSB Mini PICE SIM Slot SATA mSATA
Default Title
$235.71
Sale price
$235.71
Regular price
$0.00
Skip to product information
120x120mm Mini ITX X86 PC Motherboard intel Celeron N2830 CPU 4x 2.5G Ethernet HDMI VGA 2xUSB Mini PICE SIM Slot SATA mSATA
$235.71
Sale price
$235.71
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: XCY
Certification: CE,FCC
Graphics Card Type: Integrated Card
Hard Drive: Excluded
Hard Drive Capacity: ≤ 40 GB
High-concerned chemical: none
Memory: Excluded
Memory Capacity: ≥ 4GB
Model Number: XCY
Origin: Mainland China
Processor Brand: Intel
Processor Main Frequency: 2.41GHz
Processor Model: intel Celeron N2830
Type: Mini Desktop,Mini PC
Use: Household
Specifications:

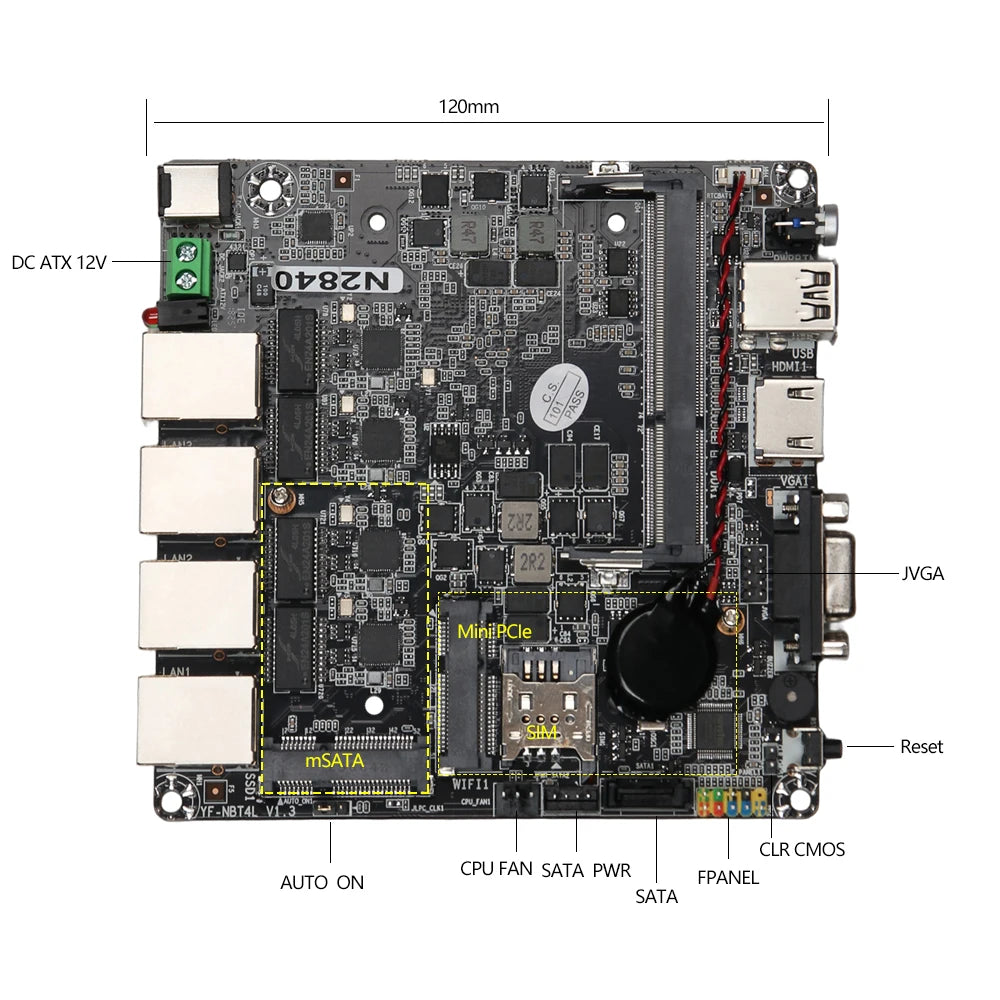

Model |
YF-NBT4L N2830 |
Processor On-board |
Intel Celeron N2830, 1M Cache, 2 cores 2 threads, 2.16GHz, up to 2.41GHz |
Memory Support |
1 slot SODIMM-DDR3L 1.35V RAM, max 8GB |
Hard Drives Support |
1x mSATA SSD, 1x 2.5 inch SATA HDD/SSD |
Ethernet |
4x intel i225V or i226V 2.5G Ethernet |
Mini PCIe Slot |
1x Mini PCI-E full height size slot for WiFi/Bluetooth/3G/4G LTE modules |
AUTO ON |
1x Auto On Header to control automatically power on after power loss |
CLR CMOS |
1x Clear CMOS Header |
CPU Fan |
1x 3 Pins CPU fan header |
SATA |
1x SATA2.0, 1x SATA PWR 4 pins |
JVGA |
1x VGA header |
FPANEL |
1x FPANEL to control power switch |
Features |
Support WOL, PXE, Automatically power on after power loss |
OS Support |
Windows7/10, Linux, Ubuntu, CENTOS, EXSI, Pfsense, OPNsense, OpenWrt, Debian |

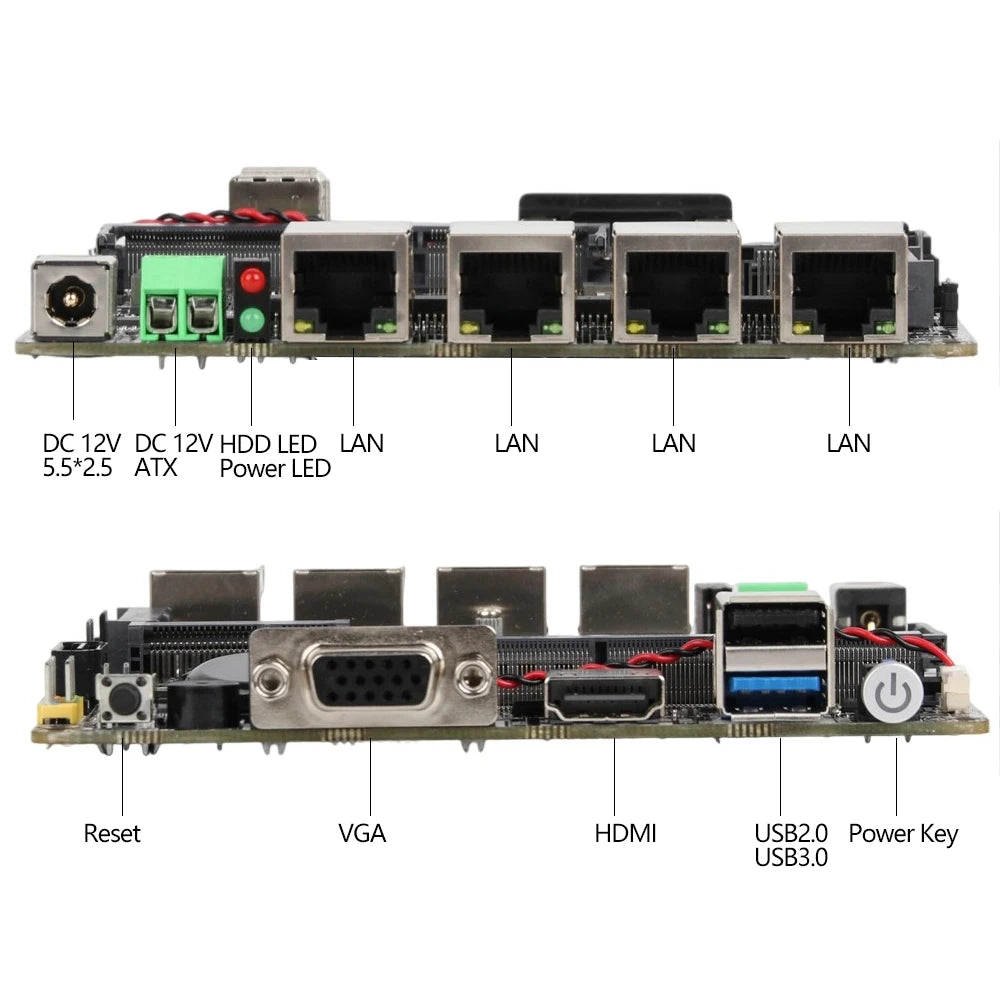

USB Ports |
1x USB2.0, 1x USB3.0 |
Display Port |
1x VGA, 1x HDMI |
Dimension |
120x120x20mm |
DC JACK 1 |
DC12V-3A to 5A |
DC JACK 2 |
1x 2 Pins ATX 12V Terminal with screws lock |
RST |
1x Reset Button |
Power Key |
1x Power KEY |
Package List |
1x Motherboard |
1x SATA conenction cable | |
1x bag of fixing screws |
